Adjustable Height Aluminum Gantry Cranes with V-Groove
Casters

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

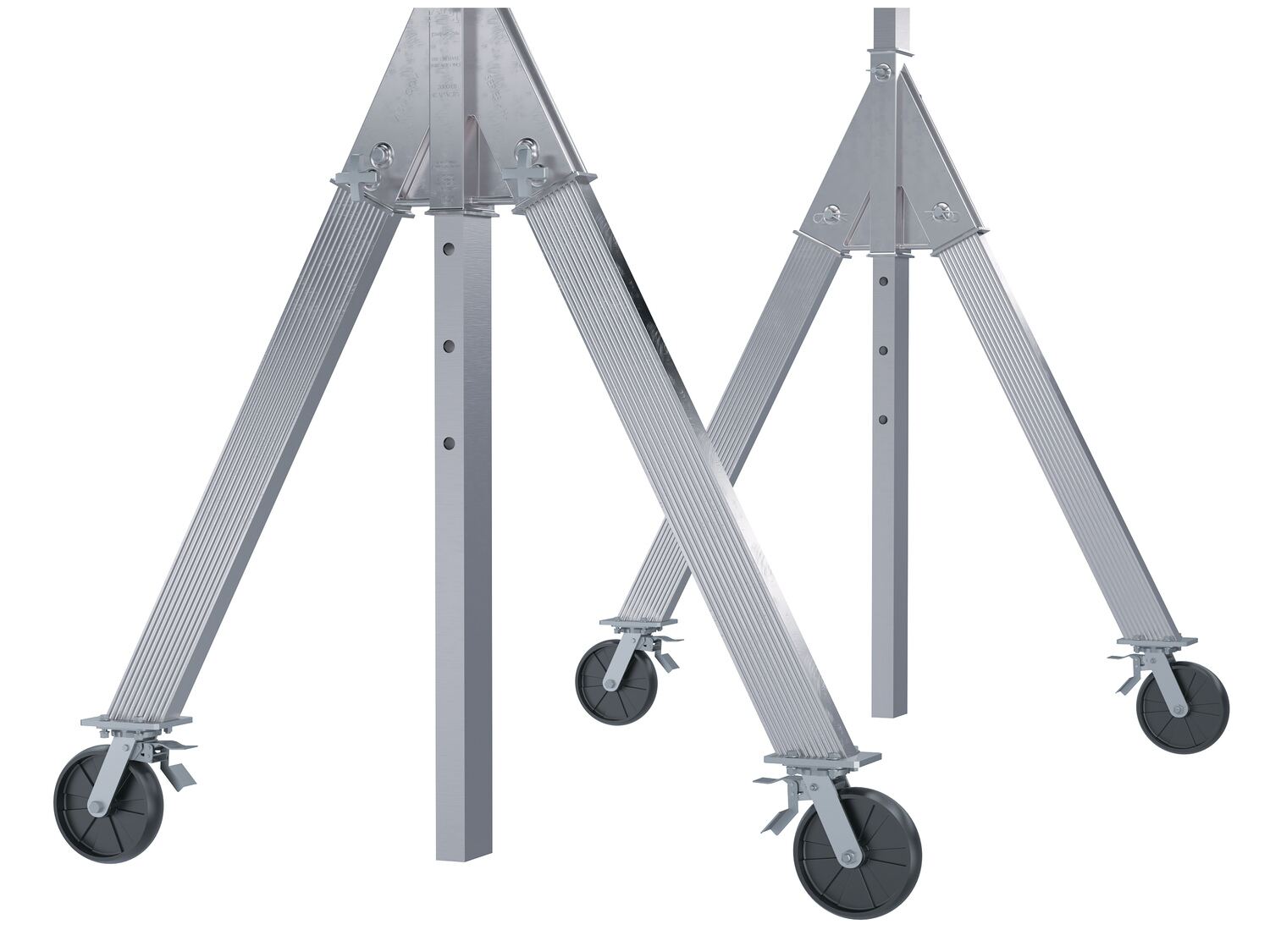

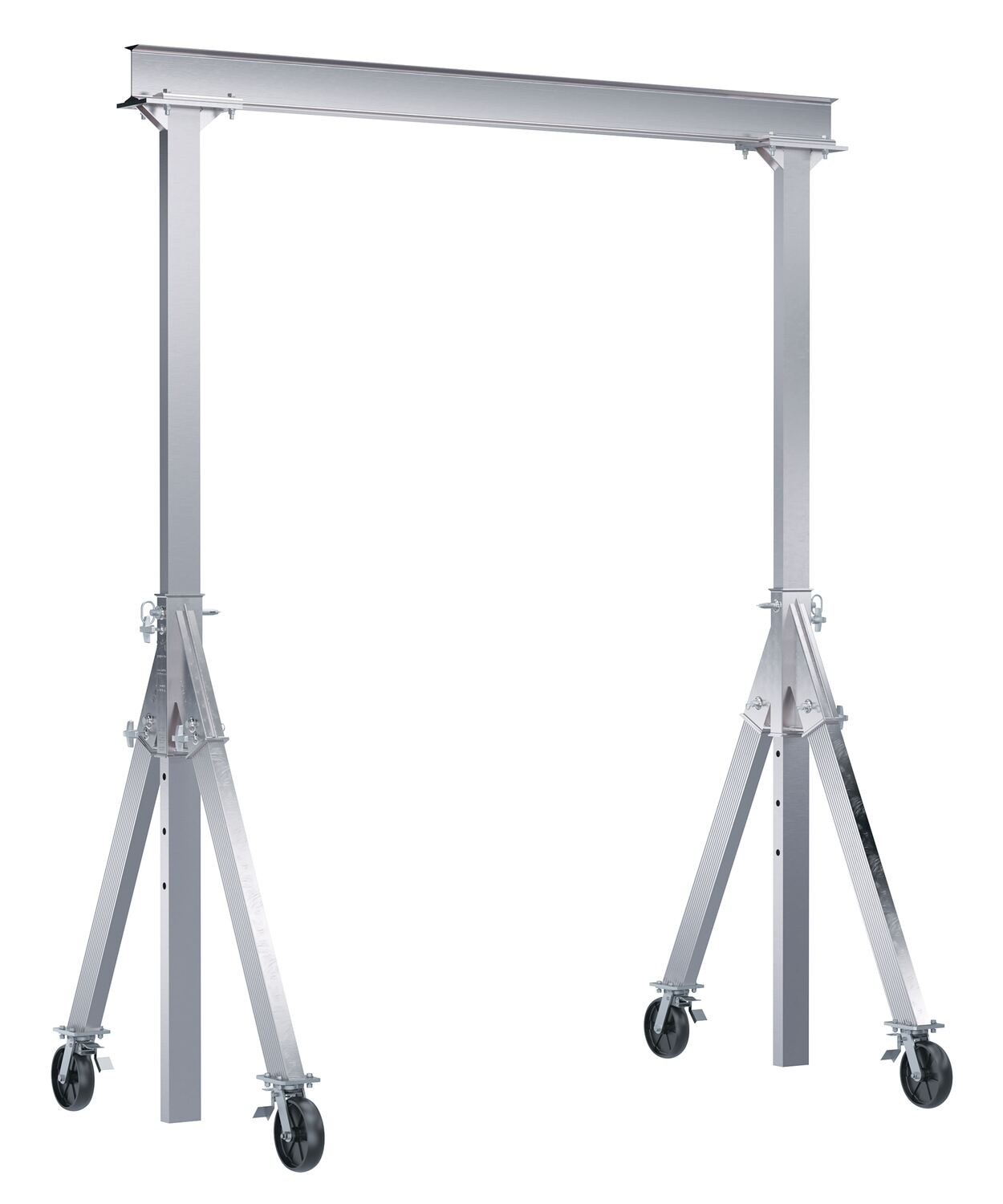

AHA-2-15-10-TLC_A.jpg AHA-2-15-10-TLC_B.jpg
Adjustable Height Aluminum Gantry Cranes with V-Groove Casters

model: AHA-2-15-10-TLC



Adjustable Height Aluminum Gantry Cranes with V-Groove Casters

model: AHA-2-15-10-TLC

Featured Overhead Lifting


Portable Jib Cranes
Polyester Lifting Slings - Double Ply
Fixed Height Aluminum Gantry Cranes
Electric Powered Floor Cranes
Heavy Duty Load Lifter
Crane Scales
Adjustable Steel Gantry Cranes with Pneumatic Casters
Square Bar Stock Lifter

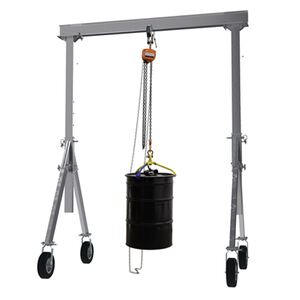

Adjustable Height Aluminum Gantry Cranes with Pneumatic Casters
model chart

Product Family Overview

Print Friendly

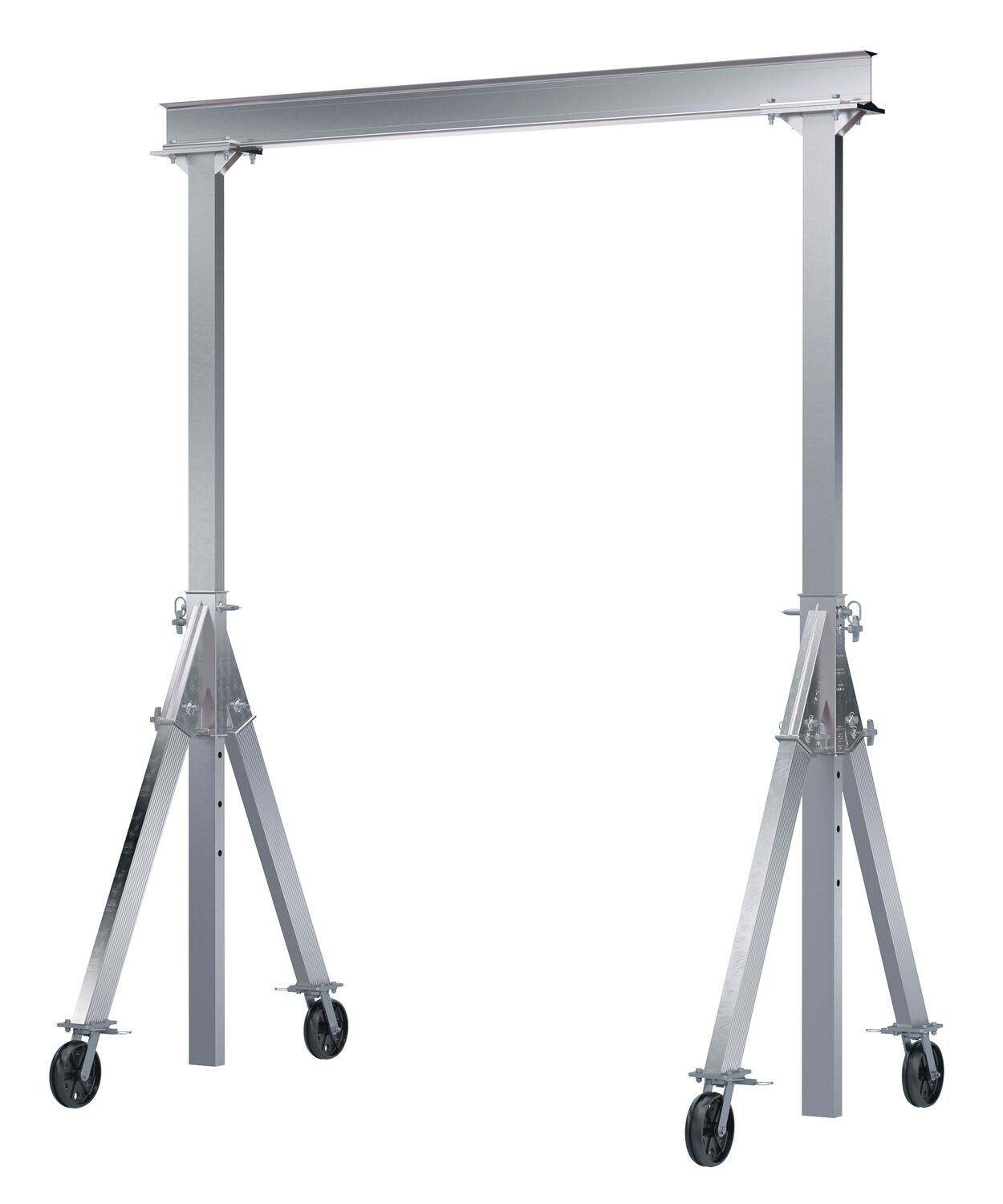

Adjustable Height Aluminum Gantry Cranes with V-Groove Casters
SERIES: AHA-VG

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Other Gantry Cranes

 Adjustable Steel Gantry Cranes with V-Groove Casters - Knockdown Adjustable Steel Gantry Cranes - Knockdown Adjustable Steel Gantry Cranes Fixed Steel Gantry Cranes

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AHA-2-10-10-VG AHA-2-10-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		258
AHA-2-10-12-VG AHA-2-10-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		261
AHA-2-10-8-VG AHA-2-10-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		306
AHA-2-12-10-VG AHA-2-12-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide x 10 Ft. Max Usable Height Wide 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		329
AHA-2-12-12-VG AHA-2-12-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		286
AHA-2-12-8-VG AHA-2-12-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide. x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		304
AHA-2-15-10-VG AHA-2-15-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		364
AHA-2-15-12-VG AHA-2-15-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		371
AHA-2-15-8-VG AHA-2-15-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		320
AHA-2-8-10-VG AHA-2-8-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		239
AHA-2-8-12-VG AHA-2-8-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		298
AHA-2-8-8-VG AHA-2-8-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		210
AHA-4-10-10-VG AHA-4-10-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		307
AHA-4-10-12-VG AHA-4-10-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		349
AHA-4-10-8-VG AHA-4-10-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		298
AHA-4-12-10-VG AHA-4-12-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		325
AHA-4-12-12-VG AHA-4-12-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		350
AHA-4-12-8-VG AHA-4-12-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		302
AHA-4-15-10-VG AHA-4-15-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		370
AHA-4-15-12-VG AHA-4-15-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		394
AHA-4-15-8-VG AHA-4-15-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		354
AHA-4-8-10-VG AHA-4-8-10-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		298
AHA-4-8-12-VG AHA-4-8-12-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		301
AHA-4-8-8-VG AHA-4-8-8-VG1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		276

* Usable Distance Between uprights is overall I-Beam Length minus 18" -- Usable Trolley Travel length is overall I-Beam Length minus 23-3/4"

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AHA-2-10-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-10-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-10-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-12-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-12-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-12-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-15-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-15-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-15-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-8-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-8-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-2-8-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel (Qty): 4

AHA-4-10-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-10-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-10-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-12-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-12-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-12-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-15-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-15-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-15-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-8-10-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-8-12-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4

AHA-4-8-8-VG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel (Qty): 4
For More Details of the Option Click the Red Model Button

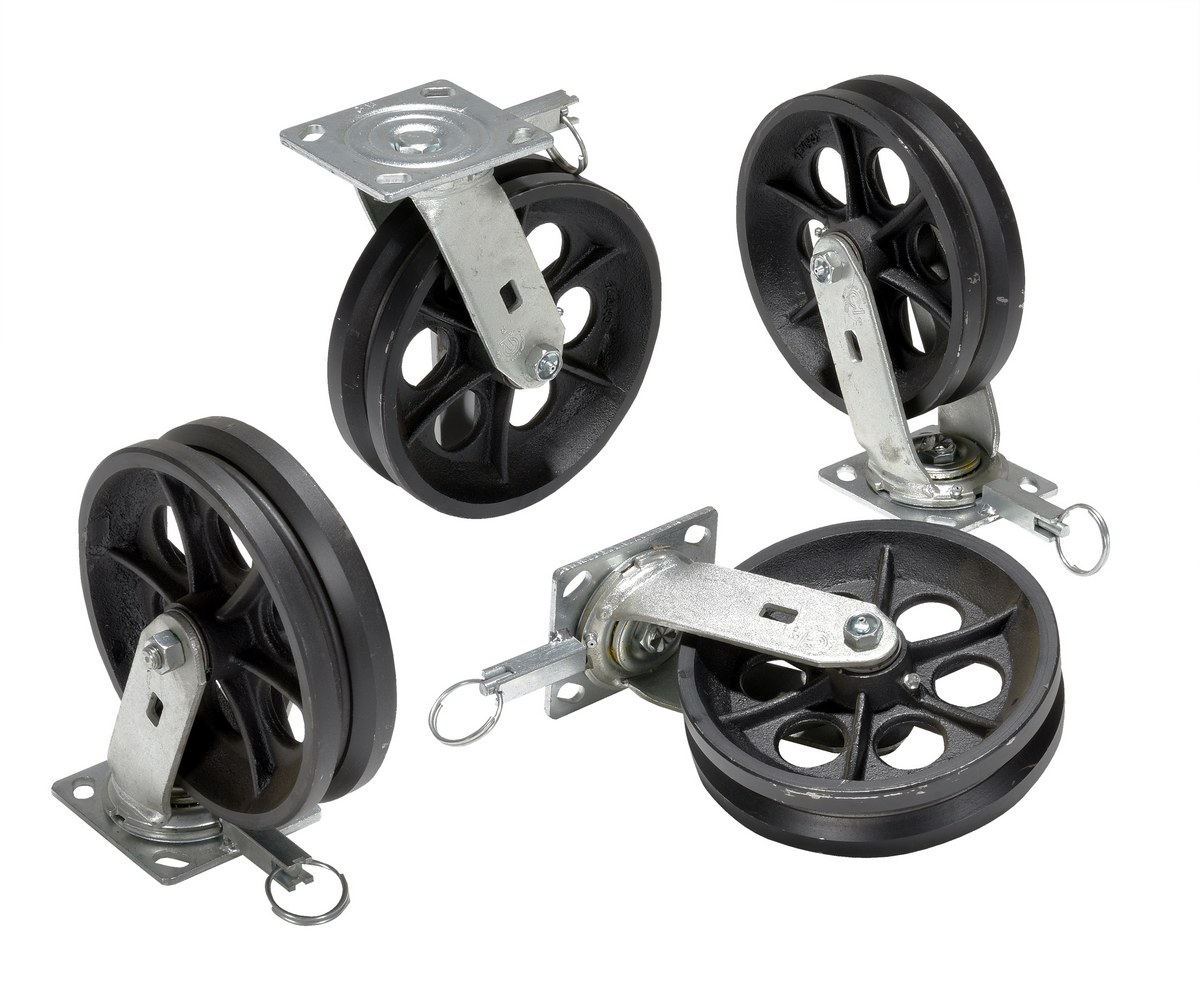

AHA-2/4-V AHA-2/4-V1 Year Limited WarrantyCast Iron Swivel V-Groove Casters 8 In. x 2 In. For Aluminum Gantry Crane ModelsCapacity (lb.): 2000/4000
Caster Material: Cast Iron		40

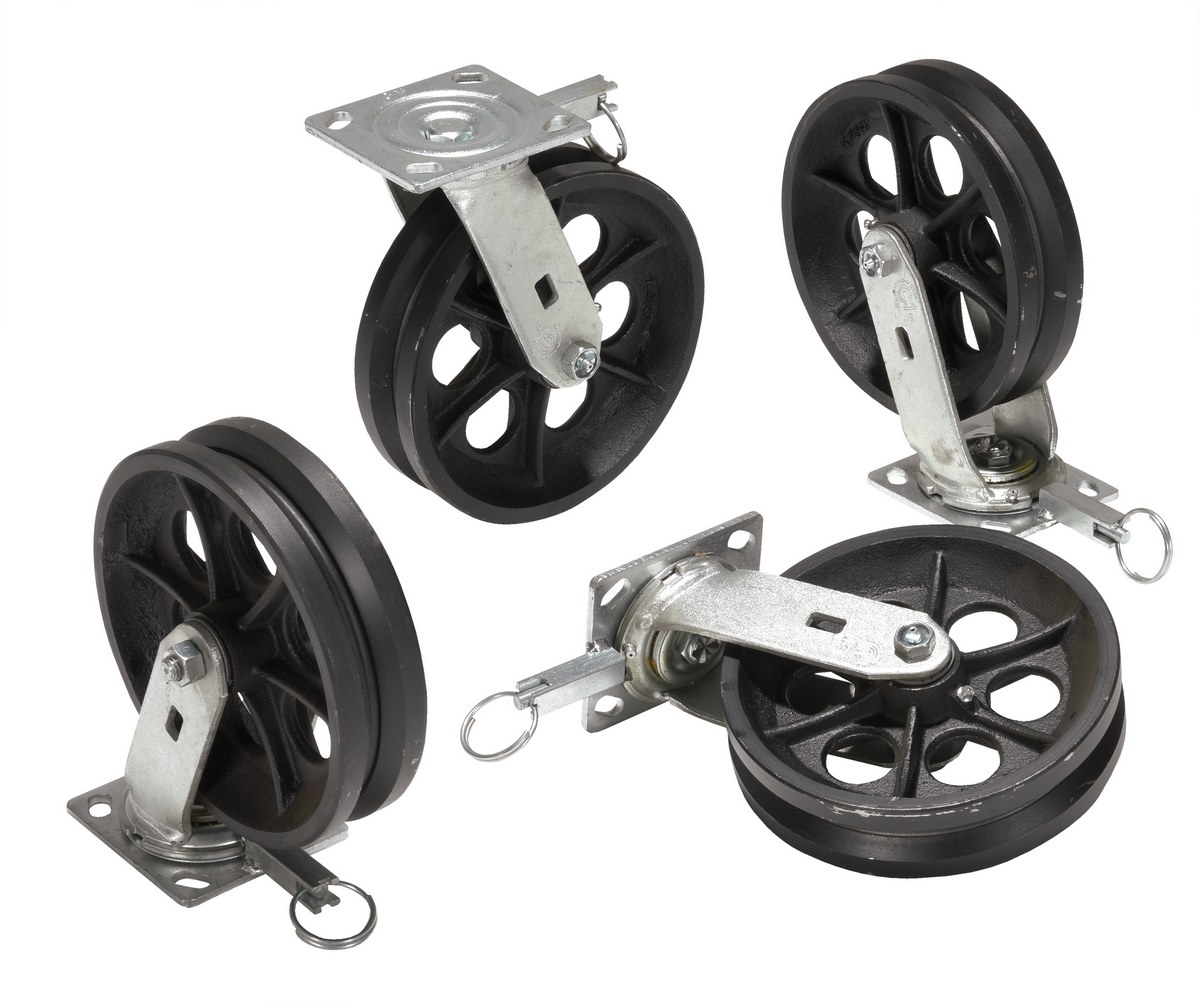

AHA-2/4-V4 AHA-2/4-V41 Year Limited WarrantyCast Iron Swivel V-Groove Casters With 4-Position Lock 8 In. x 2 In. For Aluminum Gantry Crane ModelsCapacity (lb.): 2000/4000
Caster Material: Cast Iron		42
Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg 2,000 to 4,000 lbs. capacity / standard with 3 button hand control
GPTD-4 icon_approvaldrawings.jpg 6,000 to 8,000 lbs capacity / standard with 3 button hand control
V-Track icon_approvaldrawings.jpg 10 foot section of V-groove track (one side only)
AHA-KIT icon_approvaldrawings.jpg (2) Come-A-Longs (2) Cables for height adjustment (Not for lifting)
AHA-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed)
AHA-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Adjustable Height Aluminum Gantry Cranes with V-Groove Casters PDF's will open in a new window when clicked.

Manuals


AHA
Owners Manual

Survey Sheets


AHA
Survey Sheet

Approval Drawings

No Approval Drawings For This Product

Testing Certificates


AHA-2-10-10-VG

AHA-2-10-12-VG

AHA-2-10-8-VG

AHA-2-12-10-VG

AHA-2-12-12-VG

AHA-2-12-8-VG

AHA-2-15-10-VG

AHA-2-15-12-VG

AHA-2-15-8-VG

AHA-2-8-10-VG

AHA-2-8-12-VG

AHA-2-8-8-VG

AHA-4-10-10-VG

AHA-4-10-12-VG

AHA-4-10-8-VG

AHA-4-12-10-VG

AHA-4-12-12-VG

AHA-4-12-8-VG

AHA-4-15-10-VG

AHA-4-15-12-VG

AHA-4-15-8-VG

AHA-4-8-10-VG

AHA-4-8-12-VG

AHA-4-8-8-VG

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: If we order the V-Groove system, is it possible to keep the gantry on the rail if we only have one person pushing the crane on one side?

A: We recommend pushing the gantry on both sides when re-positioning it. The V-groove options makes moving much easier.

Q: What type of aluminum is used for the AHA gantry cranes?

A: The AHA iBeams are 6061 aluminum and the frames are 6105 aluminum.




Related or Similar Products:

Adjustable Height Aluminum Gantry Cranes
Product

Adjustable Height Aluminum Gantry Cranes

Adjustable Height Aluminum Gantry Cranes with V-Groove Casters
Product

Adjustable Height Aluminum Gantry Cranes with V-Groove Casters

Adjustable Height Aluminum Gantry Cranes with Total Locking Casters
Product

Adjustable Height Aluminum Gantry Cranes with Total Locking Casters

Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option
Product

Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option

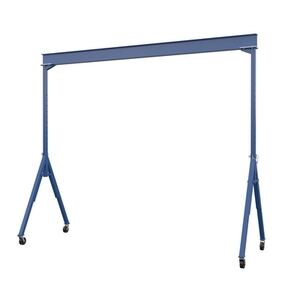

Adjustable Steel Gantry Cranes
Product

Adjustable Steel Gantry Cranes

Adjustable Steel Gantry Cranes - Knockdown
Product

Adjustable Steel Gantry Cranes - Knockdown

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Adjustable Height Aluminum Gan...




The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)
AHA-2-10-10-VG AHA-2-10-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		258
AHA-2-10-12-VG AHA-2-10-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		261
AHA-2-10-8-VG AHA-2-10-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		306
AHA-2-12-10-VG AHA-2-12-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide x 10 Ft. Max Usable Height Wide 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		329
AHA-2-12-12-VG AHA-2-12-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		286
AHA-2-12-8-VG AHA-2-12-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide. x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		304
AHA-2-15-10-VG AHA-2-15-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		364
AHA-2-15-12-VG AHA-2-15-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		371
AHA-2-15-8-VG AHA-2-15-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		320
AHA-2-8-10-VG AHA-2-8-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		239
AHA-2-8-12-VG AHA-2-8-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		298
AHA-2-8-8-VG AHA-2-8-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lbs): 2000
Casters Swivel (Qty): 4		210
AHA-4-10-10-VG AHA-4-10-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		307
AHA-4-10-12-VG AHA-4-10-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		349
AHA-4-10-8-VG AHA-4-10-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		298
AHA-4-12-10-VG AHA-4-12-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		325
AHA-4-12-12-VG AHA-4-12-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		350
AHA-4-12-8-VG AHA-4-12-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		302
AHA-4-15-10-VG AHA-4-15-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		370
AHA-4-15-12-VG AHA-4-15-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		394
AHA-4-15-8-VG AHA-4-15-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		354
AHA-4-8-10-VG AHA-4-8-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		298
AHA-4-8-12-VG AHA-4-8-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		301
AHA-4-8-8-VG AHA-4-8-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lbs): 4000
Casters Swivel (Qty): 4		276

Options


Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg 2,000 to 4,000 lbs. capacity / standard with 3 button hand control
GPTD-4 icon_approvaldrawings.jpg 6,000 to 8,000 lbs capacity / standard with 3 button hand control
V-Track icon_approvaldrawings.jpg 10 foot section of V-groove track (one side only)
AHA-KIT icon_approvaldrawings.jpg (2) Come-A-Longs (2) Cables for height adjustment (Not for lifting)
AHA-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed)
AHA-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed)

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
