Product Family Overview

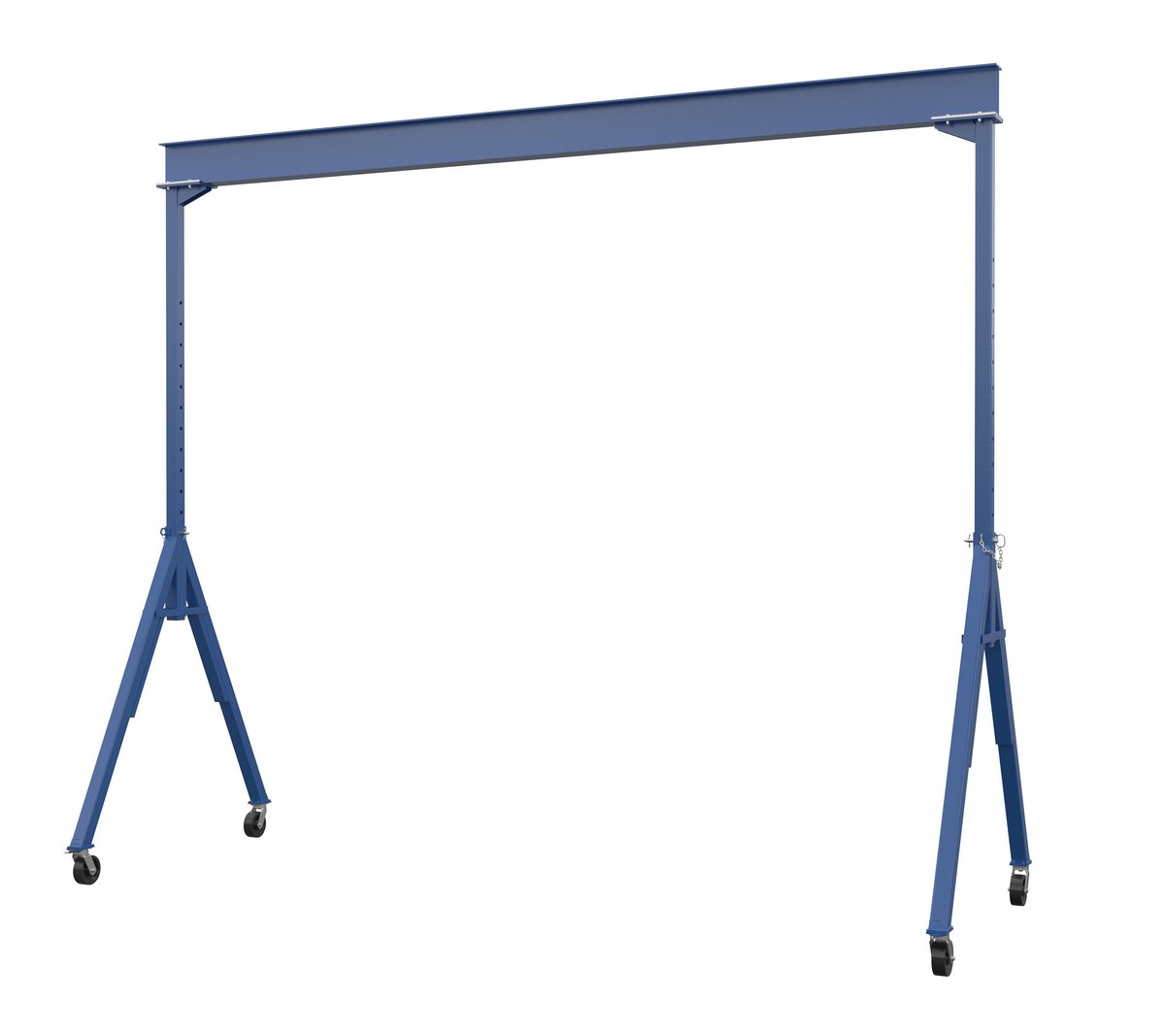

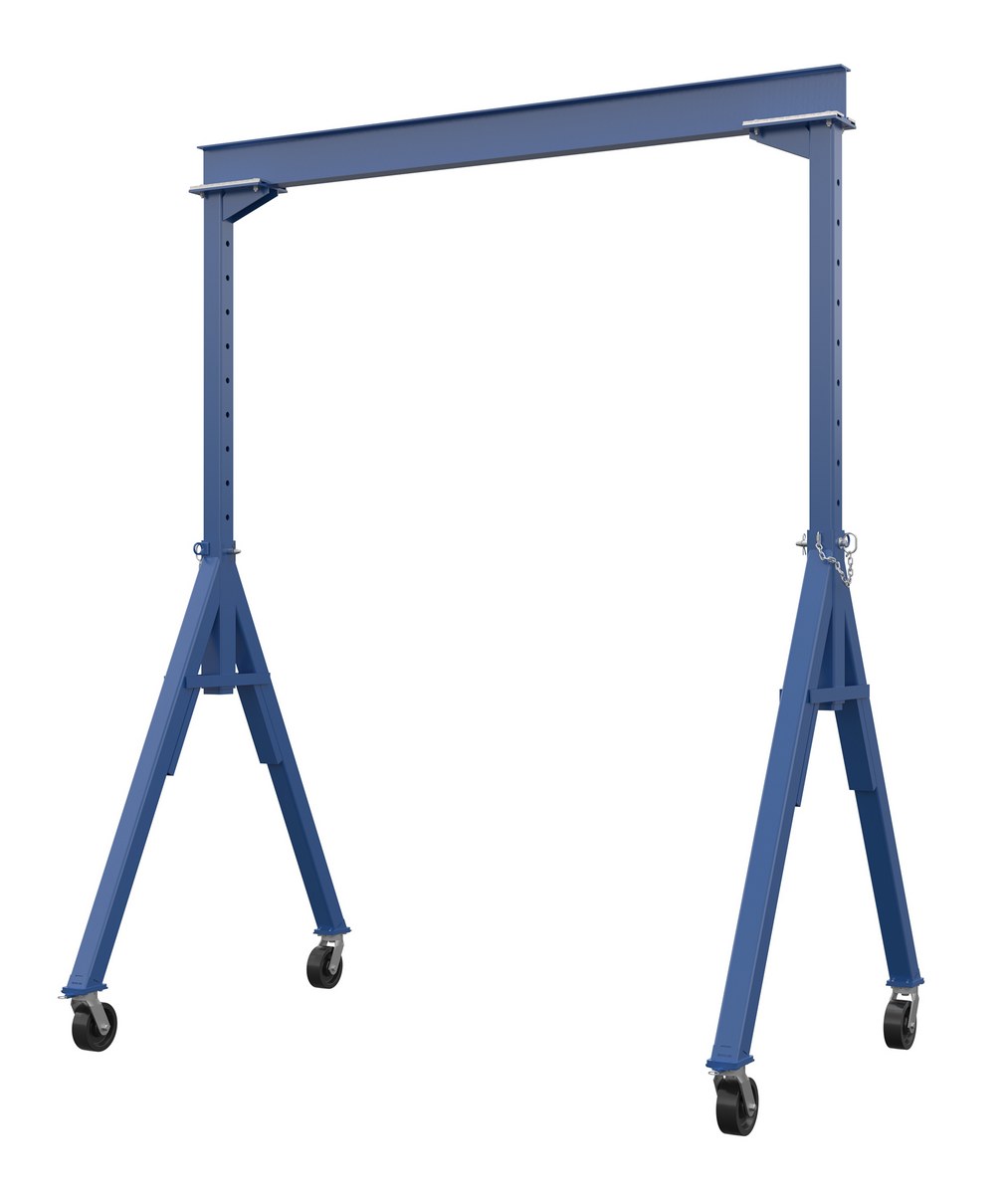

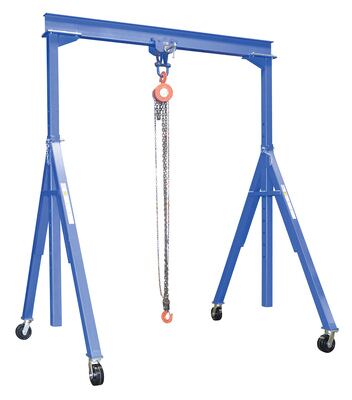

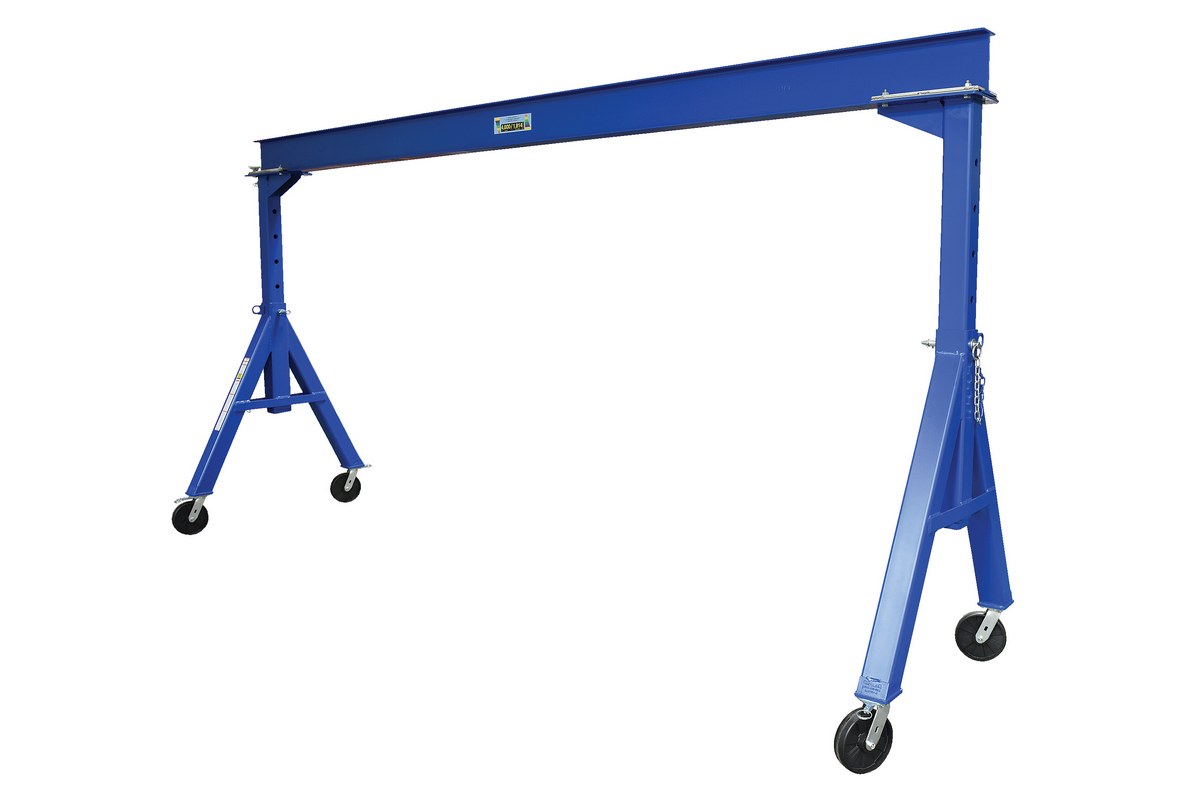

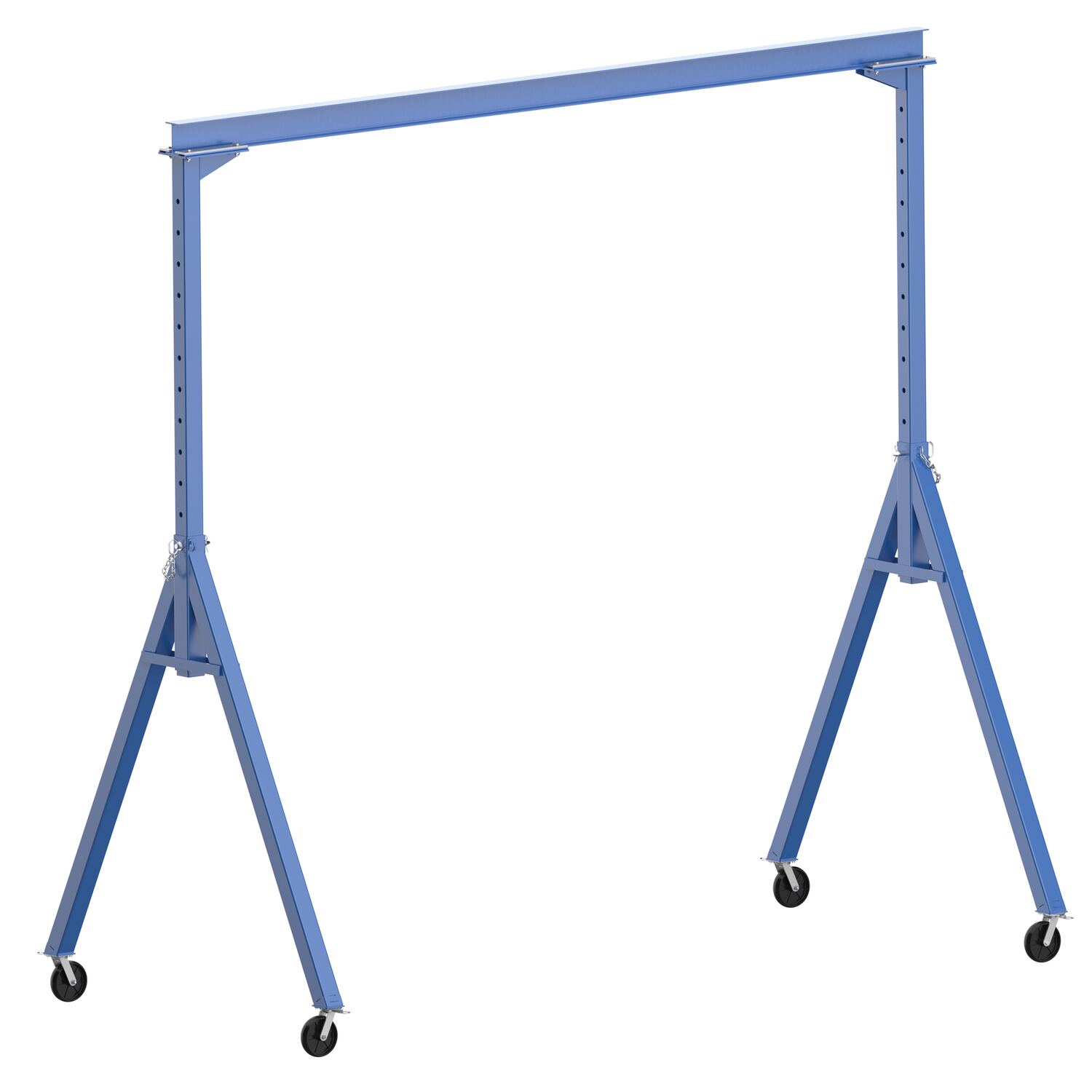

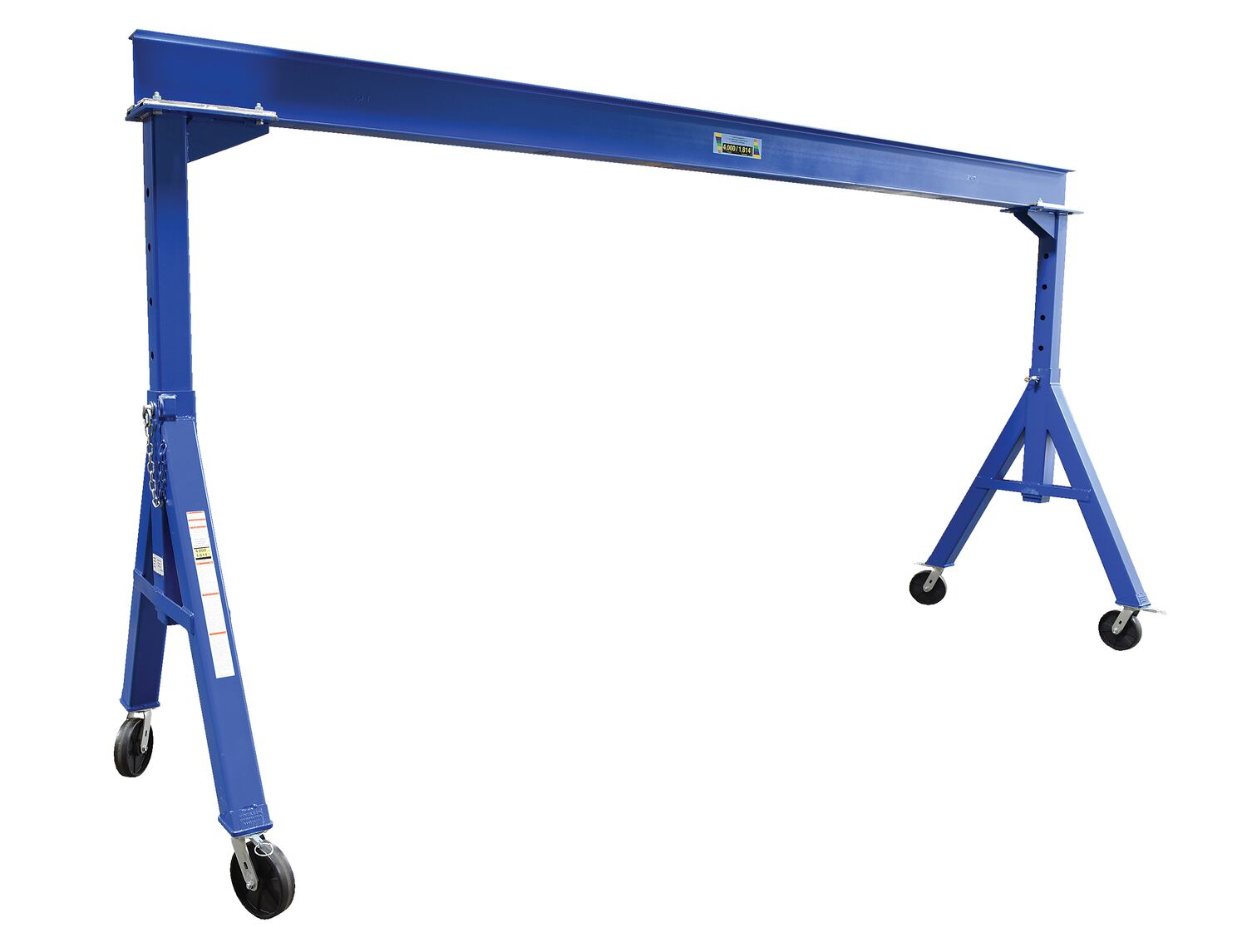

Adjustable Steel Gantry Cranes
SERIES: AHS

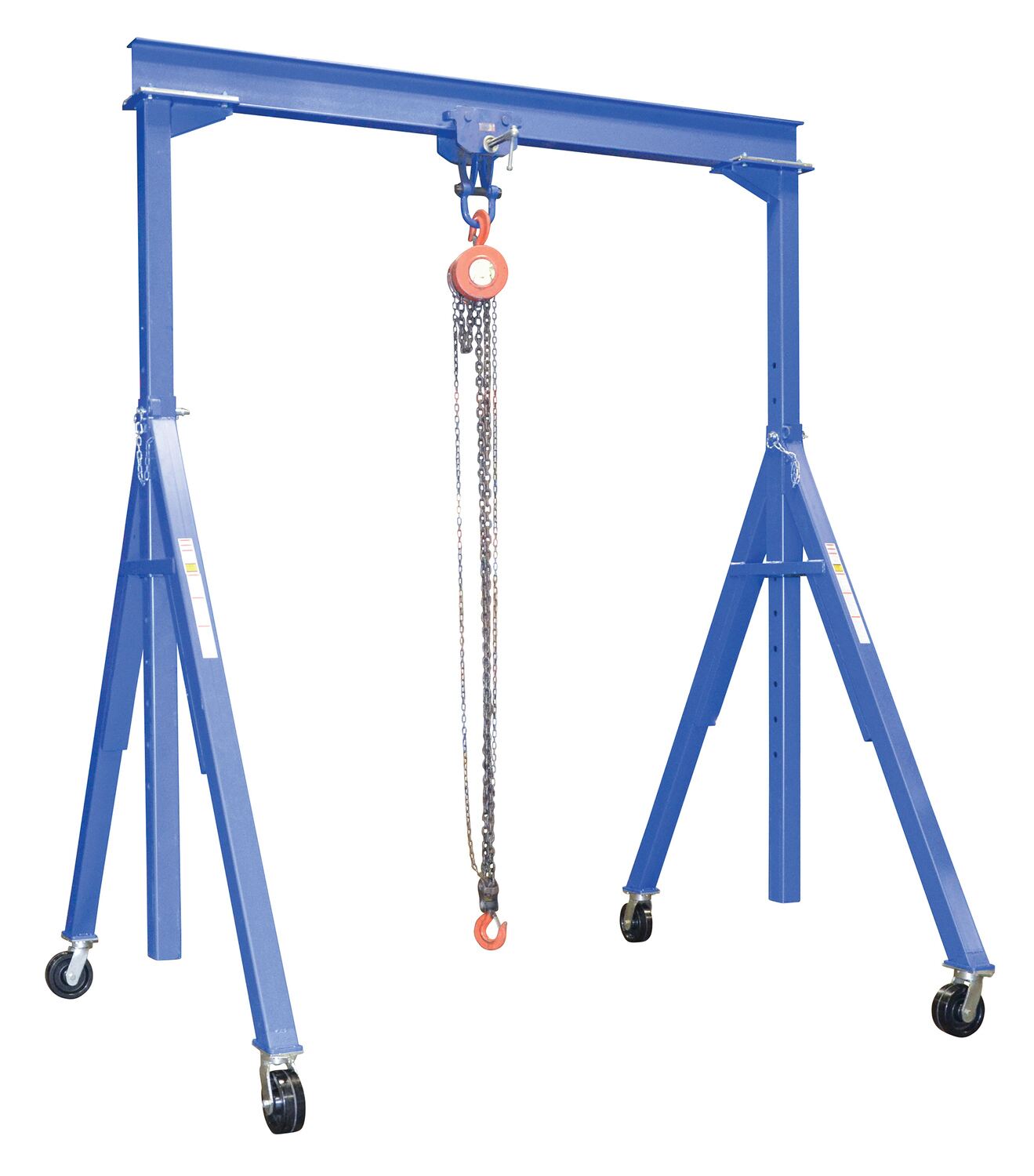

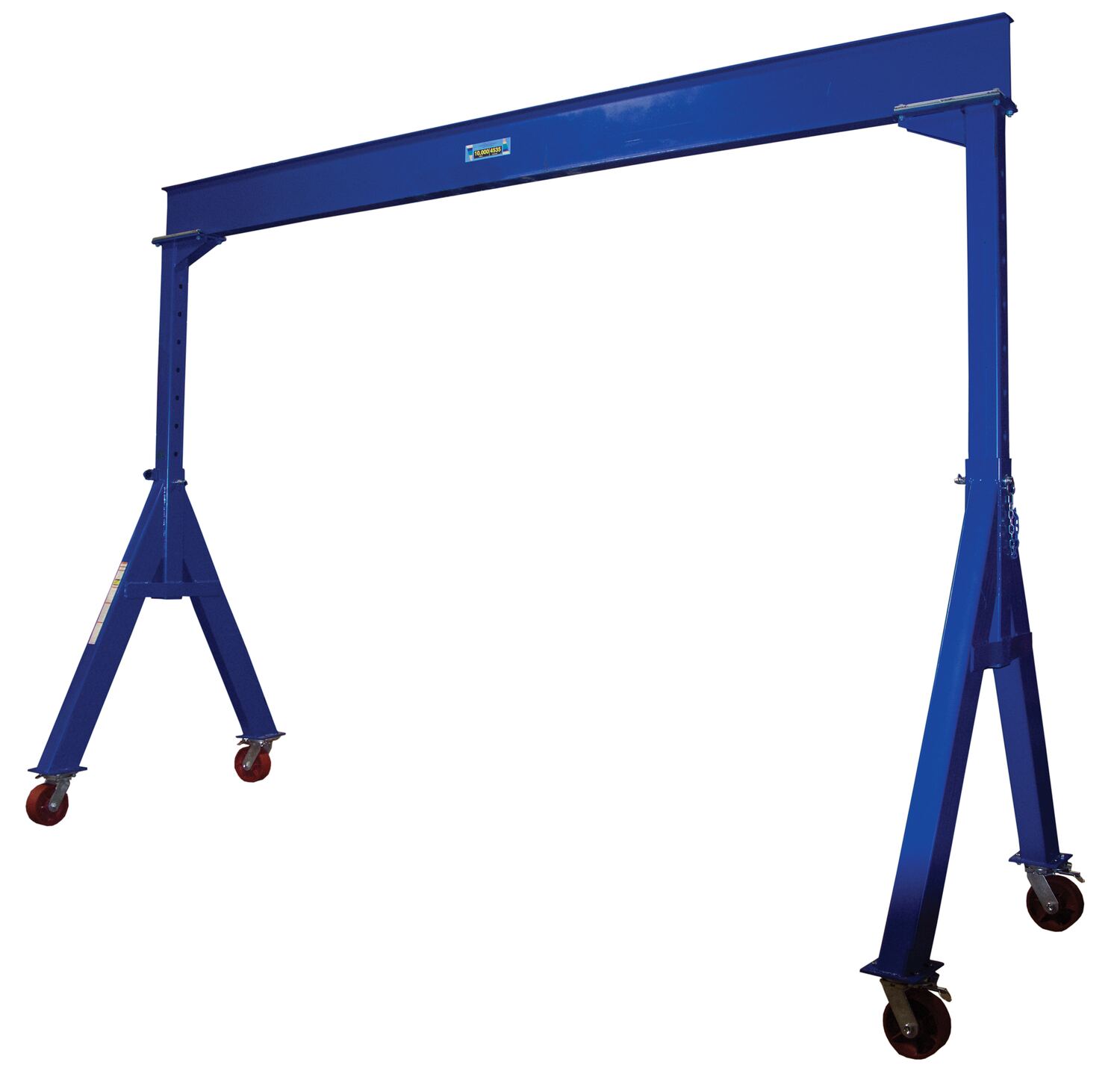

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Hoists & Trollies can be ordered separately.

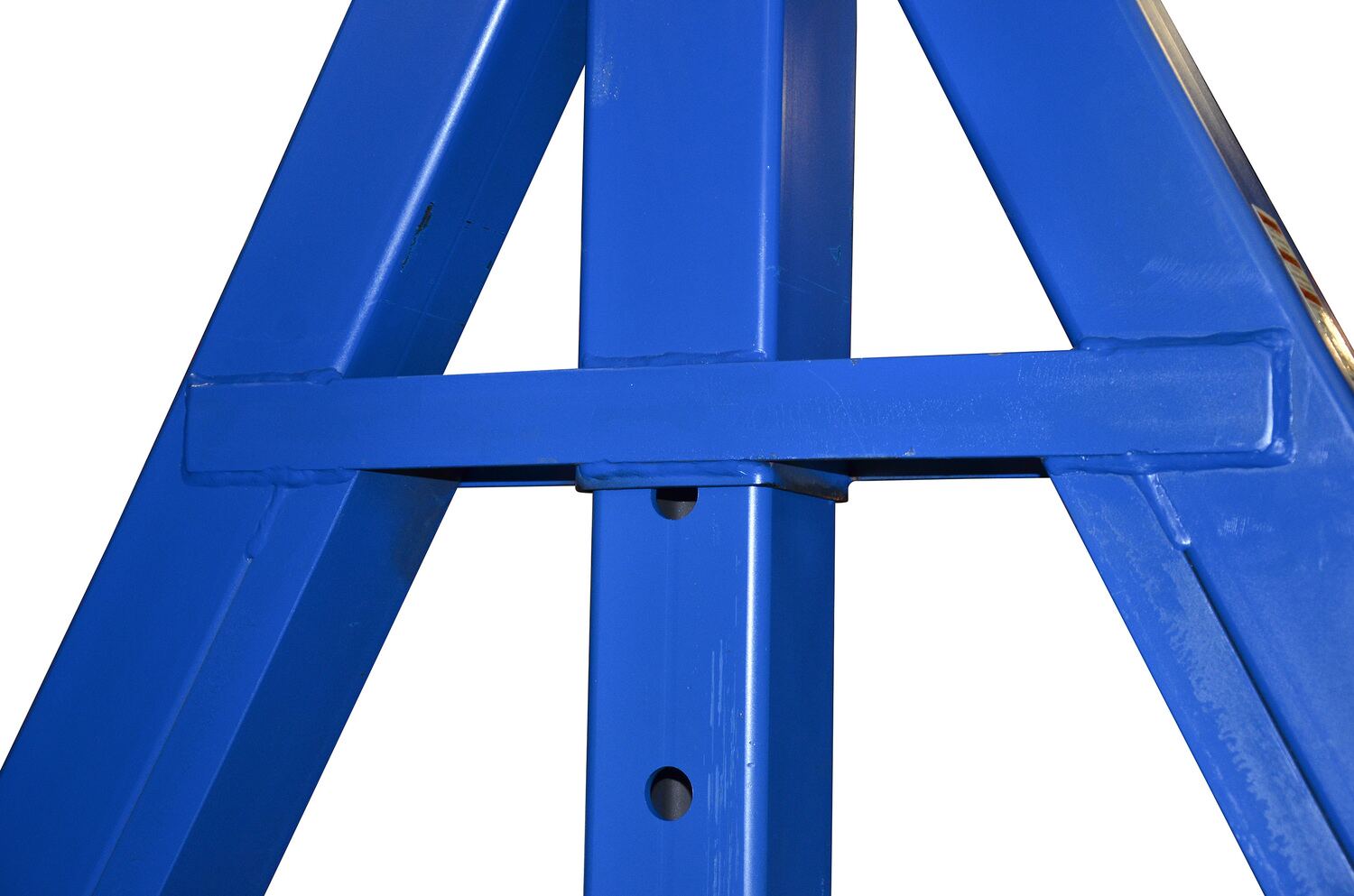

  • Heavy-duty welded steel construction for long lasting use

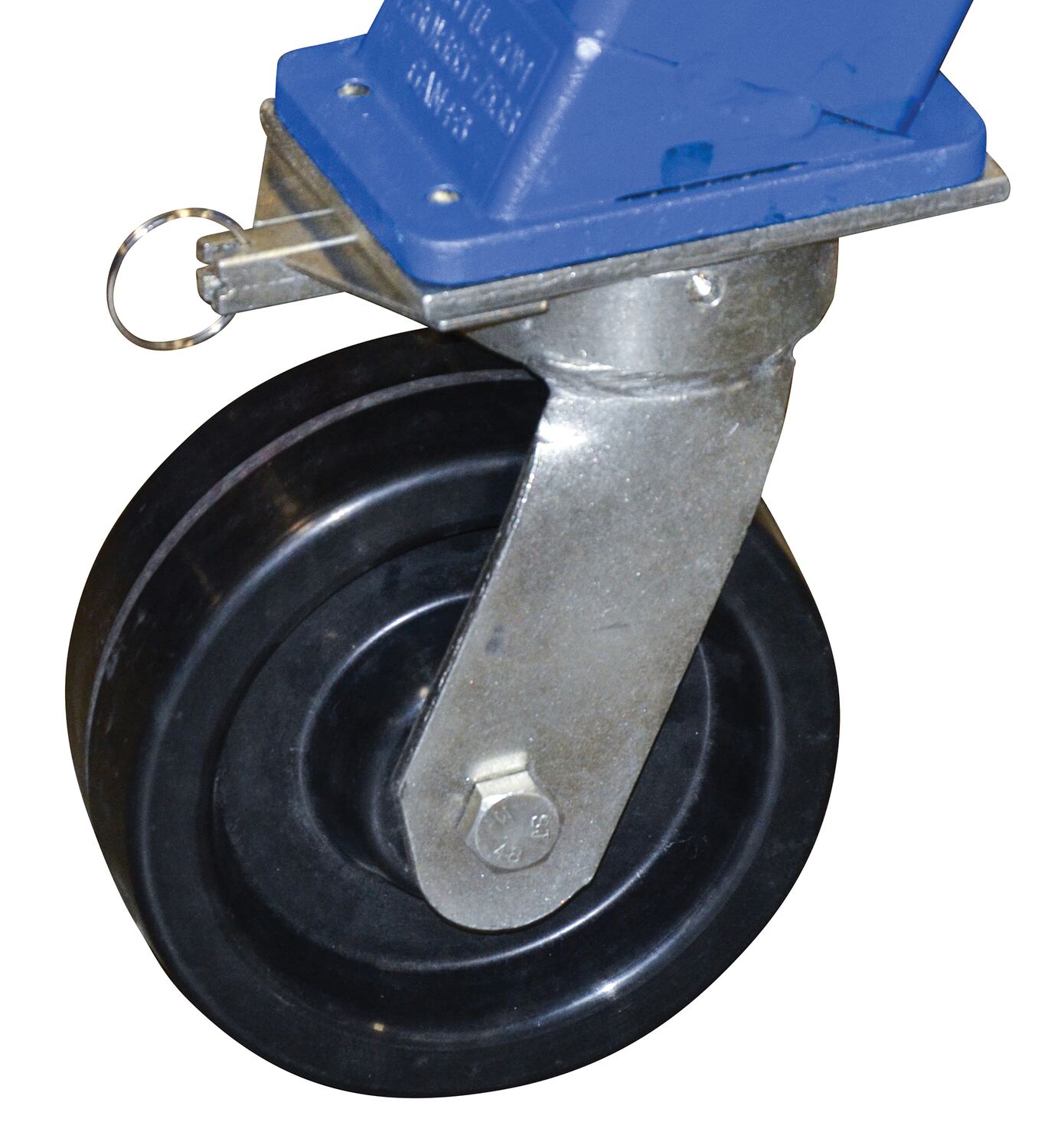

  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning

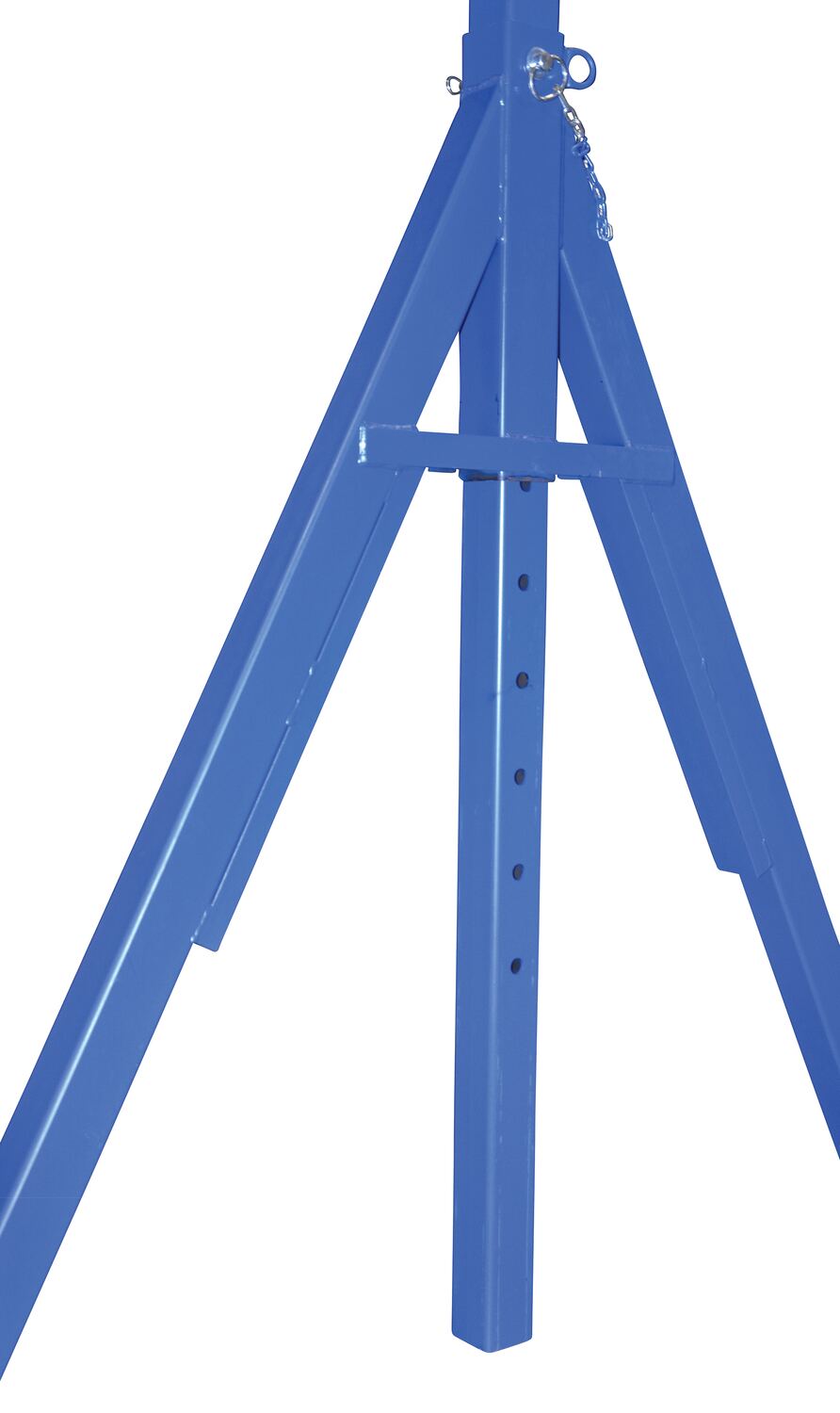

  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Hoists & Trollies can be ordered separately.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AHS-10-15-10 AHS-10-15-101 Year Limited WarrantySteel Adjustable Height Gantry Crane with Ductile Steel Casters 15 Ft. x 10 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Overall I-Beam Length (ft.): 15
21159

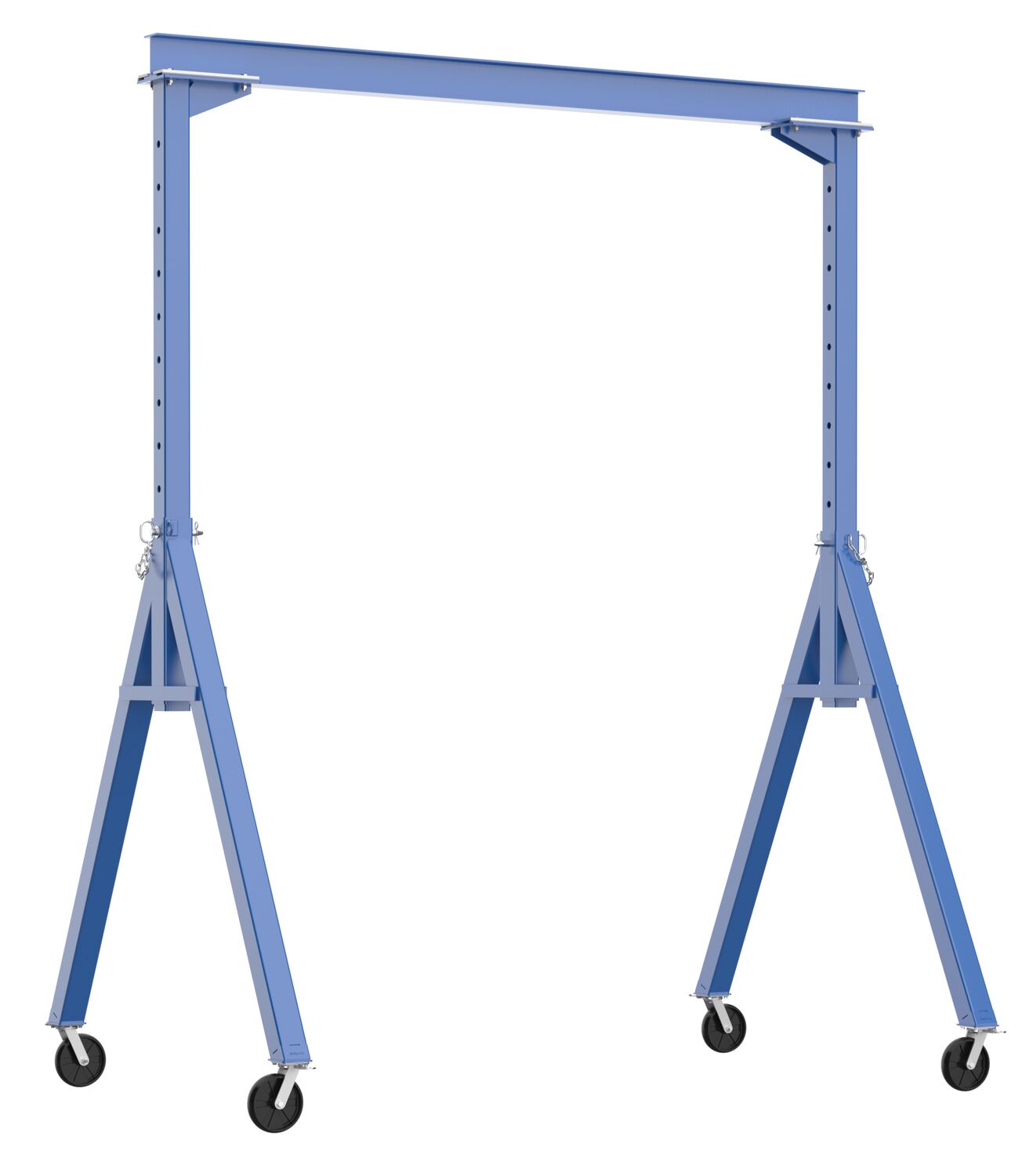

AHS-2-10-12 AHS-2-10-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 10 Ft. x 12 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
2869
AHS-2-10-14 AHS-2-10-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 10 Ft. x 14 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
2939
AHS-2-10-16 AHS-2-10-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 10 Ft. x 16 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
2971
AHS-2-15-10 AHS-2-15-101 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
2839
AHS-2-15-12 AHS-2-15-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 12 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
2936
AHS-2-15-14 AHS-2-15-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 14 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
21007
AHS-2-15-16 AHS-2-15-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 16 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
2908
AHS-2-15-7 AHS-2-15-71 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 7 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
2777
AHS-2-15-9 AHS-2-15-91 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 9 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
2835
AHS-2-20-12 AHS-2-20-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 20 Ft. x 12 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
21127

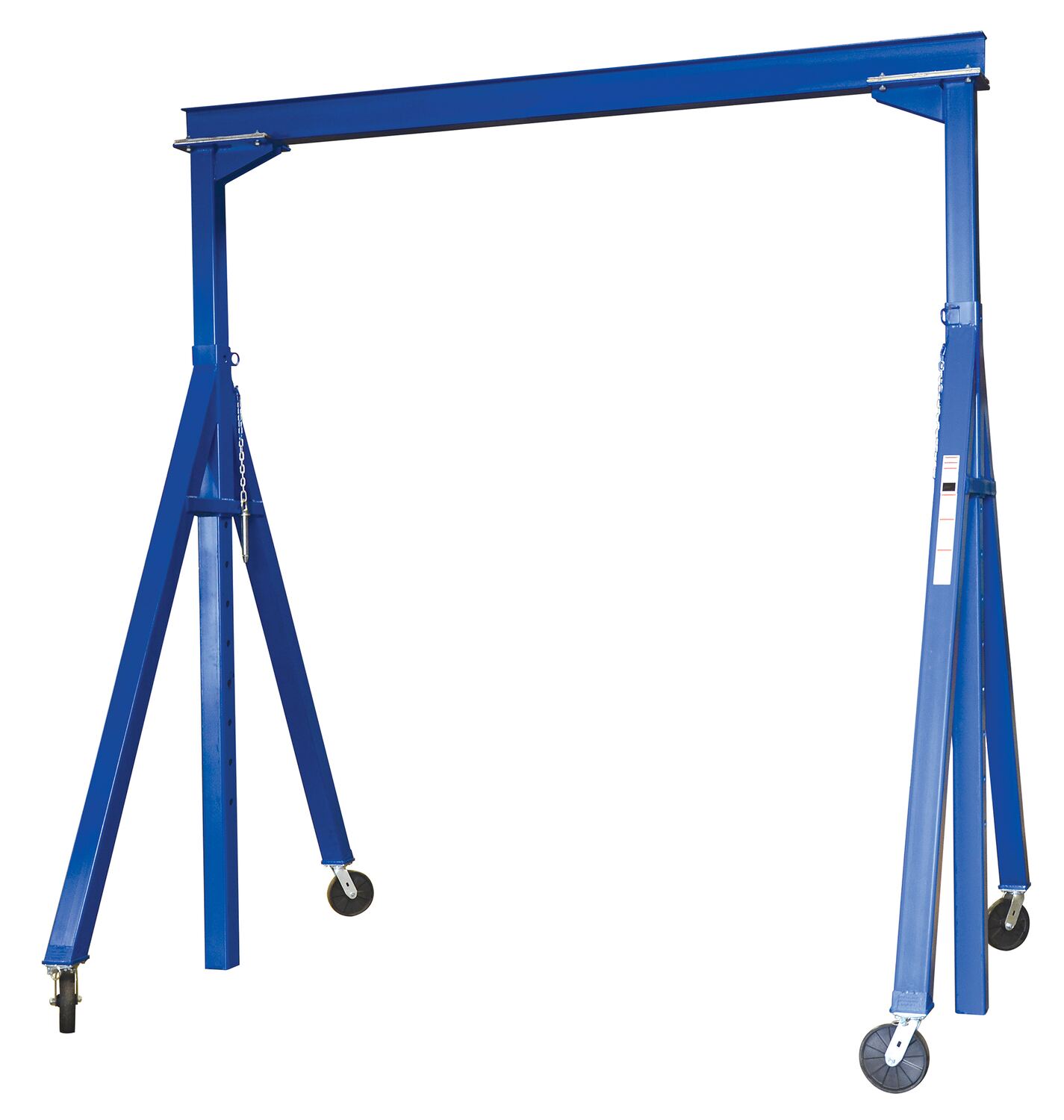

AHS-2-20-14 AHS-2-20-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 20 Ft. x 14 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
21216
AHS-2-20-16 AHS-2-20-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 20 Ft. x 16 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
21247
AHS-4-10-12 AHS-4-10-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 12 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
2901
AHS-4-10-14 AHS-4-10-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 14 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
2966
AHS-4-10-16 AHS-4-10-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 16 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
21003
AHS-4-15-10 AHS-4-15-101 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
2879
AHS-4-15-12 AHS-4-15-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 12 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
2963
AHS-4-15-14 AHS-4-15-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
21032
AHS-4-15-16 AHS-4-15-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 16 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
21101

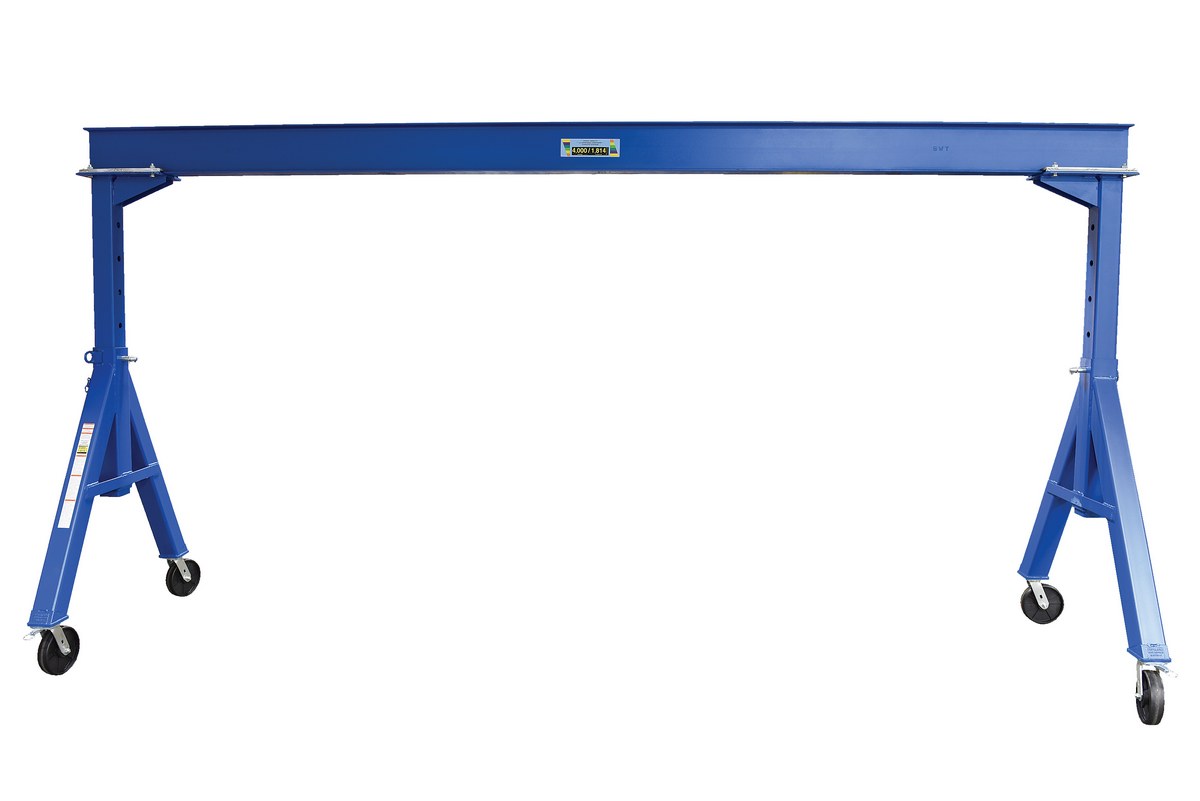

AHS-4-15-7 AHS-4-15-71 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 7 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
2772
AHS-4-15-9 AHS-4-15-91 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 9 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
2849
AHS-4-20-12 AHS-4-20-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 12 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
21075
AHS-4-20-14 AHS-4-20-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 14 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
21271

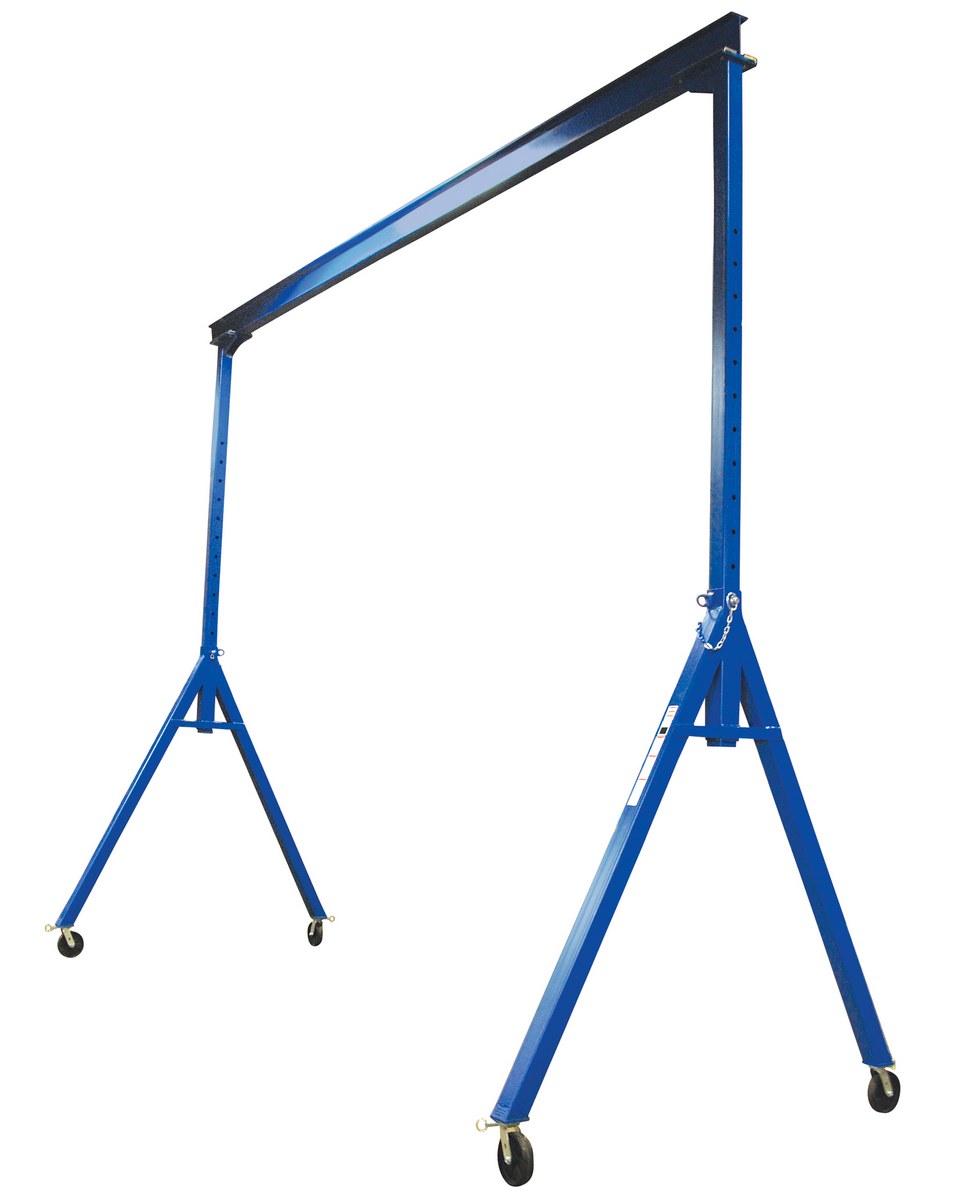

AHS-4-20-16 AHS-4-20-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
21203
AHS-6-10-12 AHS-6-10-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 12 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
2968
AHS-6-10-14 AHS-6-10-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 14 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
21086

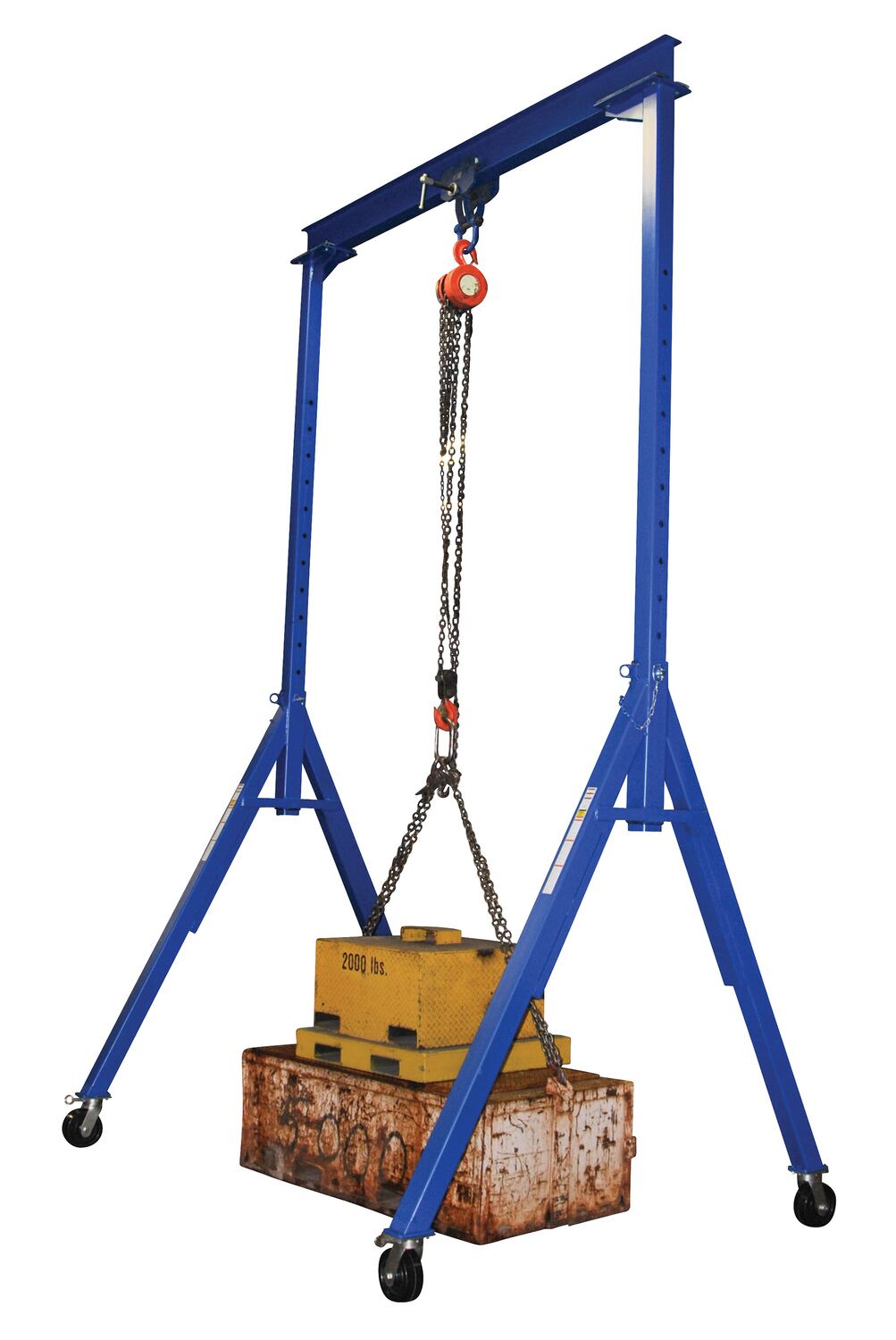

AHS-6-10-16 AHS-6-10-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 16 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
21063
AHS-6-15-10 AHS-6-15-101 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
2990
AHS-6-15-12 AHS-6-15-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 12 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
21075

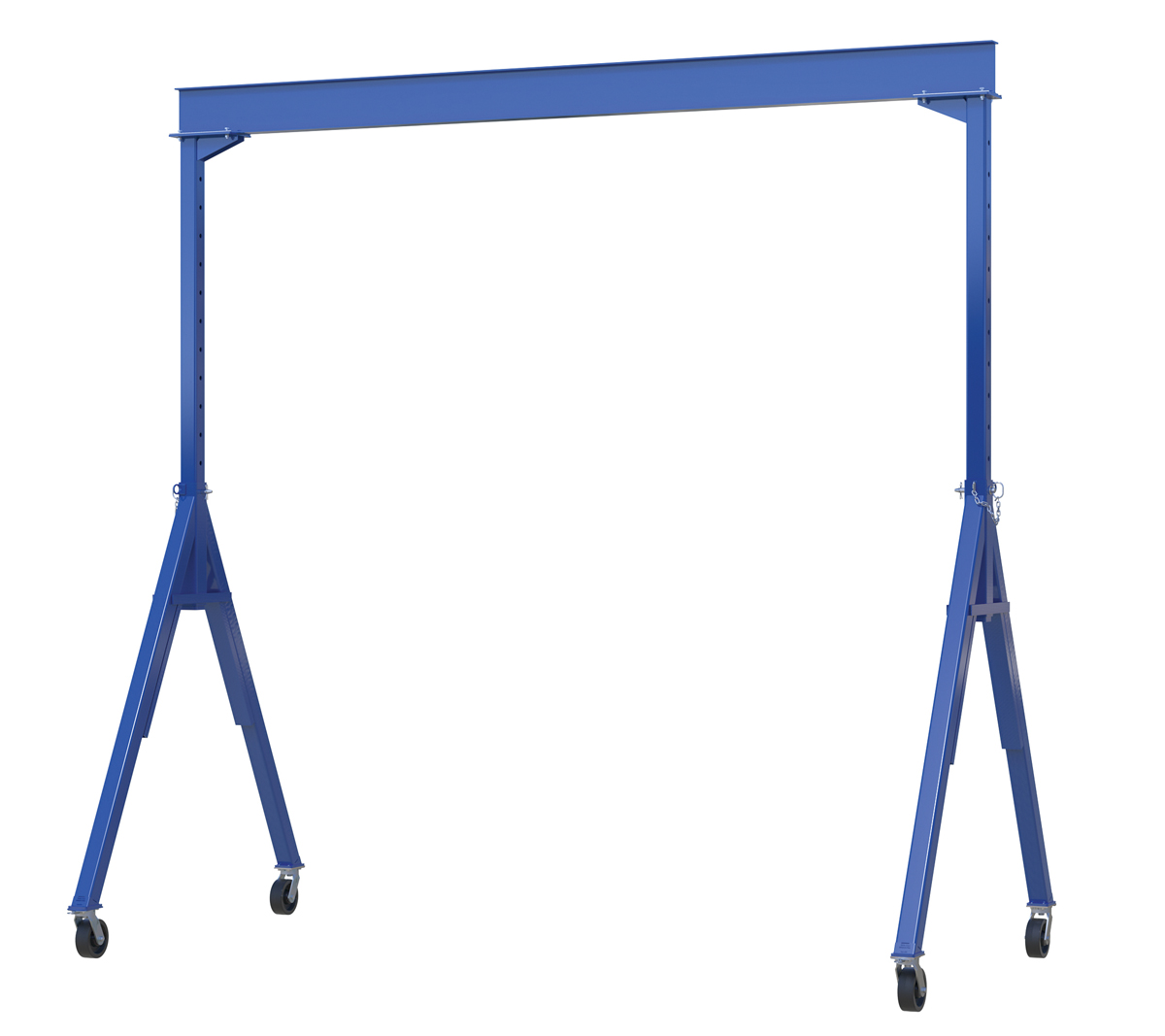

AHS-6-15-14 AHS-6-15-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
21166
AHS-6-15-16 AHS-6-15-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 16 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
21226
AHS-6-15-7 AHS-6-15-71 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 7 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
21171
AHS-6-15-9 AHS-6-15-91 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 9 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
2952
AHS-6-20-12 AHS-6-20-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 12 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
21491
AHS-6-20-14 AHS-6-20-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 14 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
21591
AHS-6-20-16 AHS-6-20-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 16 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
21610
AHS-8-10-12 AHS-8-10-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 12 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
2974
AHS-8-10-14 AHS-8-10-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 14 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
21091
AHS-8-10-16 AHS-8-10-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 16 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
21162
AHS-8-15-10 AHS-8-15-101 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
21018
AHS-8-15-12 AHS-8-15-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 12 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
21102
AHS-8-15-14 AHS-8-15-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
21180
AHS-8-15-16 AHS-8-15-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 16 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
21252
AHS-8-15-7 AHS-8-15-71 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 7 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
2862
AHS-8-15-9 AHS-8-15-91 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 9 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
2963
AHS-8-20-12 AHS-8-20-121 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 12 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
21484
AHS-8-20-14 AHS-8-20-141 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 14 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
21592

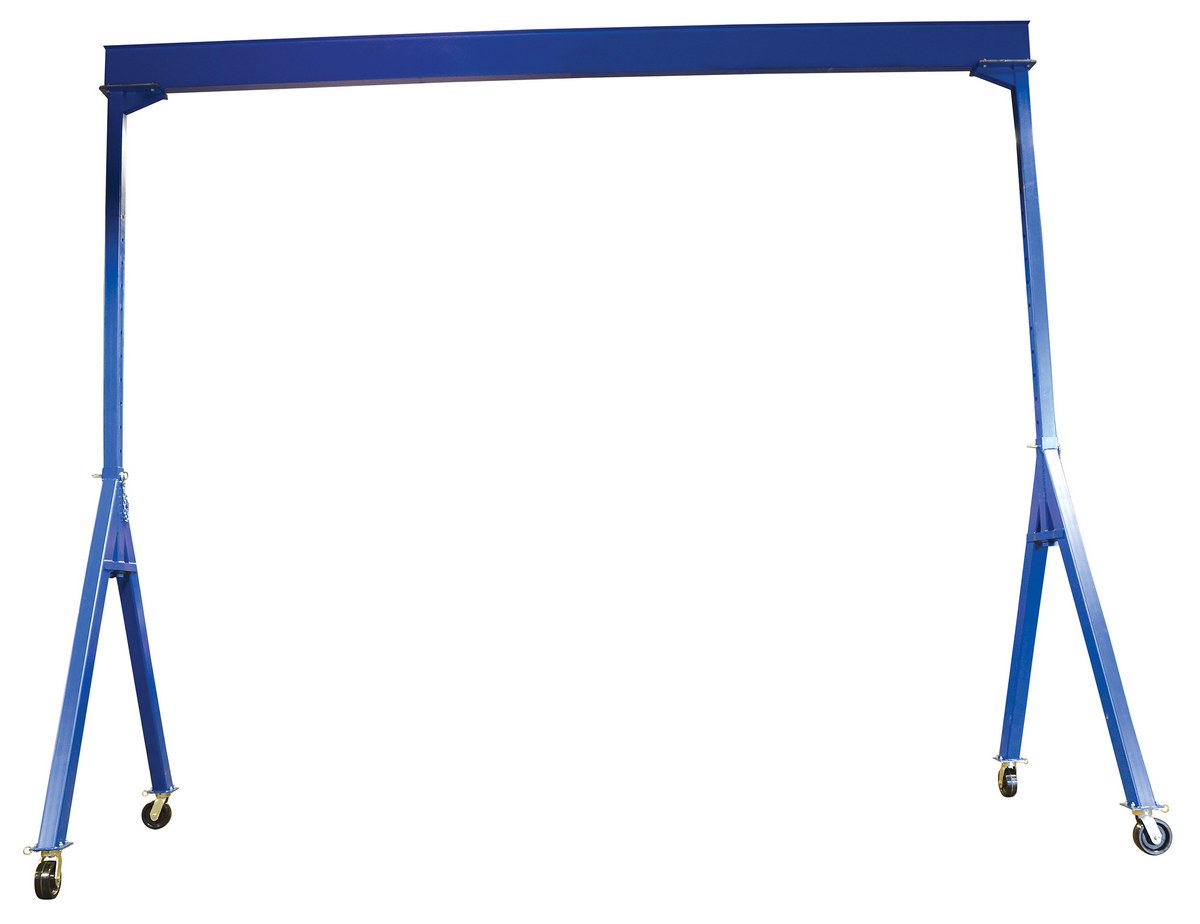

AHS-8-20-16 AHS-8-20-161 Year Limited WarrantySteel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 16 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
21660

* Usable Distance Between Uprights is Overall Beam Length Minus 12" * Usable Trolley Travel Length is Overall Beam Length Minus 30"

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AHS-10-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 10000
Overall I-Beam Length (ft.): 15

AHS-2-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10

AHS-2-10-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10

AHS-2-10-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10

AHS-2-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15

AHS-2-15-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15

AHS-2-15-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15

AHS-2-15-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15

AHS-2-15-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15

AHS-2-15-9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15

AHS-2-20-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20

AHS-2-20-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20

AHS-2-20-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20

AHS-4-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10

AHS-4-10-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10

AHS-4-10-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10

AHS-4-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15

AHS-4-15-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15

AHS-4-15-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15

AHS-4-15-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15

AHS-4-15-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15

AHS-4-15-9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15

AHS-4-20-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20

AHS-4-20-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20

AHS-4-20-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20

AHS-6-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10

AHS-6-10-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10

AHS-6-10-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10

AHS-6-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15

AHS-6-15-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15

AHS-6-15-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15

AHS-6-15-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15

AHS-6-15-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15

AHS-6-15-9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15

AHS-6-20-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20

AHS-6-20-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20

AHS-6-20-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20

AHS-8-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10

AHS-8-10-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10

AHS-8-10-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10

AHS-8-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15

AHS-8-15-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15

AHS-8-15-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15

AHS-8-15-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15

AHS-8-15-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15

AHS-8-15-9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15

AHS-8-20-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20

AHS-8-20-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20

AHS-8-20-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
For More Details of the Option Click the Red Model Button

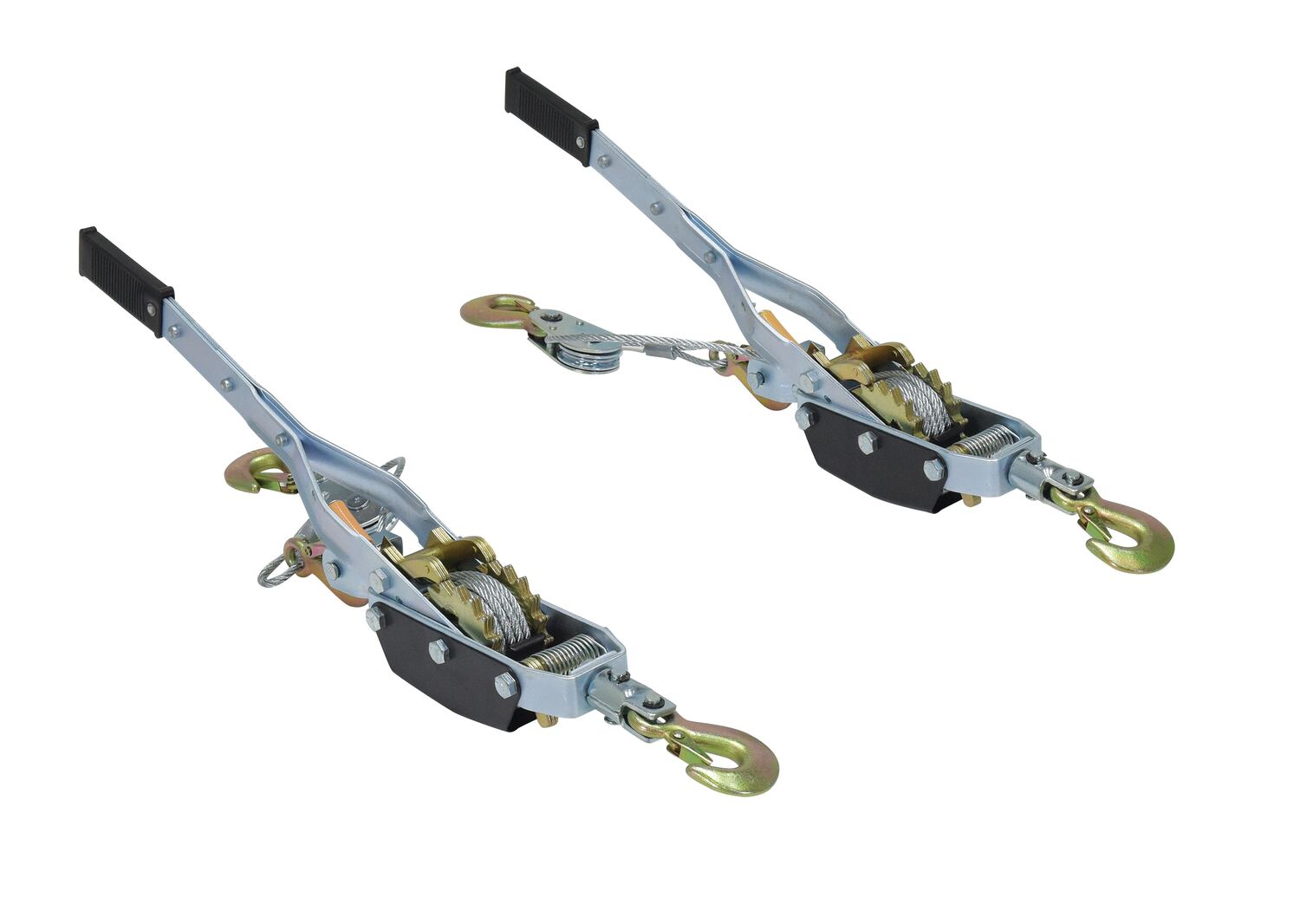

AHS-KIT AHS-KIT90 Days Limited WarrantyGalvanized Steel Cable Come-A-Long Winch Adjustable Kit For Steel Gantry Crane ModelsIncludes: (2) Come-A-Longs
30

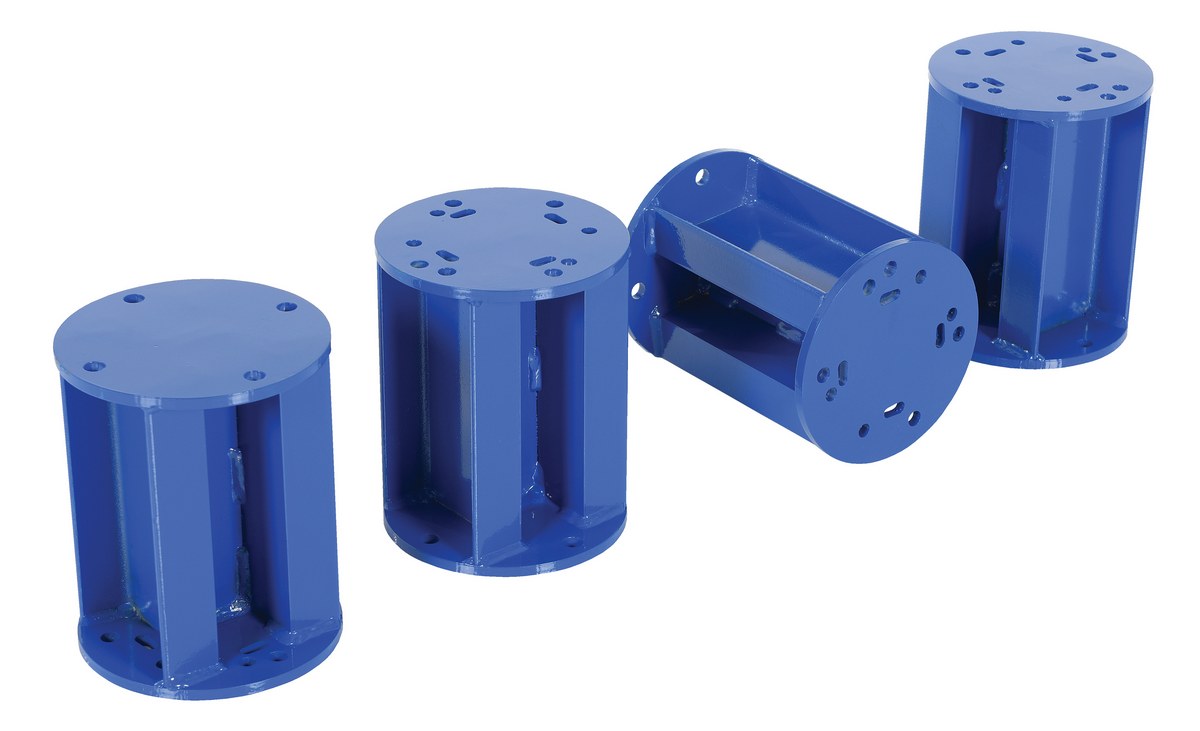

AHS-STLO AHS-STLO1 Year Limited WarrantyFactory Installed Steel Stationary Legs Kit Quantity 4 For Steel Gantry Cranes BlueQuantity: 4
85

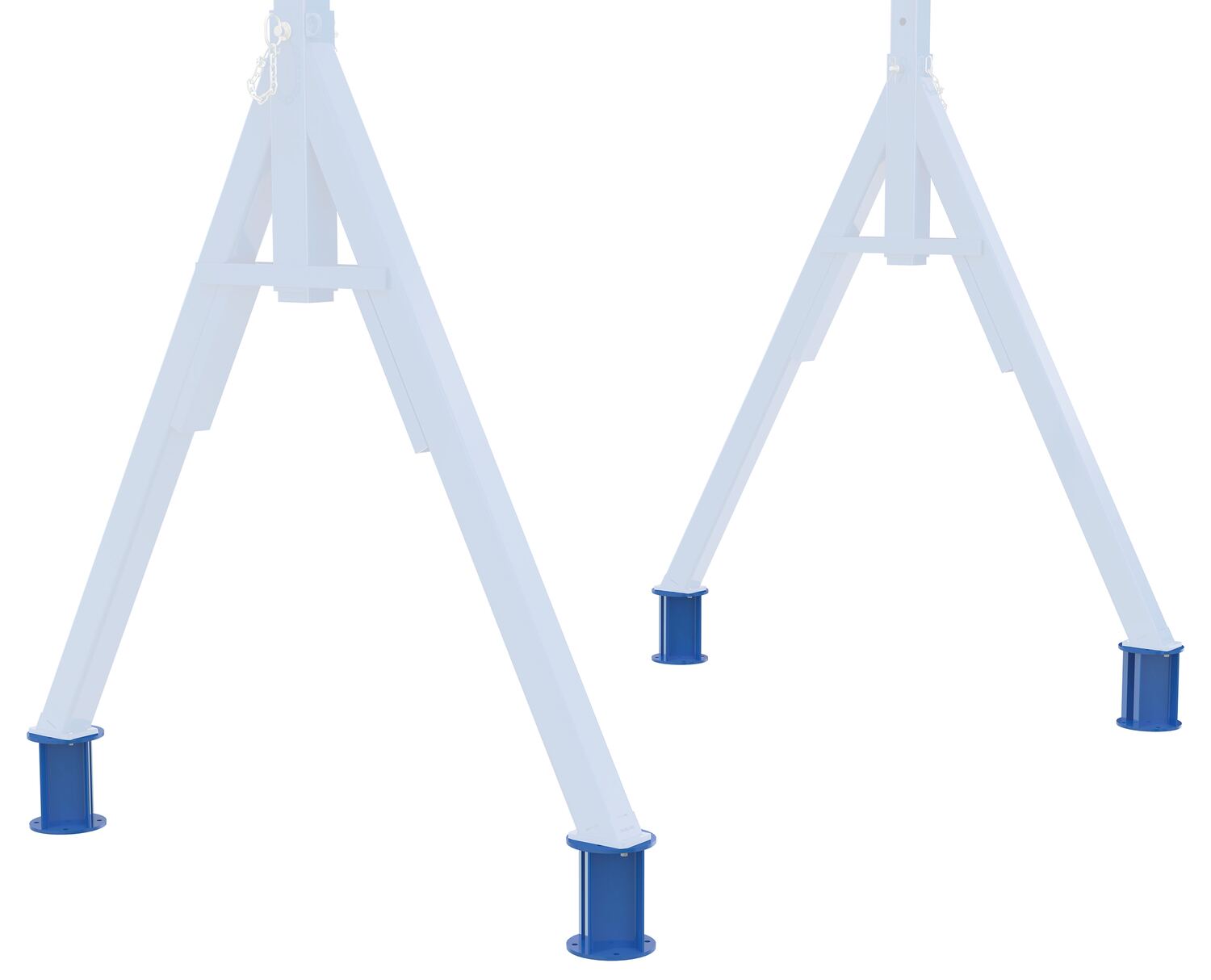

AHS-STLO-RF AHS-STLO-RF90 Days Limited WarrantySteel Stationary Legs Kit Field Installed Quantity 4 For Steel Gantry Cranes BlueQuantity: 4
85

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Adjustable Steel Gantry Cranes PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


AHS-10-15-10

AHS-2-10-12

AHS-2-10-14

AHS-2-10-16

AHS-2-15-10

AHS-2-15-12

AHS-2-15-14

AHS-2-15-16

AHS-2-15-7

AHS-2-15-9

AHS-2-20-12

AHS-2-20-14

AHS-2-20-16

AHS-4-10-12

AHS-4-10-14

AHS-4-10-16

AHS-4-15-10

AHS-4-15-12

AHS-4-15-14

AHS-4-15-16

AHS-4-15-7

AHS-4-15-9

AHS-4-20-12

AHS-4-20-14

AHS-4-20-16

AHS-6-10-12

AHS-6-10-14

AHS-6-10-16

AHS-6-15-10

AHS-6-15-12

AHS-6-15-14

AHS-6-15-16

AHS-6-15-7

AHS-6-15-9

AHS-6-20-12

AHS-6-20-14

AHS-6-20-16

AHS-8-10-12

AHS-8-10-14

AHS-8-10-16

AHS-8-15-10

AHS-8-15-12

AHS-8-15-14

AHS-8-15-16

AHS-8-15-7

AHS-8-15-9

AHS-8-20-12

AHS-8-20-14

AHS-8-20-16

SDS Sheets

Hydraulic Oil SDS Sheet for: AHS-2/4-TLC
Hydraulic Oil SDS Sheet for: AHS-2-10-12-TLC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Does the gantry come with a hoist?

A: The hoists and trolleys for the adjustable height steel gantry cranes are sold separately. You'll find multiple options available.


Q: If we order the V-Groove system, is it possible to keep the gantry on the rail if we only have one person pushing the crane on one side?

A: We recommend pushing the gantry on both sides when re-positioning it. The V-groove options makes moving much easier.


Q: Can the uprights be attached to the I-Beam in multiple locations to adjust the usable width?

A: The vertical upright can be positioned inward on the I-Beam for a shorter usable width.


Q: What type of I-Beam is used on the AHS?

A: W Beams are used on the adjustable height steel gantry cranes.


Q: For the AHS-STOL ,what size bolts would we need to anchor this to the floor?

A: 1/2" bolts.


Q: Is there an attachment to help raise it higher?

A: No. Maximum Overall Height 198.06". Adjustable Height yes. Increment Height Adjustment 6". Maximum Clearance 192". Minimum Clearance 126".






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date

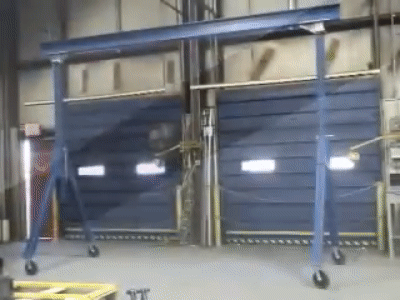

Adjustable Steel Gantry Cranes




The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Hoists & Trollies can be ordered separately.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option



Model # Description Attributes Net Wt.
(lbs)
AHS-10-15-10 AHS-10-15-10Steel Adjustable Height Gantry Crane with Ductile Steel Casters 15 Ft. x 10 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Overall I-Beam Length (ft.): 15
839
AHS-2-10-12 AHS-2-10-12Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 10 Ft. x 12 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
710
AHS-2-10-14 AHS-2-10-14Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 10 Ft. x 14 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
780
AHS-2-10-16 AHS-2-10-16Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 10 Ft. x 16 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
812
AHS-2-15-10 AHS-2-15-10Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
601
AHS-2-15-12 AHS-2-15-12Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 12 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
698
AHS-2-15-14 AHS-2-15-14Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 14 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
769
AHS-2-15-16 AHS-2-15-16Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 16 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
670
AHS-2-15-7 AHS-2-15-7Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 7 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
539
AHS-2-15-9 AHS-2-15-9Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 15 Ft. x 9 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
597
AHS-2-20-12 AHS-2-20-12Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 20 Ft. x 12 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
707
AHS-2-20-14 AHS-2-20-14Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 20 Ft. x 14 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
796
AHS-2-20-16 AHS-2-20-16Steel Adjustable Height Gantry Crane with Glass Filled Nylon Casters 20 Ft. x 16 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
827
AHS-4-10-12 AHS-4-10-12Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 12 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
710
AHS-4-10-14 AHS-4-10-14Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 14 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
775
AHS-4-10-16 AHS-4-10-16Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 16 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 10
812
AHS-4-15-10 AHS-4-15-10Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
621
AHS-4-15-12 AHS-4-15-12Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 12 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
705
AHS-4-15-14 AHS-4-15-14Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
774
AHS-4-15-16 AHS-4-15-16Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 16 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
843
AHS-4-15-7 AHS-4-15-7Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 7 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
514
AHS-4-15-9 AHS-4-15-9Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 9 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 15
591
AHS-4-20-12 AHS-4-20-12Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 12 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
695
AHS-4-20-14 AHS-4-20-14Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 14 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
891
AHS-4-20-16 AHS-4-20-16Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Overall I-Beam Length (ft.): 20
823
AHS-6-10-12 AHS-6-10-12Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 12 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
777
AHS-6-10-14 AHS-6-10-14Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 14 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
895
AHS-6-10-16 AHS-6-10-16Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 16 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 10
872
AHS-6-15-10 AHS-6-15-10Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
699
AHS-6-15-12 AHS-6-15-12Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 12 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
784
AHS-6-15-14 AHS-6-15-14Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
875
AHS-6-15-16 AHS-6-15-16Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 16 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
935
AHS-6-15-7 AHS-6-15-7Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 7 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
880
AHS-6-15-9 AHS-6-15-9Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 9 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 15
661
AHS-6-20-12 AHS-6-20-12Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 12 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
793
AHS-6-20-14 AHS-6-20-14Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 14 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
893
AHS-6-20-16 AHS-6-20-16Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 16 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Overall I-Beam Length (ft.): 20
912
AHS-8-10-12 AHS-8-10-12Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 12 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
783
AHS-8-10-14 AHS-8-10-14Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 14 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
900
AHS-8-10-16 AHS-8-10-16Steel Adjustable Height Gantry Crane with Phenolic Casters 10 Ft. x 16 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 10
971
AHS-8-15-10 AHS-8-15-10Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
727
AHS-8-15-12 AHS-8-15-12Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 12 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
811
AHS-8-15-14 AHS-8-15-14Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
889
AHS-8-15-16 AHS-8-15-16Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 16 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
961
AHS-8-15-7 AHS-8-15-7Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 7 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
571
AHS-8-15-9 AHS-8-15-9Steel Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 9 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 15
672
AHS-8-20-12 AHS-8-20-12Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 12 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
786
AHS-8-20-14 AHS-8-20-14Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 14 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
894
AHS-8-20-16 AHS-8-20-16Steel Adjustable Height Gantry Crane with Phenolic Casters 20 Ft. x 16 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8000
Overall I-Beam Length (ft.): 20
962

Options


.


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
