Adjustable Height Aluminum Gantry Cranes with Adjustable
Leveling Option

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

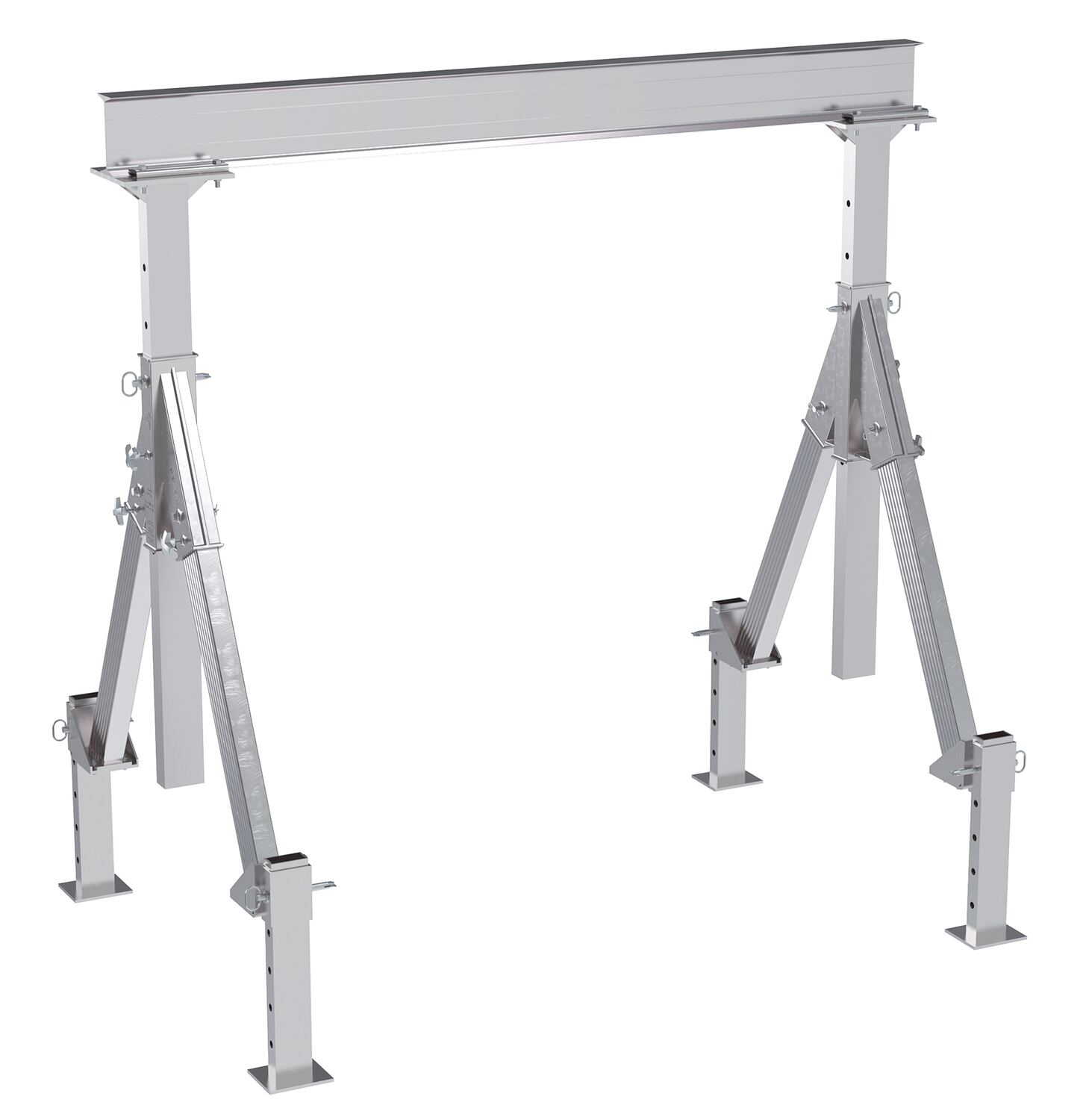

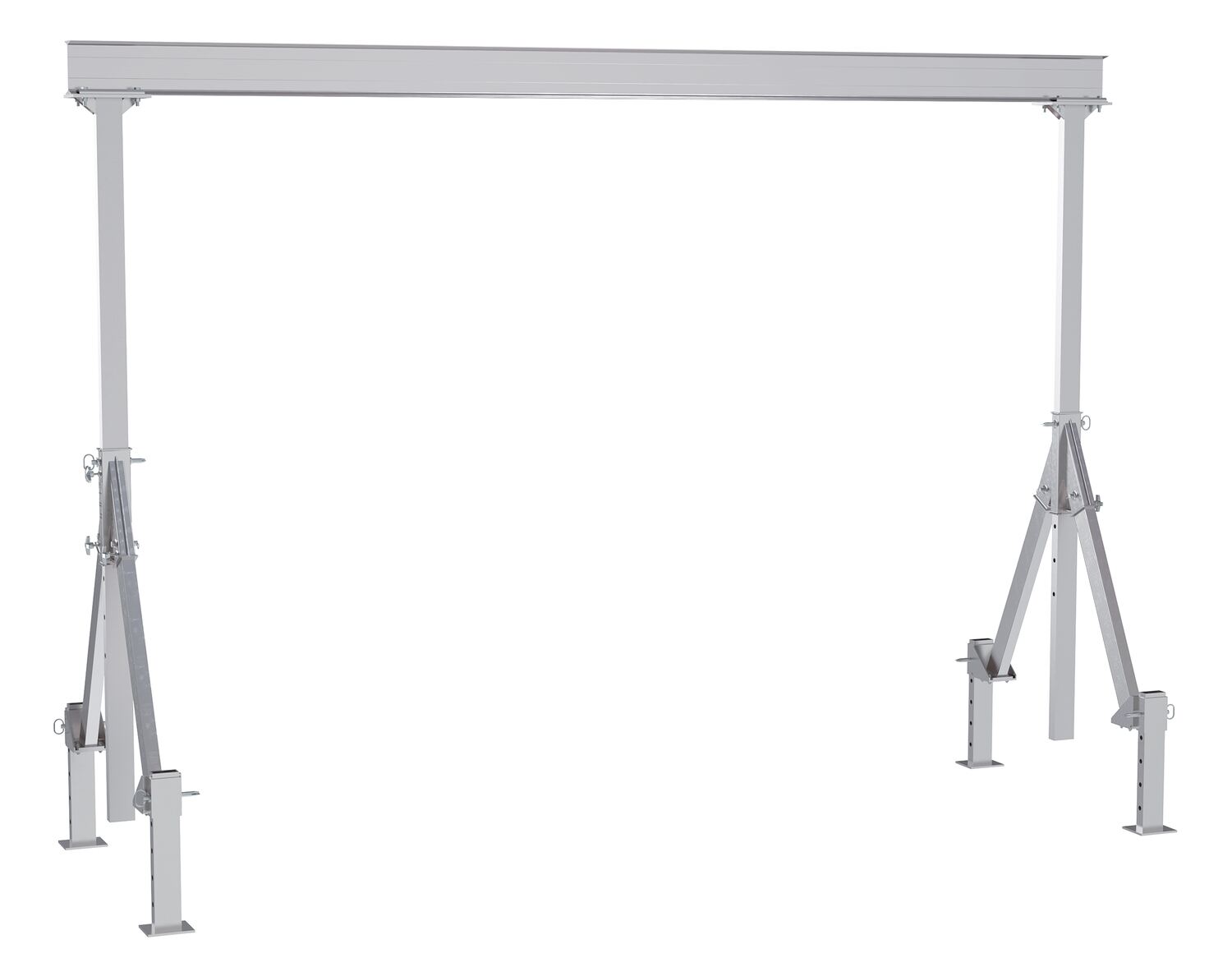

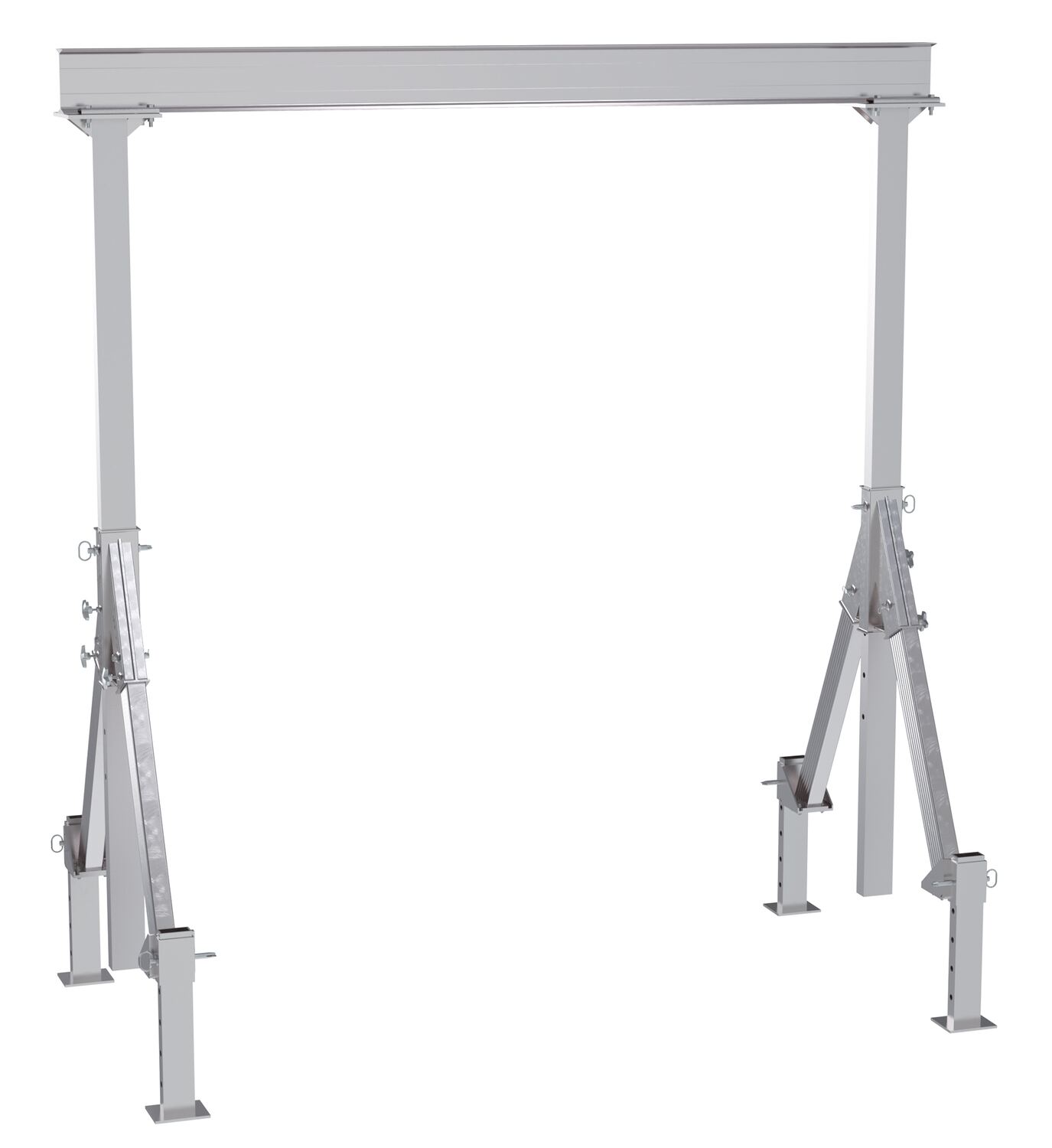

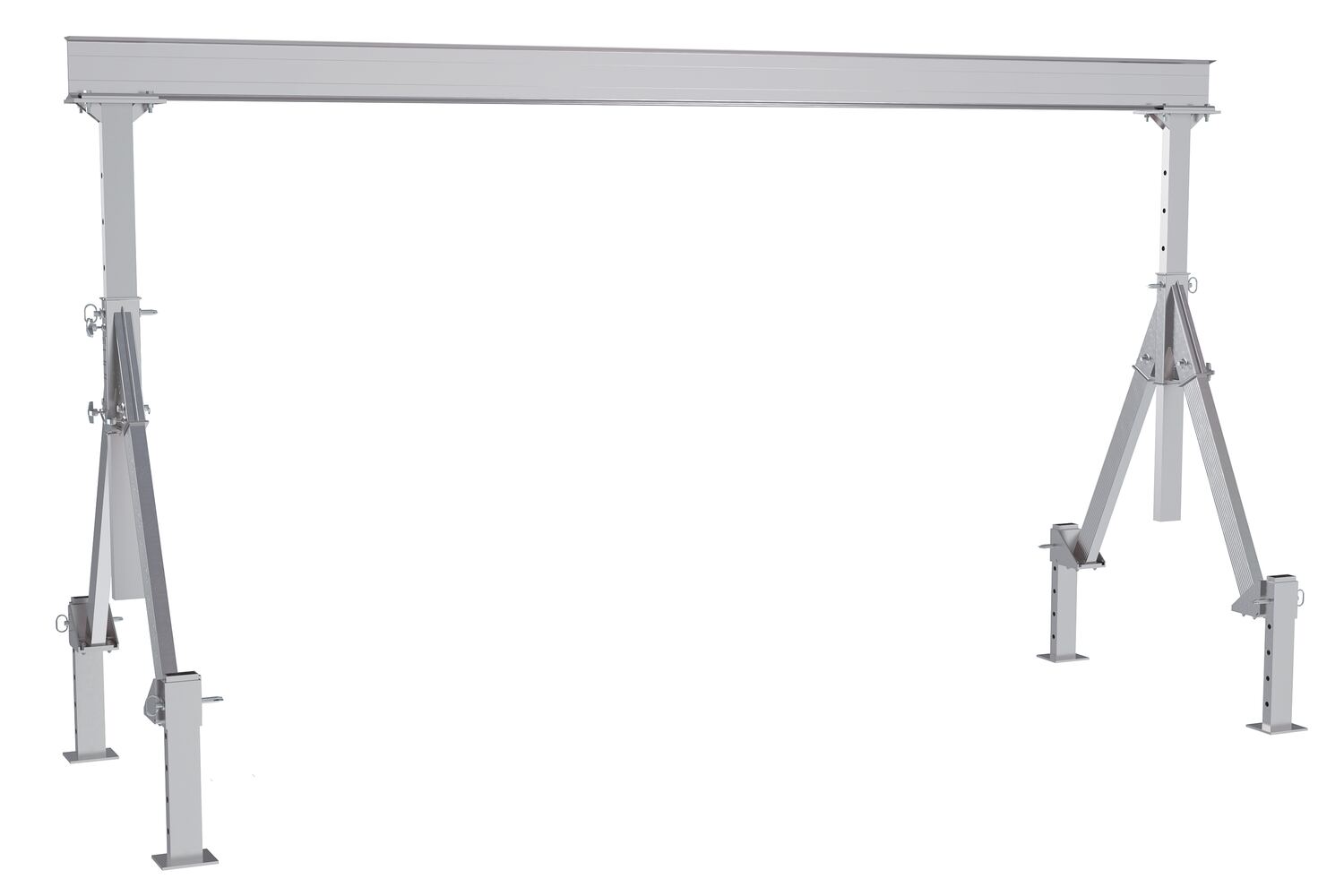

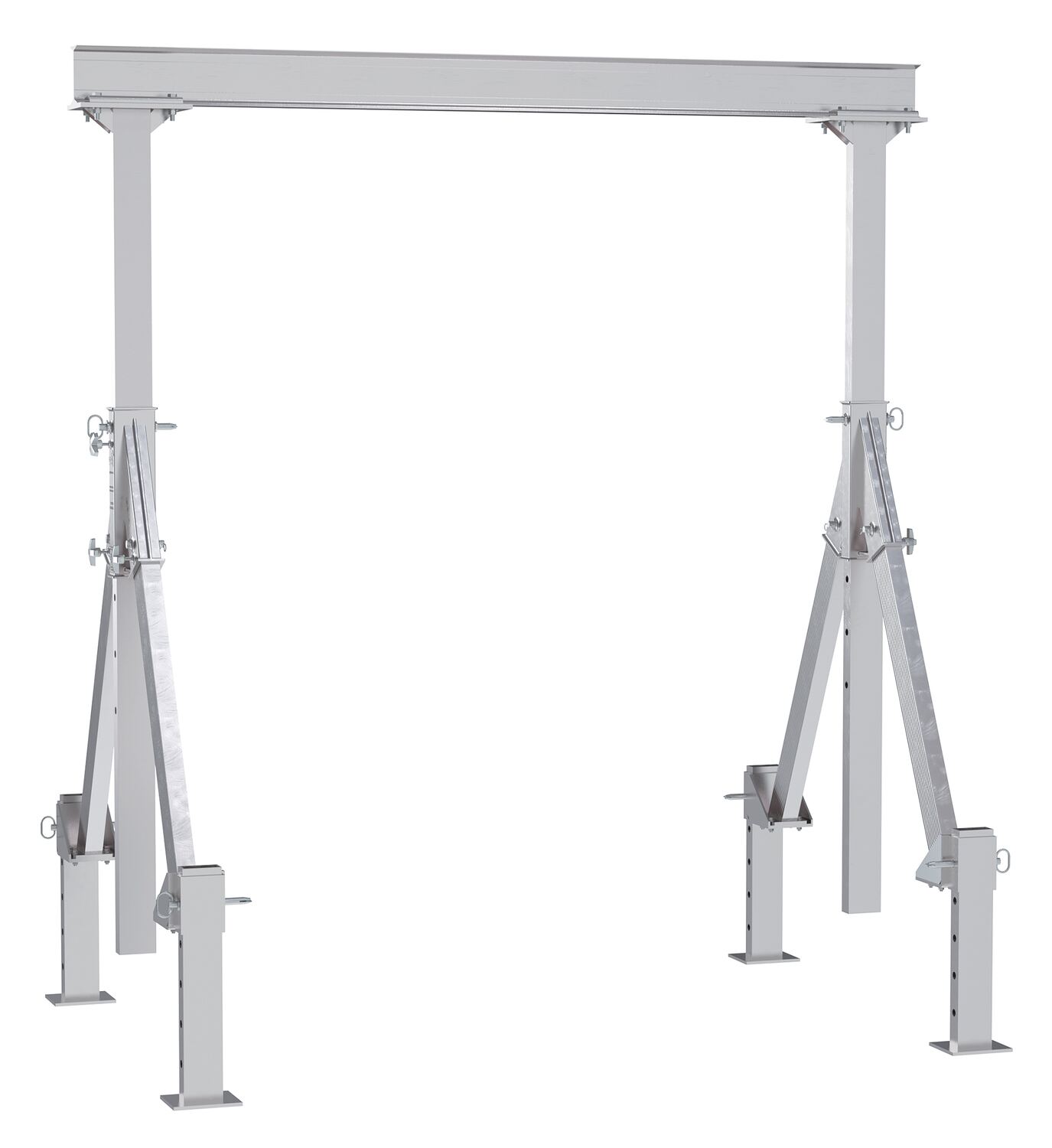

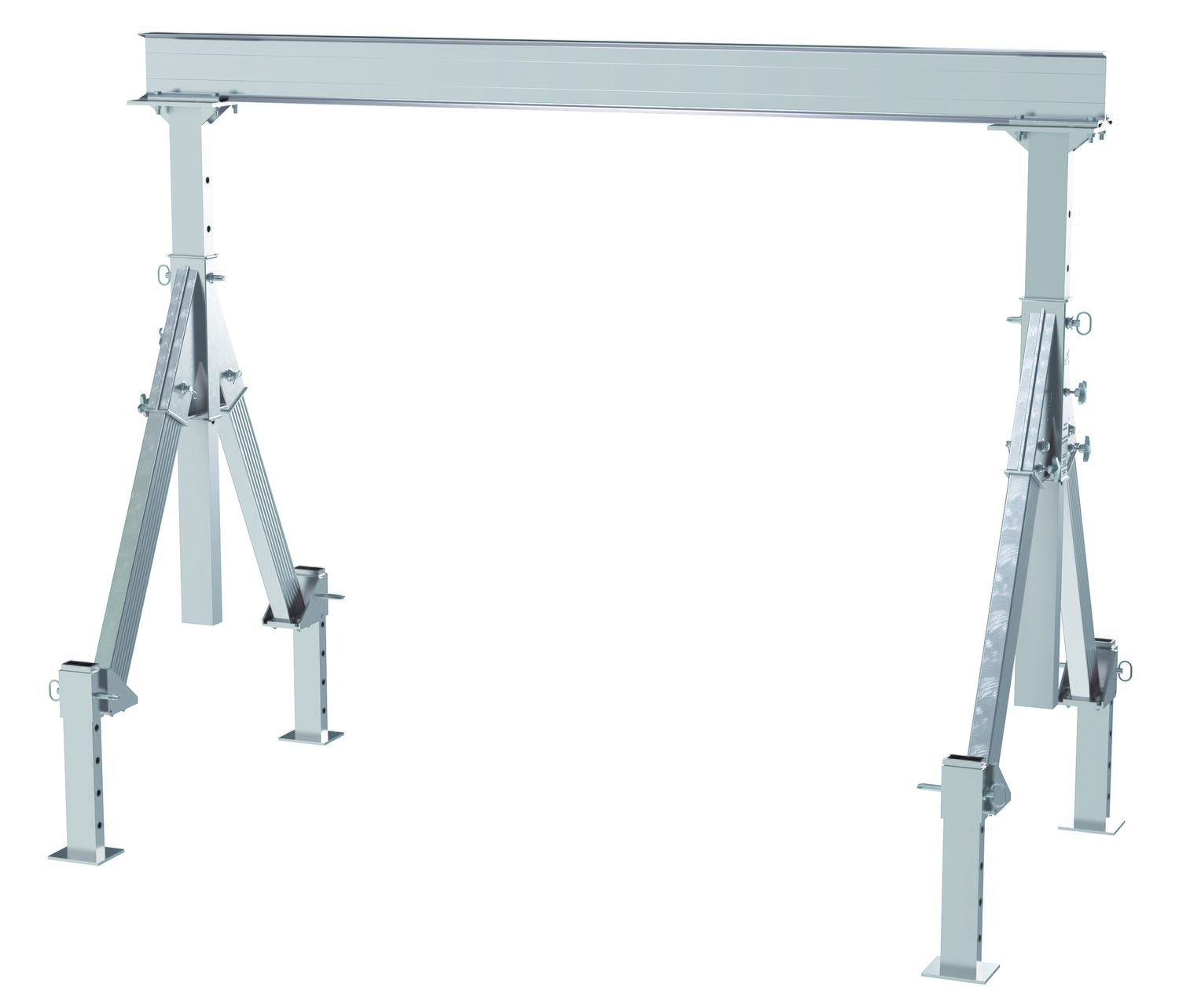

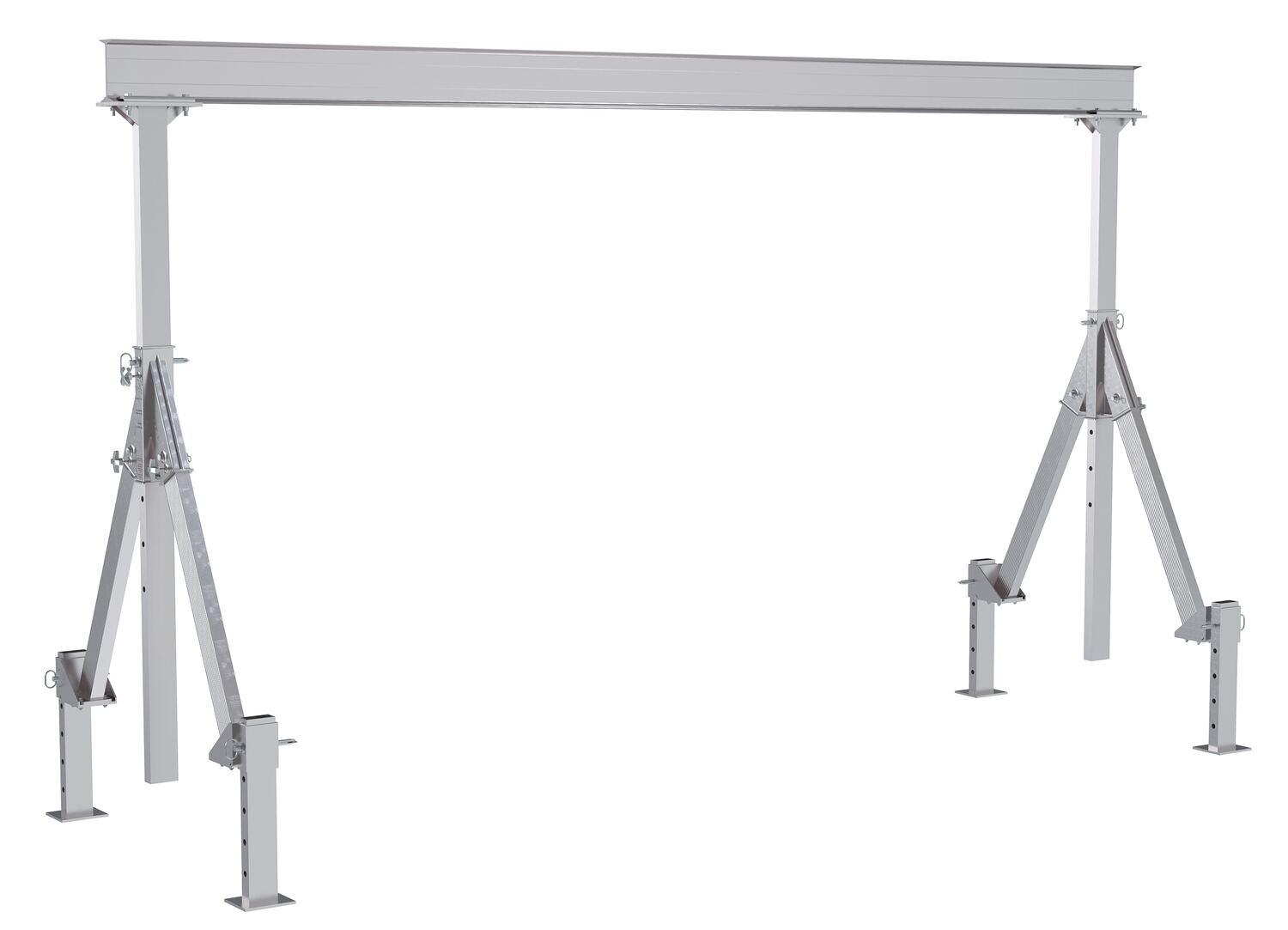

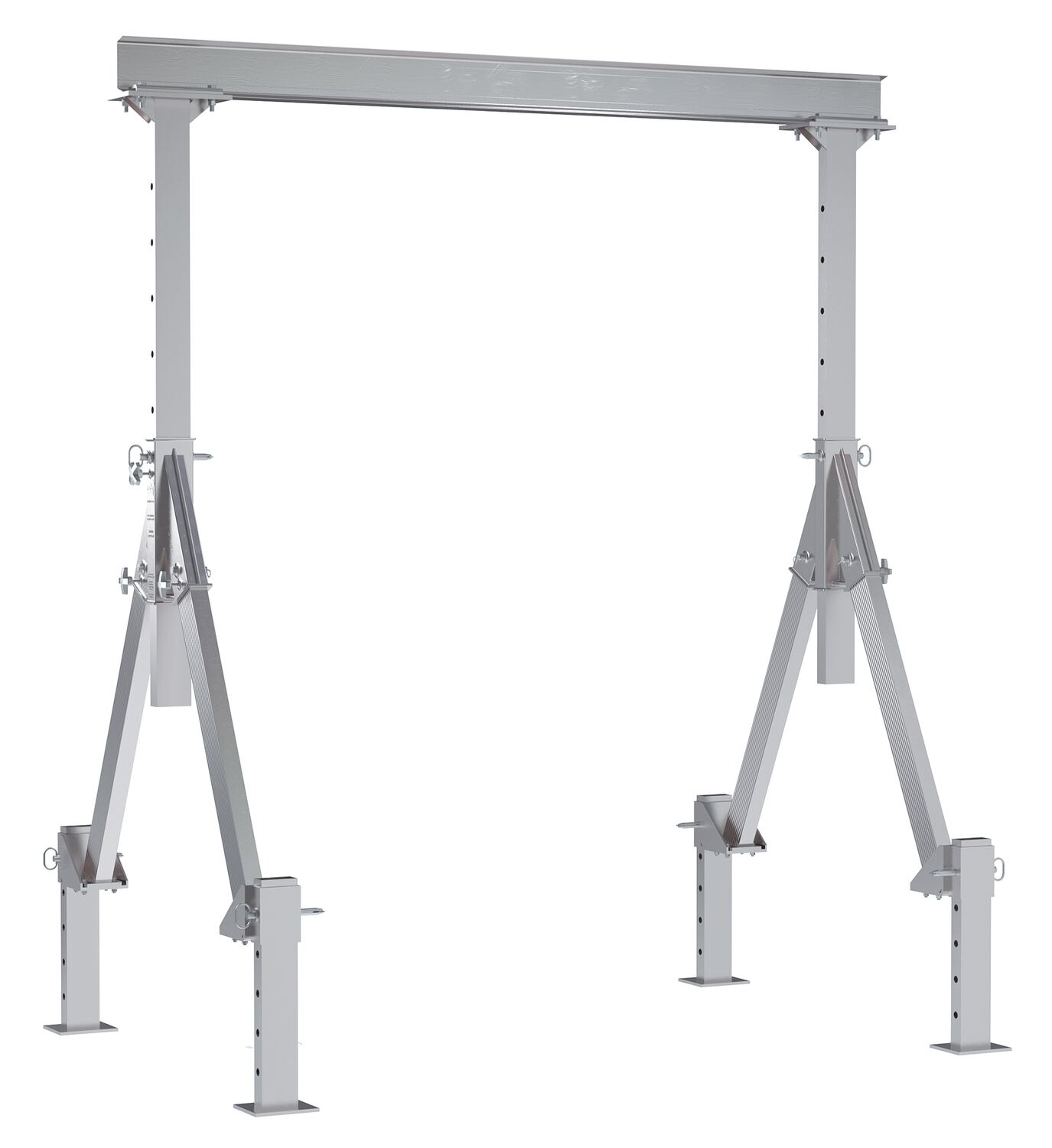

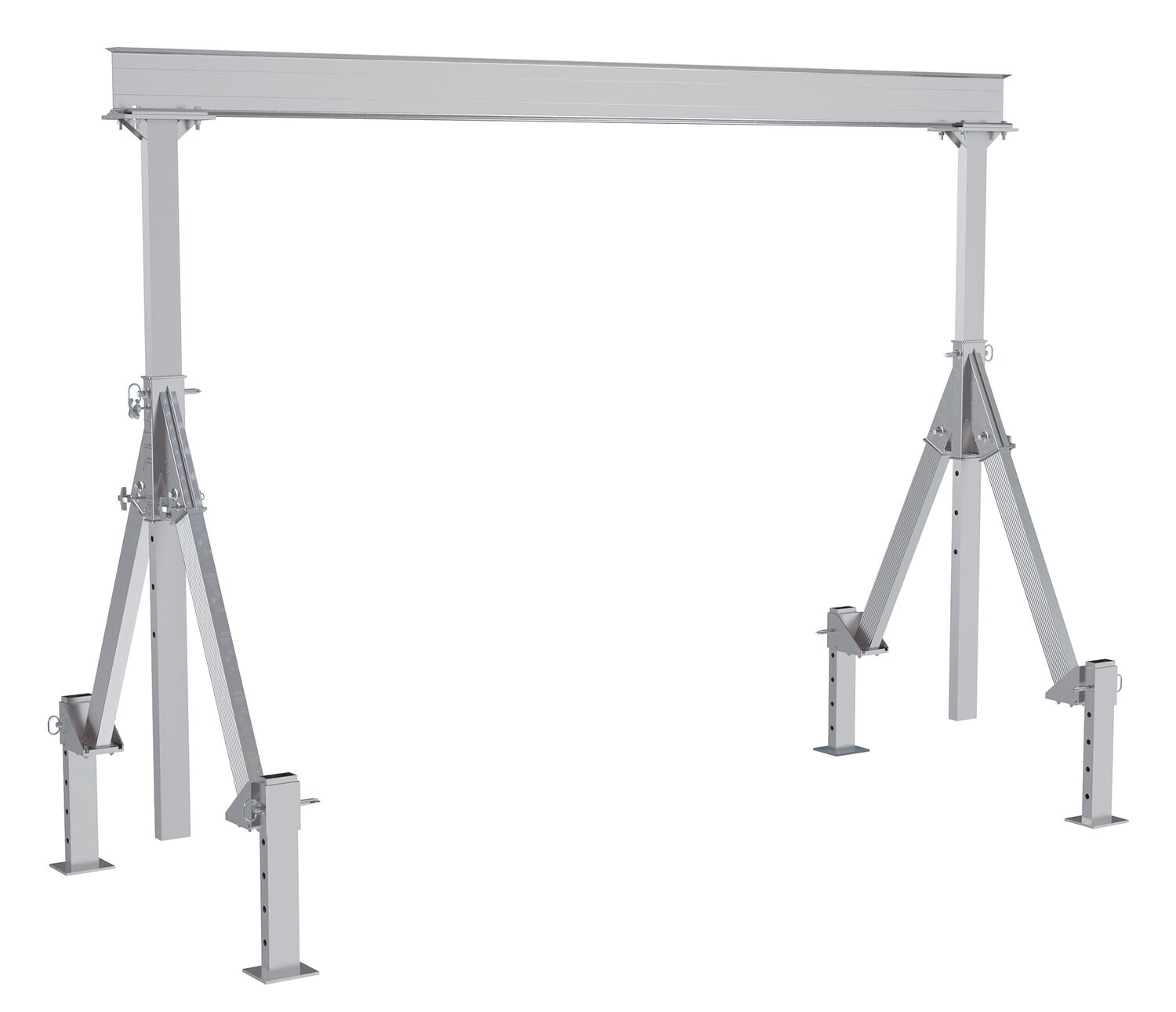

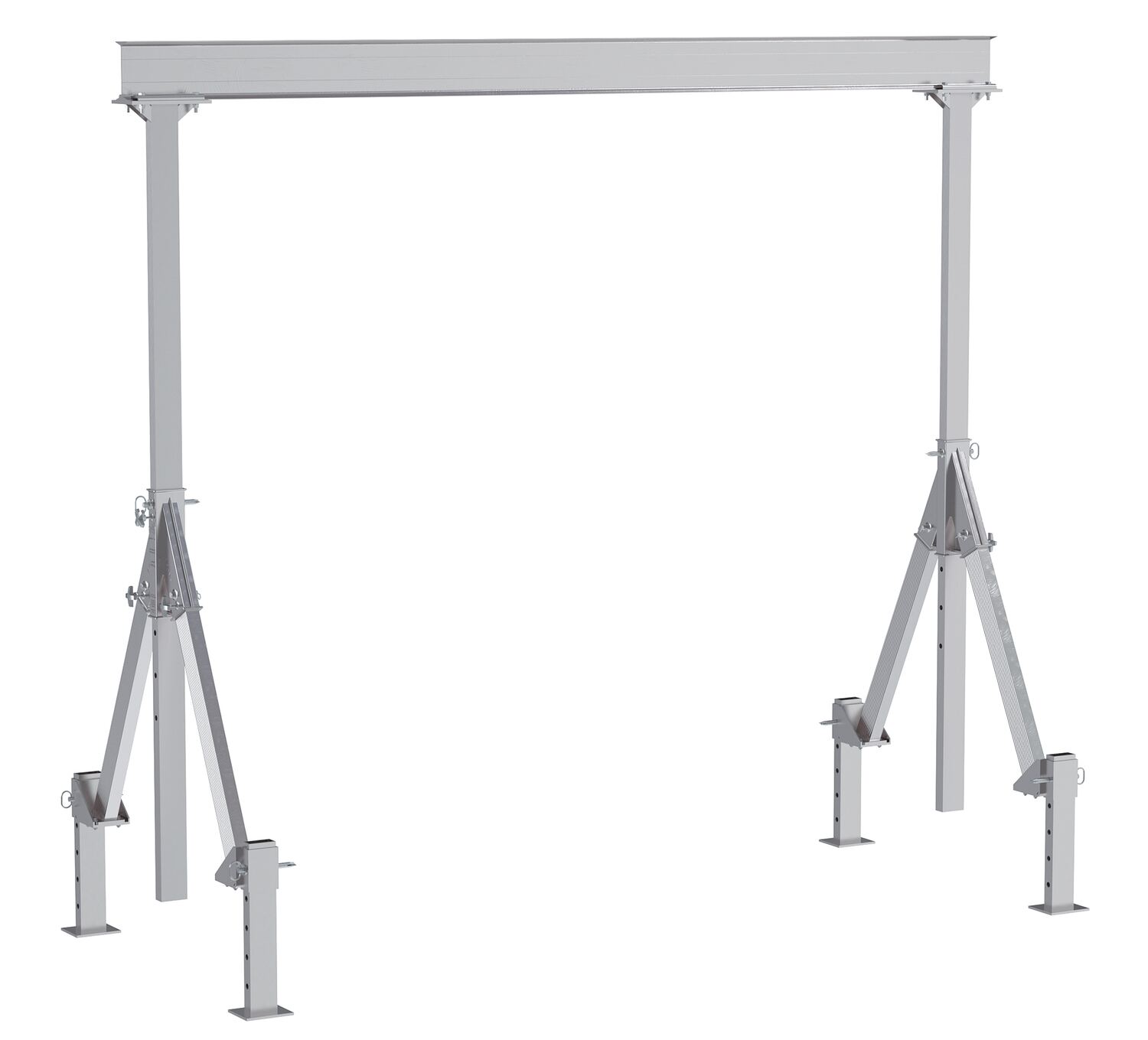

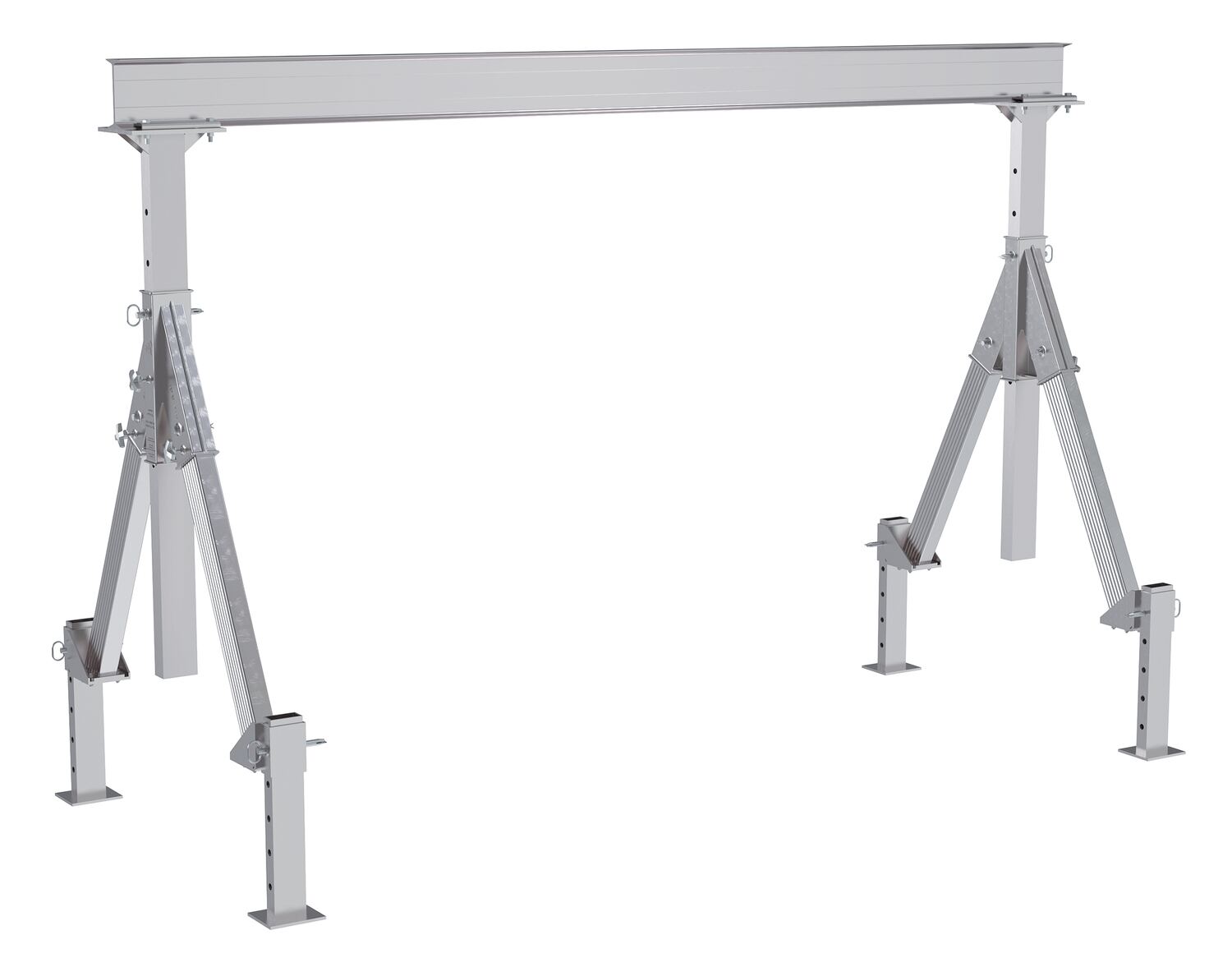

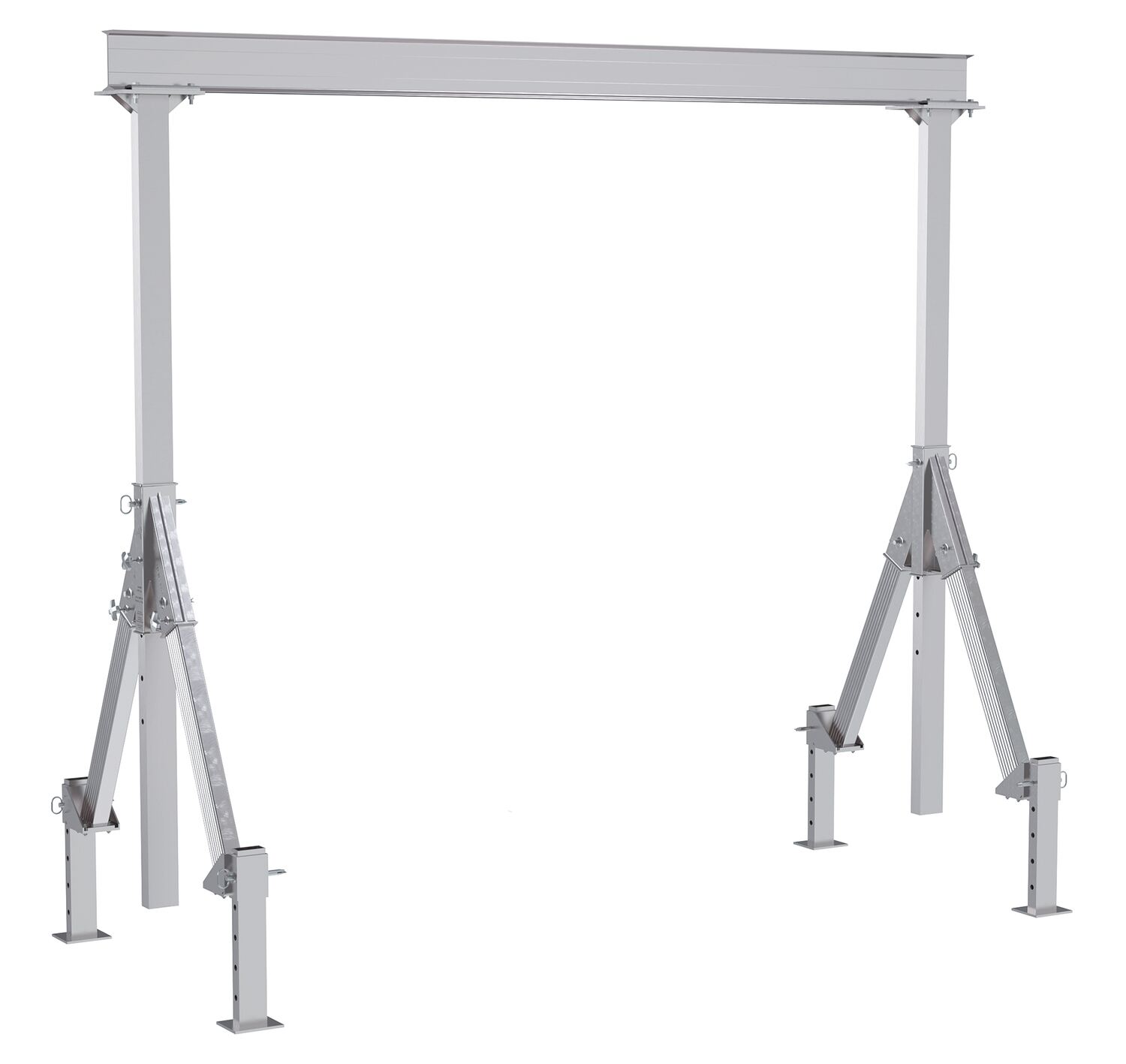

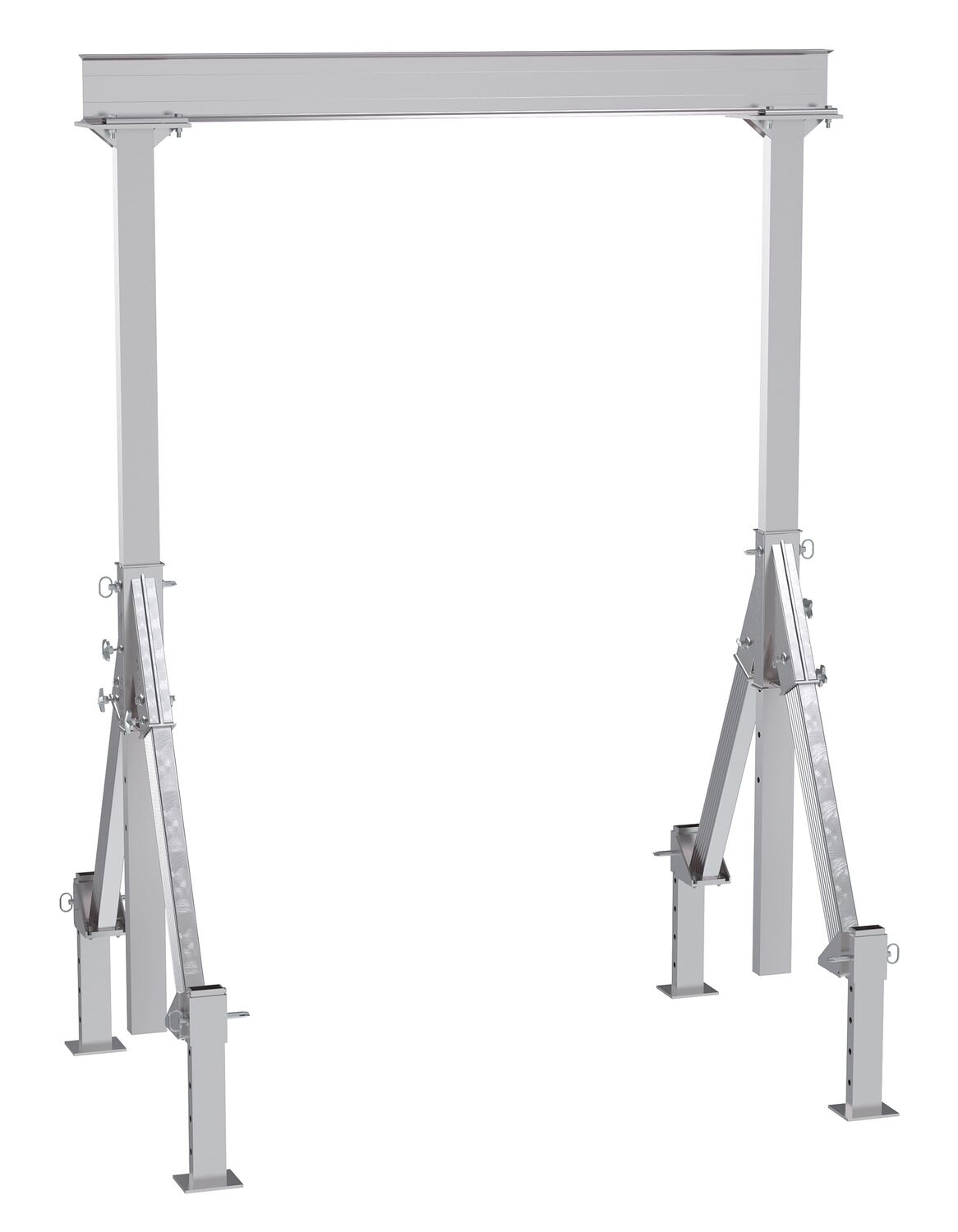

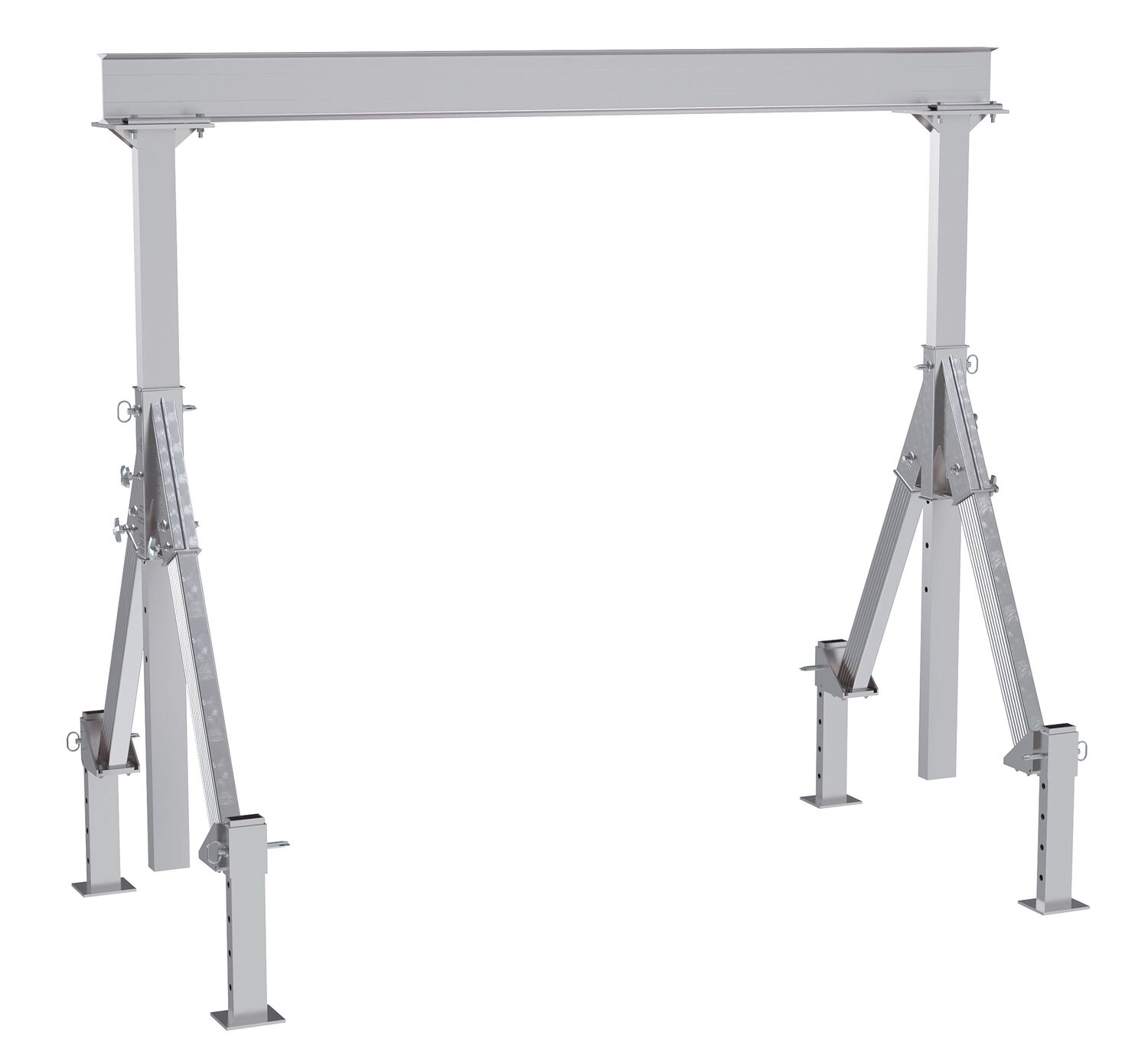

AHA-4-8-10-ALO_A.jpg AHA-4-10-8-ALO_A.jpg AHA-2-10-12-ALO_A.jpg AHA-2-15-8-ALO_A.jpg
Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option

model: AHA-4-8-10-ALO



Featured Overhead Lifting


Hand Winches
Portable Jib Cranes
Heavy-Duty Pipe Grabs
Basket Lifting Beam
Adjustable Steel Gantry Cranes
Overhead Load Lifters
Bar Stock Material Positioners
Heavy-Duty Beam Tongs
Manipulator Style Control Electric Chain Hoist
model chart

Product Family Overview

Print Friendly
Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option
SERIES: AHA-ALO

An adjustable height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.

  • Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

An adjustable height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.

  • Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Other Gantry Cranes

 Adjustable Height Aluminum Gantry Cranes with Pneumatic Casters Fixed Height Steel Gantry Cranes - Knockdown Steel Gantry Crane Power Traction Drive Options Adjustable Steel Gantry Cranes with Total Locking Casters - Knockdown

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

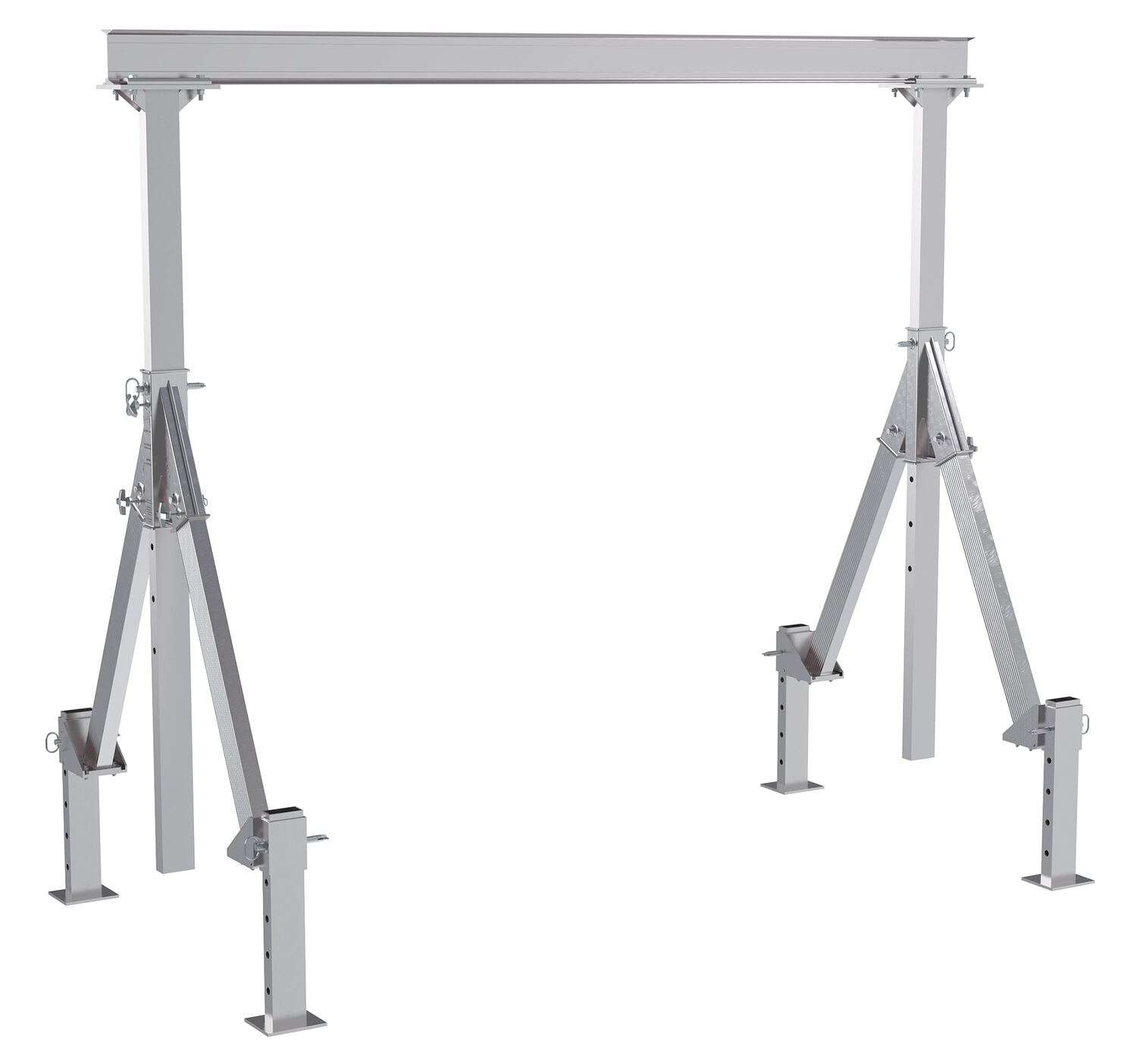

AHA-2-10-10-ALO AHA-2-10-10-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		264

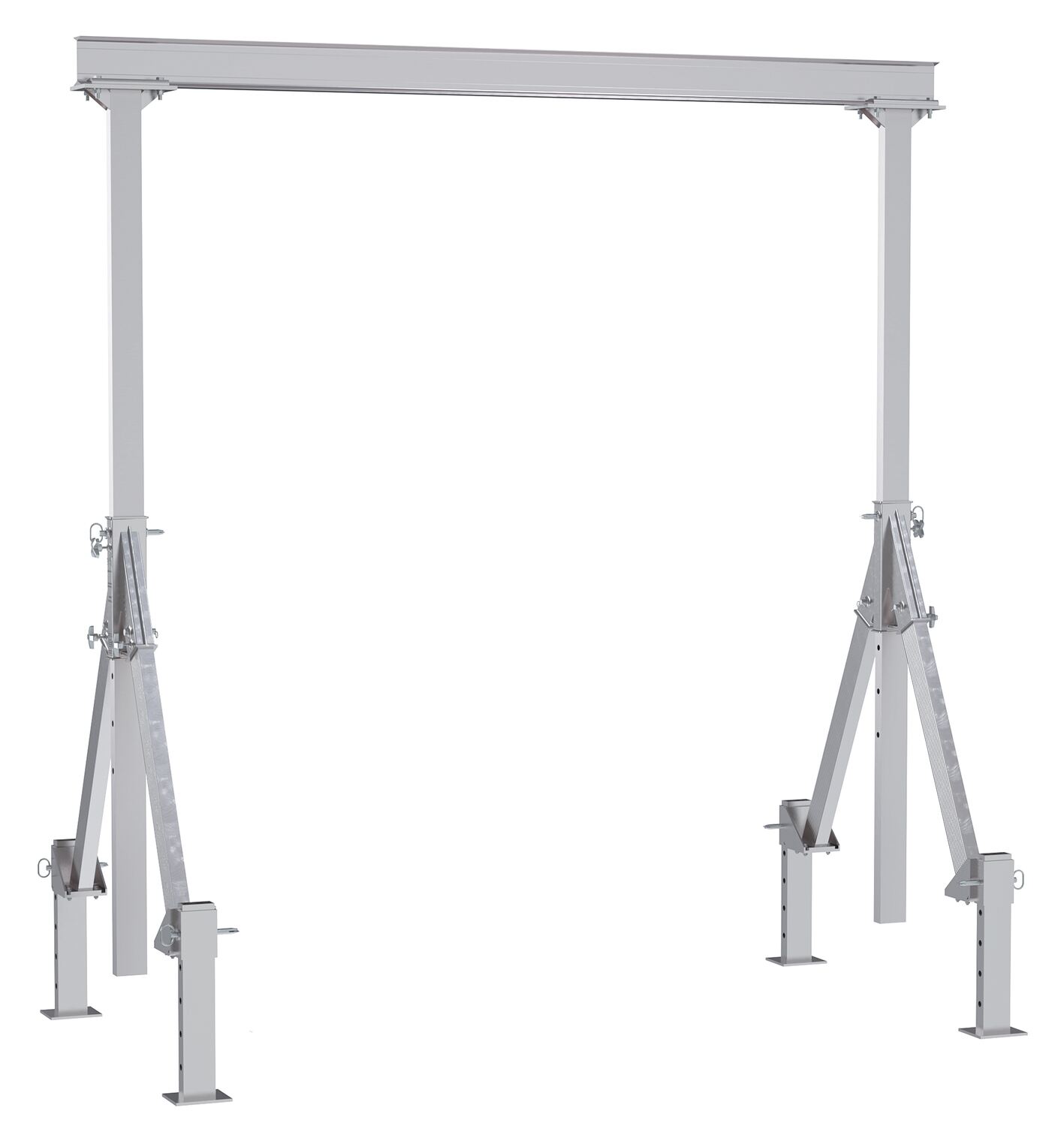

AHA-2-10-12-ALO AHA-2-10-12-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		273

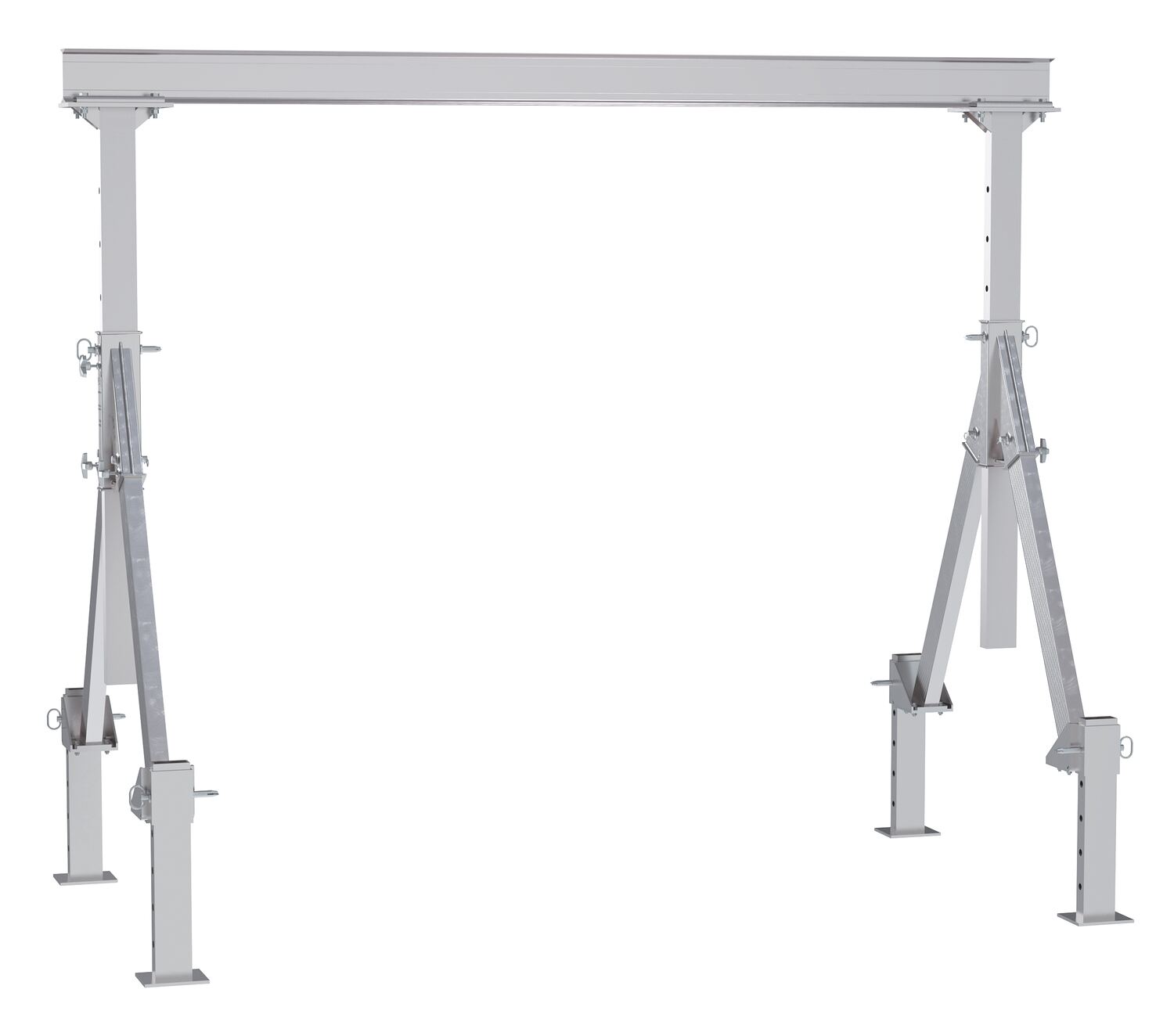

AHA-2-10-8-ALO AHA-2-10-8-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		243
AHA-2-12-10-ALO AHA-2-12-10-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		286
AHA-2-12-12-ALO AHA-2-12-12-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		298

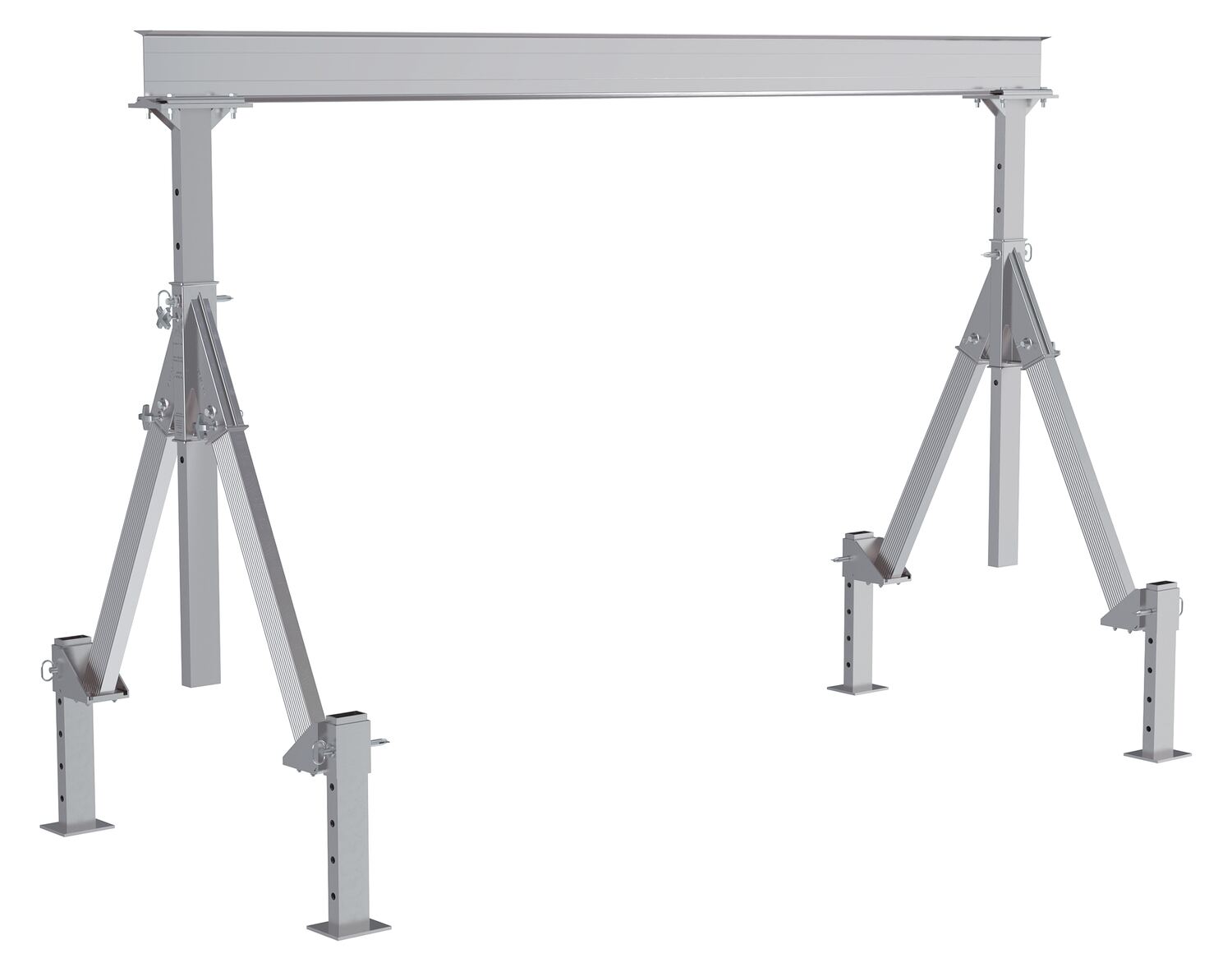

AHA-2-12-8-ALO AHA-2-12-8-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		278
AHA-2-15-10-ALO AHA-2-15-10-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		376
AHA-2-15-12-ALO AHA-2-15-12-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		292
AHA-2-15-8-ALO AHA-2-15-8-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		332
AHA-2-8-10-ALO AHA-2-8-10-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		251

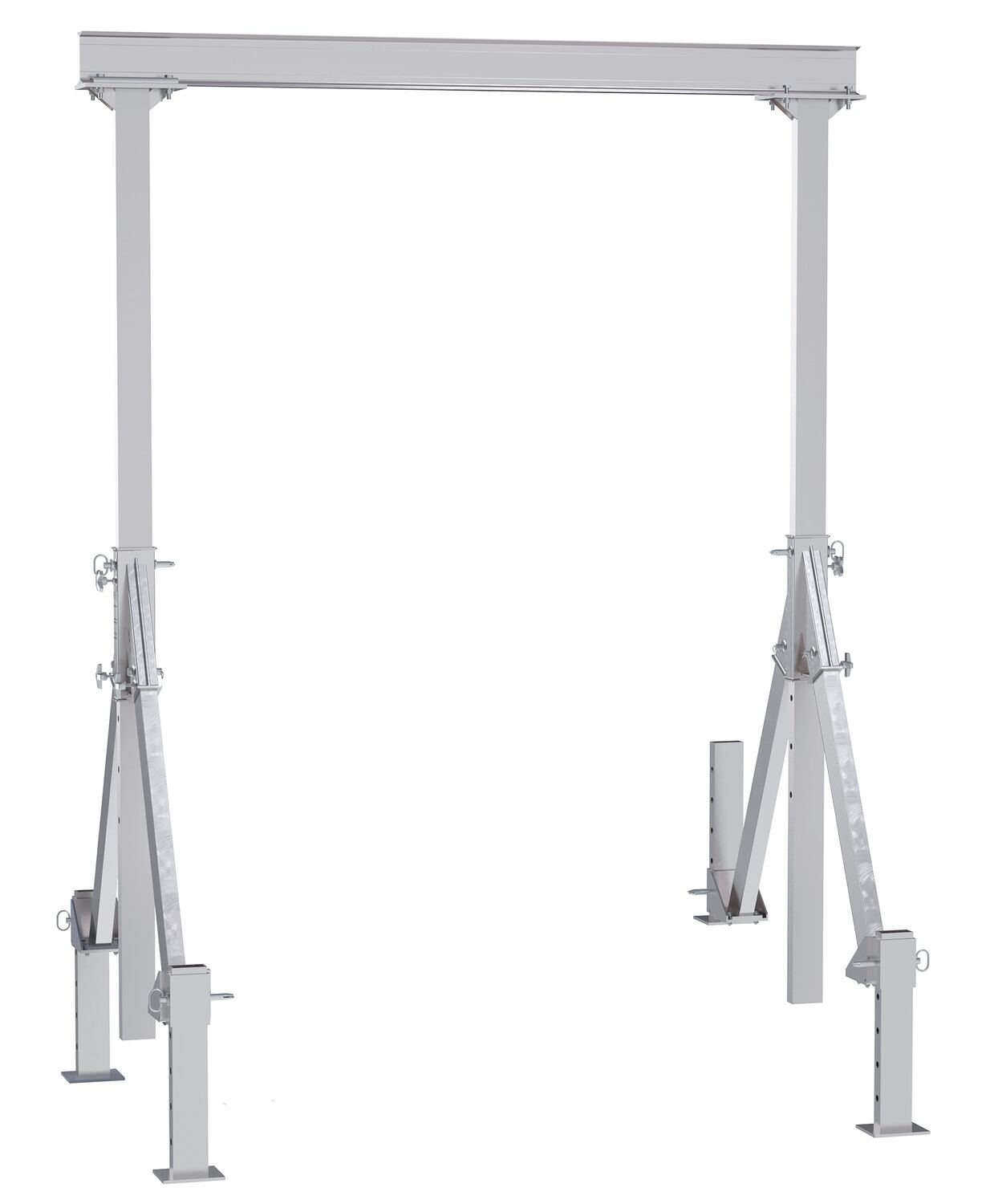

AHA-2-8-12-ALO AHA-2-8-12-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		258
AHA-2-8-8-ALO AHA-2-8-8-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		246
AHA-4-10-10-ALO AHA-4-10-10-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125.		319
AHA-4-10-12-ALO AHA-4-10-12-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125		361
AHA-4-10-8-ALO AHA-4-10-8-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125		310

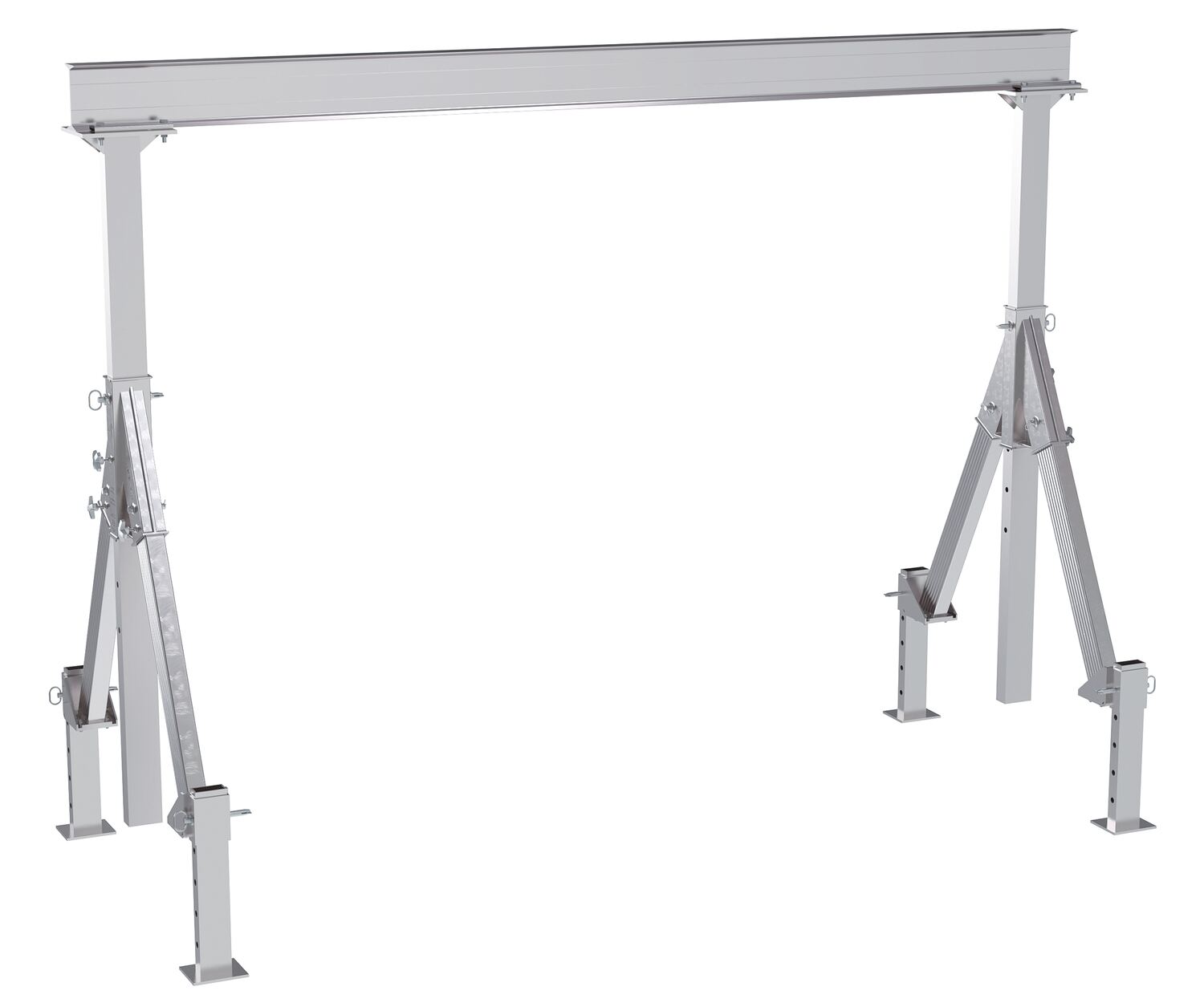

AHA-4-12-10-ALO AHA-4-12-10-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125		337
AHA-4-12-12-ALO AHA-4-12-12-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125		362
AHA-4-12-8-ALO AHA-4-12-8-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125		314
AHA-4-15-10-ALO AHA-4-15-10-ALO1 Year Limited Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity: 4000
Base Width (in.): 65-3/16		376
AHA-4-15-12-ALO AHA-4-15-12-ALO1 Year Limited Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity: 4000
Base Width (in.): 65-3/16		394
AHA-4-15-8-ALO AHA-4-15-8-ALO1 Year Limited Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity: 4000
Base Width (in.): 65-3/16		354

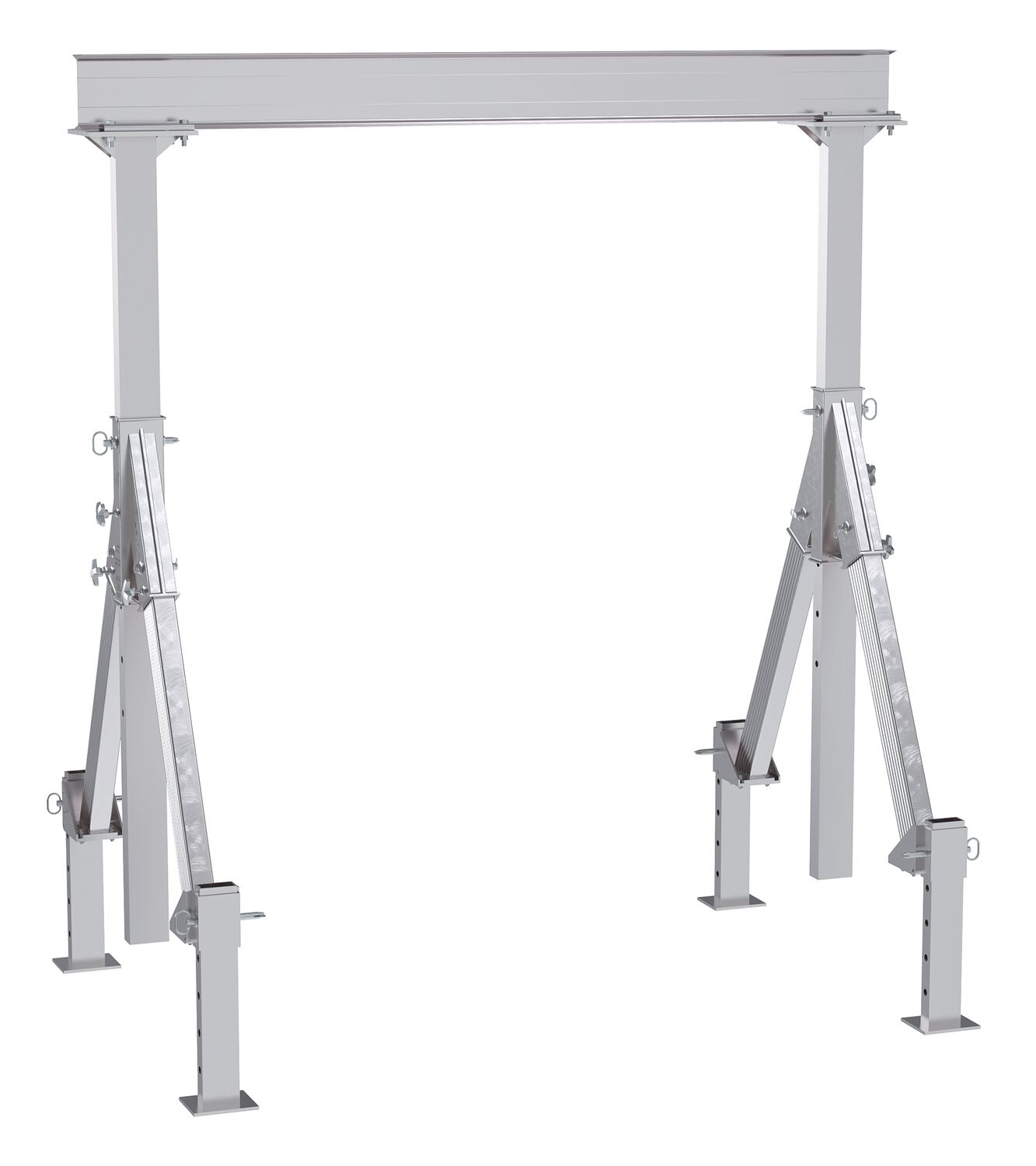

AHA-4-8-10-ALO AHA-4-8-10-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4000
Lowered Height (in.): 92.125		304
AHA-4-8-12-ALO AHA-4-8-12-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125		313
AHA-4-8-8-ALO AHA-4-8-8-ALO1 Year Limited WarrantyAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125		288

* Usable Distance Between uprights is overall I-Beam Length minus 18" -- Usable Trolley Travel length is overall I-Beam Length minus 23-3/4"

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AHA-2-10-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92

AHA-2-10-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114

AHA-2-10-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68

AHA-2-12-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92

AHA-2-12-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114

AHA-2-12-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68

AHA-2-15-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92

AHA-2-15-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114

AHA-2-15-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68

AHA-2-8-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92

AHA-2-8-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114

AHA-2-8-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68

AHA-4-10-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125.
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125.

AHA-4-10-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125

AHA-4-10-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125

AHA-4-12-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125

AHA-4-12-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125

AHA-4-12-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125

AHA-4-8-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Lowered Height (in.): 92.125
Uniform Capacity (lbs.): 4000
Lowered Height (in.): 92.125

AHA-4-8-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125

AHA-4-8-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125

AHA-4-15-10-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Uniform Capacity: 4000
Base Width (in.): 65-3/16

AHA-4-15-12-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Uniform Capacity: 4000
Base Width (in.): 65-3/16

AHA-4-15-8-ALO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Uniform Capacity: 4000
Base Width (in.): 65-3/16
For More Details of the Option Click the Red Model Button

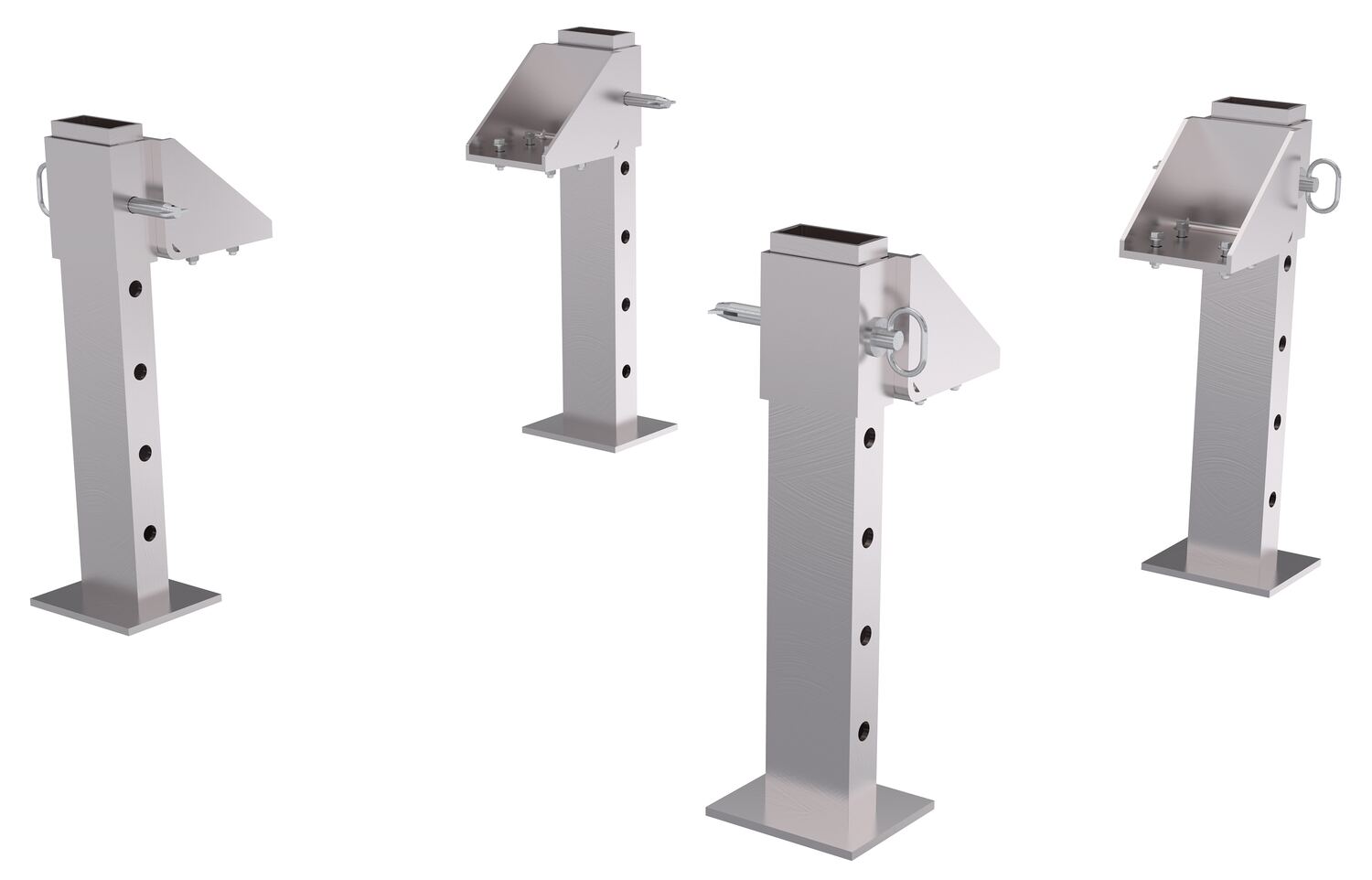

AHA-2-ALO-RF AHA-2-ALO-RF1 Year Limited WarrantyAluminum Adjustable Height Retro Fit Kit 2,000 lb. CapacityUniform Capacity (lbs.): 2,000
Lowered Height (in.): 1.5		54

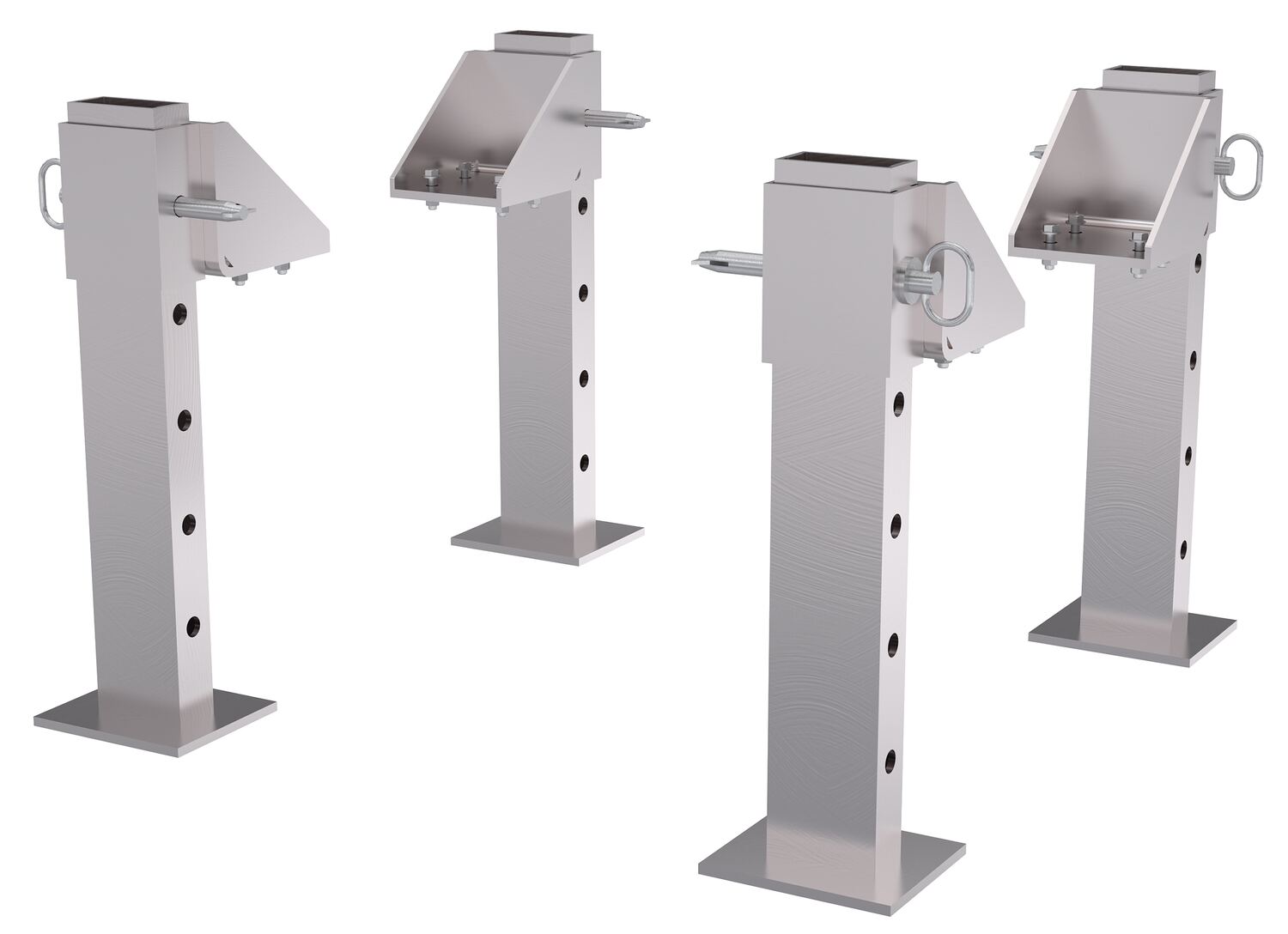

AHA-4-ALO-RF AHA-4-ALO-RF1 Year Limited WarrantyAluminum Adjustable Height Retro Fit Kit 4,000 lb. CapacityUniform Capacity (lbs.): 4,000
Lowered Height (in.): 1.5		54

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option PDF's will open in a new window when clicked.

Manuals


AHA
Owners Manual

Survey Sheets


AHA
Survey Sheet

Approval Drawings


AHA-2-10-10-ALO

AHA-2-10-12-ALO

AHA-2-10-8-ALO

AHA-2-12-10-ALO

AHA-2-12-12-ALO

AHA-2-12-8-ALO

AHA-2-15-10-ALO

AHA-2-15-12-ALO

AHA-2-15-8-ALO

AHA-2-8-10-ALO

AHA-2-8-12-ALO

AHA-2-8-8-ALO

AHA-2-ALO-RF

AHA-4-10-10-ALO

AHA-4-10-12-ALO

AHA-4-10-8-ALO

AHA-4-12-10-ALO

AHA-4-12-12-ALO

AHA-4-12-8-ALO

AHA-4-15-10-ALO

AHA-4-15-12-ALO

AHA-4-15-8-ALO

AHA-4-8-10-ALO

AHA-4-8-12-ALO

AHA-4-8-8-ALO

AHA-4-ALO-RF

Testing Certificates


AHA-2-10-10-ALO

AHA-2-10-12-ALO

AHA-2-10-8-ALO

AHA-2-12-10-ALO

AHA-2-12-12-ALO

AHA-2-12-8-ALO

AHA-2-15-10-ALO

AHA-2-15-12-ALO

AHA-2-15-8-ALO

AHA-2-8-10-ALO

AHA-2-8-12-ALO

AHA-2-8-8-ALO

AHA-2-ALO-RF

AHA-4-10-10-ALO

AHA-4-10-12-ALO

AHA-4-10-8-ALO

AHA-4-12-10-ALO

AHA-4-12-12-ALO

AHA-4-12-8-ALO

AHA-4-15-10-ALO

AHA-4-15-12-ALO

AHA-4-15-8-ALO

AHA-4-8-10-ALO

AHA-4-8-12-ALO

AHA-4-8-8-ALO

AHA-4-ALO-RF

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Adjustable Steel Gantry Cranes
Product

Adjustable Steel Gantry Cranes

Adjustable Steel Gantry Cranes - Knockdown
Product

Adjustable Steel Gantry Cranes - Knockdown

Adjustable Height Aluminum Gantry Cranes
Product

Adjustable Height Aluminum Gantry Cranes

Adjustable Height Aluminum Gantry Cranes with V-Groove Casters
Product

Adjustable Height Aluminum Gantry Cranes with V-Groove Casters

Adjustable Height Aluminum Gantry Cranes with Total Locking Casters
Product

Adjustable Height Aluminum Gantry Cranes with Total Locking Casters

Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option
Product

Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Adjustable Height Aluminum Gan...




An adjustable height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.

  • Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)
AHA-2-10-10-ALO AHA-2-10-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		264
AHA-2-10-12-ALO AHA-2-10-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		273
AHA-2-10-8-ALO AHA-2-10-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		243
AHA-2-12-10-ALO AHA-2-12-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		286
AHA-2-12-12-ALO AHA-2-12-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		298
AHA-2-12-8-ALO AHA-2-12-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		278
AHA-2-15-10-ALO AHA-2-15-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		376
AHA-2-15-12-ALO AHA-2-15-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		292
AHA-2-15-8-ALO AHA-2-15-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		332
AHA-2-8-10-ALO AHA-2-8-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 92		251
AHA-2-8-12-ALO AHA-2-8-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8ft. X 12 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 114		258
AHA-2-8-8-ALO AHA-2-8-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8ft. X 8 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 68		246
AHA-4-10-10-ALO AHA-4-10-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125.		319
AHA-4-10-12-ALO AHA-4-10-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125		361
AHA-4-10-8-ALO AHA-4-10-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125		310
AHA-4-12-10-ALO AHA-4-12-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125		337
AHA-4-12-12-ALO AHA-4-12-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125		362
AHA-4-12-8-ALO AHA-4-12-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125		314
AHA-4-15-10-ALO AHA-4-15-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity: 4000
Base Width (in.): 65-3/16		376
AHA-4-15-12-ALO AHA-4-15-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity: 4000
Base Width (in.): 65-3/16		394
AHA-4-15-8-ALO AHA-4-15-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity: 4000
Base Width (in.): 65-3/16		354
AHA-4-8-10-ALO AHA-4-8-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4000
Lowered Height (in.): 92.125		304
AHA-4-8-12-ALO AHA-4-8-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 ft. X 12 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125		313
AHA-4-8-8-ALO AHA-4-8-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 ft. X 8 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125		288

Options


.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
