Steel Gantry Crane Power Traction Drive Options
SERIES: GPTD, V-TRACK

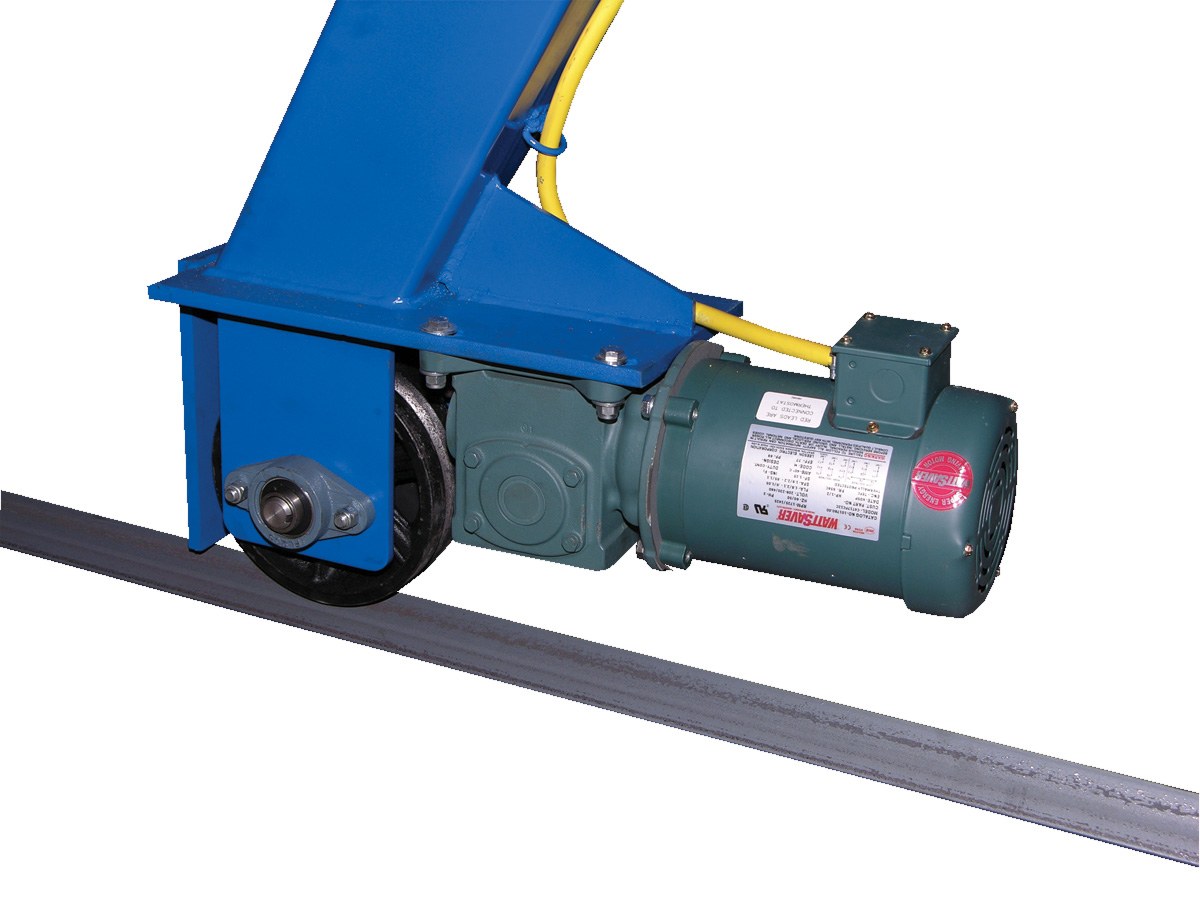

Power Traction Drive Options for a gantry cranes are ideal for industrial manufacturing environments. The power traction drive allows the gantry crane to be moved to a desired position without need of extra personnel. The unit is maneuvered by a three (3) button push button control for precise movements, while being driven by 460V, 3 phase power.

V-TRACK

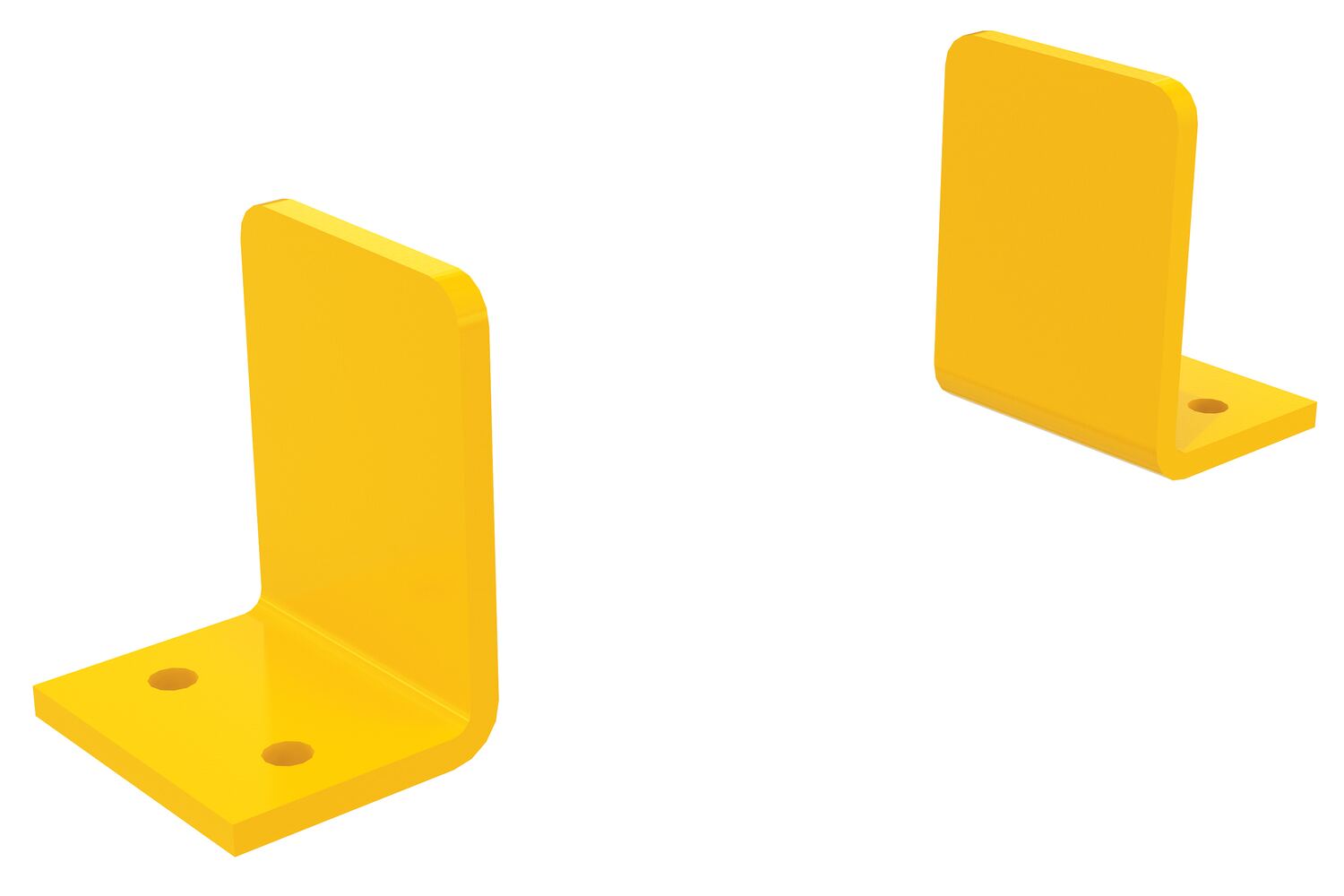

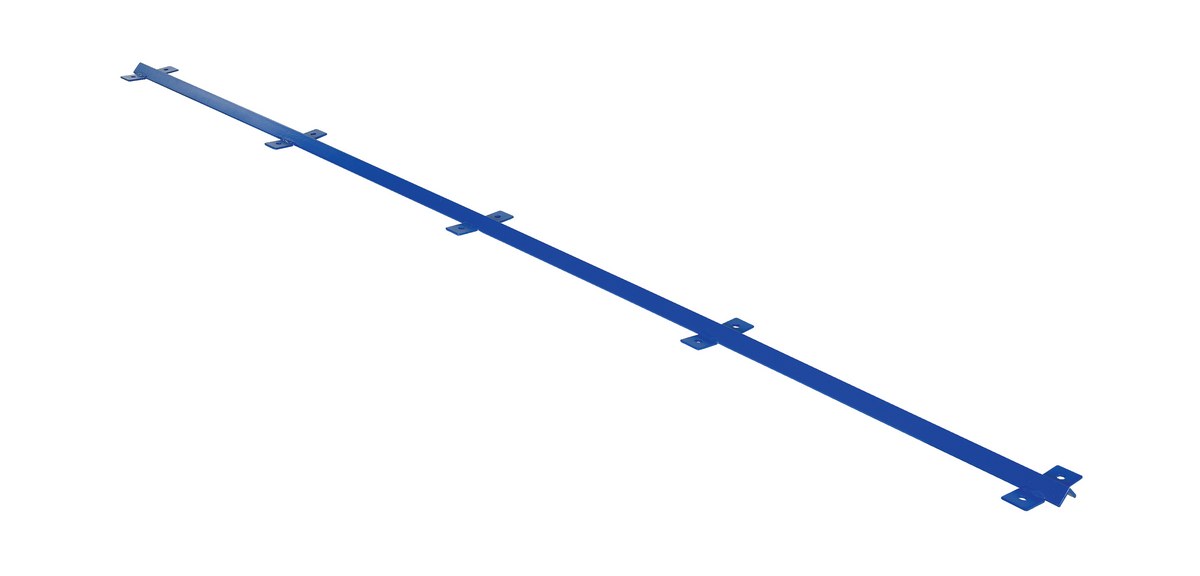

Optional V-groove track section for the steel gantry cranes (one side only) are sold in 120" sections. End stops for the gantry crane V-track are much needed accessories. The end stops, model V-TRACK-ES, work as a barrier, preventing the gantry crane from traveling too far and leaving the V-track.

Power Traction Drive Options for a gantry cranes are ideal for industrial manufacturing environments. The power traction drive allows the gantry crane to be moved to a desired position without need of extra personnel. The unit is maneuvered by a three (3) button push button control for precise movements, while being driven by 460V, 3 phase power.

V-TRACK
Optional V-groove track section for the steel gantry cranes (one side only) are sold in 120" sections. End stops for the gantry crane V-track are much needed accessories. The end stops, model V-TRACK-ES, work as a barrier, preventing the gantry crane from traveling too far and leaving the V-track.

Other Gantry Cranes

 Steel Gantry Crane Power Traction Drive Options Fixed Height Steel Gantry Cranes with V-Groove Casters - Knockdown Fixed Steel Gantry Cranes with Pneumatic Casters Adjustable Height Aluminum Gantry Cranes with Total Locking Casters

Additional Models In This Family
view entire Image Gallery

V-TRACK

model V-TRACK

V-TRACK-ES

model V-TRACK-ES

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
GPTD-2
GPTD-290 Days Limited WarrantyFactory Installed Power Traction Drive System 2000 Lb. To 4000 Lb. Capacity For Steel Gantry Cranes BlueUniform Capacity (lb.): 2,000 to 4,000
Hand Control: 3 Button		0
GPTD-4
GPTD-490 Days Limited WarrantyFactory Installed Power Traction Drive System 6000 Lb. To 8000 Lb. Capacity For Steel Gantry CranesUniform Capacity (lb.): 6,000 to 8,000
Hand Control: 3 Button		0
V-TRACK V-TRACK90 Days Limited WarrantySteel Gantry Crane V-Groove Track 120 In. Length BlueSection Length (ft.): 10
# Mounting Holes: 10		52
V-TRACK-ES V-TRACK-ES90 Days Limited WarrantySteel Gantry Crane V-Groove Track End Stops 5 in. High YellowMounting Hole Qty.: 2
Mounting Hole Dia. (In.): 0.6875		7

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

GPTD-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000 to 4,000
Hand Control: 3 Button
Uniform Capacity (lb.): 2,000 to 4,000
Hand Control: 3 Button

GPTD-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000 to 8,000
Hand Control: 3 Button
Uniform Capacity (lb.): 6,000 to 8,000
Hand Control: 3 Button

V-TRACK
Unit:
Size: W x L x H
Weight:
Limited Warranty
Section Length (ft.): 10
# Mounting Holes: 10
Section Length (ft.): 10
# Mounting Holes: 10

V-TRACK-ES
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Hole Qty.: 2
Mounting Hole Dia. (In.): 0.6875
Mounting Hole Qty.: 2
Mounting Hole Dia. (In.): 0.6875
