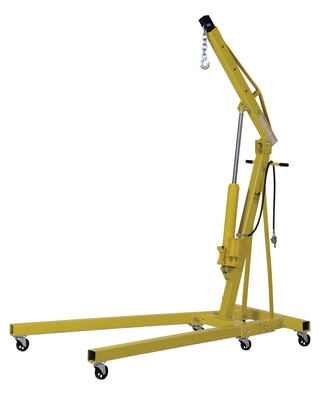

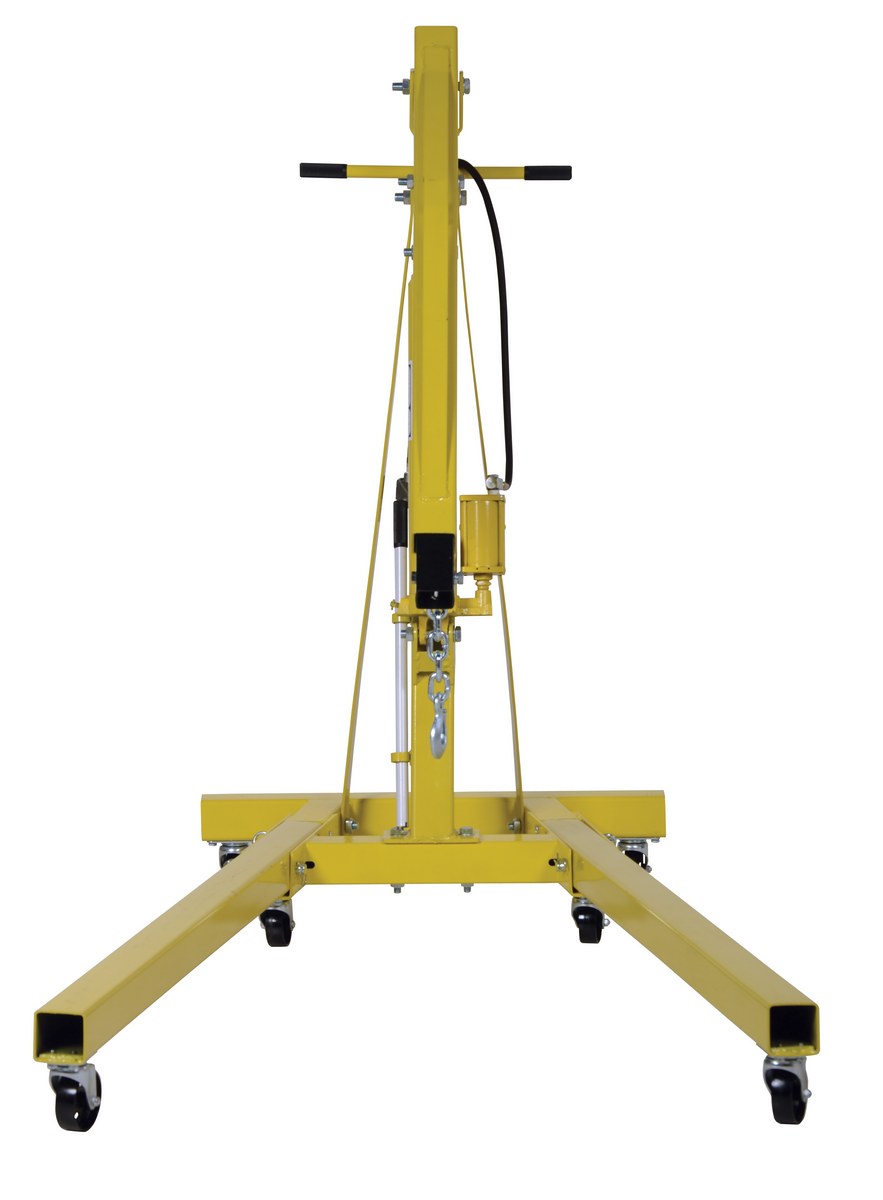

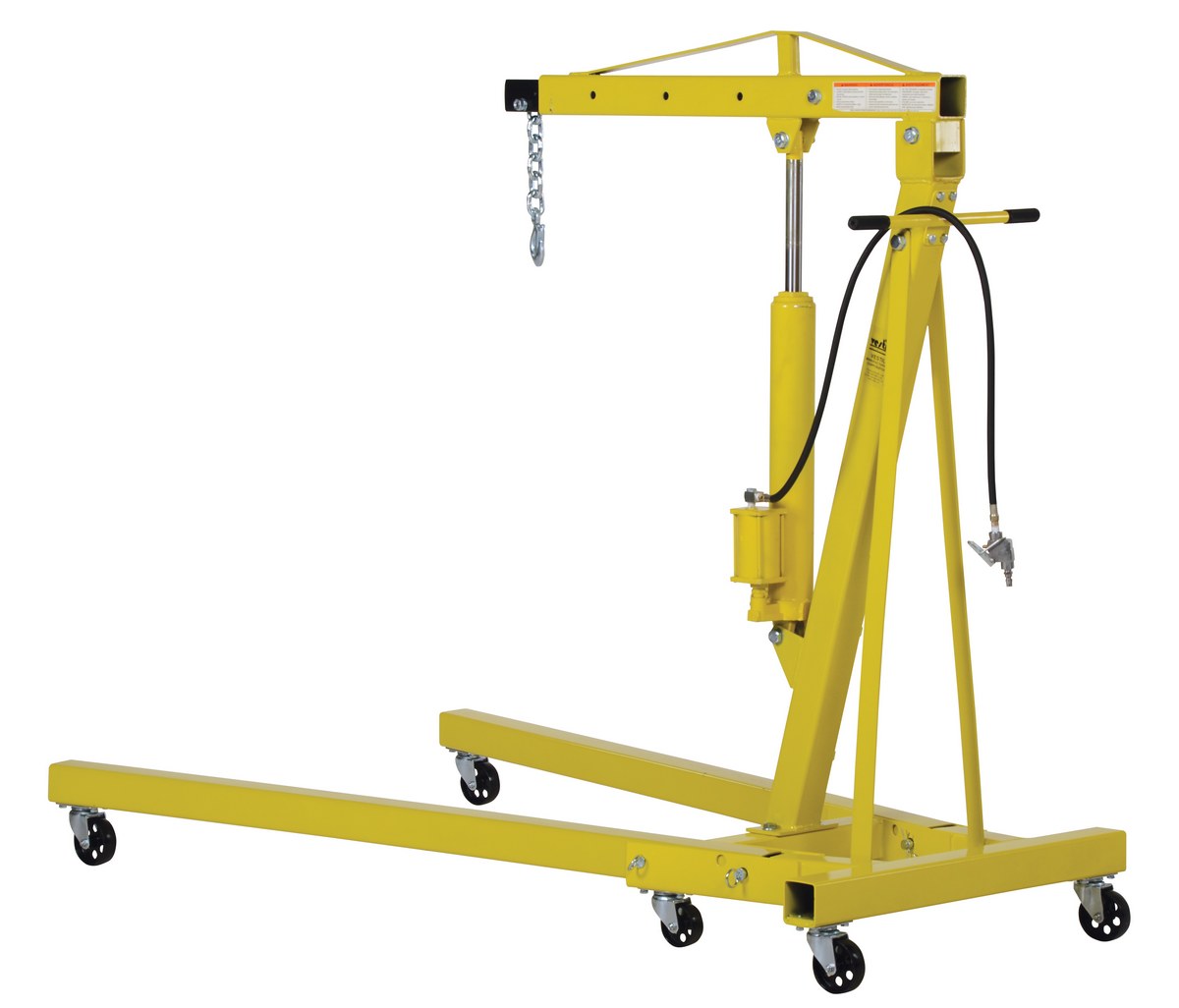

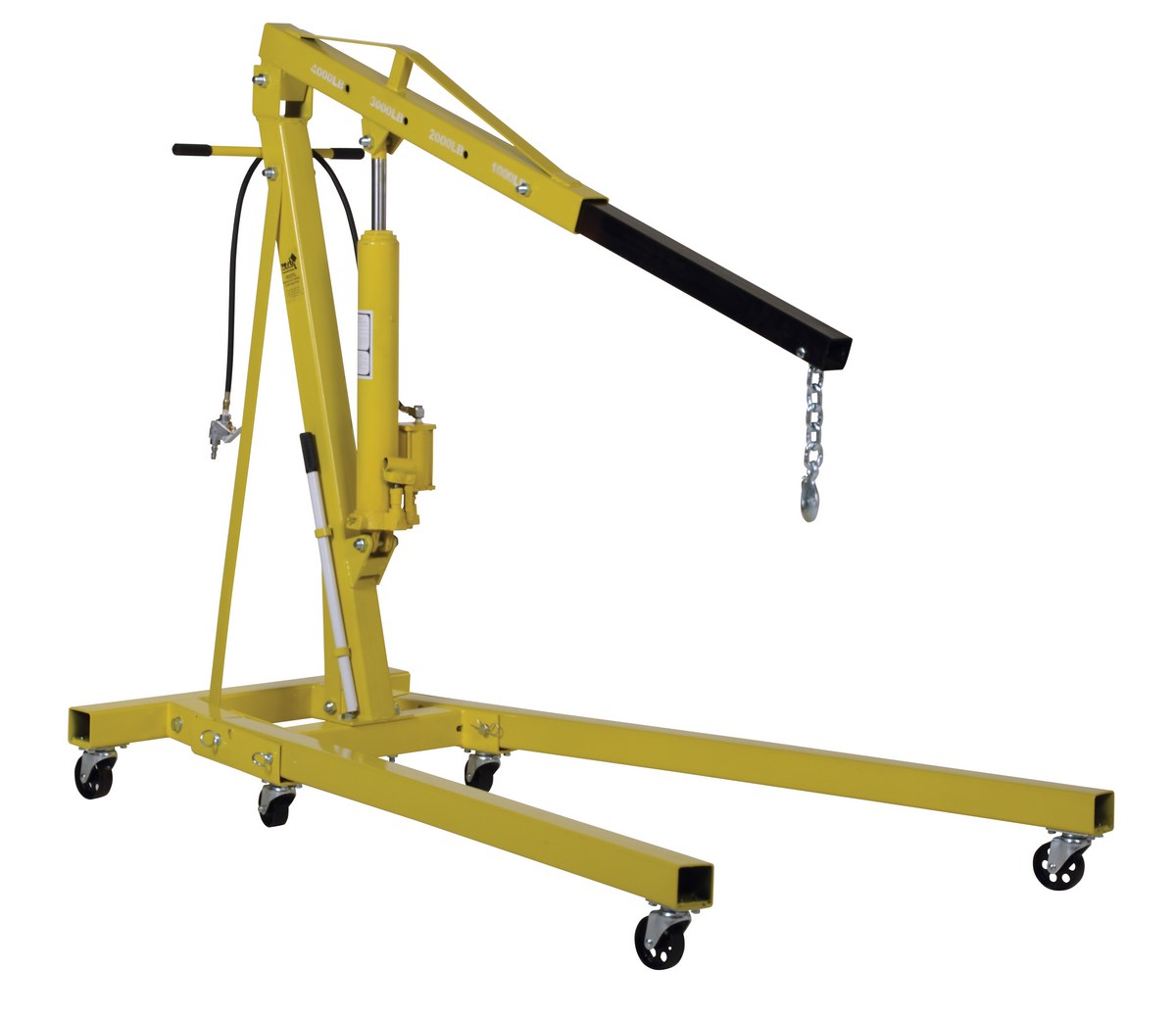

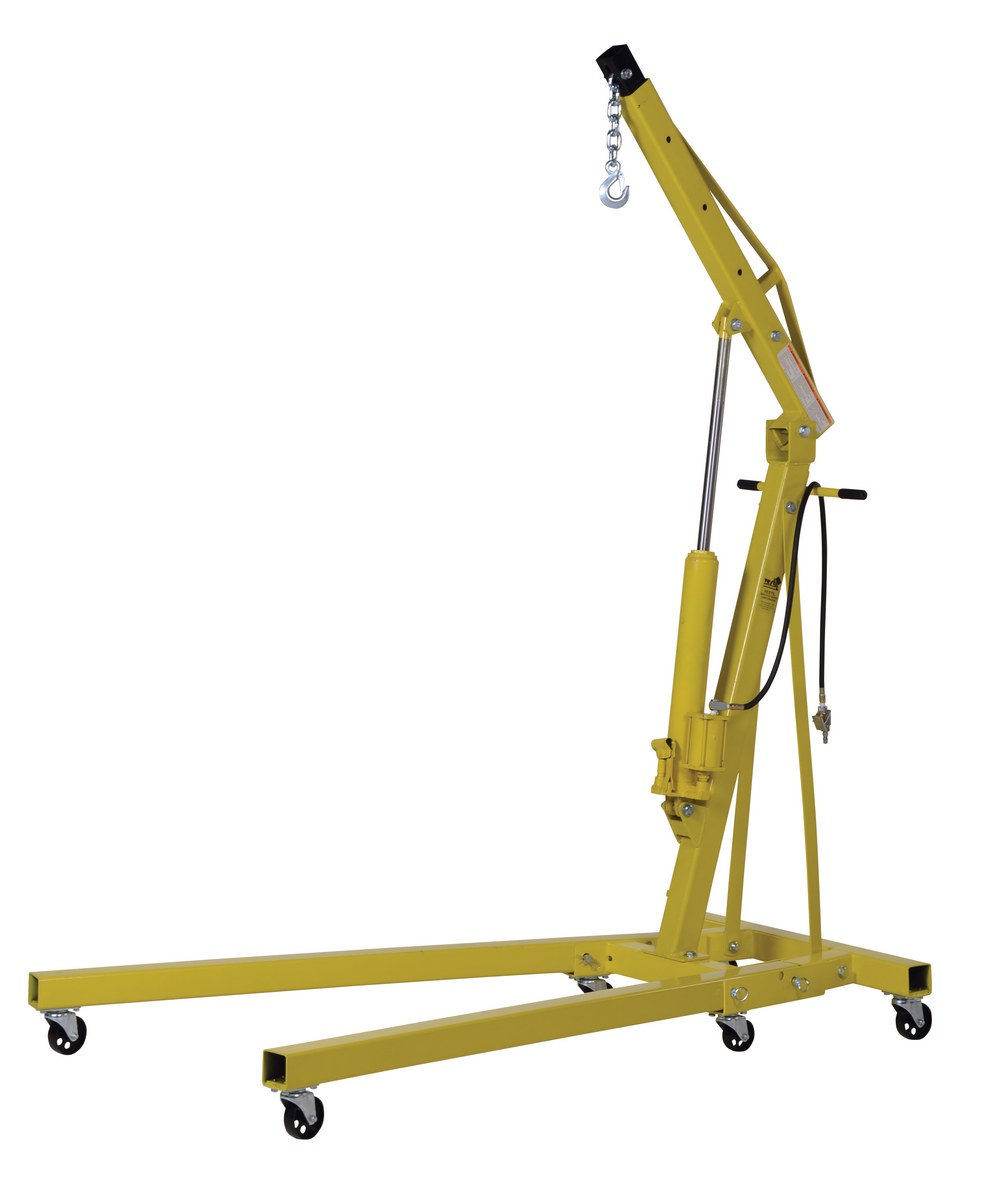

EHN-40-C-AH_E.jpg EHN-40-C-AH_A.jpg EHN-40-C-AH_B.jpg EHN-40-C-AH_C.jpg
Air/Hand Pump Hydraulic Shop Crane

model: EHN-40-C-AH



Featured Overhead Lifting


Low Profile Manual Trollies
Magnetic Spreader Beams
Professional Lever Hoists (disc brake)
Hoists & Trollies
Mini Cable Hoists
Manual and Worm Gear Hand Winches
Adjustable Height Aluminum Gantry Cranes with V-Groove Casters
Vacuum Lifters
Tie Rod Jibs
model chart

Product Family Overview

Print Friendly
Air/Hand Pump Hydraulic Shop Crane
SERIES: EHN

This crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." cast steel casters, (4) swivel in back (2) rigid in front. The Hoist offers heavy-duty lifting power, while optimizing space when in the folded position. Standard features: foldable legs, adjustable boom, swivel hook, and steel construction.

  • Telescopic boom with four settings for different lifting heights and capacities
  • Boom is raised and lowered with a manual hydraulic hand pump
  • High-capacity hydraulic cylinder provides for faster lifting action
  • Features a large diameter ram to withstand angled loads when lifting

This crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." cast steel casters, (4) swivel in back (2) rigid in front. The Hoist offers heavy-duty lifting power, while optimizing space when in the folded position. Standard features: foldable legs, adjustable boom, swivel hook, and steel construction.

  • Telescopic boom with four settings for different lifting heights and capacities
  • Boom is raised and lowered with a manual hydraulic hand pump
  • High-capacity hydraulic cylinder provides for faster lifting action
  • Features a large diameter ram to withstand angled loads when lifting

Other Engine Hoists & Floor Cranes

 Winch Operated Truck Jib Cranes Lifter Jibs Pallet Truck Hoist Electric Powered Floor Cranes

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EHN-40-C-AH EHN-40-C-AH90 Days Limited WarrantySteel Air and Hand Pump Hydraulic Shop Crane 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Leg Design: Foldable		249

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

EHN-40-C-AH
Unit:

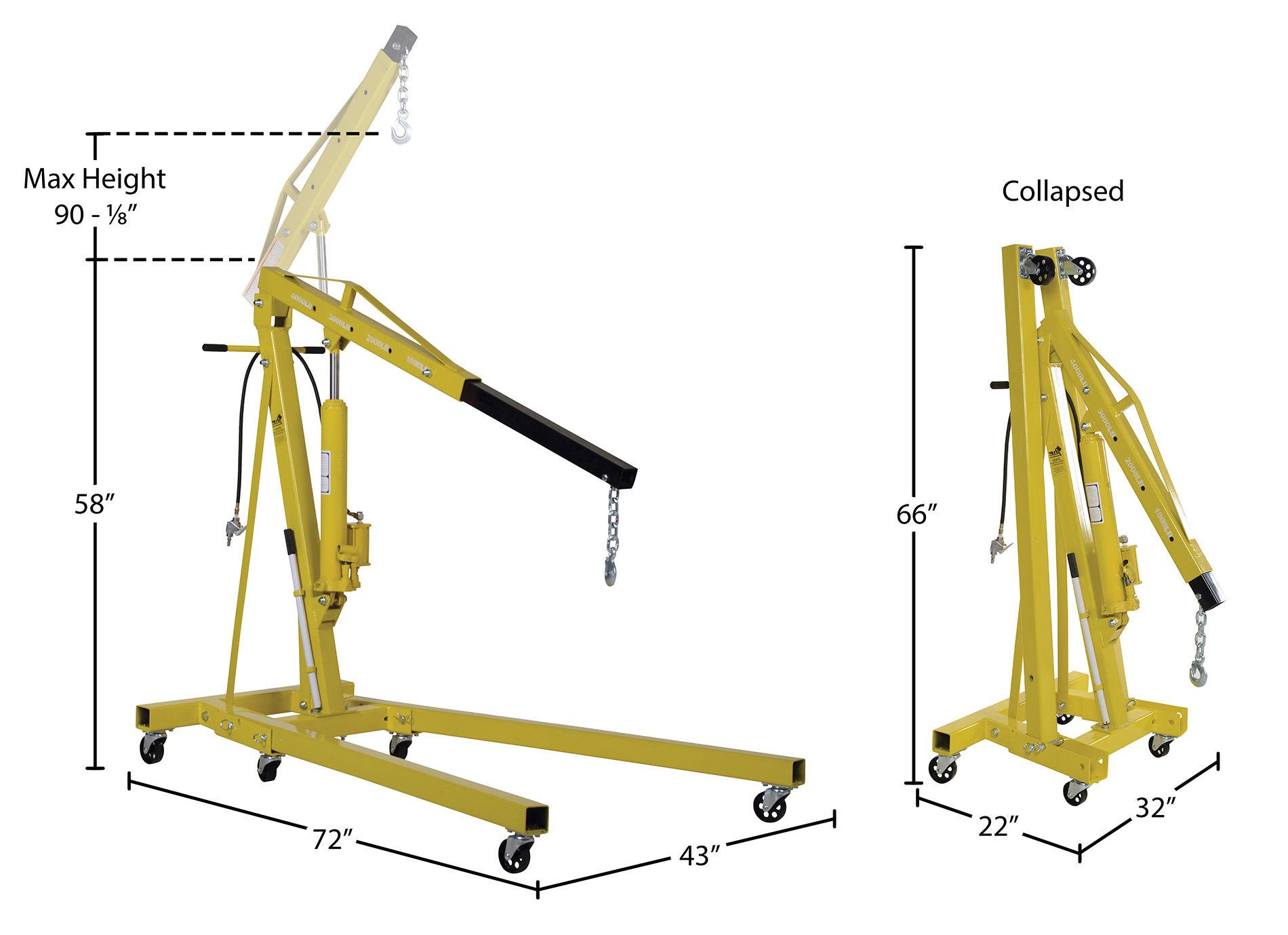

Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Leg Design: Foldable
Uniform Capacity (lb.): 4,000
Leg Design: Foldable
Air/Hand Pump Hydraulic Shop Crane PDF's will open in a new window when clicked.

Manuals


EHN-40-C-AH
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHN-40-C-AH

Testing Certificates


EHN-40-C-AH

SDS Sheets

Hydraulic Oil SDS Sheet for: EHN-40-C-AH

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How long is the chain on the EHN-40-C?

A: The chain on the EHN-40-C is 7".

Q: What size are the tube leg members for EHN-40-C?

A: The tube leg members are 2-3/4".

Q: What is the wall thickness of the tubes?

A: The wall thickness of the tubes is 1/8".

Q: Model: EHN-40-C-AH. I want to know how much air pressure (PSI) it needs to lift equipment.

A: The air pressure requirement is 70 to 90 psi.
