Portable Cantilever Hoists

model: P-JIB-4

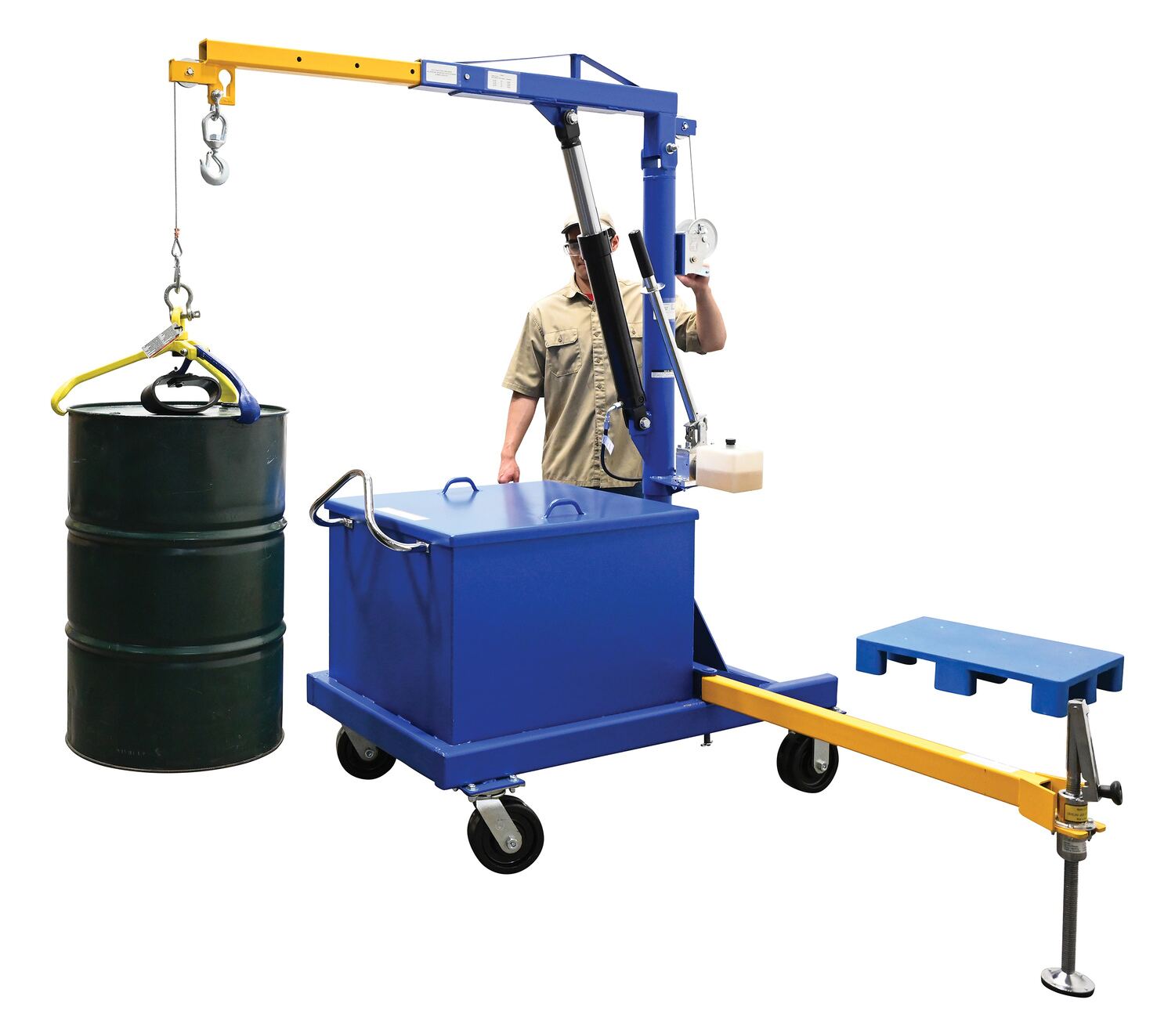

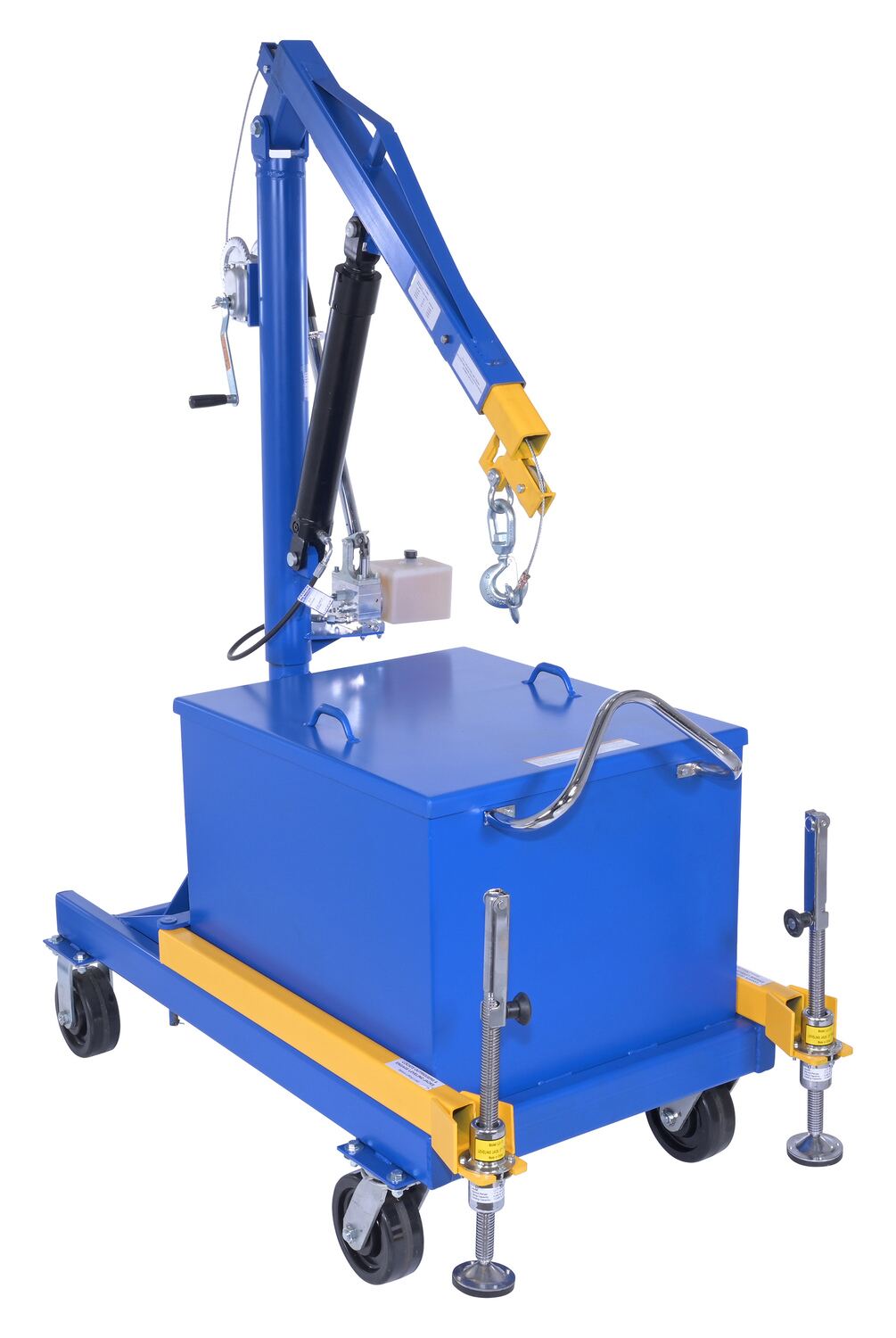

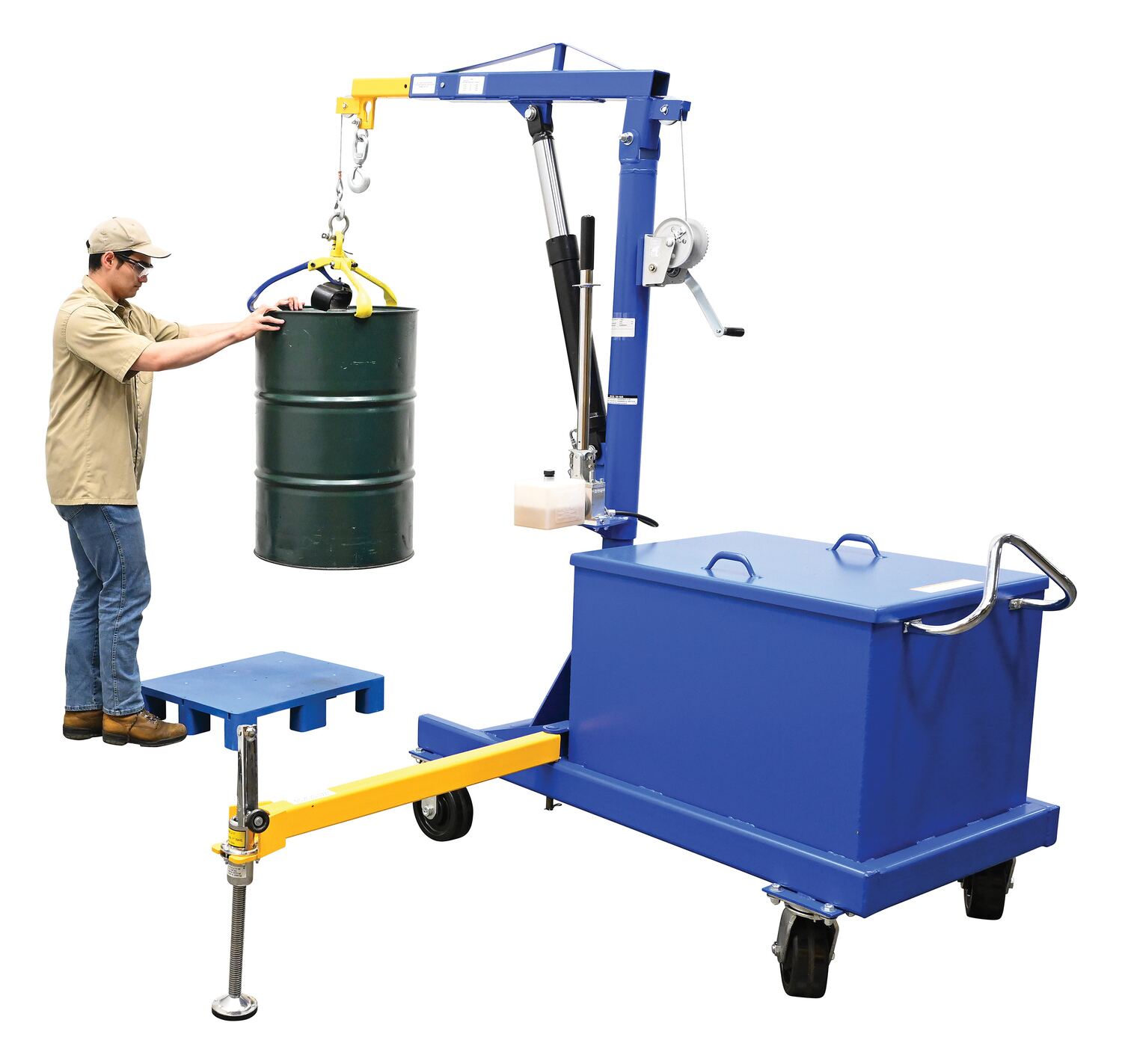

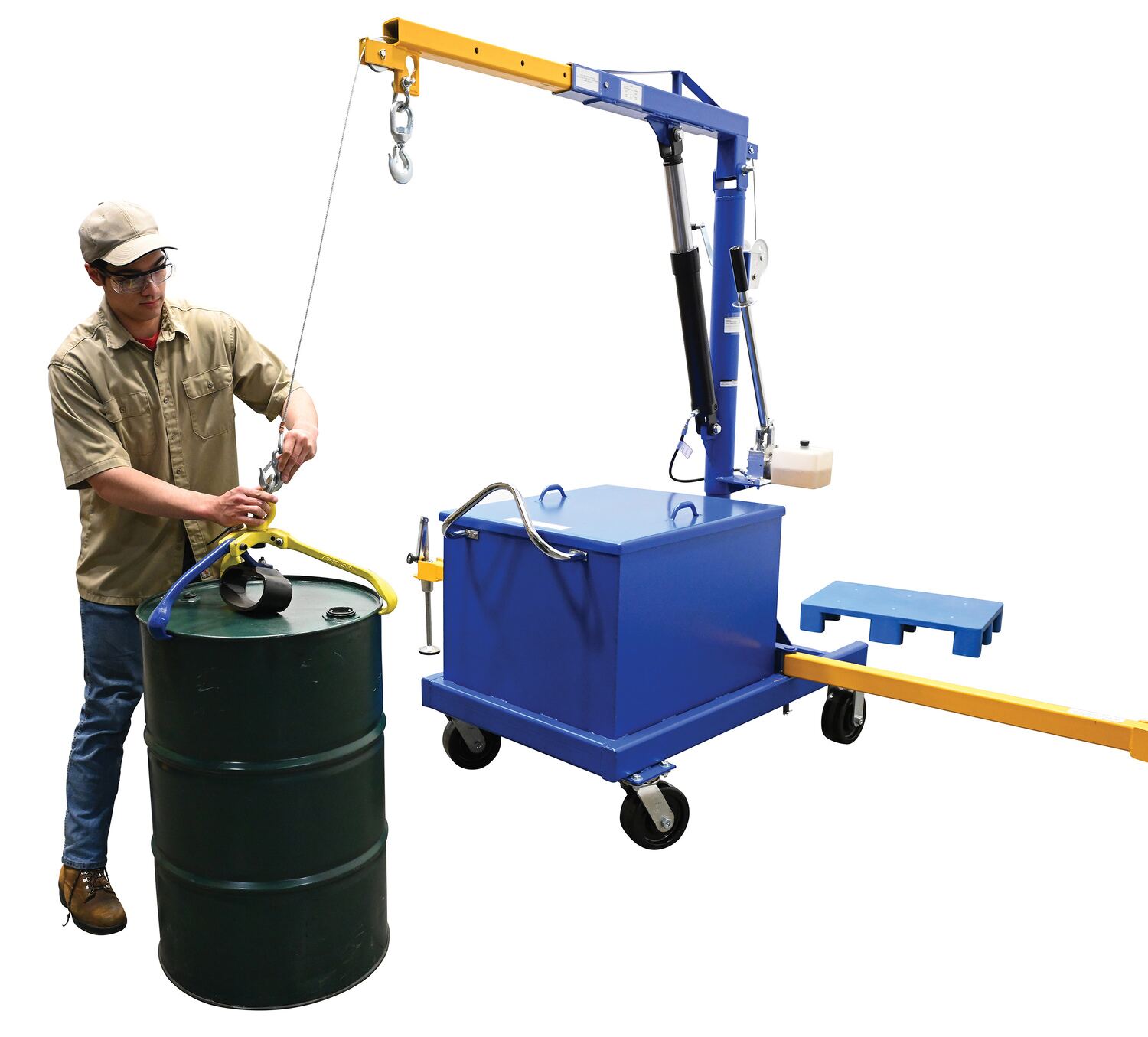

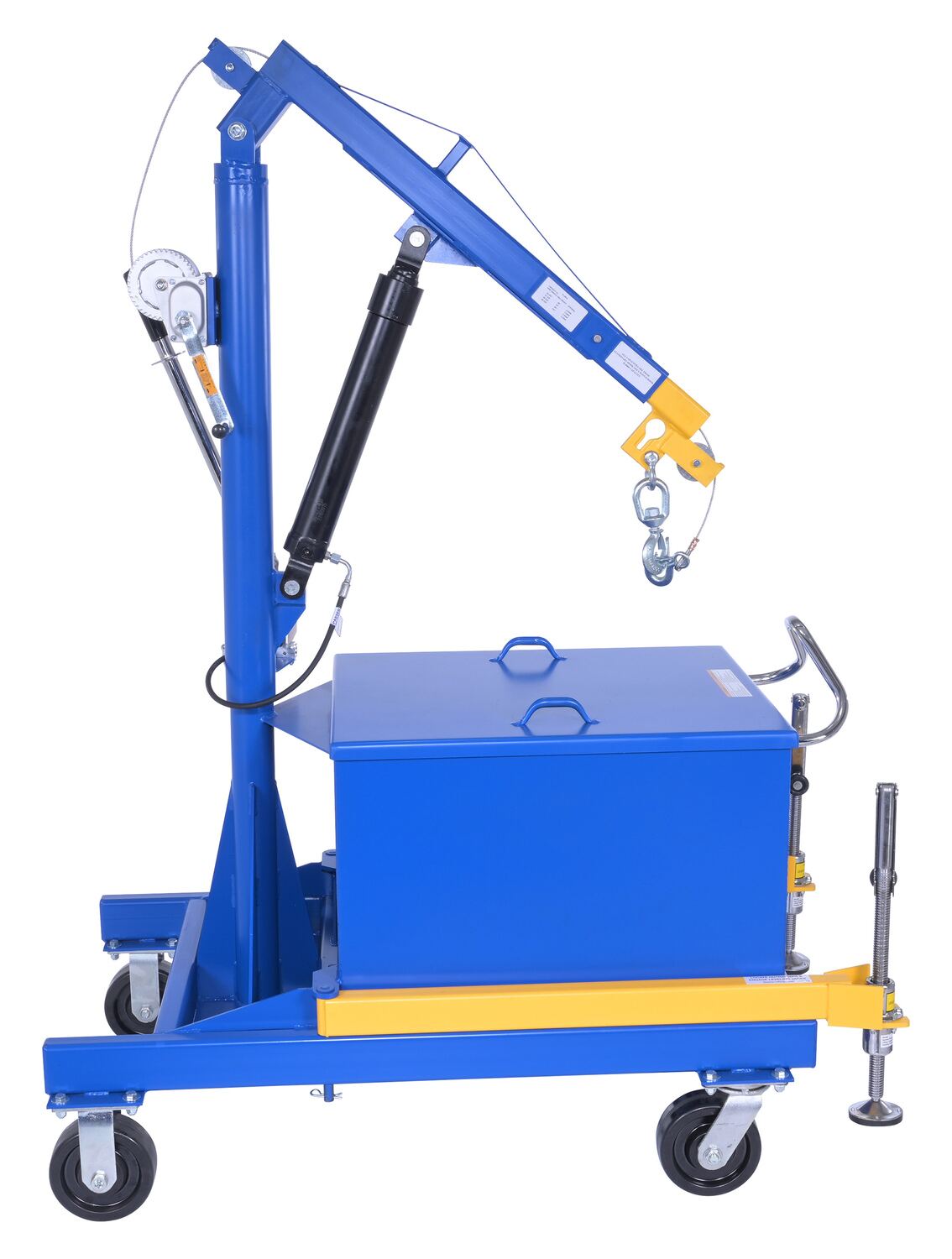

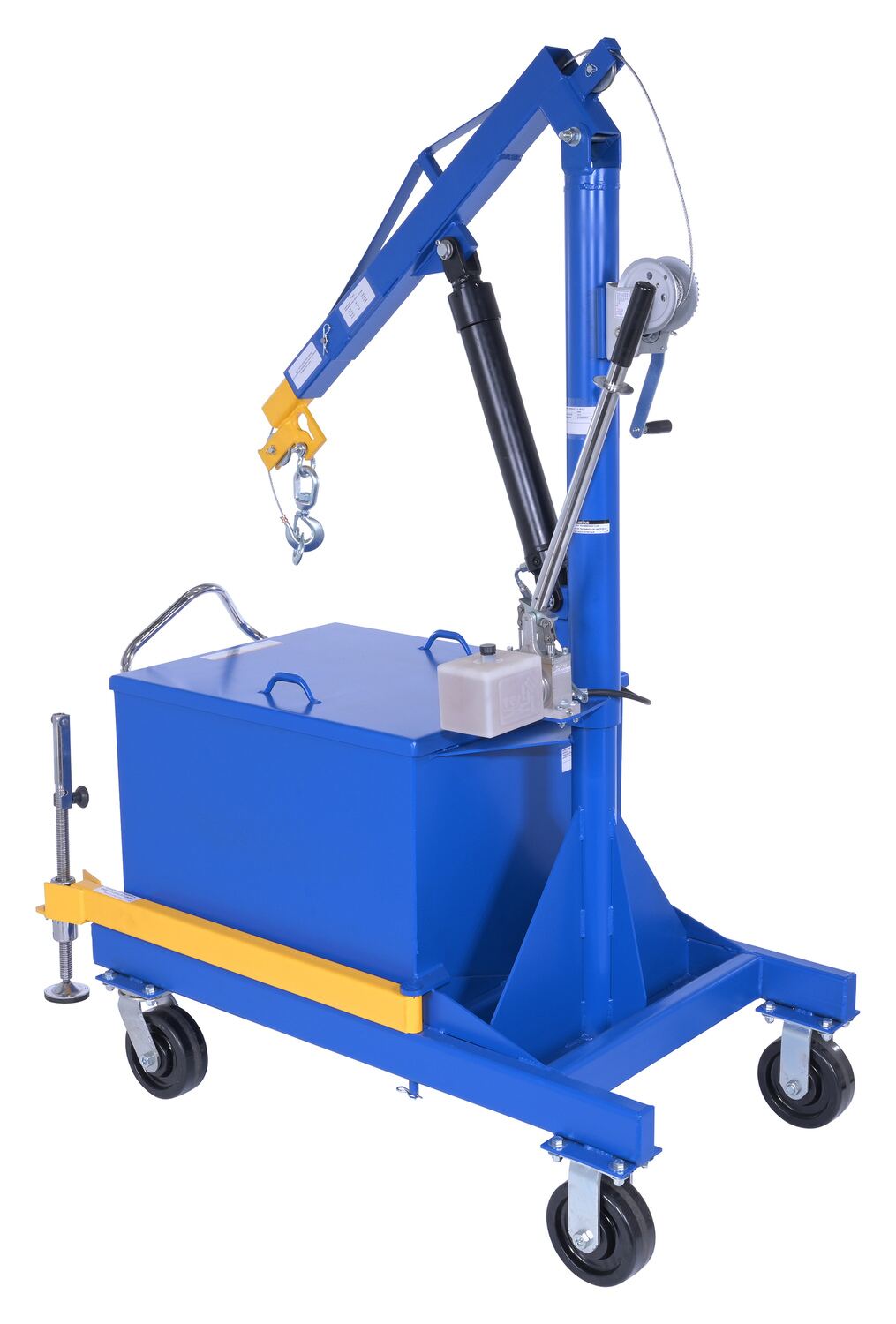

Portable Cantilever Hoists

SERIES: P-JIB

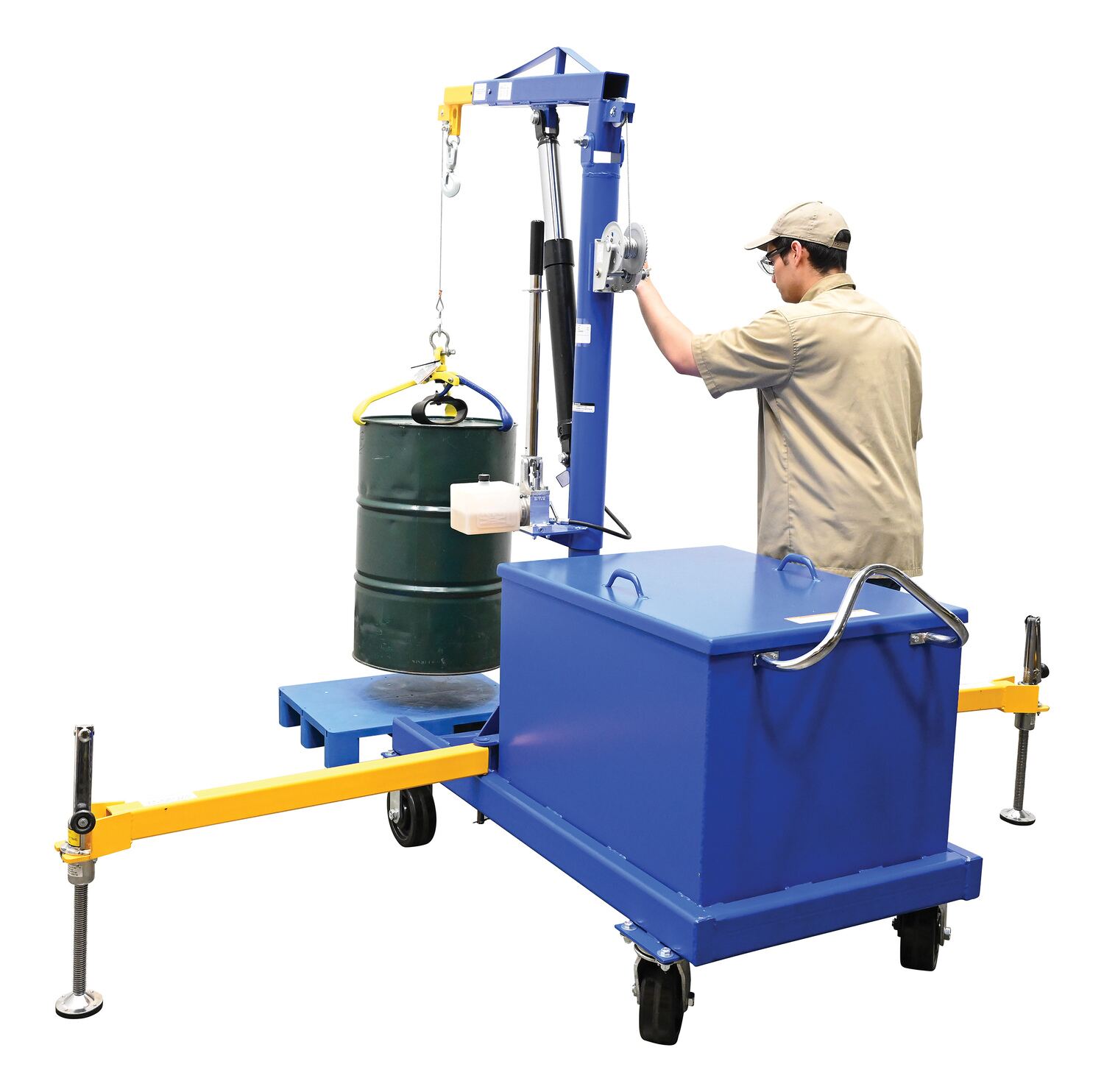

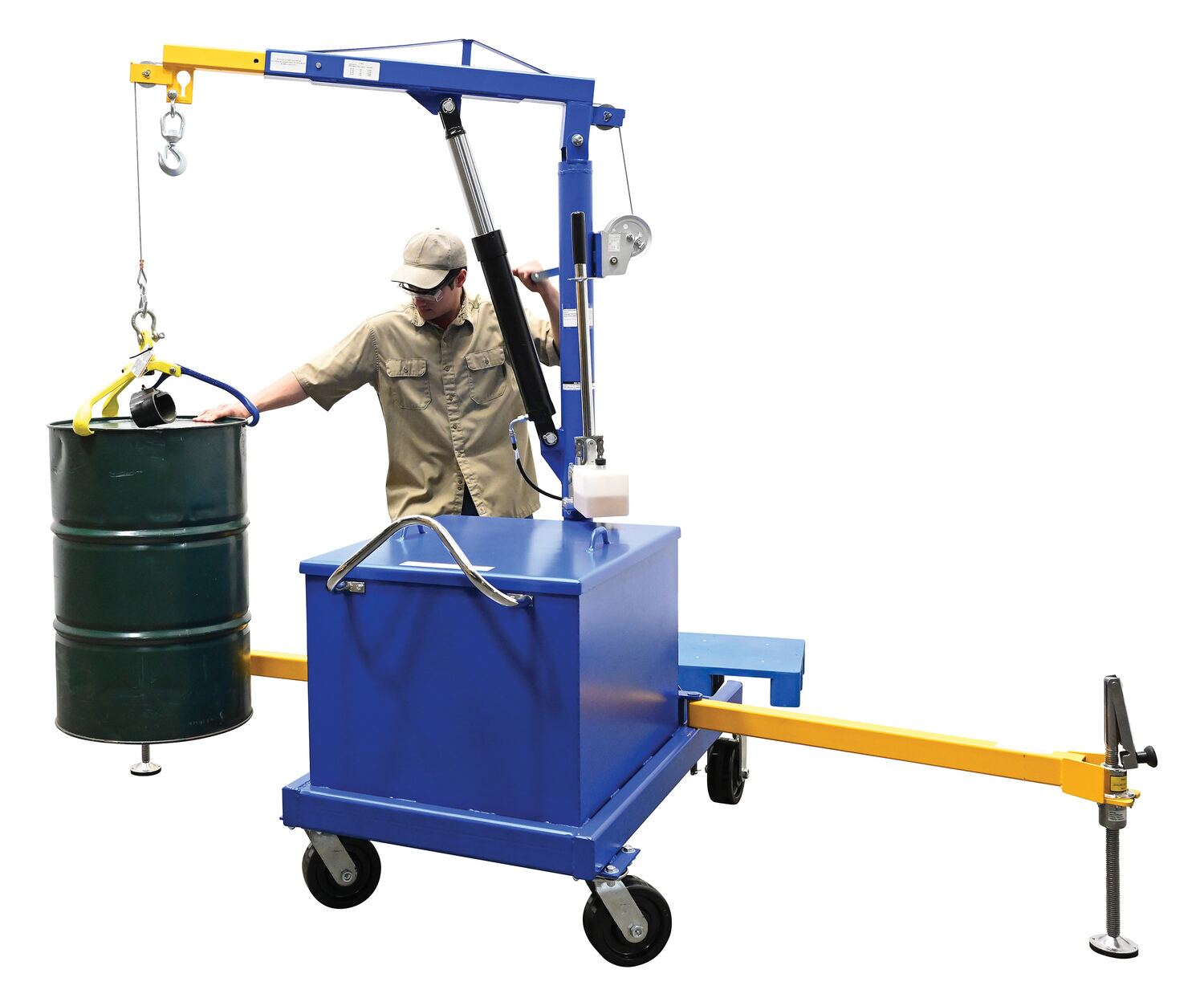

The Portable Cantilever Hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond fram is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

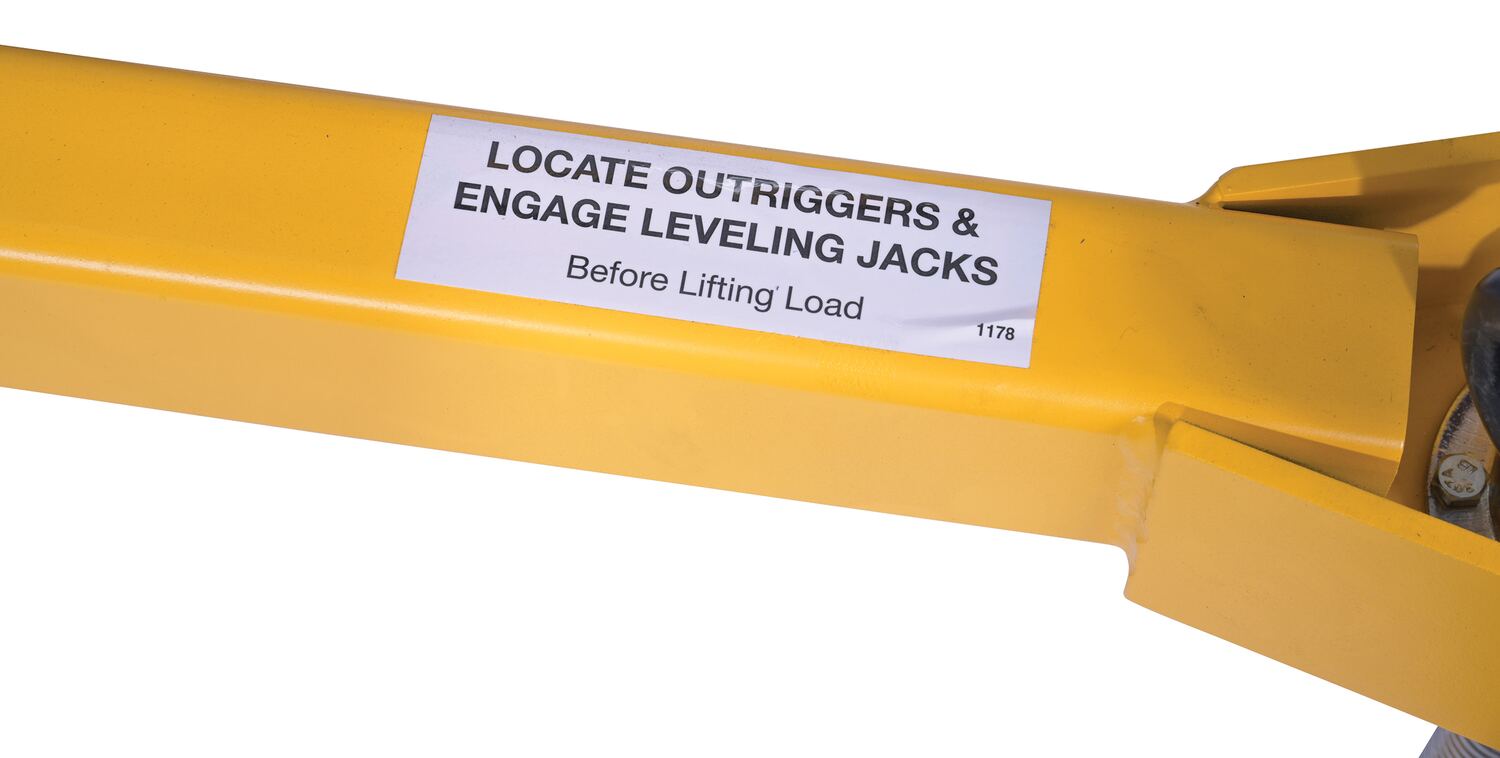

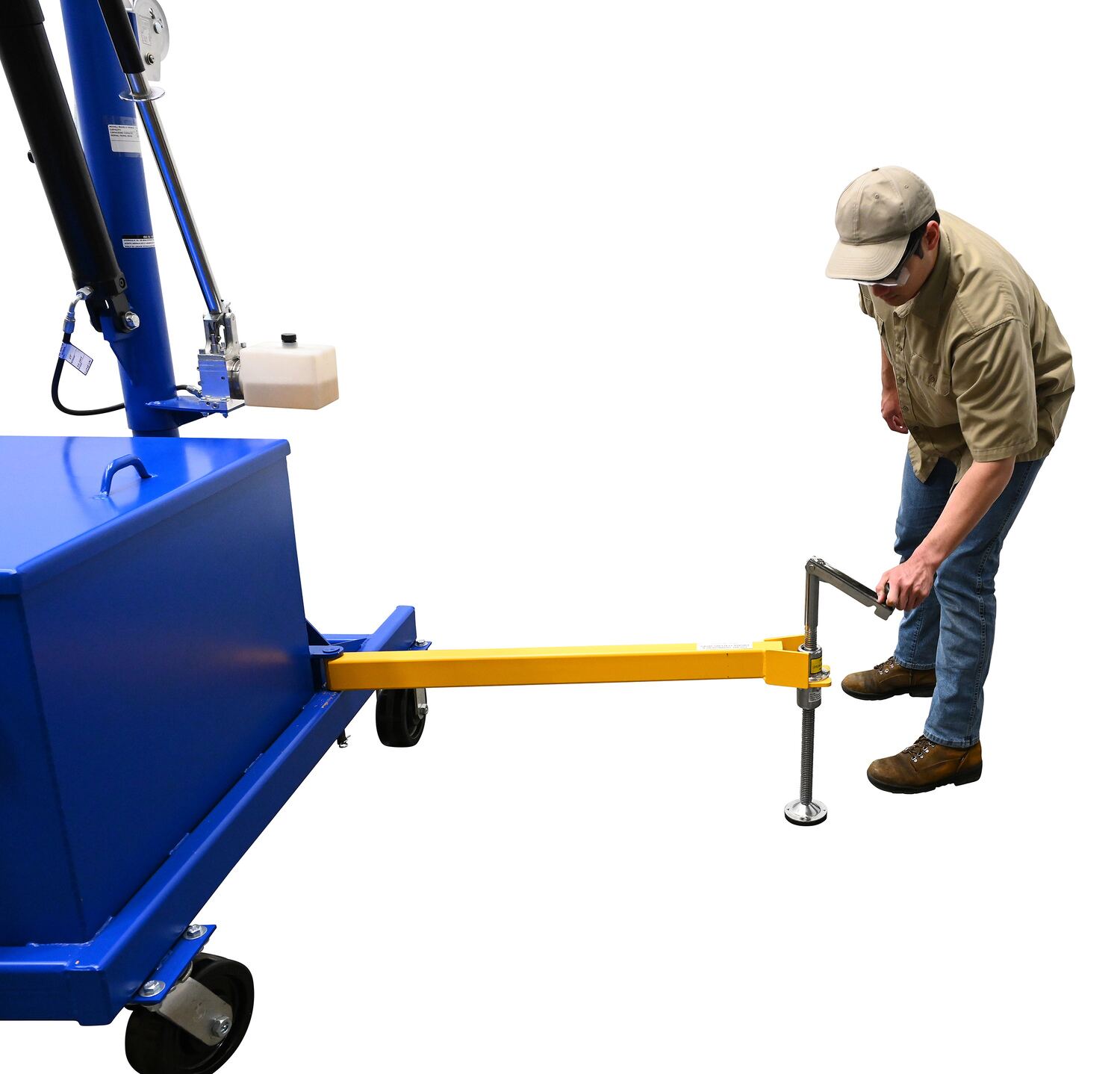

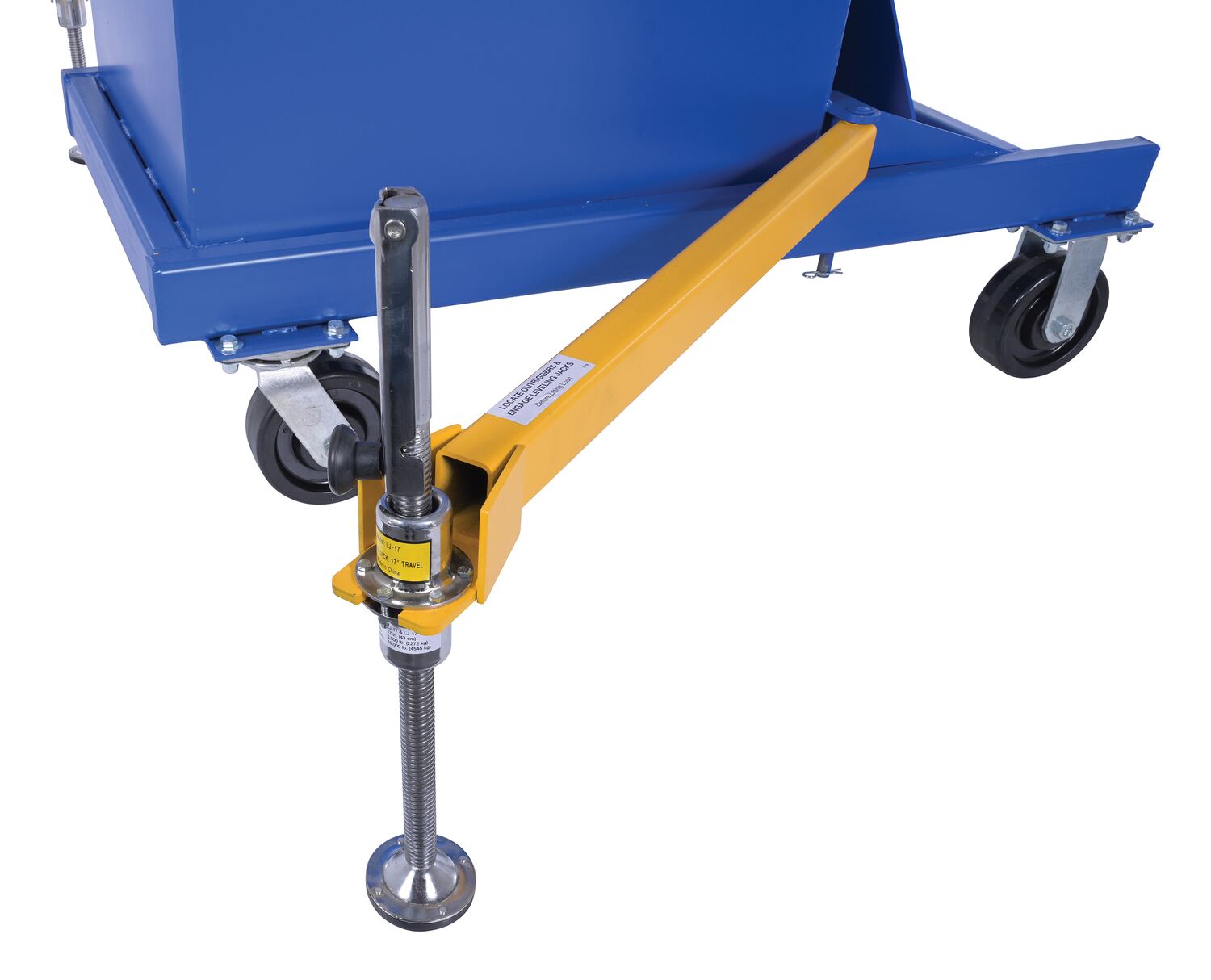

Outriggers increase stability with counter-balanced/cantilever design

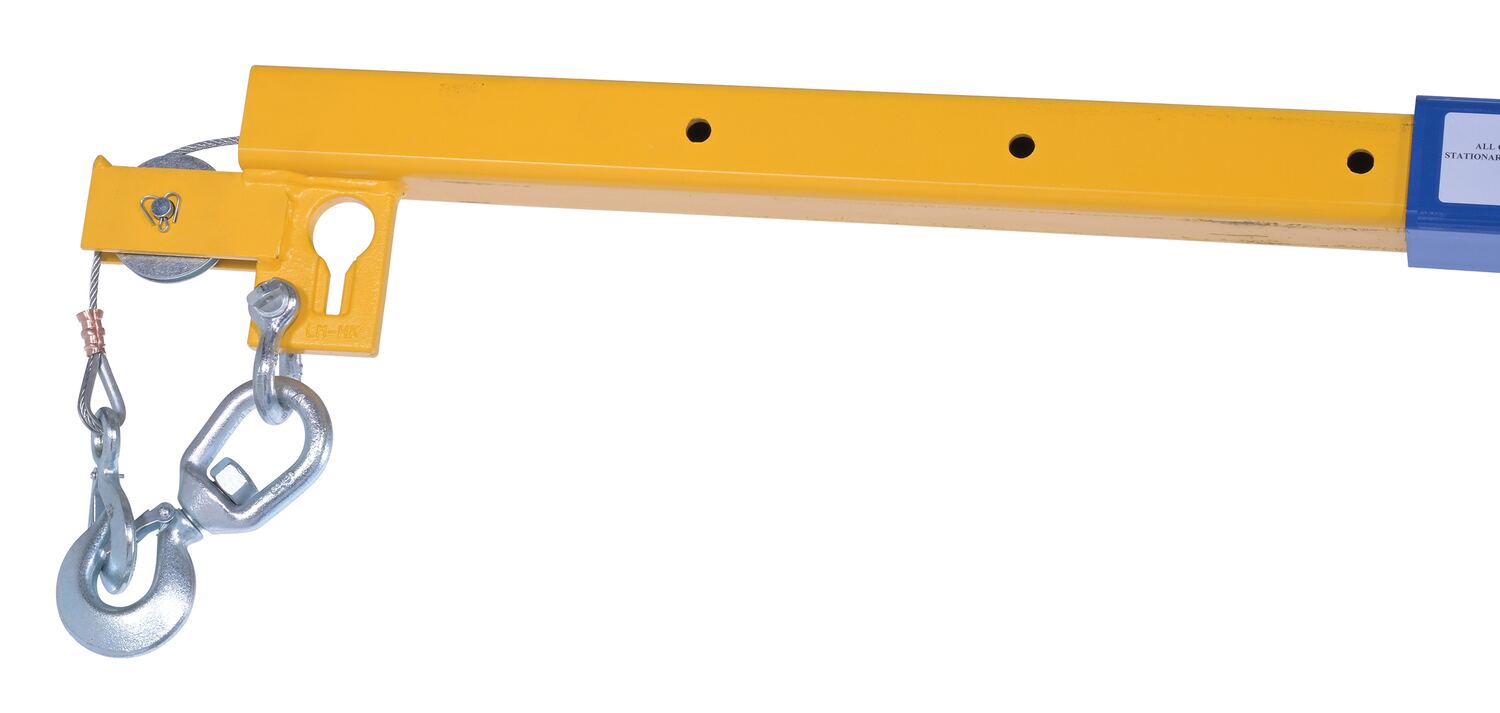

Adjustable extendable boom
Boom swivels 360 degrees

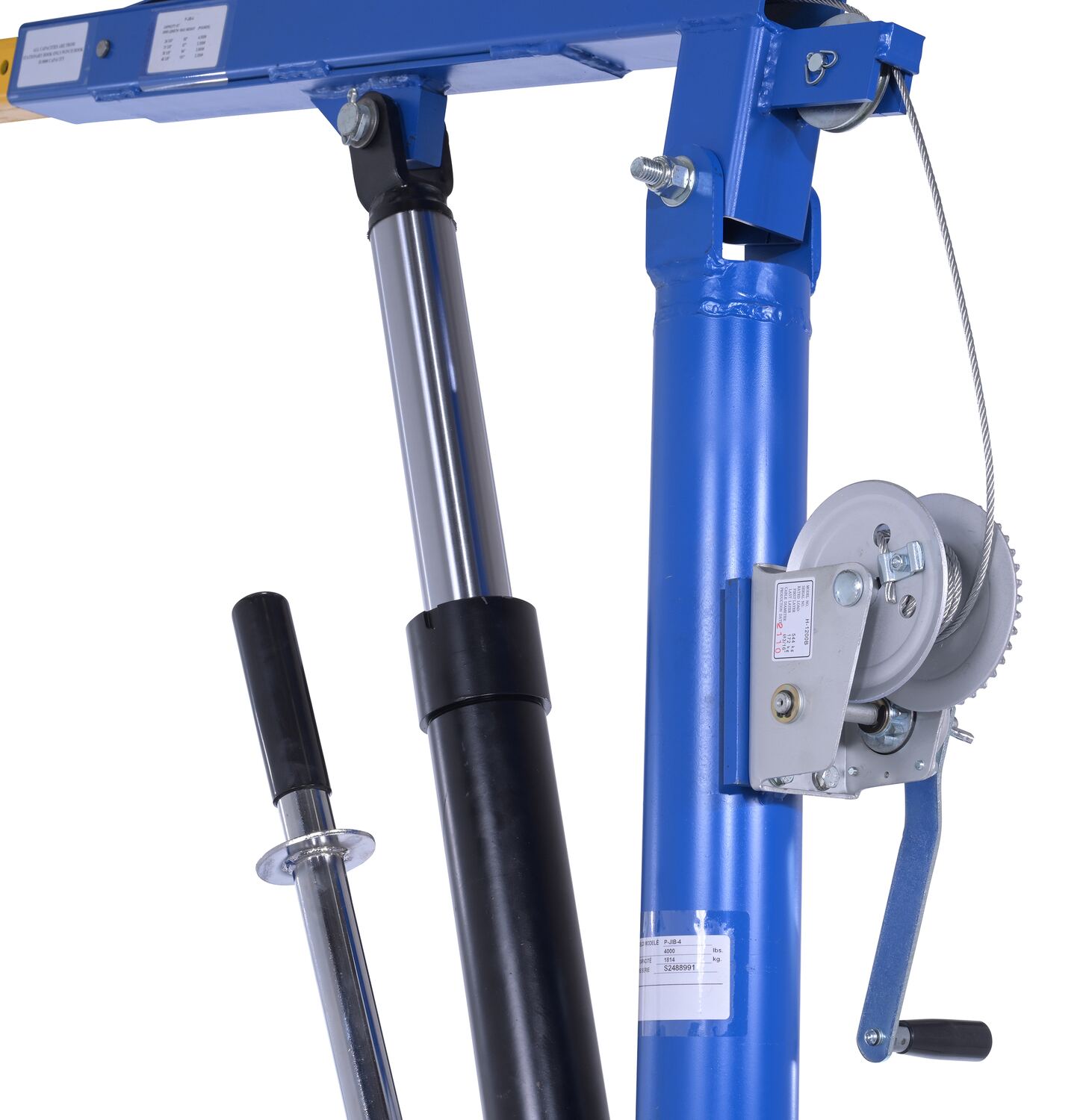

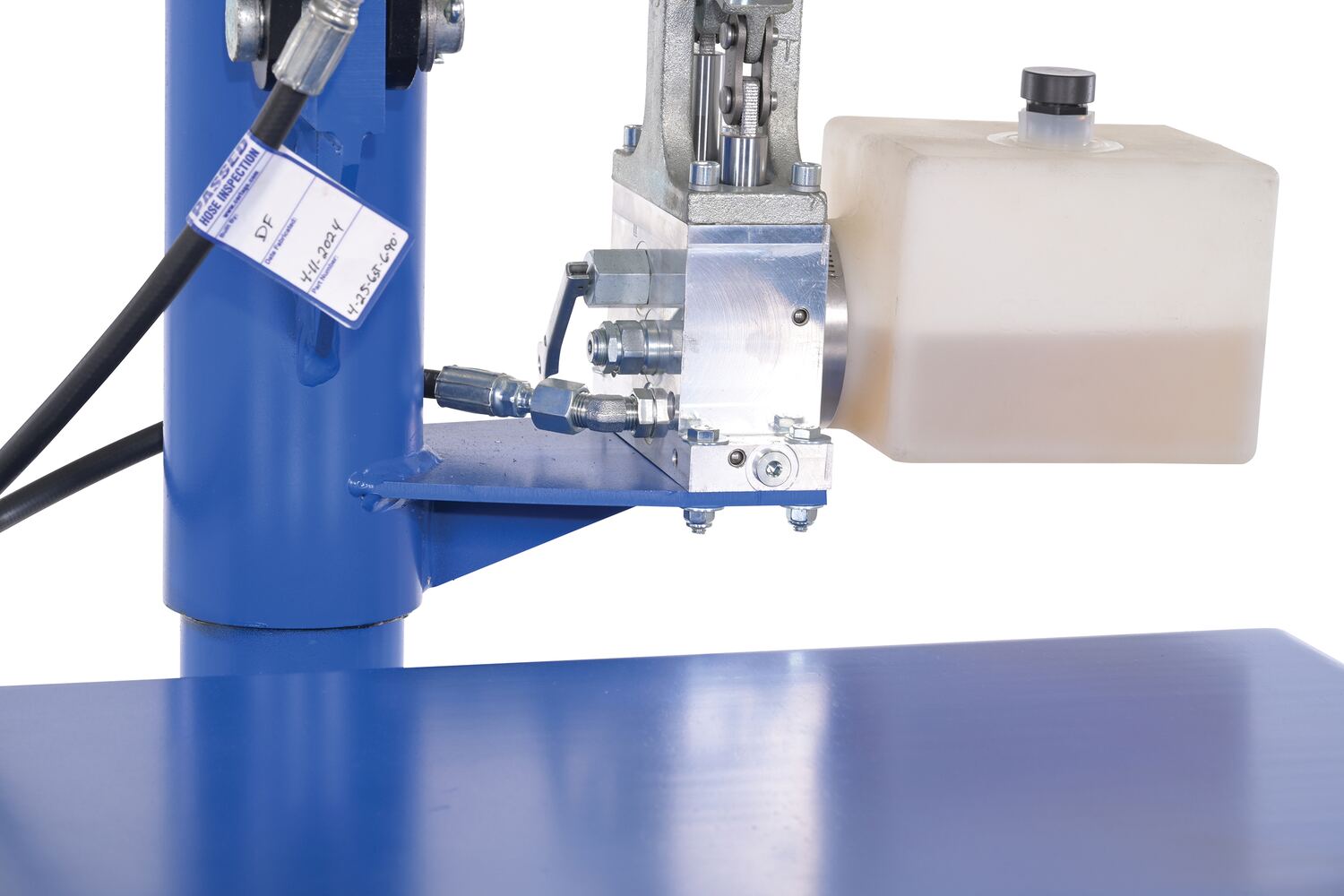

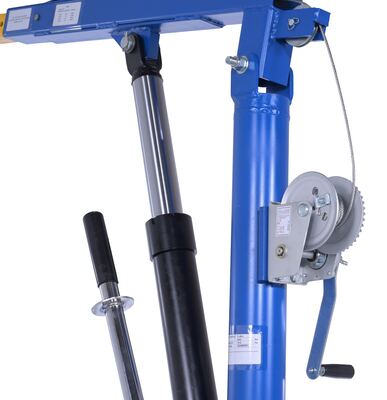

Double acting hydraulic hand pump

Portable Cantilever Hoists

model: P-JIB-4

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

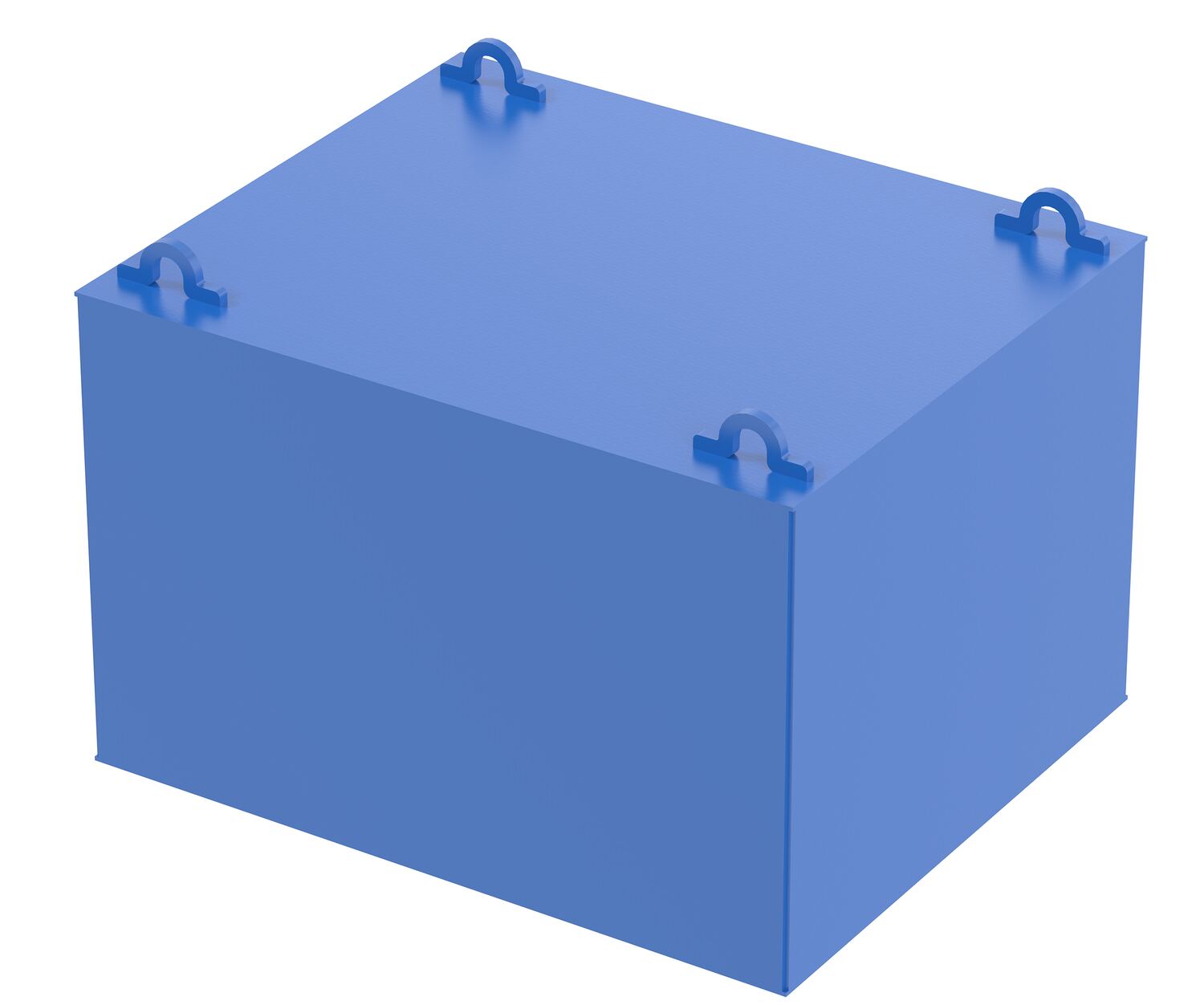

P-JIB-BALL-2		Steel Cantilever Hoist Ballast 16-1/2 In. x 27 In. x 24 In. …	1 Year Limited Warranty	2142

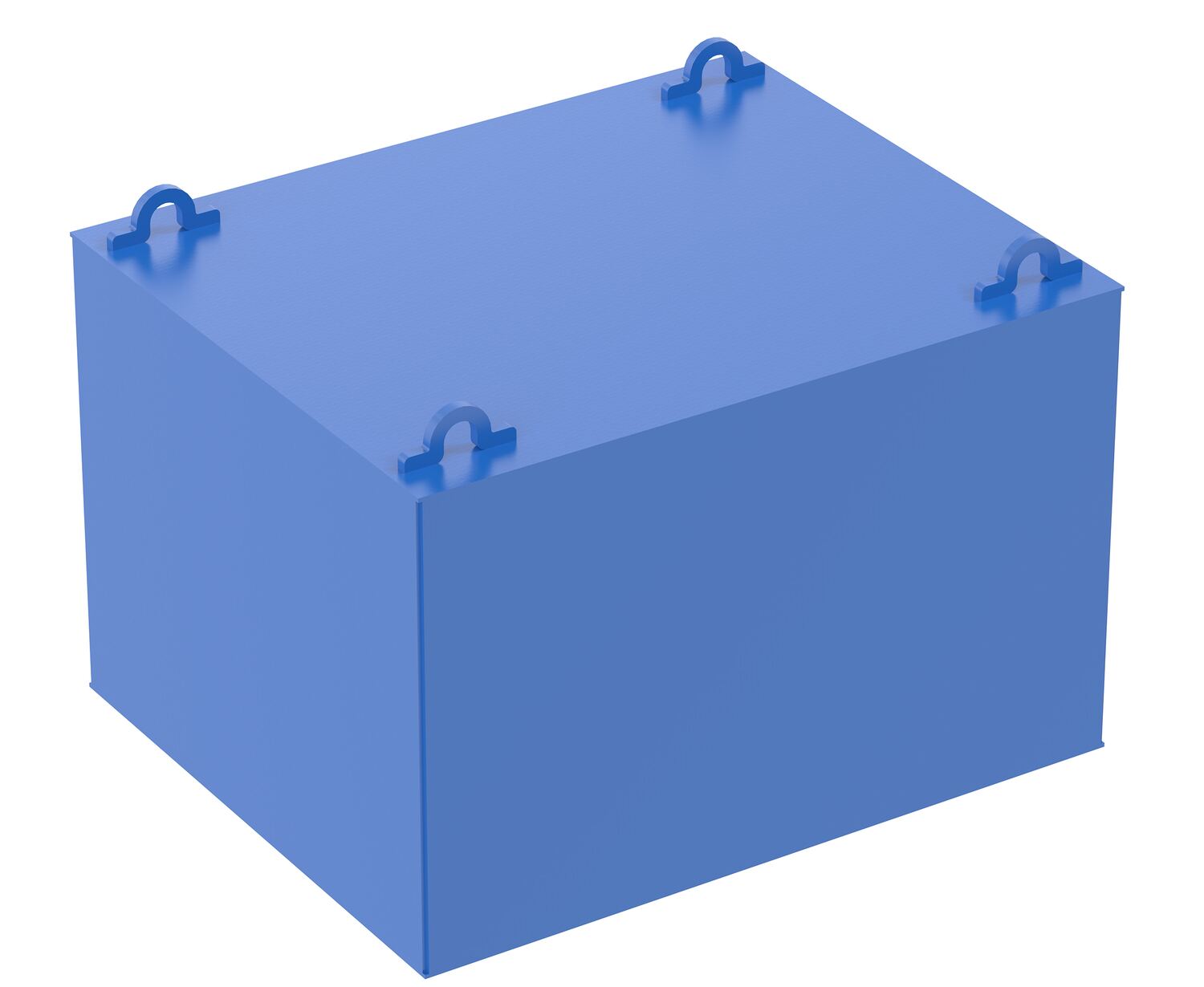

P-JIB-BALL-4		Steel Cantilever Hoist Ballast 33 In. x 27 In. x 24 In. 4000…	1 Year Limited Warranty	3942

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

P-JIB

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

P-JIB-2

P-JIB-4

P-JIB-BALL-2

P-JIB-BALL-4

Testing Certificates

P-JIB-2

P-JIB-4

P-JIB-BALL-2

P-JIB-BALL-4

SDS Sheets

Hydraulic Oil
P-JIB-2 SDS

Hydraulic Oil
P-JIB-4 SDS

Other PDFs

No "Other PDFs" For This Product

Print Friendly

Related or Similar Products:

More From Engine Hoists & Floor Cranes

Pallet Truck Hoist

Pallet Truck Hoist

Hitch-Mounted Truck Jib Crane

Hitch-Mounted Truck Jib Crane

Hoist Trailer

Winch Operated Truck Jib Cranes

Winch Operated Truck Jib Cranes

Portable Cantilever Hoists

The Portable Cantilever Hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond fram is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

Outriggers increase stability with counter-balanced/cantilever design
Adjustable extendable boom
Boom swivels 360 degrees
Double acting hydraulic hand pump

Model #		Description	Attributes	Net Wt. (lbs)

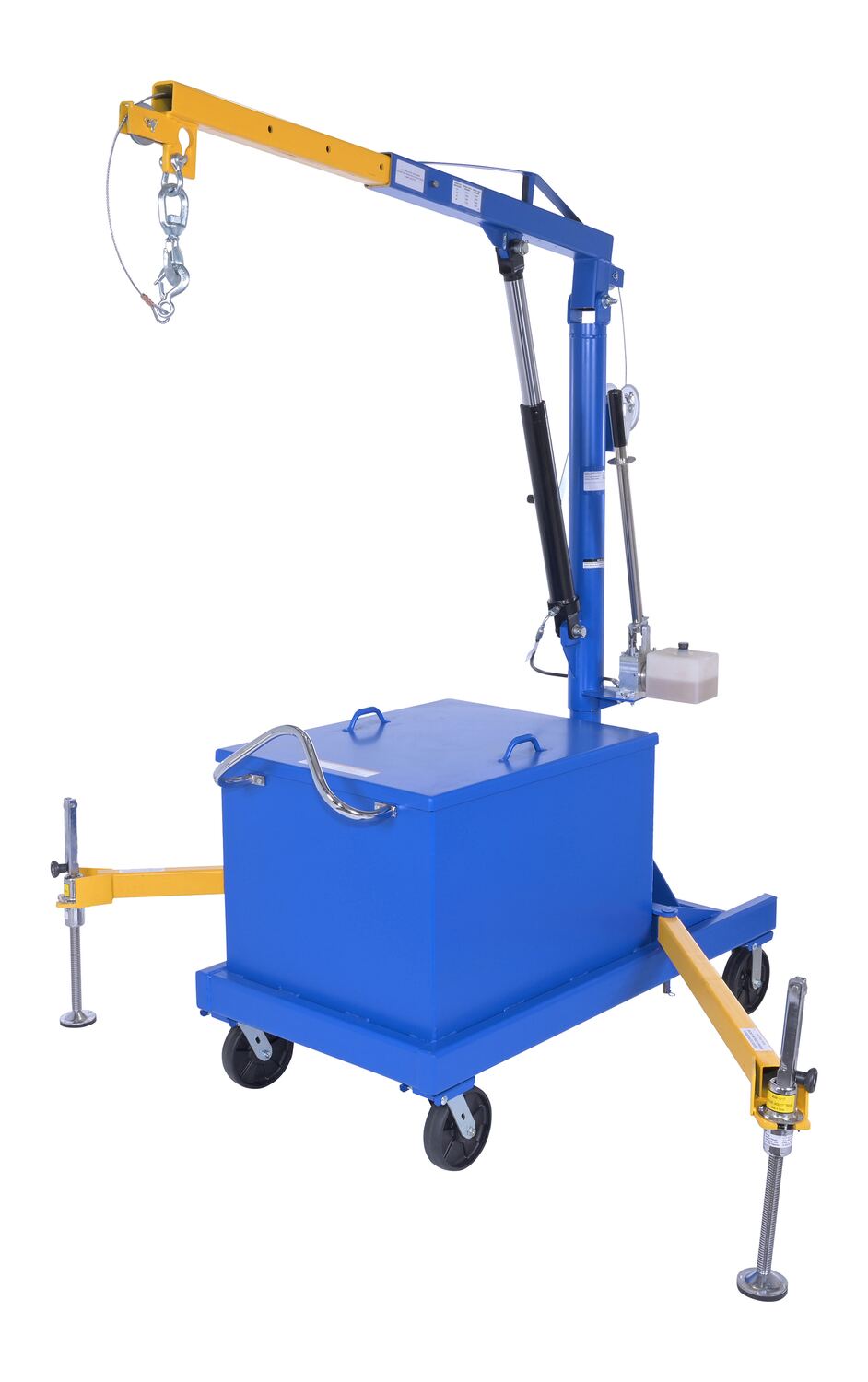

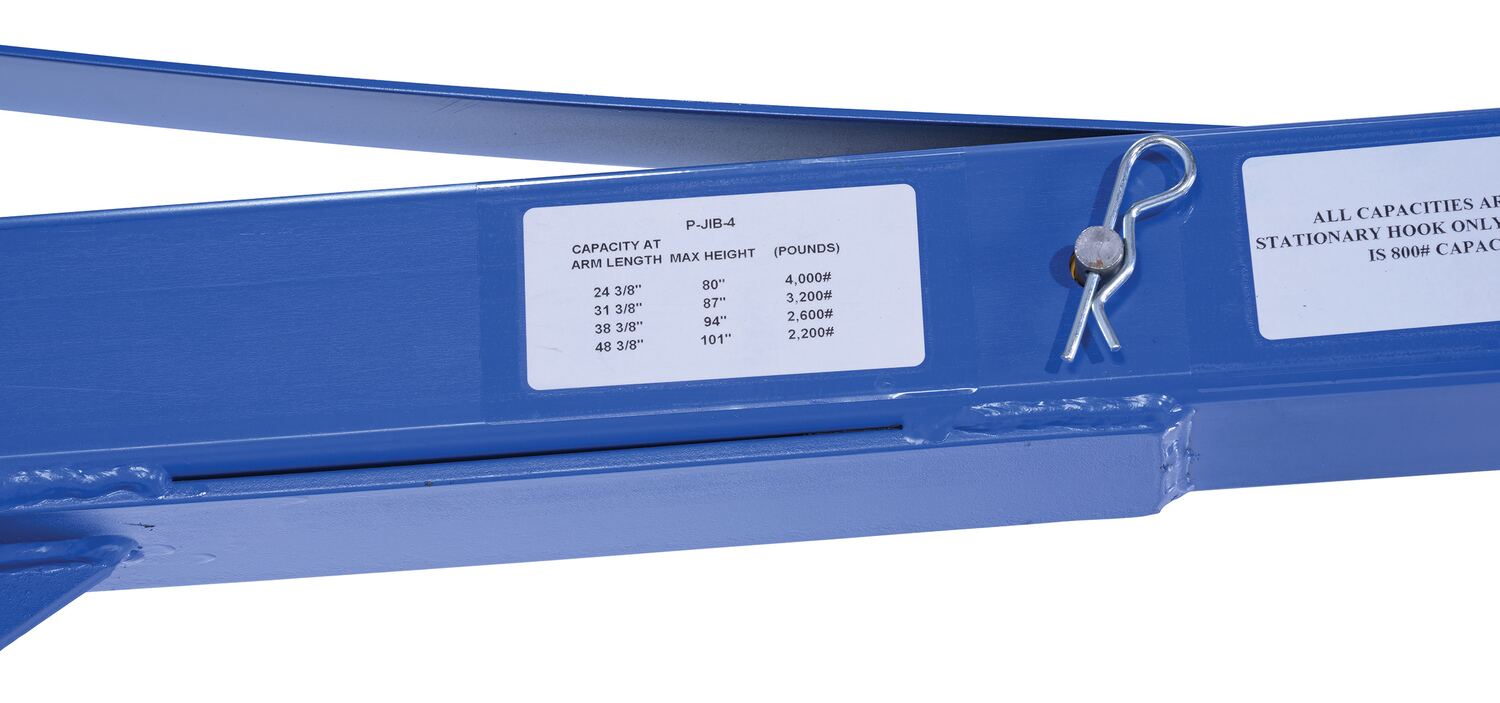

P-JIB-2		Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 2000 Lb. Capacity Blue	Capacity at Hook Point 24-3/8" (lb.): 2,000 Capacity at Hook Point 31-3/8" (lb.): 1,600	939

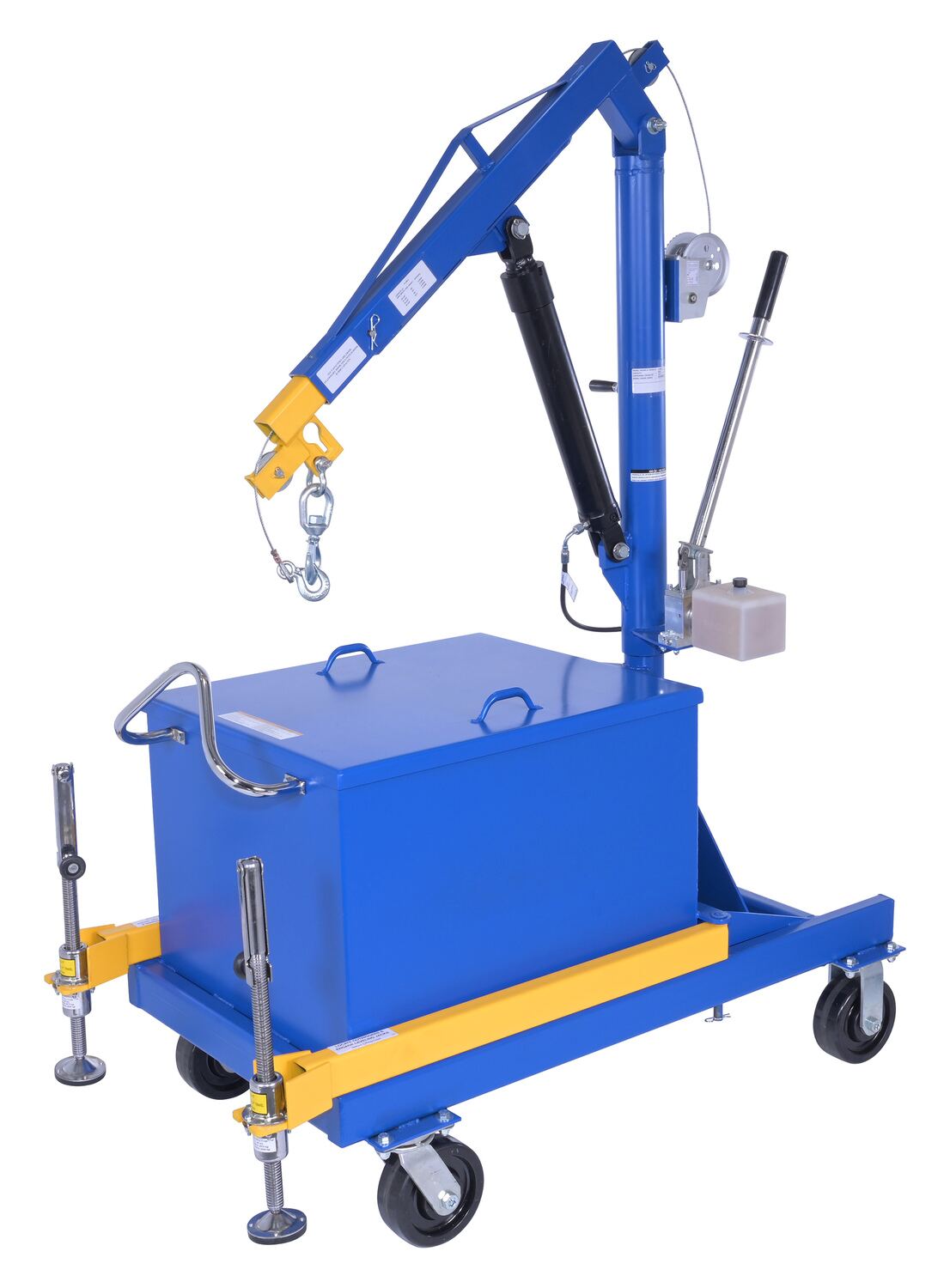

P-JIB-4		Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 4000 Lb. Capacity Blue	Capacity at Hook Point 24-3/8" (lb.): 4,000 Capacity at Hook Point 31-3/8" (lb.): 3,200	950
