Air Balance Jib Lifters

model: DSJ-300-P



Featured Overhead Lifting


Heavy-Duty Pipe Grabs
Spreader Beams
Magnets
Adjustable Steel Gantry Cranes with Total Locking Casters - Knockdown
Magnetic Catcher
Fixed Height Steel Gantry Cranes with Total Locking Casters - Knockdown
Professional Hand Chain Hoists
Adjustable Steel Gantry Cranes with V-Groove Casters
Winch Operated Truck Jib Cranes
model chart

Product Family Overview

Print Friendly
Air Balance Jib Lifters
SERIES: DSL, DSJ, DSC

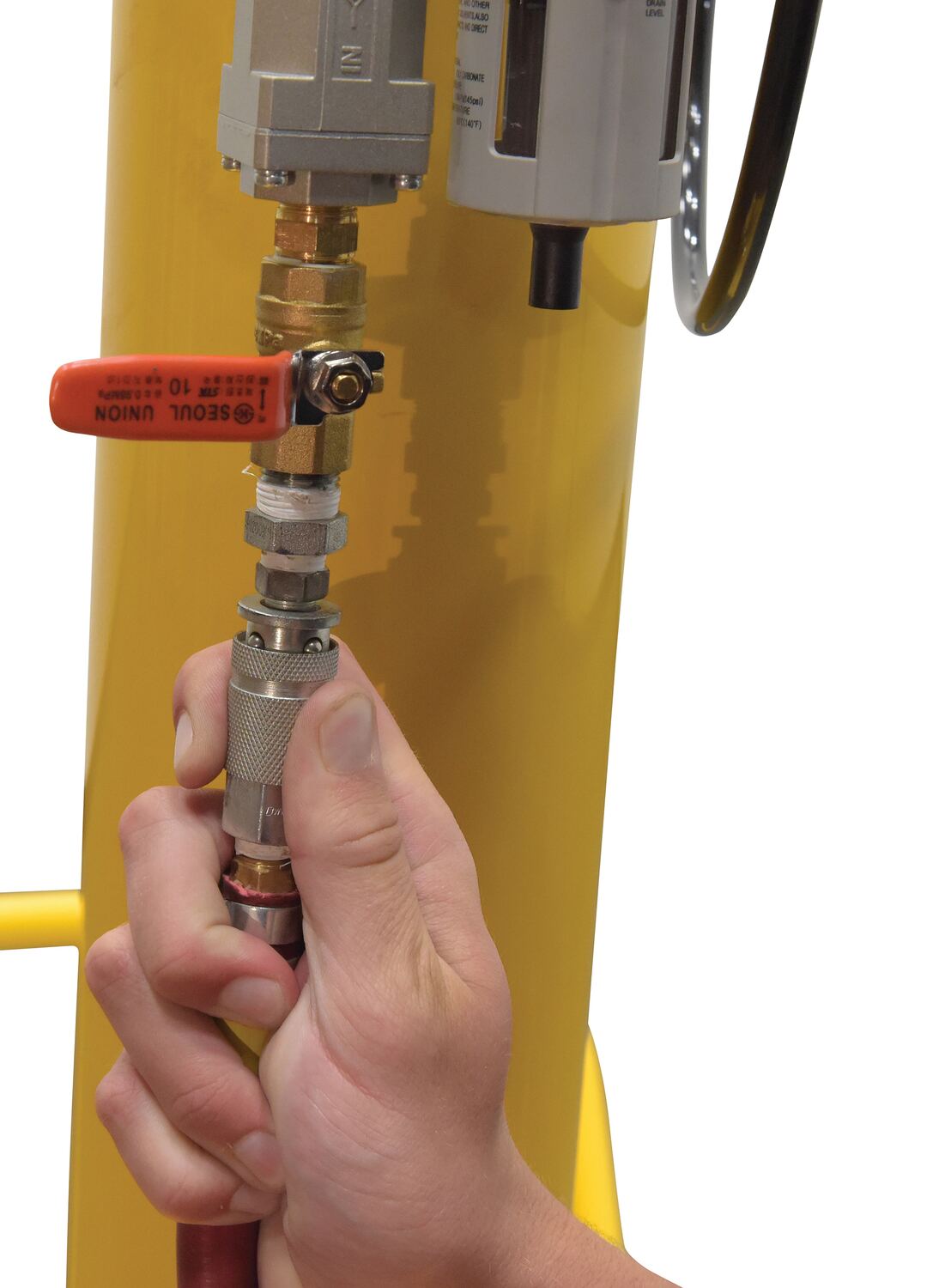

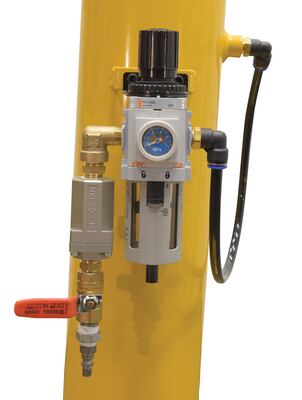

The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Arm rotation is 360 degrees. Air pressure 100 psi.

  • Performance, safety, low cost, and ideal for heavy materials
  • Handle materials in a three dimensional work space

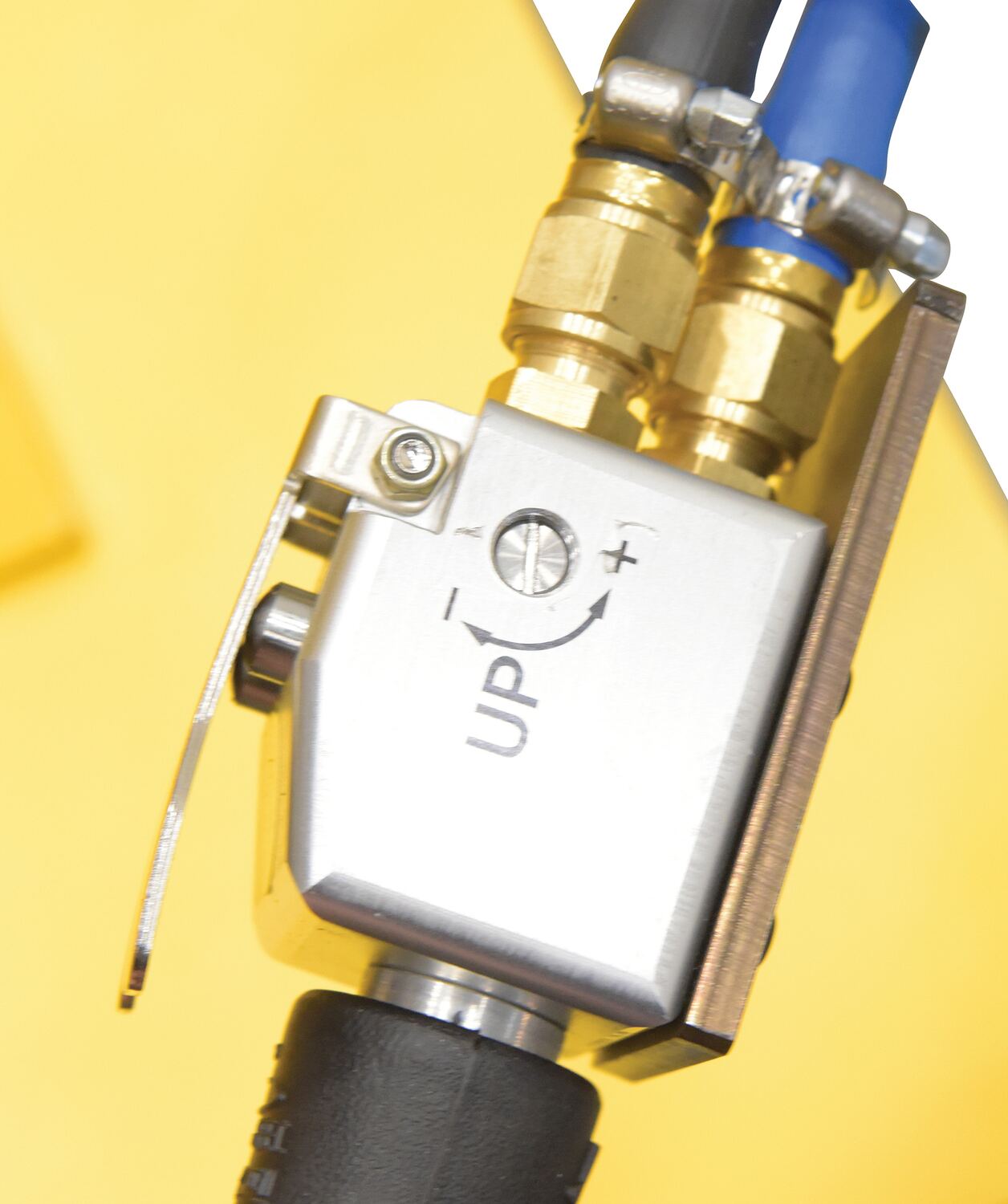

  • Push-button hand control operates the pneumatic cylinder

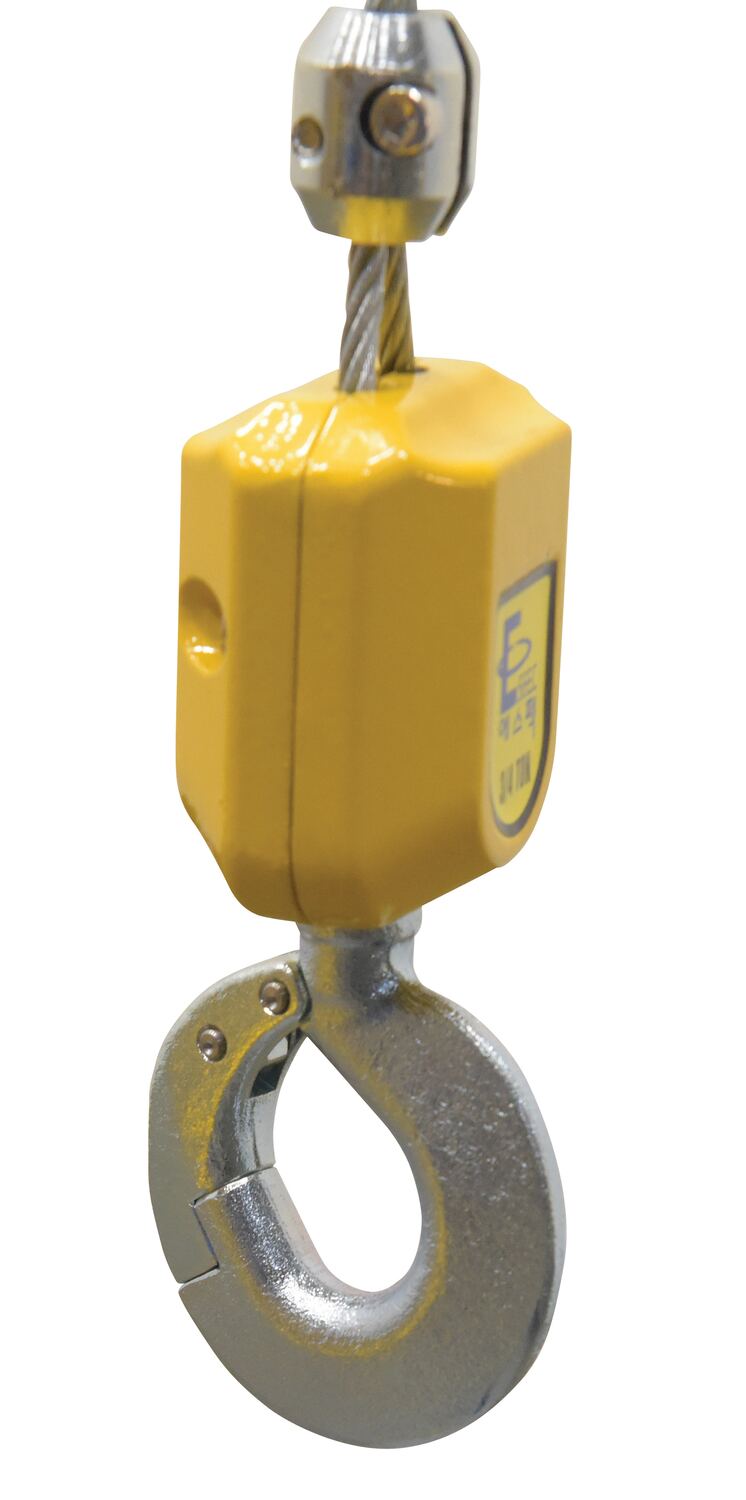

  • Position the load by raising and lowering the cable

The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Arm rotation is 360 degrees. Air pressure 100 psi.

  • Performance, safety, low cost, and ideal for heavy materials
  • Handle materials in a three dimensional work space
  • Push-button hand control operates the pneumatic cylinder
  • Position the load by raising and lowering the cable

Other Vacuum Lifters

 Specialty Vacuum Lifters Air Balance Jib Lifters Vacuum Move Lifter

Additional Models In This Family
view entire Image Gallery

DSJ-300

model DSJ-300

DSL-300

model DSL-300

DSL-300

model DSL-300

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

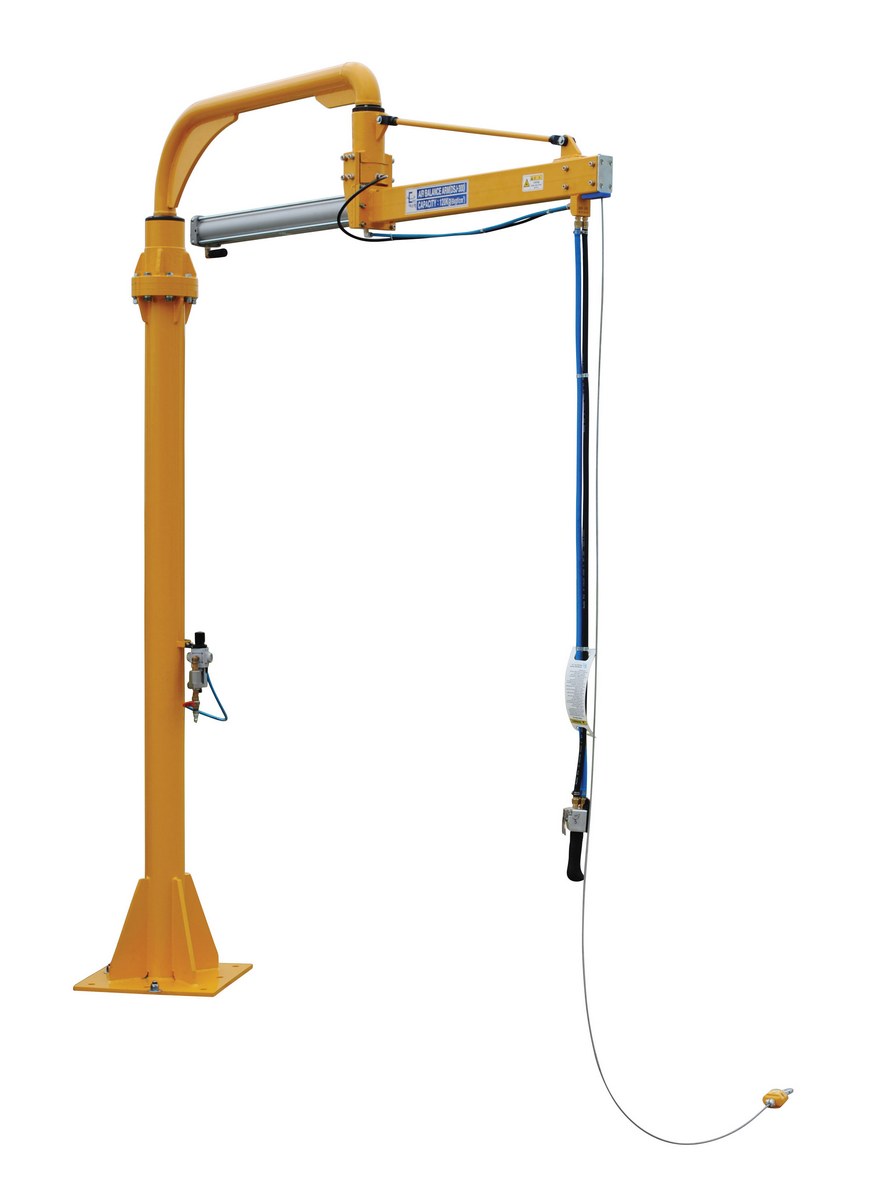

DSJ-300
DSJ-3001 Year Limited WarrantySteel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 92 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 57		647
DSJ-300-C
1 Year Limited WarrantySteel Air Balance Jib Lifter Ceiling Mounted Maximum Arm Length 93 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2		471

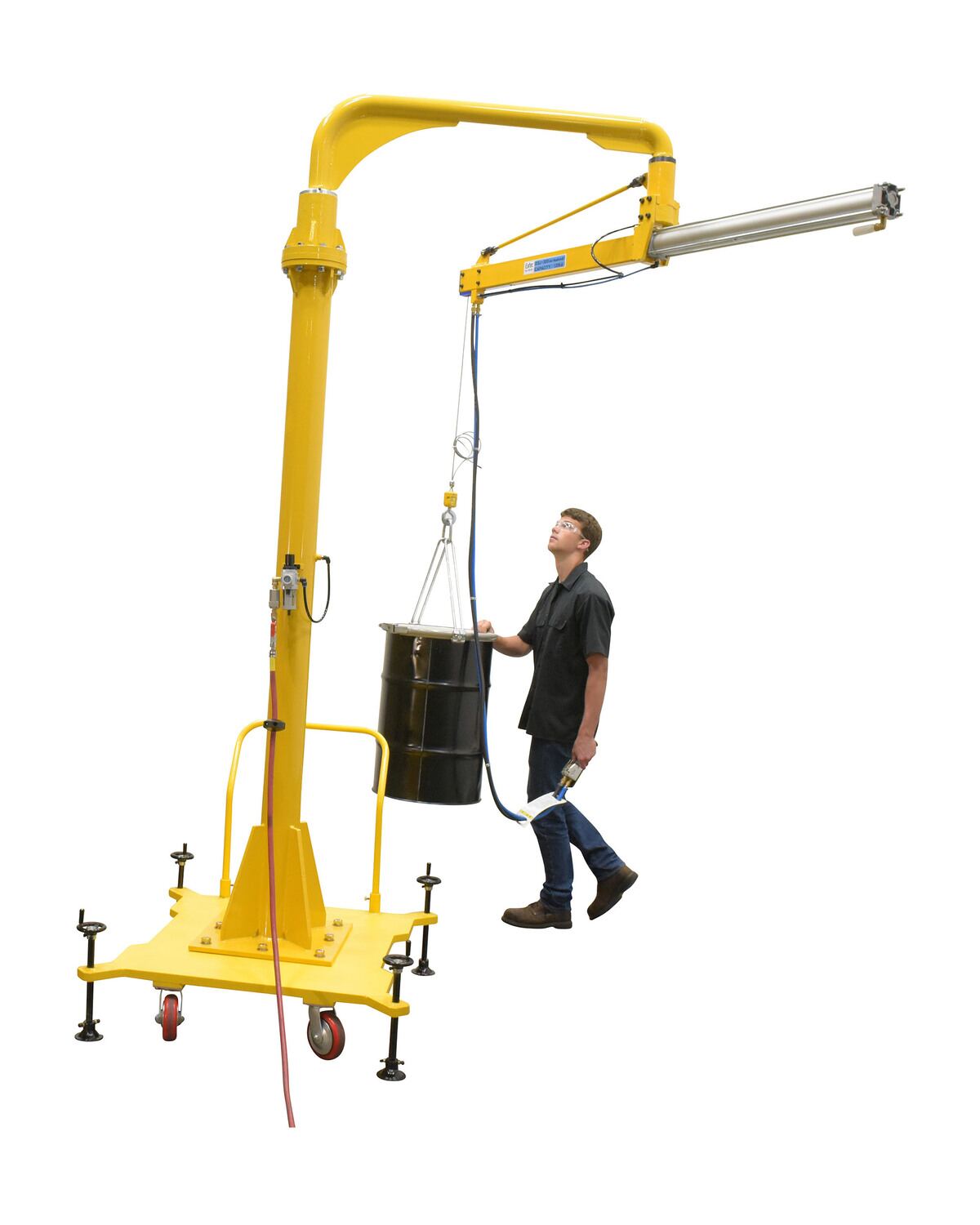

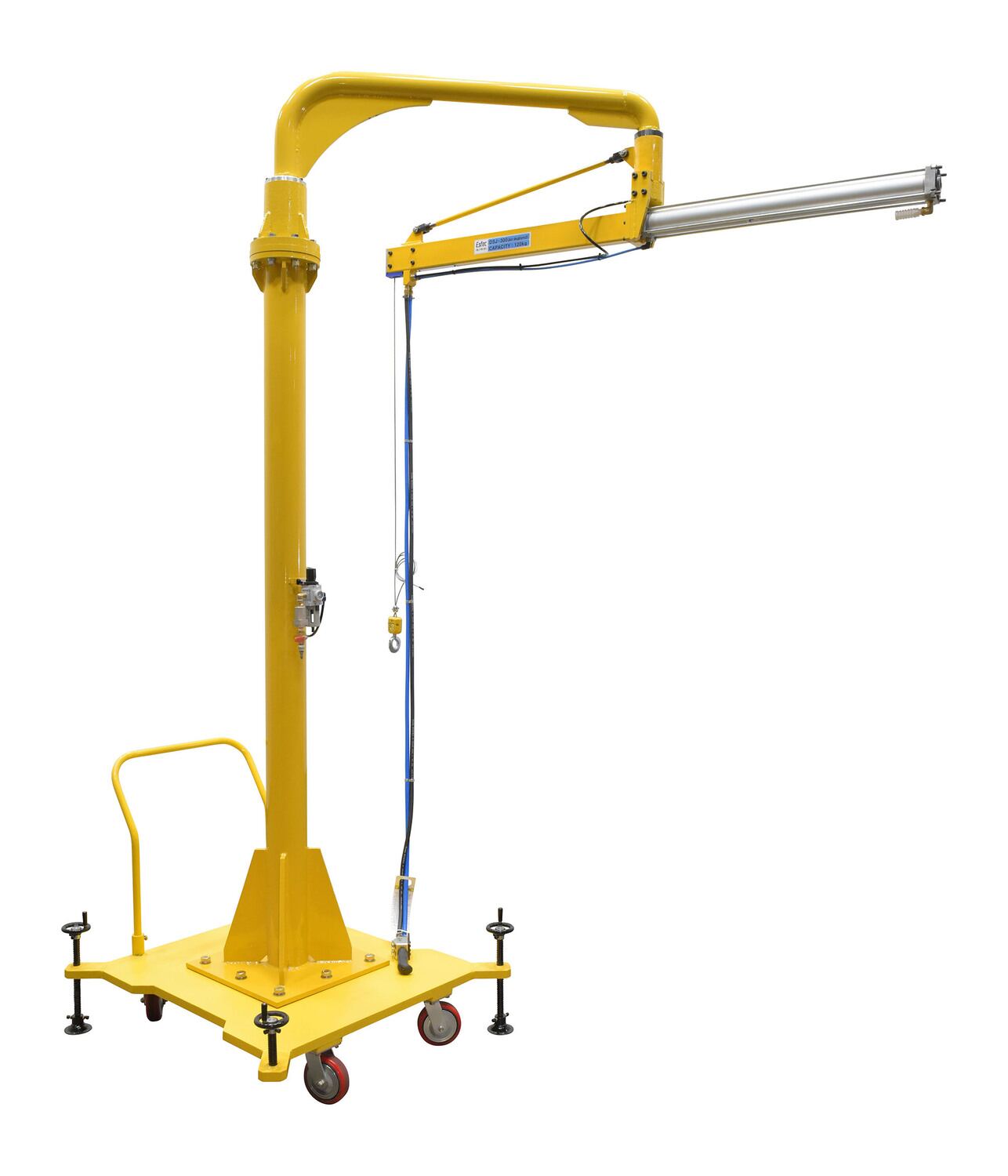

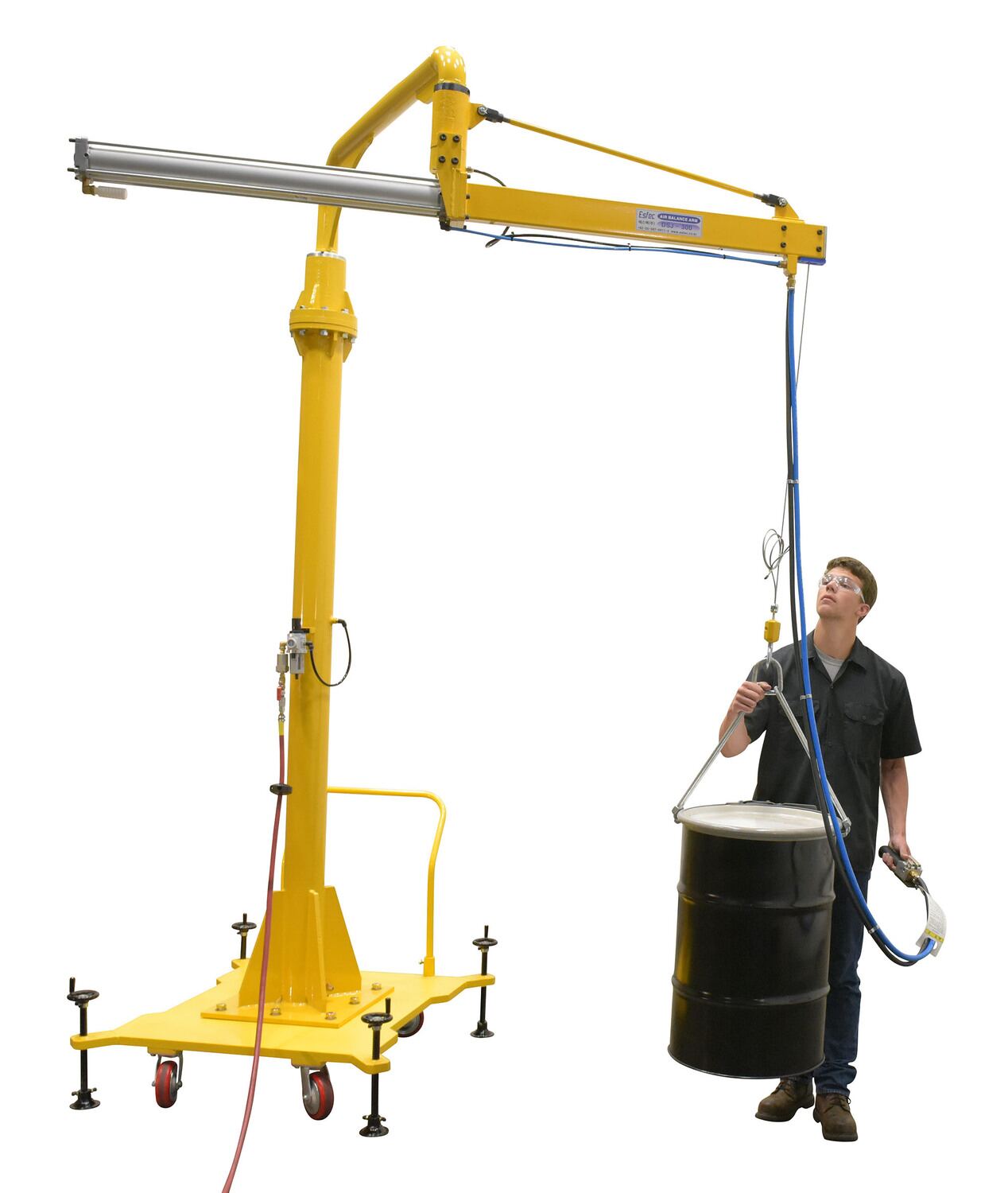

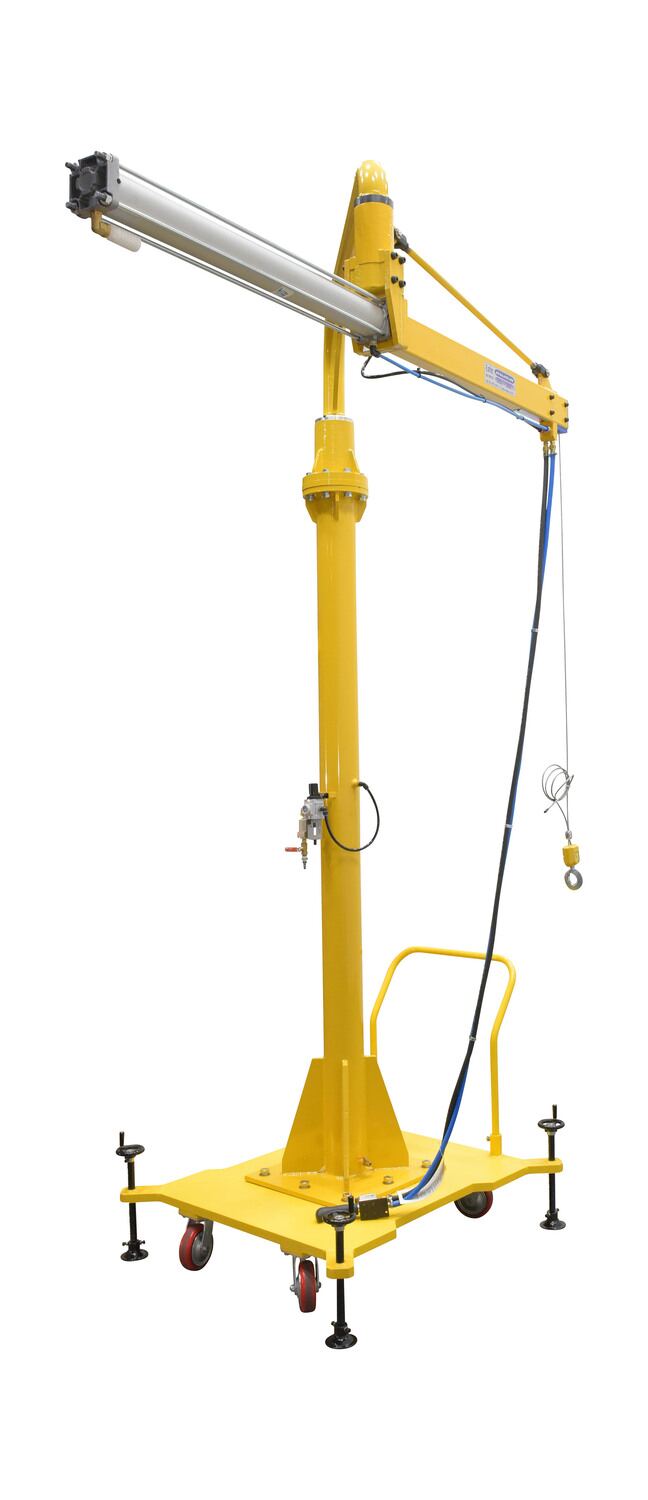

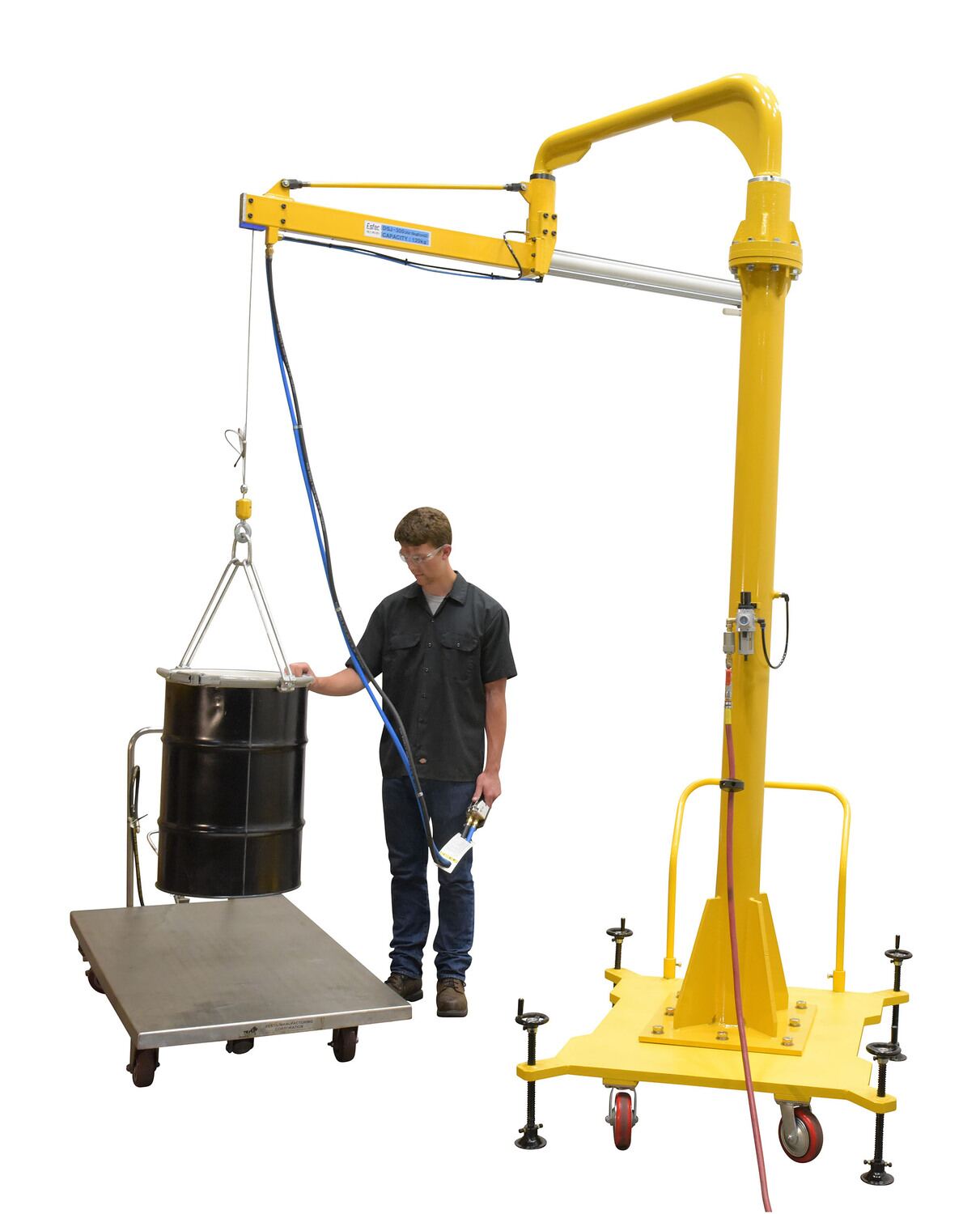

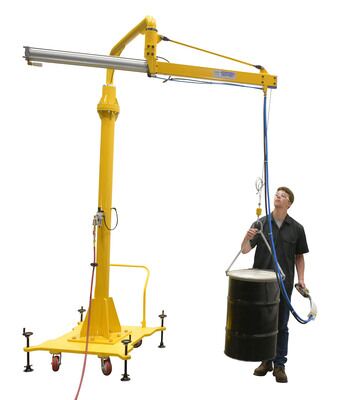

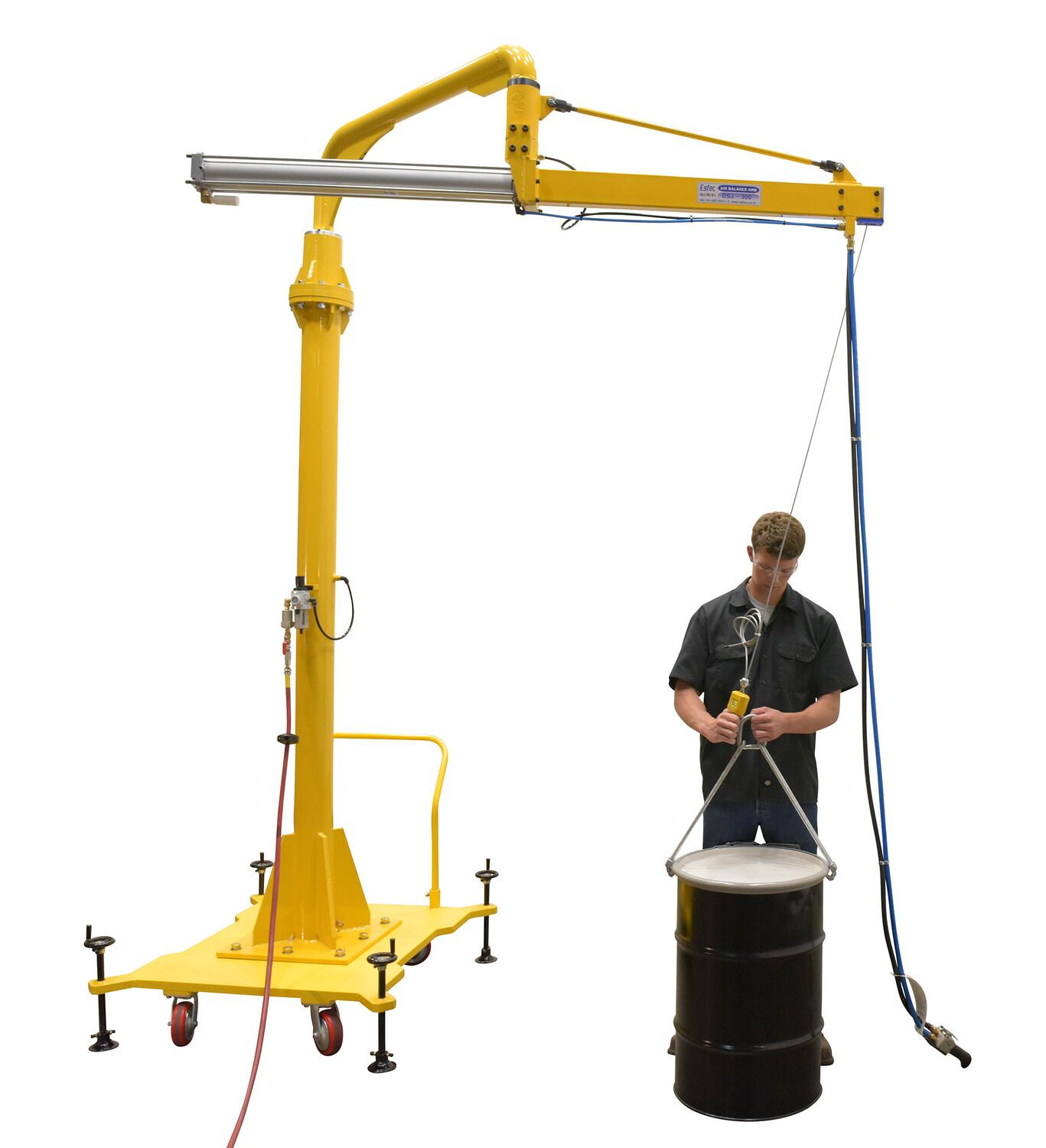

DSJ-300-P
DSJ-300-P1 Year Limited WarrantySteel Air Balanced Lifter Portable Maximum Arm Length 93 In. 250 Lb. CapacityUniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2		1043

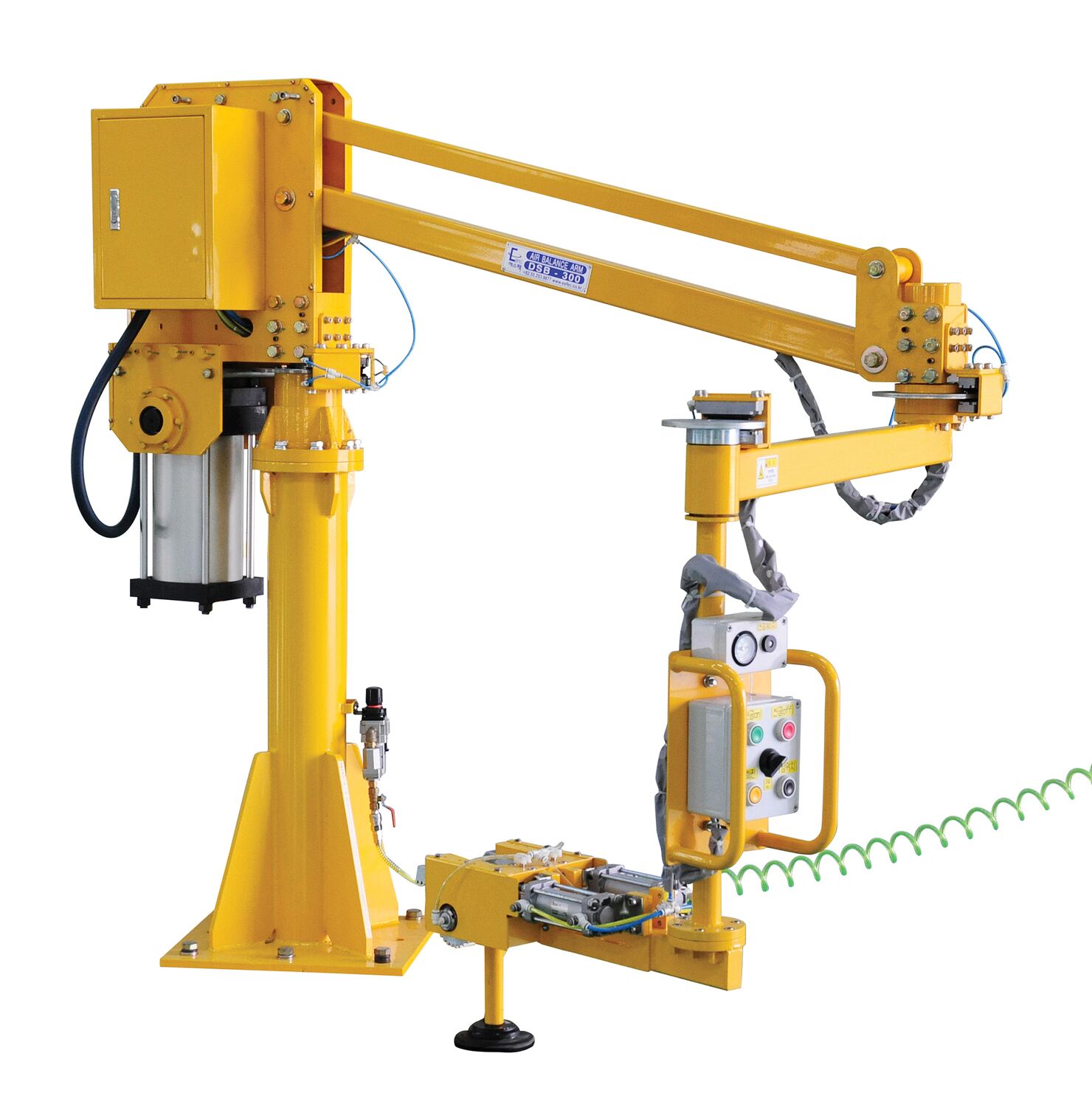

DSL-300
DSL-3001 Year Limited WarrantySteel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4		697
DSL-300-C
1 Year Limited WarrantySteel Air Balance Jib Lifter Ceiling Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4		515

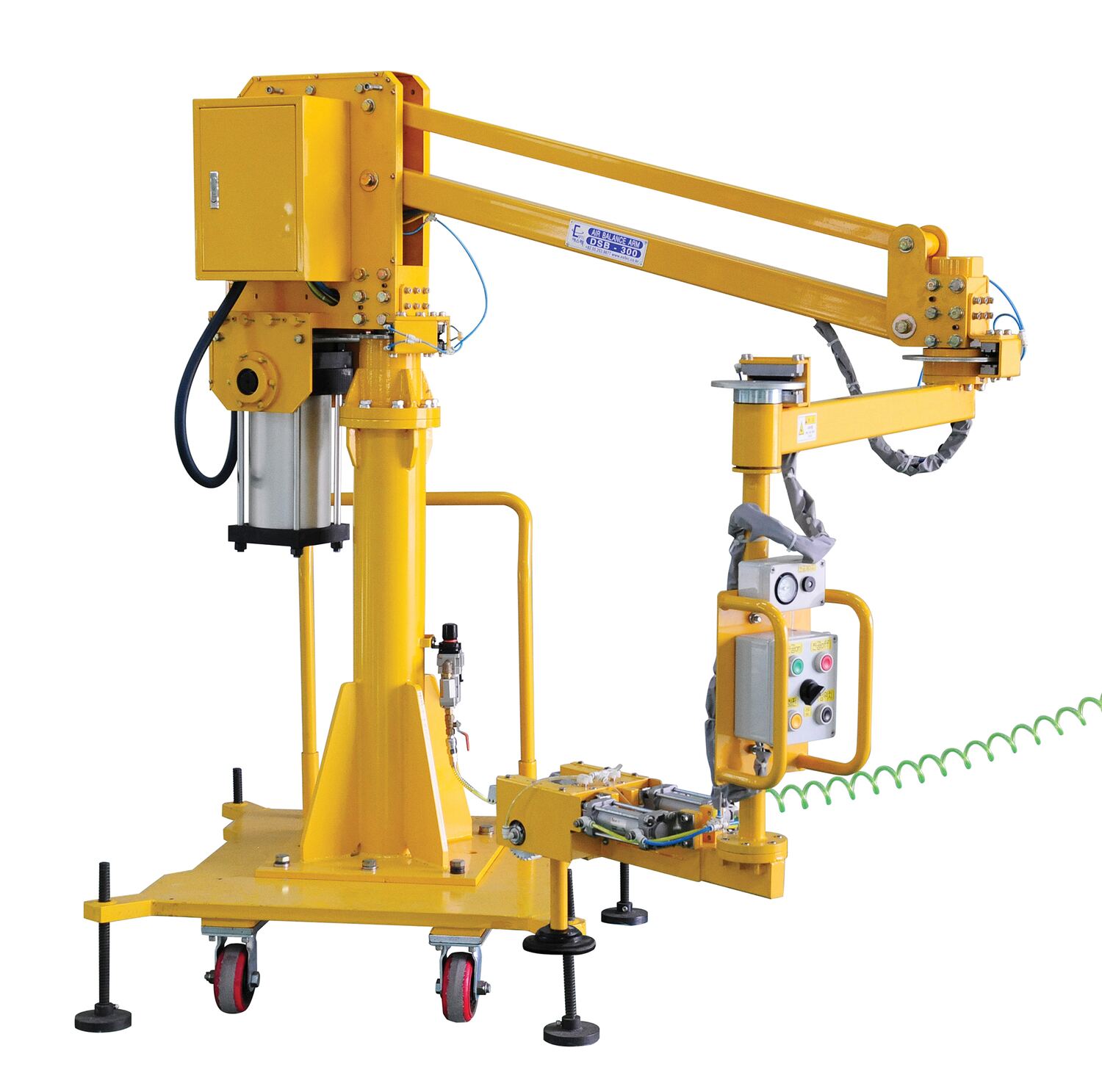

DSL-300-P
DSL-300-P1 Year Limited WarrantySteel Air Balanced Lifter Portable Maximum Arm Length 78-1/4 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4		1087

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

DSJ-300
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 57
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 57


Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2

DSJ-300-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2

DSL-300
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4


Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4

DSL-300-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4
Uniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4
For More Details of the Option Click the Red Model Button
Model Image PDFs Description Capacity
(lbs)		 Wt. (lbs)
VAC-6 Warranty PDFicon_approvaldrawings.jpg Pneumatic Vacuum 250 32
LMEC-DH Warranty PDFicon_approvaldrawings.jpg Double Hook 250 20
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Air Balance Jib Lifters PDF's will open in a new window when clicked.

Manuals


DSL-300
Owners Manual

DSJ-300
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


DSJ-300

DSJ-300-P

DSL-300-P

Testing Certificates


DSJ-300

DSJ-300-C

DSJ-300-P

DSL-300

DSL-300-C

DSL-300-P

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Mechanical & Pneumatic Hoist Attachments
Product

Mechanical & Pneumatic Hoist Attachments

Vacuum Move Lifter
Product

Vacuum Move Lifter

Shop Crane Engine Hoists
Product

Shop Crane Engine Hoists

Air/Hand Pump Hydraulic Shop Crane
Product

Air/Hand Pump Hydraulic Shop Crane

Electric Powered Floor Cranes
Product

Electric Powered Floor Cranes

Lifter Jibs
Product

Lifter Jibs

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Air Balance Jib Lifters




The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Arm rotation is 360 degrees. Air pressure 100 psi.

  • Performance, safety, low cost, and ideal for heavy materials
  • Handle materials in a three dimensional work space
  • Push-button hand control operates the pneumatic cylinder
  • Position the load by raising and lowering the cable


Model # Description Attributes Net Wt.
(lbs)
DSJ-300 DSJ-300Steel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 92 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 57		647
DSJ-300-C Steel Air Balance Jib Lifter Ceiling Mounted Maximum Arm Length 93 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2		471
DSJ-300-P DSJ-300-PSteel Air Balanced Lifter Portable Maximum Arm Length 93 In. 250 Lb. CapacityUniform Capacity (lb.): 250
Up/Down Stroke (in.): 57-1/2		1043
DSL-300 DSL-300Steel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4		697
DSL-300-C Steel Air Balance Jib Lifter Ceiling Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4		515
DSL-300-P DSL-300-PSteel Air Balanced Lifter Portable Maximum Arm Length 78-1/4 In. 250 Lb. Capacity YellowUniform Capacity (lb.): 250
Up/Down Stroke (in.): 47-1/4		1087

Options


Model Image PDFs Description Capacity
(lbs)		 Wt. (lbs)
VAC-6 Warranty PDFicon_approvaldrawings.jpg Pneumatic Vacuum 250 32
LMEC-DH Warranty PDFicon_approvaldrawings.jpg Double Hook 250 20
