Model Details

S-118-FF-DM

Printer Friendly
S-118-FF-DM

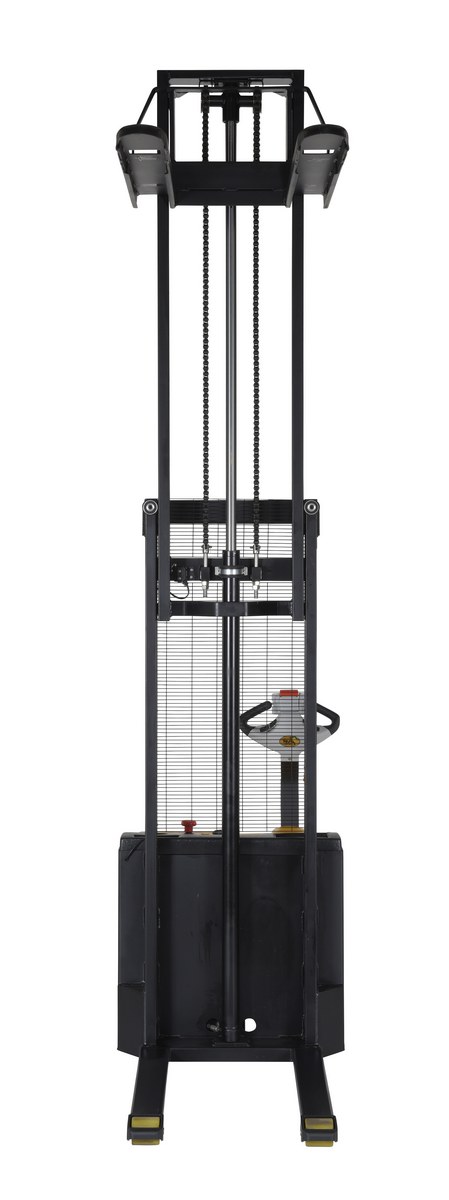

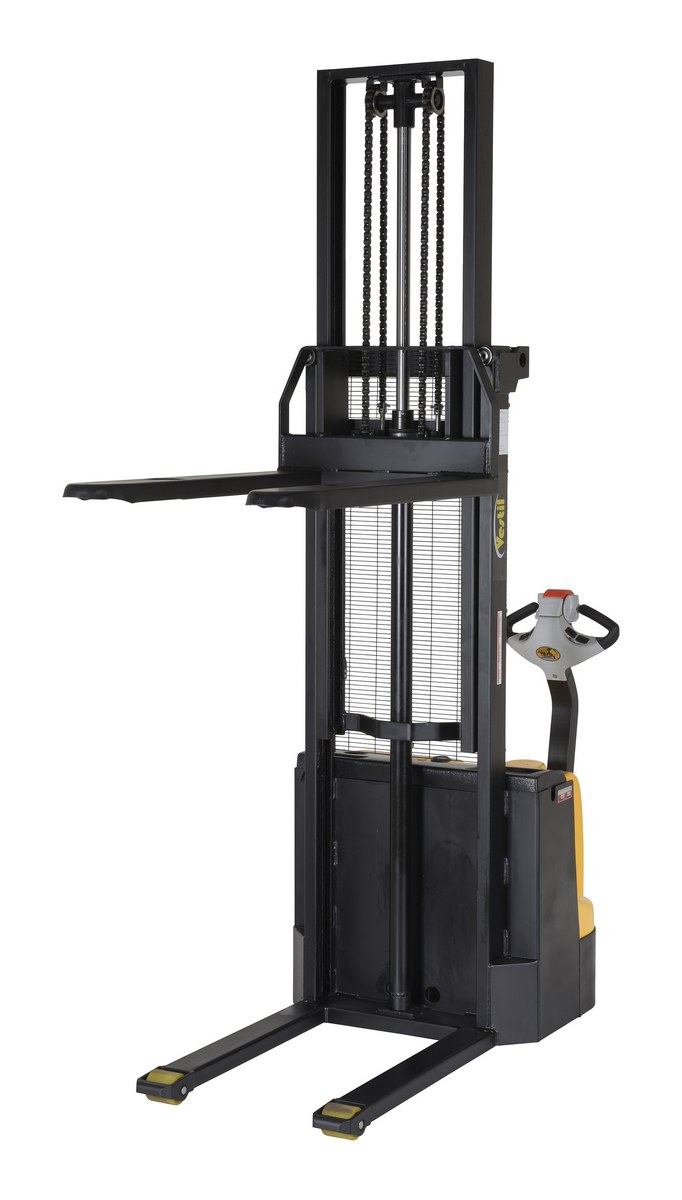

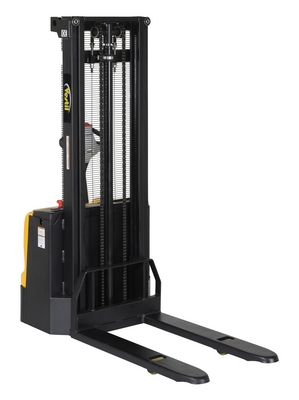

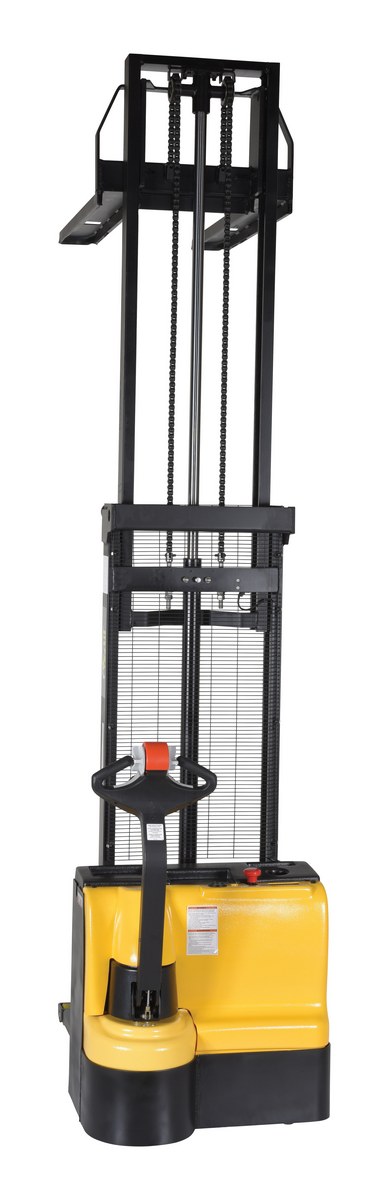

Steel Fixed Forks Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries. .A battery charger, gauge and horn are included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Total Ship Wt.(lbs.): 1330 (only 1 package) Size: 31.5"W x 70.875"L x 78.75"H Color: Yellow / Black Non-Returnable

Uniform Capacity 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500 Fork Width (in.): 26-3/4
Fork Length (in.): 42-1/8 Lowered Height (in.): 3-3/8 Raised Height (in.): 118
Battery: (2) 12V Steer/Load Wheels Material: Poly-On-Steel Drive Motor: DC 24V
Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4 Operation at intermittent use (hrs.): 8
Style: Fixed Forks Over Fixed Support Legs (works with skids only)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-118-FF-DM
S-118-FF-DM

Steel Fixed Forks Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries. .A battery charger, gauge and horn are included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 31.5"W x 70.875"L x 78.75"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215114769 GTIN: 00691215114769
Warranty: -- Shipping Weight: 1330 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500 Fork Width (in.): 26-3/4
Fork Length (in.): 42-1/8 Lowered Height (in.): 3-3/8 Raised Height (in.): 118
Battery: (2) 12V Steer/Load Wheels Material: Poly-On-Steel Drive Motor: DC 24V
Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4 Operation at intermittent use (hrs.): 8
Style: Fixed Forks Over Fixed Support Legs (works with skids only)
