Double Mast Stackers with Powered Drive and Powered Lift

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

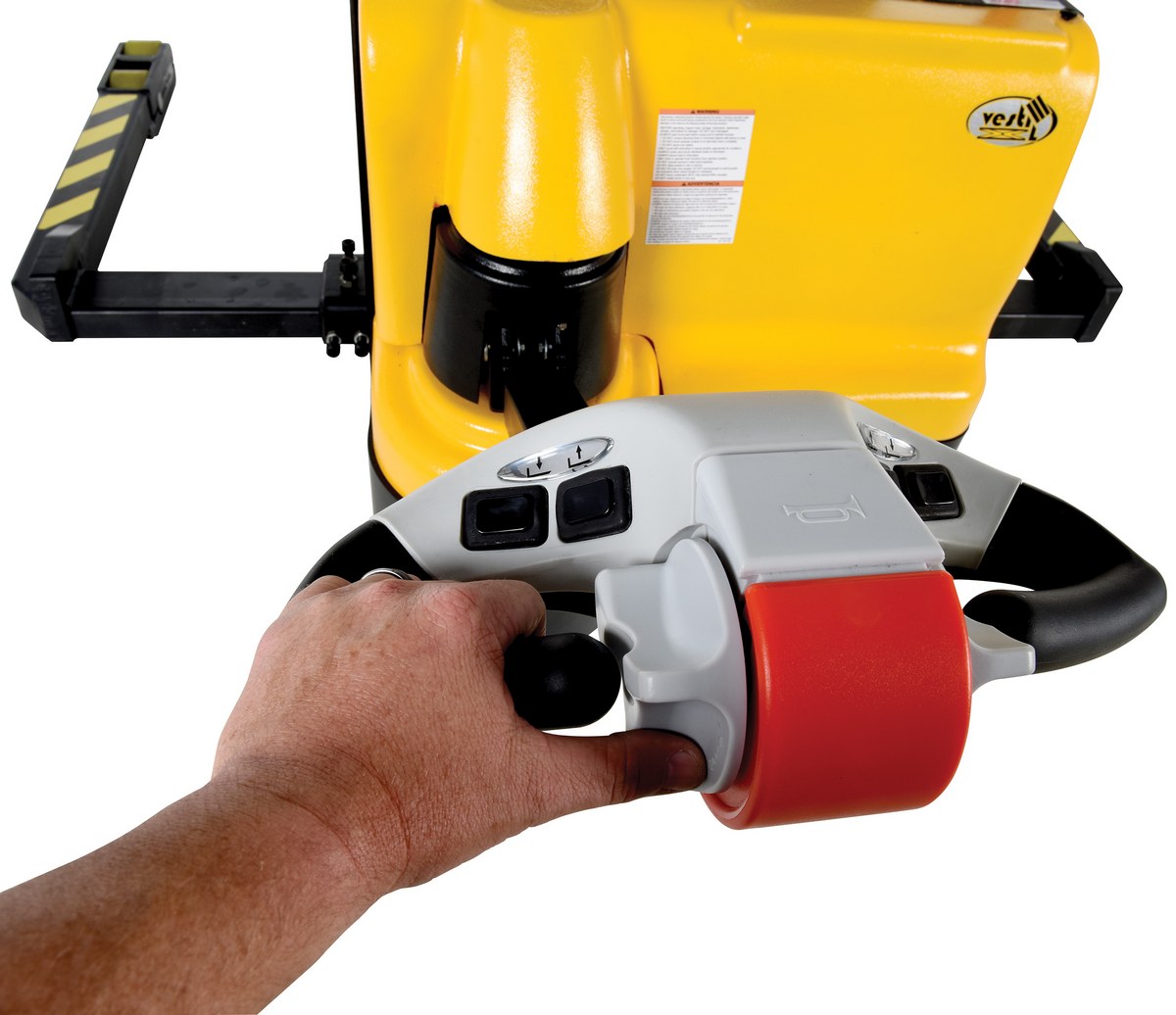

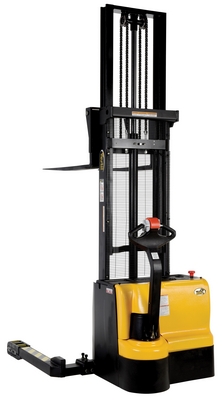

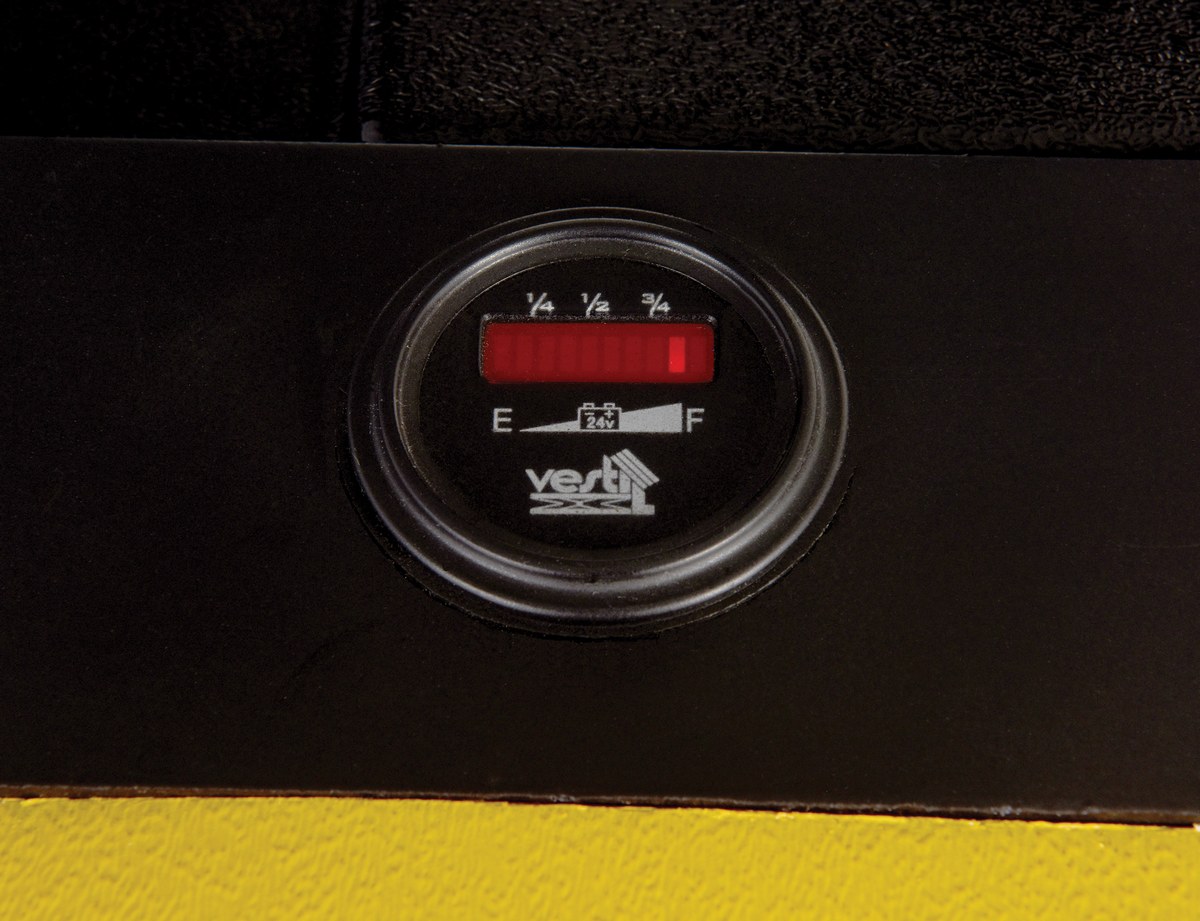

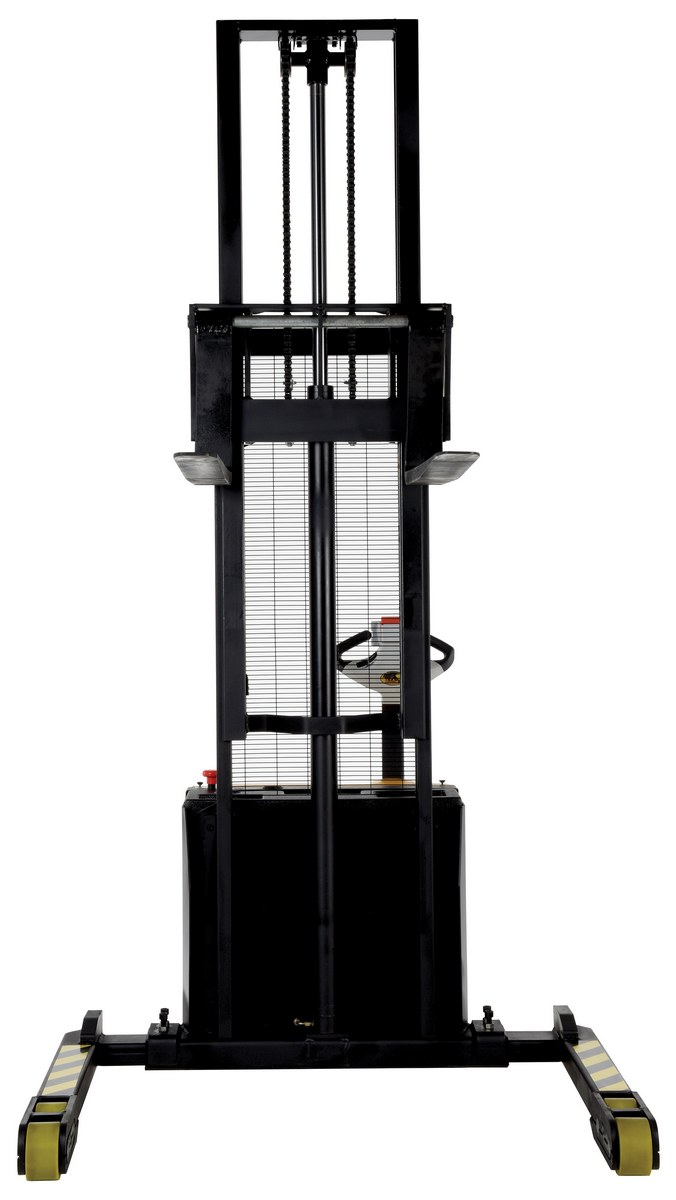

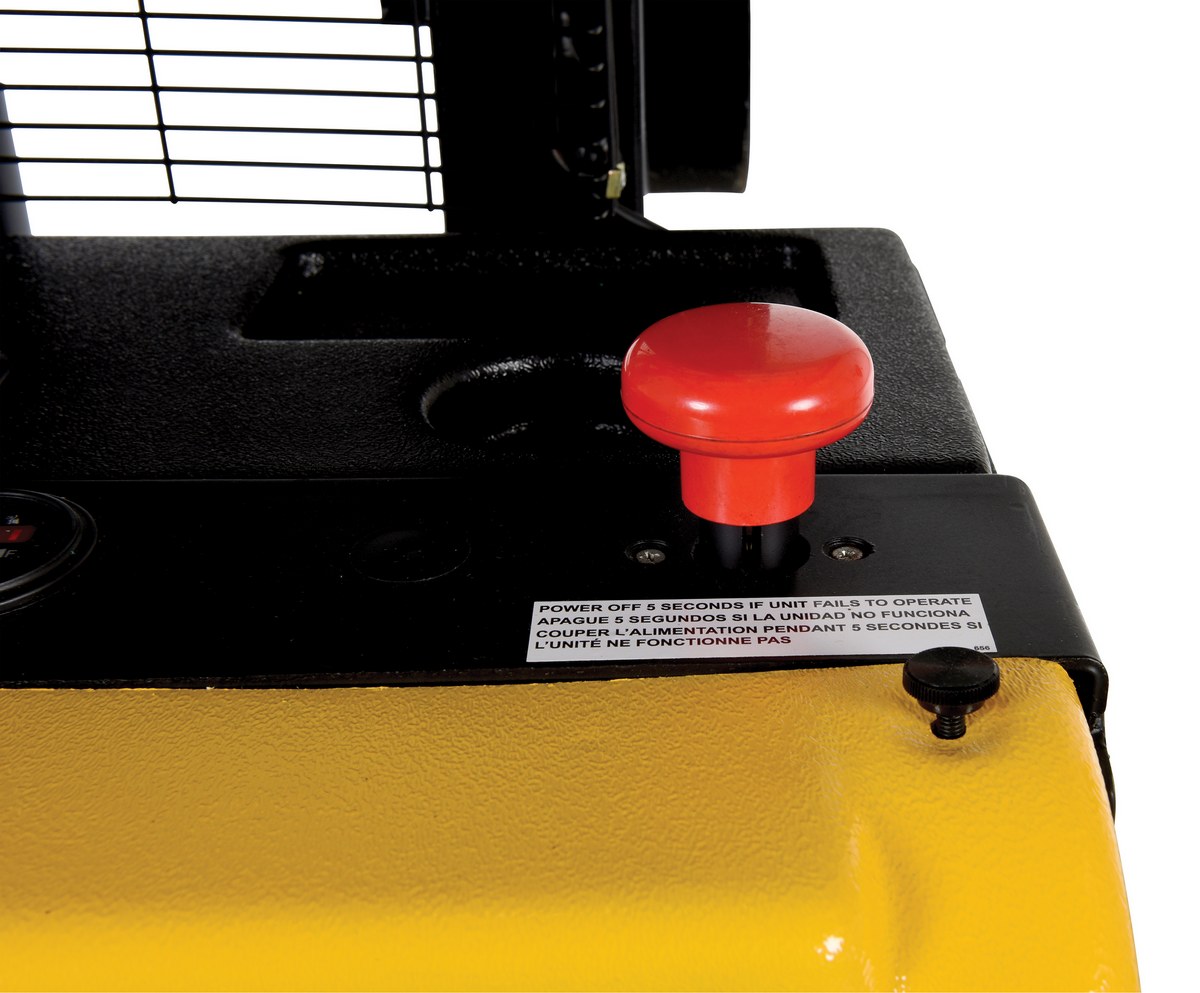

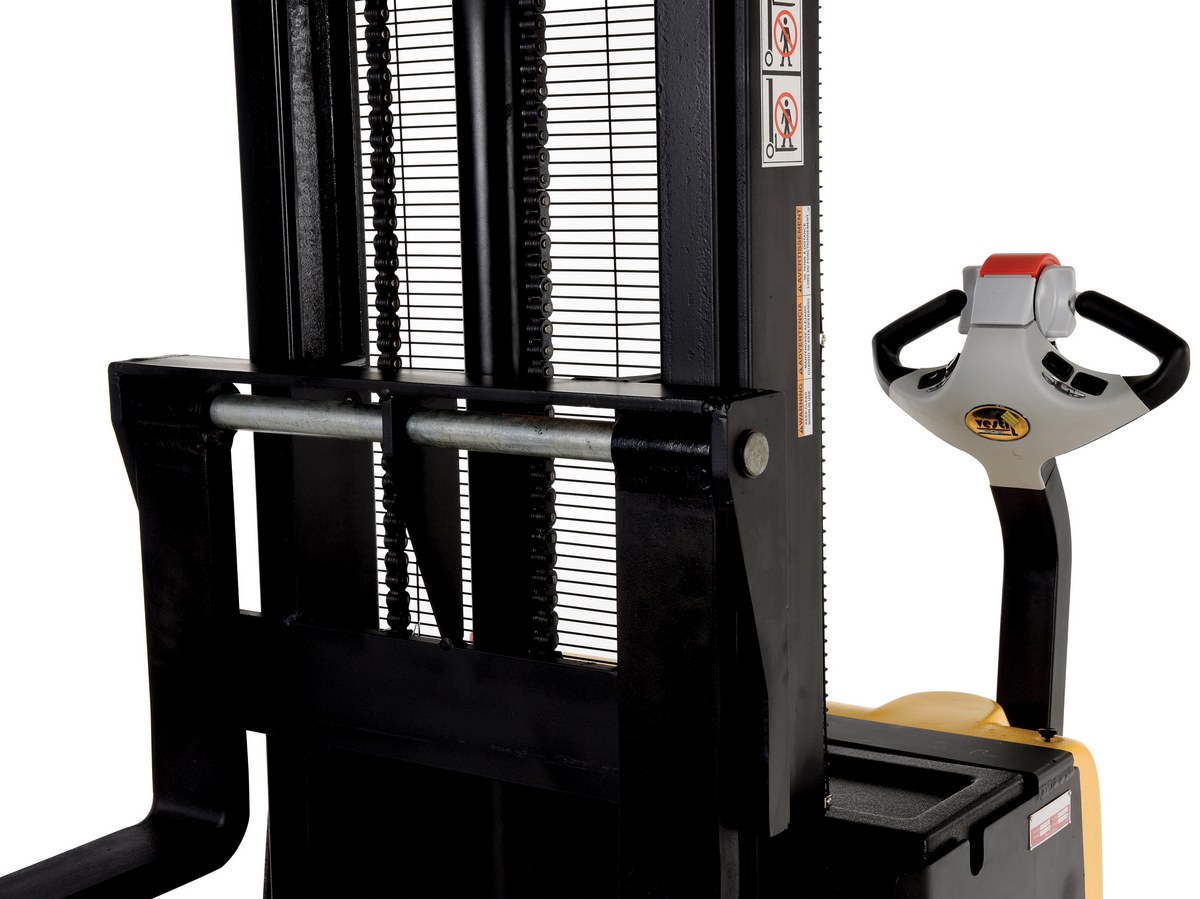

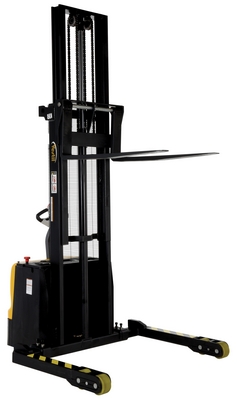

S3-125-AA_A.jpg S3-125-AA_C.jpg S3-125-AA_G.jpg S3-125-AA_F.jpg

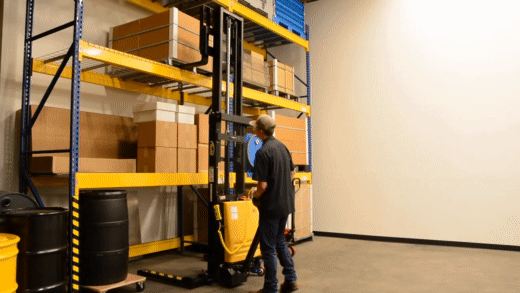

S3-125-AA_E.jpg S3-125-AA_H.jpg S3-125-AA_J.jpg S3_Z.gif
Double Mast Stackers with Powered Drive and Powered Lift

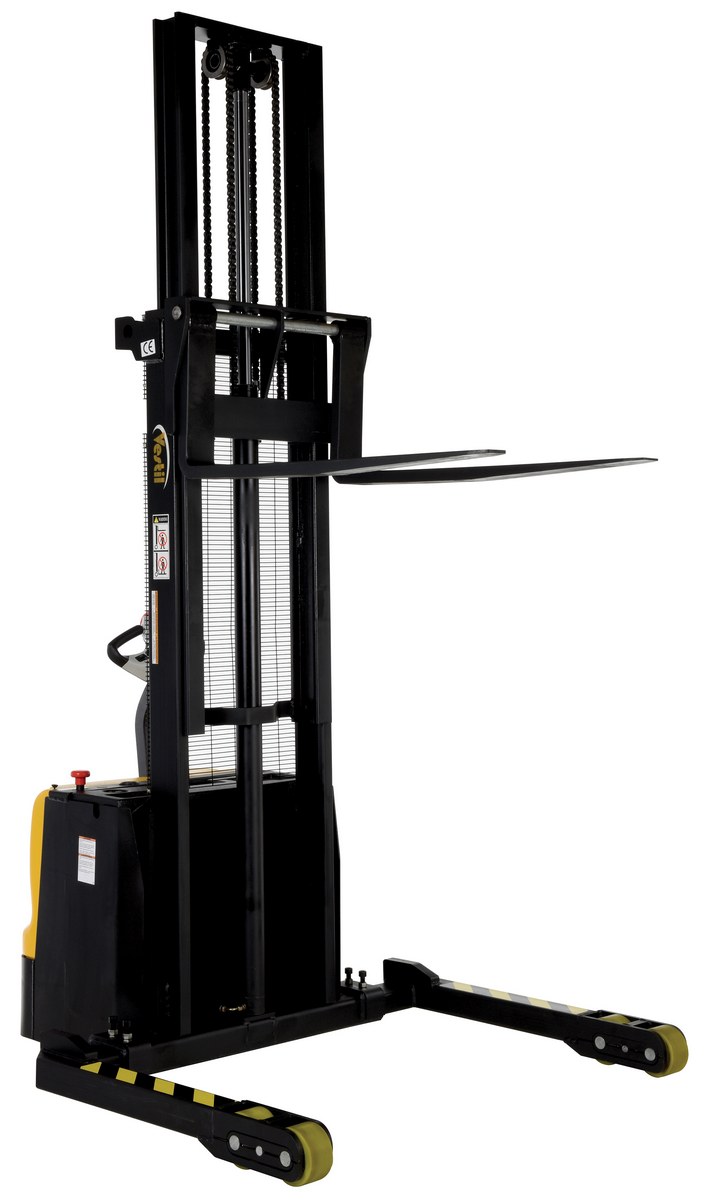

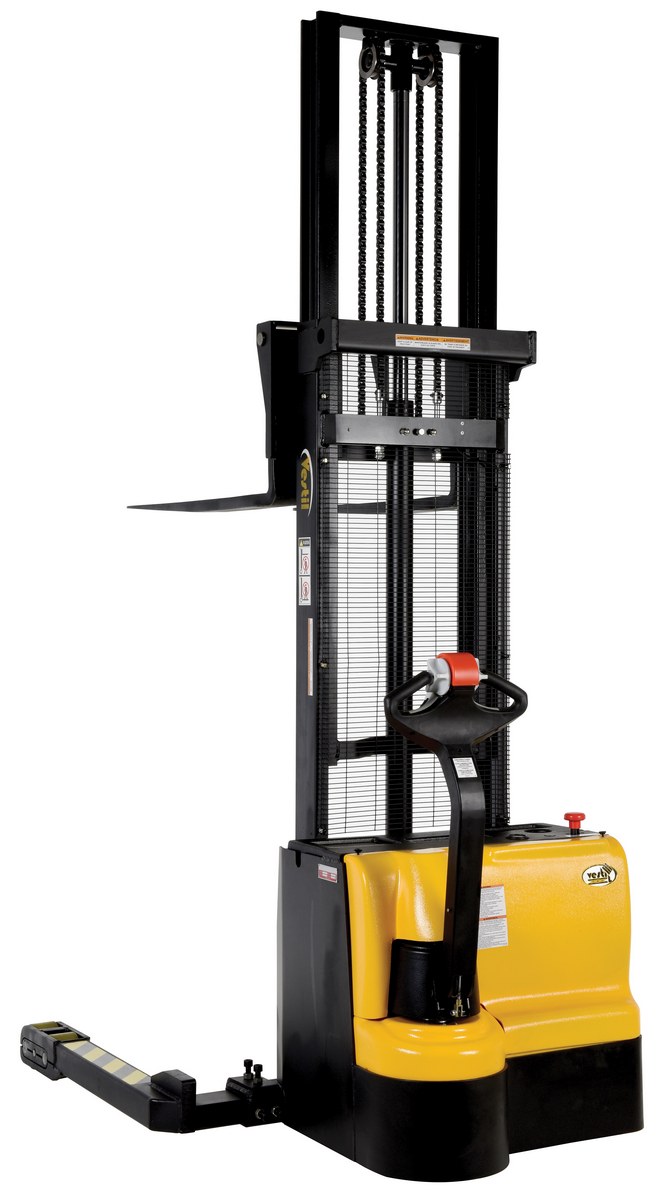

model: S3-125-AA



Double Mast Stackers with Powered Drive and Powered Lift

model: S3-125-AA

Featured Ergonomic Solutions


Adjustable Pallet Stands
Double Scissor Lift Tables
Tote Lifters
Pallet Truck Accessories
Electric Hydraulic Trash Can Dumpers
Low Profile Scissor Cart w/ Auto-Shift
Radio Remote Control
Efficiency Master Tilt Tables
Manual Adjustable Ergonomic Work Benches
model chart

Product Family Overview

Print Friendly
Double Mast Stackers with Powered Drive and Powered Lift
SERIES: S

Double Mast Fully Powered Electric Stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

VARIABLE SPEED model available. (Model S2-118-AA-VS)


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Double Mast Fully Powered Electric Stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

VARIABLE SPEED model available. (Model S2-118-AA-VS)


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Other Stackers

 Pallet Master/Servers Stacker with Powered Lift Manual & Electric Stackers (Pramac) Double Mast Stackers with Powered Drive and Powered Lift

Additional Models In This Family
view entire Image Gallery

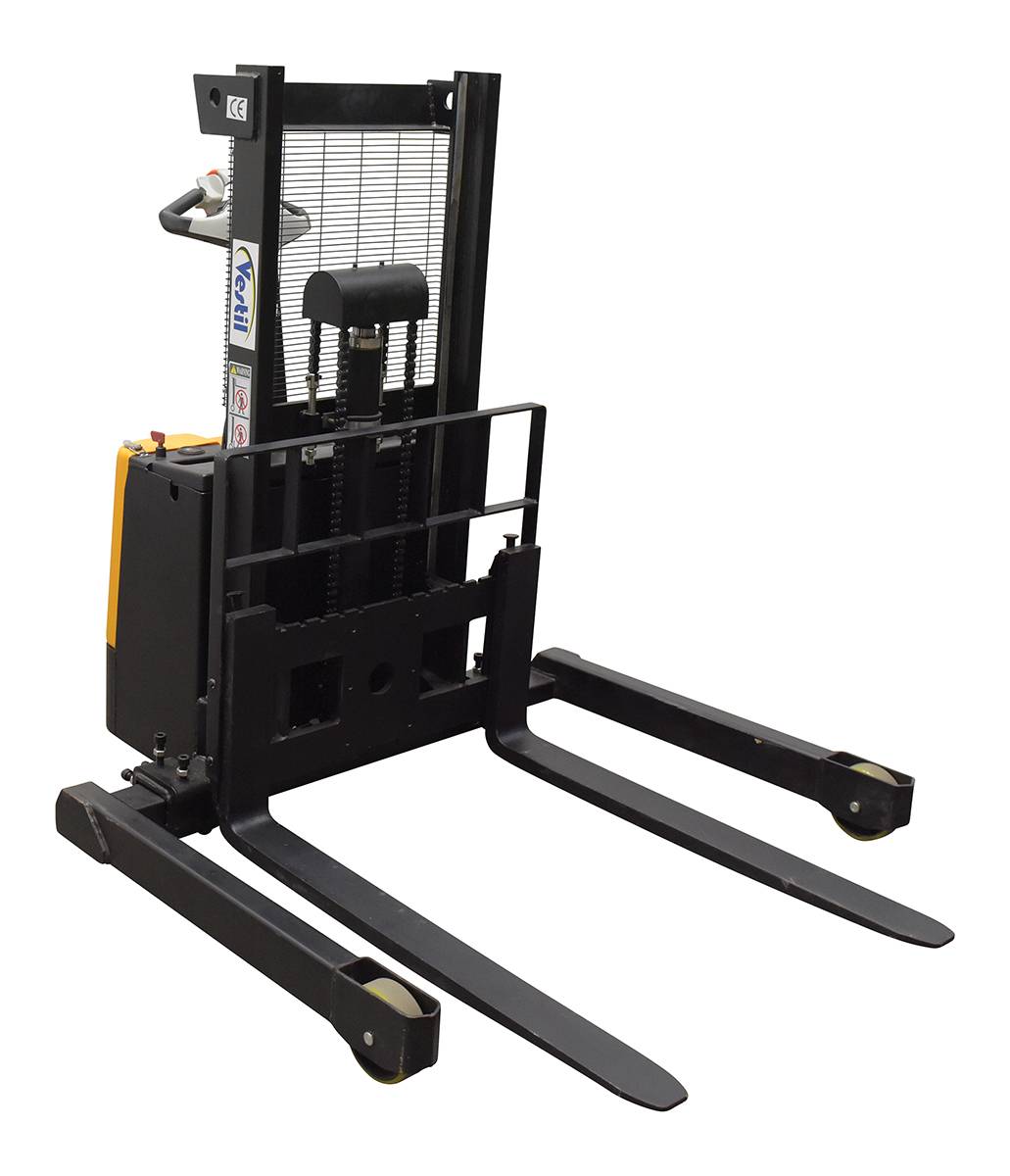

S3-43-AA

S3-43-AA

S-101-AA-DM

S-101-AA-DM

S3-125-AA

S3-125-AA

S3-125-AA

S3-125-AA

S3-118-AA

S3-118-AA

S3-43-AA

S3-43-AA

S-101-AA-DM

S-101-AA-DM

S3-125-AA

S3-125-AA

S-101-AA-DM

S-101-AA-DM

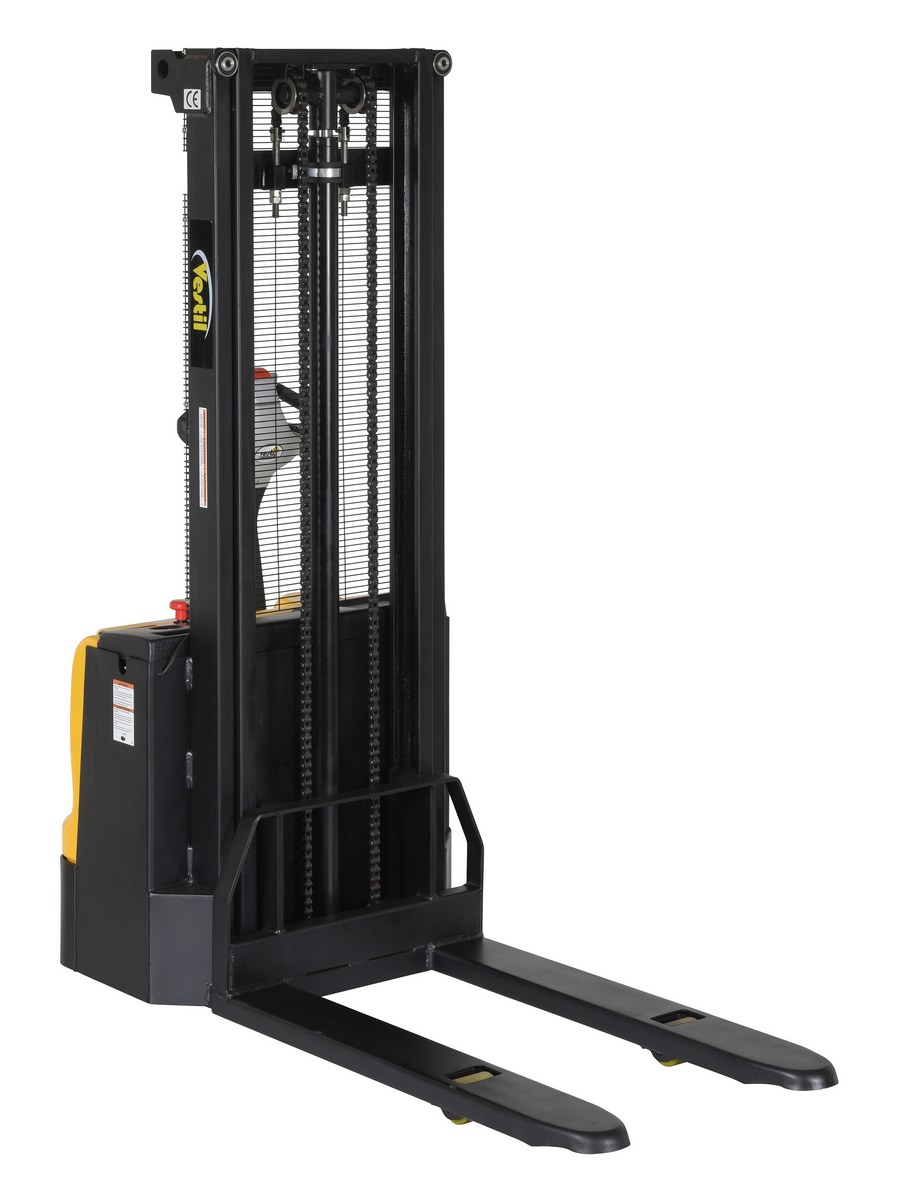

S-118-FF-DM

S-118-FF-DM

S-125-AA-DM

S-125-AA-DM

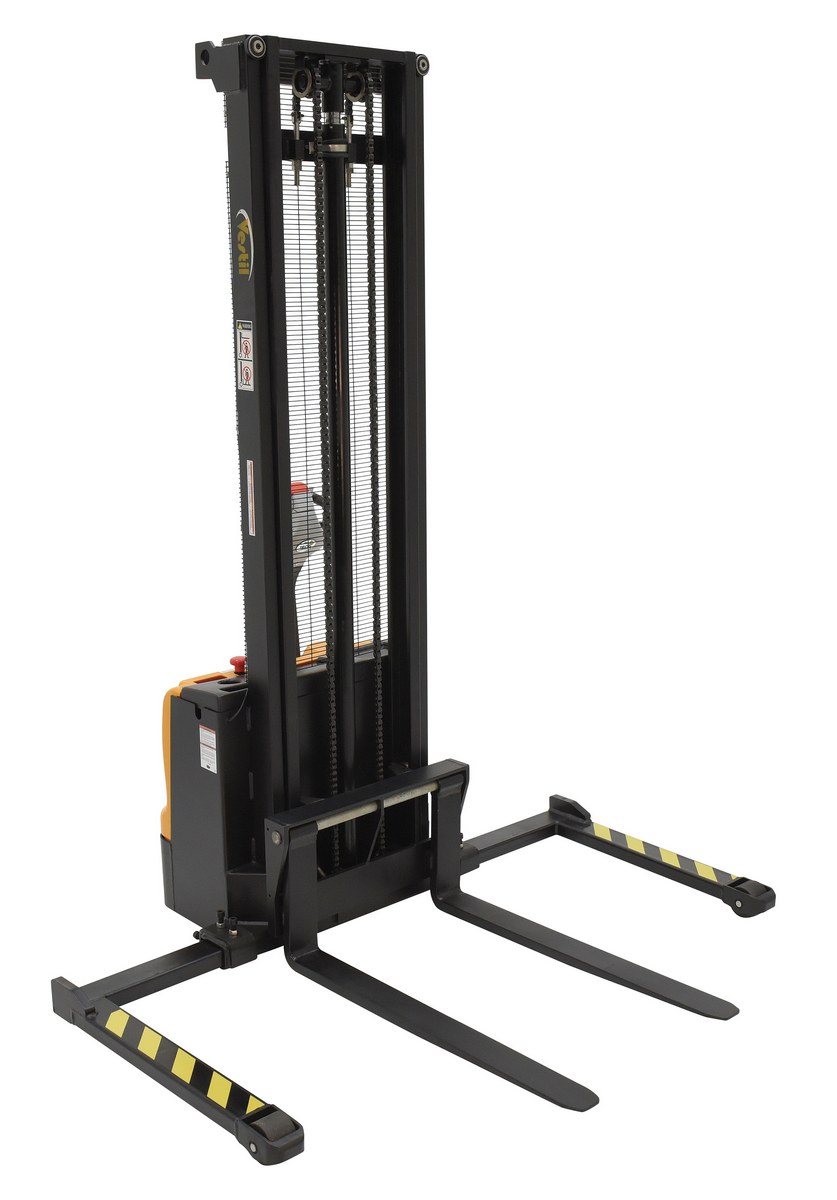

S-150-AA-DM

S-150-AA-DM

S3-43-AA

S3-43-AA

S3-125-AA

S3-125-AA

S3-SDG-RF

S3-SDG-RF

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

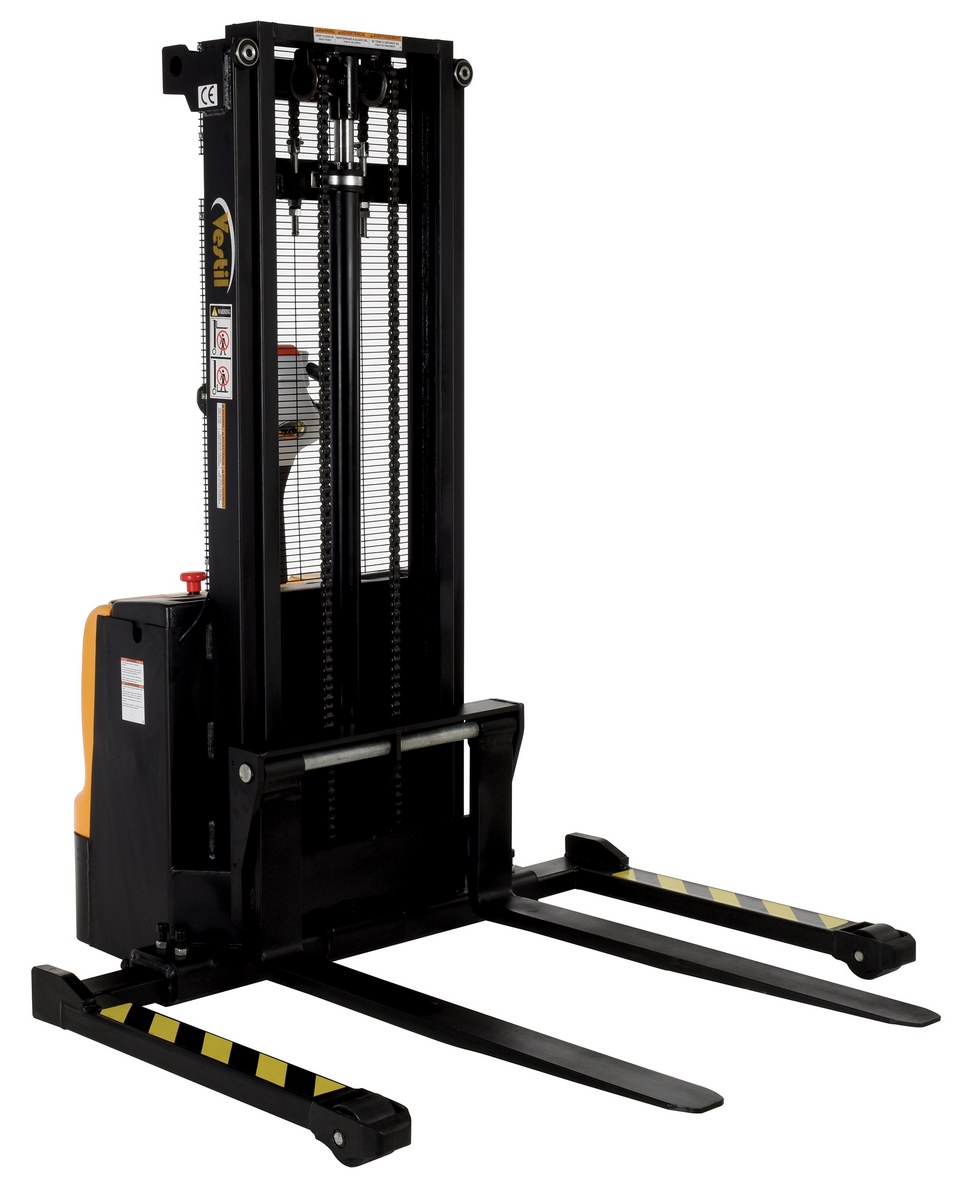

S-101-AA-DM S-101-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 101 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500		1480

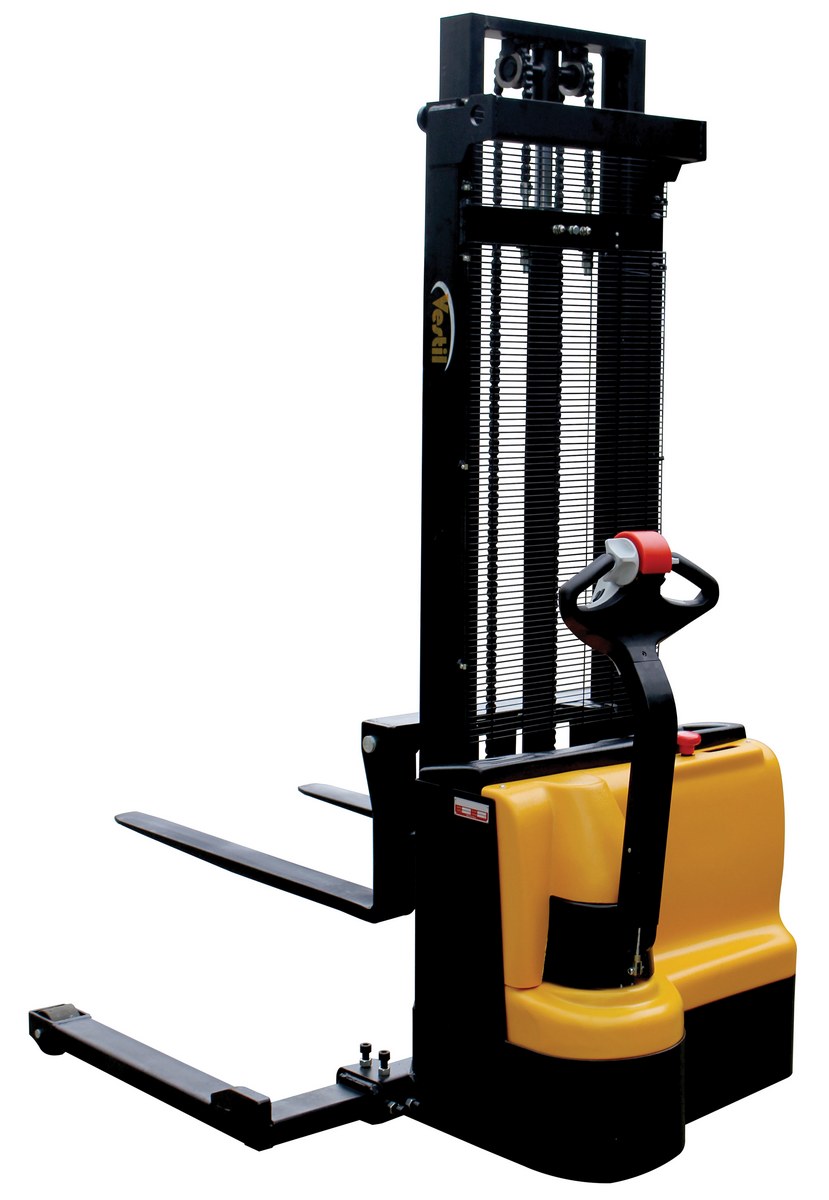

S-118-AA-DM S-118-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1329

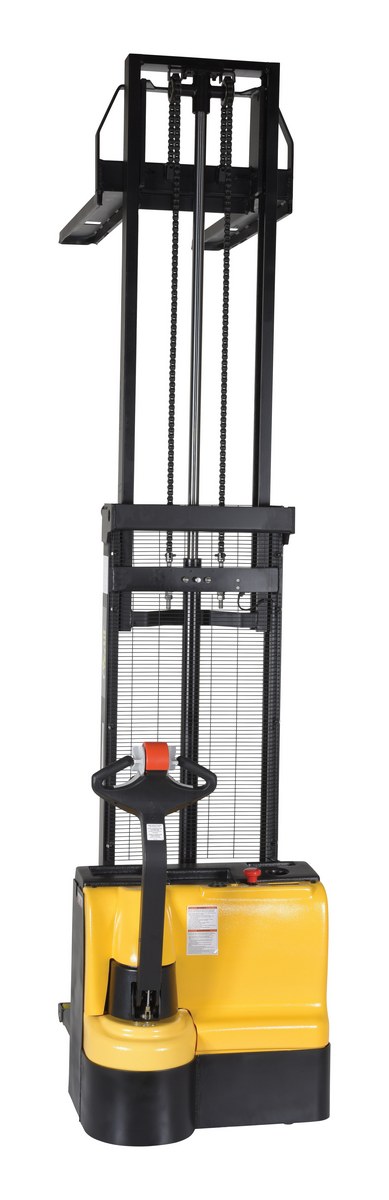

S-118-FF-DM
S-118-FF-DM1 Year Limited WarrantySteel Fixed Forks Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500		1330

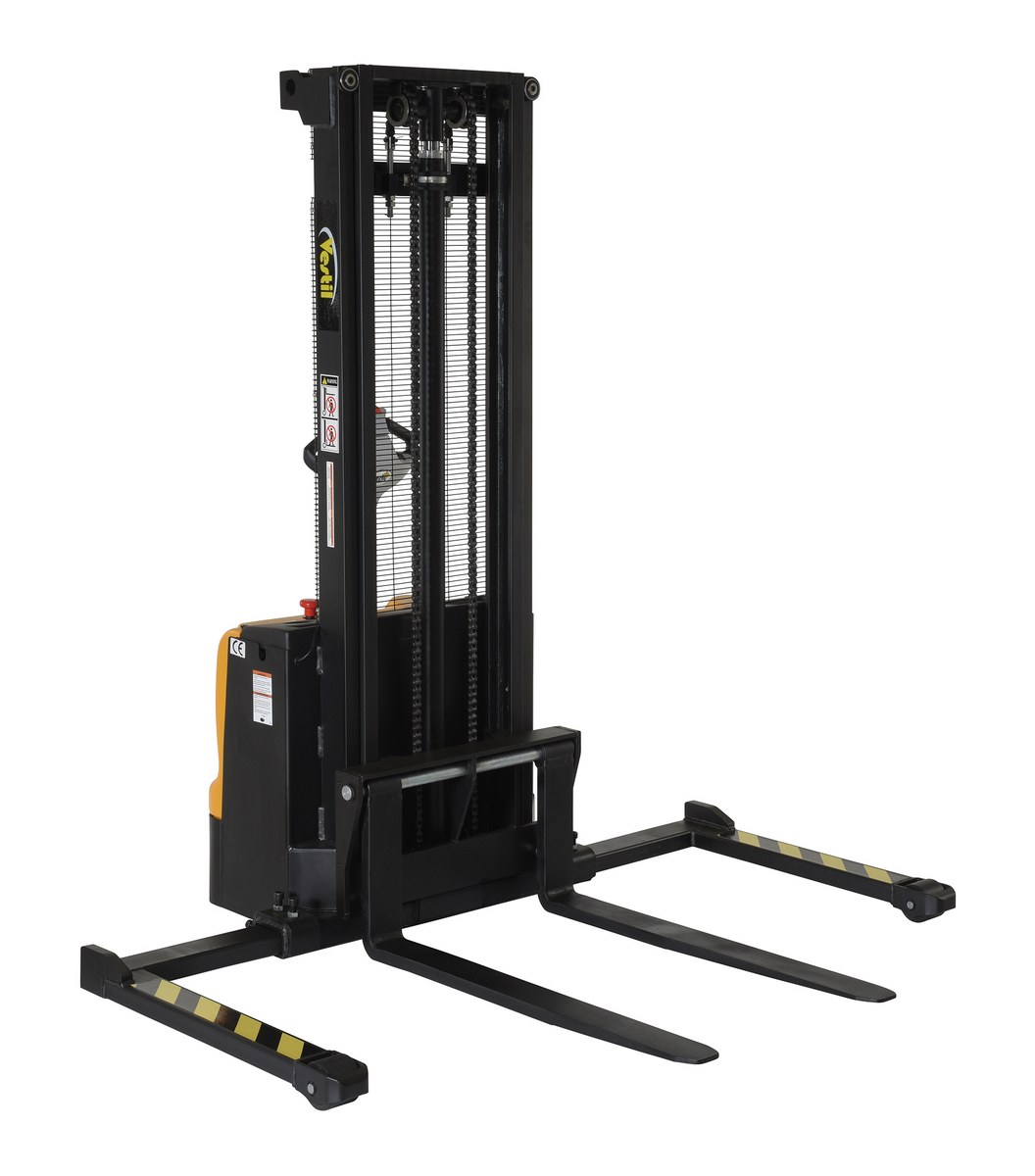

S-125-AA-DM S-125-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 125 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1482
S-150-AA-DM S-150-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 150 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1582
S3-118-AA S3-118-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 118 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500		1868

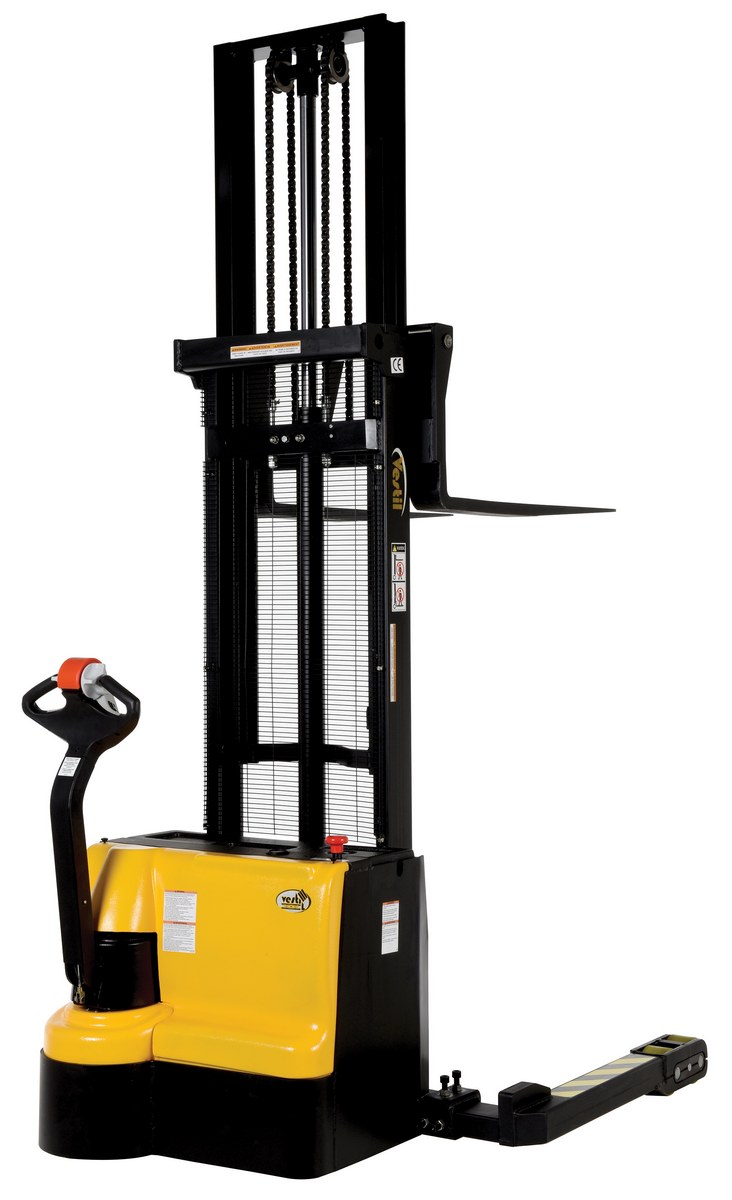

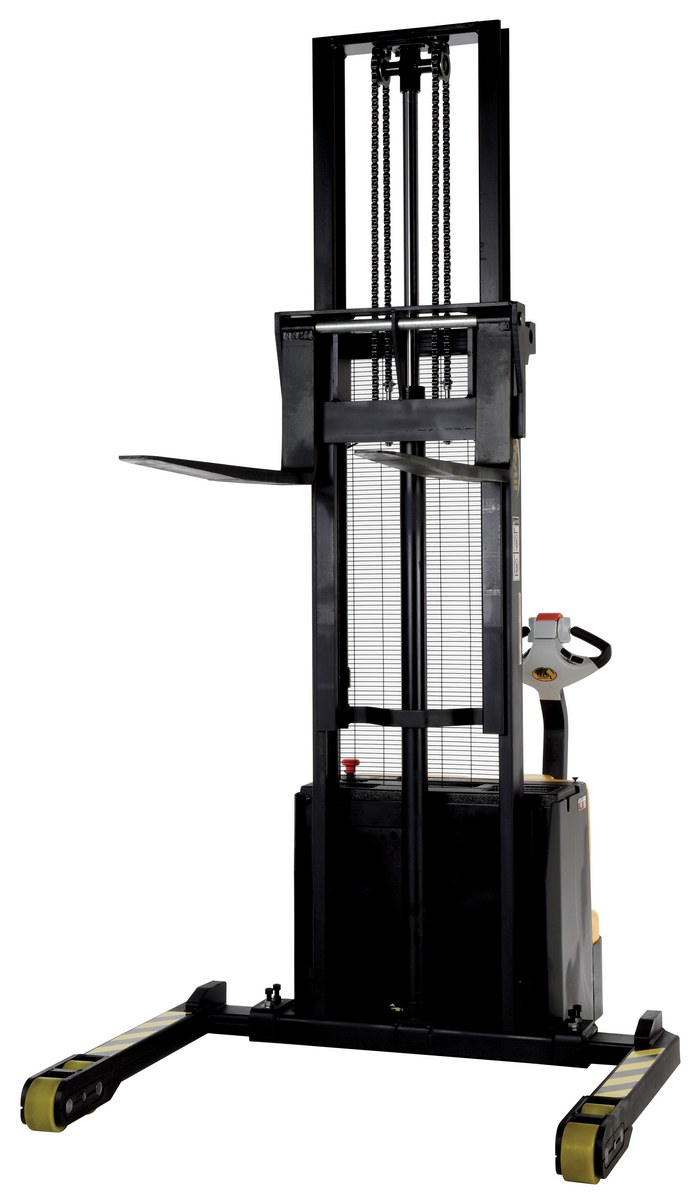

S3-125-AA S3-125-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 125 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500		2038
S3-43-AA S3-43-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 43 In. Raised Height 3,000 Lb. Capacity Black / YellowPower: 24V DC
Power Unit: Internal Lead Acid Battery		1564
S3-62-AA S3-62-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 62 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4		1564

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

S-101-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500

S-118-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500

S-118-FF-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500

S-125-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500

S-150-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500

S3-118-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500

S3-125-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500

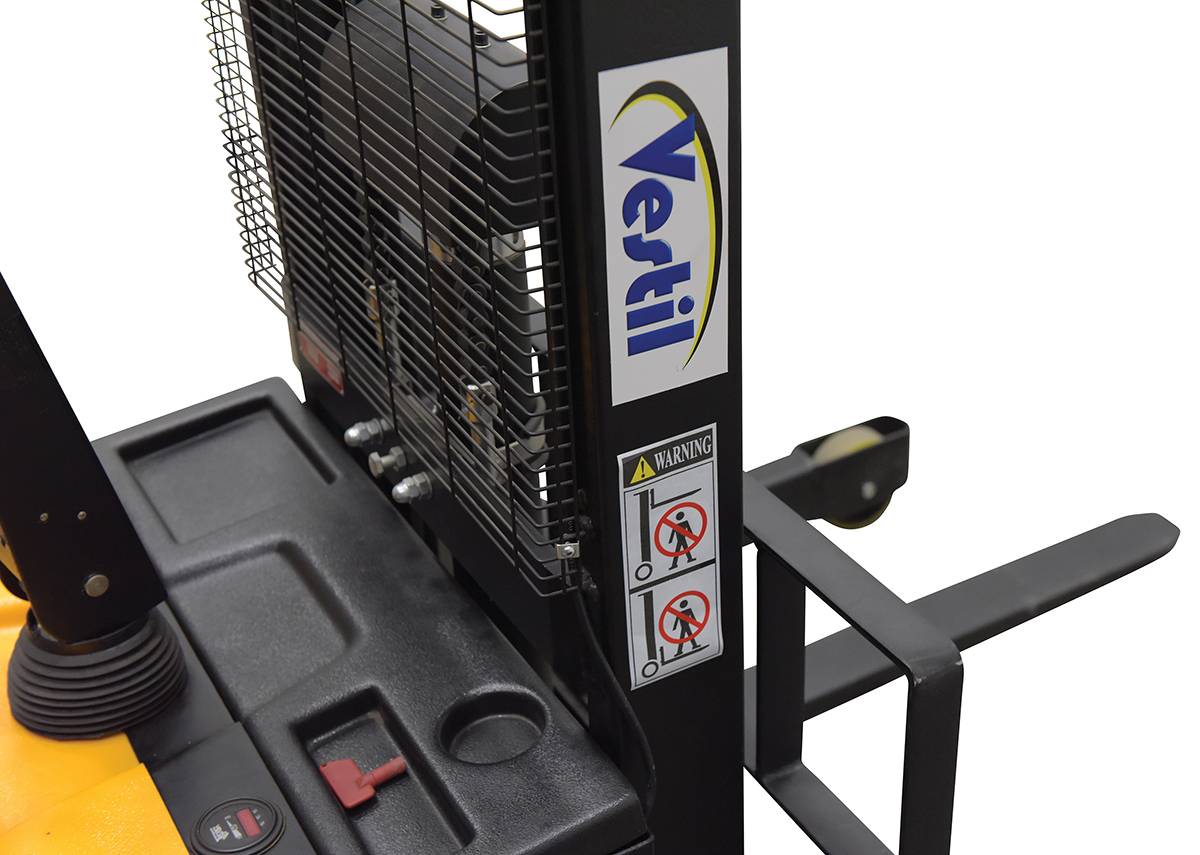

S3-43-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power: 24V DC
Power Unit: Internal Lead Acid Battery
Power: 24V DC
Power Unit: Internal Lead Acid Battery

S3-62-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4
For More Details of the Option Click the Red Model Button

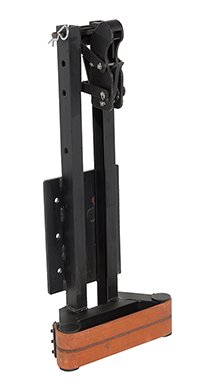

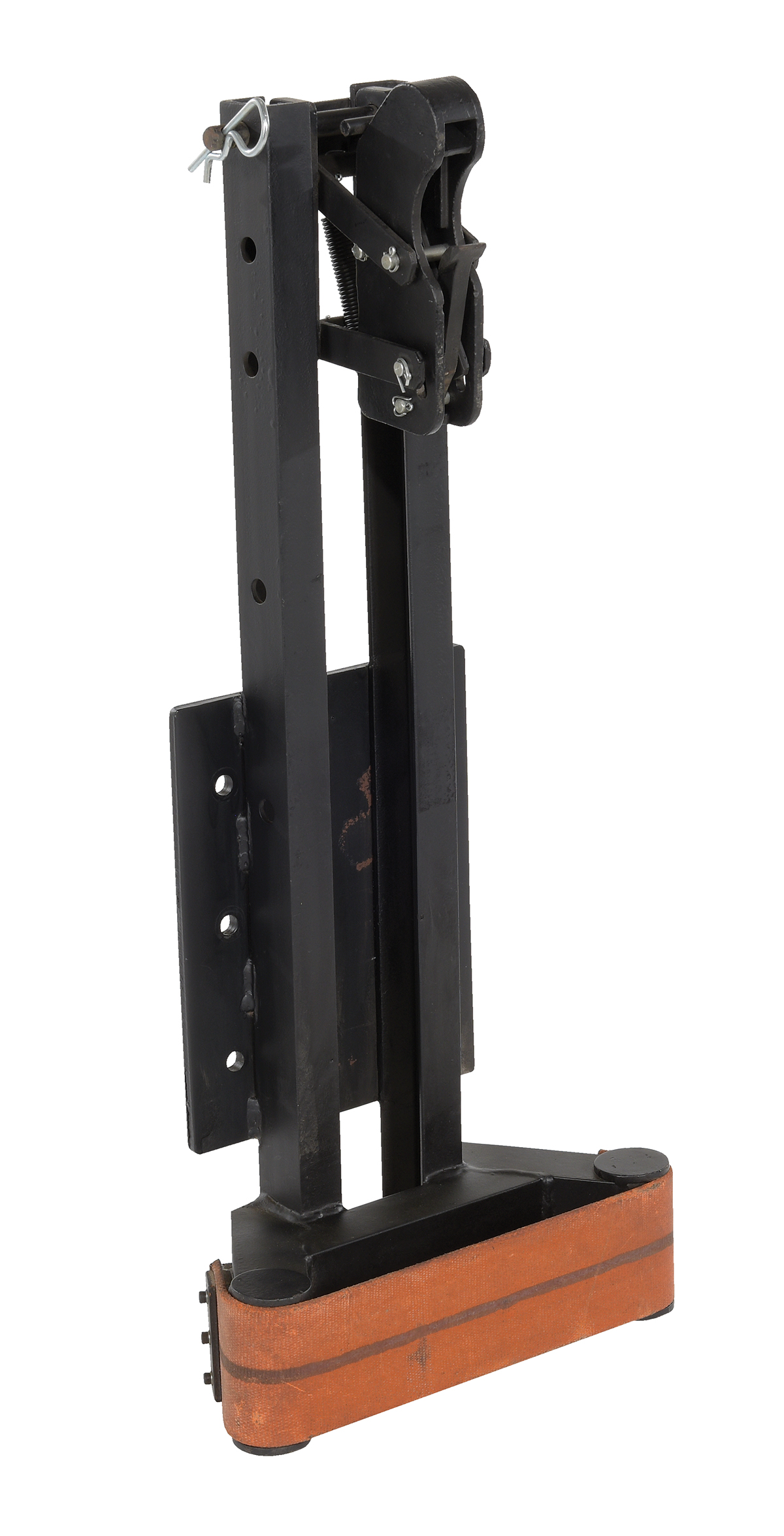

S3-SDG-RF S3-SDG-RF90 Days Limited WarrantySteel Single Drum Gripper Attachment 700 Lb. Capacity BlackUniform Capacity (Lbs.): 700
Overall Length (in.): 32		62
Model Image Description Wt (lbs.)
AGM-UPG-2-12V

AGM Battery Upgrade (2x12V) must be purchased with new unit 80
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Double Mast Stackers with Powered Drive and Powered Lift PDF's will open in a new window when clicked.

Manuals


S3
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


S-118-AA-DM

S-118-FF-DM

S-150-AA-DM

S3-118-AA

S3-125-AA

S3-62-AA

Testing Certificates


S-101-AA-DM

S-118-AA-DM

S-118-FF-DM

S-125-AA-DM

S-150-AA-DM

S3-118-AA

S3-125-AA

S3-43-AA

S3-62-AA

S3-SDG-RF

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-101-AA-DM
Hydraulic Oil SDS Sheet for: S-101-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-AA-DM
Hydraulic Oil SDS Sheet for: S-118-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-FF-DM
Hydraulic Oil SDS Sheet for: S-118-FF-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-125-AA-DM
Hydraulic Oil SDS Sheet for: S-125-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-150-AA-DM
Hydraulic Oil SDS Sheet for: S-150-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-118-AA
Hydraulic Oil SDS Sheet for: S3-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-125-AA
Hydraulic Oil SDS Sheet for: S3-125-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-43-AA
Hydraulic Oil SDS Sheet for: S3-43-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-62-AA
Hydraulic Oil SDS Sheet for: S3-62-AA

Other PDF's


Double Mast Stacker Mailing Brochure

Double Mast Stacker Mailing Brochure(2)

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: At what point when the forks are raised does the overall height begin to increase?

A: When the forks are raised 1" the overall mast will increase by 1/2". Overall height is proportional with the fork height.

Q: I am looking for the dimensions of the adjustable legs. I want to be sure it can straddle a pallet.

A: The inside dimensions of the adjustable legs are 40"-50".

Q: We are interested in the drum attachment. Will it work with the S3-43-AA, S3-62-AA, S3-118-AA, S3-125-AA?

A: The S3-SDG-RF works with the S3-43-AA (only).




Related or Similar Products:

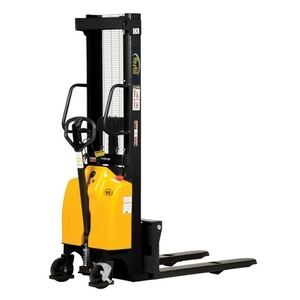

Stackers with Powered Drive and Powered Lift
Product

Stackers with Powered Drive and Powered Lift

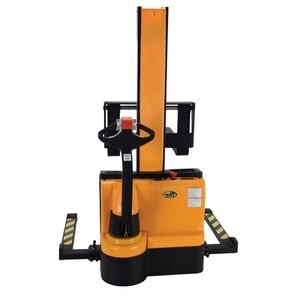

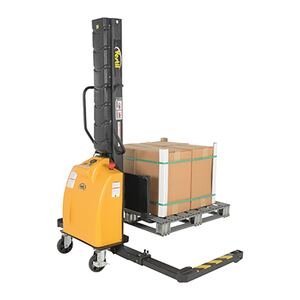

Narrow Mast Stackers with Powered Drive and Powered Lift
Product

Narrow Mast Stackers with Powered Drive and Powered Lift

Variable Speed Drive Double Mast Fully Powered Stacker
Product

Variable Speed Drive Double Mast Fully Powered Stacker

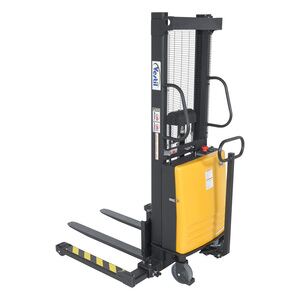

Stacker with Powered Lift
Product

Stacker with Powered Lift

Drum Roll Reel Forks
Product

Drum Roll Reel Forks

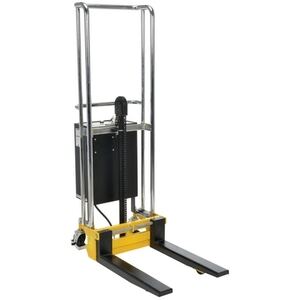

Combination Hand Pump and Electric Stackers
Product

Combination Hand Pump and Electric Stackers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Double Mast Stackers with Powe...




Double Mast Fully Powered Electric Stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

VARIABLE SPEED model available. (Model S2-118-AA-VS)


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)


Model # Description Attributes Net Wt.
(lbs)
S-101-AA-DM S-101-AA-DMSteel Adjustable Double Mast Stacker 101 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500		1480
S-118-AA-DM S-118-AA-DMSteel Adjustable Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1329
S-118-FF-DM S-118-FF-DMSteel Fixed Forks Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500		1330
S-125-AA-DM S-125-AA-DMSteel Adjustable Double Mast Stacker 125 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1482
S-150-AA-DM S-150-AA-DMSteel Adjustable Double Mast Stacker 150 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1582
S3-118-AA S3-118-AASteel Adjustable Double Mast Stacker 118 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500		1868
S3-125-AA S3-125-AASteel Adjustable Double Mast Stacker 125 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500		2038
S3-43-AA S3-43-AASteel Adjustable Double Mast Stacker 43 In. Raised Height 3,000 Lb. Capacity Black / YellowPower: 24V DC
Power Unit: Internal Lead Acid Battery		1564
S3-62-AA S3-62-AASteel Adjustable Double Mast Stacker 62 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4		1564

Options


Model Image Description Wt (lbs.)
AGM-UPG-2-12V

AGM Battery Upgrade (2x12V) must be purchased with new unit 80

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
