Model Details

HDP-2-36

HDP-2-36

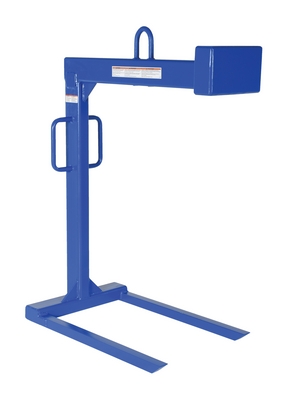

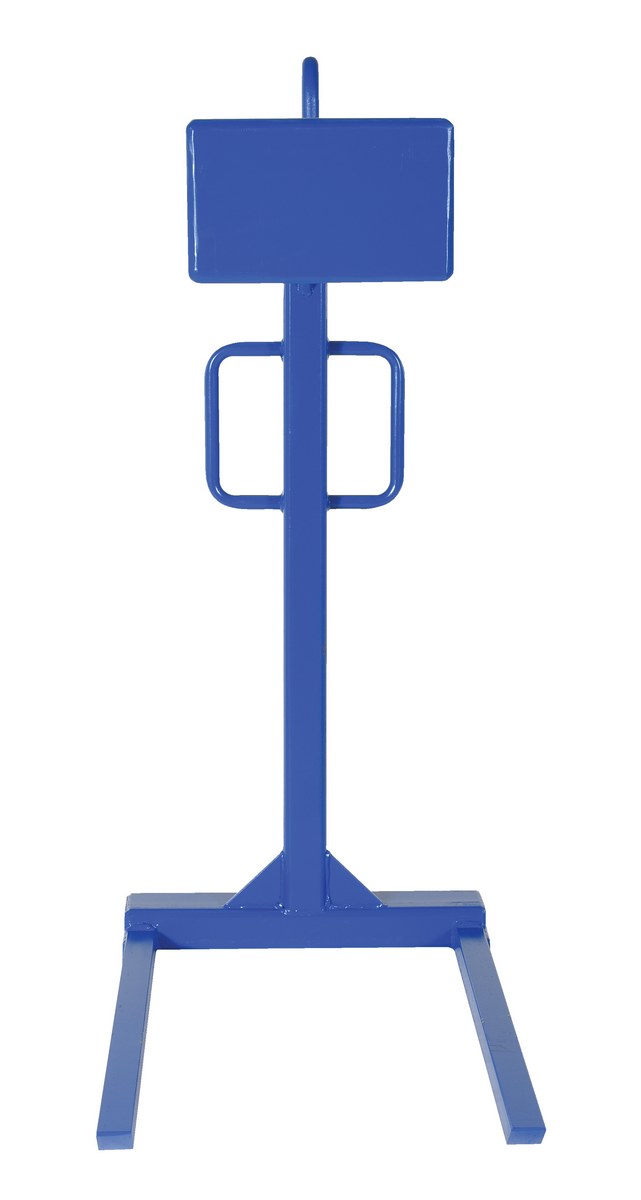

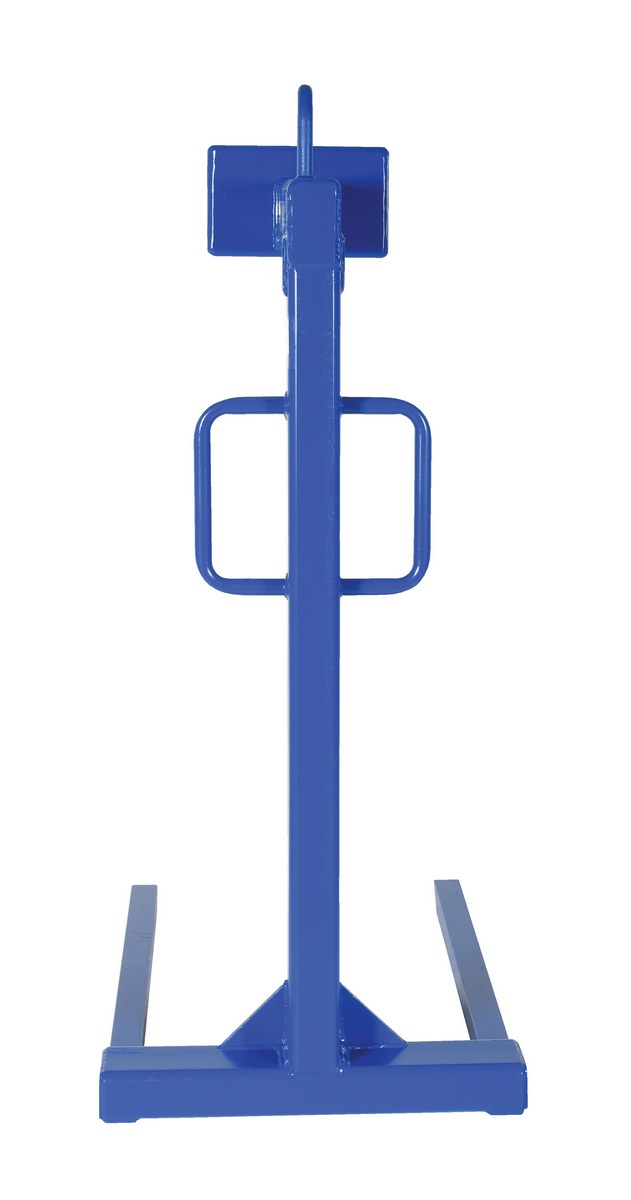

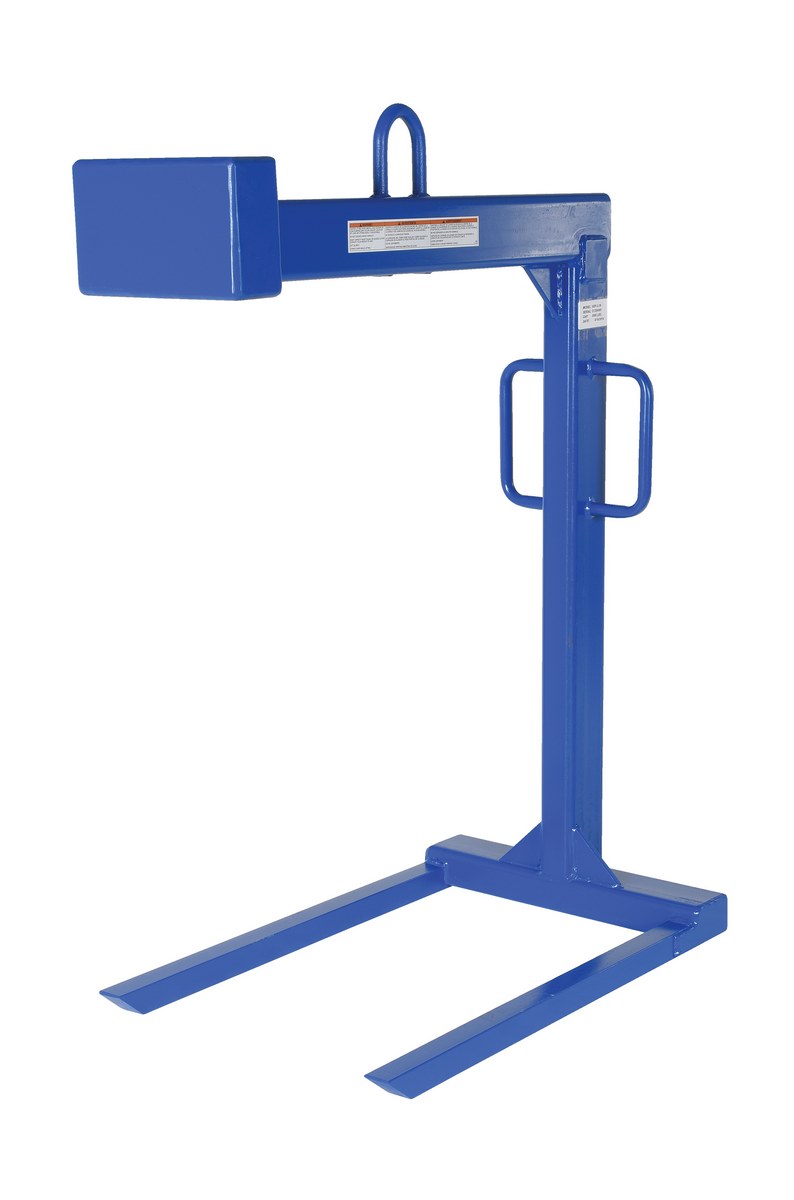

Steel Pallet Lifter 36 In. Fork 2000 Lb. Capacity Blue

This solid steel pallet lifter contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to position the unit. Large square head serves as a counterweight to keep the unit level without a load.

  • Tapered forks allow easy access under pallets
  • Main support contains handles to allow positioning
  • Large square head serves as a counterweight to keep level without a load
  • Unit meets ASME B30.20 standard 1993
Total Ship Wt.(lbs.): 436 (only 1 package) Size: 25.5"W x 46.25"L x 61.25"H Color: Blue

Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21 Fork Length/Width/Height (in.): 36 x 2 x 2
Overall Fork Width (in.): 25 Pallet Clearance (in.): 48 Bail Width/Height (in.): 3 x 5
Bail Center of Gravity (Vertical in. x Horizontal in.): 31-5/8 x 23-1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDP-2-36


HDP-2-36

Steel Pallet Lifter 36 In. Fork 2000 Lb. Capacity Blue

This solid steel pallet lifter contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to position the unit. Large square head serves as a counterweight to keep the unit level without a load.

  • Tapered forks allow easy access under pallets
  • Main support contains handles to allow positioning
  • Large square head serves as a counterweight to keep level without a load
  • Unit meets ASME B30.20 standard 1993
Dimensions: 25.5"W x 46.25"L x 61.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215023030 GTIN: 00691215023030
Warranty: -- Shipping Weight: 436 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21 Fork Length/Width/Height (in.): 36 x 2 x 2
Overall Fork Width (in.): 25 Pallet Clearance (in.): 48 Bail Width/Height (in.): 3 x 5
Bail Center of Gravity (Vertical in. x Horizontal in.): 31-5/8 x 23-1/4
