Pallet Lifters

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

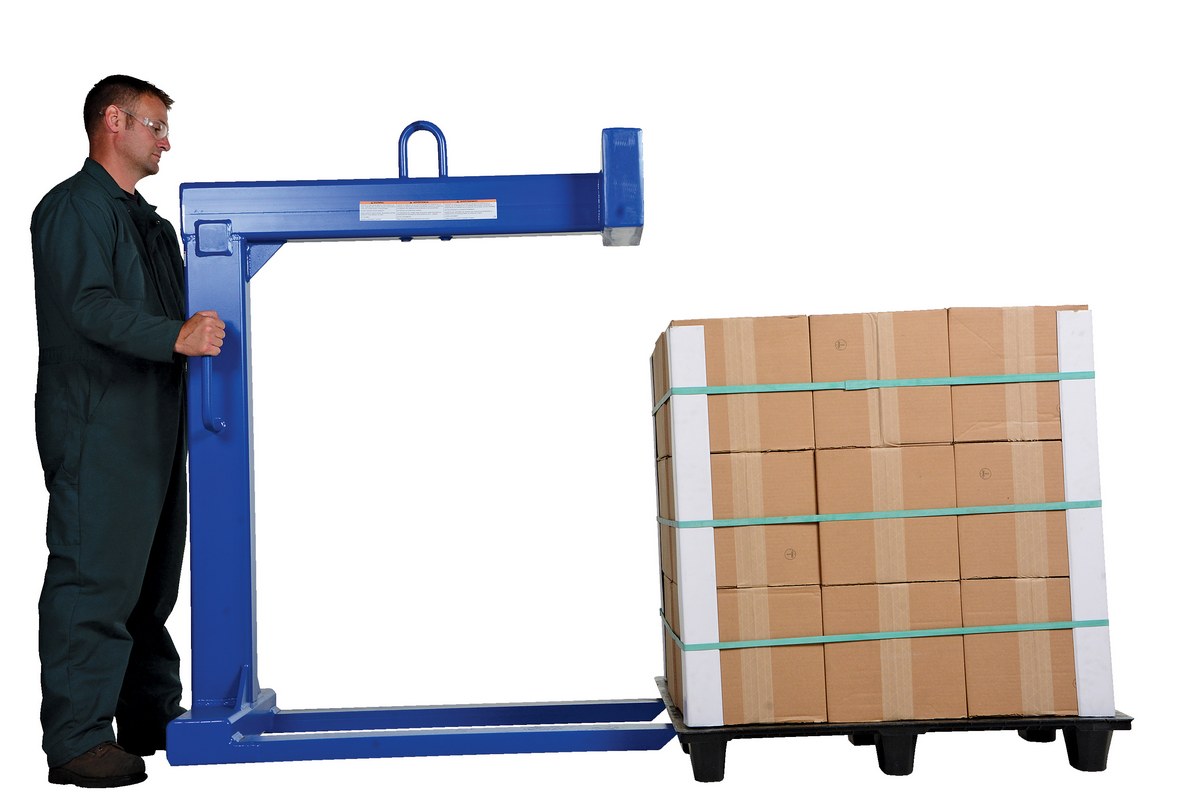

HDP-4-42_F.jpg HDP-4-42_G.jpg HDP-4-42_H.jpg HDP-4-42_A.jpg
HDP-4-42_B.jpg HDP-4-42_C.jpg HDP-4-42_D.jpg HDP-4-42_E.jpg
Pallet Lifters

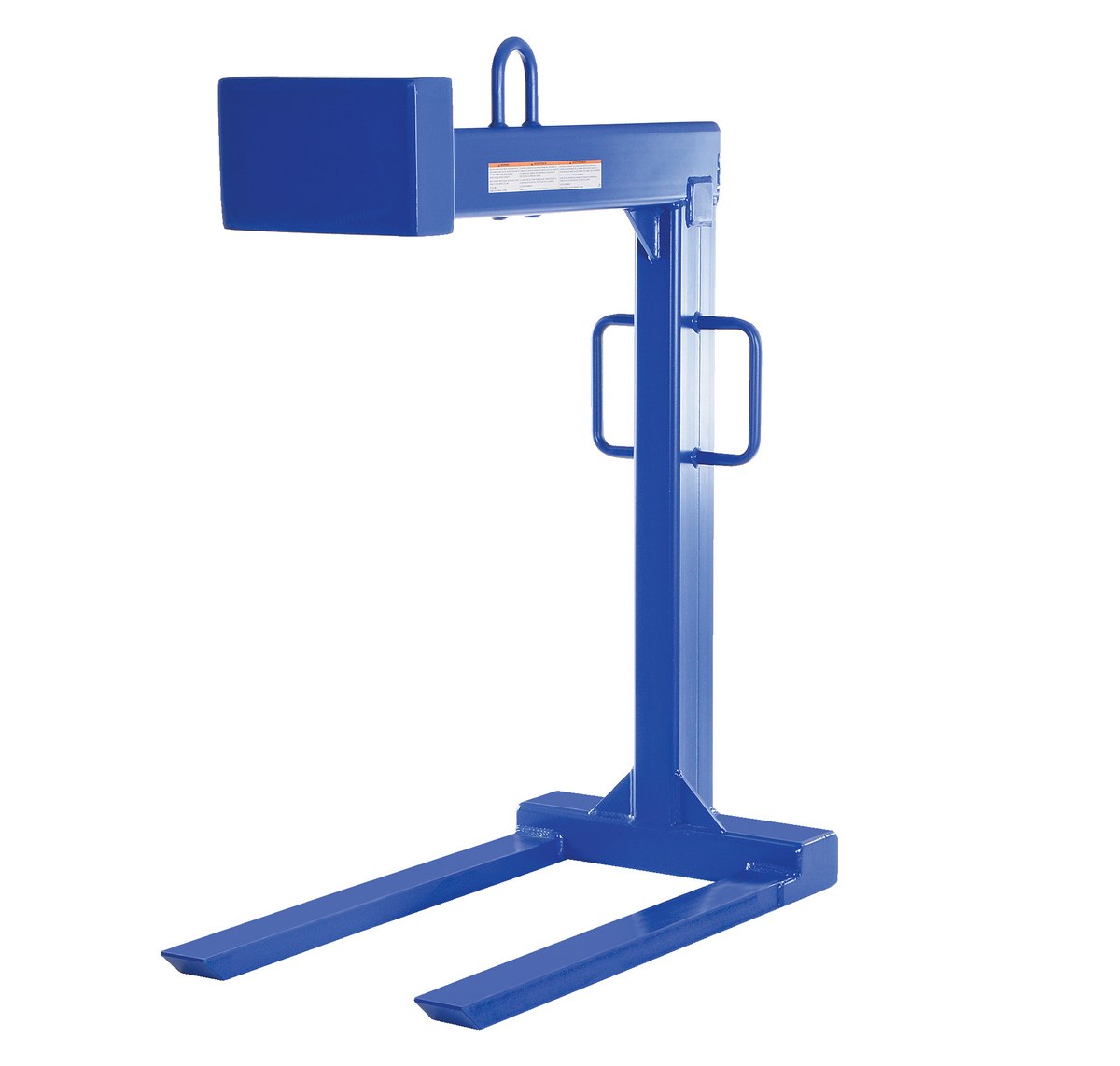

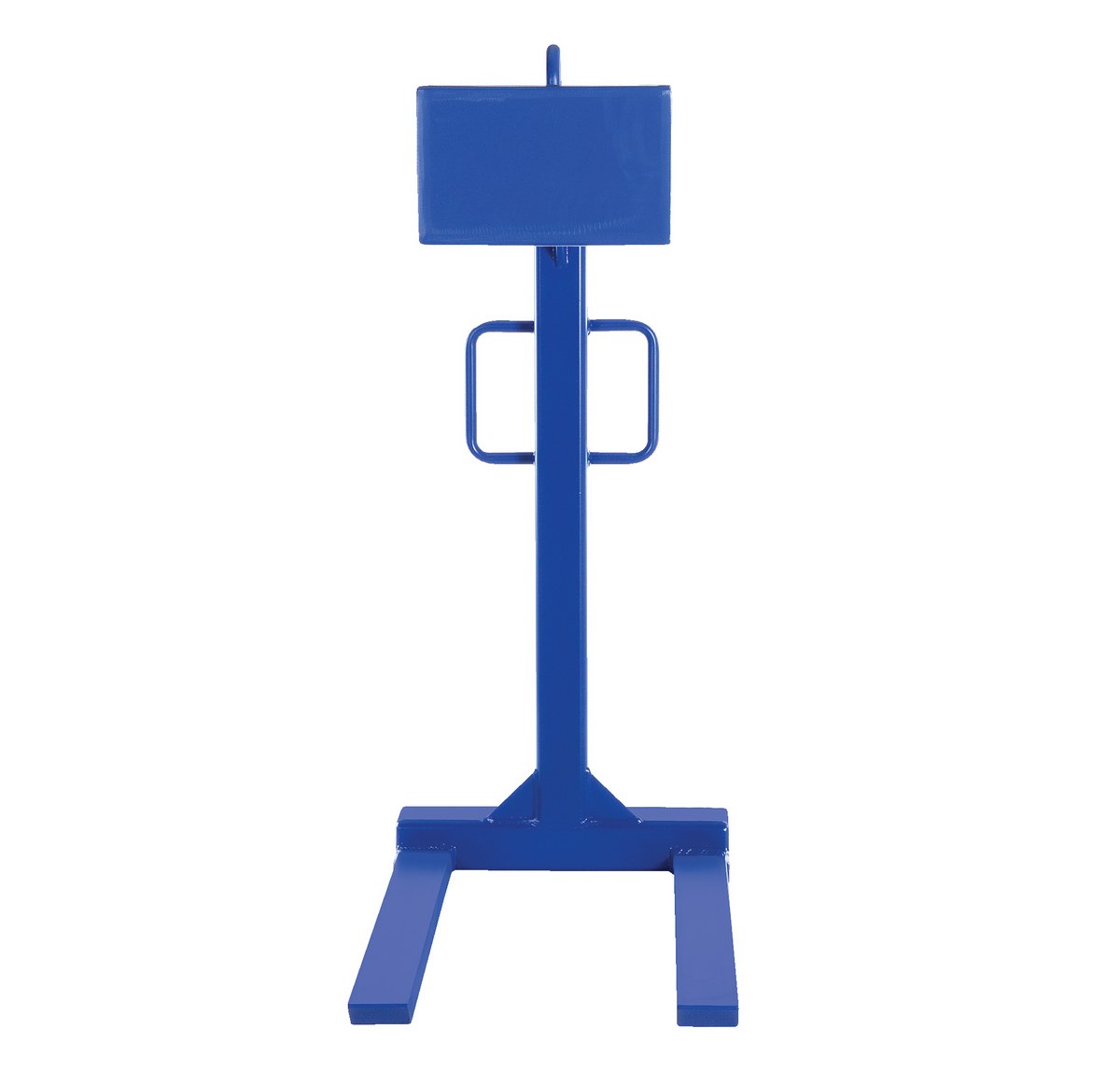

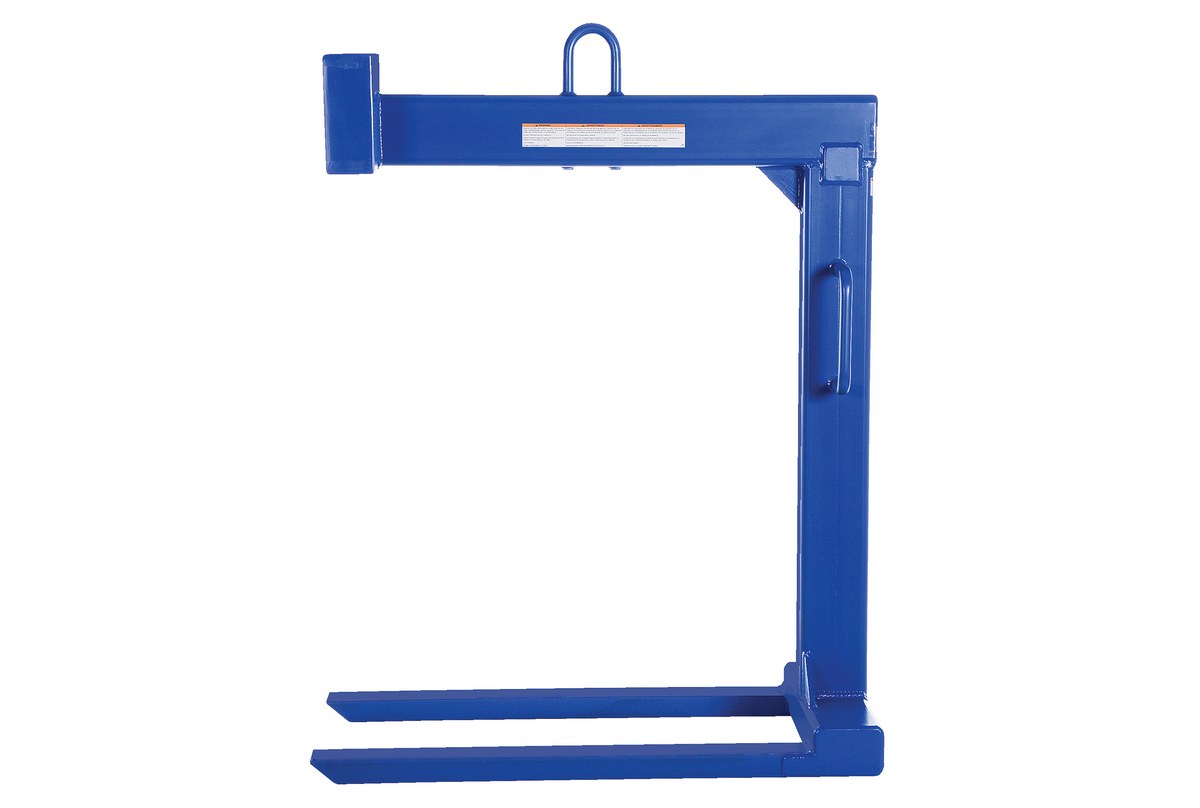

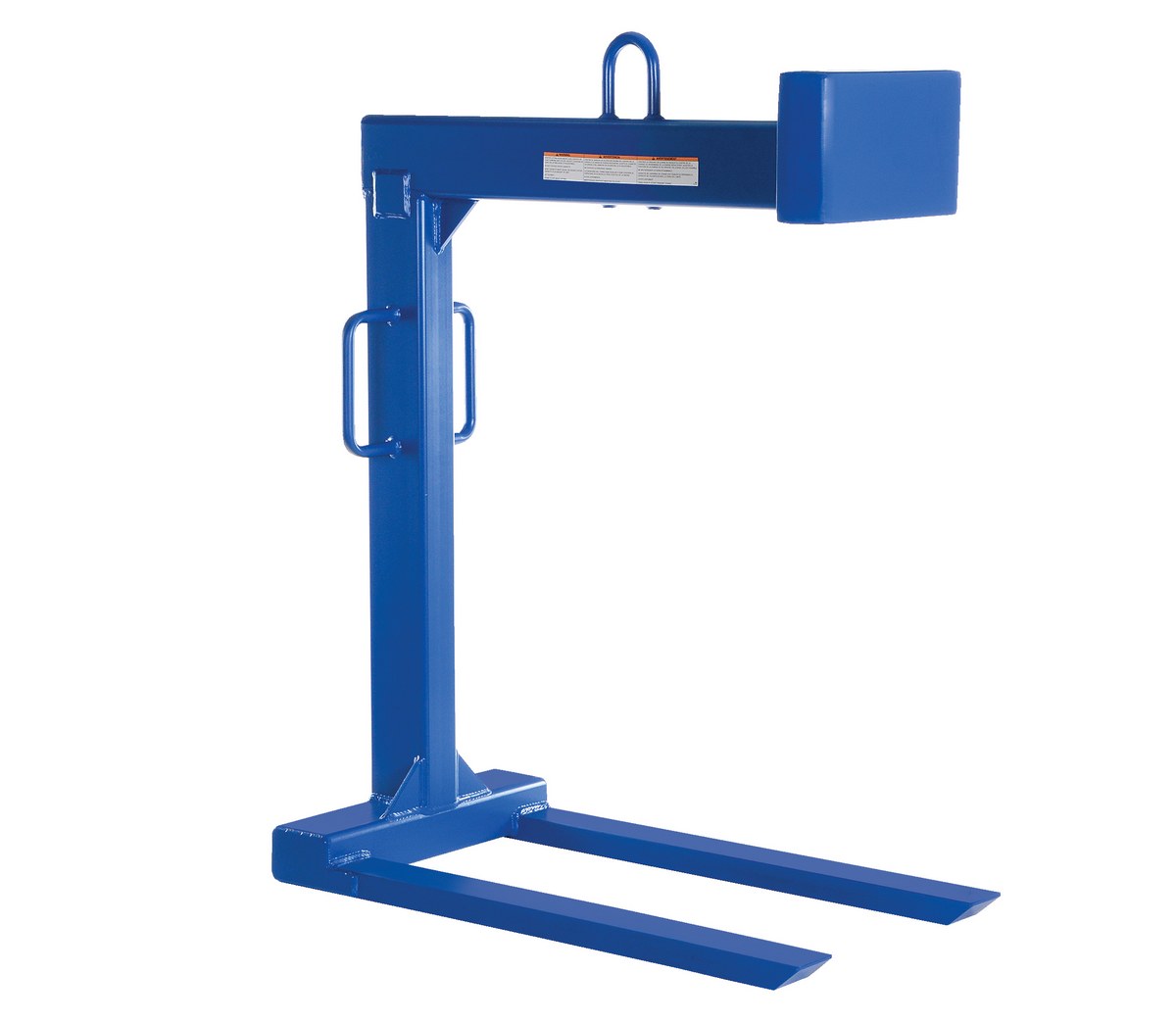

model: HDP-4-42



Pallet Lifters

model: HDP-4-42

Featured Overhead Lifting


Fixed Height Steel Gantry Cranes - Knockdown
Bar Stock Material Positioners
Magnetic Easy Lift
Fixed Height Aluminum Gantry Cranes
Spreader Beam With Adjustable Hand Chain Crank Bail
Professional Hand Chain Hoists
Variable Speed Electric Chain Hoists
Positive Locking Plate Clamps
Fixed Height Steel Gantry Cranes with Total Locking Casters - Knockdown
model chart

Product Family Overview

Print Friendly
Pallet Lifters
SERIES: HDP

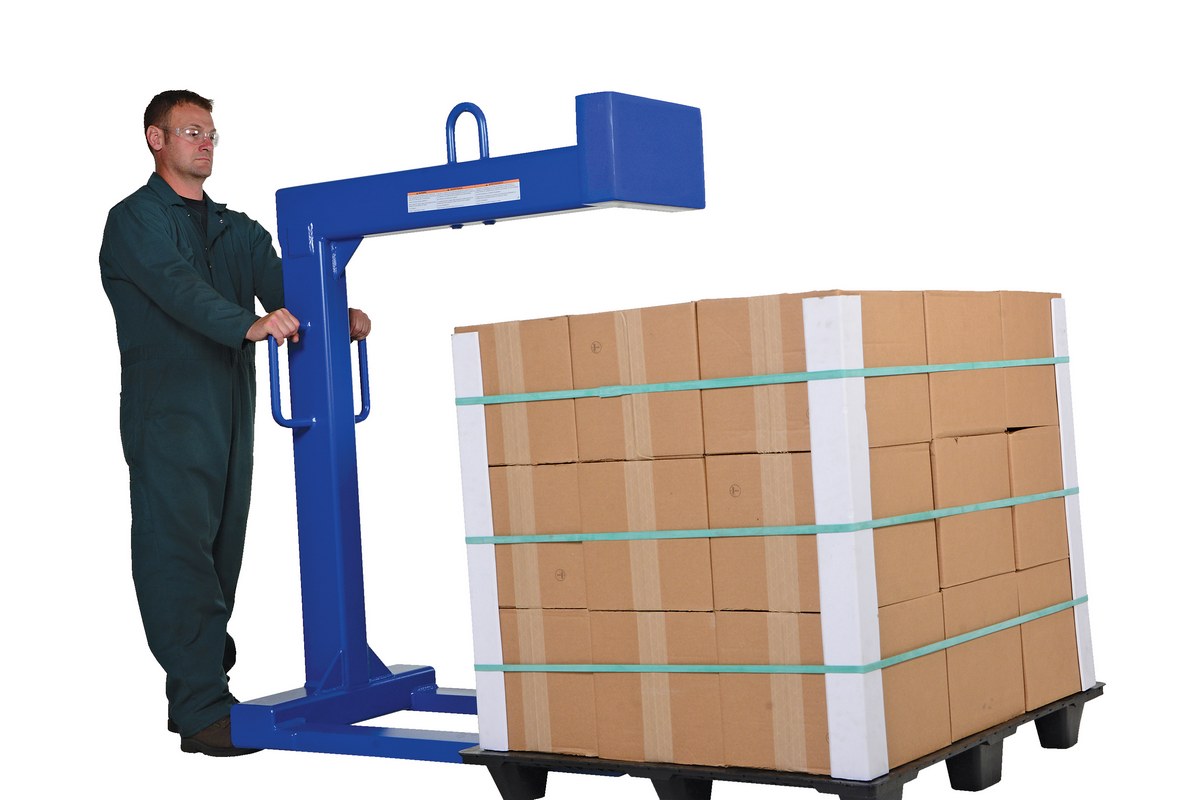

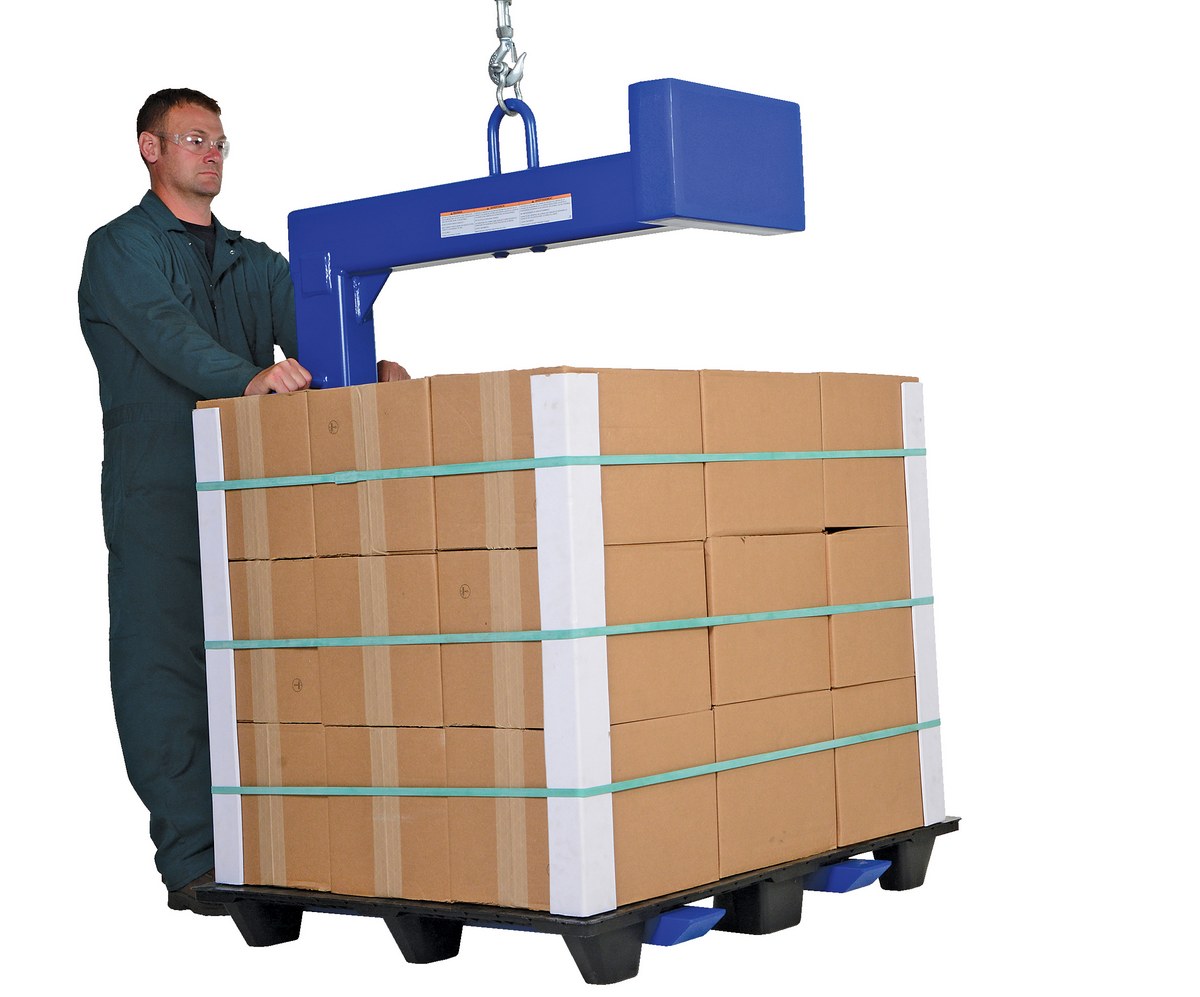

Easily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.

  • Tapered forks allow easy access under pallets
  • Main support contains handles to allow positioning

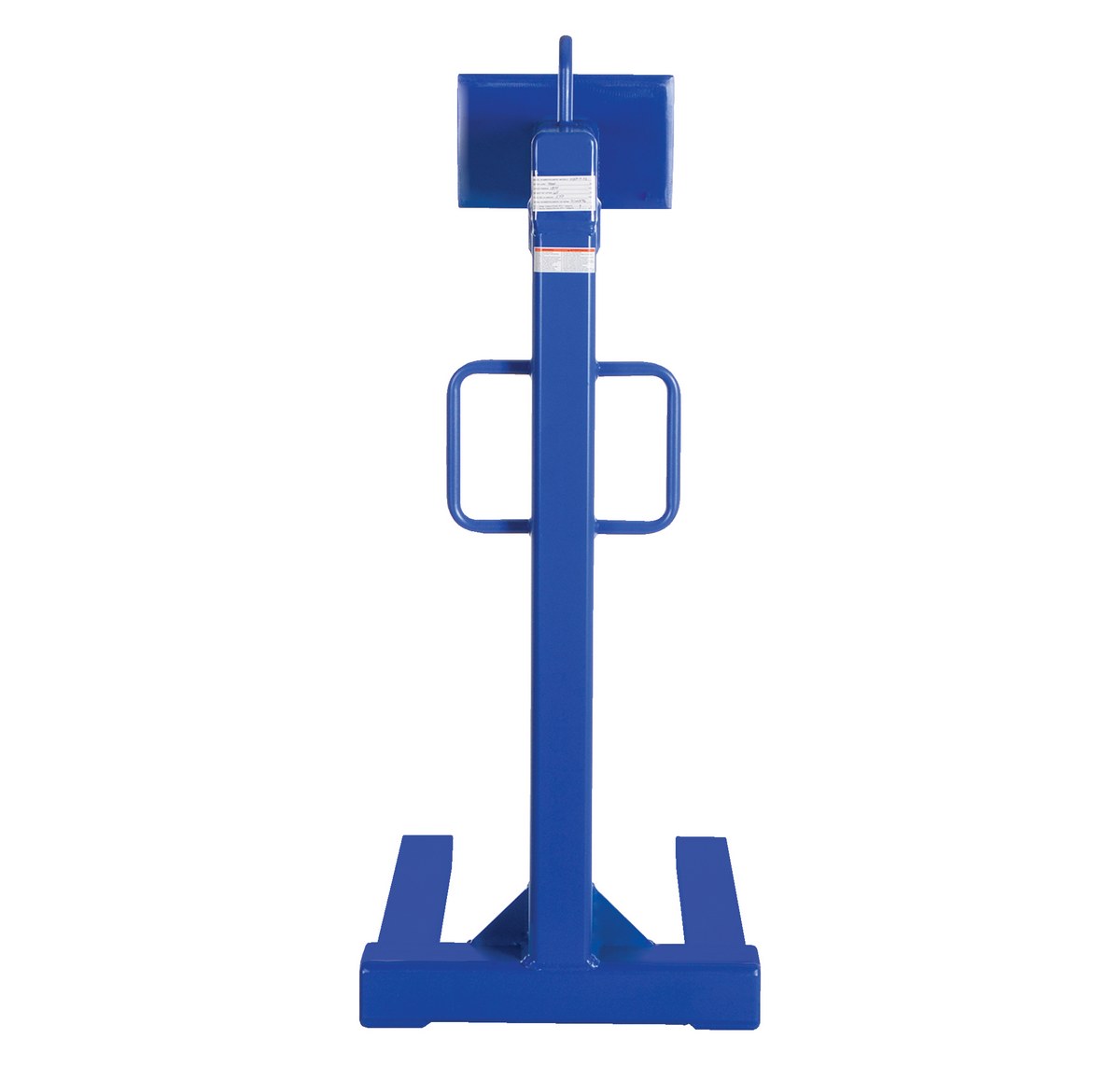

  • Large square head serves as a counterweight to keep level without a load
  • Unit meets ASME B30.20 standard 1993

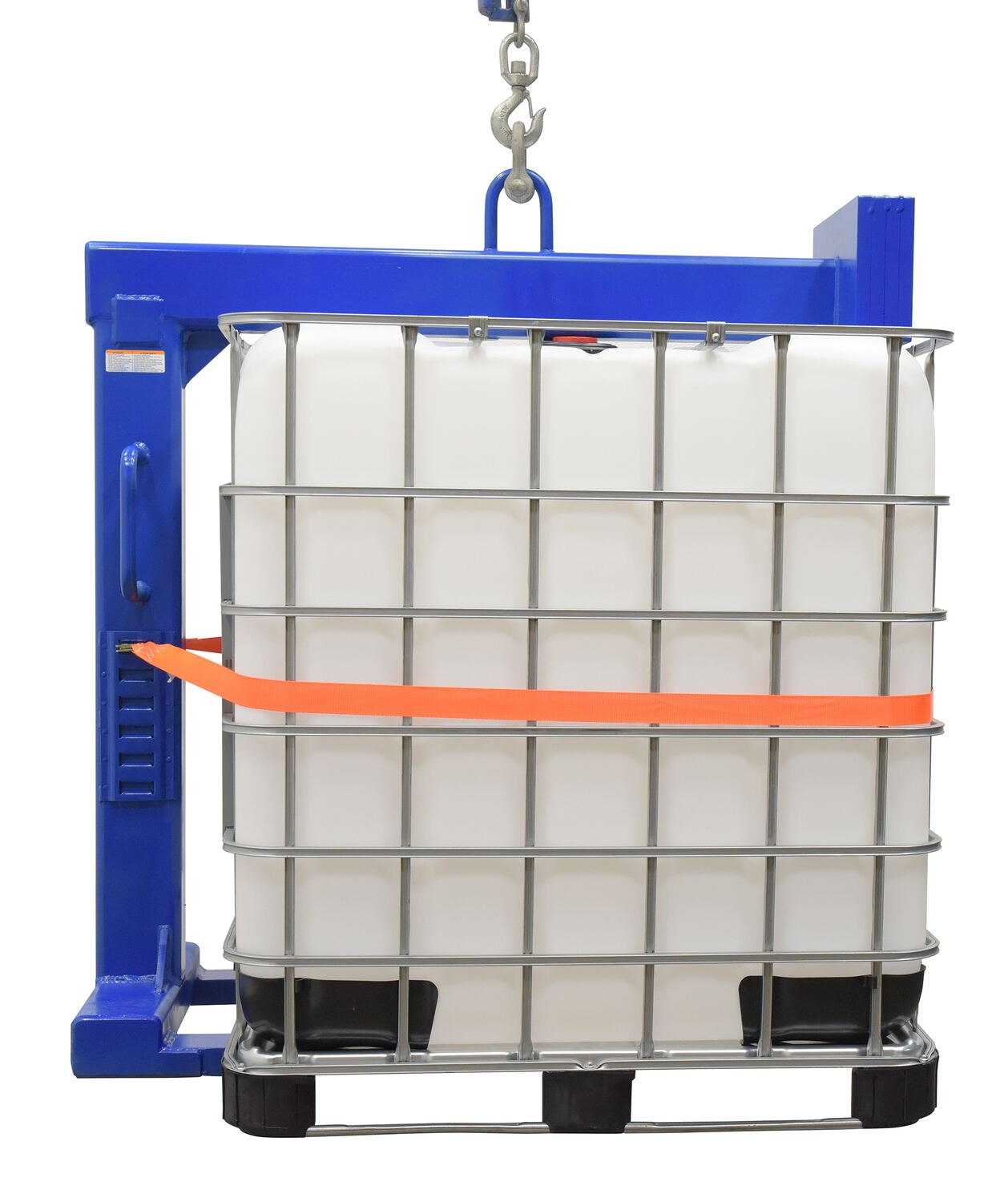

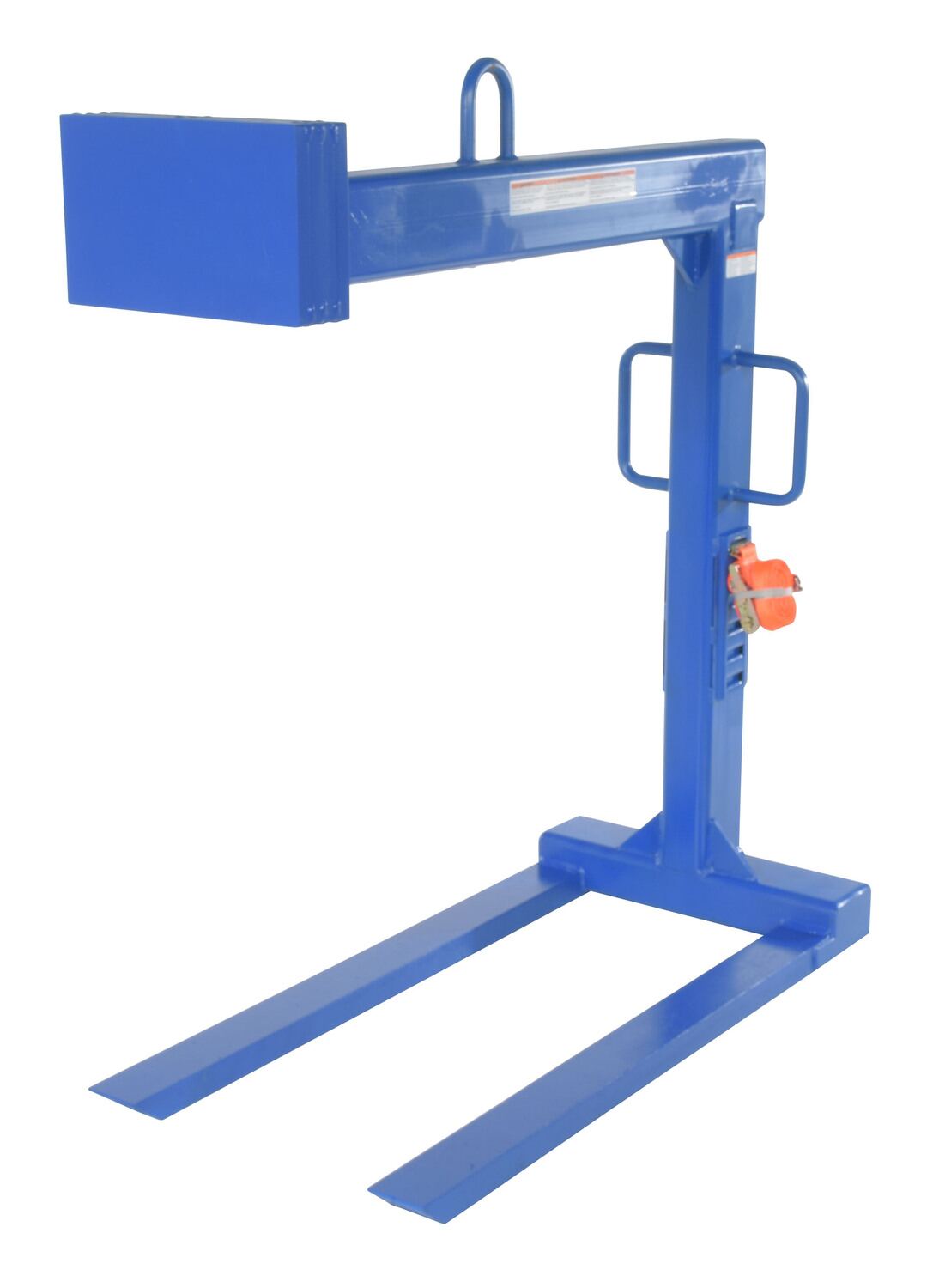

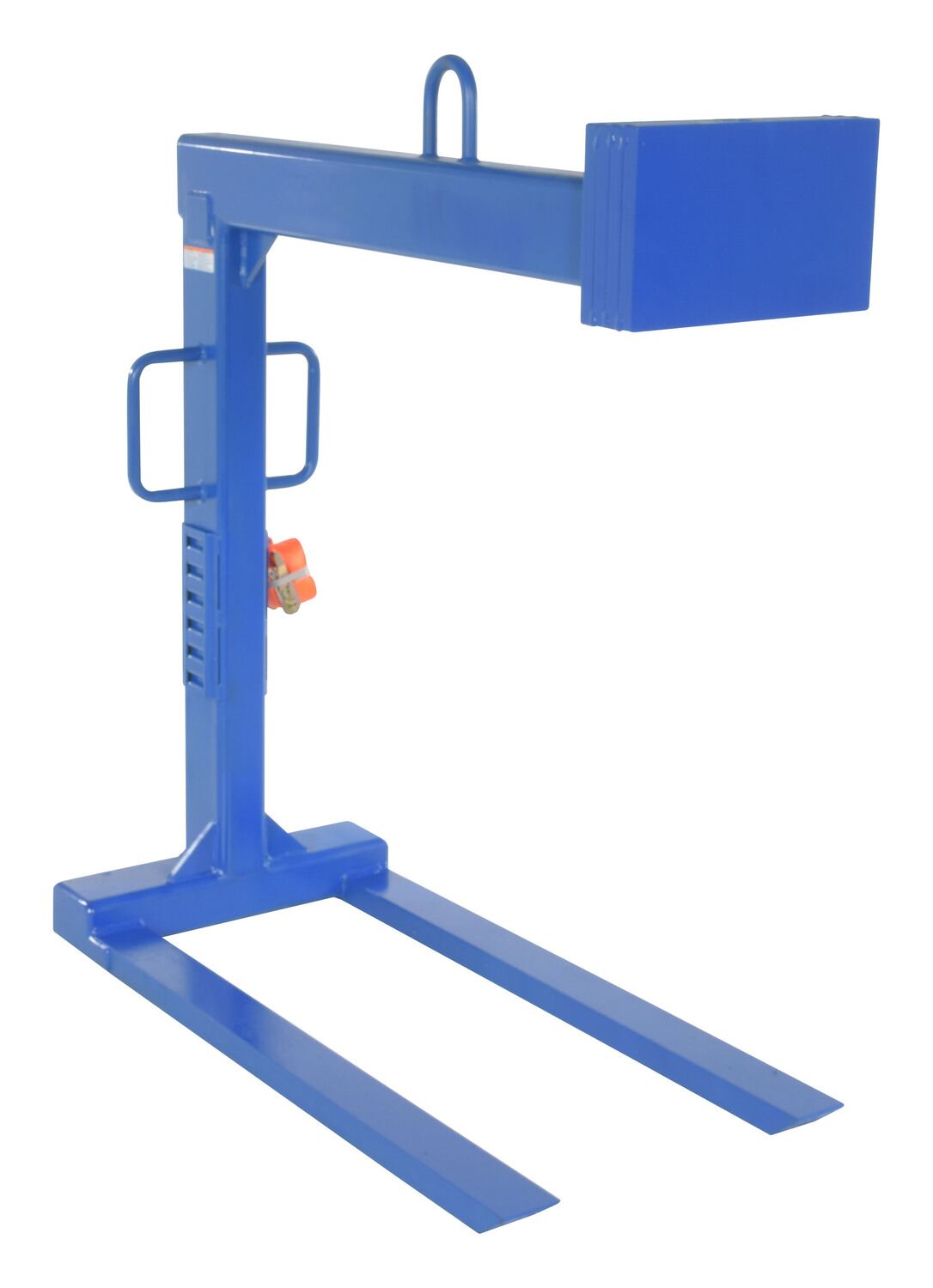

Optional Tie Down Track for HDP's - Factory Installed Option Only
Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.

Easily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.

  • Tapered forks allow easy access under pallets
  • Main support contains handles to allow positioning
  • Large square head serves as a counterweight to keep level without a load
  • Unit meets ASME B30.20 standard 1993

Optional Tie Down Track for HDP's - Factory Installed Option Only
Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.

Other Overhead Load Lifters

 Reel Lifter Pallet Lifters Coil Lifter Heavy-Duty Pipe Grabs

Additional Models In This Family
view entire Image Gallery

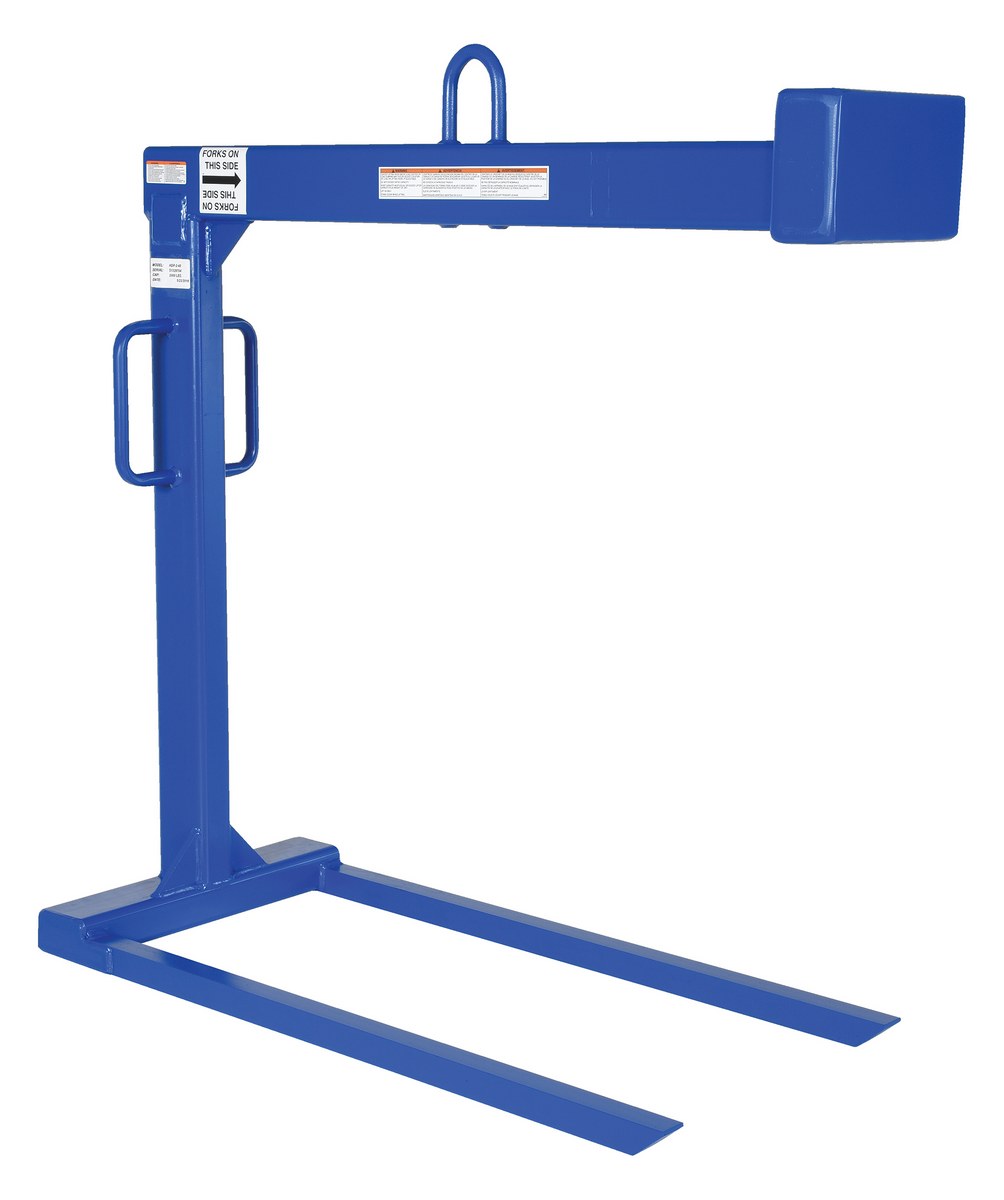

HDP-2-48

HDP-2-48

HDP-4-AB

HDP-4-AB

HDP-TIE-DOWN

HDP-TIE-DOWN

HDP-2-48

HDP-2-48

HDP-2-36

HDP-2-36

HDP-6-54

HDP-6-54

HDP-6-48

HDP-6-48

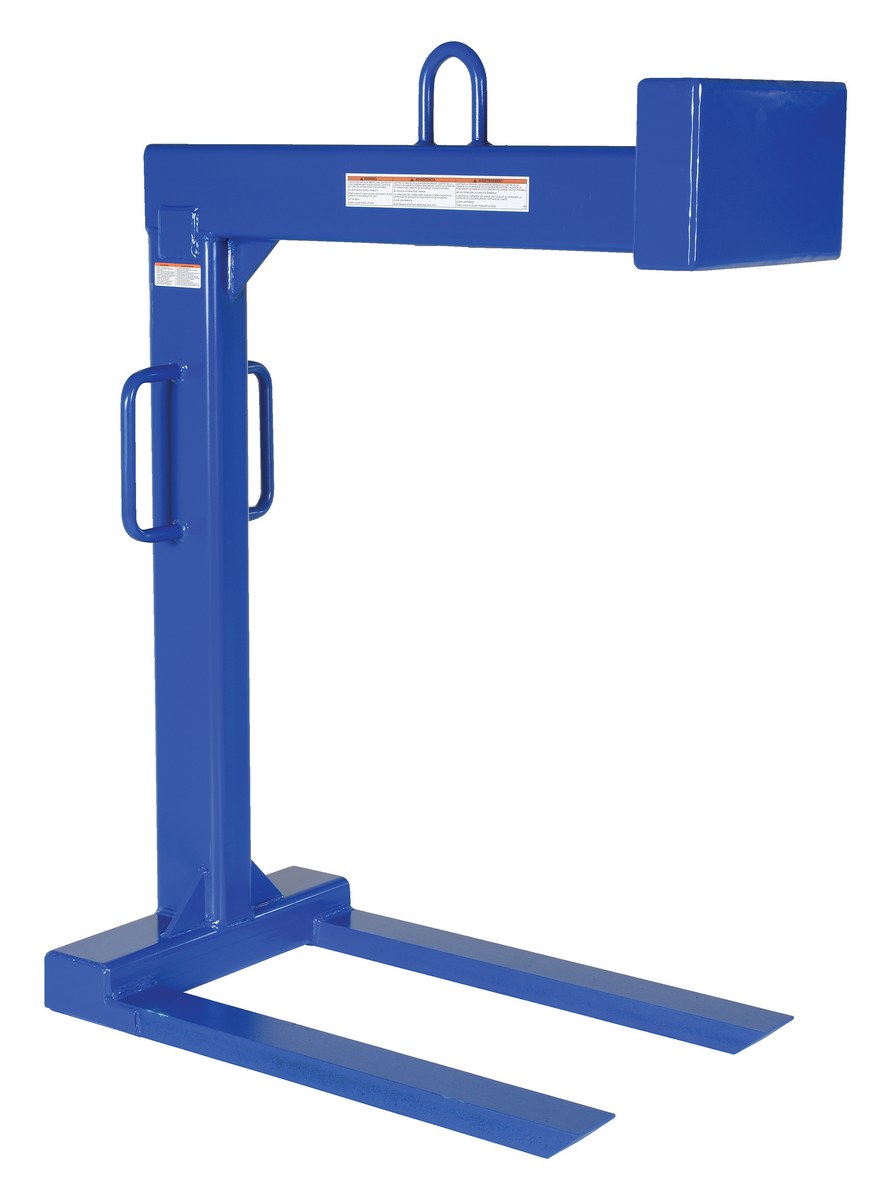

HDP-4-36

HDP-4-36

HDP-4-48

HDP-4-48

HDP-2-42

HDP-2-42

HDP-2-36

HDP-2-36

HDP-2-48

HDP-2-48

HDP-2-42

HDP-2-42

HDP-6-42

HDP-6-42

HDP-4-48

HDP-4-48

model chart
How To Purchase
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HDP-4-42 HDP-4-421 Year Limited WarrantySteel Pallet Lifter 42 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		658

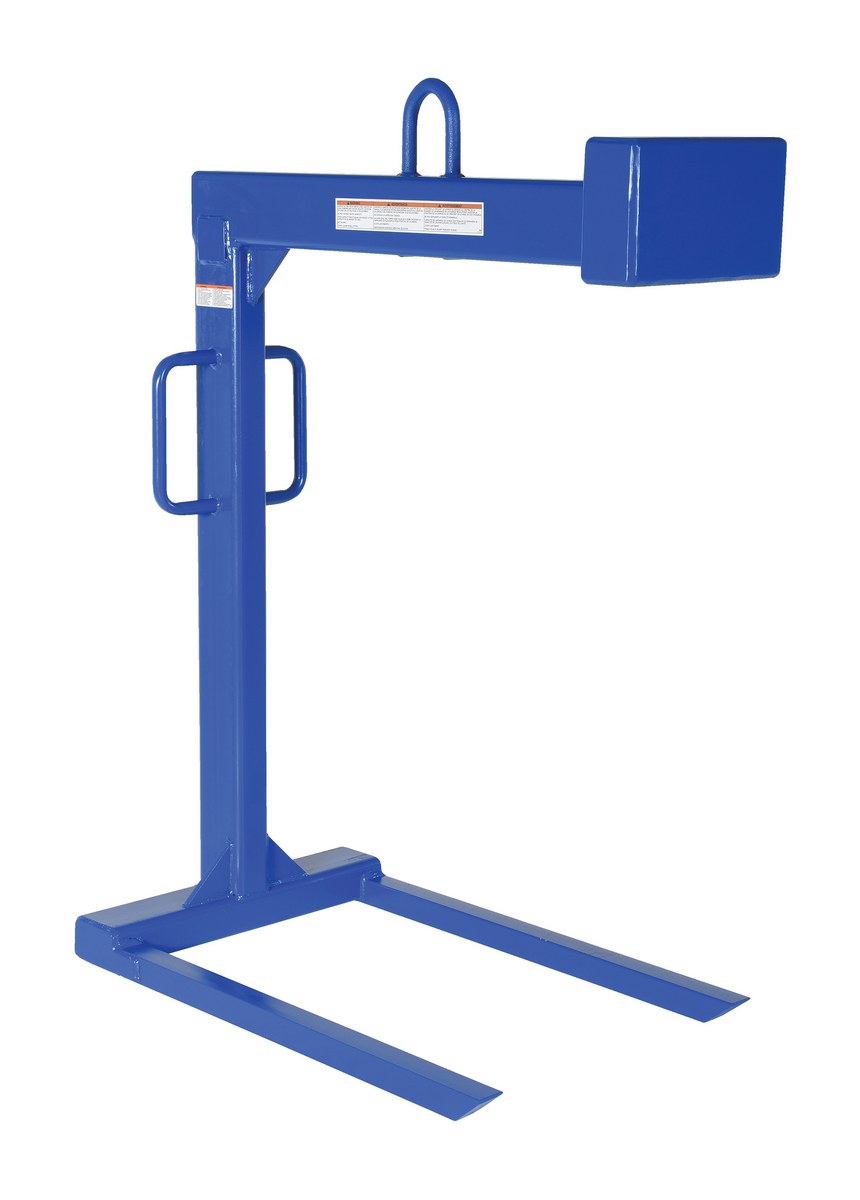

HDP-2-36 HDP-2-361 Year Limited WarrantySteel Pallet Lifter 36 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		436

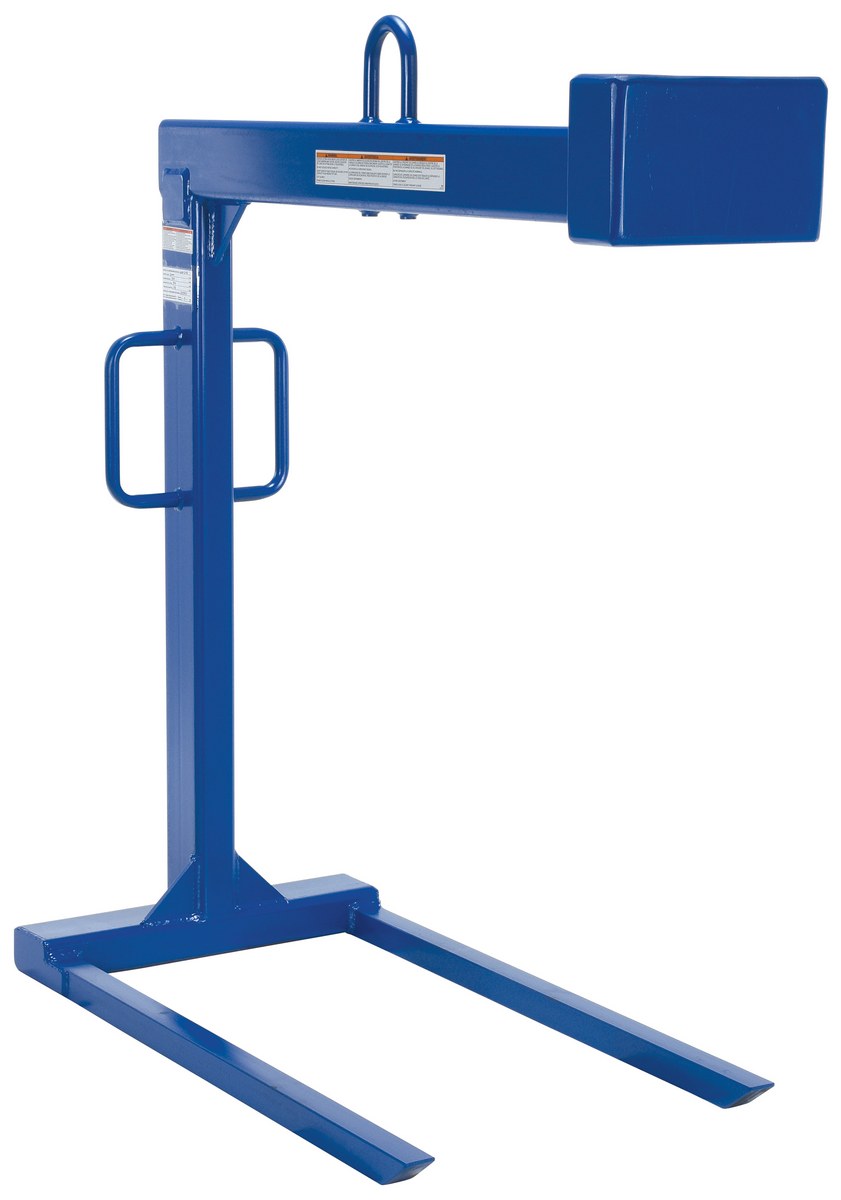

HDP-2-42 HDP-2-421 Year Limited WarrantySteel Pallet Lifter 42 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		470
HDP-2-48 HDP-2-481 Year Limited WarrantySteel Pallet Lifter 48 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		474
HDP-4-36 HDP-4-361 Year Limited WarrantySteel Pallet Lifter 36 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		629

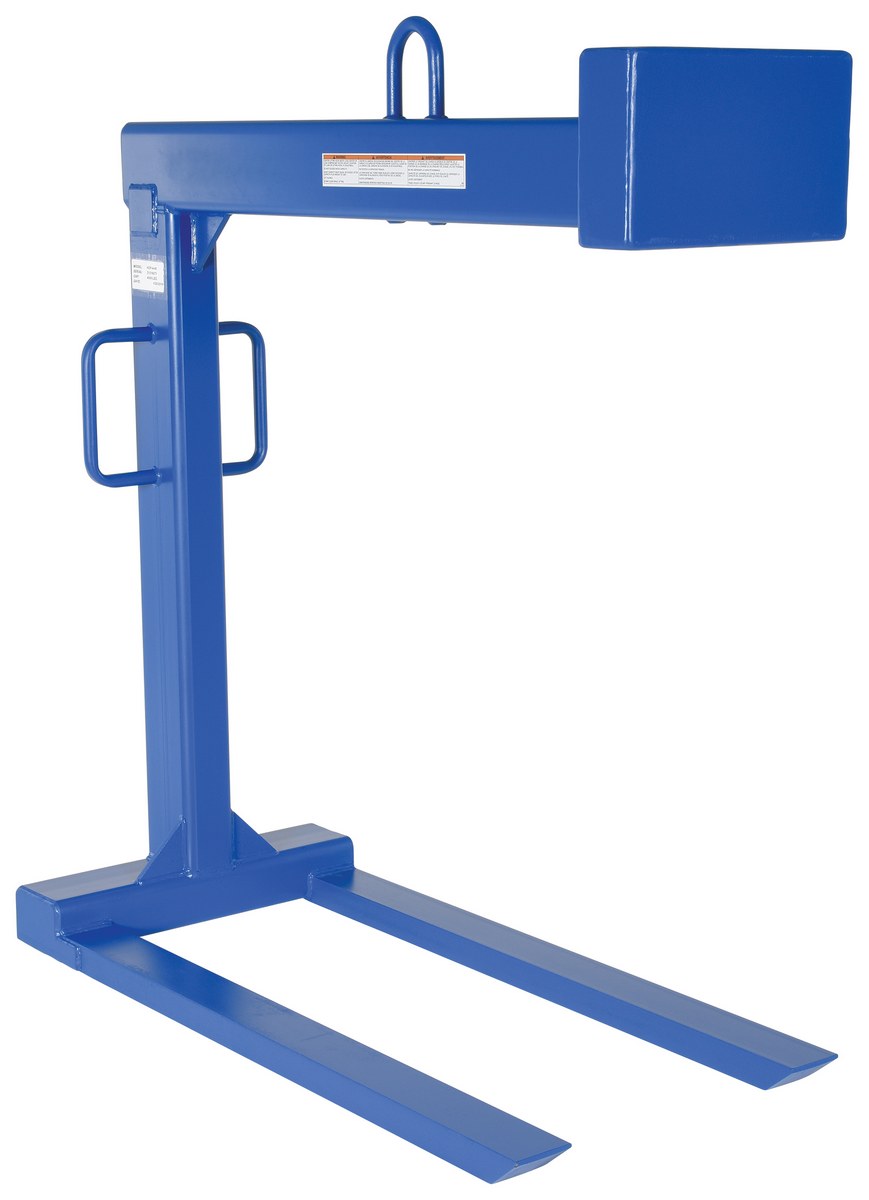

HDP-4-48 HDP-4-481 Year Limited WarrantySteel Pallet Lifter 48 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		693

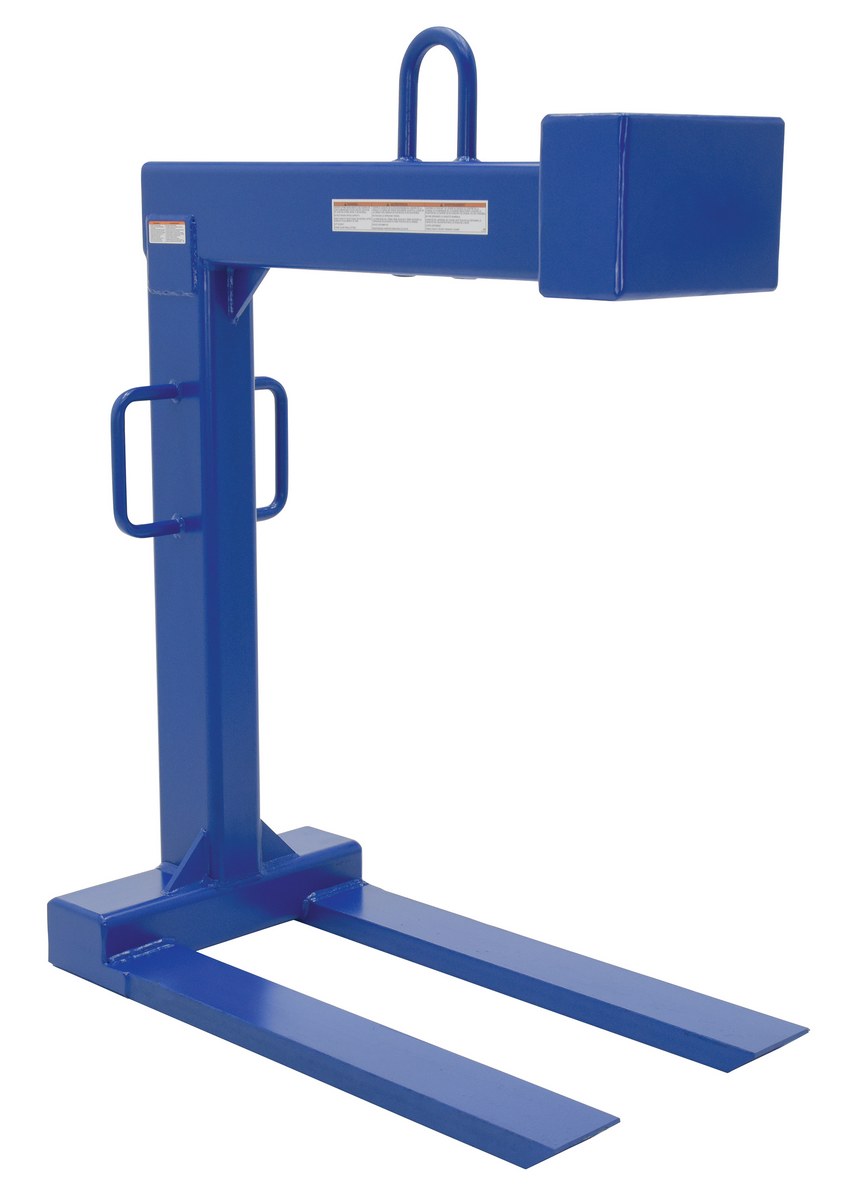

HDP-6-42 HDP-6-421 Year Limited WarrantySteel Pallet Lifter 42 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		675

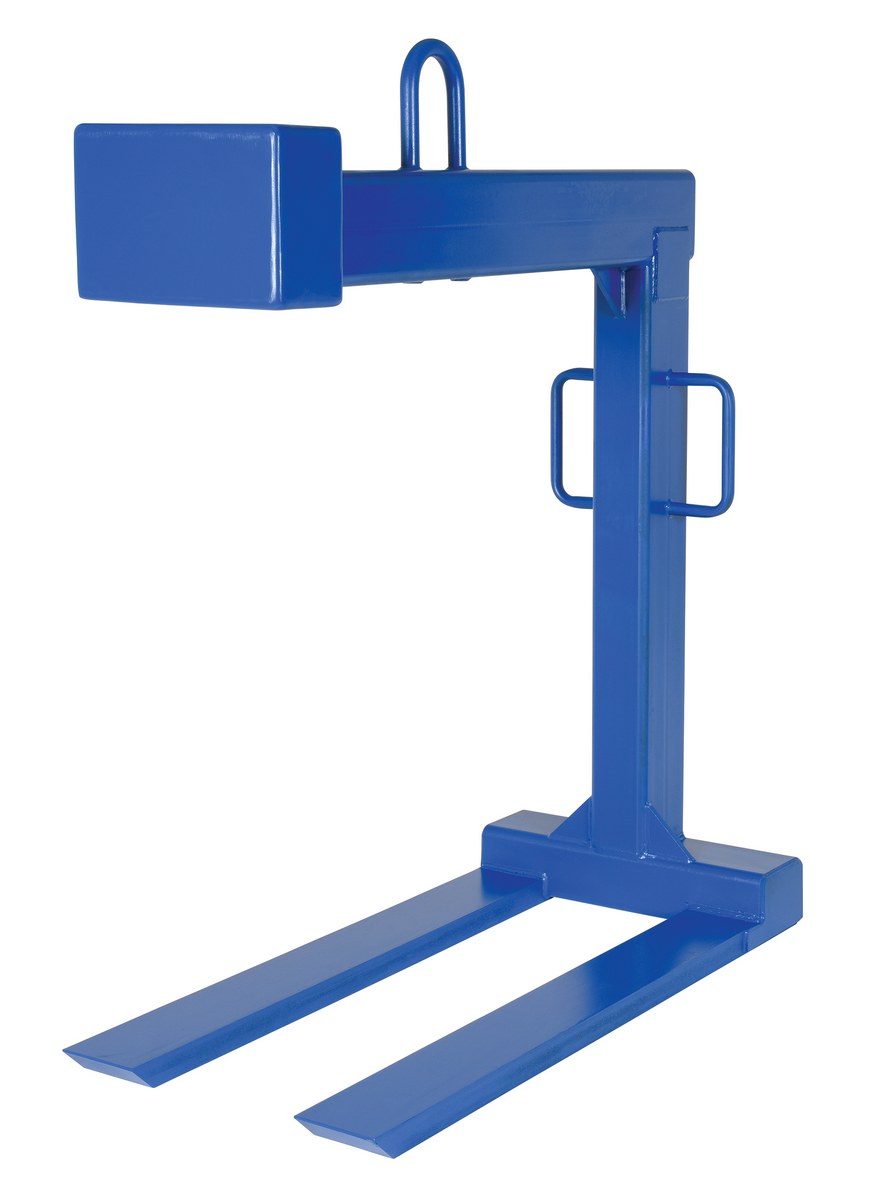

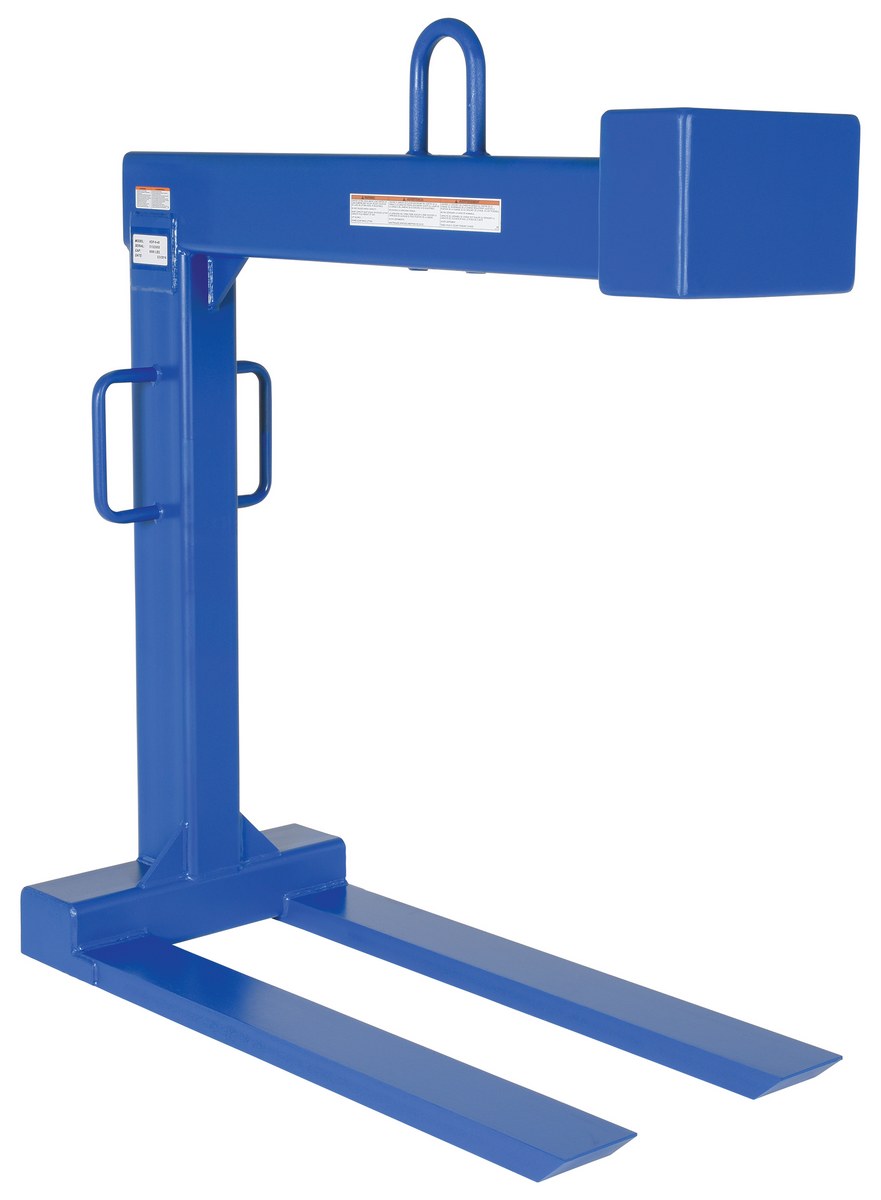

HDP-6-48 HDP-6-481 Year Limited WarrantySteel Pallet Lifter 48 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1005
HDP-6-54 HDP-6-541 Year Limited WarrantySteel Pallet Lifter 54 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1006

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDP-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21

HDP-2-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21

HDP-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21

HDP-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17

HDP-4-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17

HDP-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17

HDP-6-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13

HDP-6-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13

HDP-6-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
For More Details of the Option Click the Red Model Button
HDP-2-AB HDP-2-AB90 Days Limited WarrantyFactory Installed Steel Adjustable Bail For 2000 Lb. Capacity Solid Steel Pallet LiftersSizes: Fabricated to Fit 2000 Unit

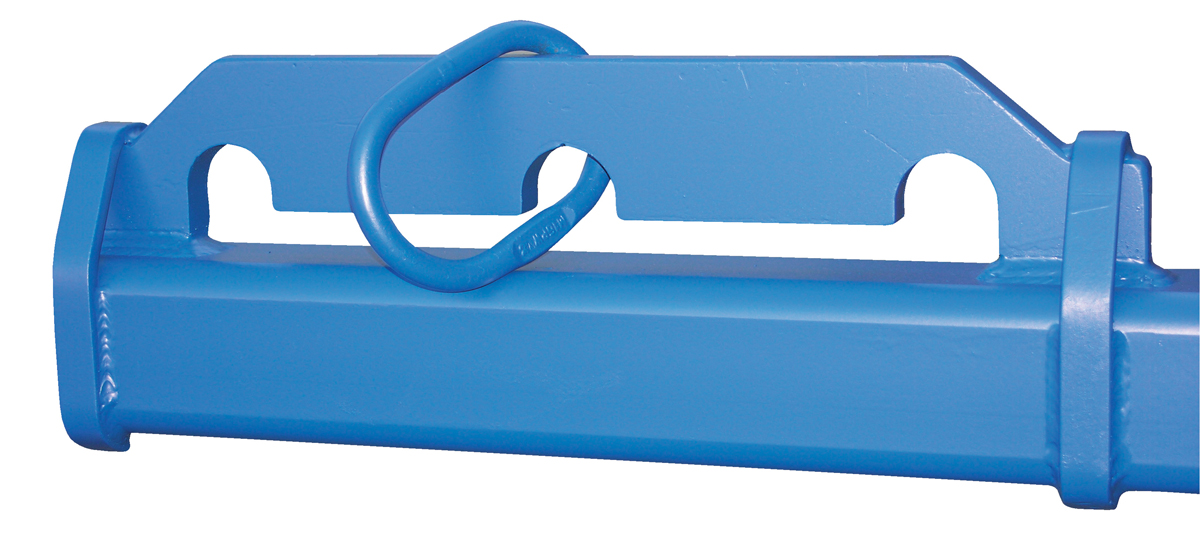

HDP-4-AB HDP-4-AB90 Days Limited WarrantyFactory Installed Steel Adjustable Bail For 4000 Lb. Capacity Solid Steel Pallet LiftersSizes: Fabricated to Fit 4000 Unit
HDP-6-AB HDP-6-AB90 Days Limited WarrantyFactory Installed Steel Adjustable Bail For 6000 Lb. Capacity Solid Steel Pallet LiftersSizes: Fabricated to Fit 6000 Unit
HDP-TIE-DOWN NEW HDP-TIE-DOWN90 Days Limited WarrantySteel Factory Installed Optional HDP Tie Down BlueBreak Strength (lbs):
Strap Length (ft): 		3

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Pallet Lifters PDF's will open in a new window when clicked.

Manuals


HDP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


HDP-2-36

HDP-2-42

HDP-2-48

HDP-4-36

HDP-4-42

HDP-4-48

HDP-6-42

HDP-6-48

HDP-6-54

Testing Certificates


HDP-2-36

HDP-2-42

HDP-2-48

HDP-2-AB

HDP-4-36

HDP-4-42

HDP-4-48

HDP-4-AB

HDP-6-42

HDP-6-48

HDP-6-54

HDP-6-AB

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Overhead Pallet Lifters Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Economy Spreader Beams
Product

Economy Spreader Beams

Adjustable Spreader Beams
Product

Adjustable Spreader Beams

Basket Lifting Beam
Product

Basket Lifting Beam

Overhead Load Lifters
Product

Overhead Load Lifters

Crane Scales
Product

Crane Scales

Digital Load Indicators
Product

Digital Load Indicators

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Pallet Lifters




Easily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.

  • Tapered forks allow easy access under pallets
  • Main support contains handles to allow positioning
  • Large square head serves as a counterweight to keep level without a load
  • Unit meets ASME B30.20 standard 1993

Optional Tie Down Track for HDP's - Factory Installed Option Only
Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.


Model # Description Attributes Net Wt.
(lbs)
HDP-2-36 HDP-2-36Steel Pallet Lifter 36 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		436
HDP-2-42 HDP-2-42Steel Pallet Lifter 42 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		470
HDP-2-48 HDP-2-48Steel Pallet Lifter 48 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		474
HDP-4-36 HDP-4-36Steel Pallet Lifter 36 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		629
HDP-4-42 HDP-4-42Steel Pallet Lifter 42 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		658
HDP-4-48 HDP-4-48Steel Pallet Lifter 48 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		693
HDP-6-42 HDP-6-42Steel Pallet Lifter 42 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		675
HDP-6-48 HDP-6-48Steel Pallet Lifter 48 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1005
HDP-6-54 HDP-6-54Steel Pallet Lifter 54 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1006
