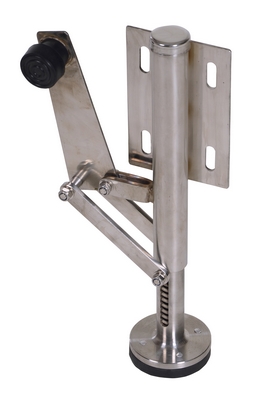

FL-LK-SMR-SS-R

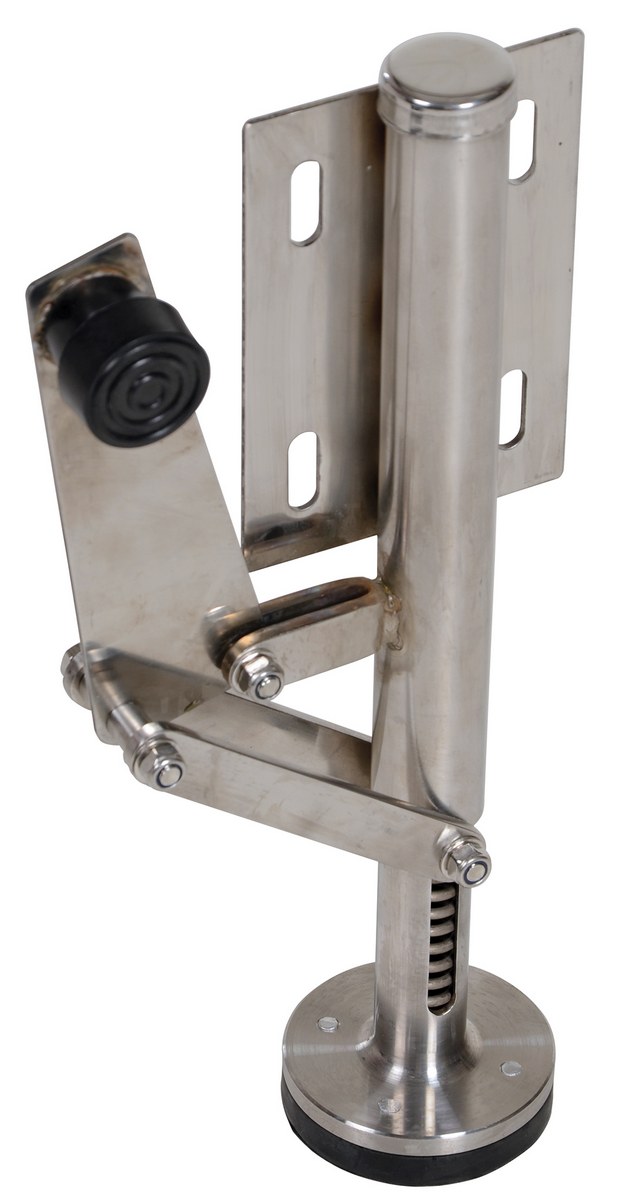

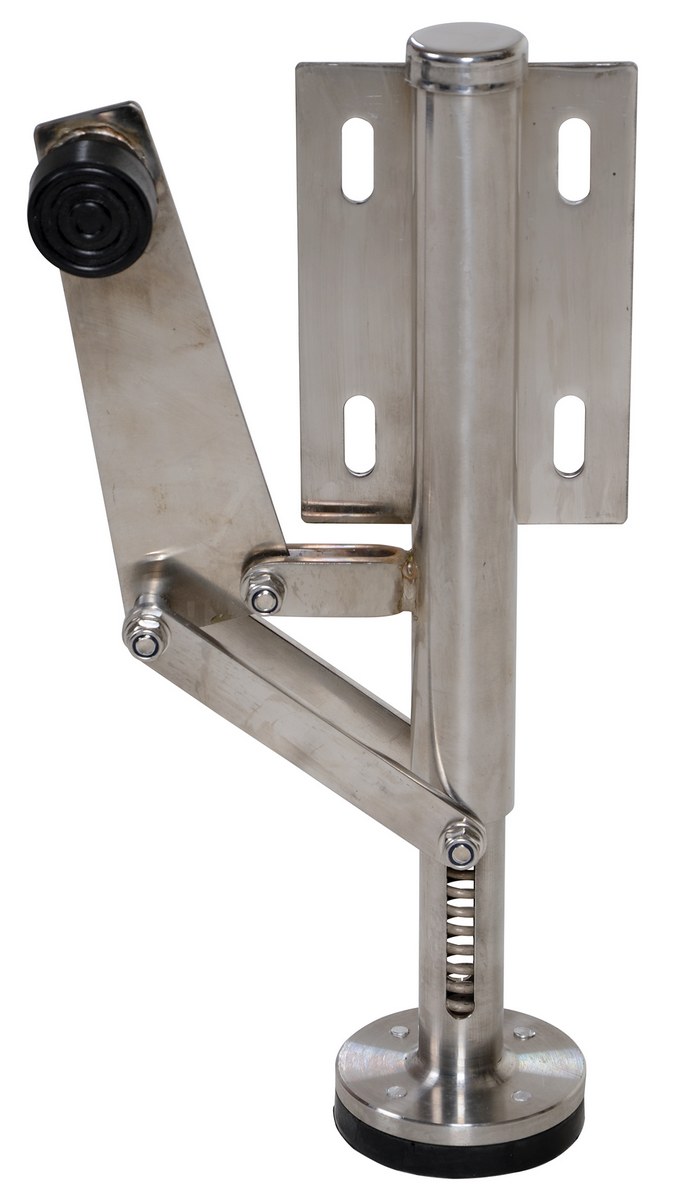

Stainless Steel Right Mount Hand Opertated Floor Lock 10 to 12 In. Height Silver

A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Lock is activated when you use your hand to lower the large friction face against the floor. To release, simply release the rod by hand. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.

  • Spring loaded pad accommodates uneven floors
  • Downward pressure immobilizes equipment
  • Simple hand operation
  • Independent brake system can be installed to any convenient location on the cart
Total Ship Wt.(lbs.): 9 (only 1 package) Size: 8.3125"W x 3.8438"L x 18"H Color: Silver

Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 Used with Caster width (in.): 2 of Travel
Extended Height on Bottom Mounting Hole (in.): 12 Overall Unit Retracted Height (in.): 15-15/32 Overall Unit Extended Height (in.): 18
Pad Mounting Height (in.): 1-1/2 Plate Width (in.): 4-1/2 Plate Height (in.): 6-1/2
Mounting Bolt Diameter (in.): 3/8 Mounting Plate Thickness (in.): 1/8 Slotted Mounting Hole Width/Height (in.): 13/32 x 13/16
Inside Bolt Hole Spacing (in.): 2-29/32 X 3-1/4 Outside Bolt Hole Spacing (in.): 2-29/32 X 4-3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-LK-SMR-SS-R
FL-LK-SMR-SS-R

Stainless Steel Right Mount Hand Opertated Floor Lock 10 to 12 In. Height Silver

A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Lock is activated when you use your hand to lower the large friction face against the floor. To release, simply release the rod by hand. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.

  • Spring loaded pad accommodates uneven floors
  • Downward pressure immobilizes equipment
  • Simple hand operation
  • Independent brake system can be installed to any convenient location on the cart
Dimensions: 8.3125"W x 3.8438"L x 18"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215108348 GTIN: 00691215108348
Warranty: -- Shipping Weight: 9 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 Used with Caster width (in.): 2 of Travel
Extended Height on Bottom Mounting Hole (in.): 12 Overall Unit Retracted Height (in.): 15-15/32 Overall Unit Extended Height (in.): 18
Pad Mounting Height (in.): 1-1/2 Plate Width (in.): 4-1/2 Plate Height (in.): 6-1/2
Mounting Bolt Diameter (in.): 3/8 Mounting Plate Thickness (in.): 1/8 Slotted Mounting Hole Width/Height (in.): 13/32 x 13/16
Inside Bolt Hole Spacing (in.): 2-29/32 X 3-1/4 Outside Bolt Hole Spacing (in.): 2-29/32 X 4-3/4
