General Purpose Floor Locks
model: FL-LK-4E

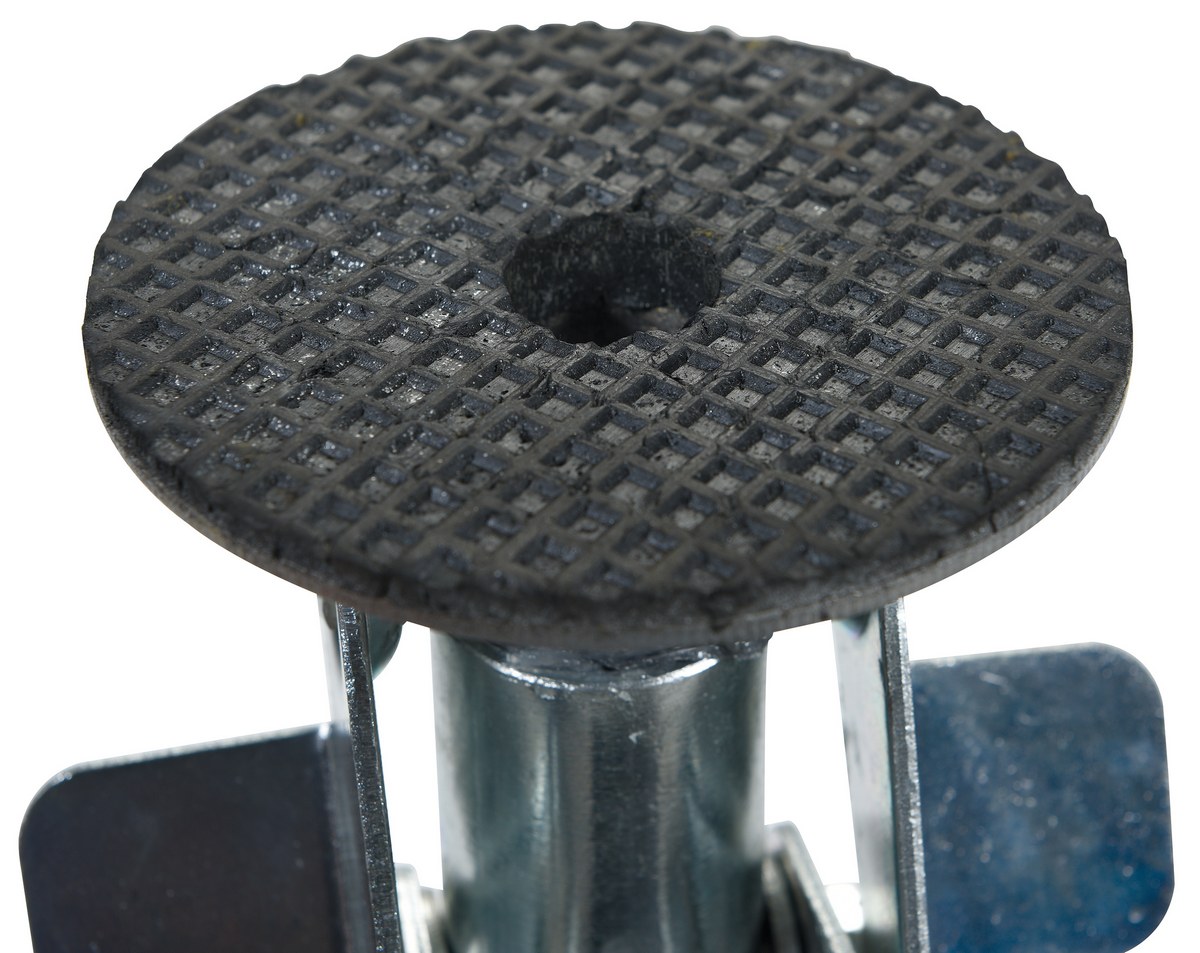

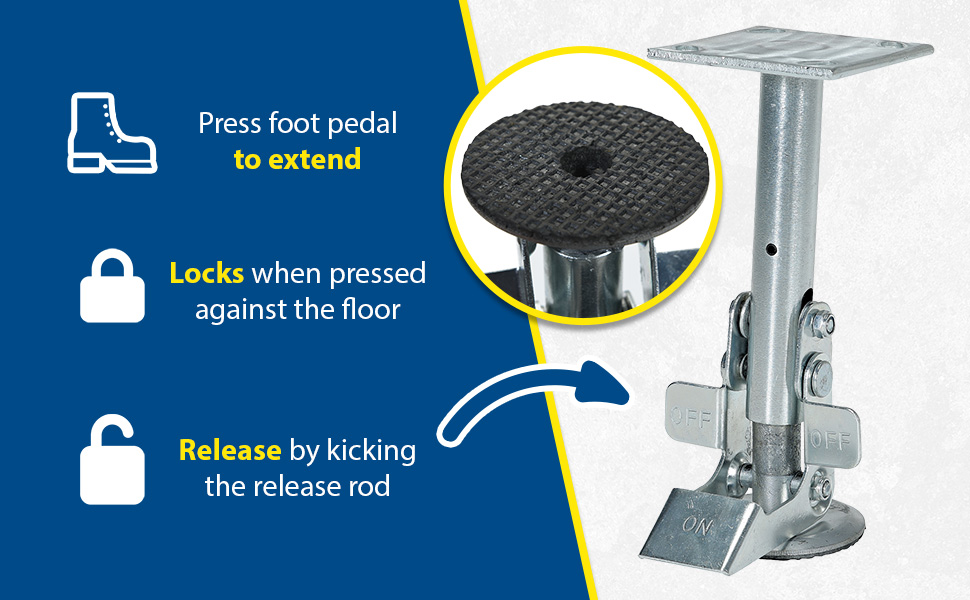

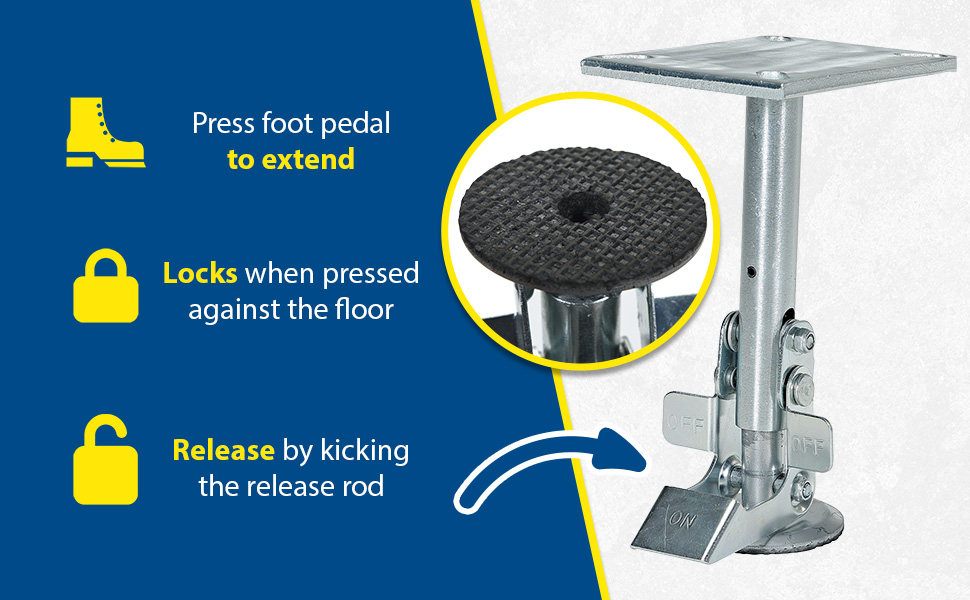

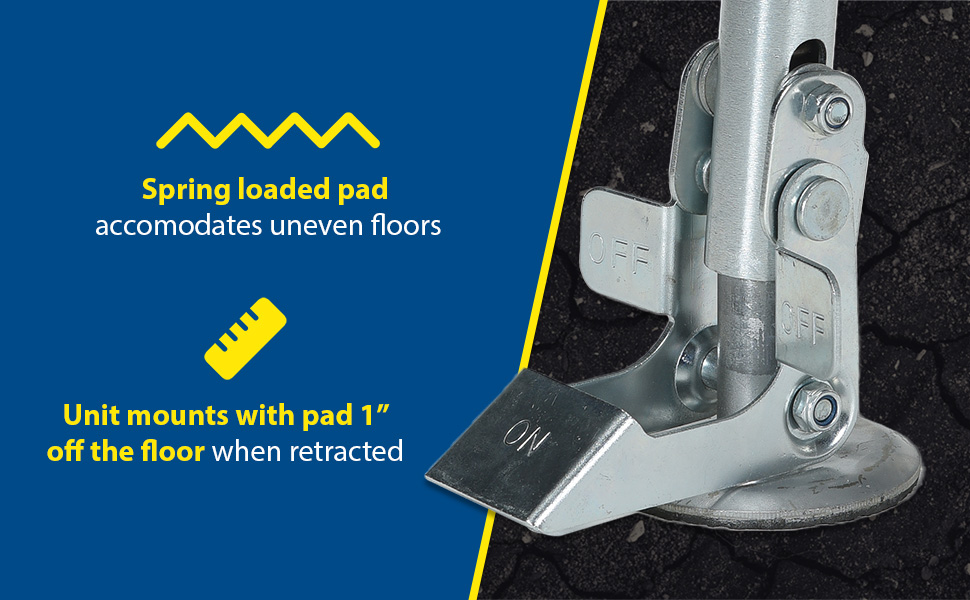

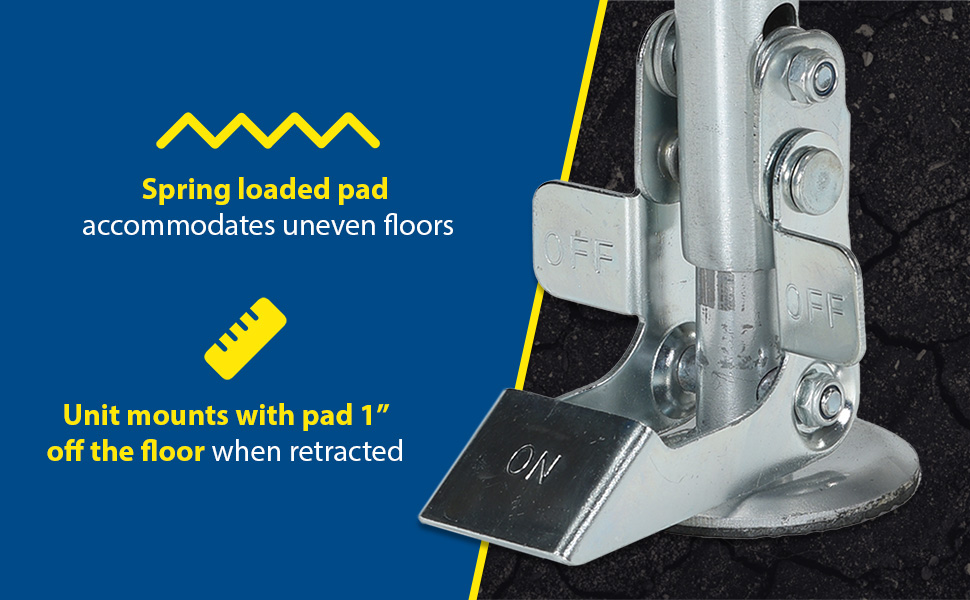

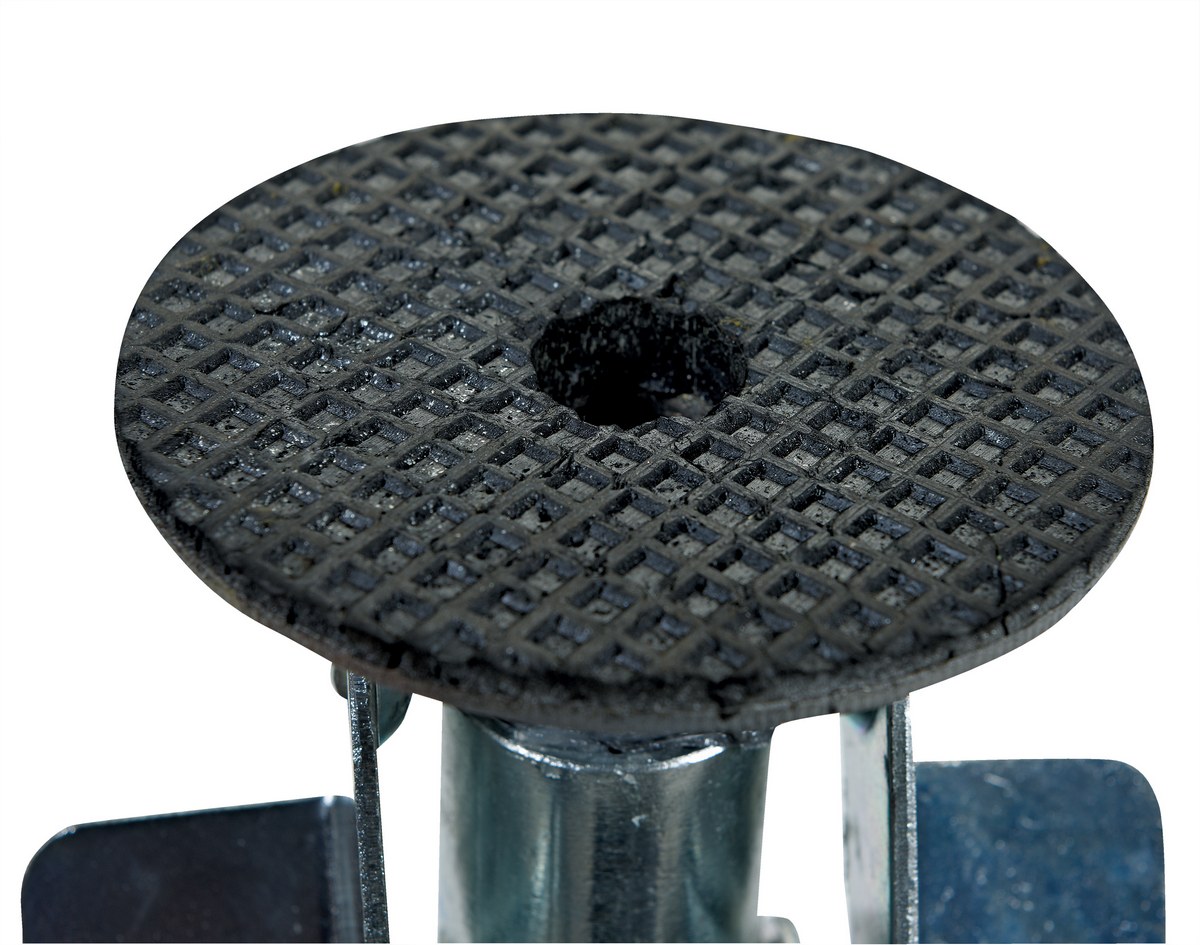

General Purpose Floor LocksFloor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Brake is independent of casters and can be installed to any convenient location on the cart. Designed to be mounted to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted.
Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Brake is independent of casters and can be installed to any convenient location on the cart. Designed to be mounted to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted.
FL-LK-S
FL-LK-6EM
FL-LK-6EH
FL-LK-SMR-L
FL-LK-6EL
FL-LK-8EM
FL-LK-8EL
FL-LK-8EM
FL-LK-6EH
FL-LK-SMR-SS-R
FL-LK-SMR-L
FL-LK-S
FL-LK-8EH
FL-LK-7X
FL-LK-8EH
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

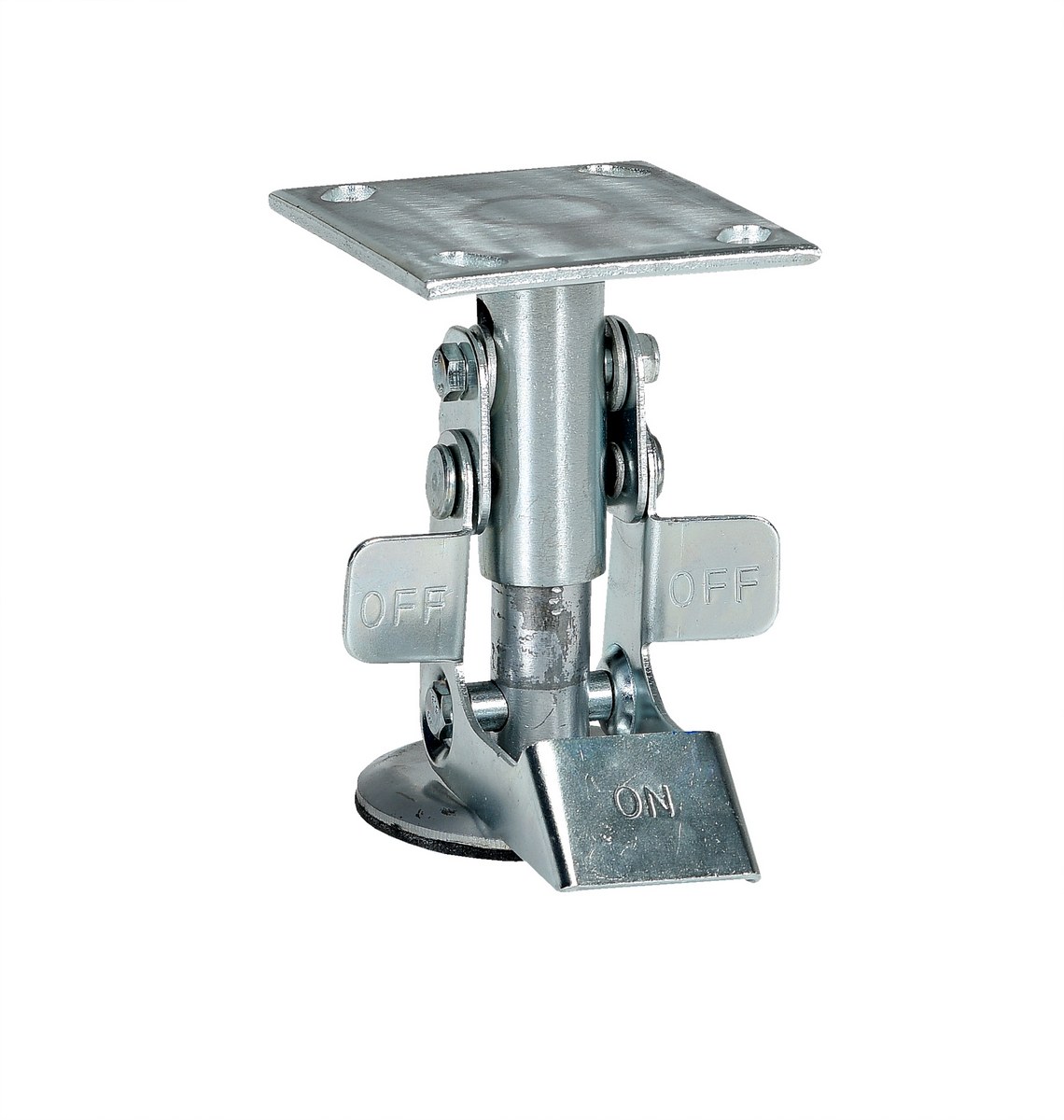

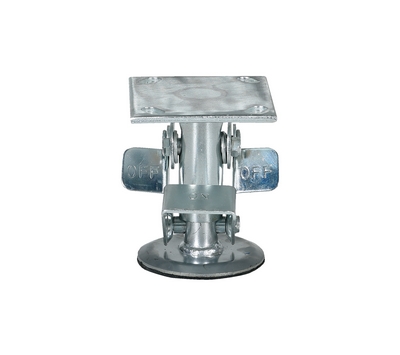

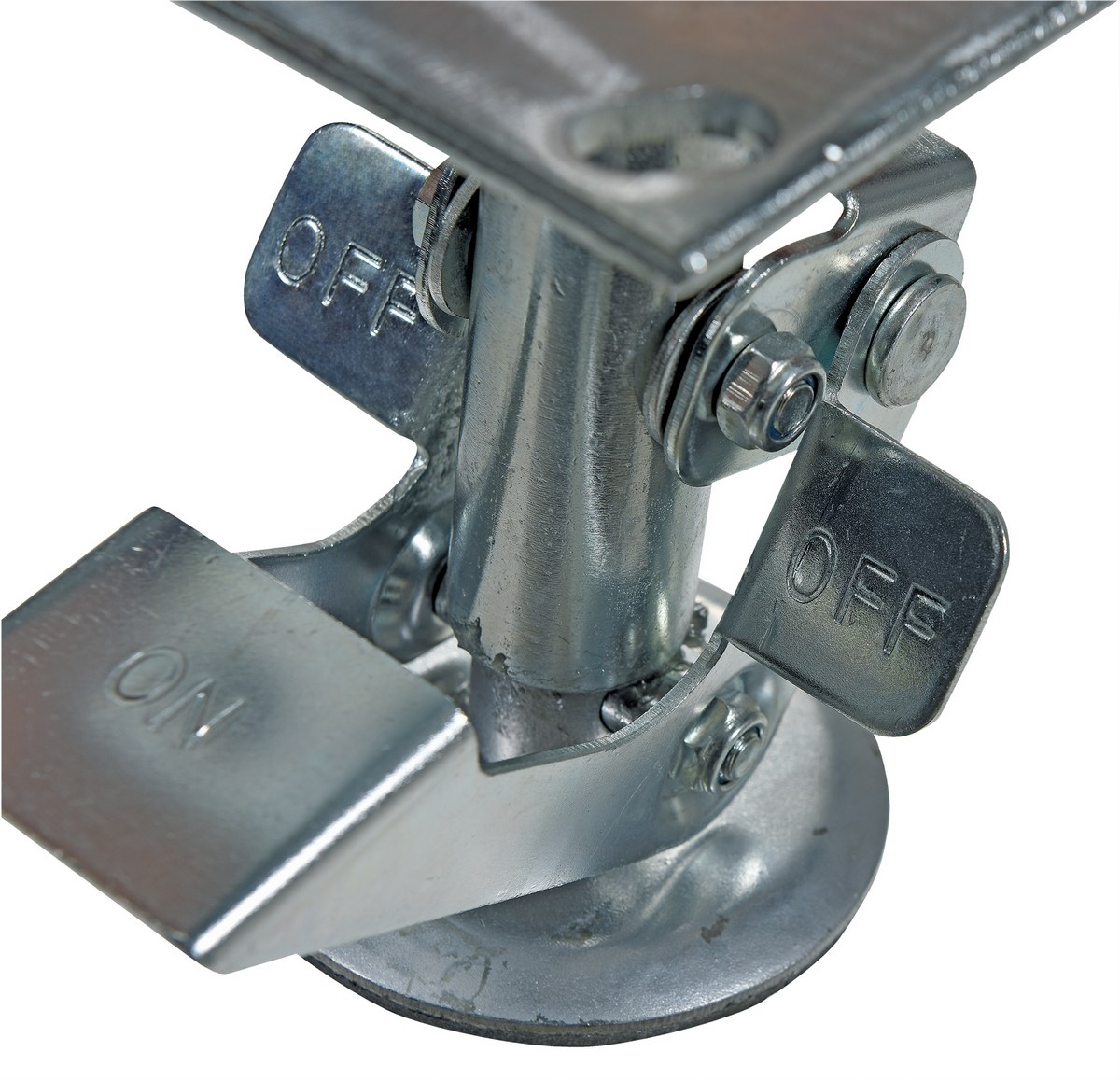

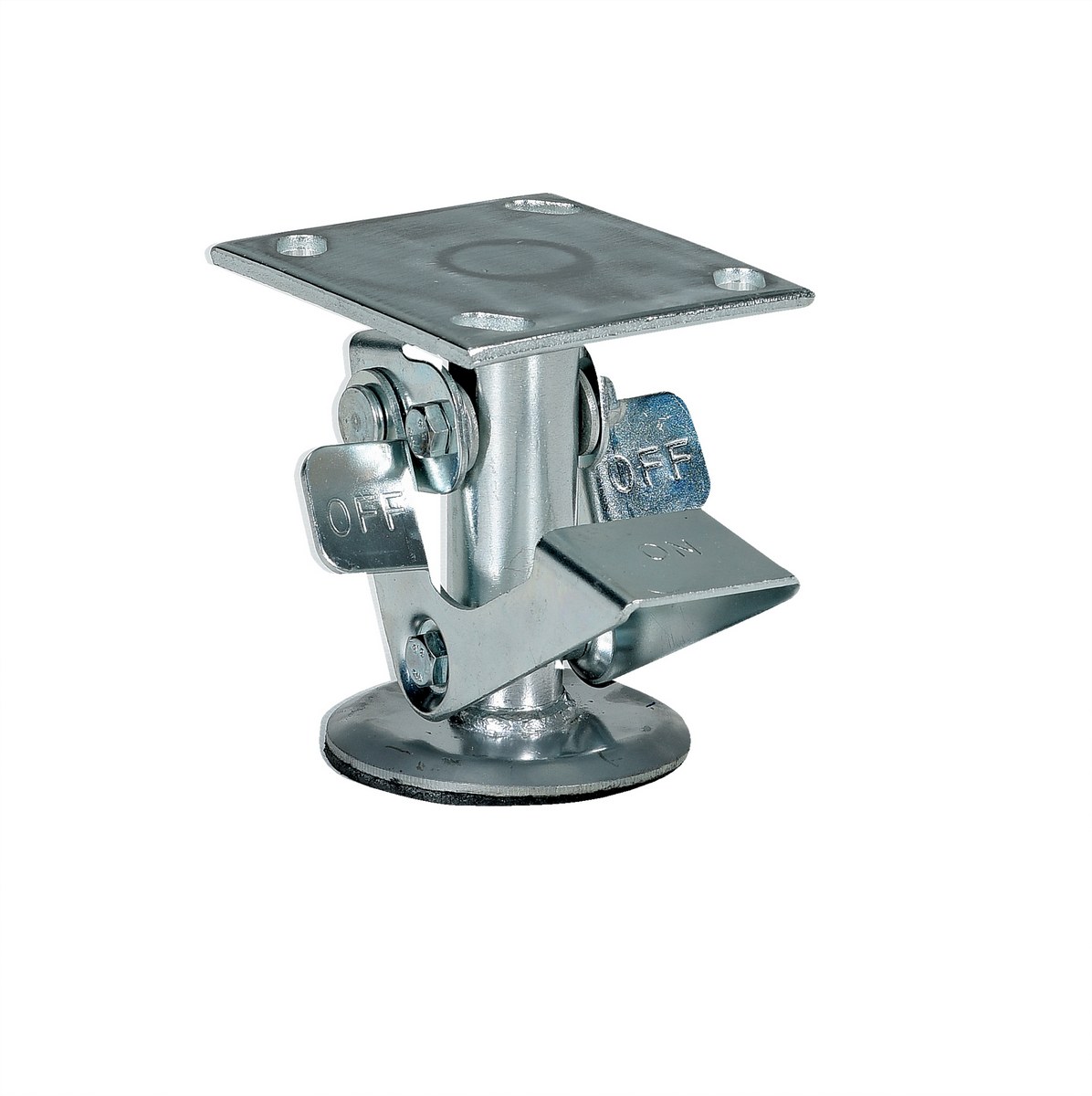

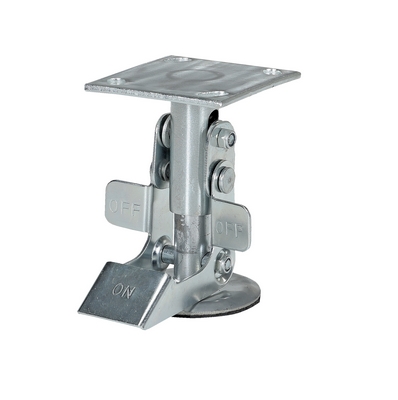

| FL-LK-4E |

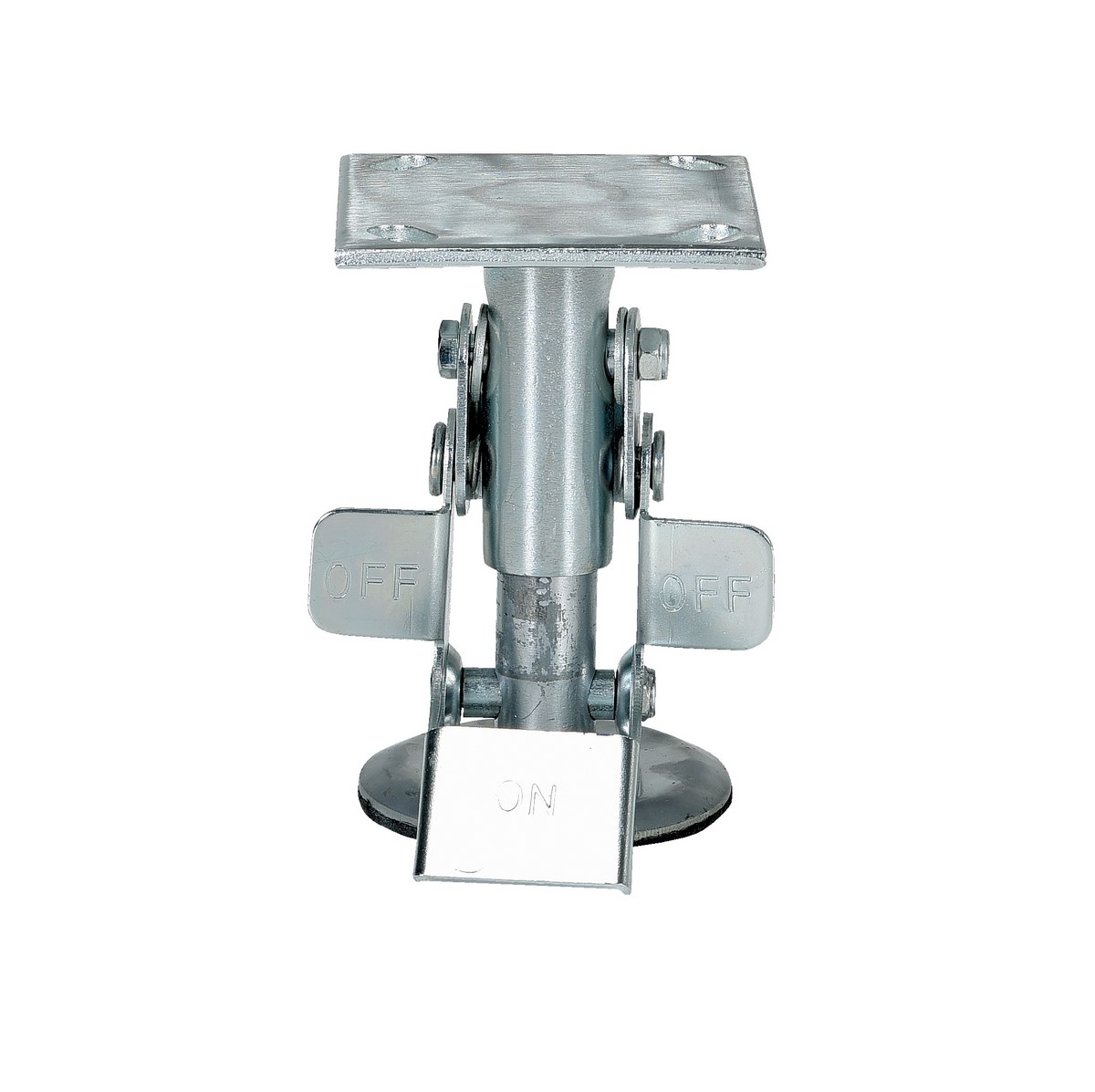

| 30 Days Limited Warranty | Steel Top Mount Floor Lock 4-7/8 to 5-5/8 In. Height Silver | Caster Diameter (in.): 4 Mount Height (in.): 5-5/8 | 4 | ||

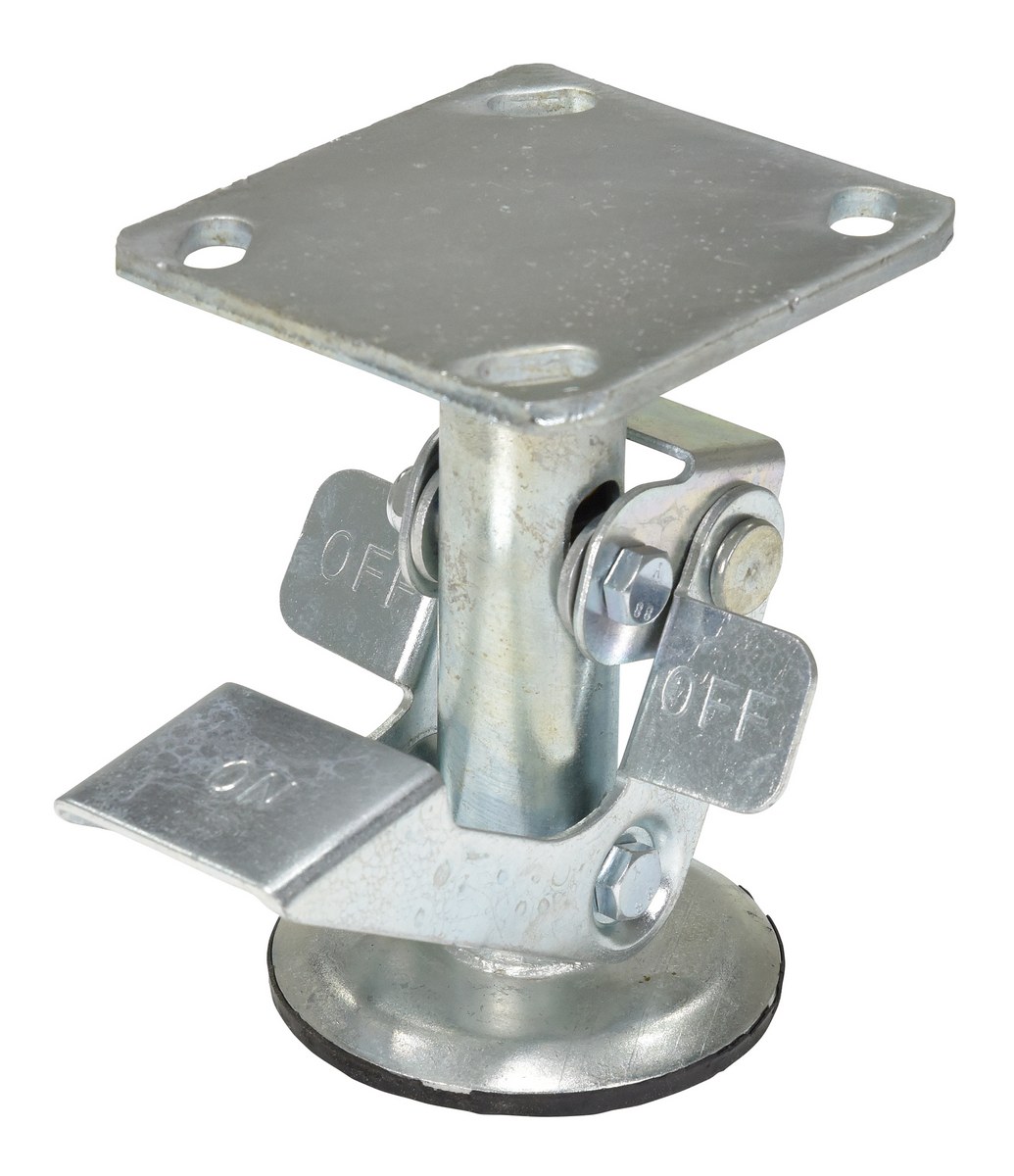

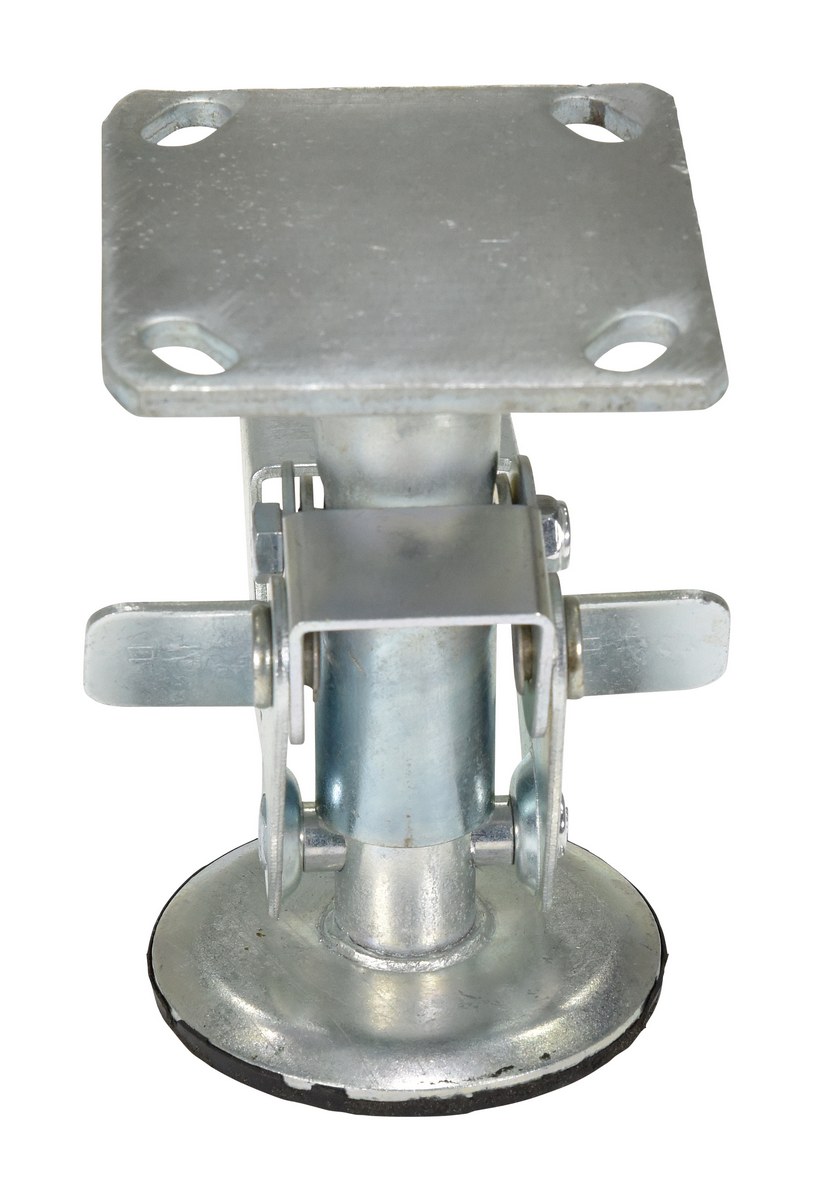

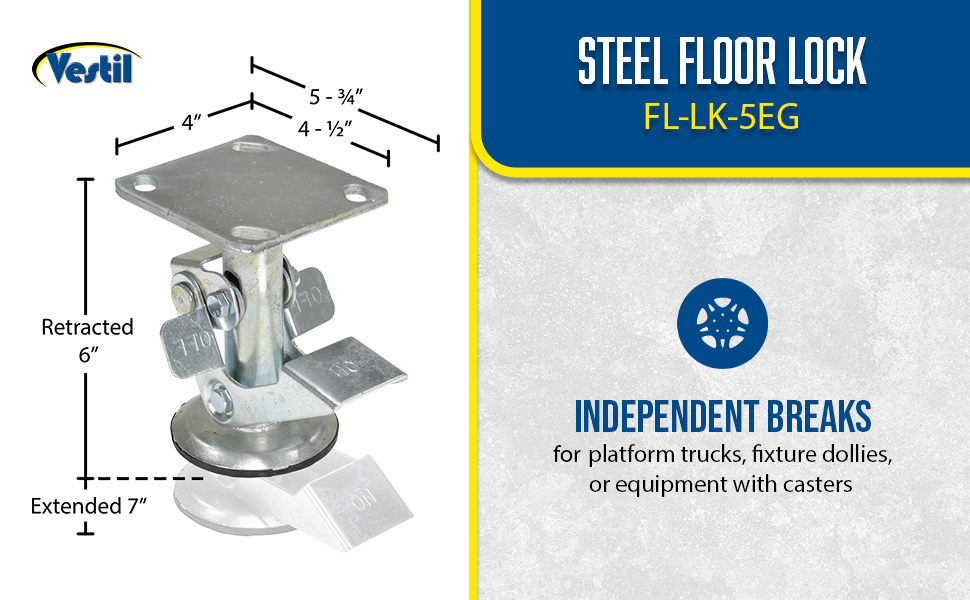

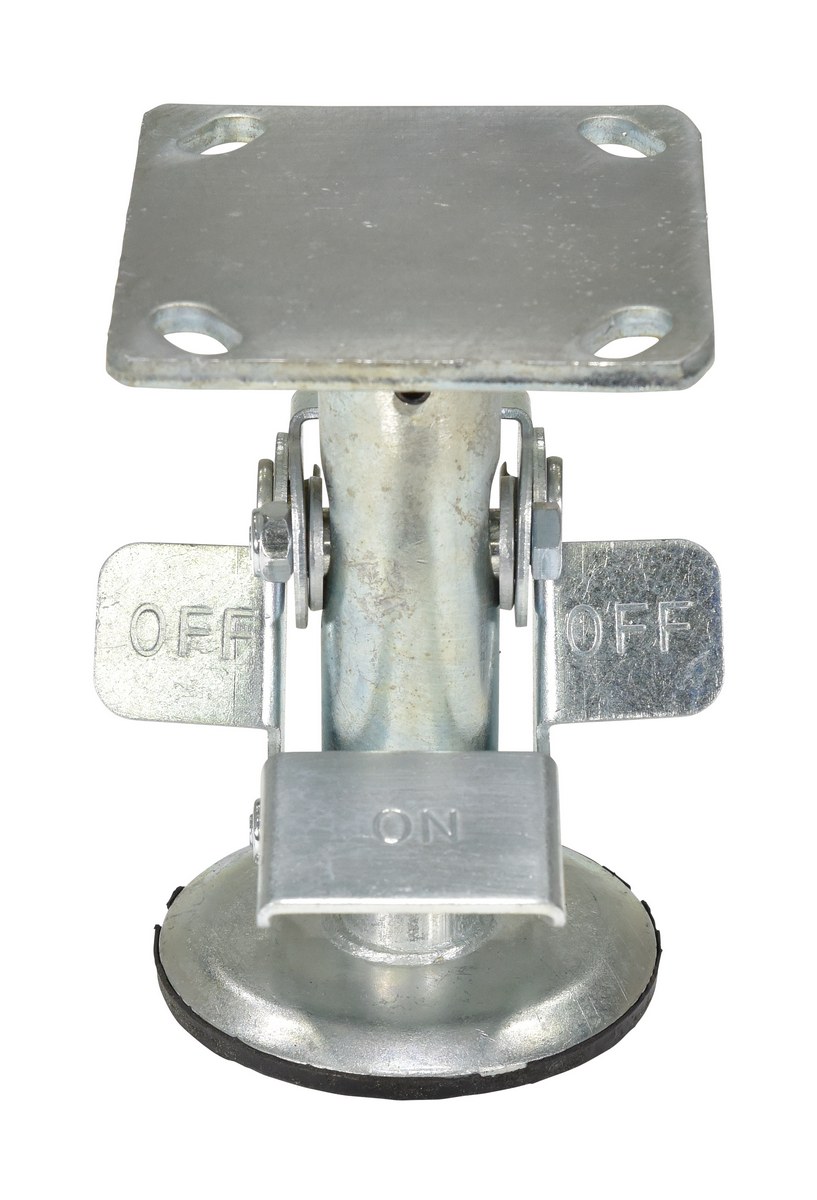

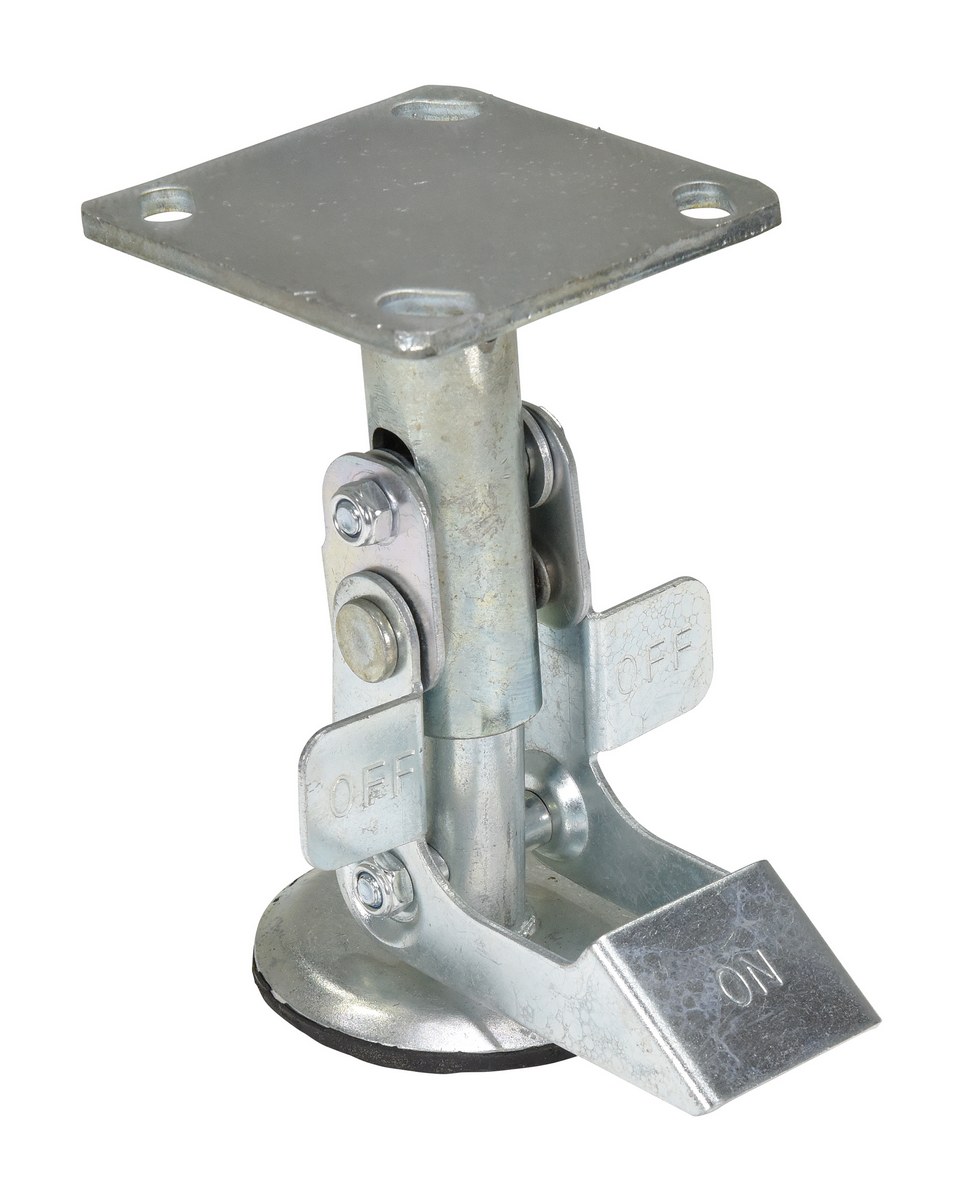

| FL-LK-5EG |

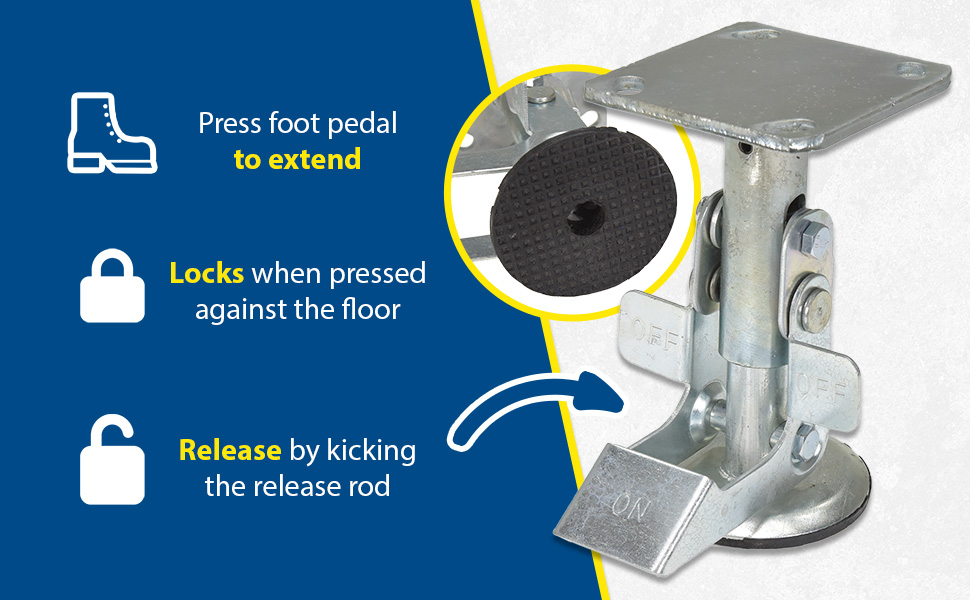

 | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6 to 7 In. Height Silver | Mounting Height (in.): 7 Height Retracted (in.): 6 | 5 | ||

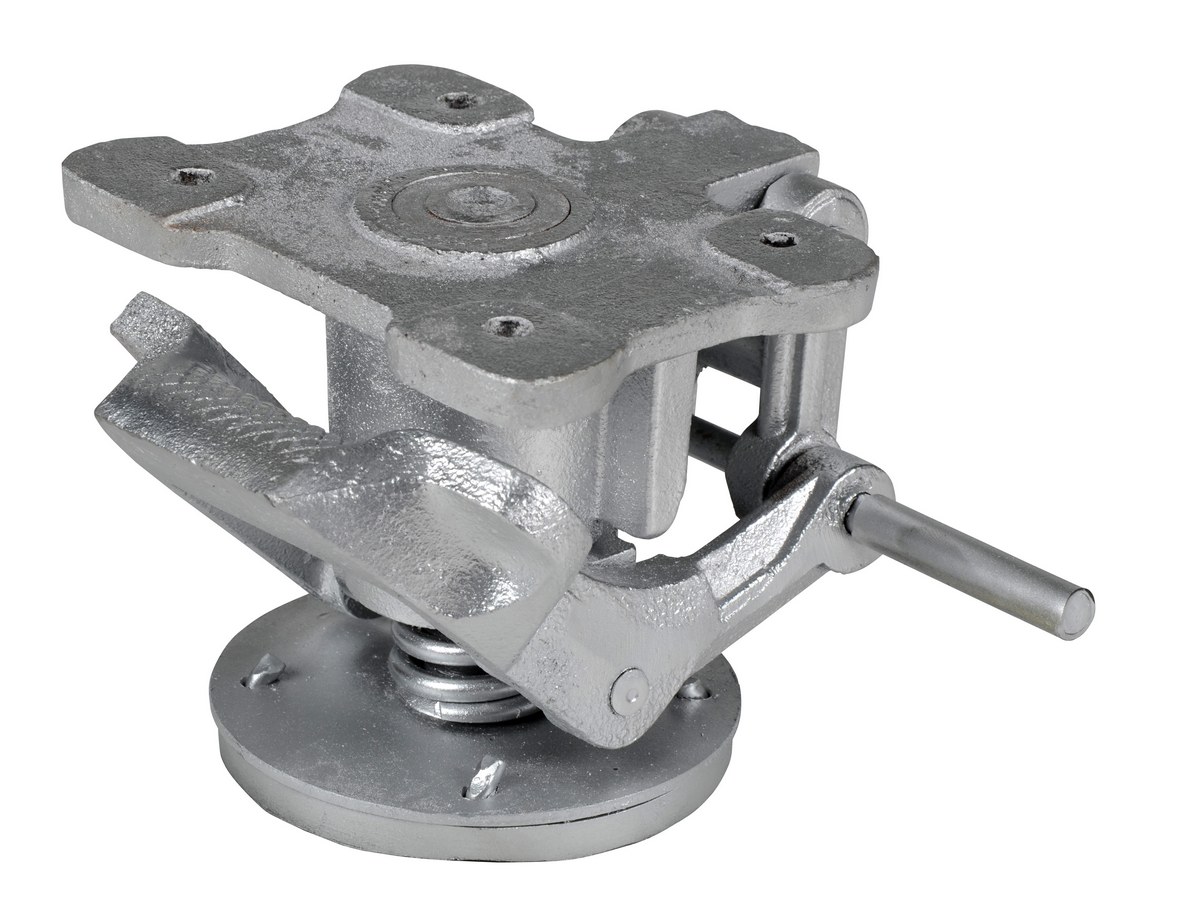

| FL-LK-5X |
 | 30 Days Limited Warranty | Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver | Mounting Height (in.): 5-5/8 Retracted Height (in.): 4-1/2 | 9 | ||

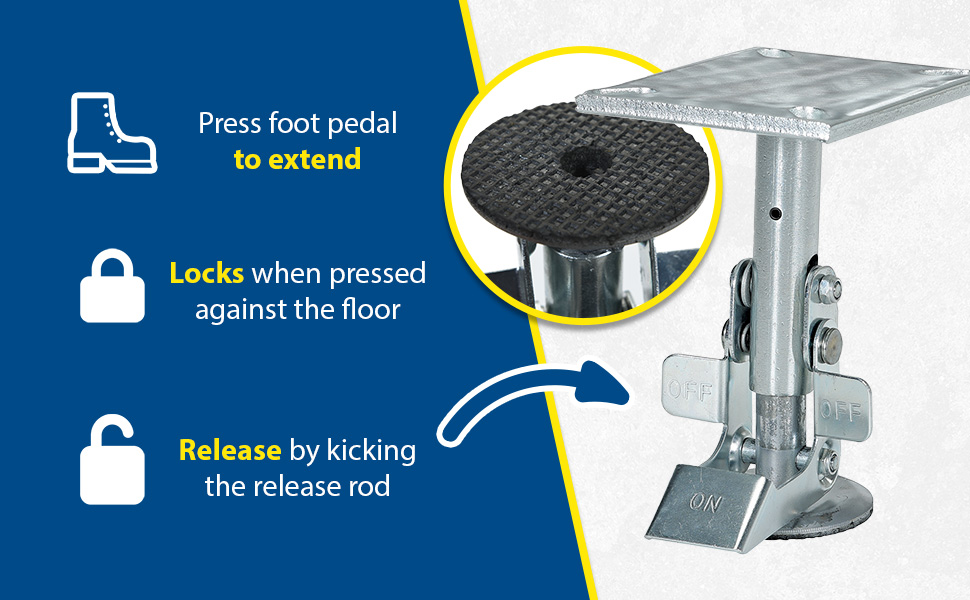

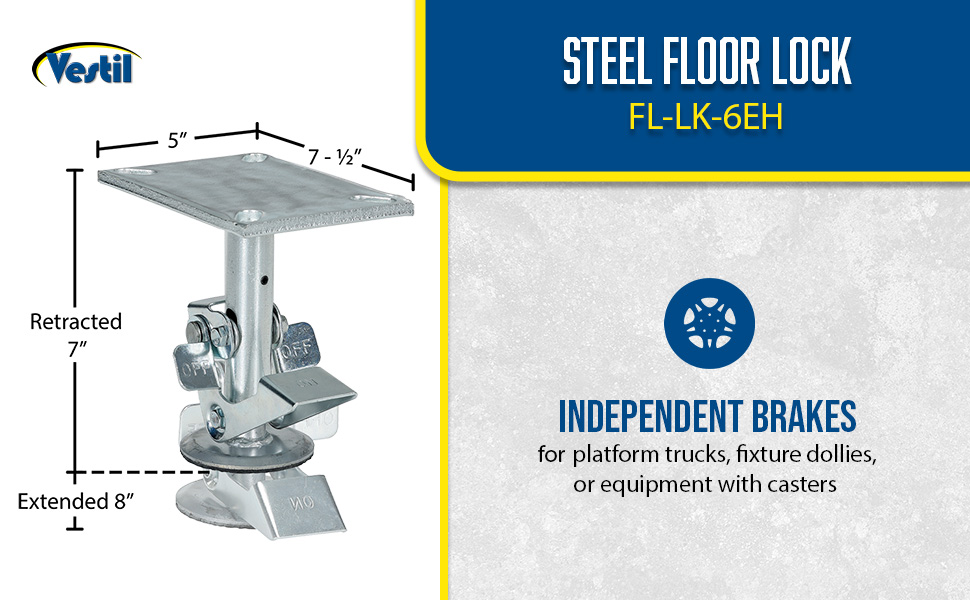

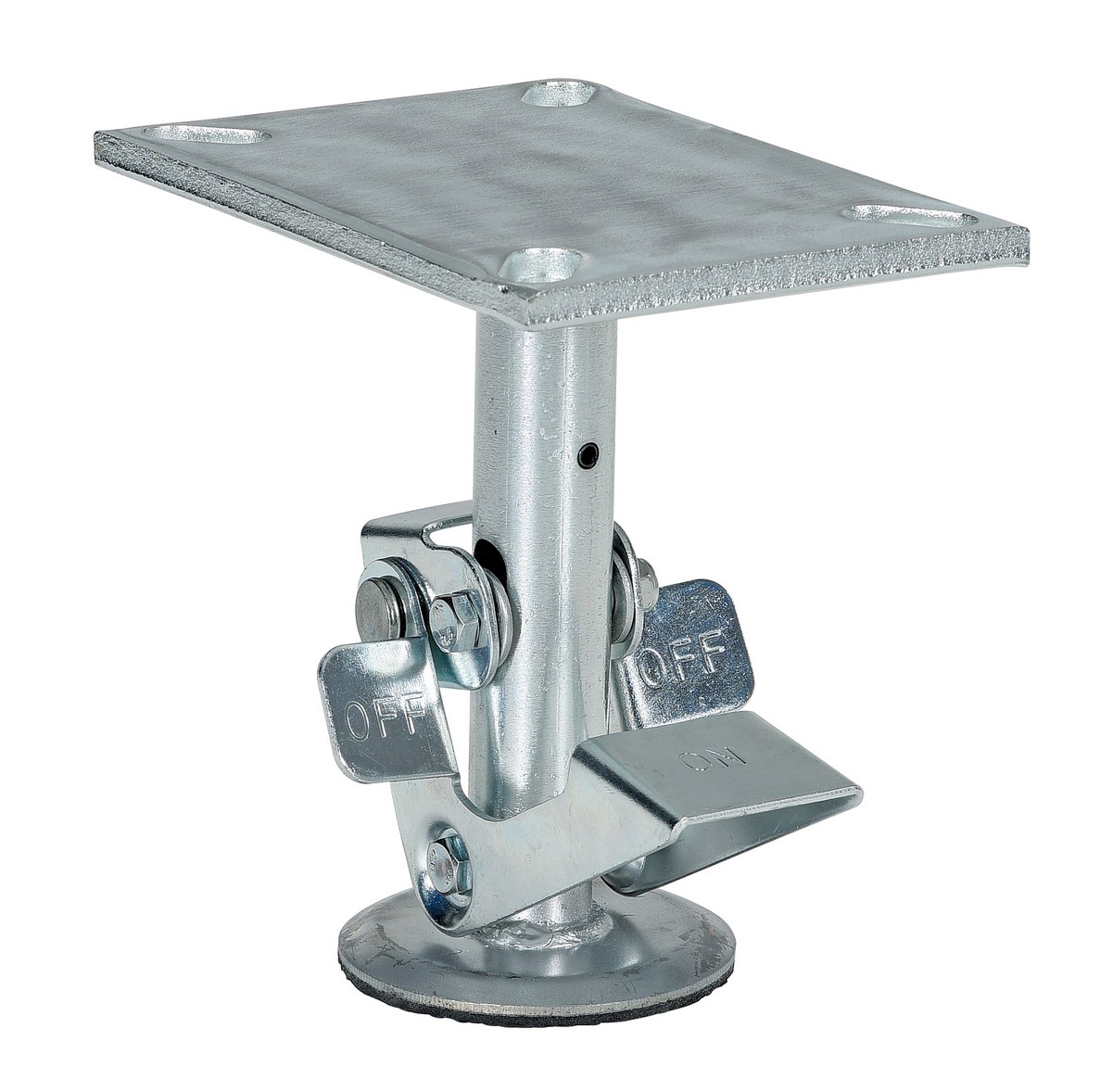

| FL-LK-6EH |
| 30 Days Limited Warranty | Steel Top Mount Floor Lock 7 to 8 In. Height Silver | Mounting Height (in.): 8 Retracted Height (in.): 7 | 7 | ||

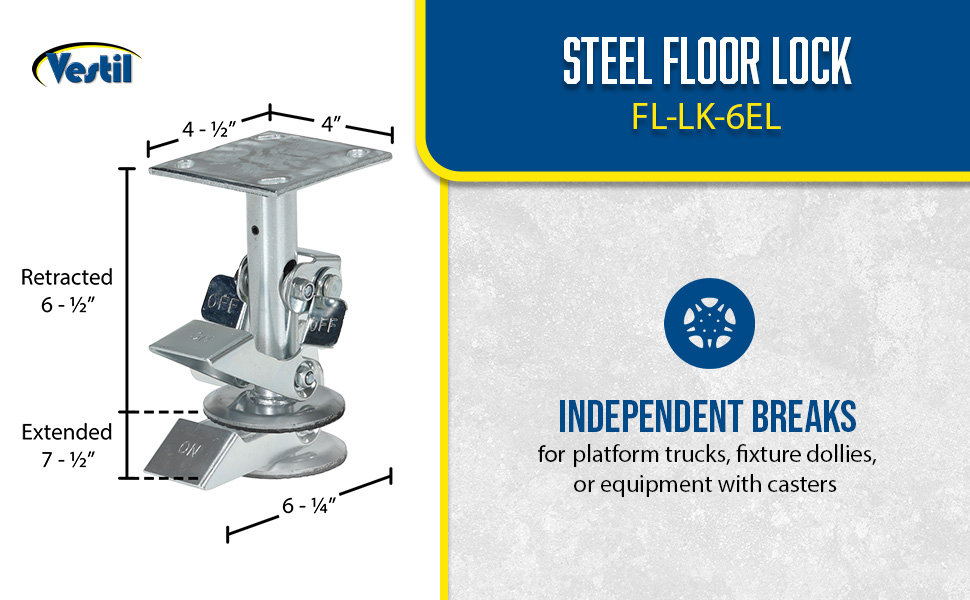

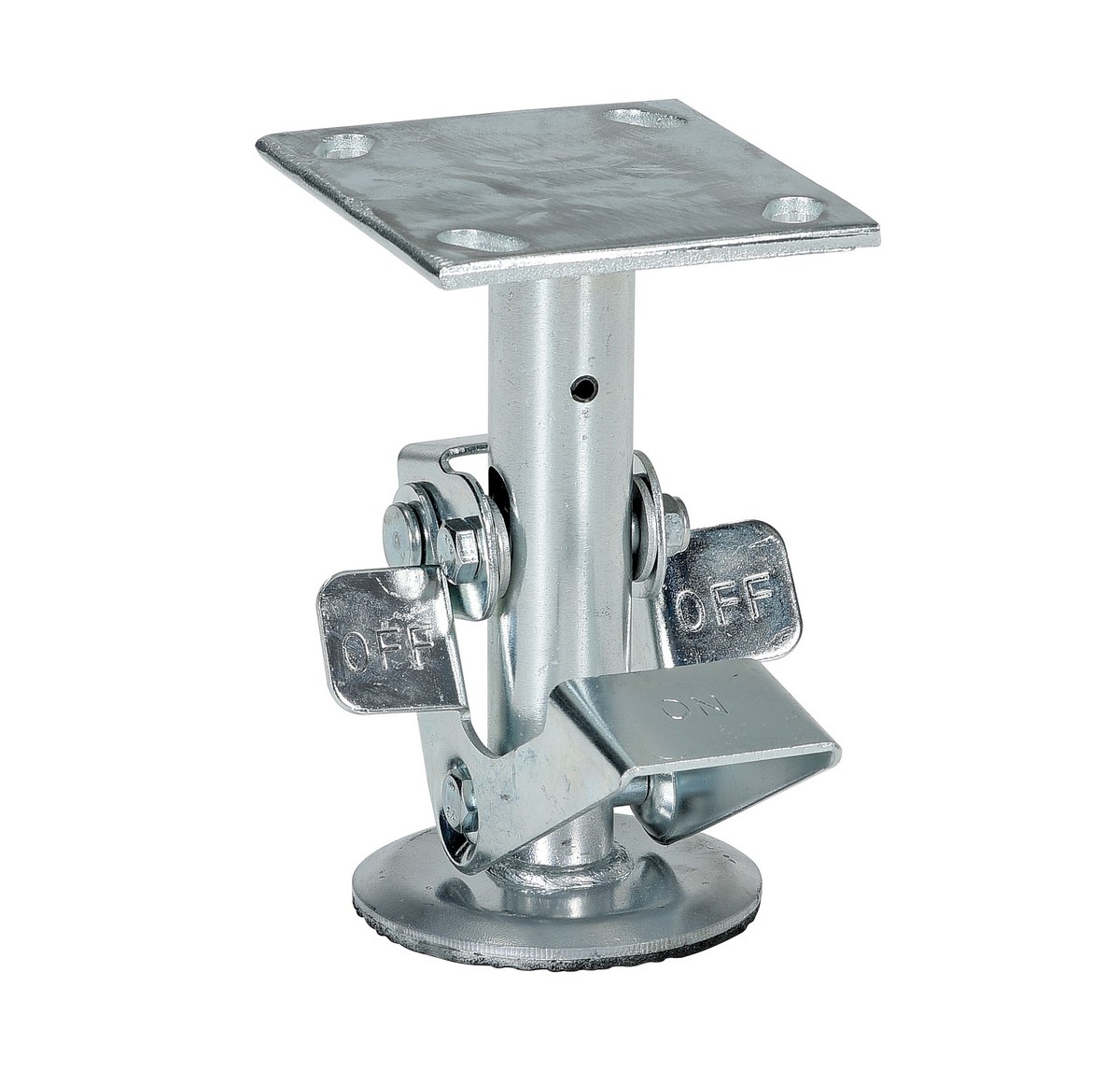

| FL-LK-6EL |

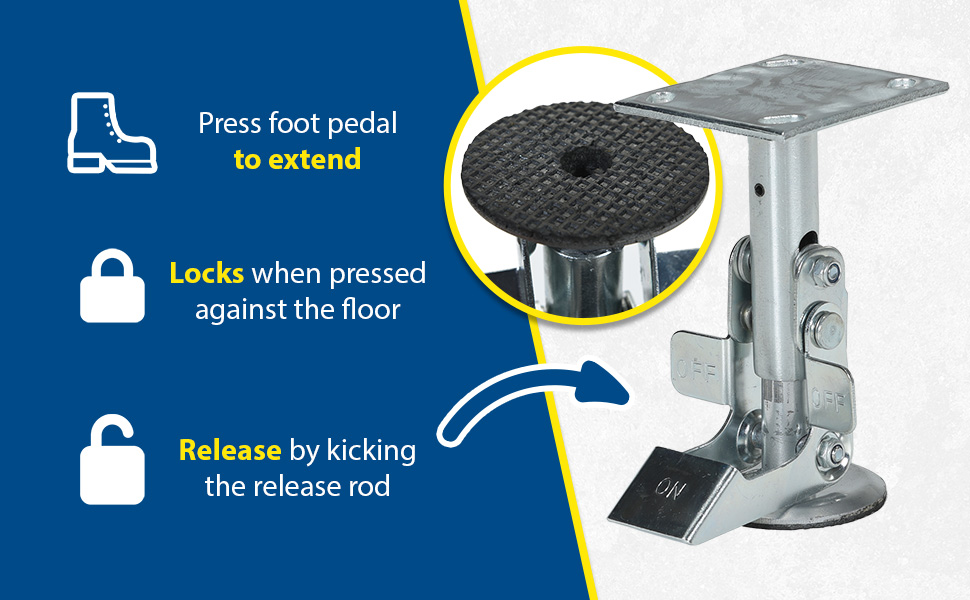

| 30 Days Limited Warranty | Galvanized Steel Top Mount Floor Lock 6-1/2 to 7-1/4 In. Height Gray | Mounting Height (in.): 7-1/4 Retracted Height (in.): 6-1/2 | 4 | ||

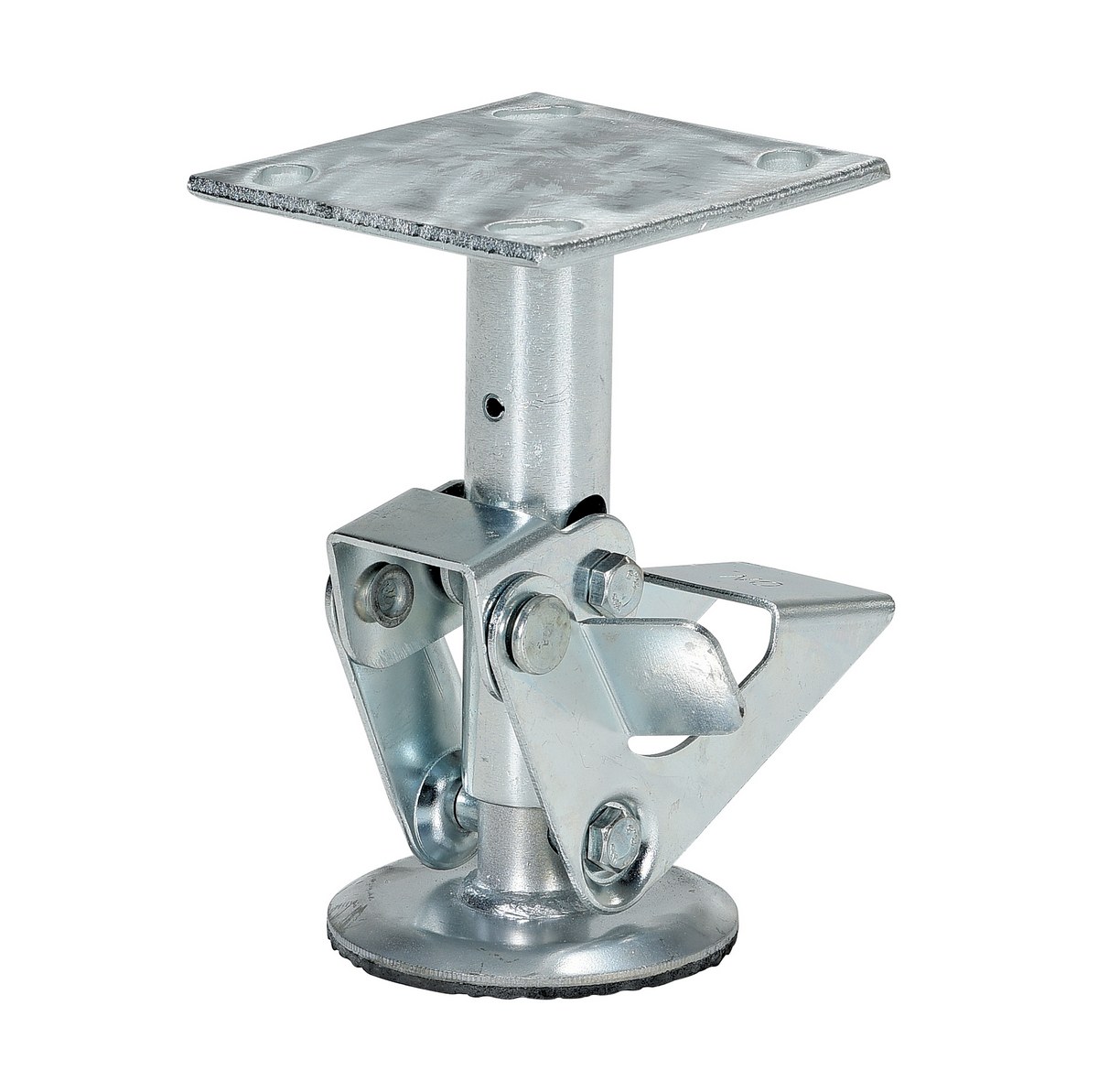

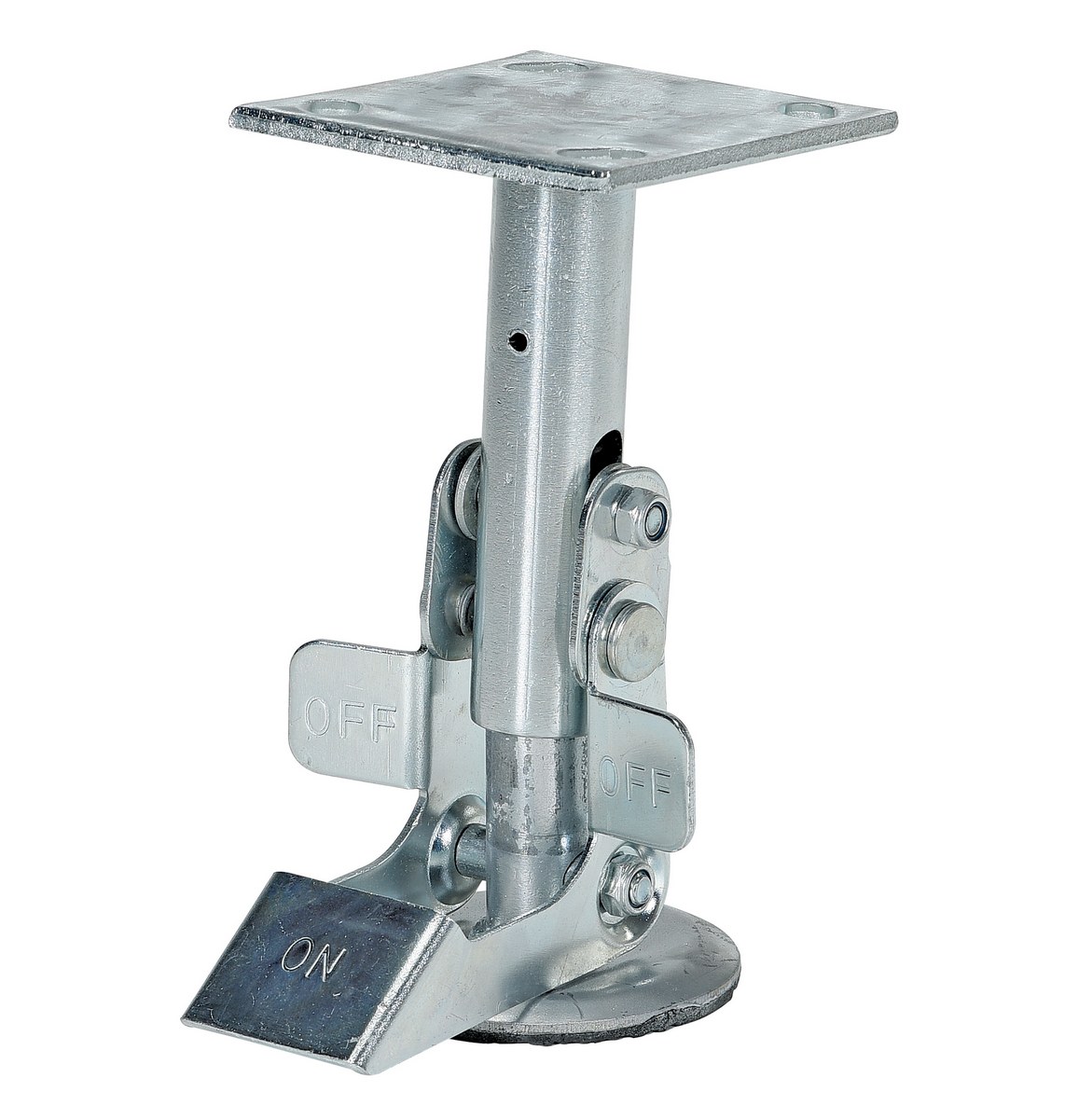

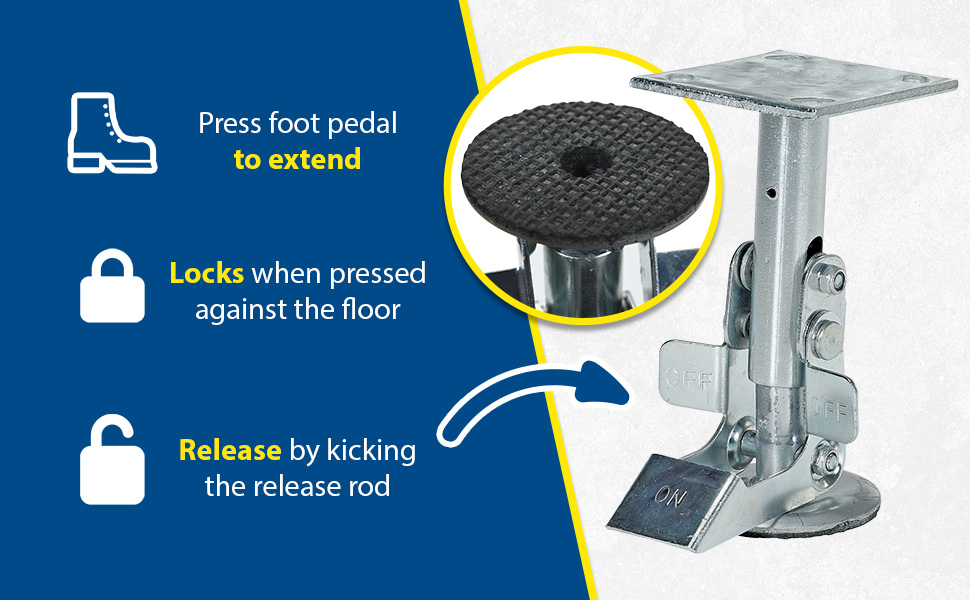

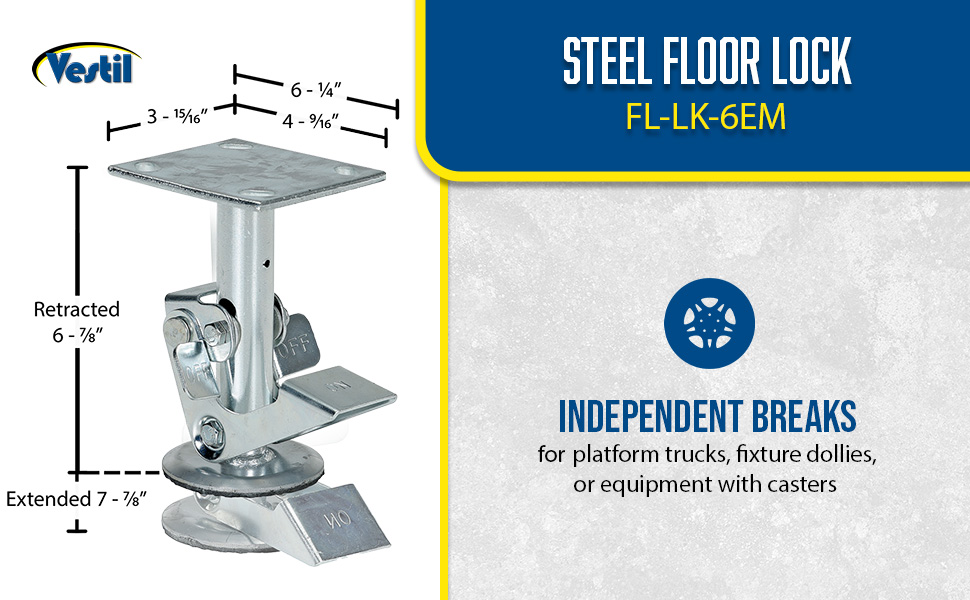

| FL-LK-6EM |

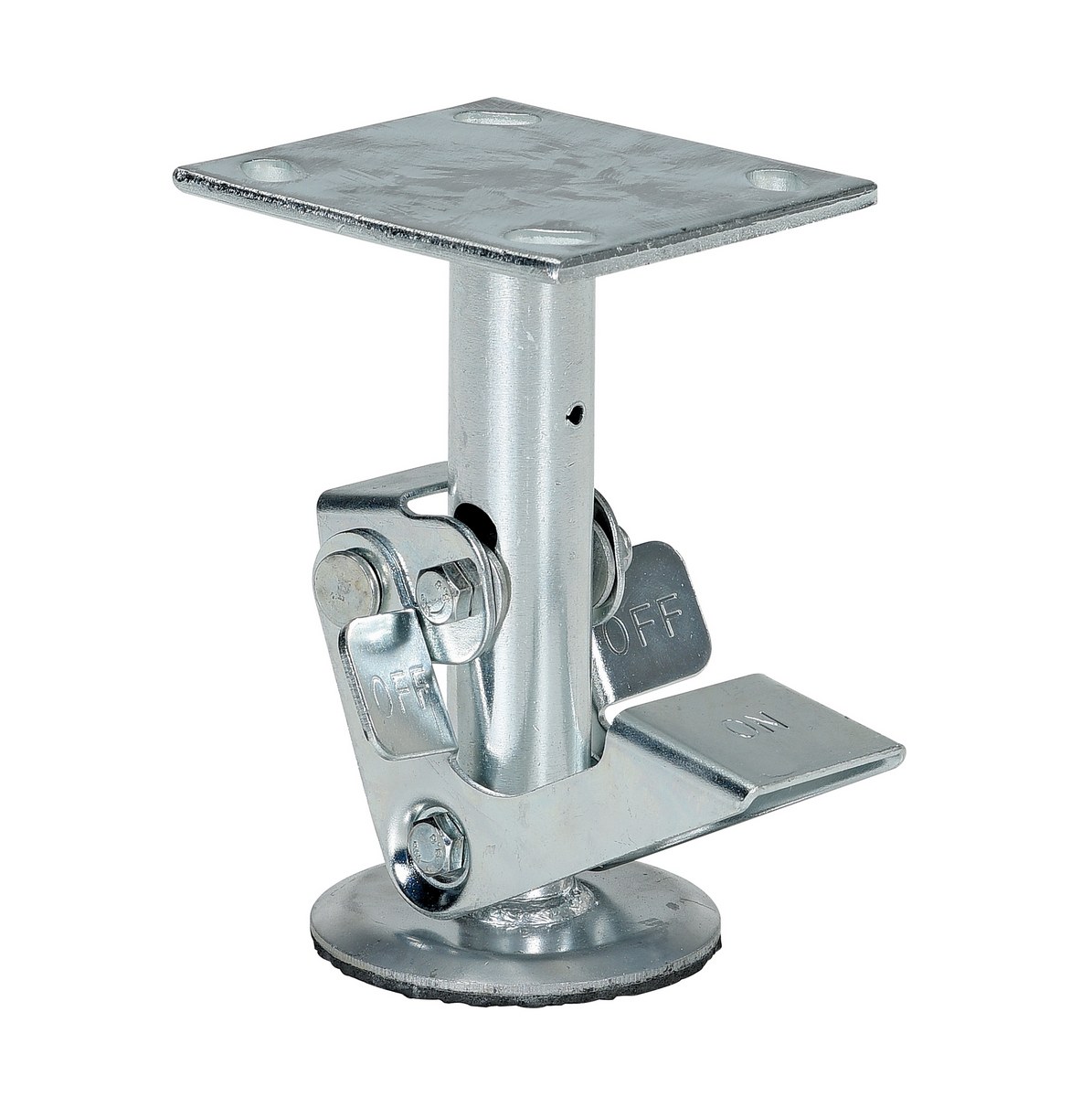

 | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6-7/8 to 7-1/2 In. Height Silver | Mounting Height (in.): 7-1/2 Retracted Height (in.): 6-7/8 | 4 | ||
| FL-LK-7G |
 | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6-1/4 to 7-3/4 In. Height Silver | Mounting Height (in.): 7-3/4 Retracted Height (in.): 6-1/4 | 11 | ||

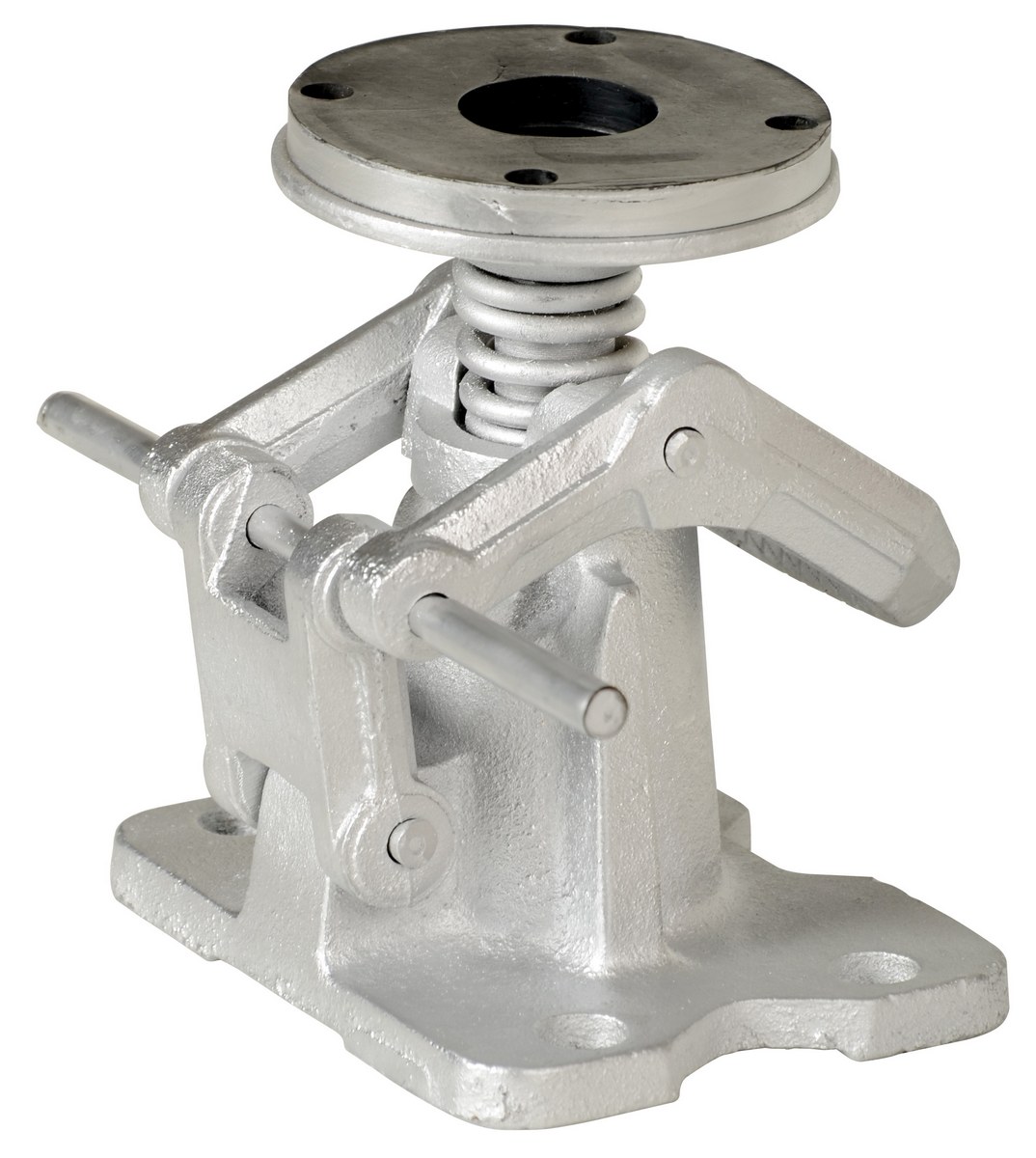

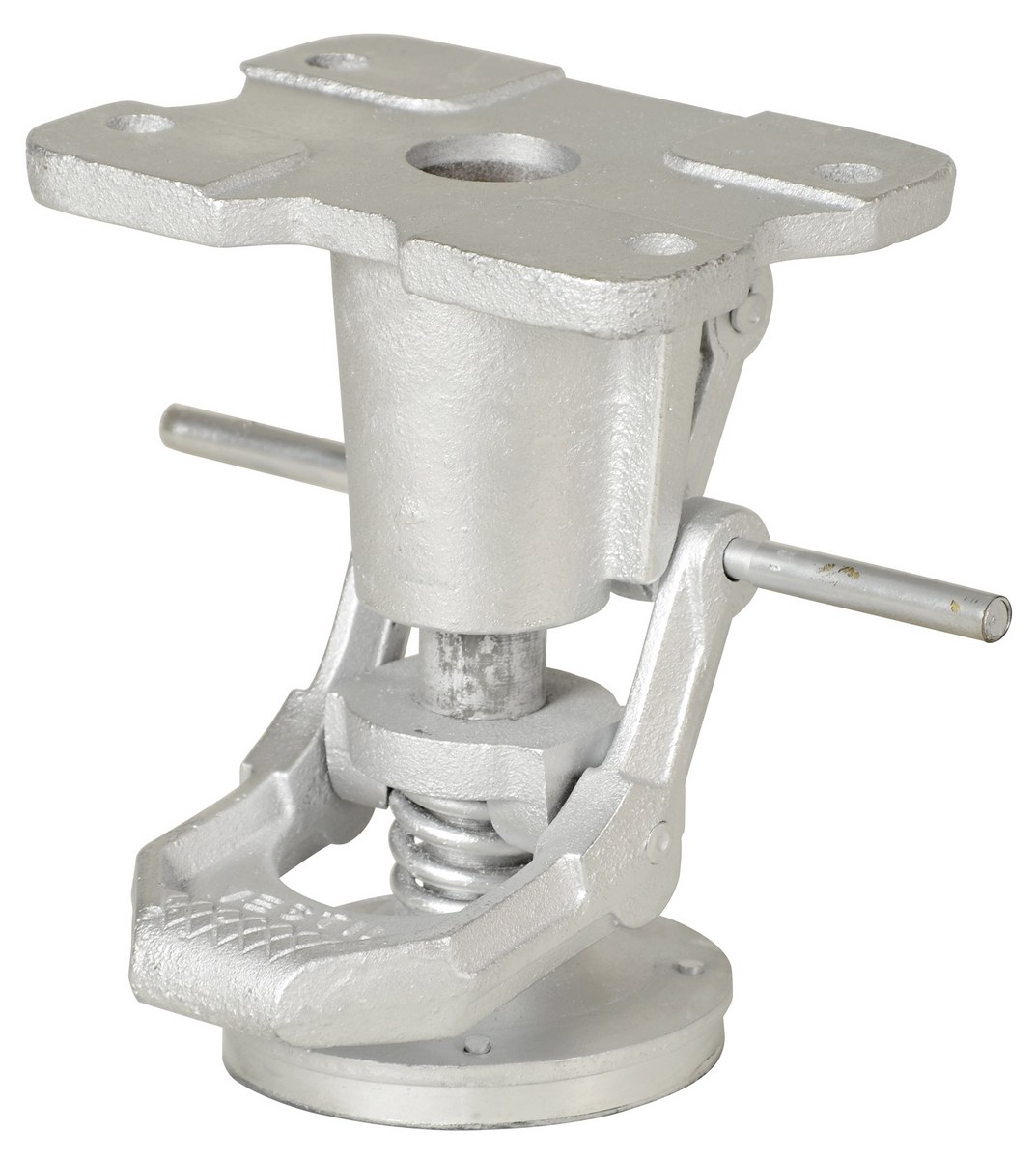

| FL-LK-7X |
 | 30 Days Limited Warranty | Steel Floor Lock 6-1/4 to 7-1/4 In. Height Silver | Mounting Height (in.): 7-1/4 Retracted Height (in.): 6-1/4 | 11 | ||

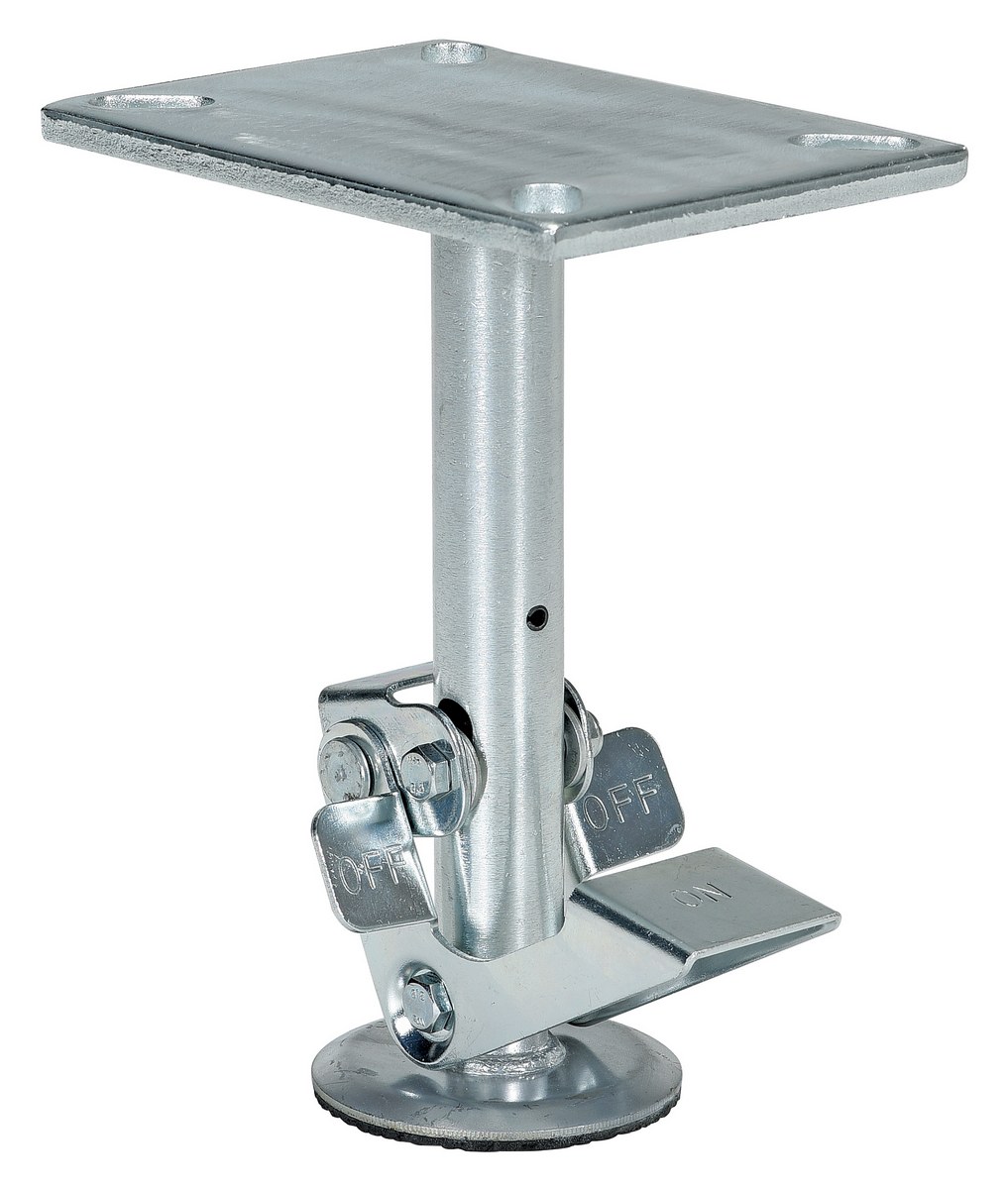

| FL-LK-8EH |

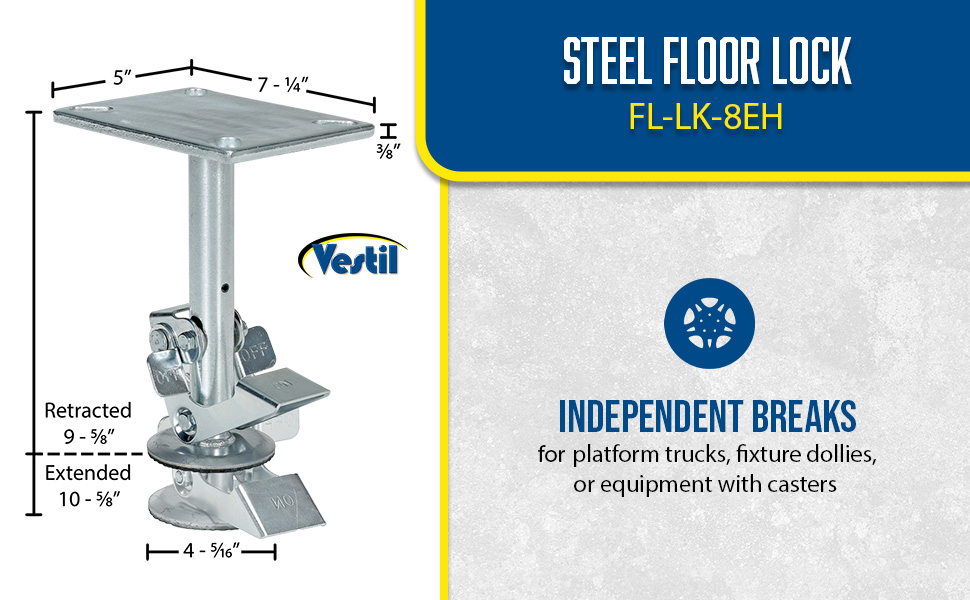

 | 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver | Mounting Height (in.): 10-1/2 Retracted Height (in.): 9-5/8 | 7 | ||

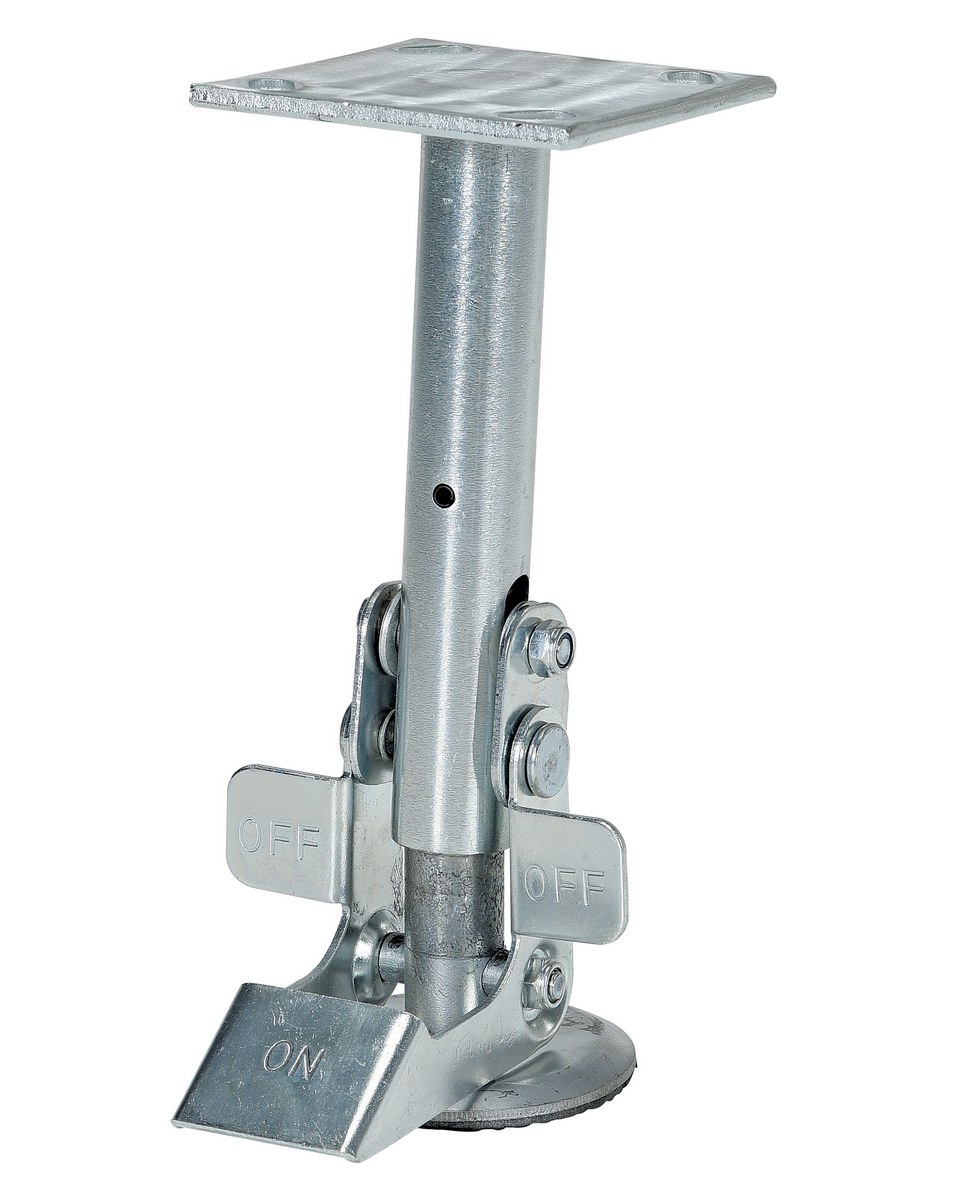

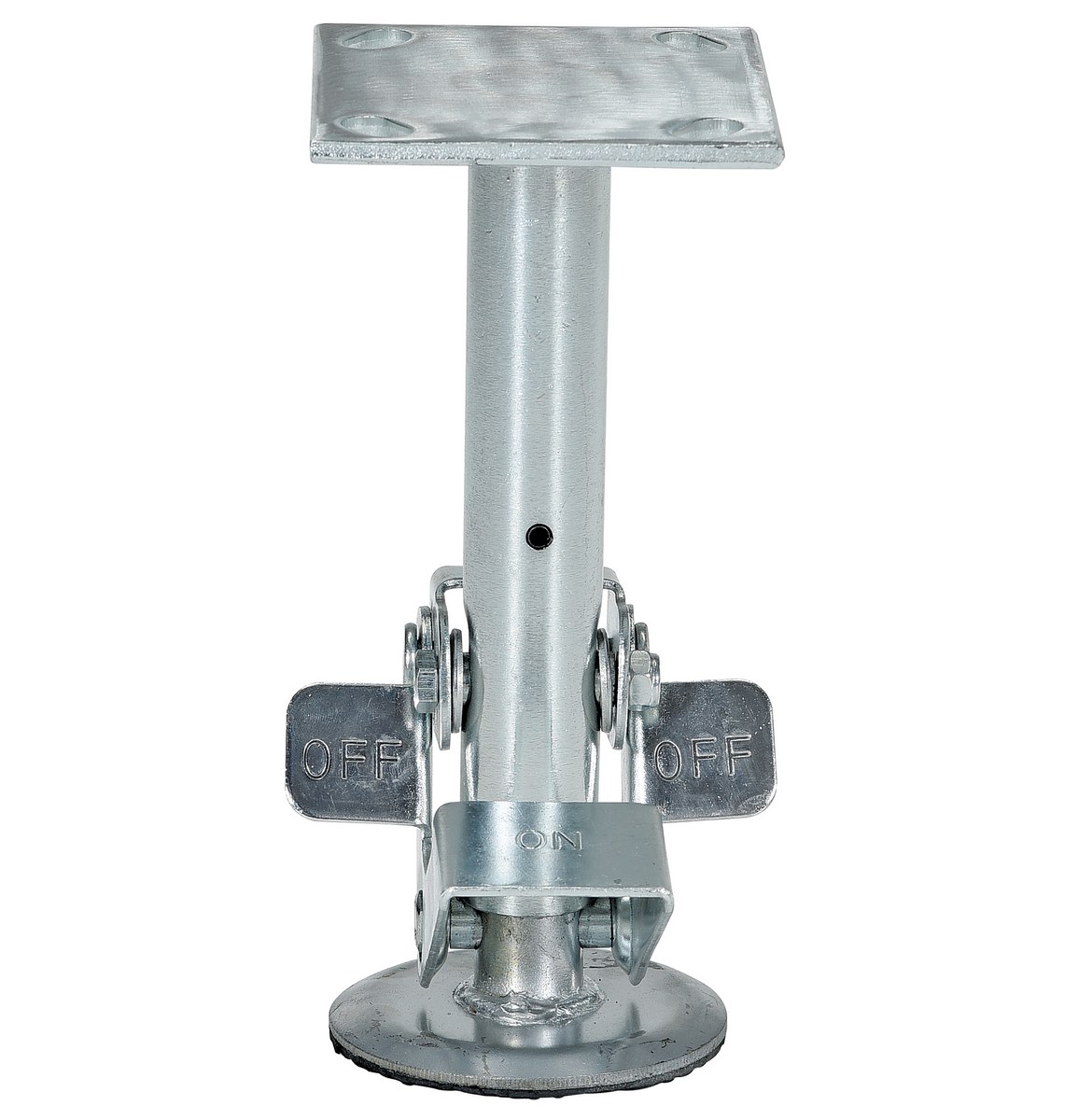

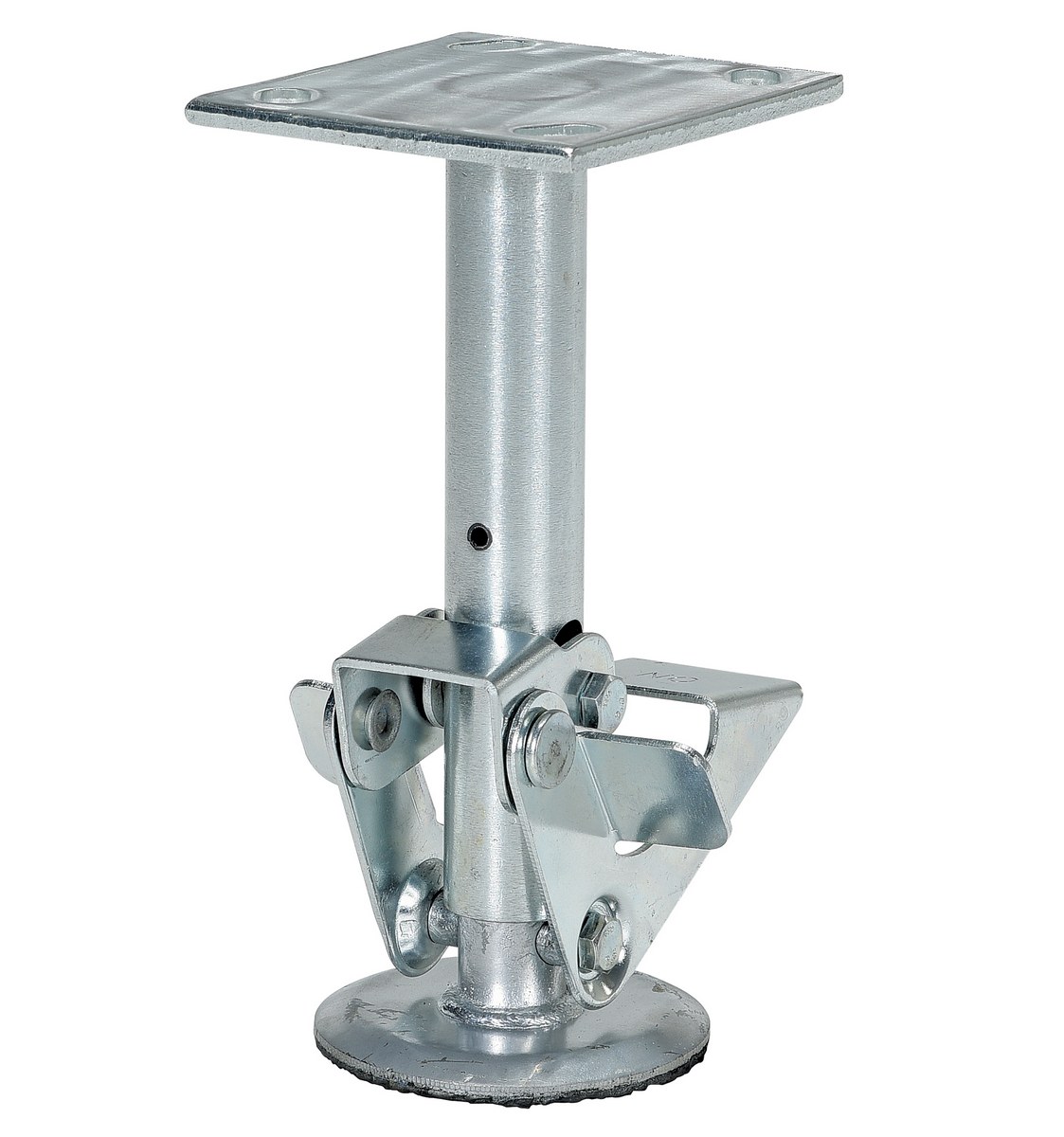

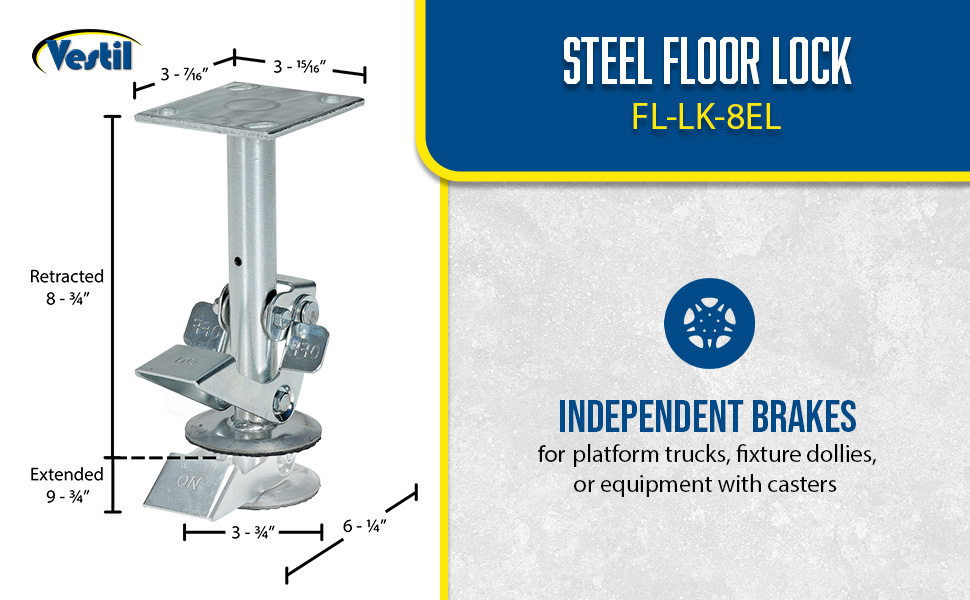

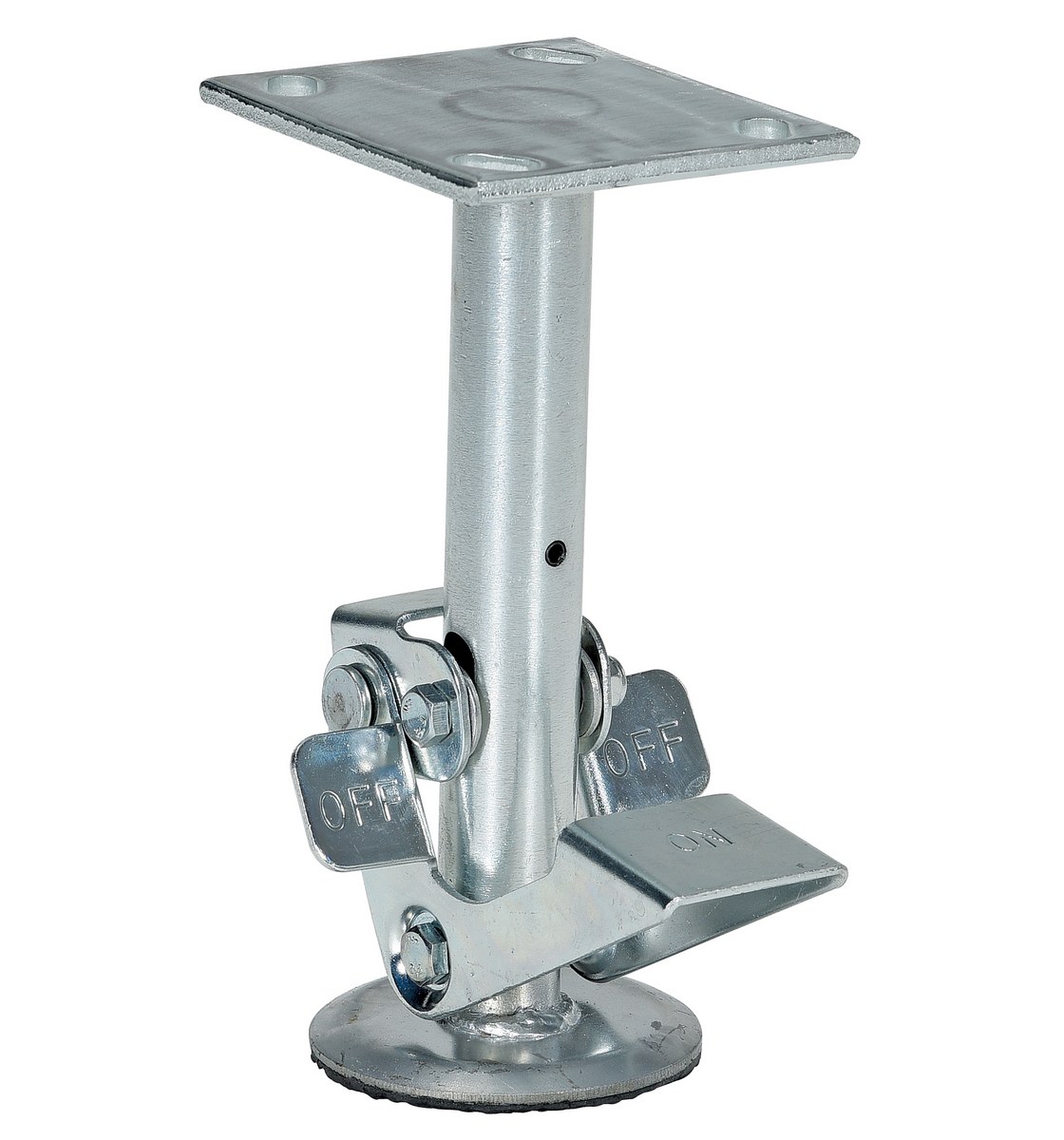

| FL-LK-8EL |
| 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 8-3/4 In. Height Silver | Mounting Height (in.): 9-1/2 Retracted Height (in.): 8-3/4 | 4 | ||

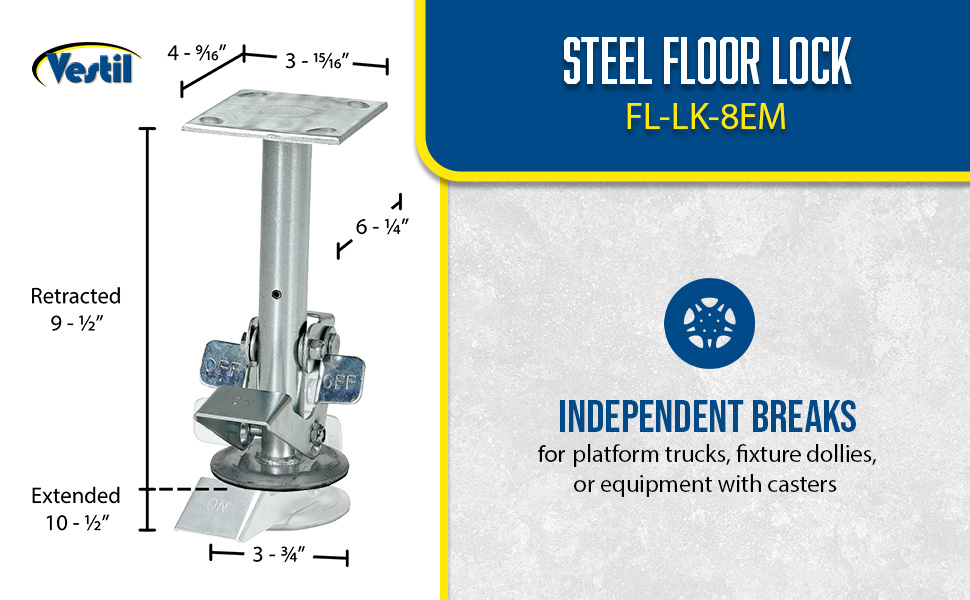

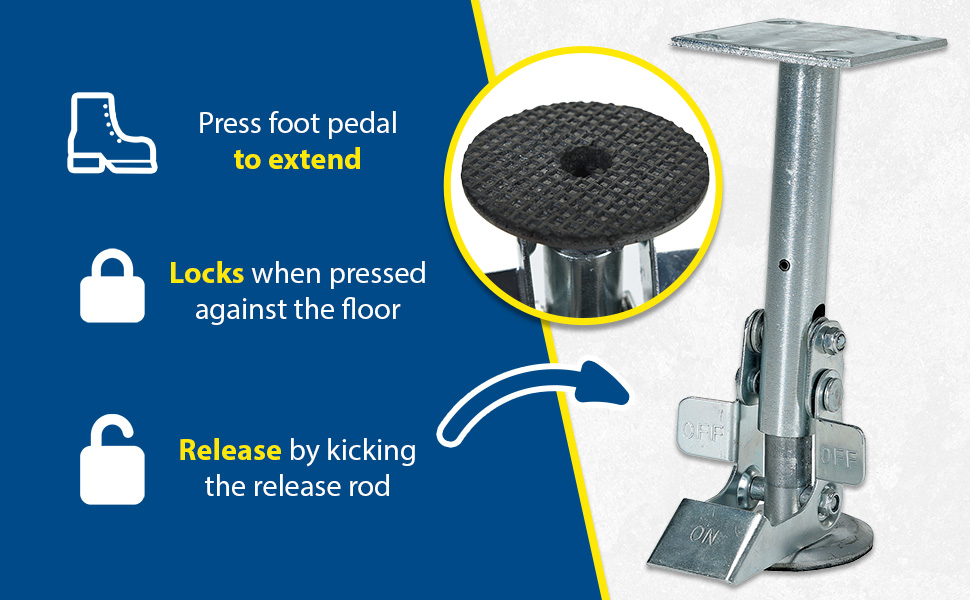

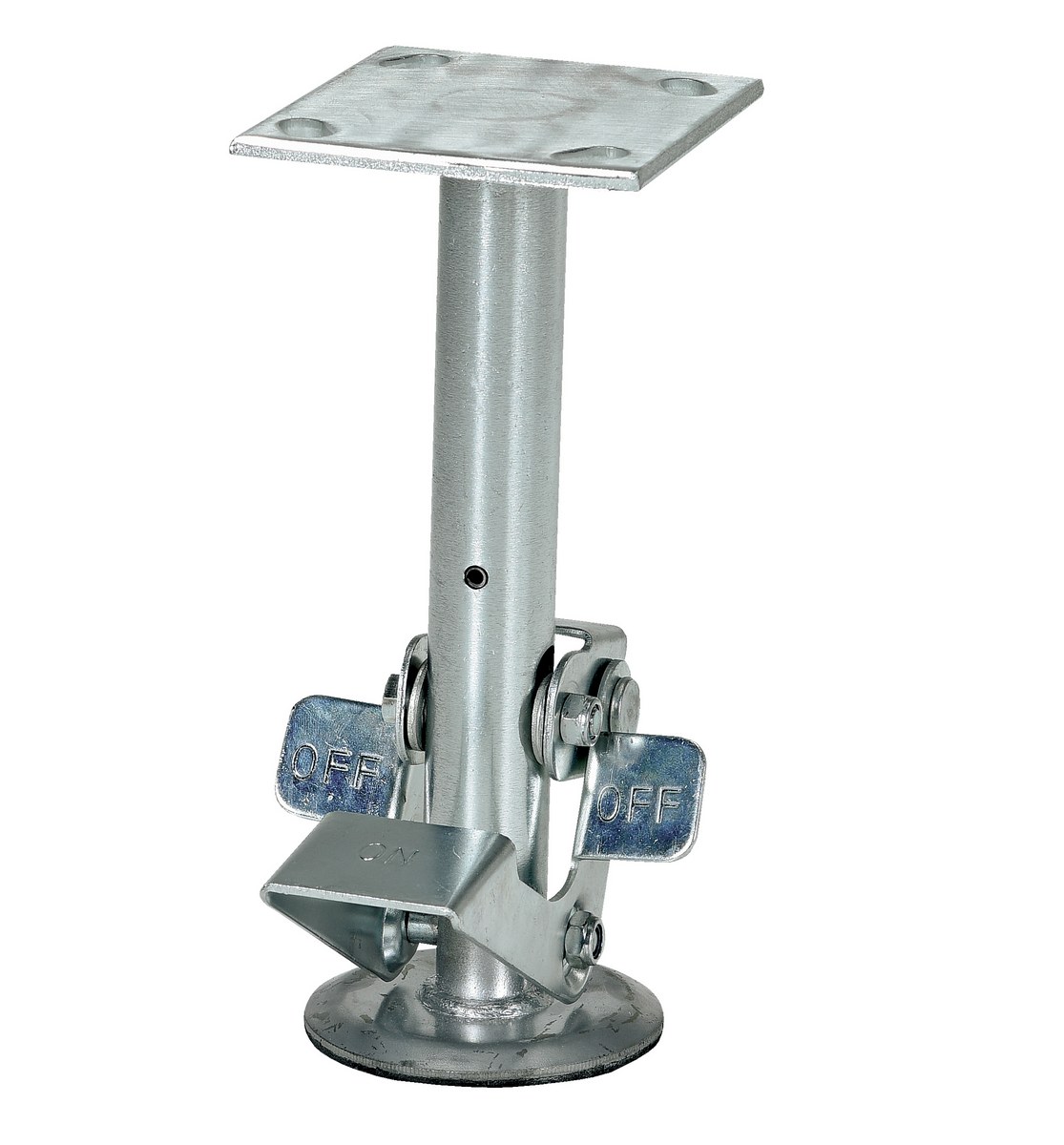

| FL-LK-8EM |
| 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver | Mounting Height (in.): 10-1/8 Retracted Height (in.): 9-1/2 | 5 | ||

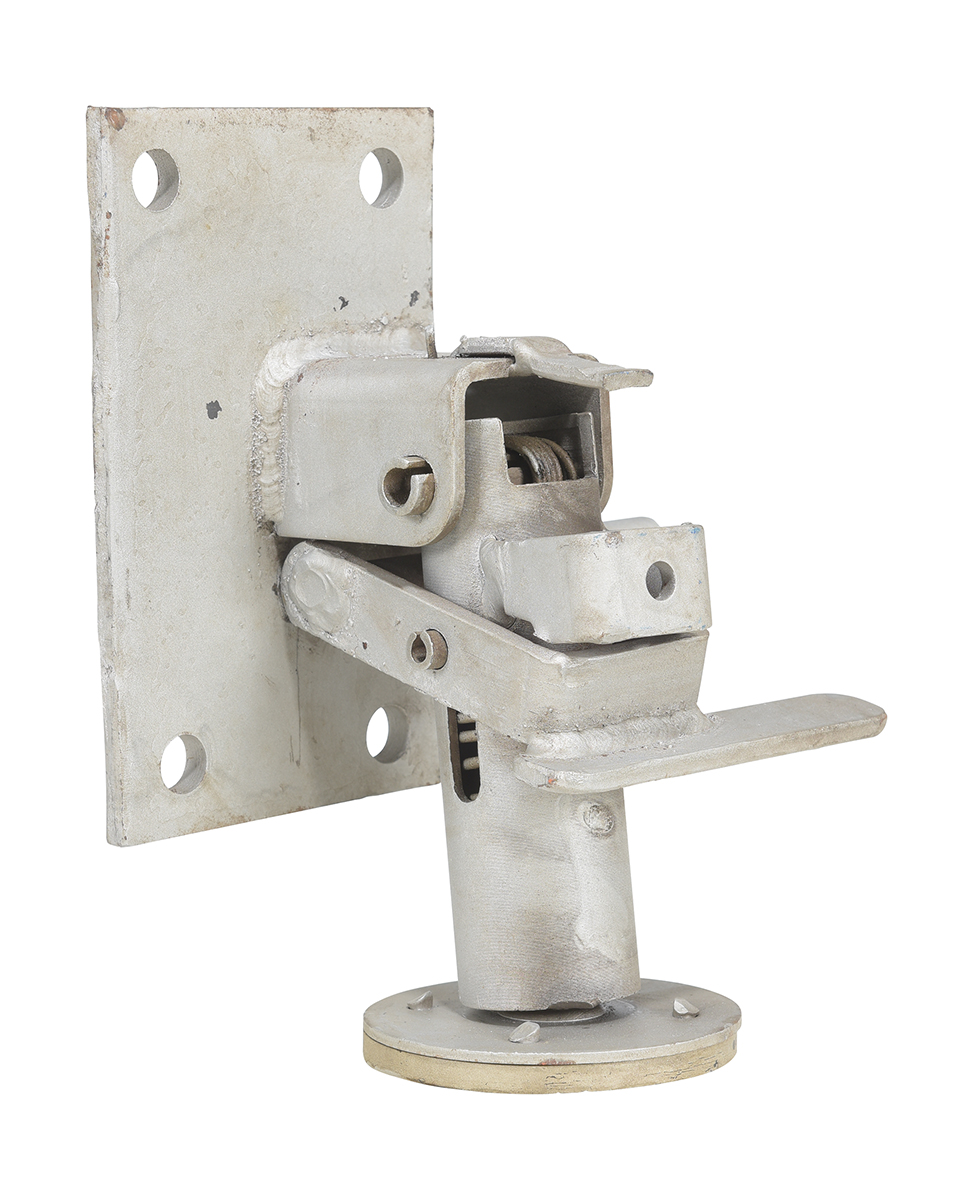

| FL-LK-S |
| 30 Days Limited Warranty | Steel Floor Lock 7 In. to 8-3/16 In. Height Silver | Mounting Height (in.): 8-3/16 Retracted Height (in.): 7 | 6 | ||

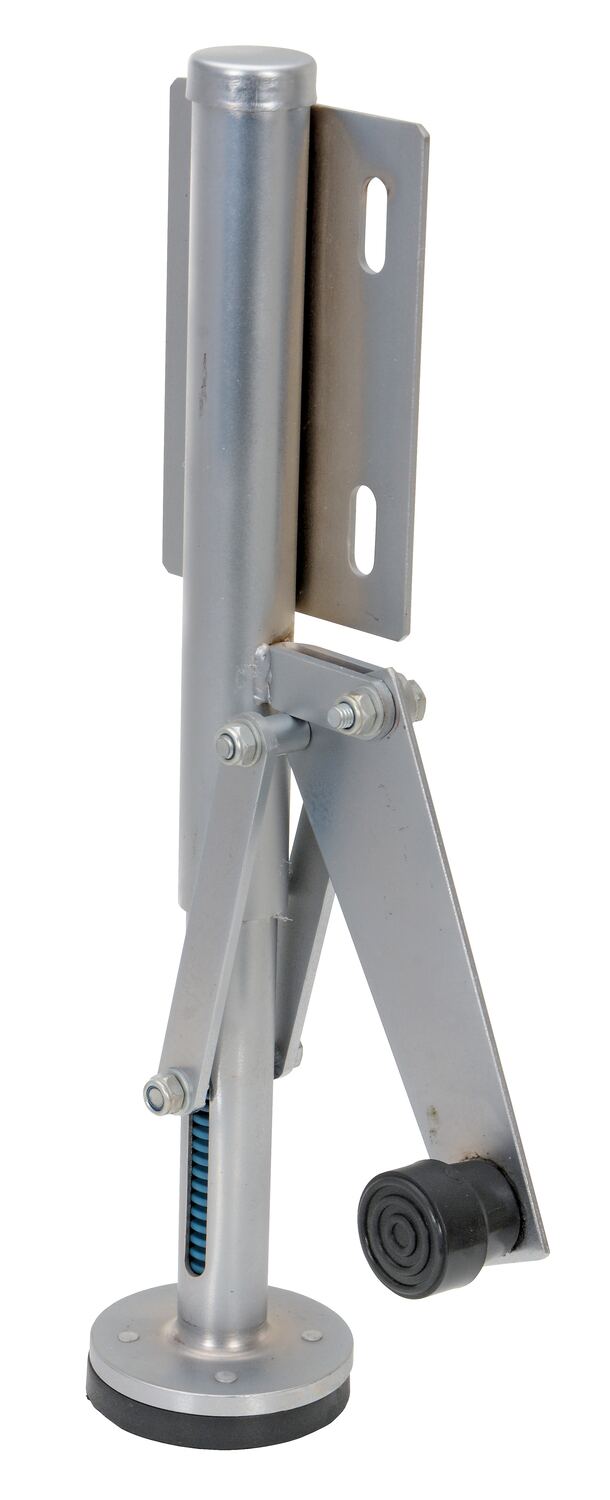

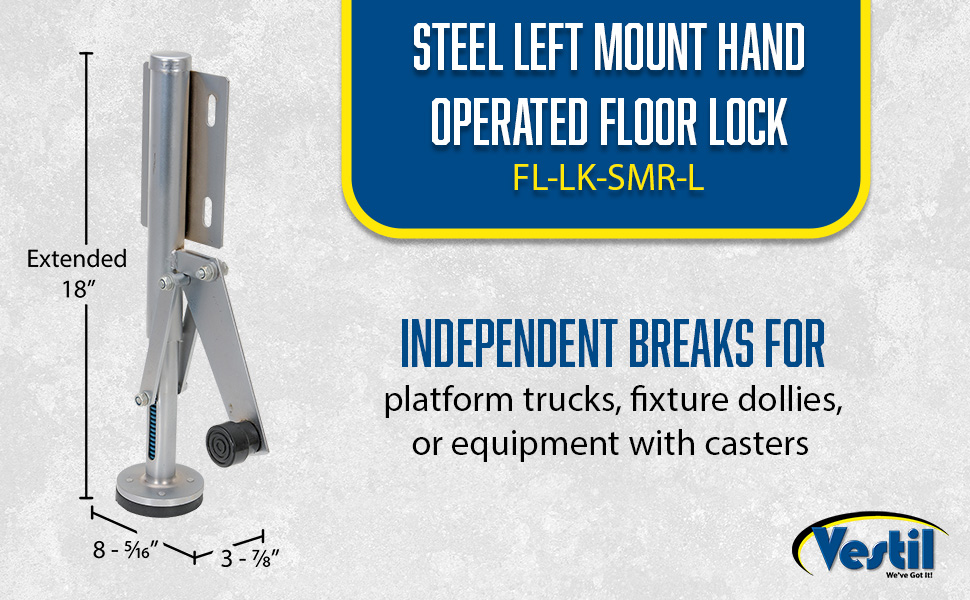

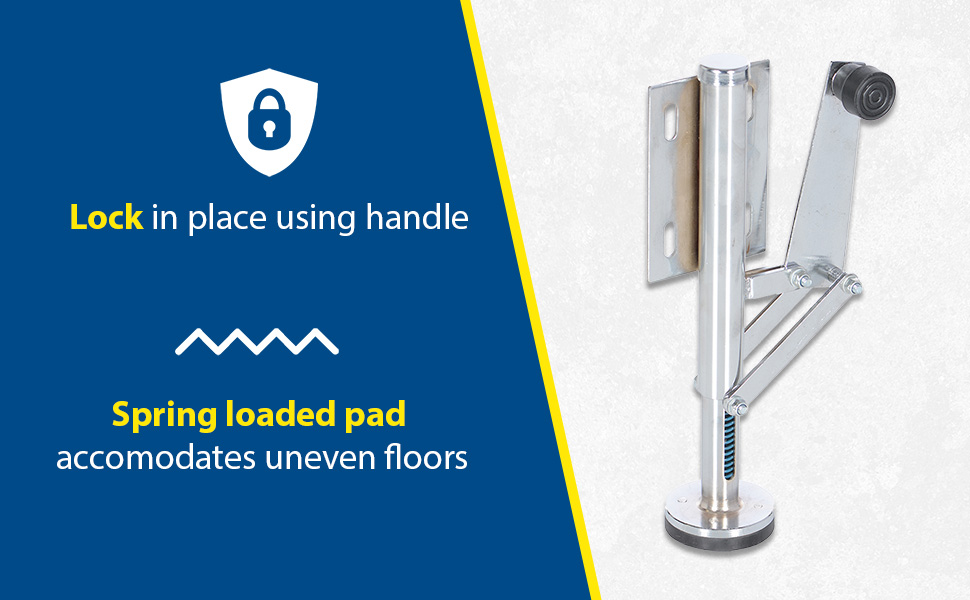

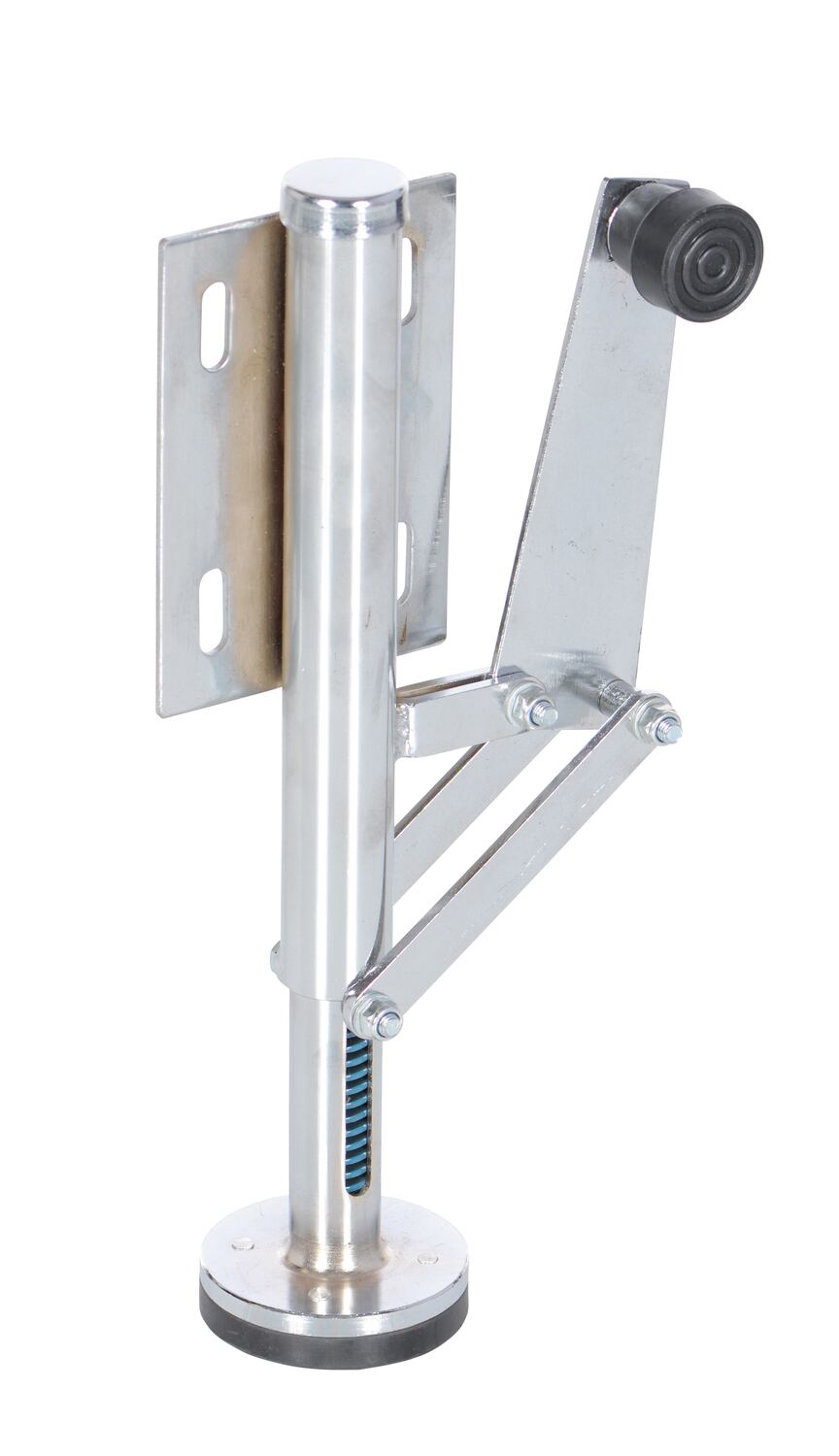

| FL-LK-SMR-L |
 | 30 Days Limited Warranty | Steel Left Mount Hand Operated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

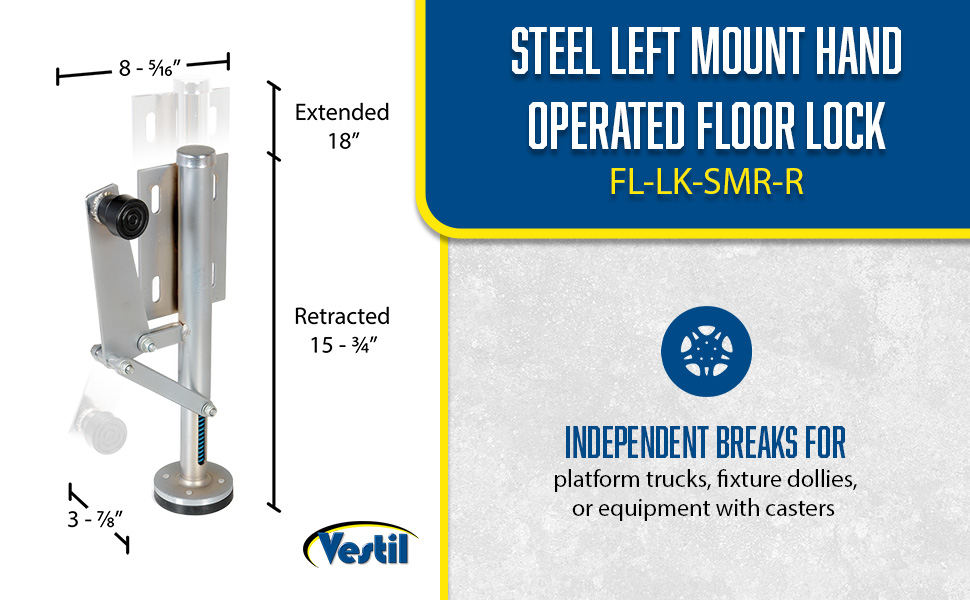

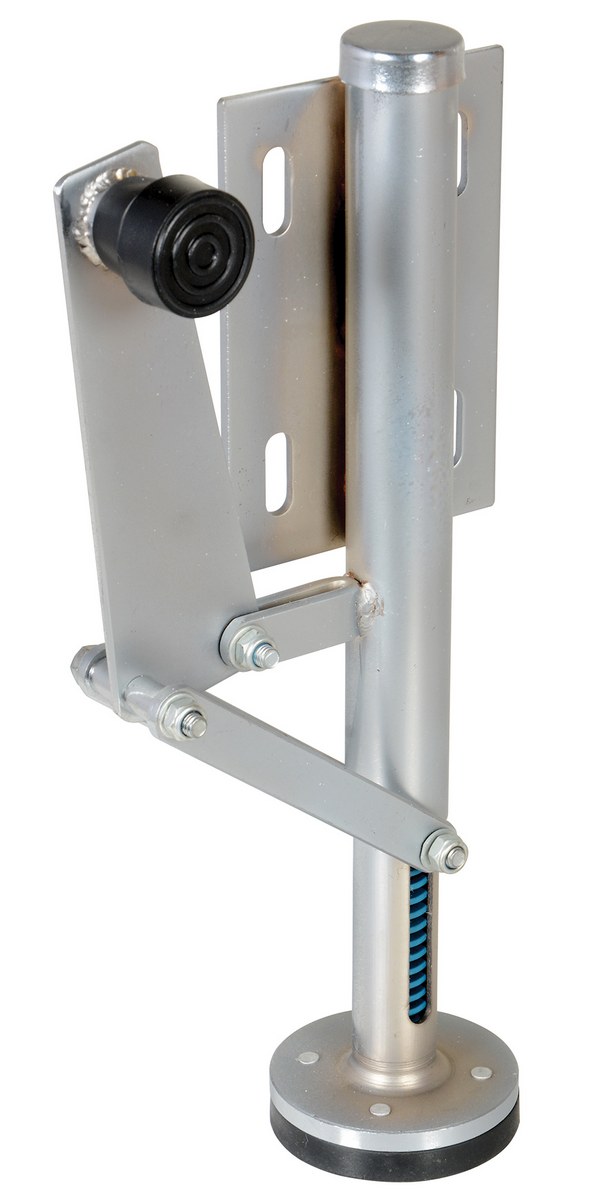

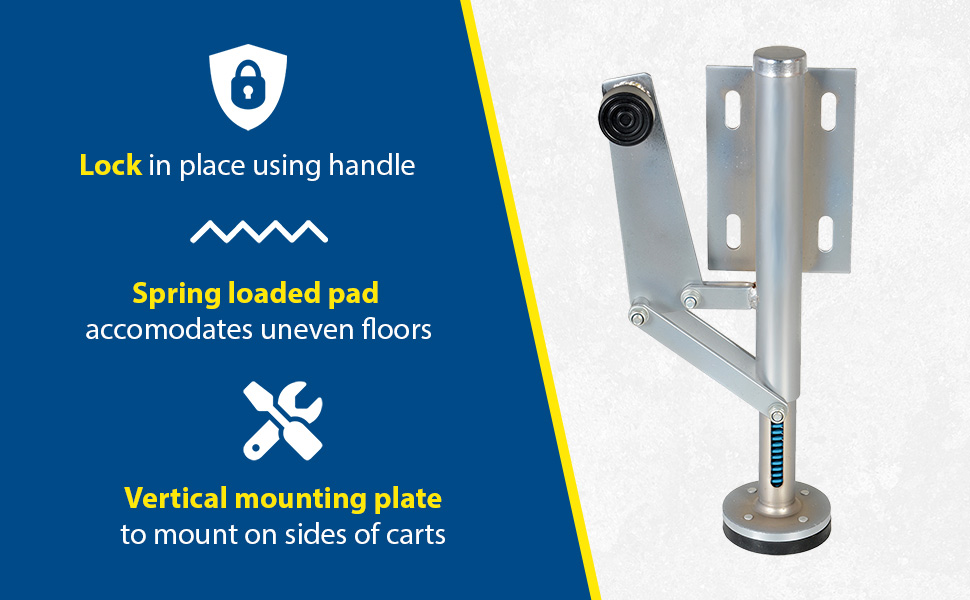

| FL-LK-SMR-R |
 | 30 Days Limited Warranty | Steel Right Mount Hand Operated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

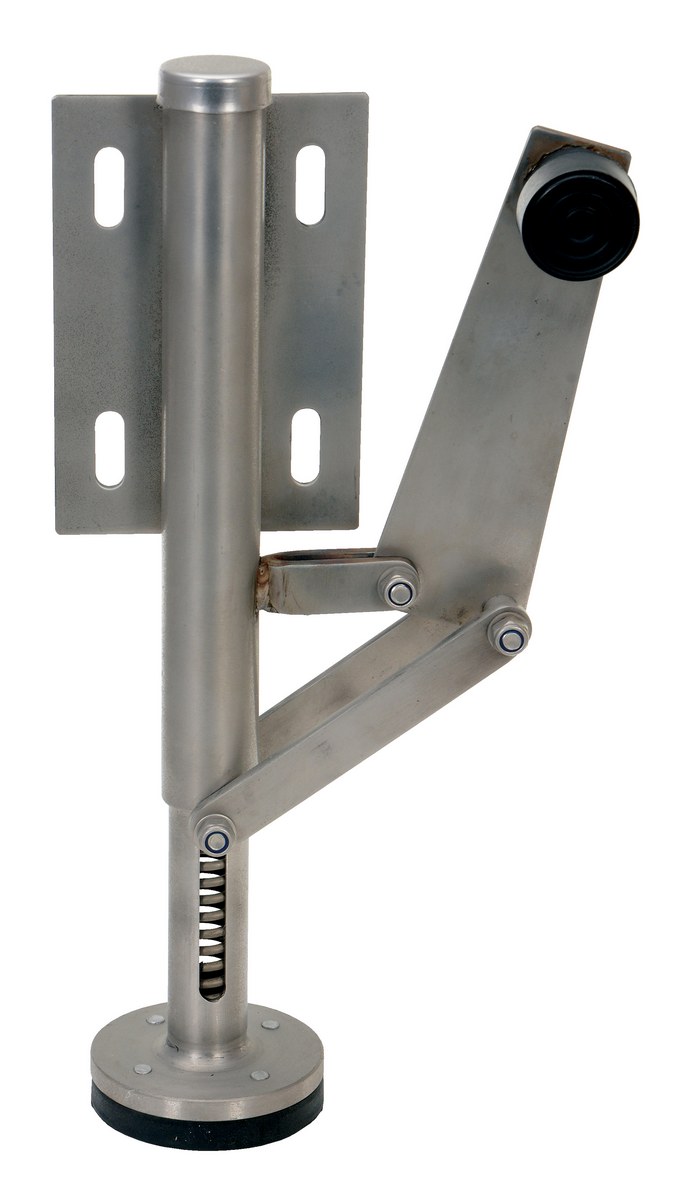

| FL-LK-SMR-SS-L |

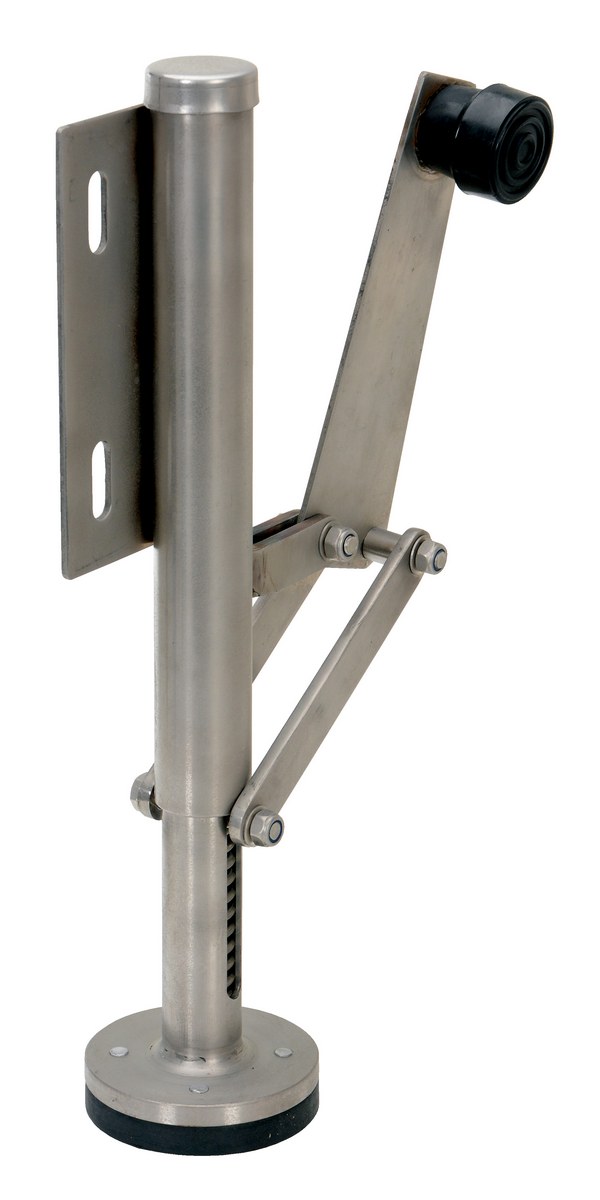

 | 30 Days Limited Warranty | Stainless Steel Left Mount Hand Operated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

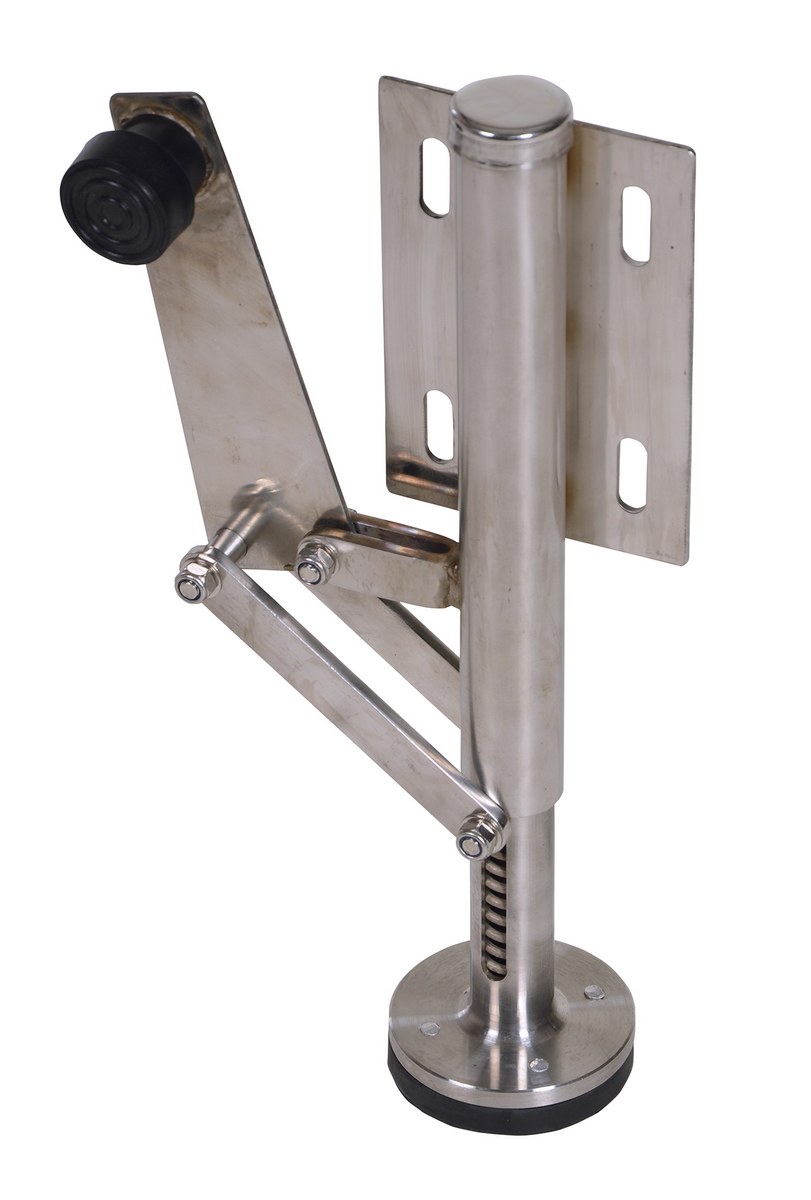

| FL-LK-SMR-SS-R |
 | 30 Days Limited Warranty | Stainless Steel Right Mount Hand Opertated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The FL-LK-4E has a capacity of 1200 lbs.
A: Locking capacity is 1,200 lbs. Force required to engage the brake: 20 - 30 lbs.
A: The locking capacity is 2,000 lbs.
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Purpose Floor Locks |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Brake is independent of casters and can be installed to any convenient location on the cart. Designed to be mounted to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
