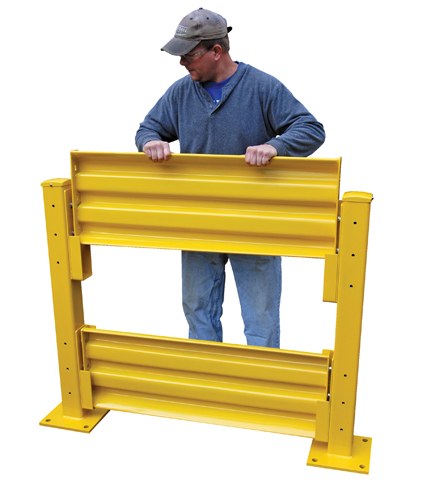

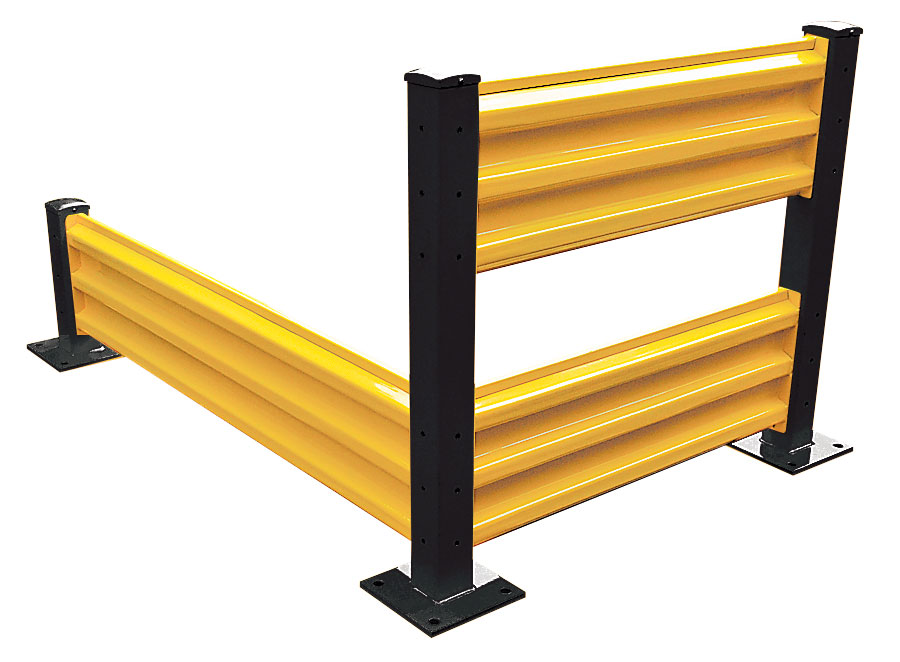

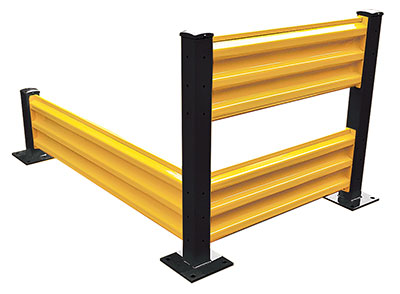

Structural Guard Rails (drop-in and bolt-on style) (GR-F3R, GR-F2R)

Model #		Description	Attributes	Net Wt. (lbs)

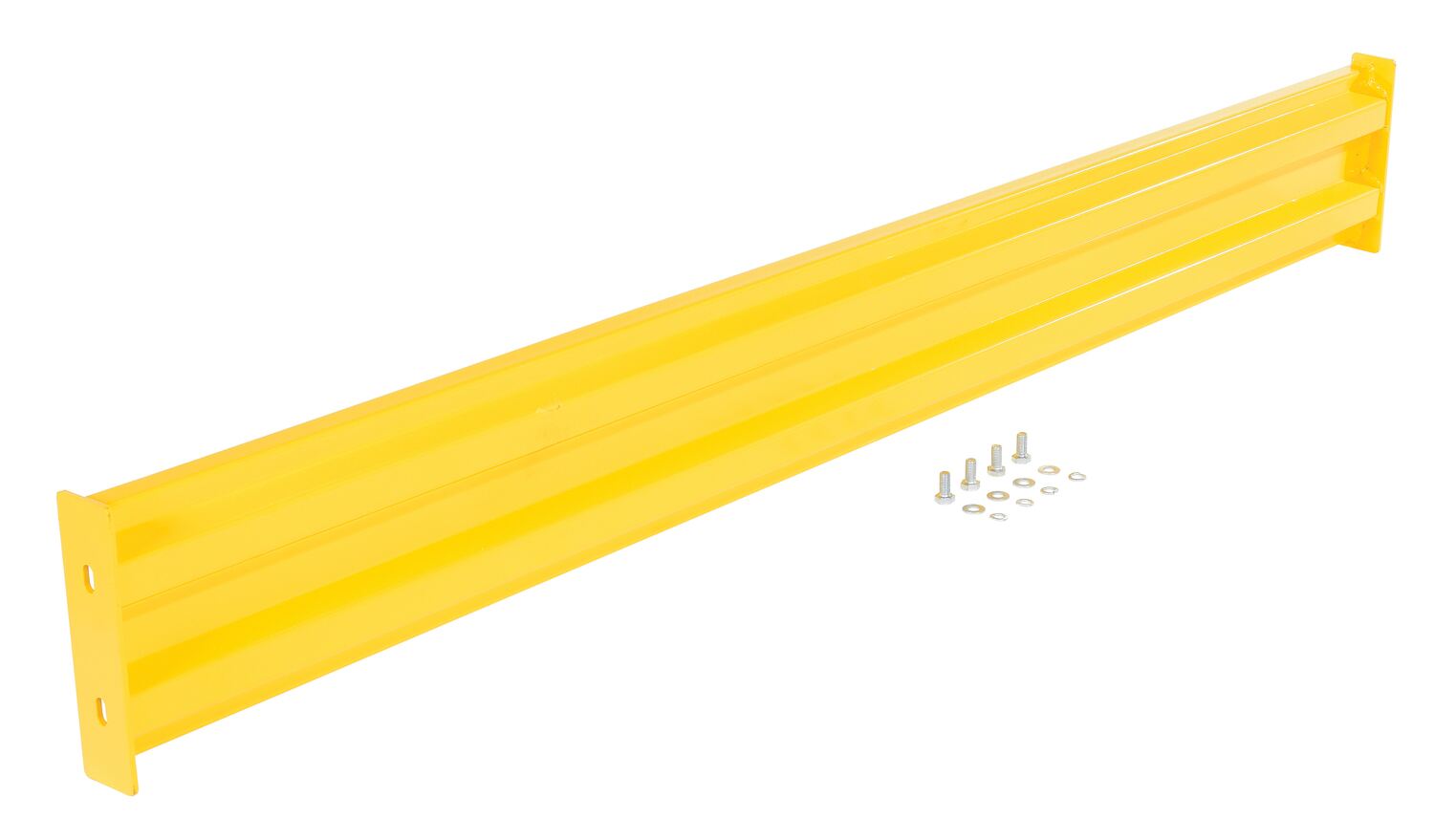

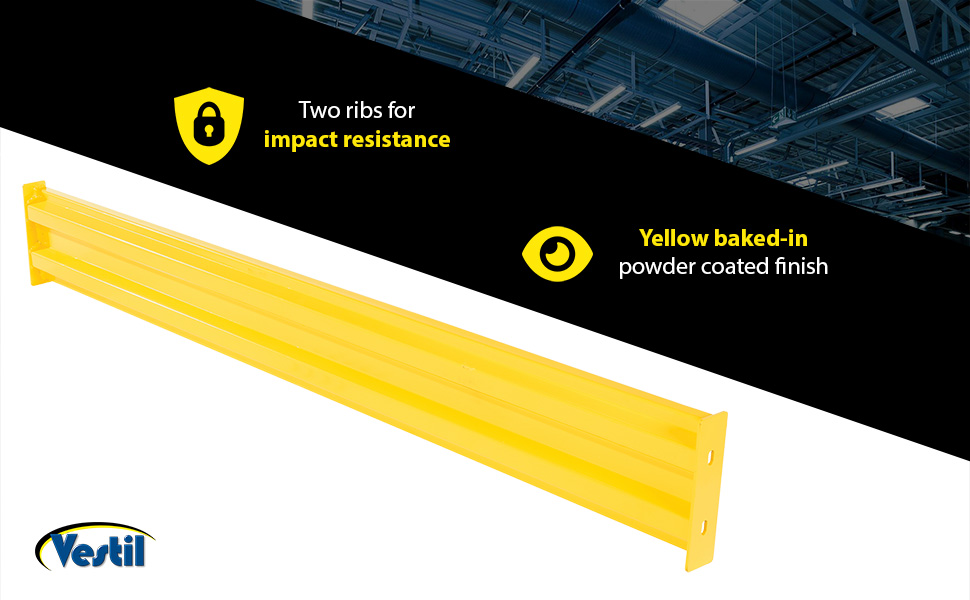

GR-F2R-BO-1-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow	Mounting Post (qty.): 2	8

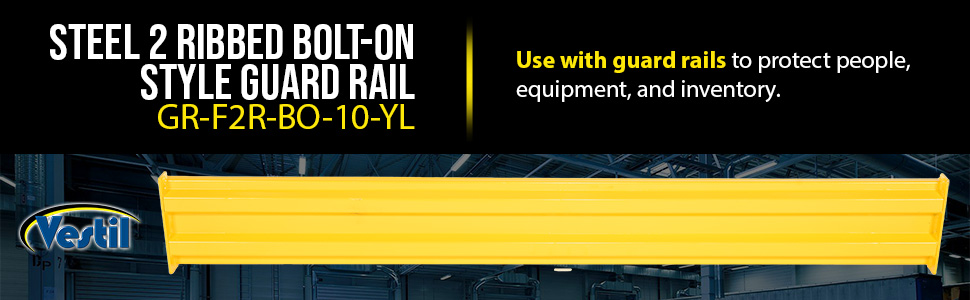

GR-F2R-BO-10-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 114 In. Length Yellow	Mounting Post (qty.): 2	150

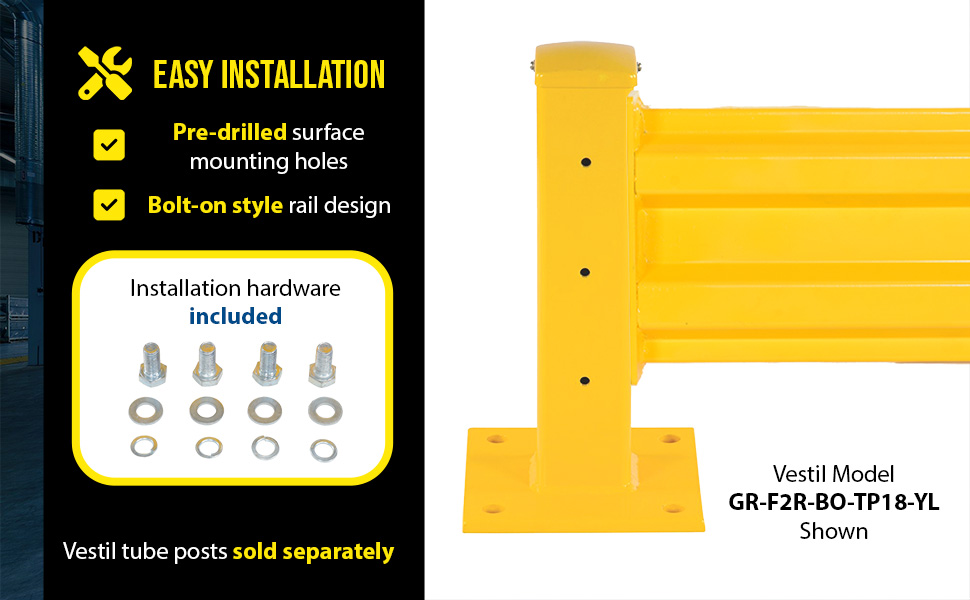

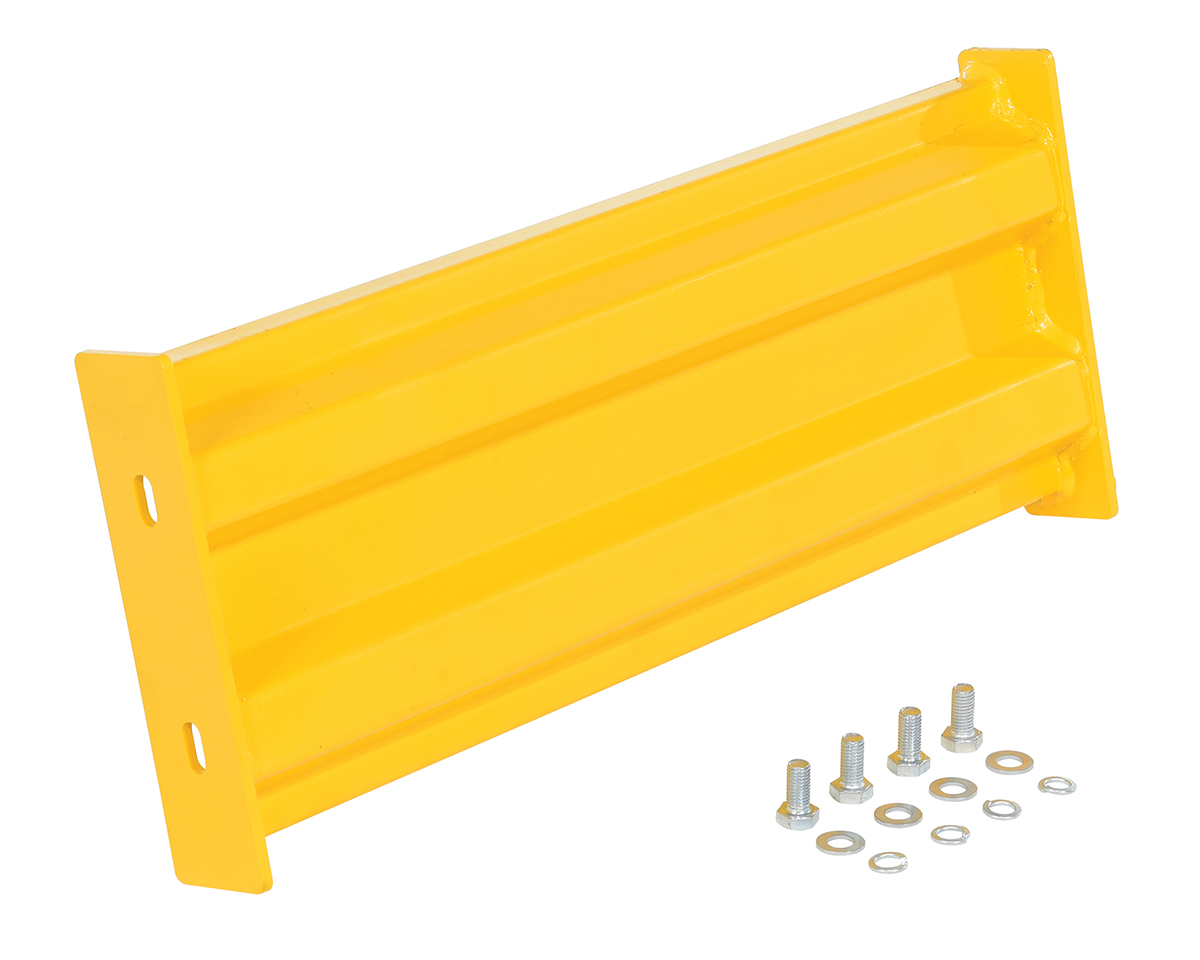

GR-F2R-BO-2-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 24 In. Length Yellow	Mounting Post (qty.): 2	16

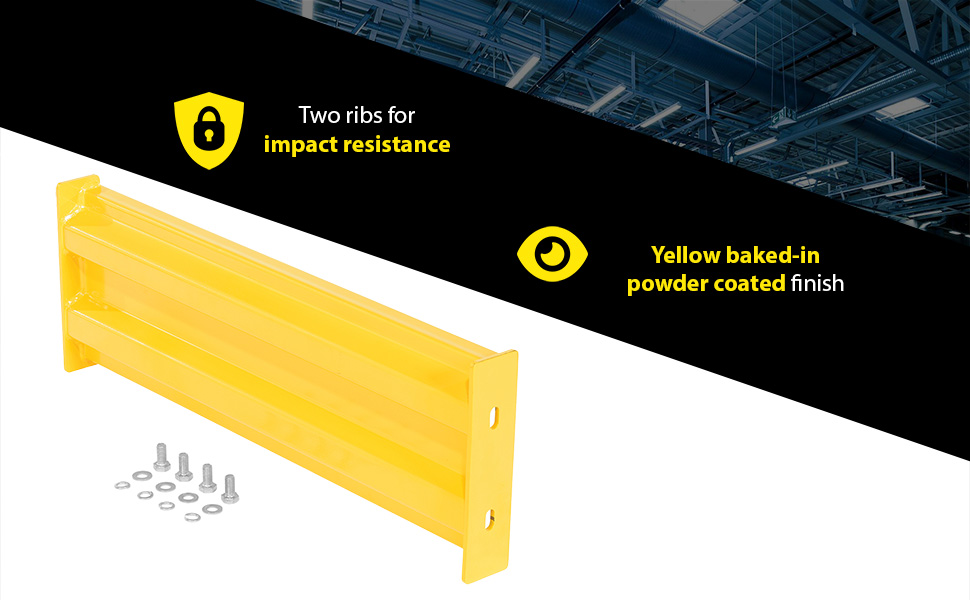

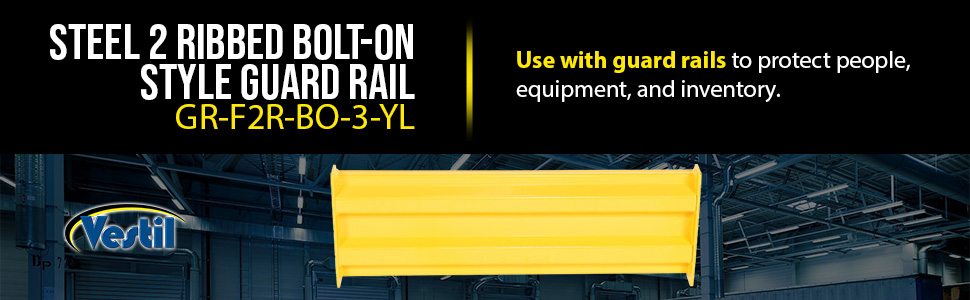

GR-F2R-BO-3-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 30 In Length Yellow	Mounting Post (qty.): 2	32
GR-F2R-BO-4-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 42 In. Length Yellow	Mounting Post (qty.): 2	41
GR-F2R-BO-5-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 54 In. Length Yellow	Mounting Post (qty.): 2	82

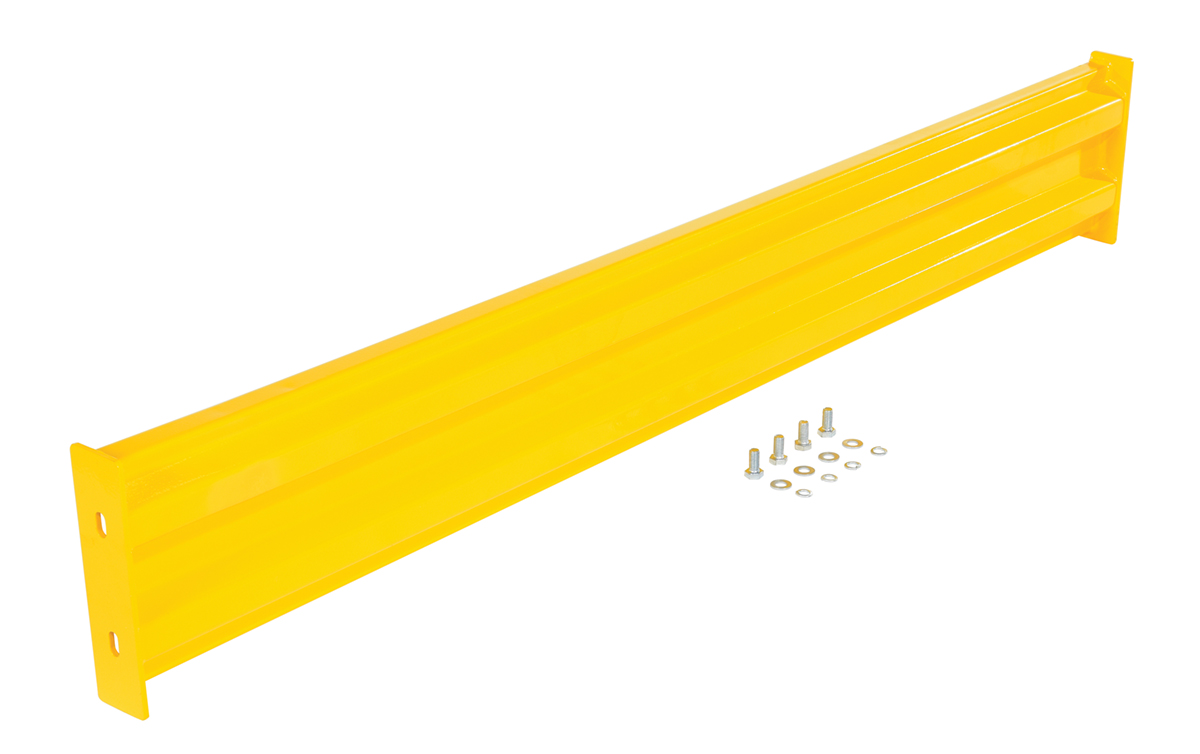

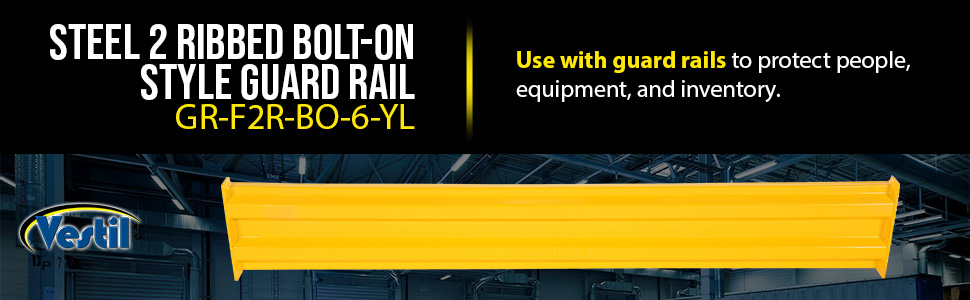

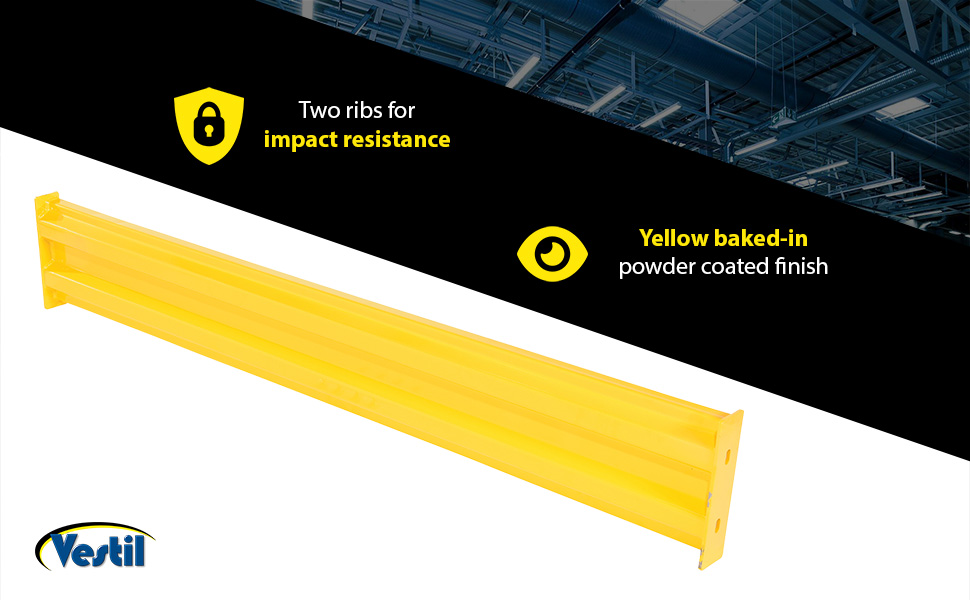

GR-F2R-BO-6-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 66 In. Length Yellow	Mounting Post (qty.): 2	92

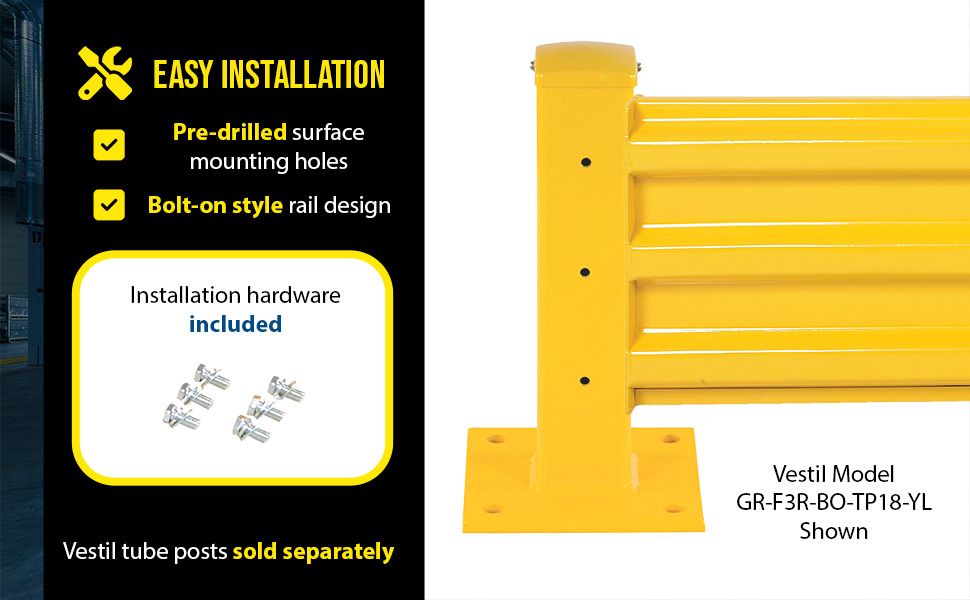

GR-F2R-BO-7-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 78 In. Length Yellow	Mounting Post (qty.): 2	104
GR-F2R-BO-8-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 90 In. Length Yellow	Mounting Post (qty.): 2	124

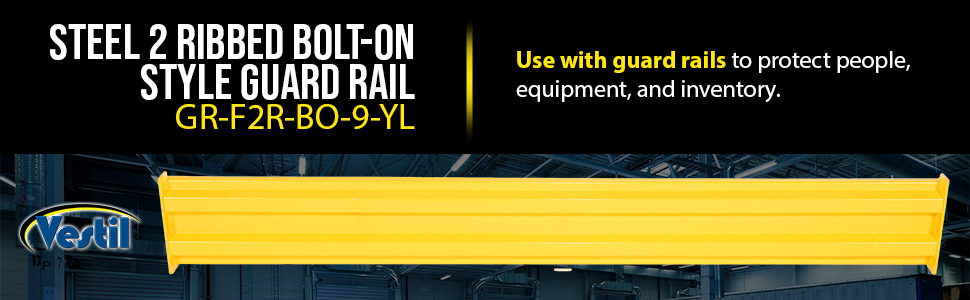

GR-F2R-BO-9-YL	90 Days Limited Warranty	Steel 2 Ribbed Bolt On Style Guard Rail 102 In. Length Yellow	Mounting Post (qty.): 2	138

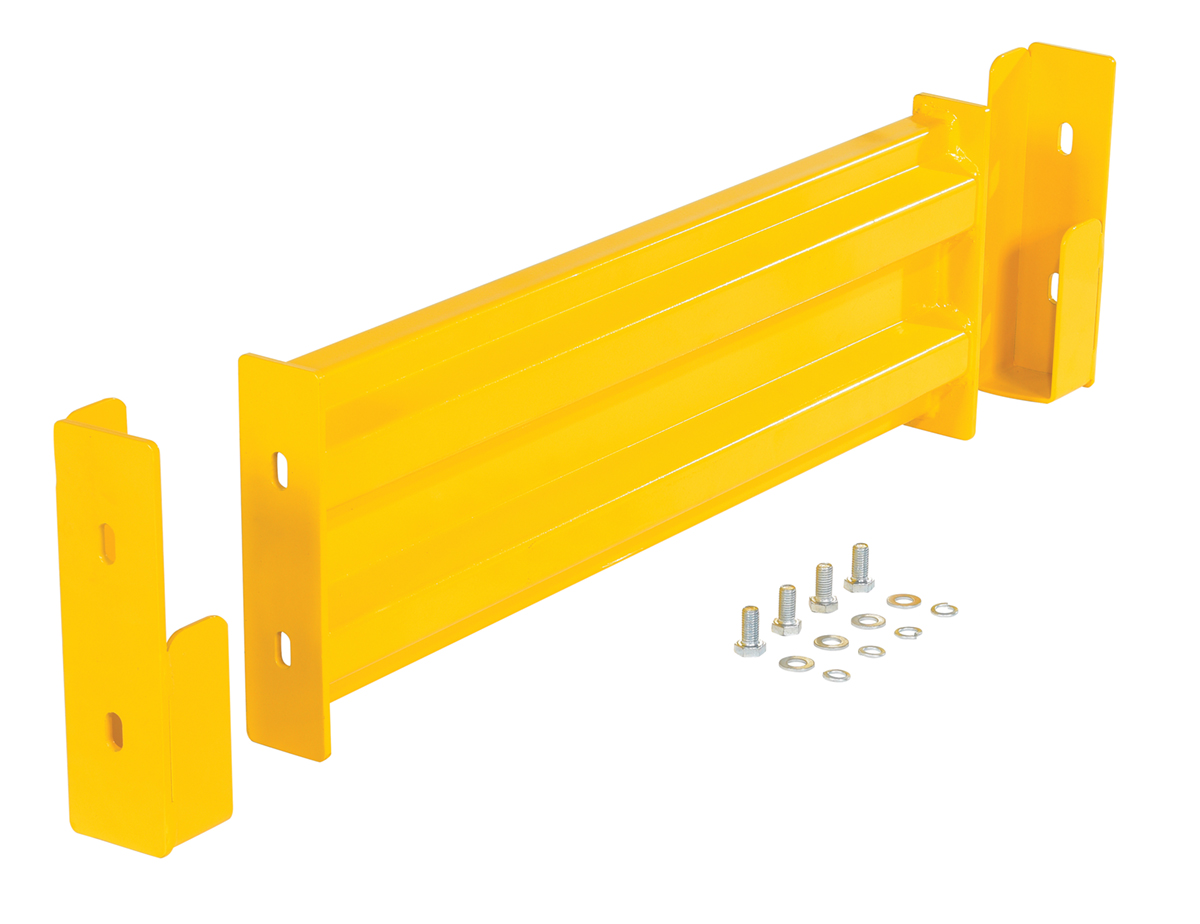

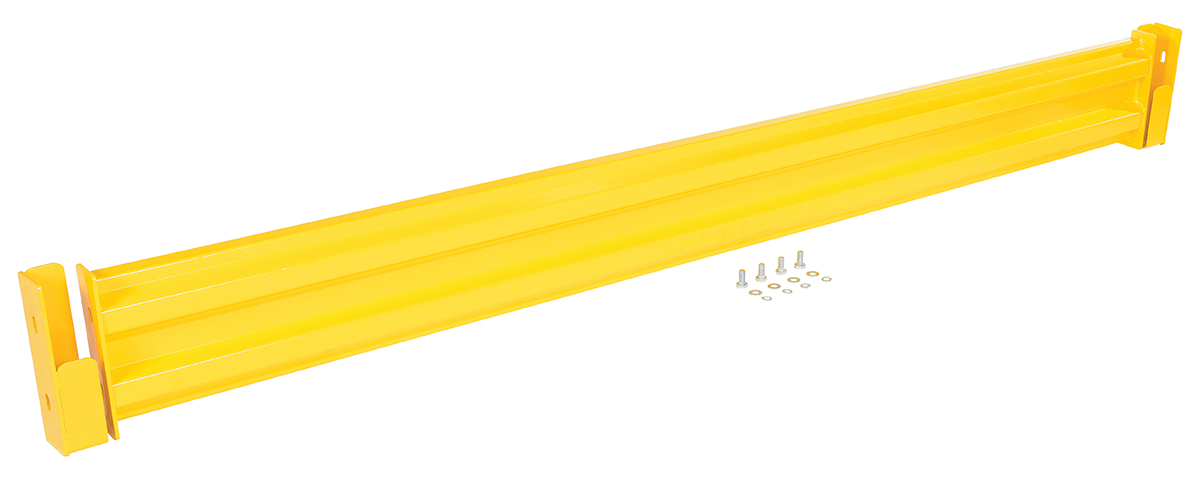

GR-F2R-DI-1-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 12 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	13
GR-F2R-DI-10-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 114 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	160

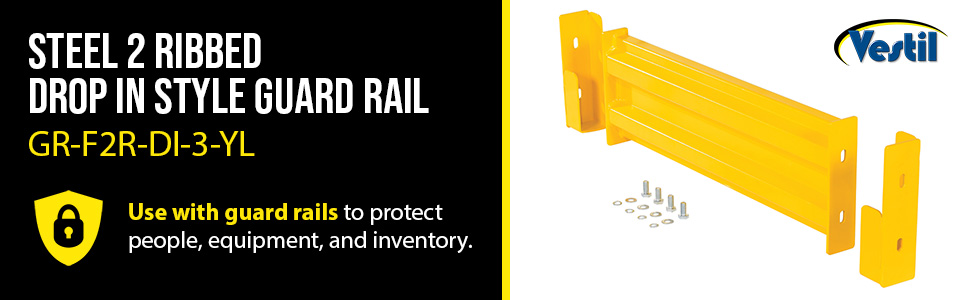

GR-F2R-DI-2-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 24 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	21
GR-F2R-DI-3-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 30 In Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	42

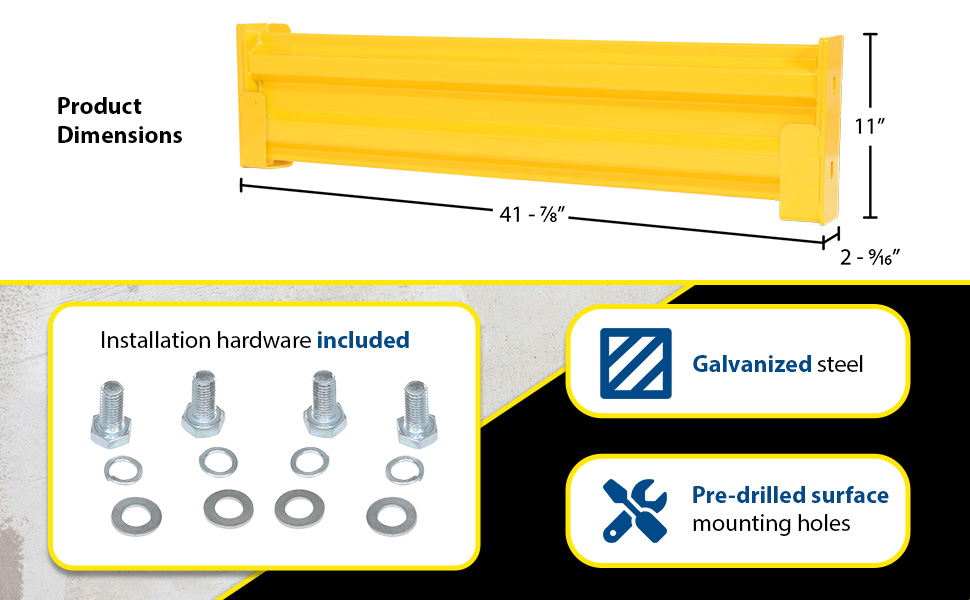

GR-F2R-DI-4-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 42 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	51
GR-F2R-DI-5-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 54 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	92

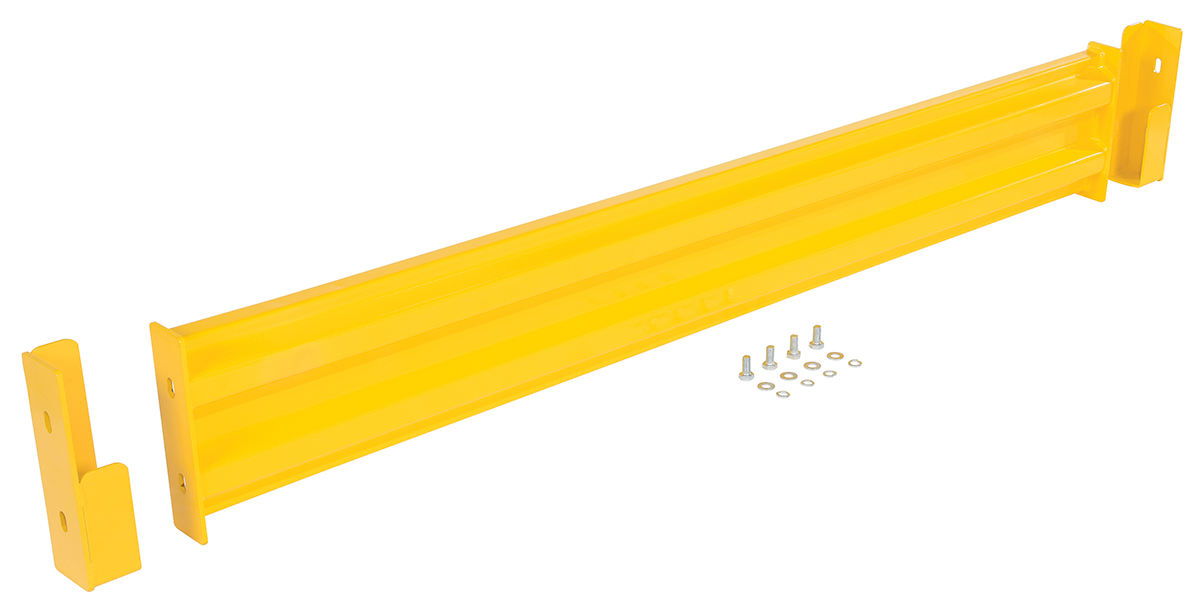

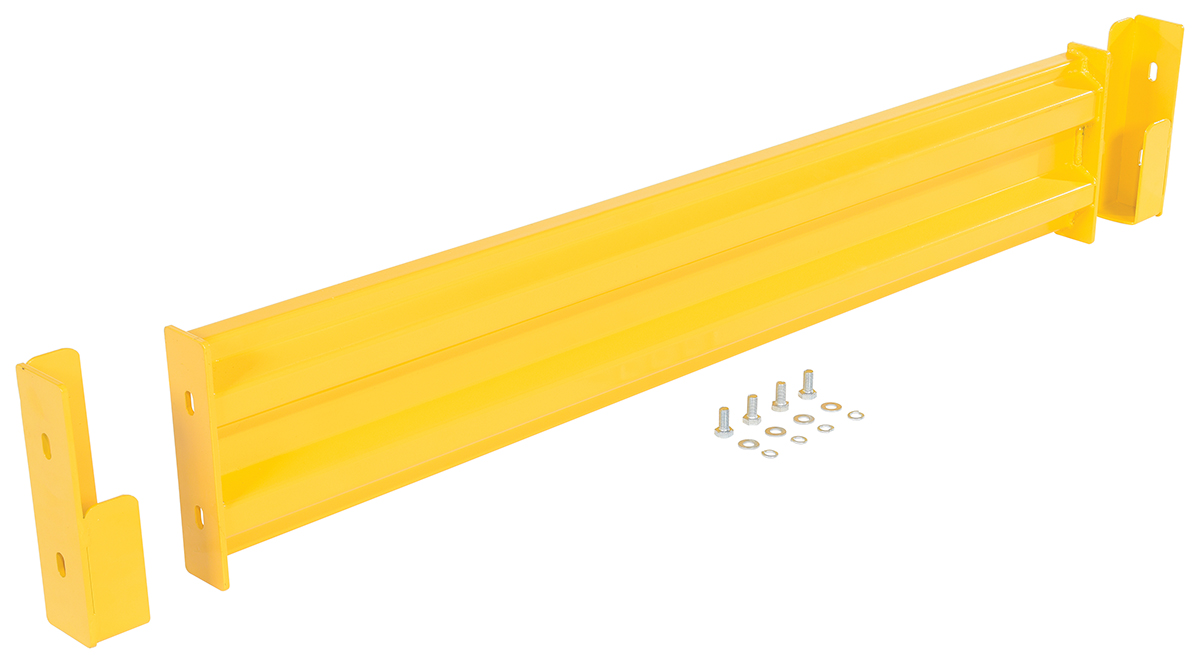

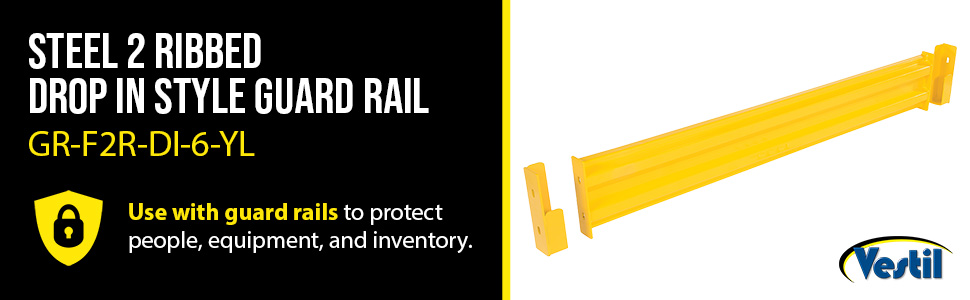

GR-F2R-DI-6-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 66 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	102
GR-F2R-DI-7-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 78 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	114

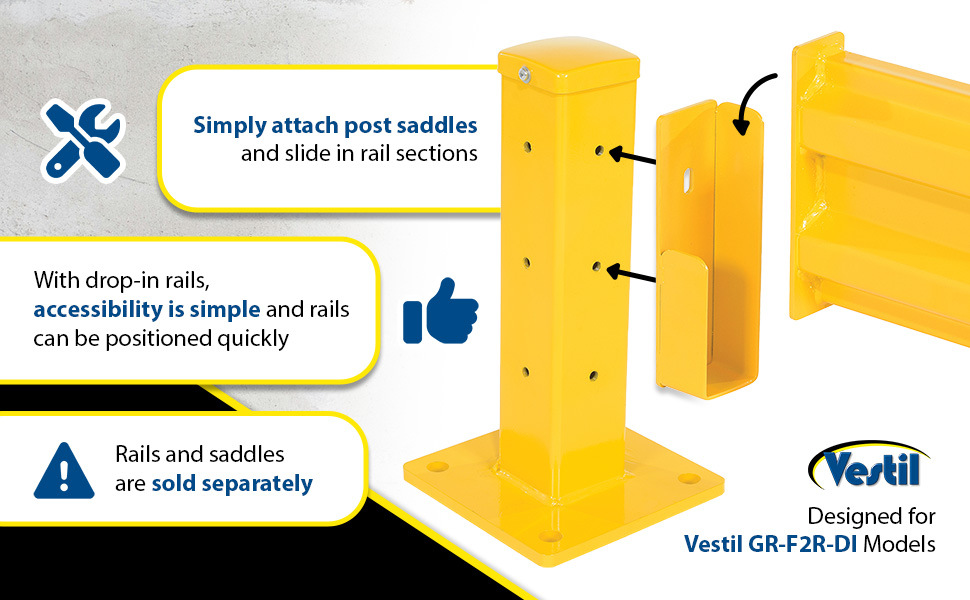

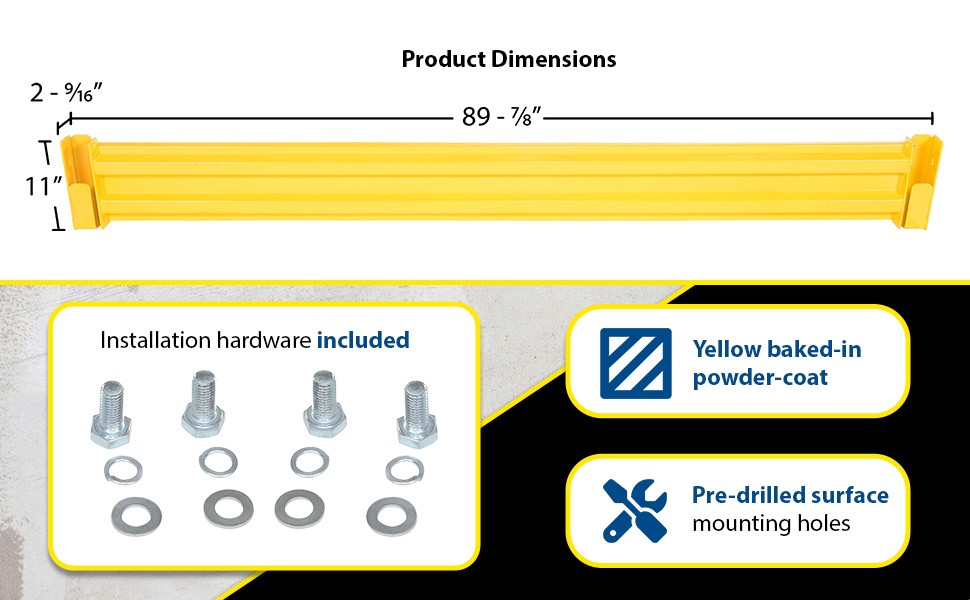

GR-F2R-DI-8-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 90 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	134
GR-F2R-DI-9-YL	90 Days Limited Warranty	Steel 2 Ribbed Drop In Style Guard Rail 102 In. Length Yellow	Mounting Post (qty.): 2 Rail Style: Drop-In Rail with Brackets and Hardware	148

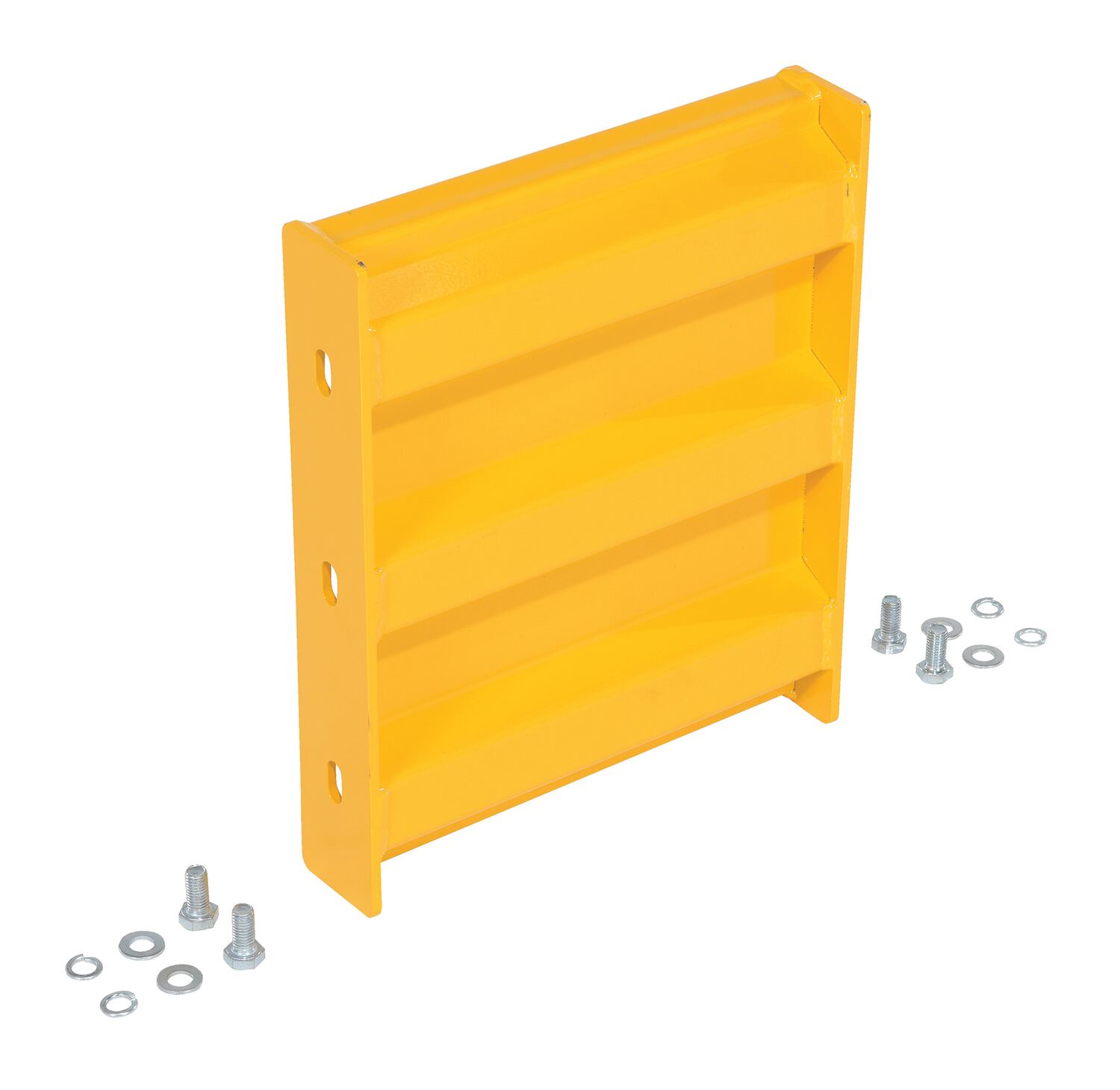

GR-F3R-BO-1-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	12

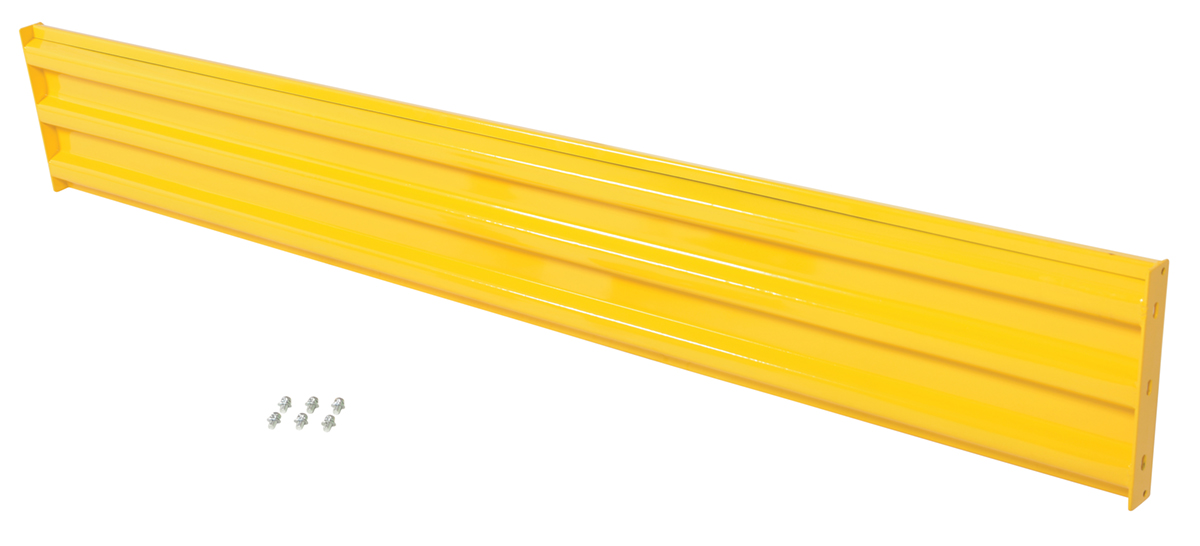

GR-F3R-BO-10-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 113.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	162

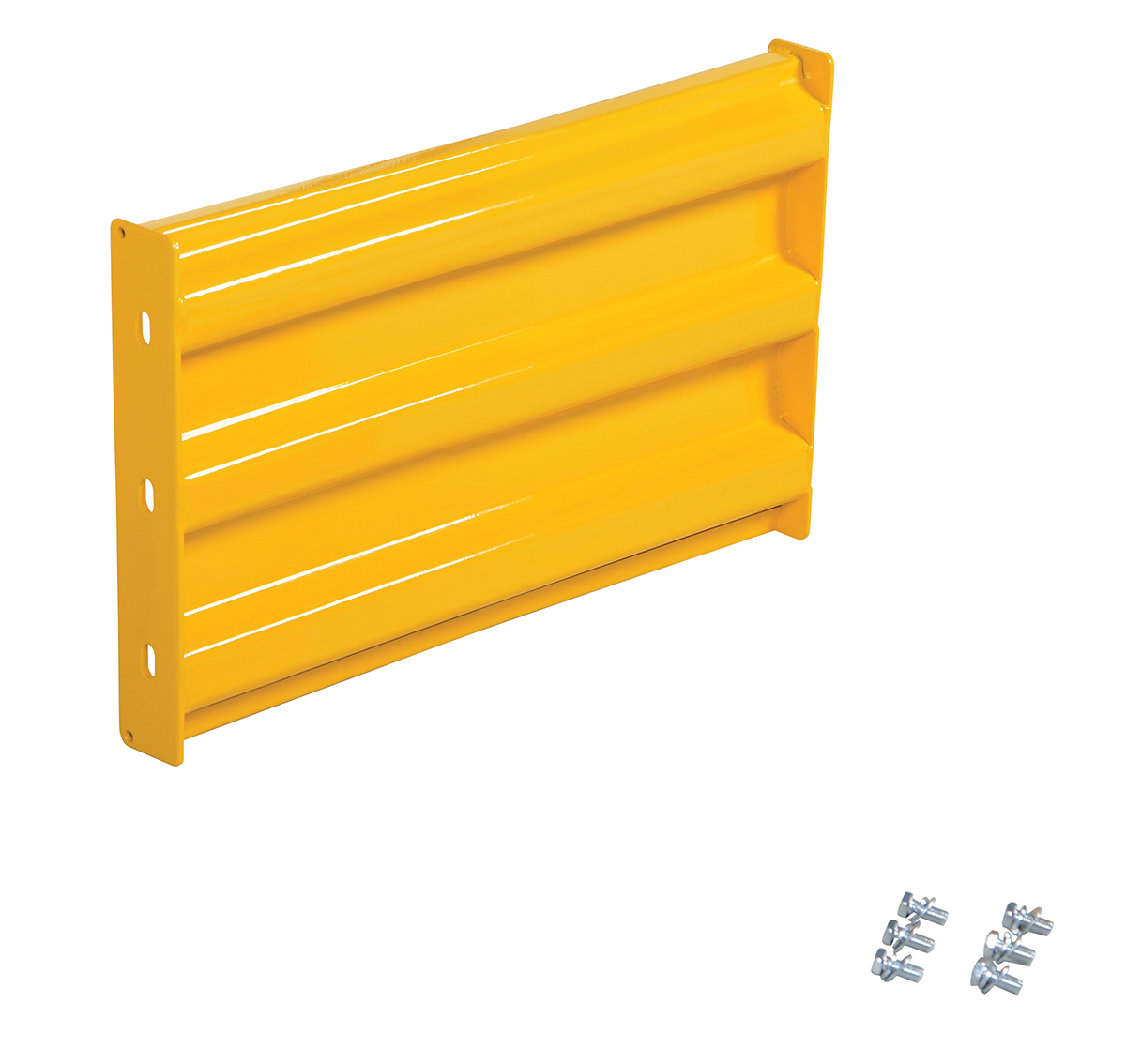

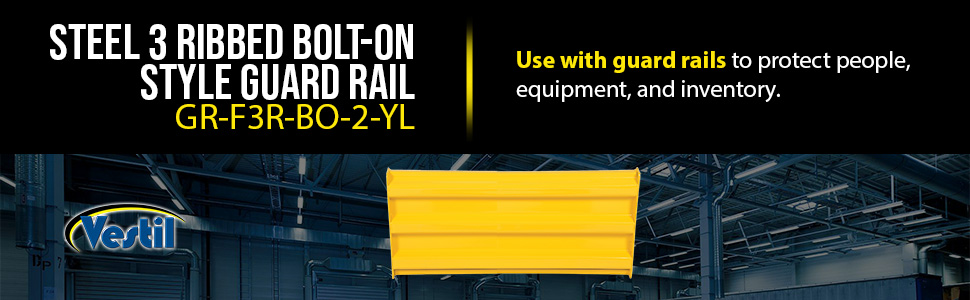

GR-F3R-BO-2-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 24 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	24
GR-F3R-BO-3-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 29.875 In Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	39

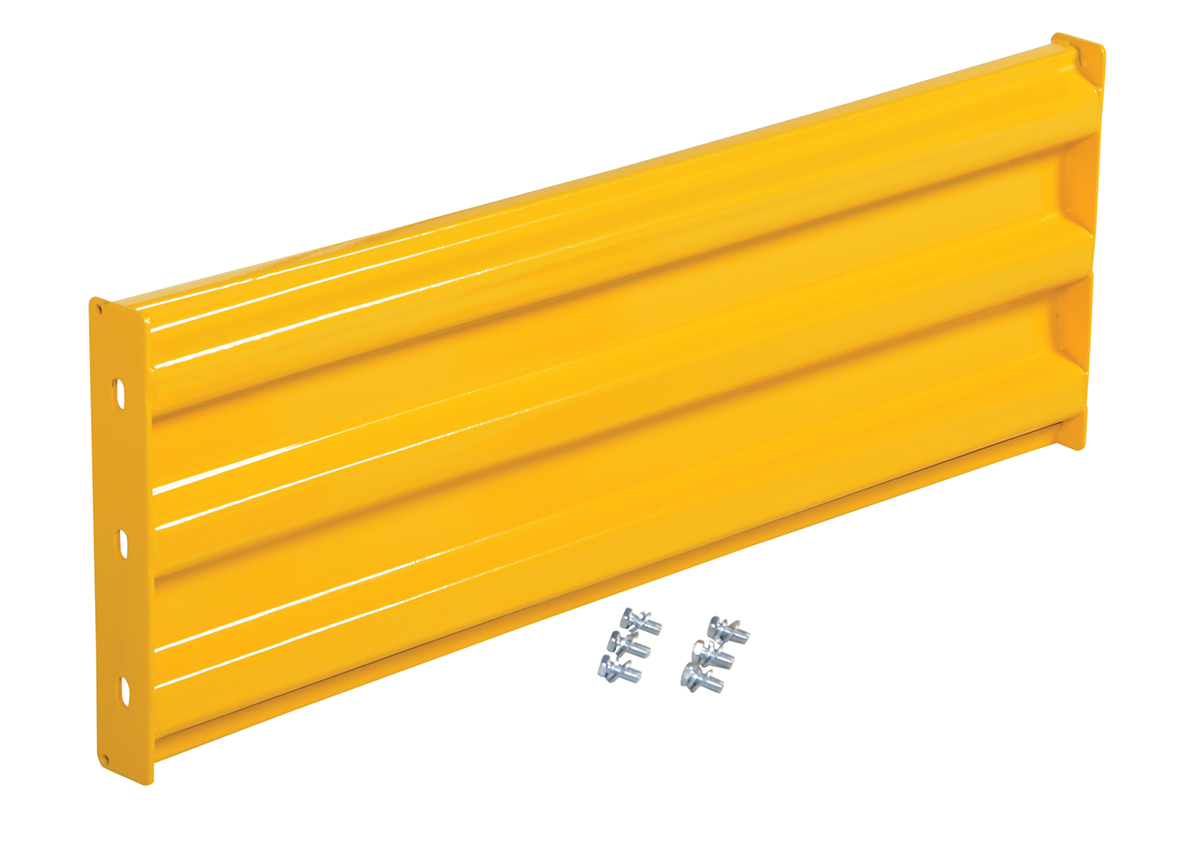

GR-F3R-BO-4-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 41.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	48

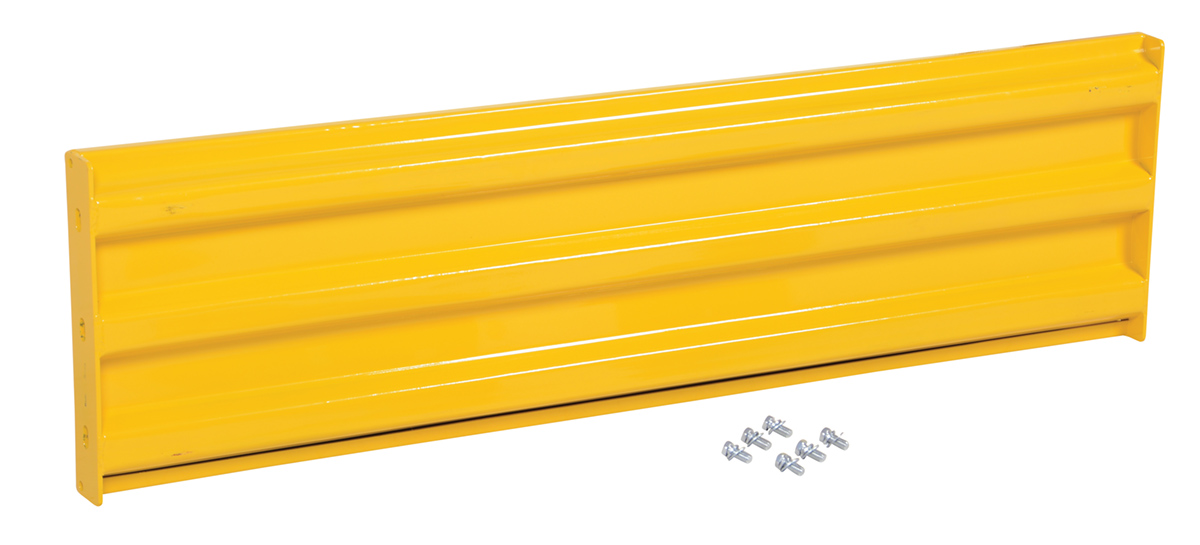

GR-F3R-BO-5-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 53.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	94
GR-F3R-BO-6-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 65.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	106
GR-F3R-BO-7-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 77.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	118

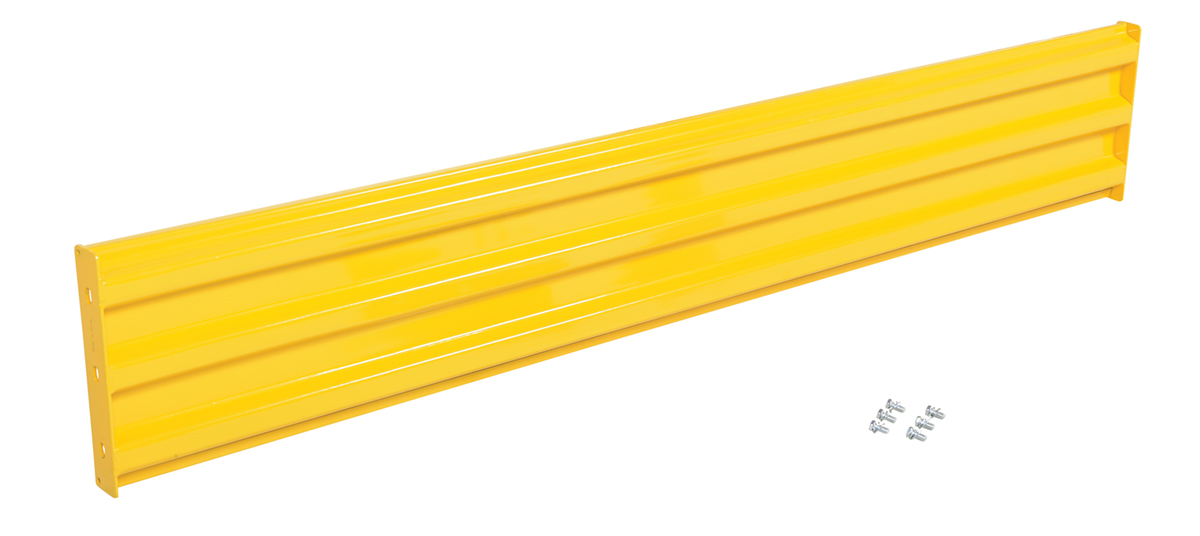

GR-F3R-BO-8-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 89.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	138

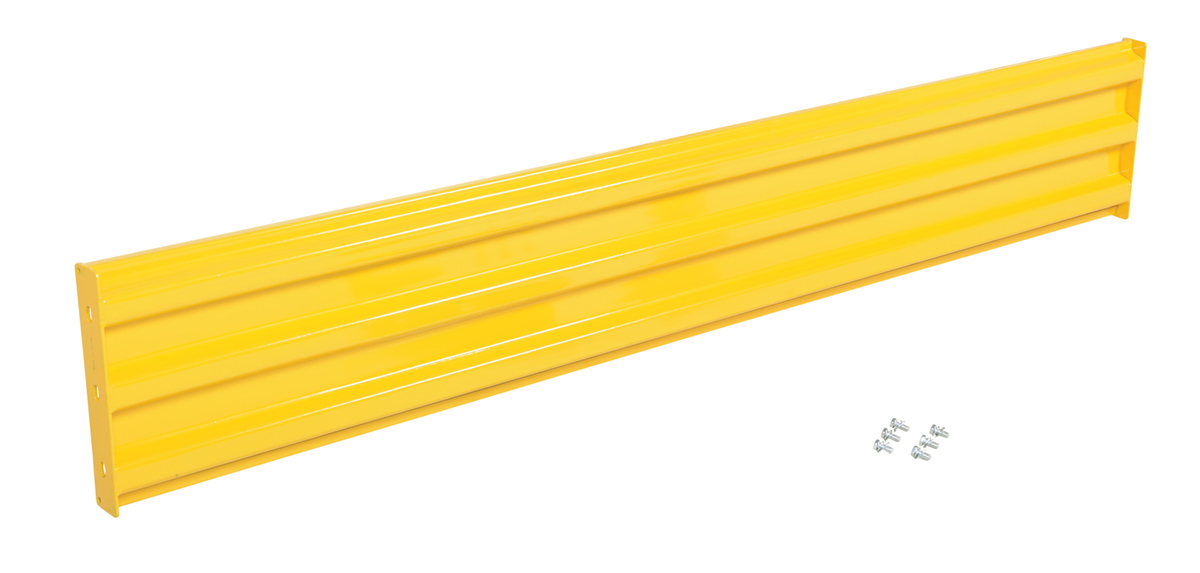

GR-F3R-BO-9-YL	90 Days Limited Warranty	Steel 3 Ribbed Bolt On Style Guard Rail 101.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	150

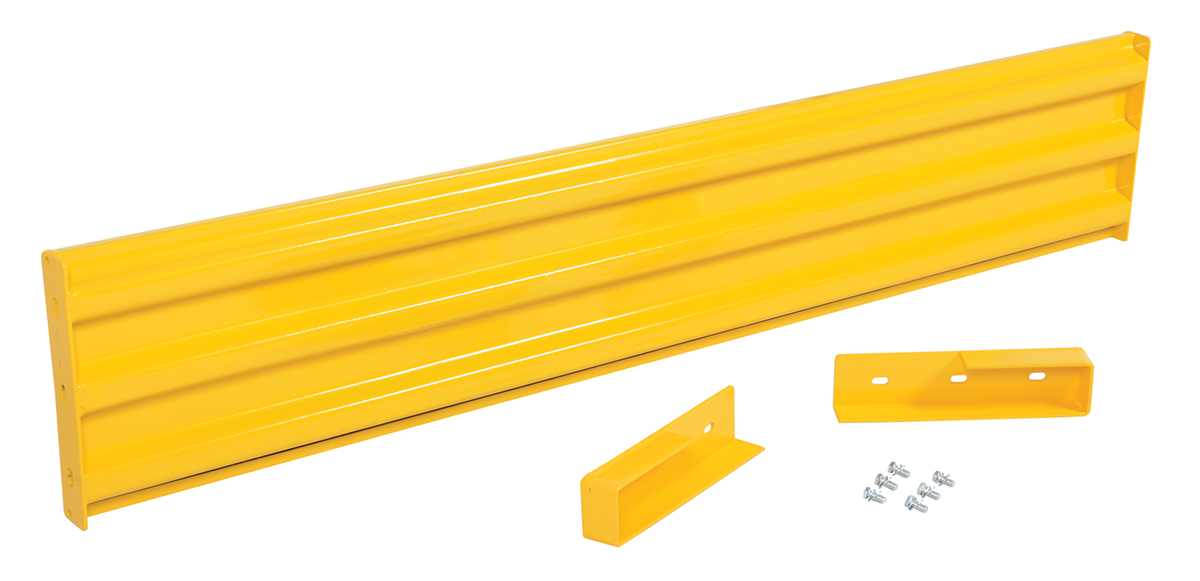

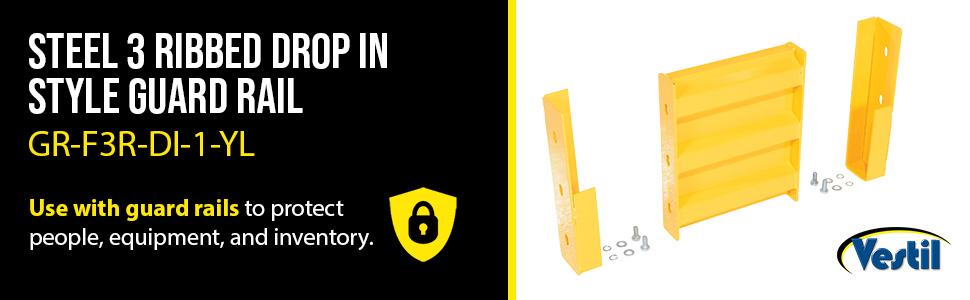

GR-F3R-DI-1-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 12 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	17

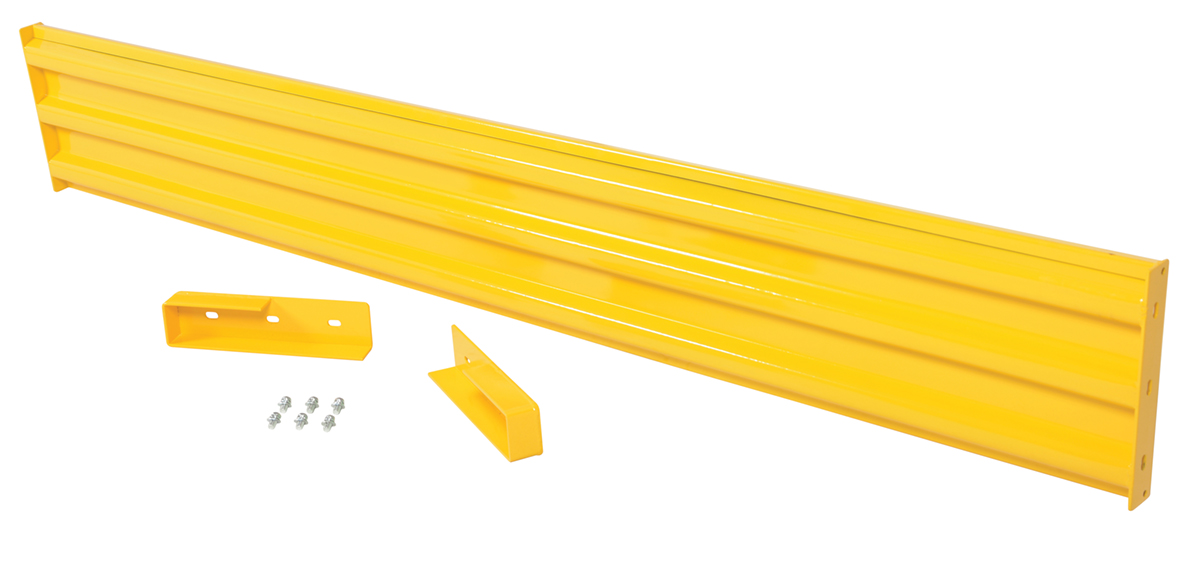

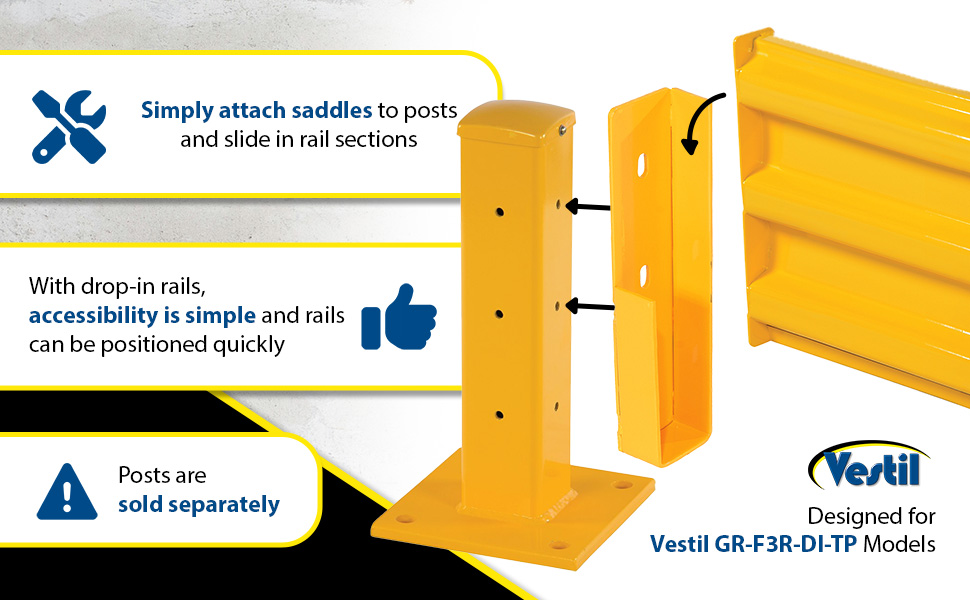

GR-F3R-DI-10-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 113.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	172
GR-F3R-DI-2-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 24 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	29

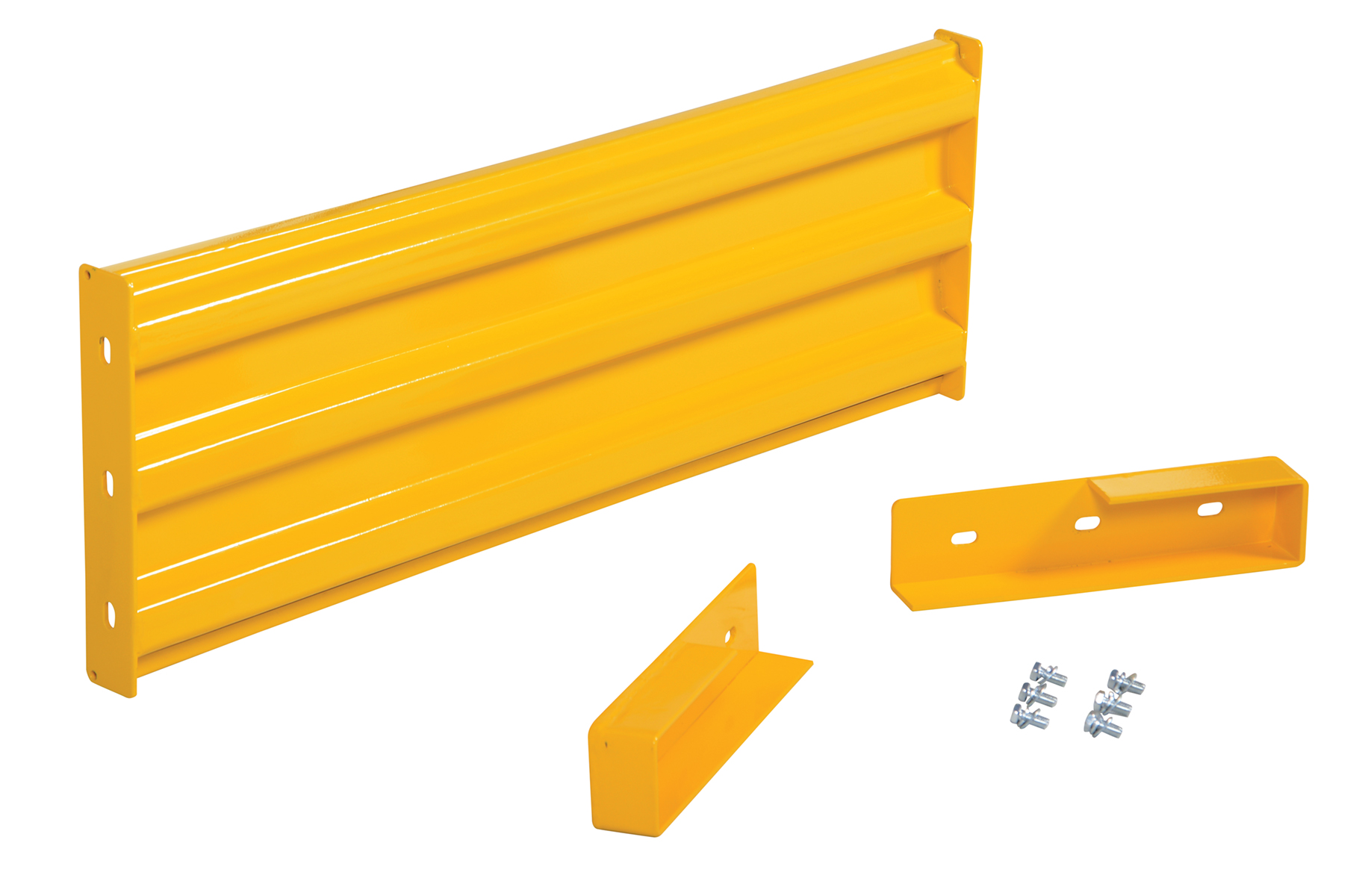

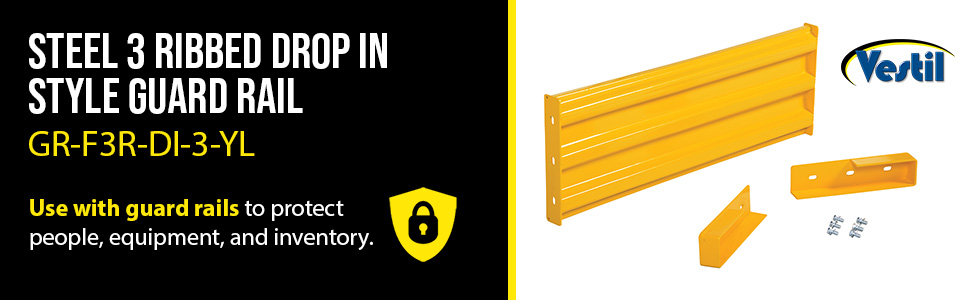

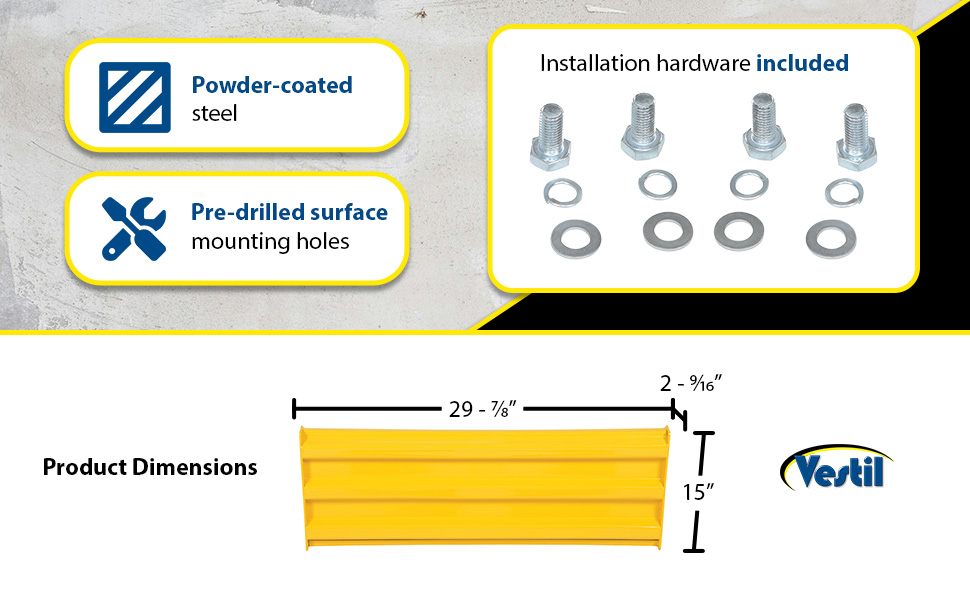

GR-F3R-DI-3-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 29.875 In Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	49
GR-F3R-DI-4-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 41.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	58
GR-F3R-DI-5-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 53.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	104

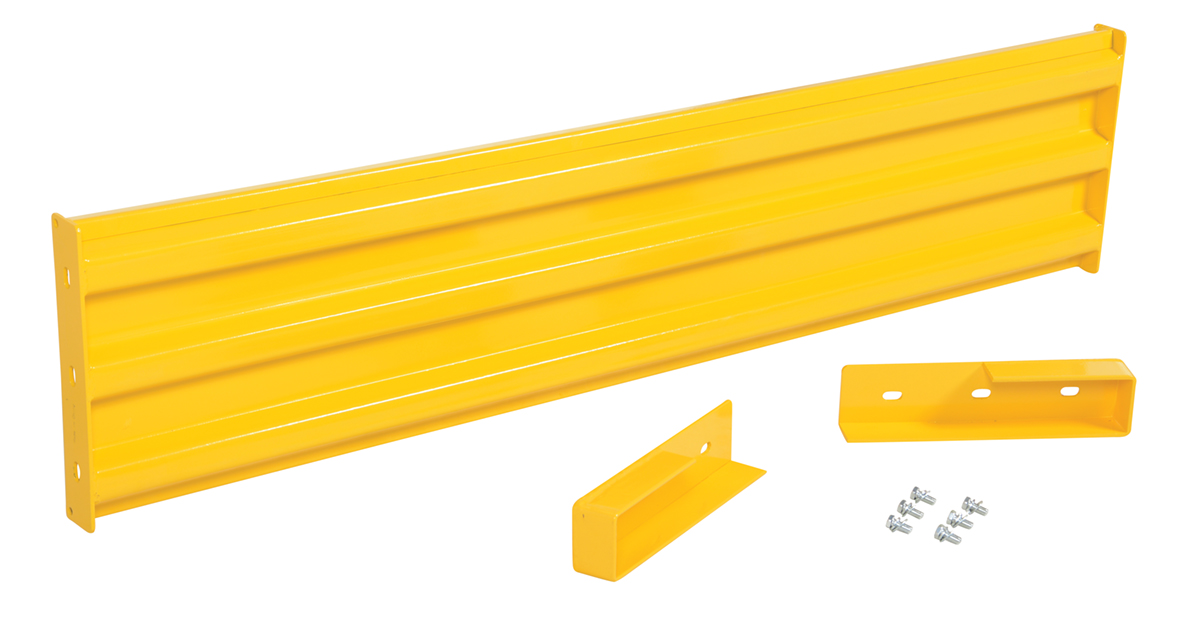

GR-F3R-DI-6-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 65.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	116
GR-F3R-DI-7-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 77.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	128

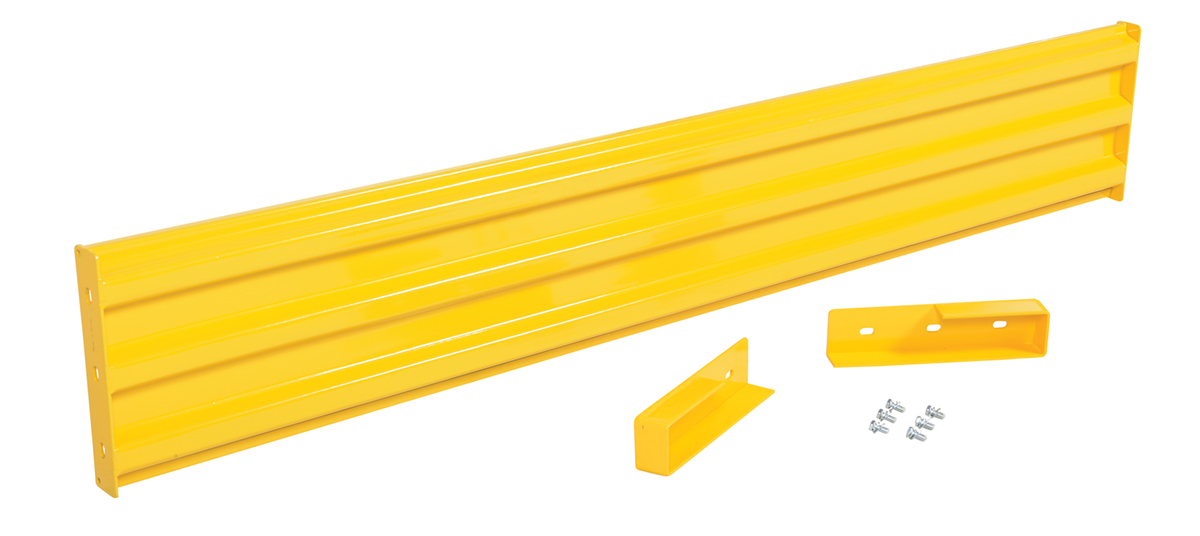

GR-F3R-DI-8-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 89.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post (qty.): 2	148

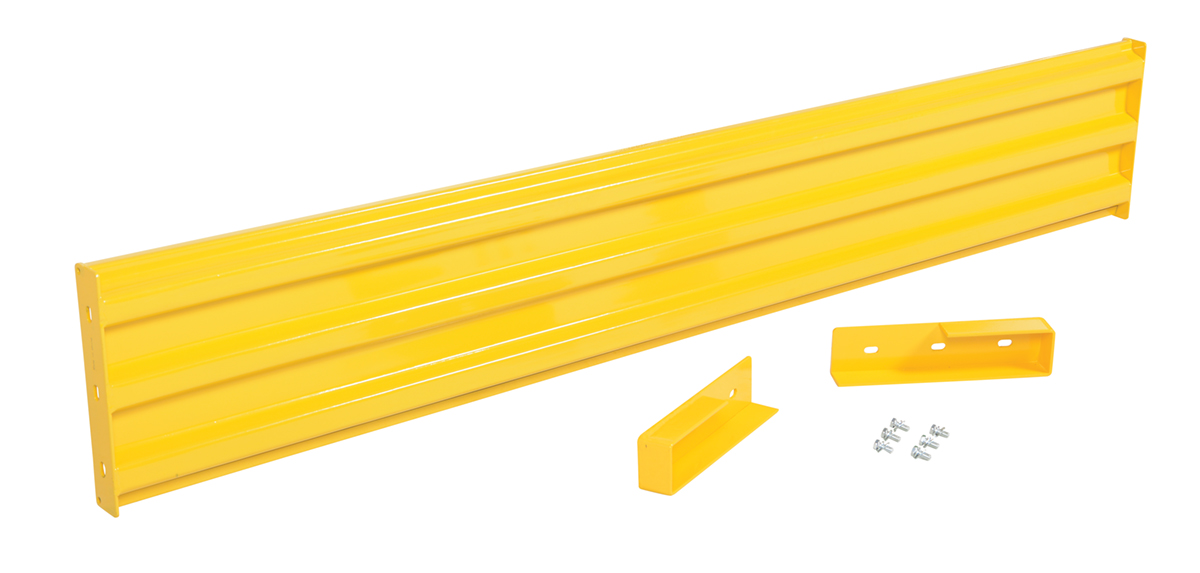

GR-F3R-DI-9-YL	90 Days Limited Warranty	Steel 3 Ribbed Drop In Style Guard Rail 101.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Mounting Post Required (qty.): 2	160

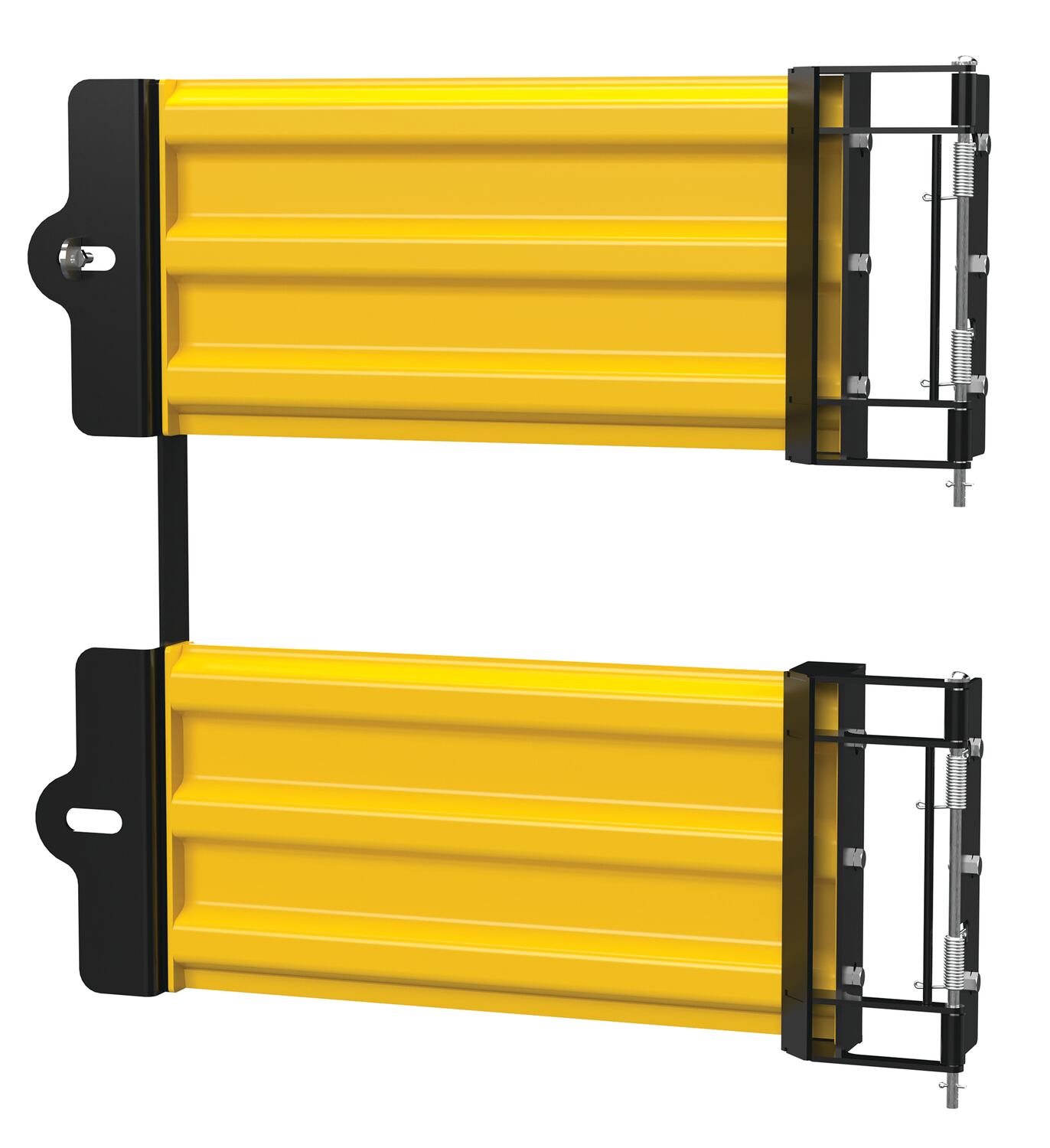

GR-F3R-GBD-3-YL	90 Days Limited Warranty	Steel 3 Ribbed Guard Rail Spring Gate 29.875 In Length Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 10	143
GR-F3R-GBD-4-YL	90 Days Limited Warranty	Steel 3 Ribbed Guard Rail Spring Gate 41.875 In. Length Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 10	143

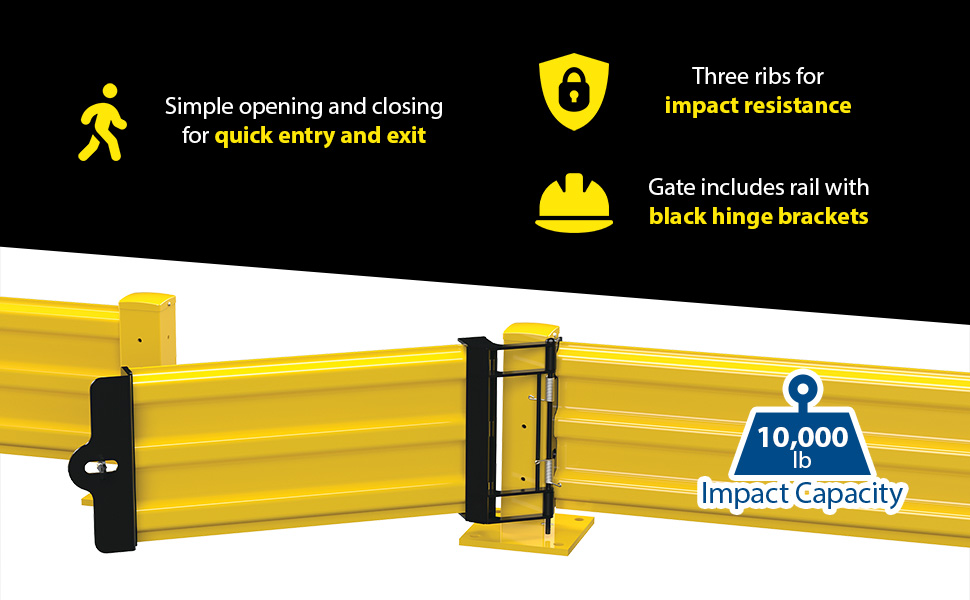

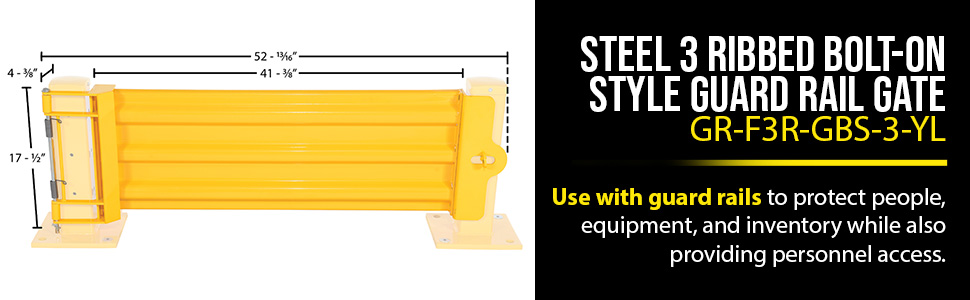

GR-F3R-GBS-3-YL	90 Days Limited Warranty	Steel Hinged Guard Rail 29.875 In Length 3 Ribbed Gate Yellow	Impact Capacity (Lbs.): 10,000 Hardware Included: Yes	252

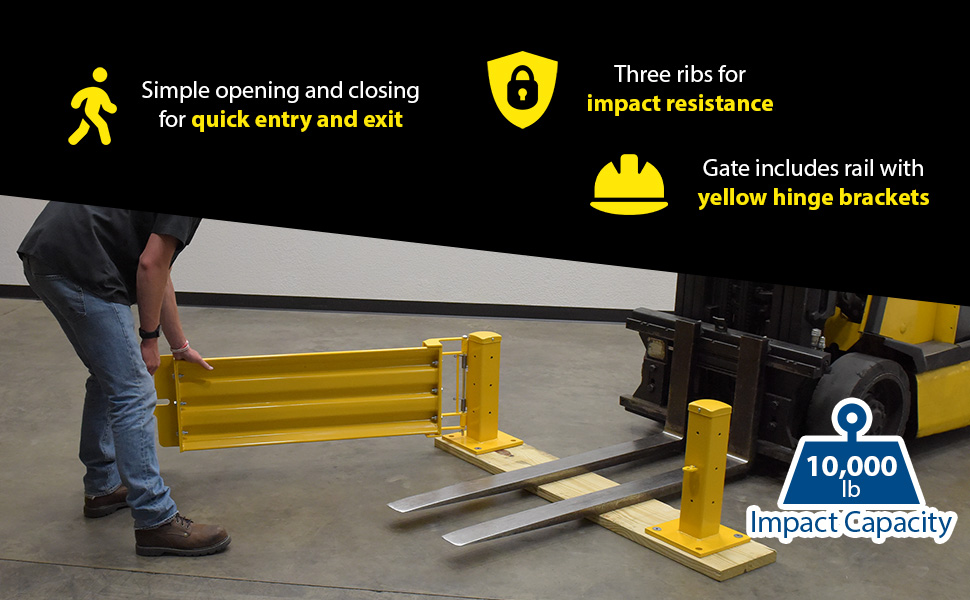

GR-F3R-GBS-4-YL	90 Days Limited Warranty	Steel Hinged Guard Rail 41.875 In. Length 3 Ribbed Gate Yellow	Impact Capacity (Lbs.): 10,000 Hardware Included: Yes	261

Model #

Description

Attributes

Net Wt.
(lbs)

90 Days Limited Warranty

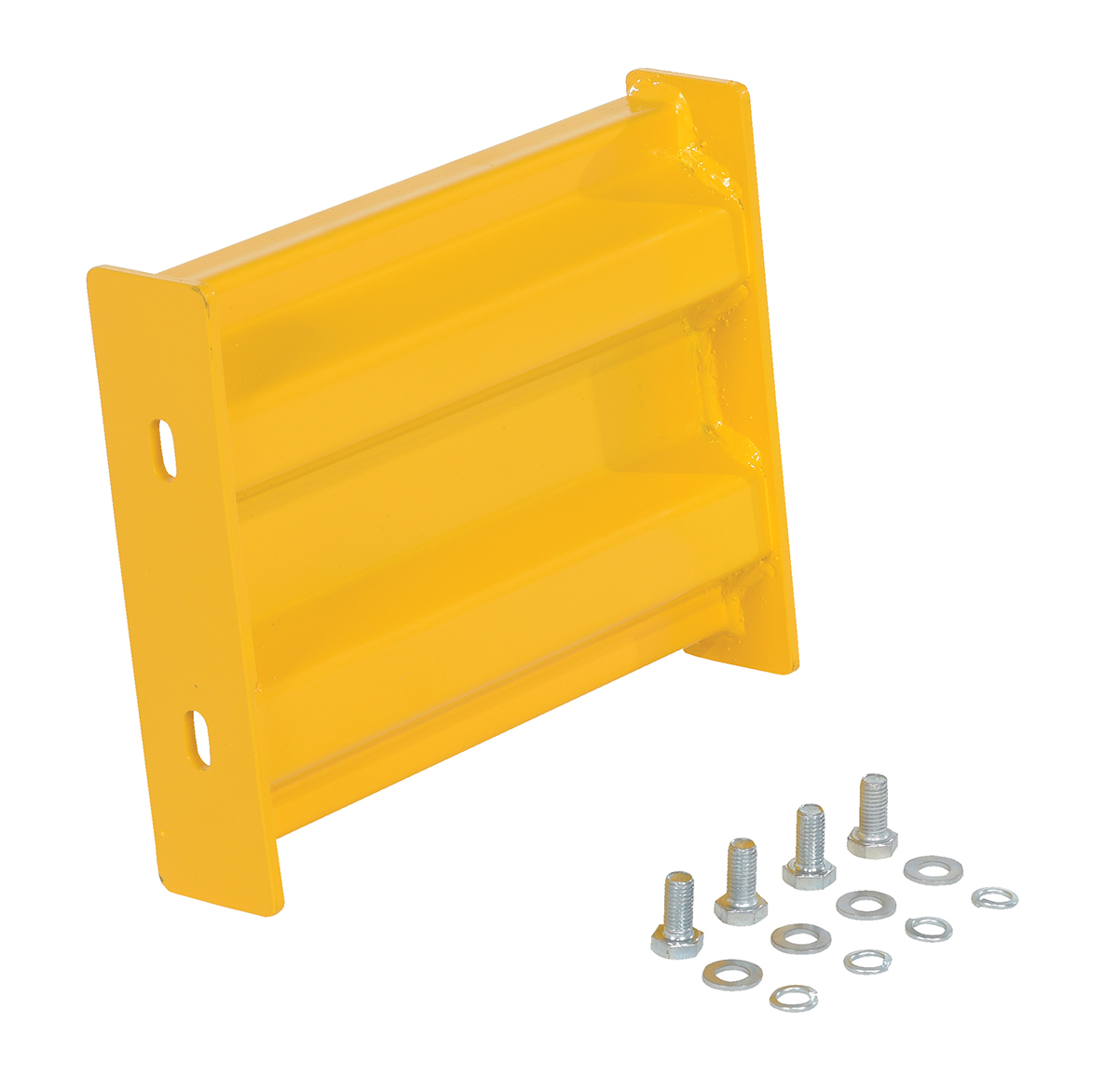

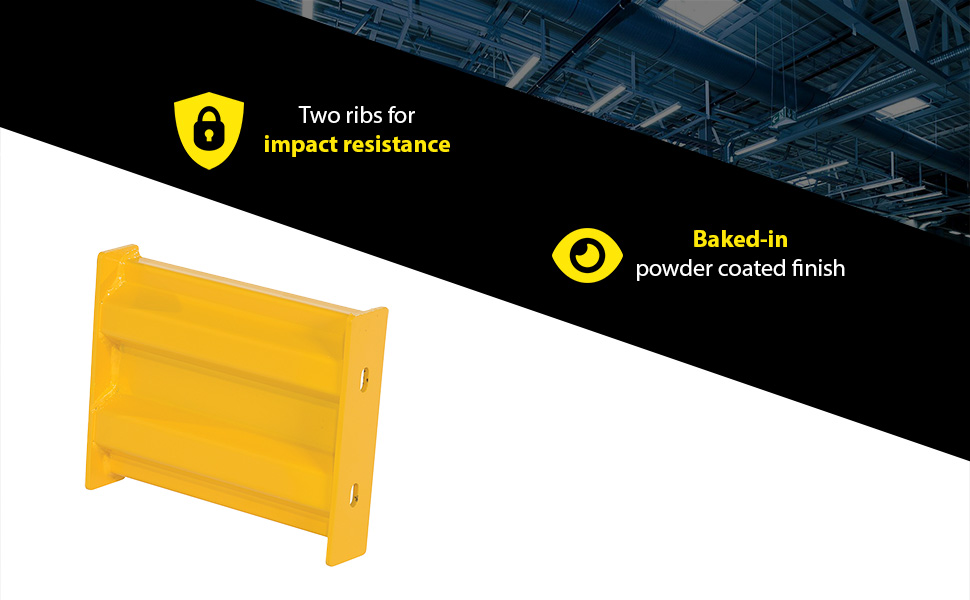

Steel 2 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow

Mounting Post (qty.): 2

90 Days Limited Warranty

Steel 2 Ribbed Bolt On Style Guard Rail 114 In. Length Yellow

Mounting Post (qty.): 2

150

90 Days Limited Warranty

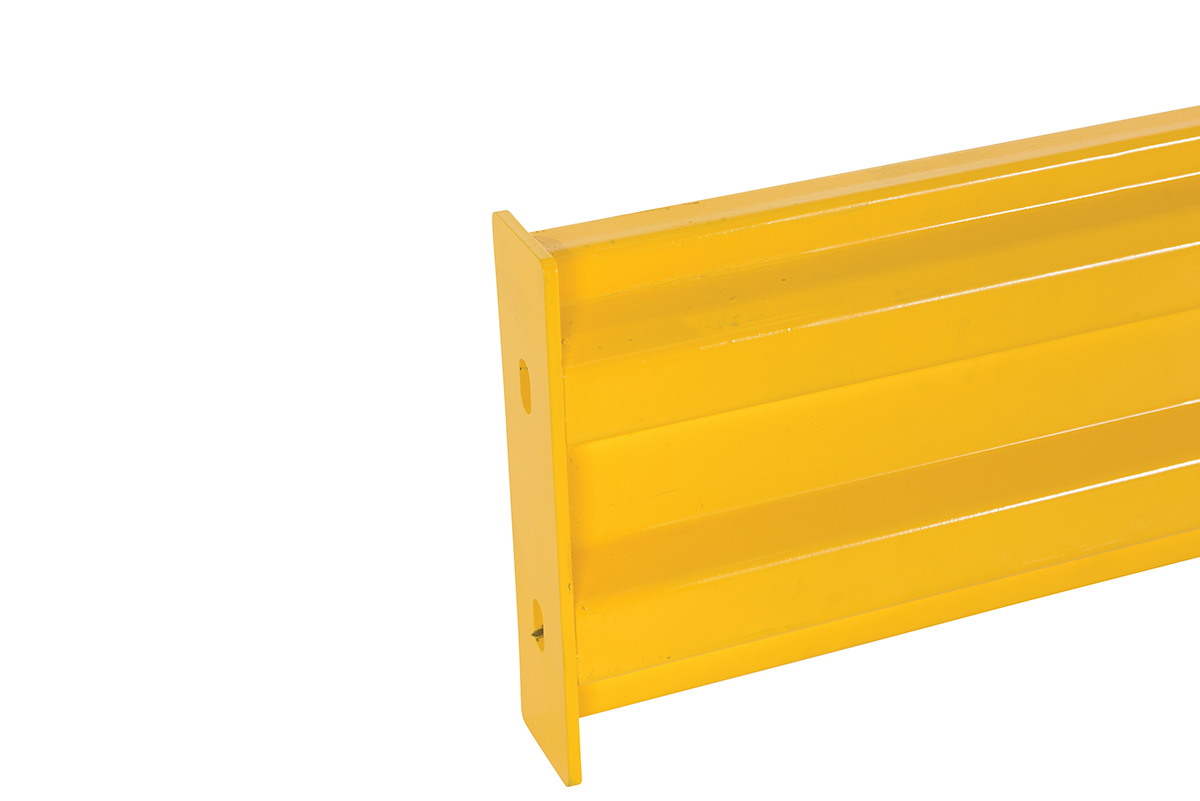

Steel 2 Ribbed Bolt On Style Guard Rail 24 In. Length Yellow

Mounting Post (qty.): 2

90 Days Limited Warranty

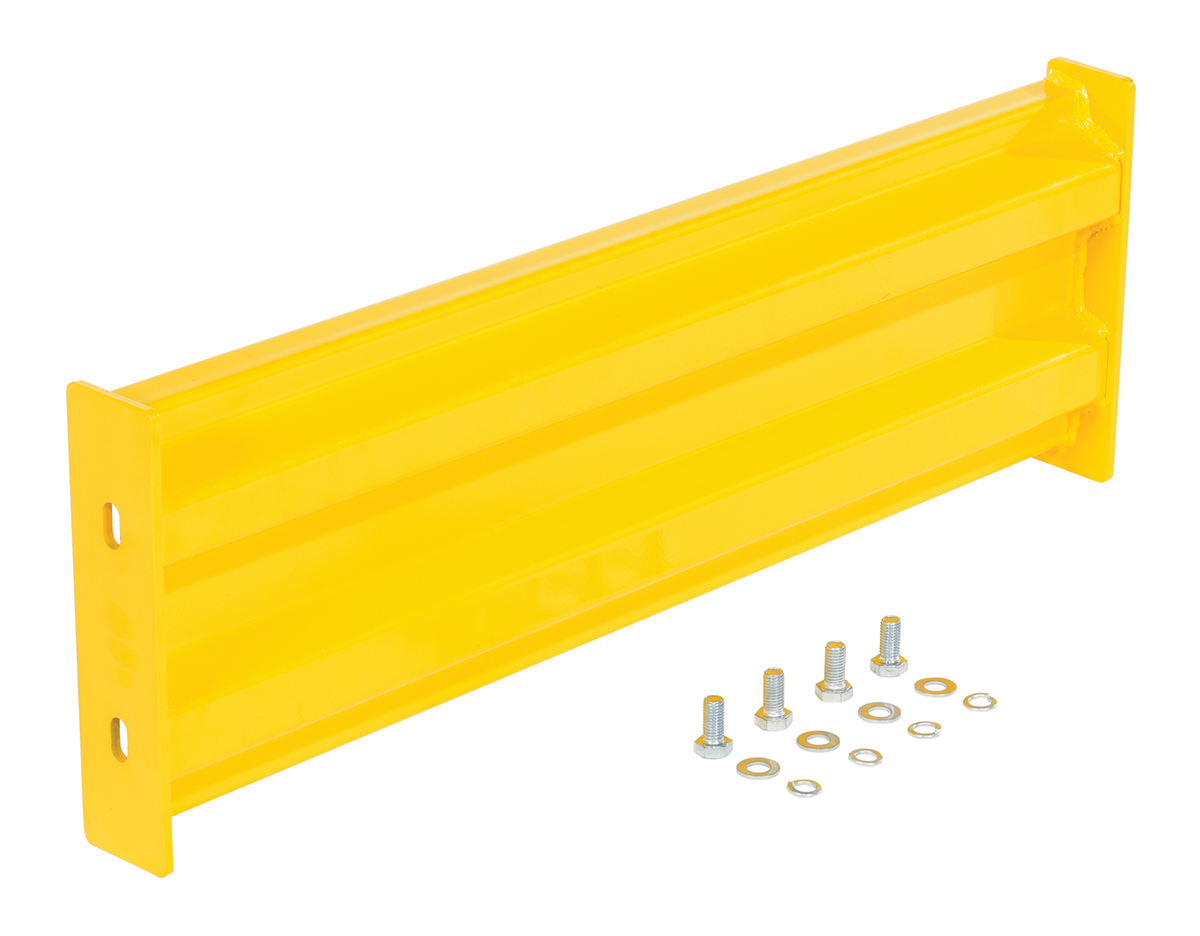

Steel 2 Ribbed Bolt On Style Guard Rail 30 In Length Yellow

Mounting Post (qty.): 2

90 Days Limited Warranty

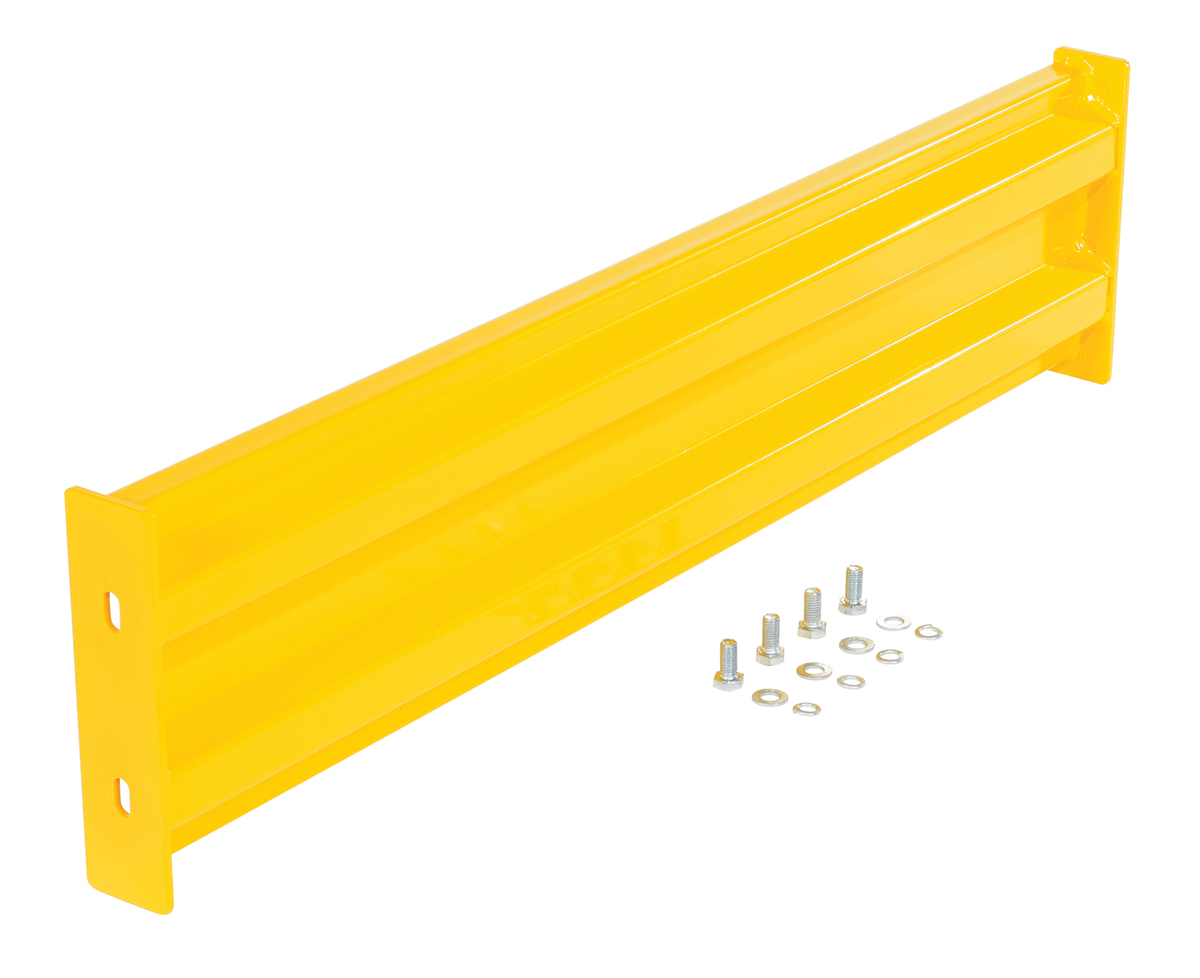

Steel 2 Ribbed Bolt On Style Guard Rail 42 In. Length Yellow

Mounting Post (qty.): 2

90 Days Limited Warranty

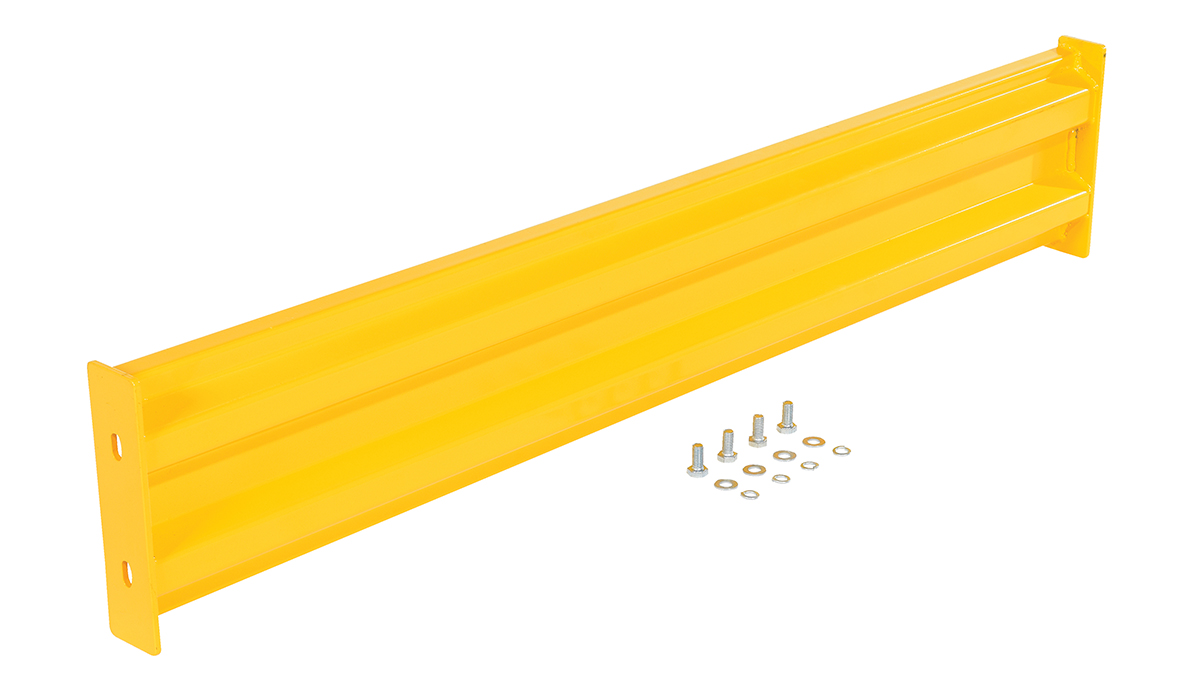

Steel 2 Ribbed Bolt On Style Guard Rail 54 In. Length Yellow

Mounting Post (qty.): 2

90 Days Limited Warranty

Steel 2 Ribbed Bolt On Style Guard Rail 66 In. Length Yellow

Mounting Post (qty.): 2

90 Days Limited Warranty

Steel 2 Ribbed Bolt On Style Guard Rail 78 In. Length Yellow

Mounting Post (qty.): 2

104

90 Days Limited Warranty

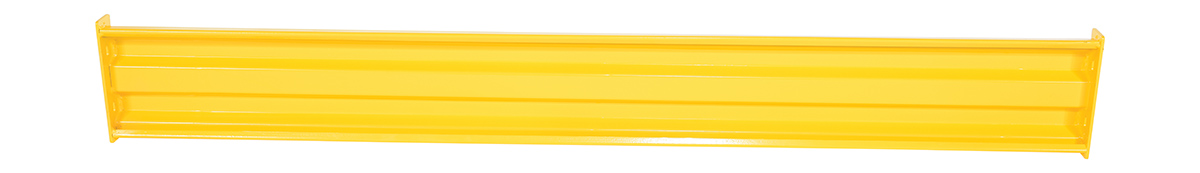

Steel 2 Ribbed Bolt On Style Guard Rail 90 In. Length Yellow

Mounting Post (qty.): 2

124

90 Days Limited Warranty

Steel 2 Ribbed Bolt On Style Guard Rail 102 In. Length Yellow

Mounting Post (qty.): 2

138

90 Days Limited Warranty

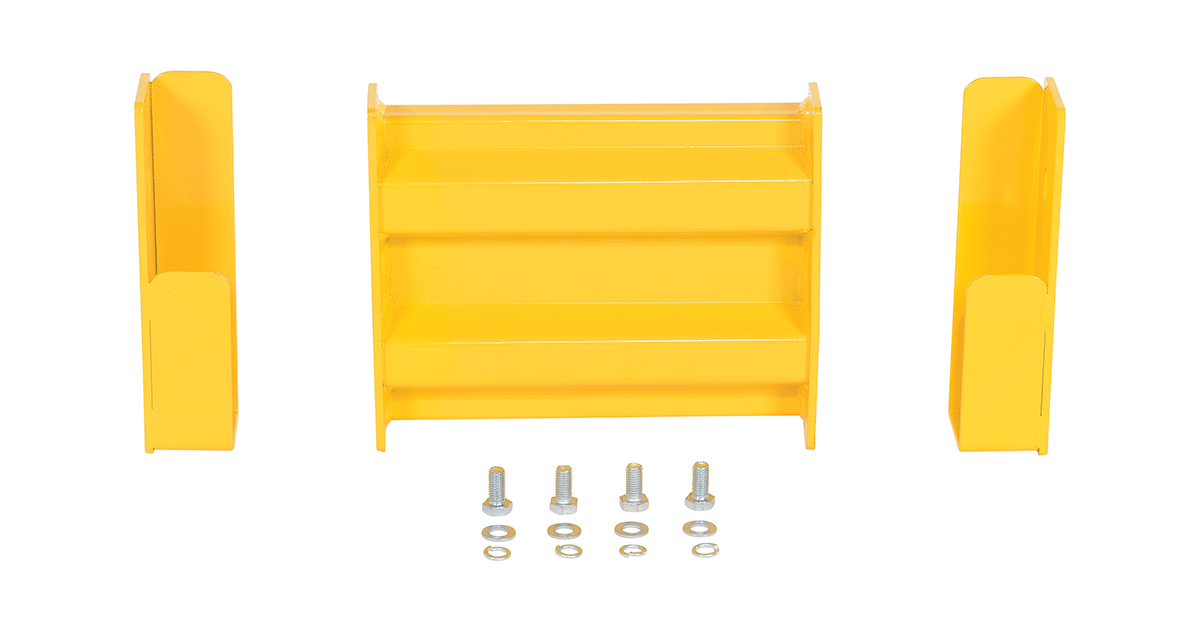

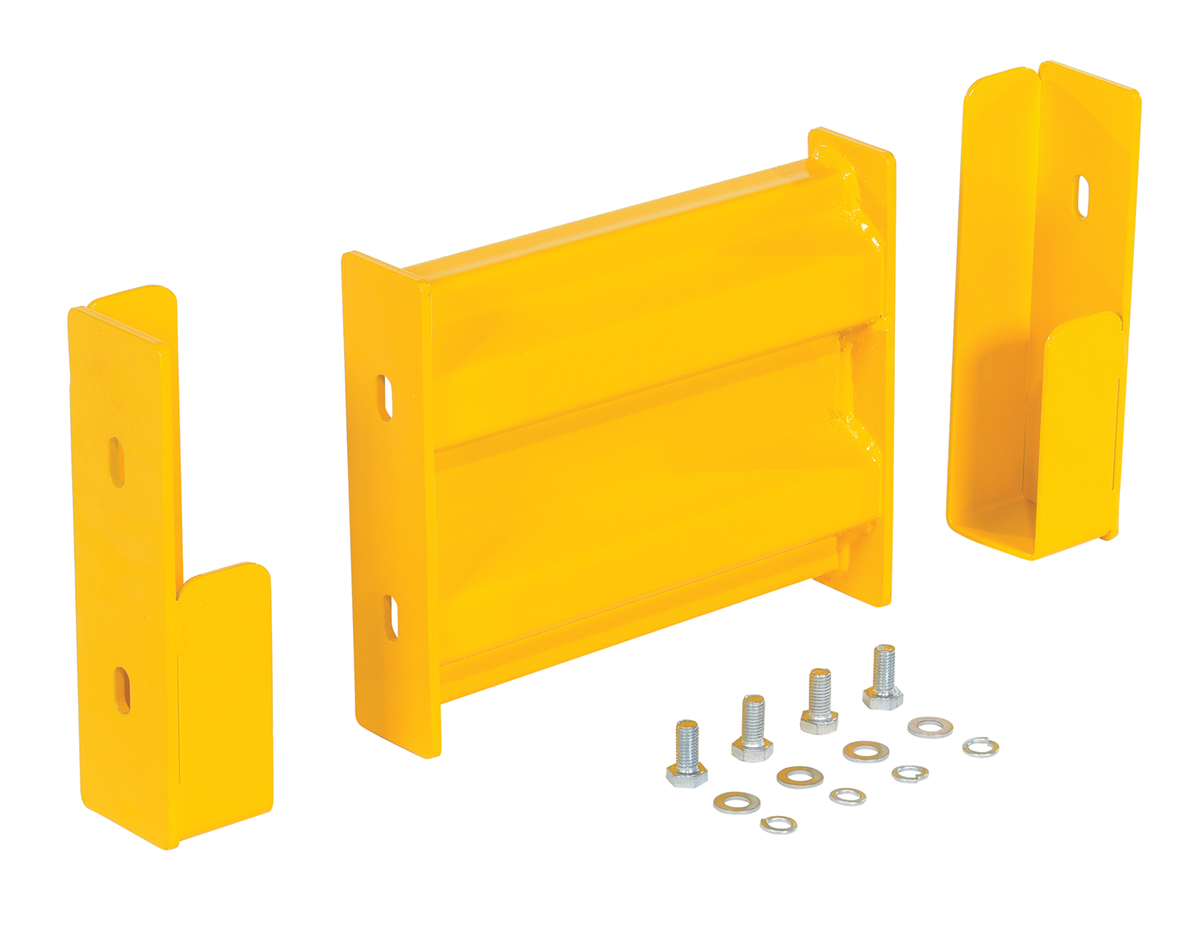

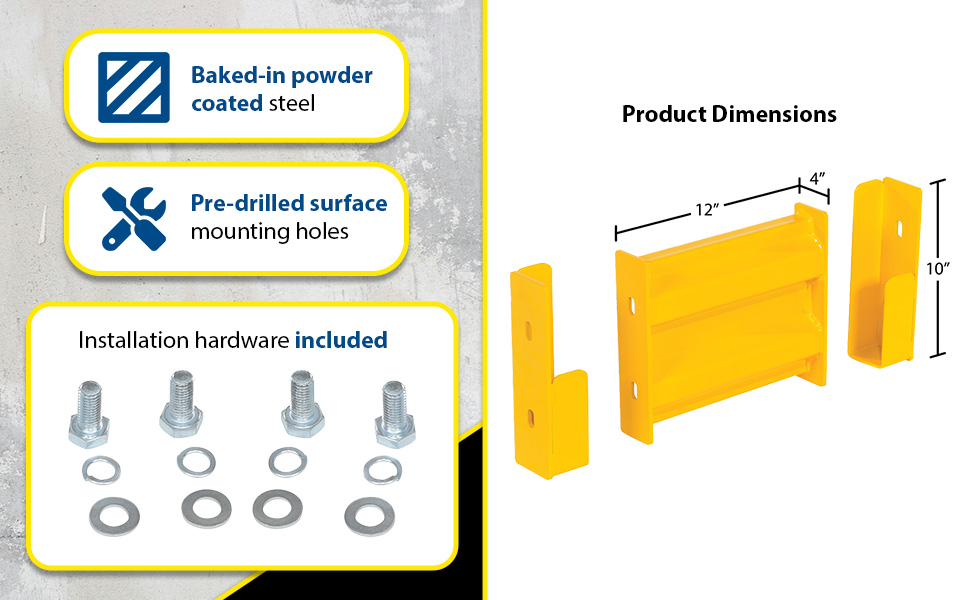

Steel 2 Ribbed Drop In Style Guard Rail 12 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

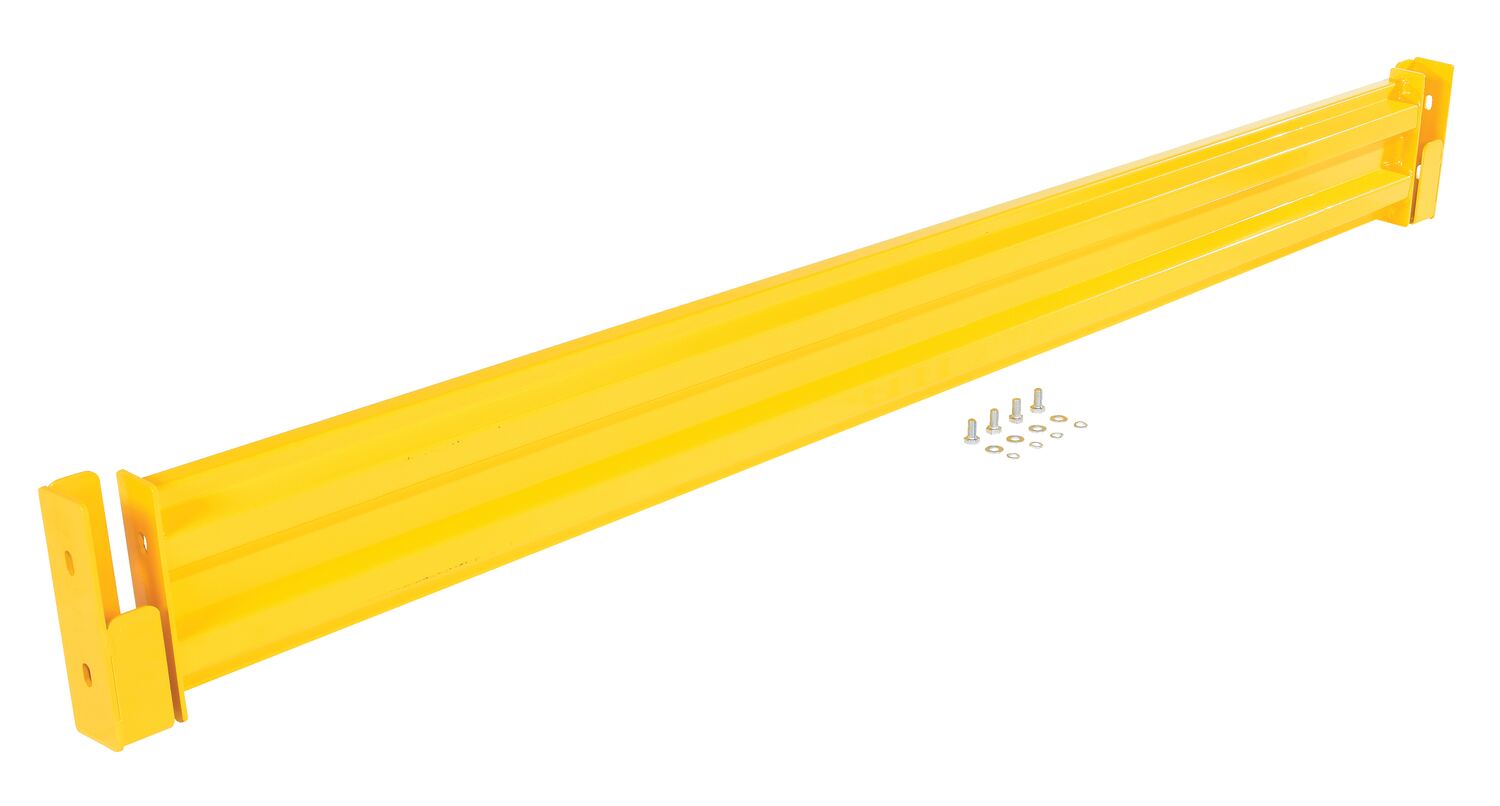

90 Days Limited Warranty

Steel 2 Ribbed Drop In Style Guard Rail 114 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

160

90 Days Limited Warranty

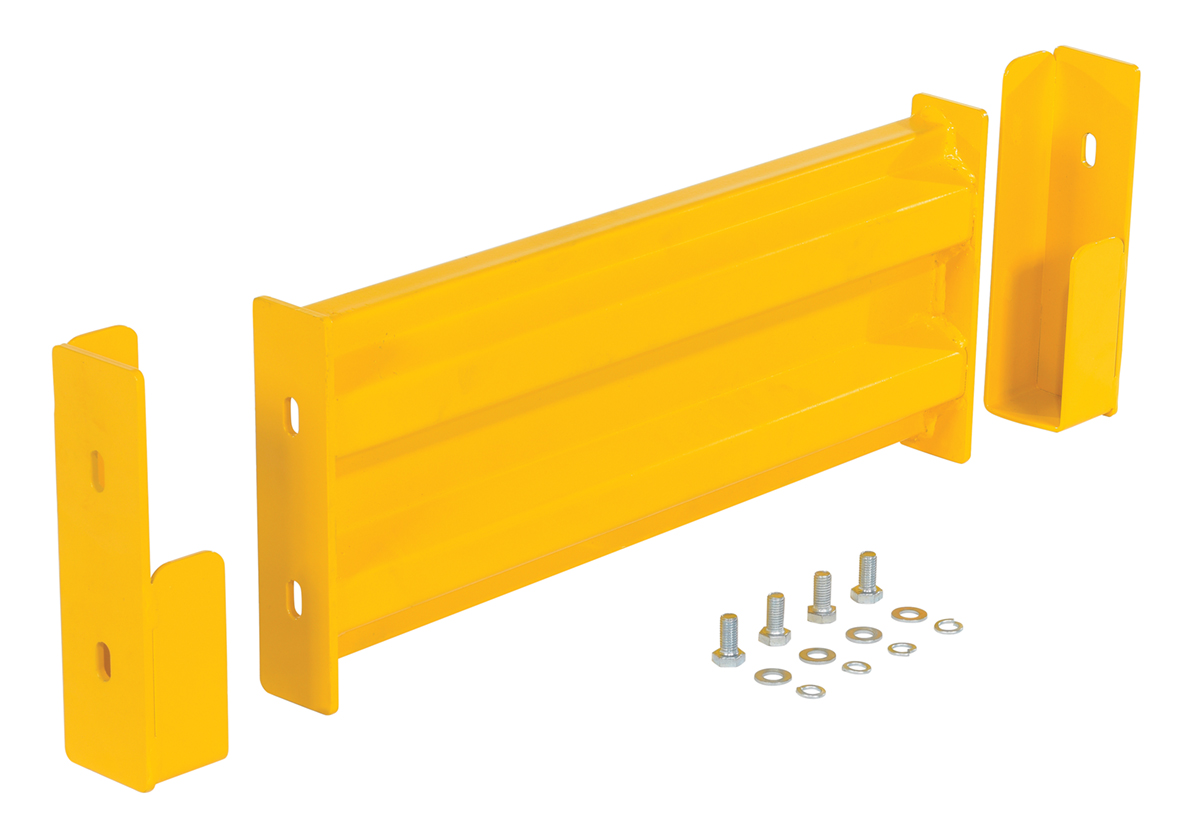

Steel 2 Ribbed Drop In Style Guard Rail 24 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

90 Days Limited Warranty

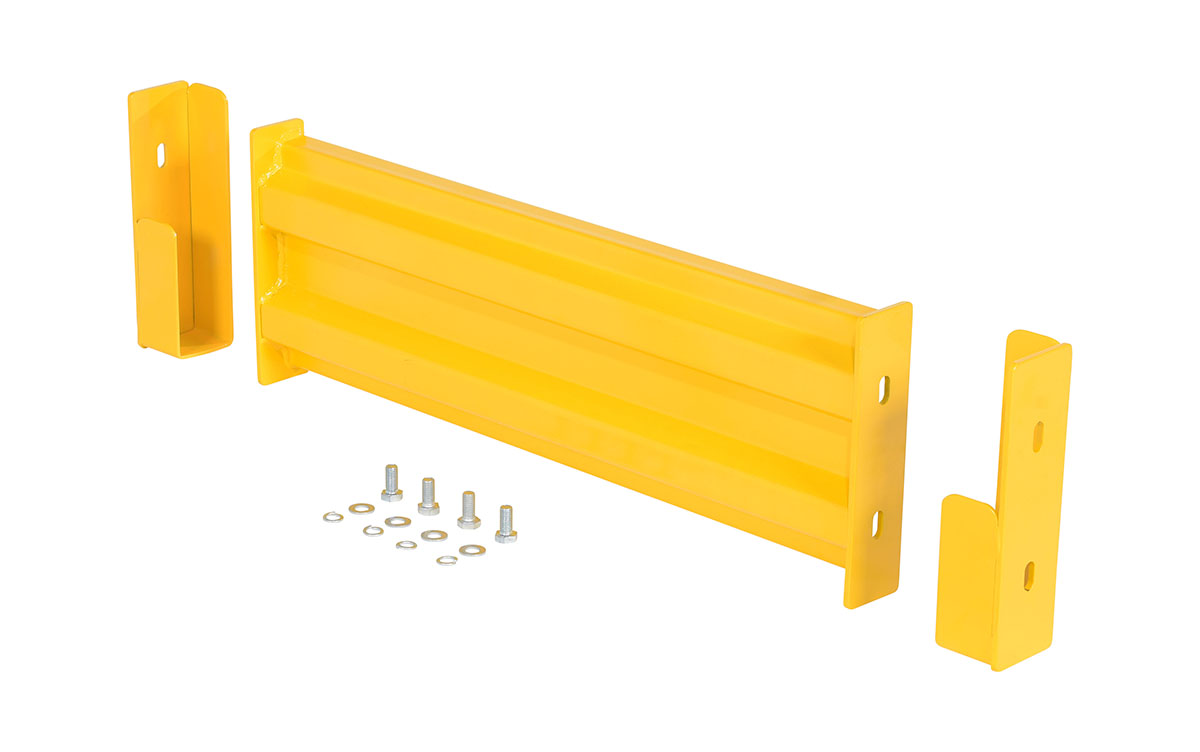

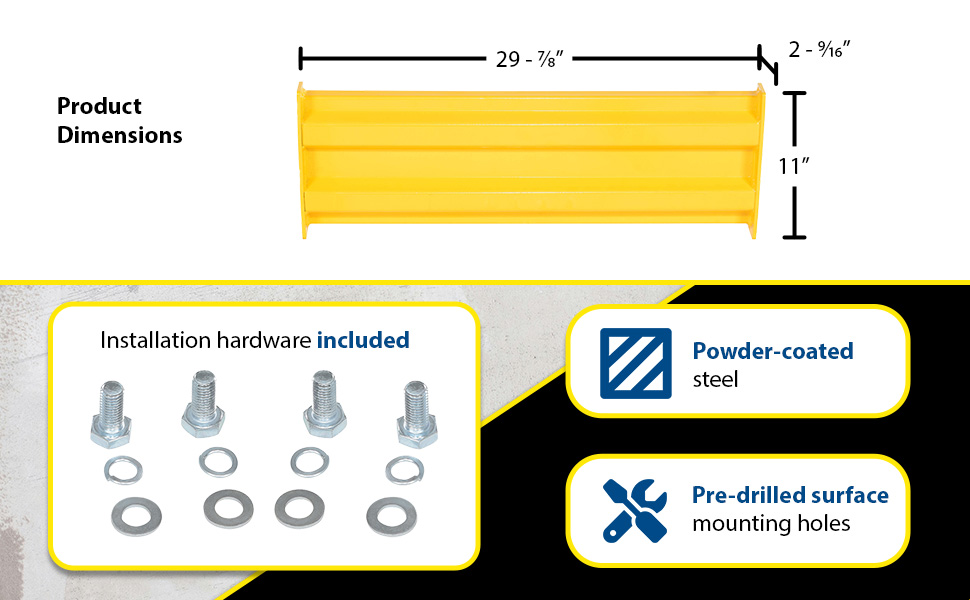

Steel 2 Ribbed Drop In Style Guard Rail 30 In Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

90 Days Limited Warranty

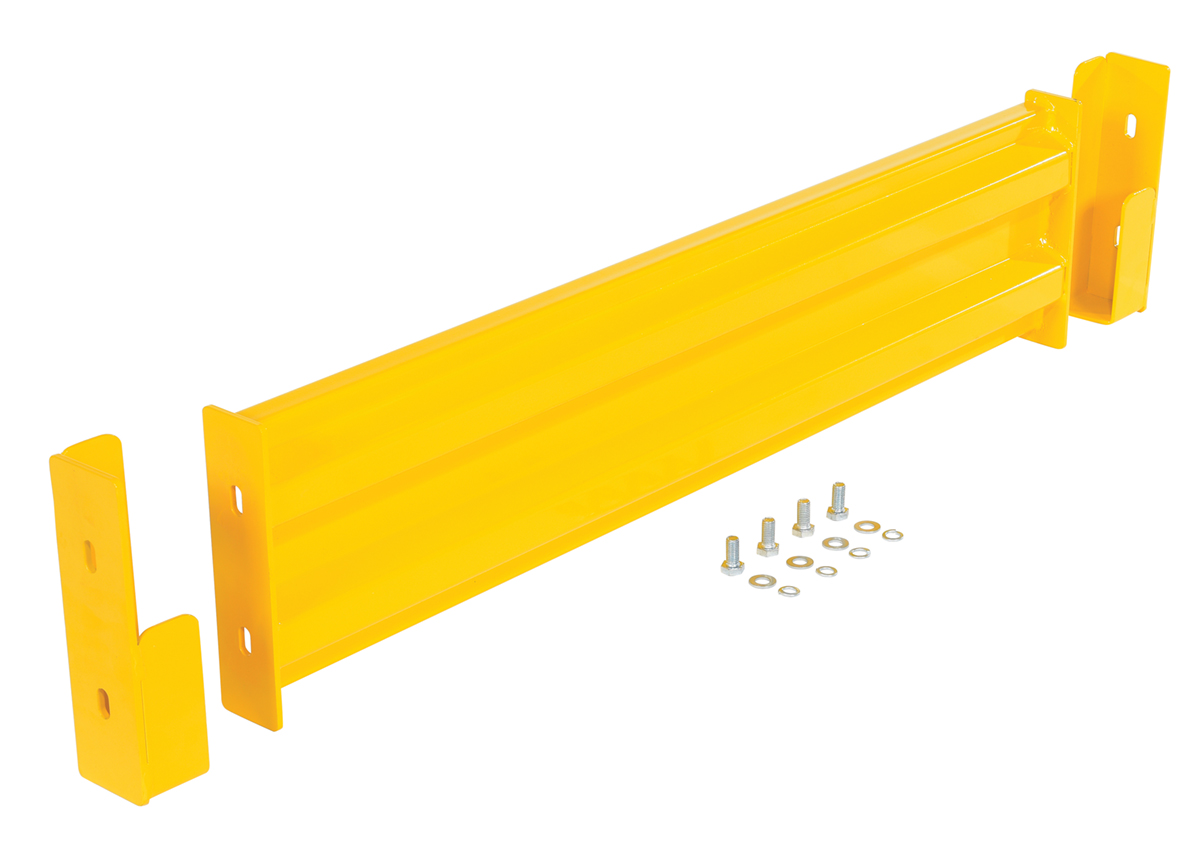

Steel 2 Ribbed Drop In Style Guard Rail 42 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

90 Days Limited Warranty

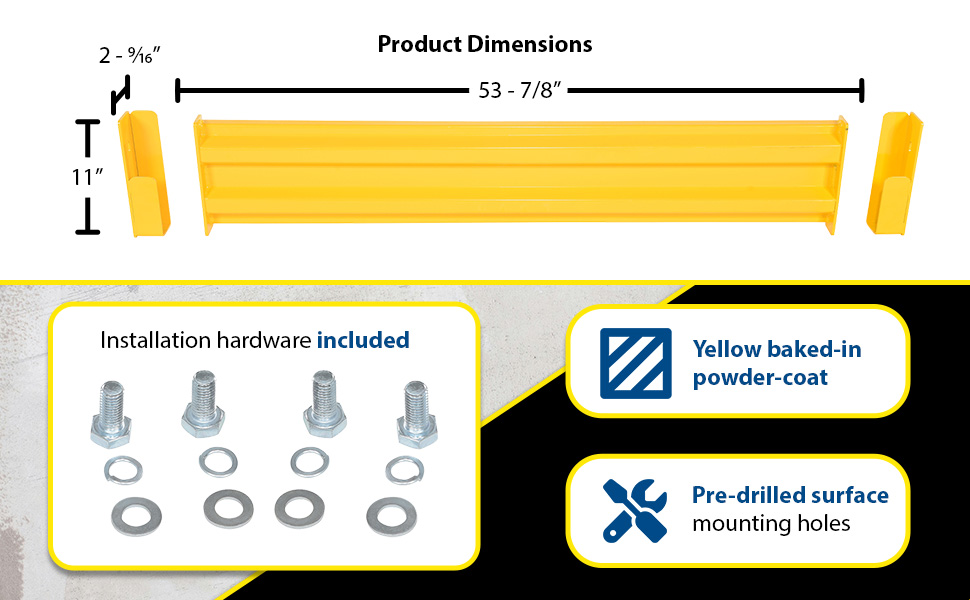

Steel 2 Ribbed Drop In Style Guard Rail 54 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

90 Days Limited Warranty

Steel 2 Ribbed Drop In Style Guard Rail 66 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

102

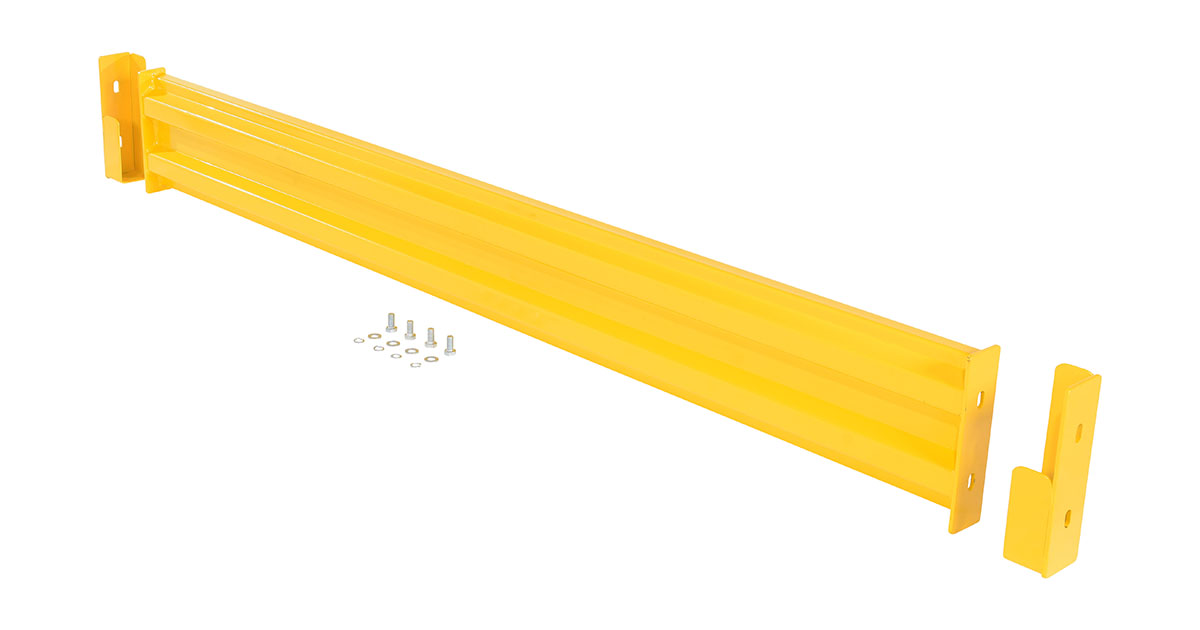

90 Days Limited Warranty

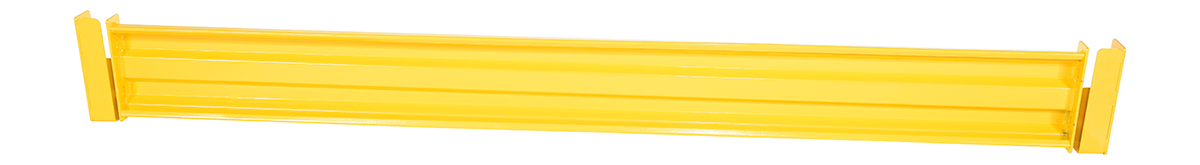

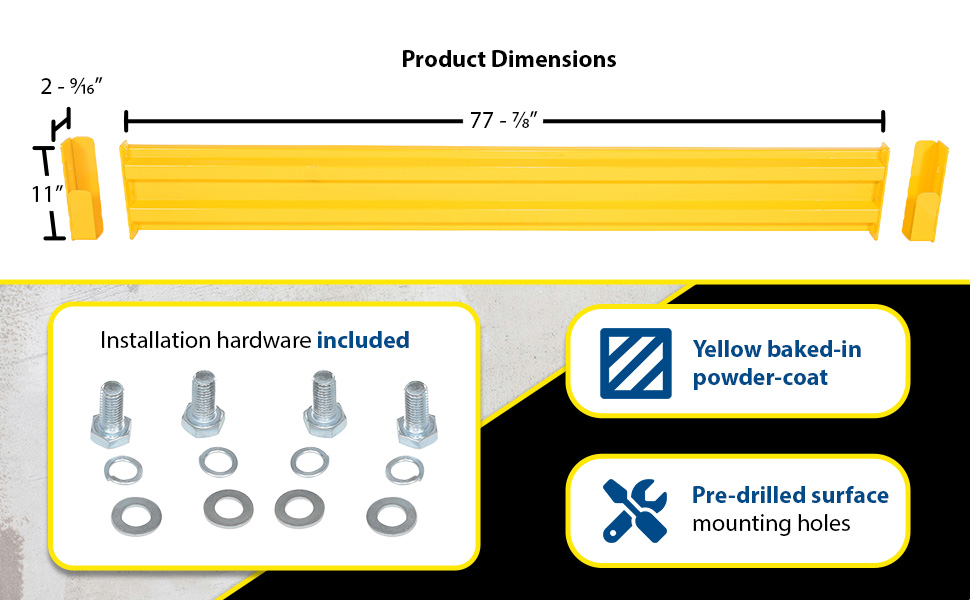

Steel 2 Ribbed Drop In Style Guard Rail 78 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

114

90 Days Limited Warranty

Steel 2 Ribbed Drop In Style Guard Rail 90 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

134

90 Days Limited Warranty

Steel 2 Ribbed Drop In Style Guard Rail 102 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

148

90 Days Limited Warranty

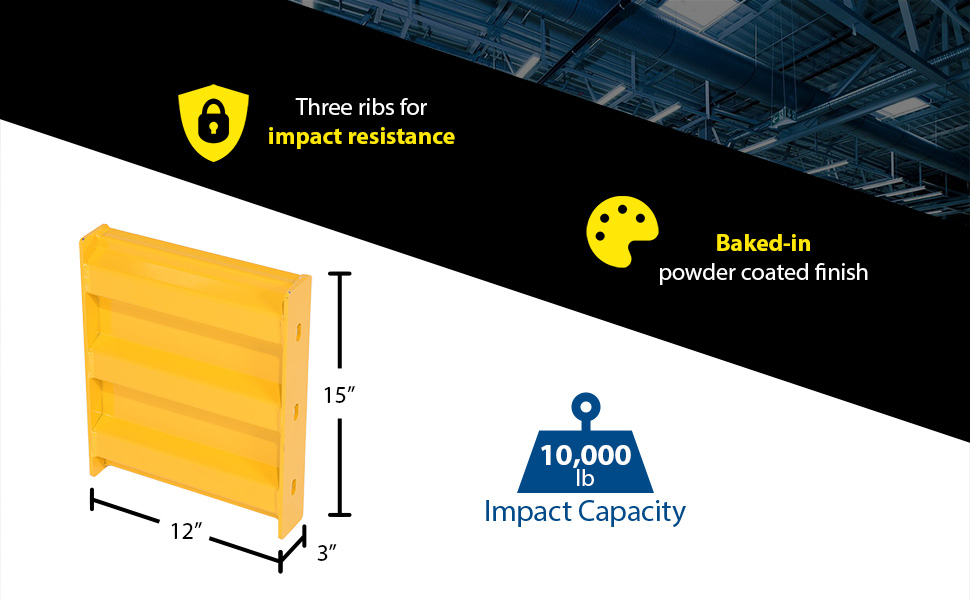

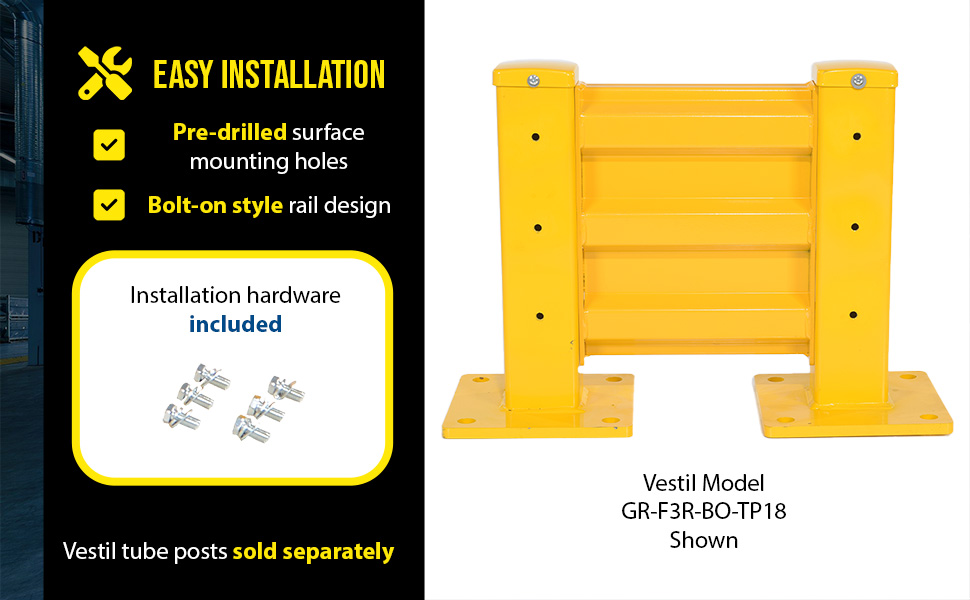

Steel 3 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

90 Days Limited Warranty

Steel 3 Ribbed Bolt On Style Guard Rail 113.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

162

90 Days Limited Warranty

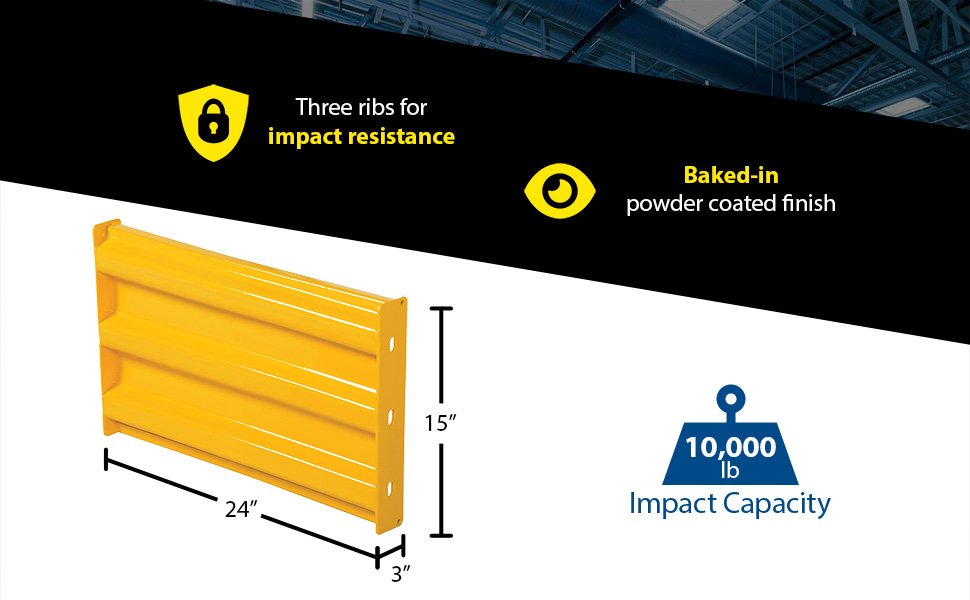

Steel 3 Ribbed Bolt On Style Guard Rail 24 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

90 Days Limited Warranty

Steel 3 Ribbed Bolt On Style Guard Rail 29.875 In Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

90 Days Limited Warranty

Steel 3 Ribbed Bolt On Style Guard Rail 41.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

90 Days Limited Warranty

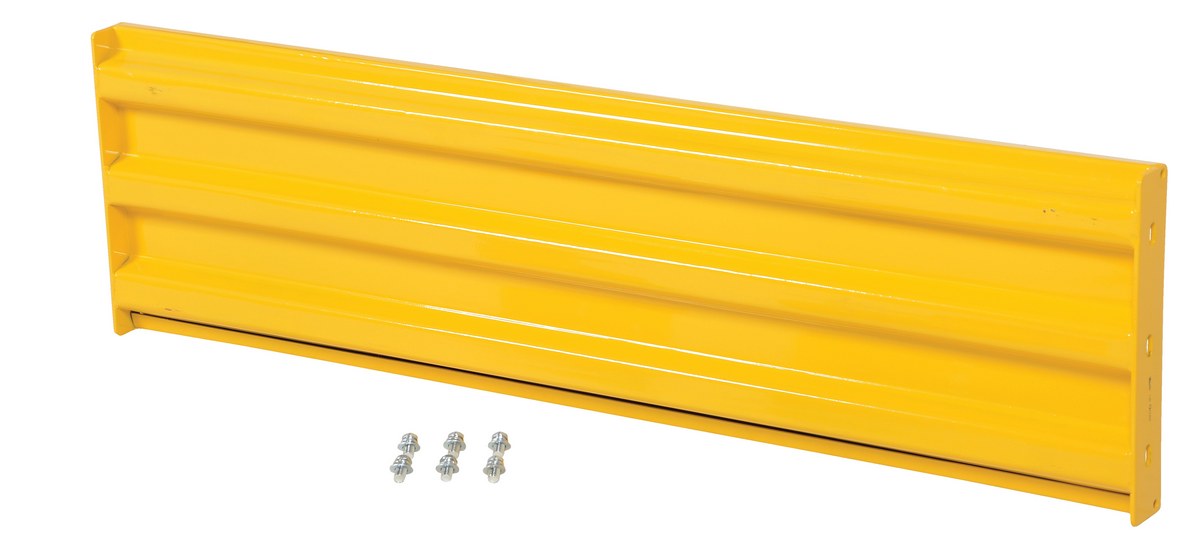

Steel 3 Ribbed Bolt On Style Guard Rail 53.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

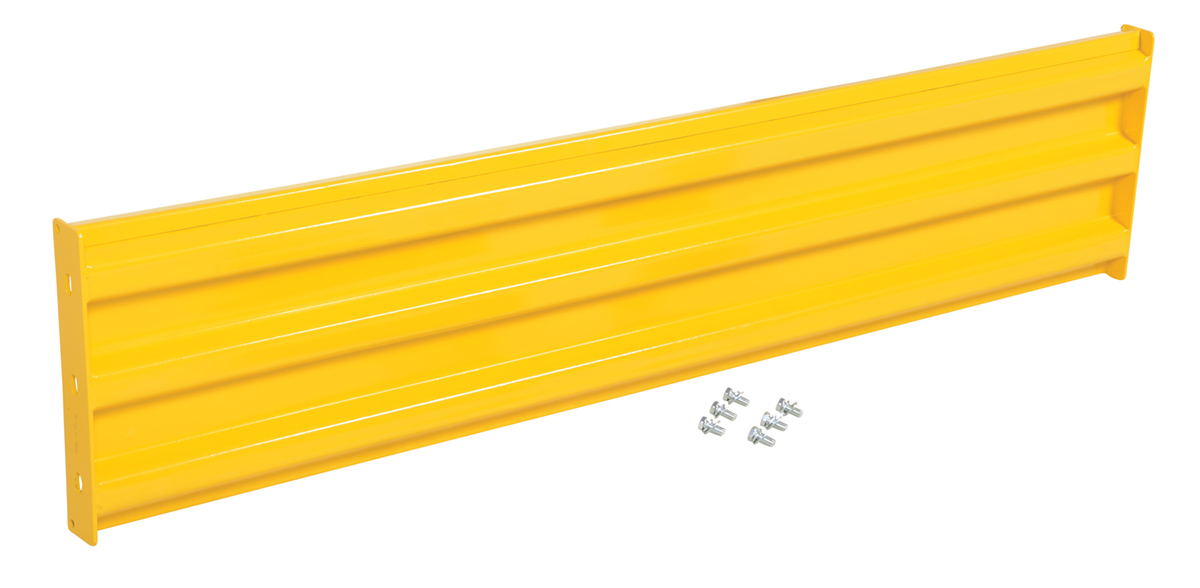

90 Days Limited Warranty

Steel 3 Ribbed Bolt On Style Guard Rail 65.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

106

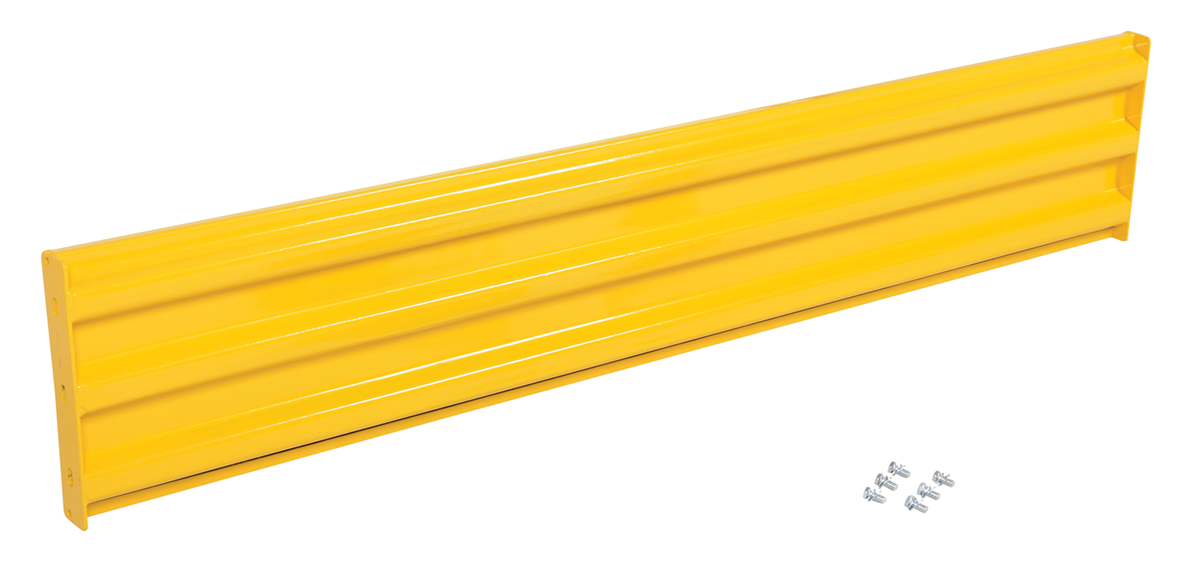

90 Days Limited Warranty

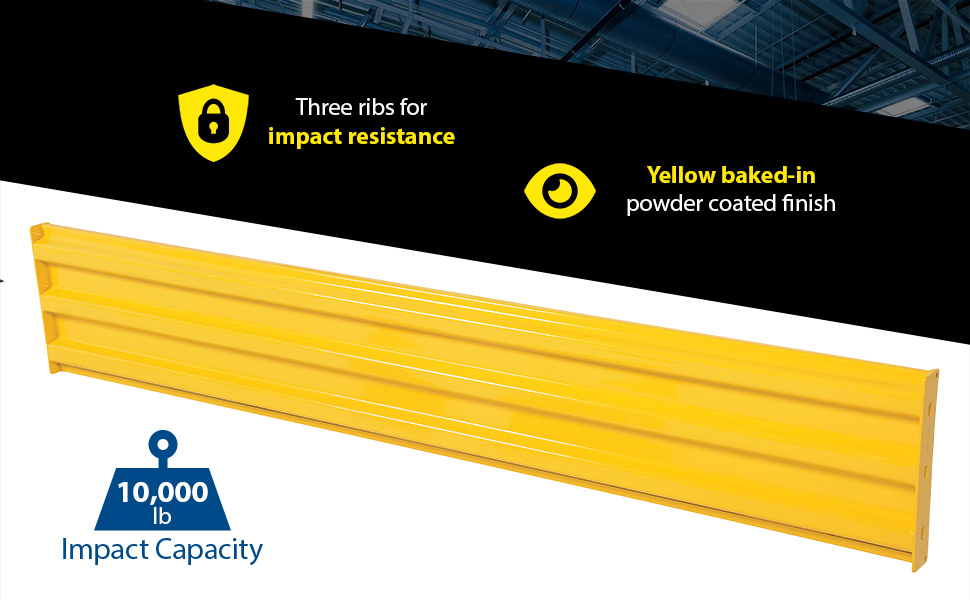

Steel 3 Ribbed Bolt On Style Guard Rail 77.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

118

90 Days Limited Warranty

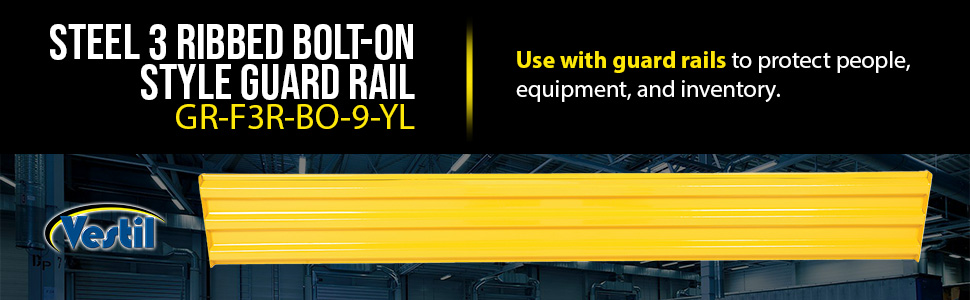

Steel 3 Ribbed Bolt On Style Guard Rail 89.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

138

90 Days Limited Warranty

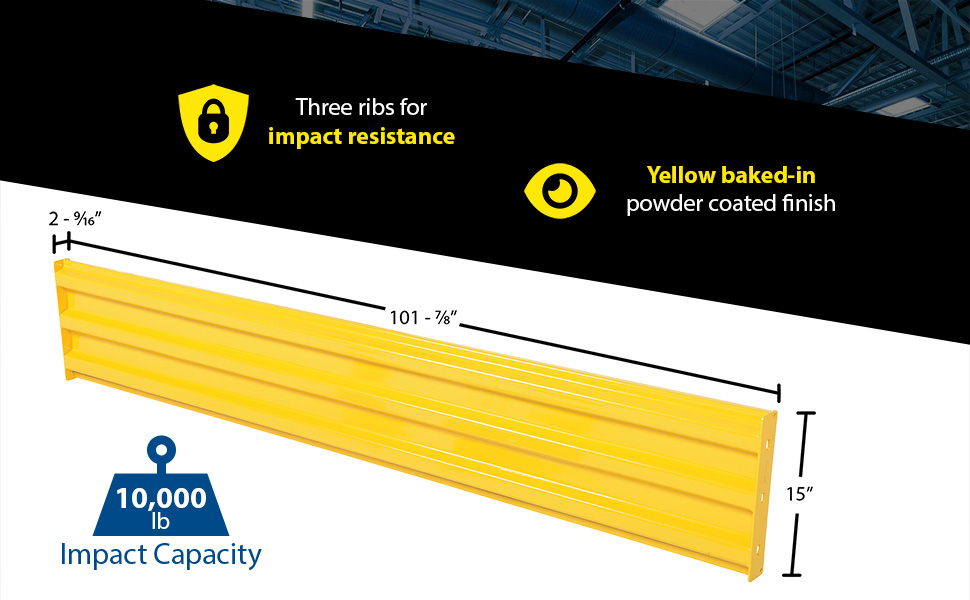

Steel 3 Ribbed Bolt On Style Guard Rail 101.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

150

90 Days Limited Warranty

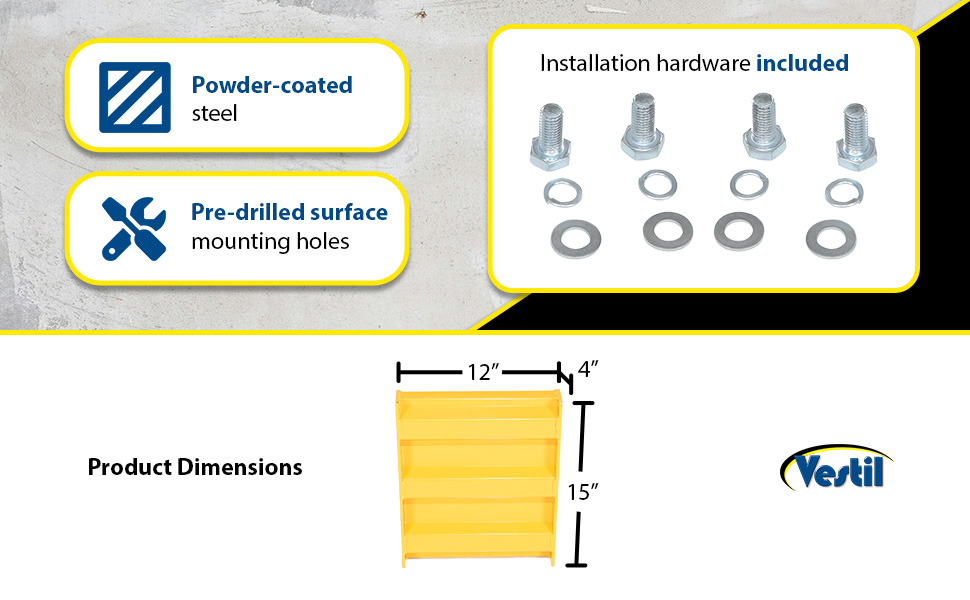

Steel 3 Ribbed Drop In Style Guard Rail 12 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

90 Days Limited Warranty

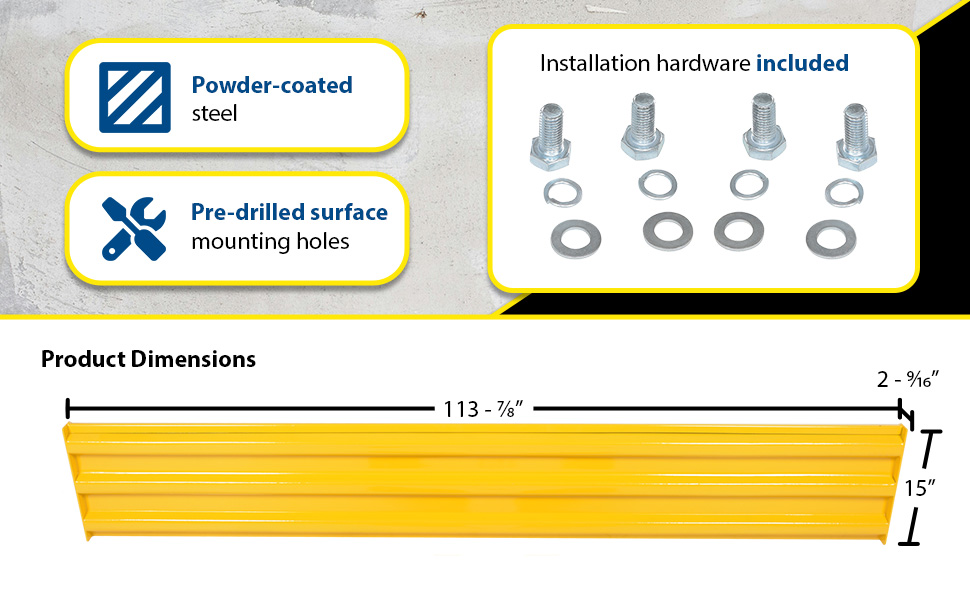

Steel 3 Ribbed Drop In Style Guard Rail 113.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

172

90 Days Limited Warranty

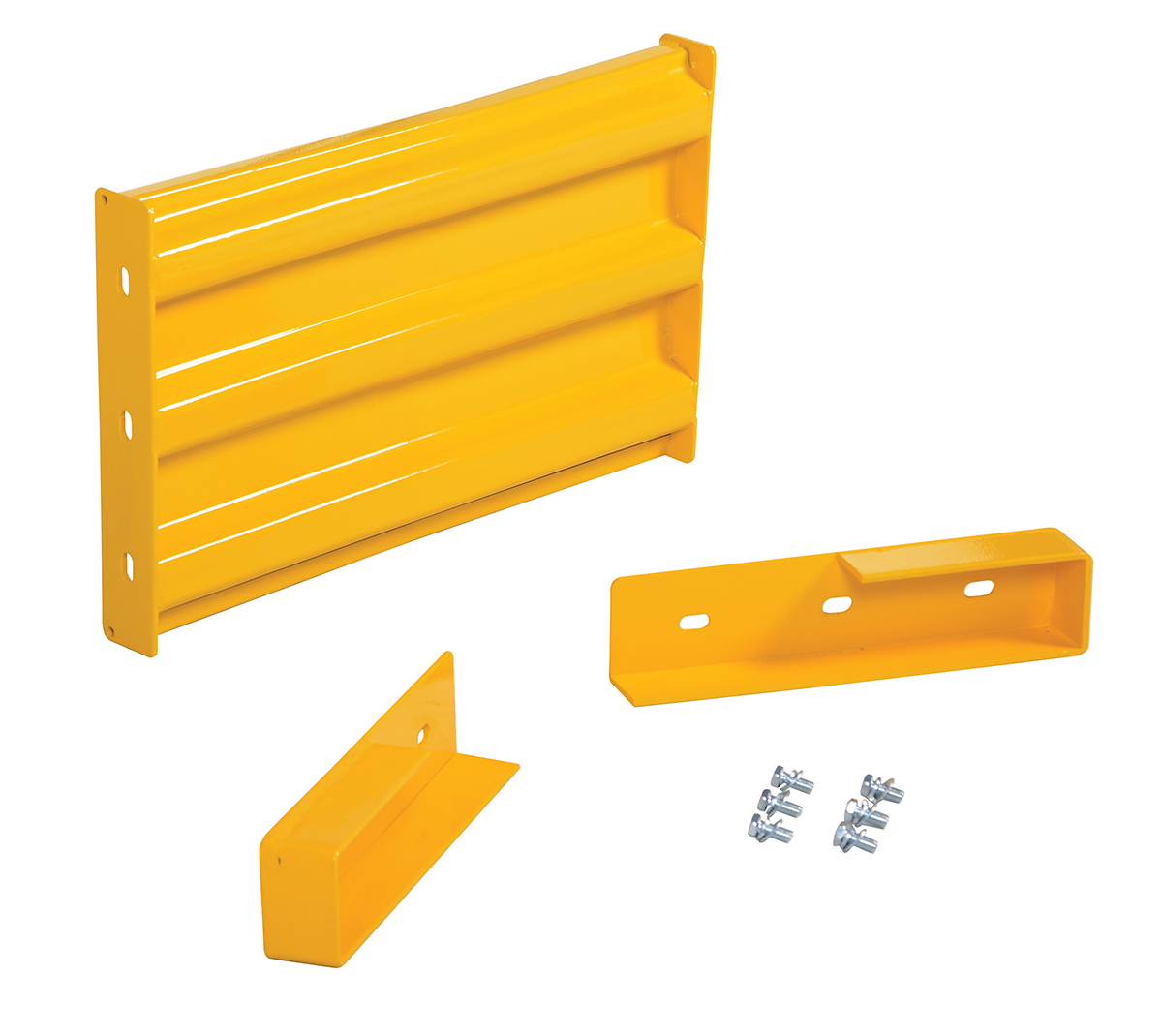

Steel 3 Ribbed Drop In Style Guard Rail 24 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

90 Days Limited Warranty

Steel 3 Ribbed Drop In Style Guard Rail 29.875 In Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

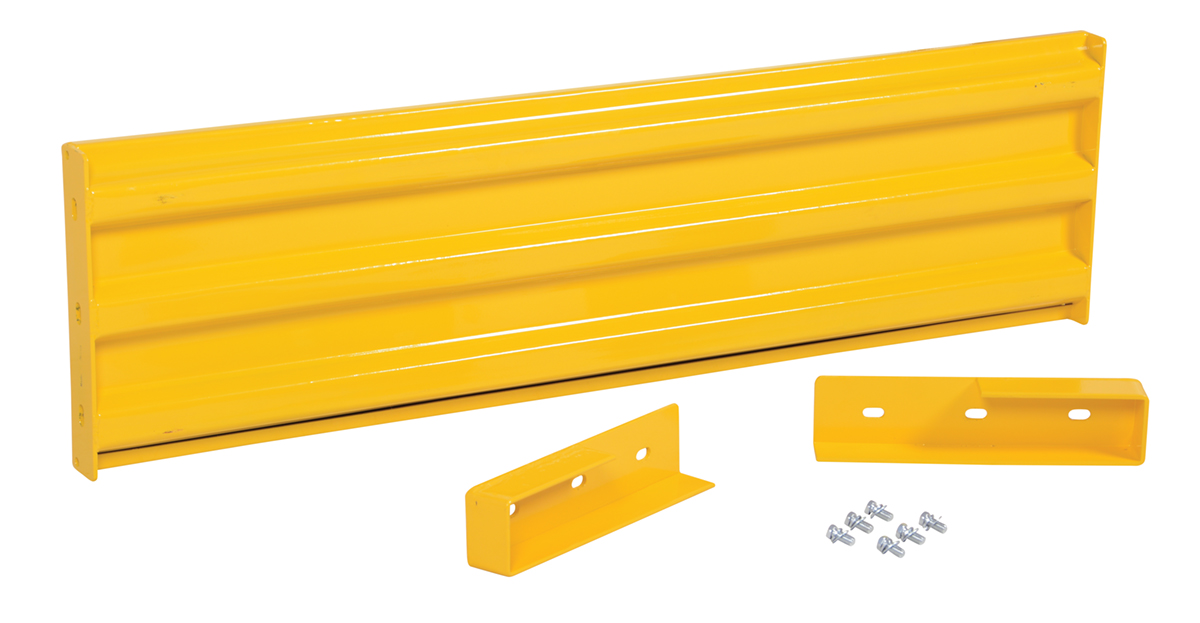

90 Days Limited Warranty

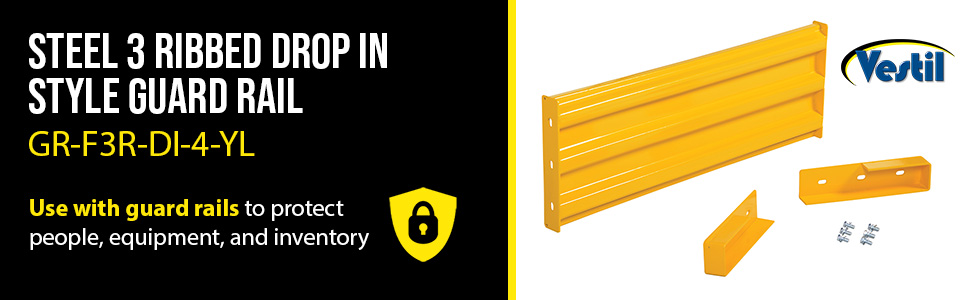

Steel 3 Ribbed Drop In Style Guard Rail 41.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

90 Days Limited Warranty

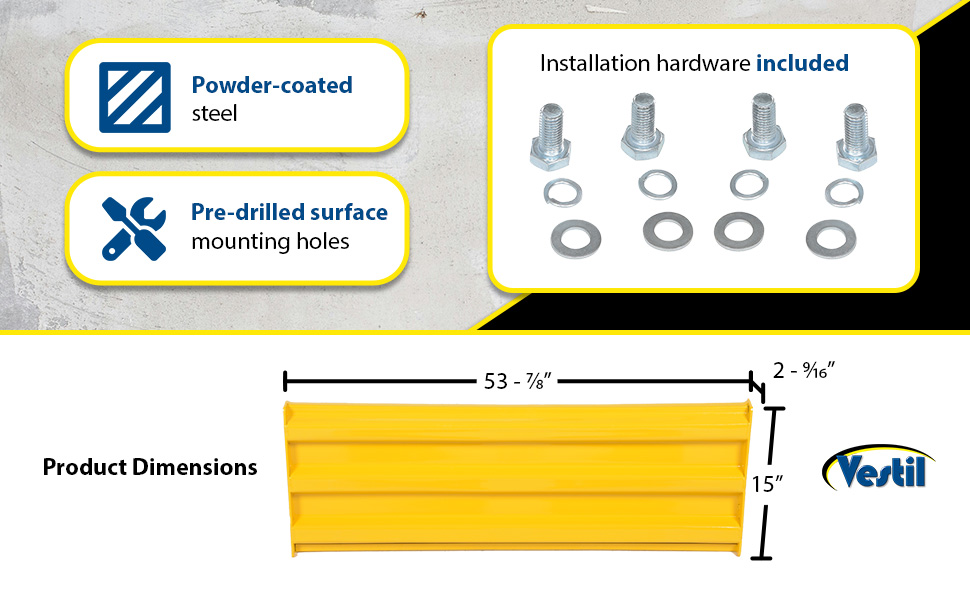

Steel 3 Ribbed Drop In Style Guard Rail 53.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

104

90 Days Limited Warranty

Steel 3 Ribbed Drop In Style Guard Rail 65.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

116

90 Days Limited Warranty

Steel 3 Ribbed Drop In Style Guard Rail 77.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

128

90 Days Limited Warranty

Steel 3 Ribbed Drop In Style Guard Rail 89.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

148

90 Days Limited Warranty

Steel 3 Ribbed Drop In Style Guard Rail 101.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post Required (qty.): 2

160

90 Days Limited Warranty

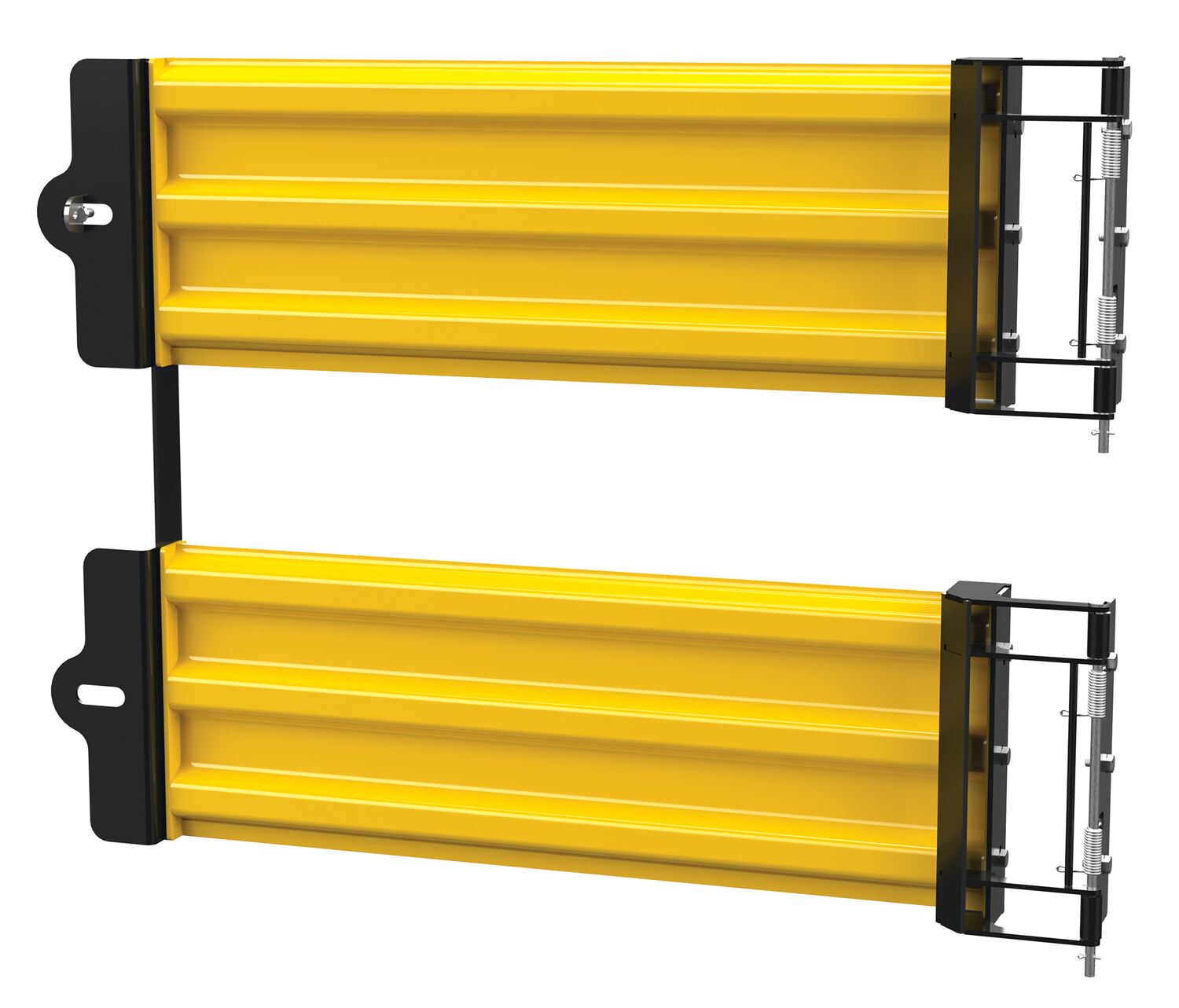

Steel 3 Ribbed Guard Rail Spring Gate 29.875 In Length Yellow

Impact Capacity (Lbs.): 10,000
Base Plate Width (in.): 10

143

90 Days Limited Warranty

Steel 3 Ribbed Guard Rail Spring Gate 41.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Base Plate Width (in.): 10

143

90 Days Limited Warranty

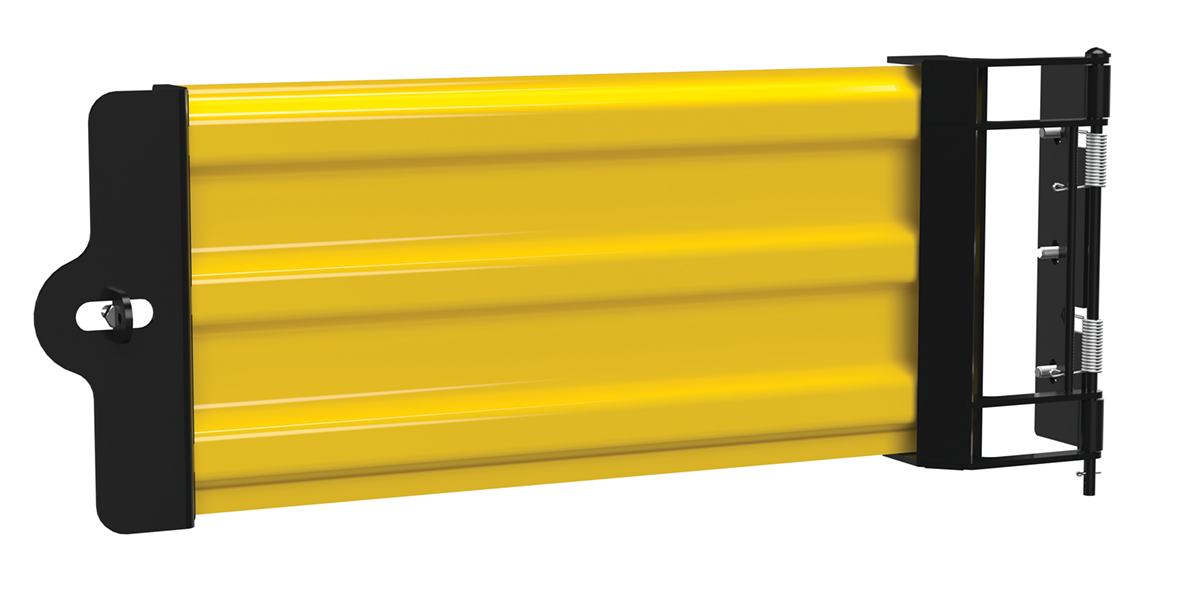

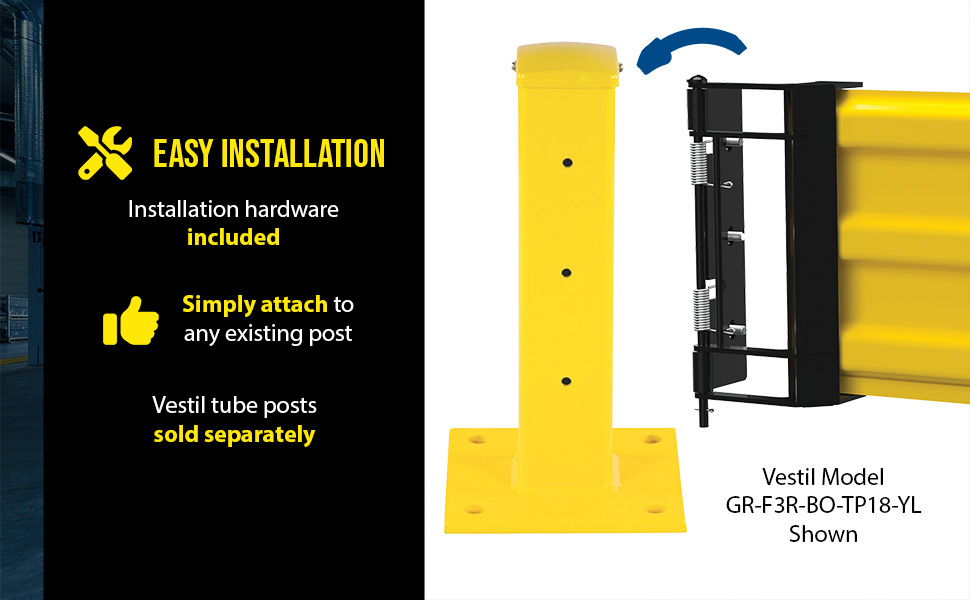

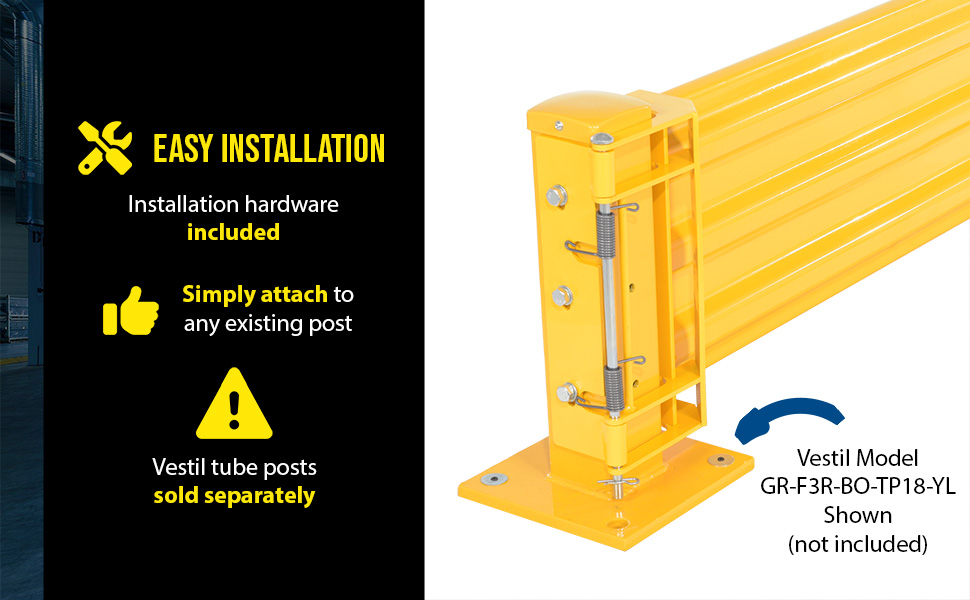

Steel Hinged Guard Rail 29.875 In Length 3 Ribbed Gate Yellow

Impact Capacity (Lbs.): 10,000
Hardware Included: Yes

252

90 Days Limited Warranty

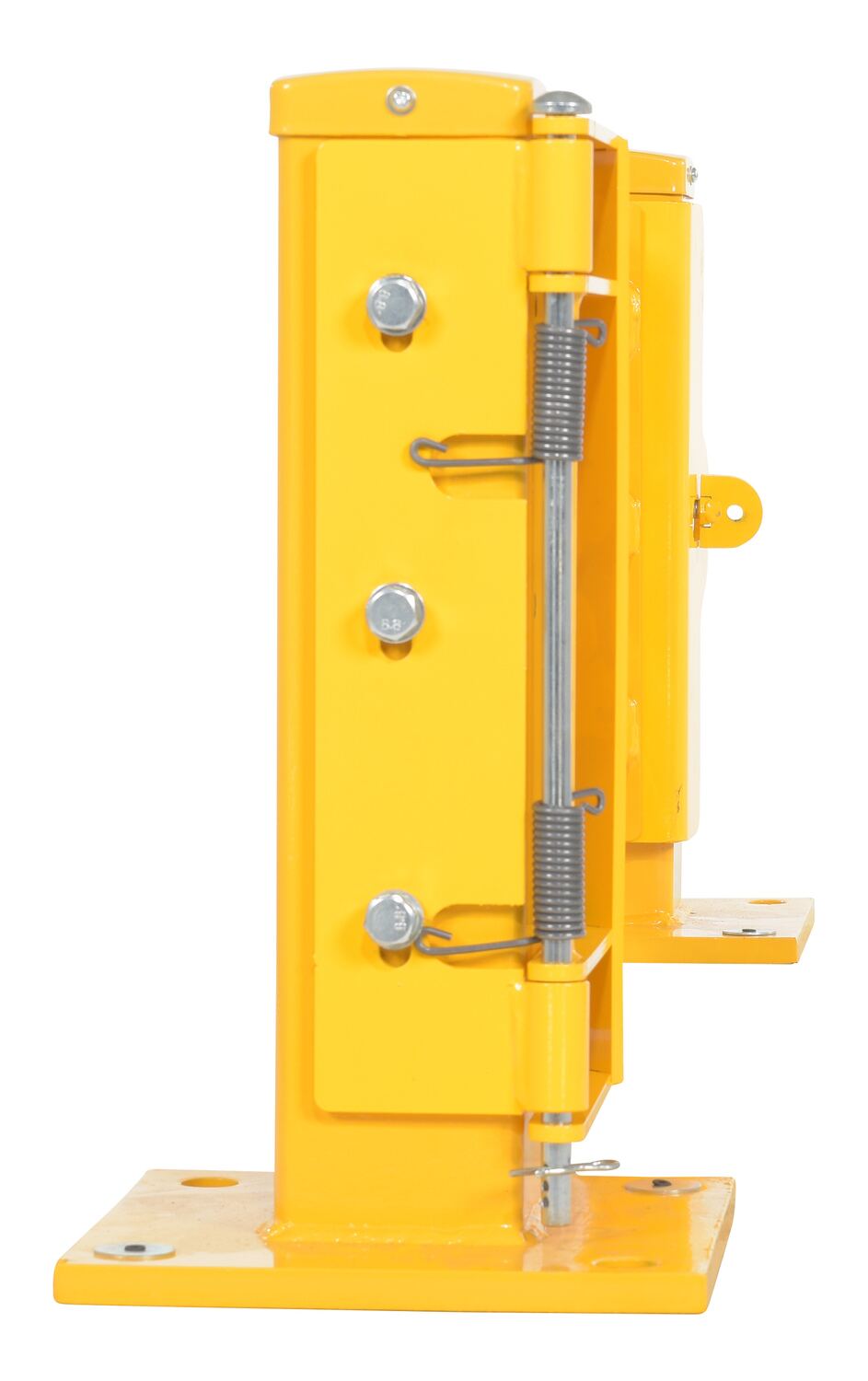

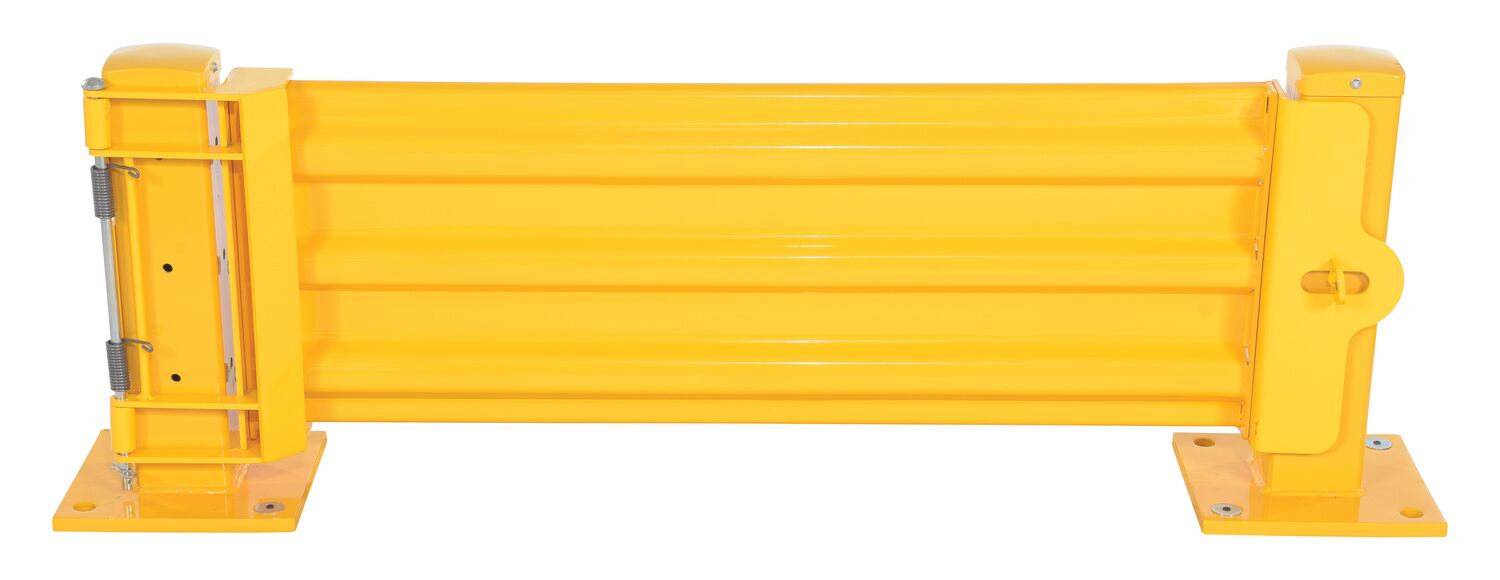

Steel Hinged Guard Rail 41.875 In. Length 3 Ribbed Gate Yellow

Impact Capacity (Lbs.): 10,000
Hardware Included: Yes

261

For More Details of the Option Click the Red Model Button

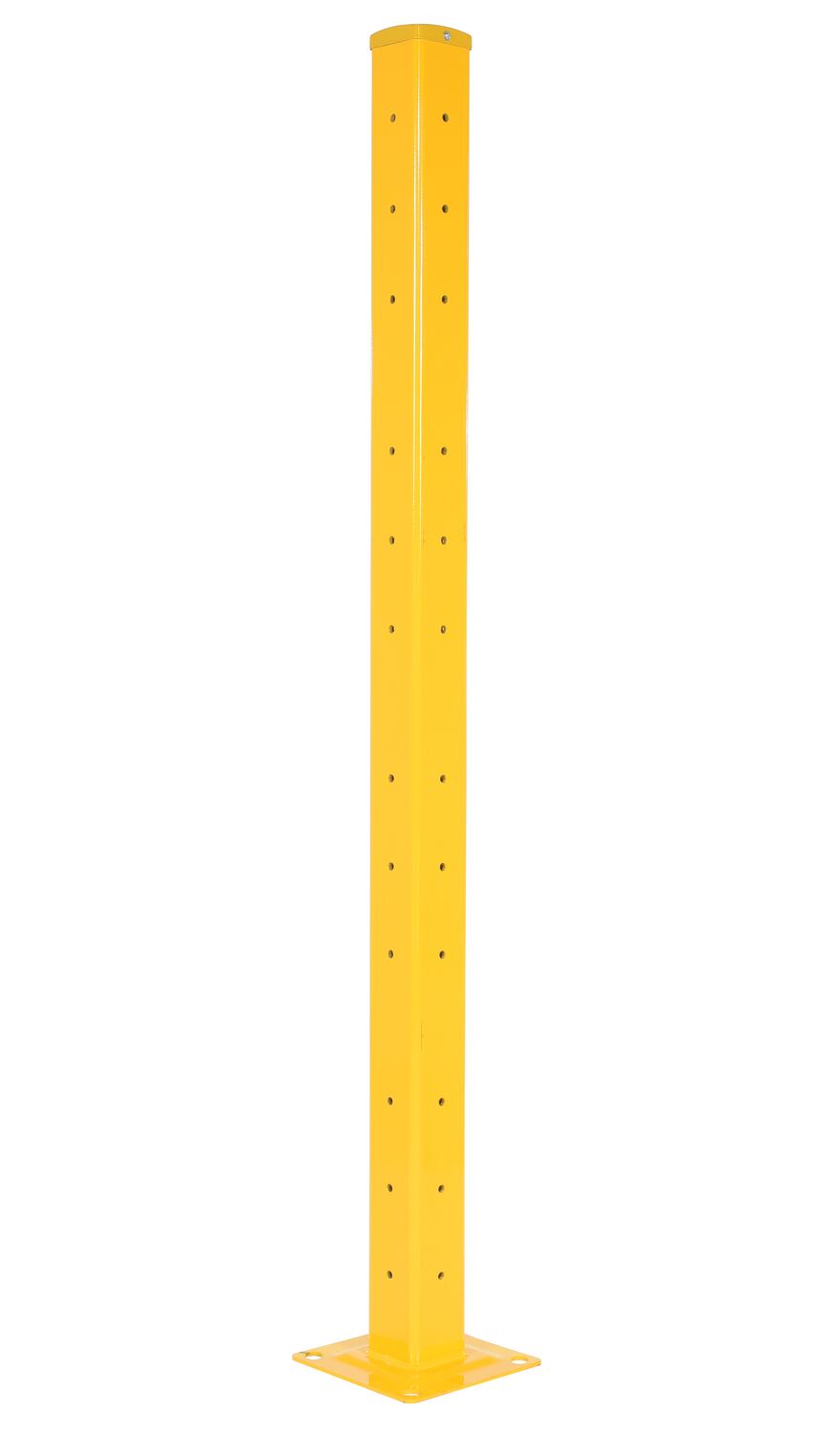

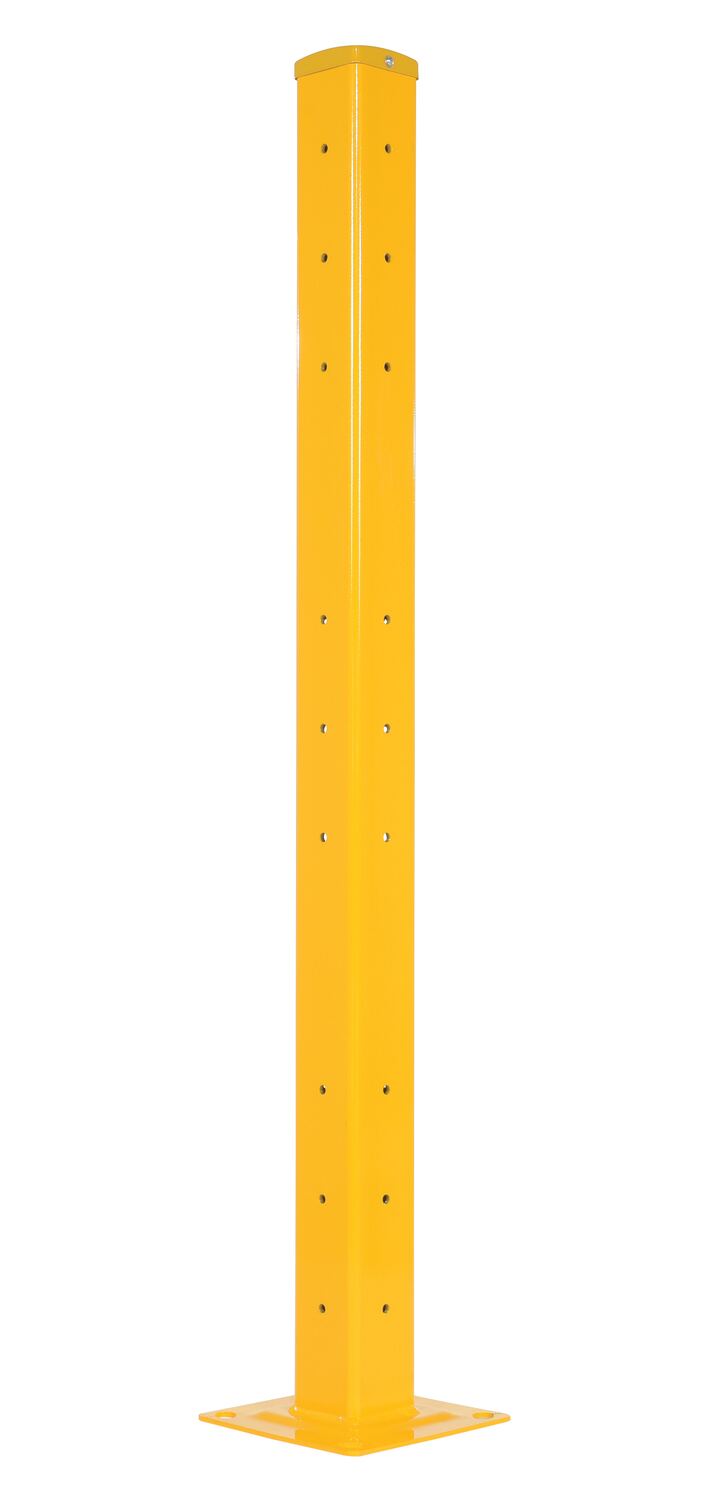

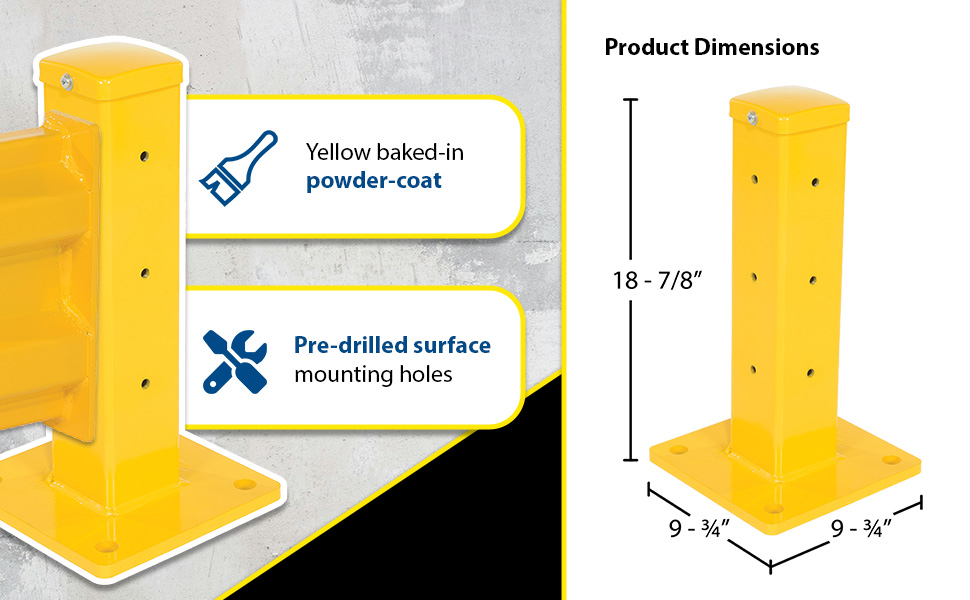

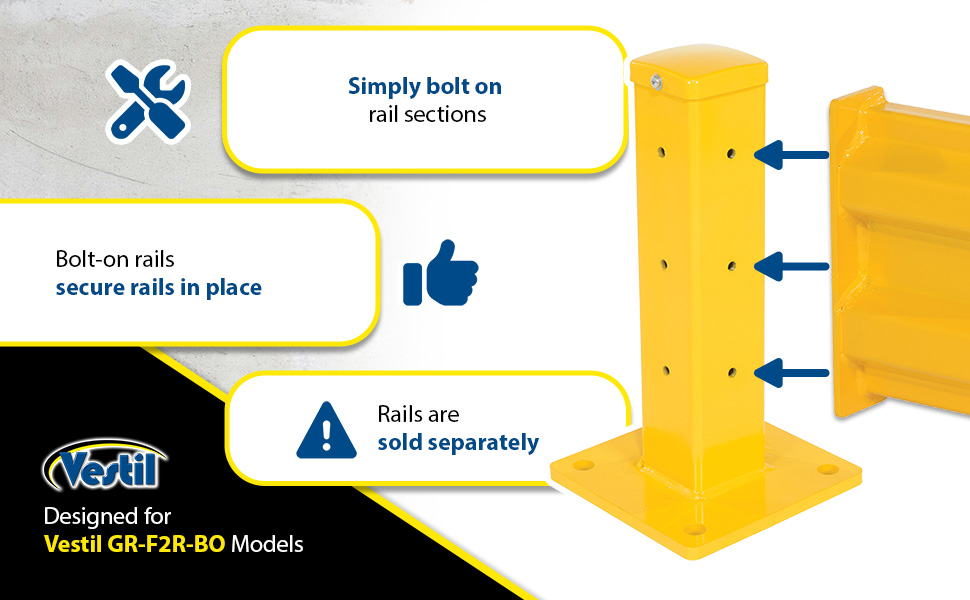

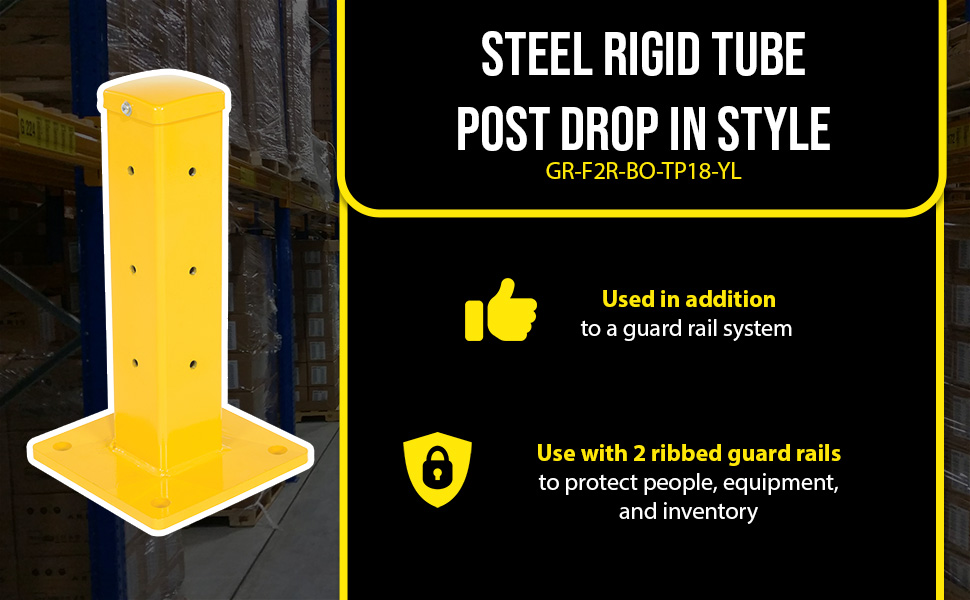

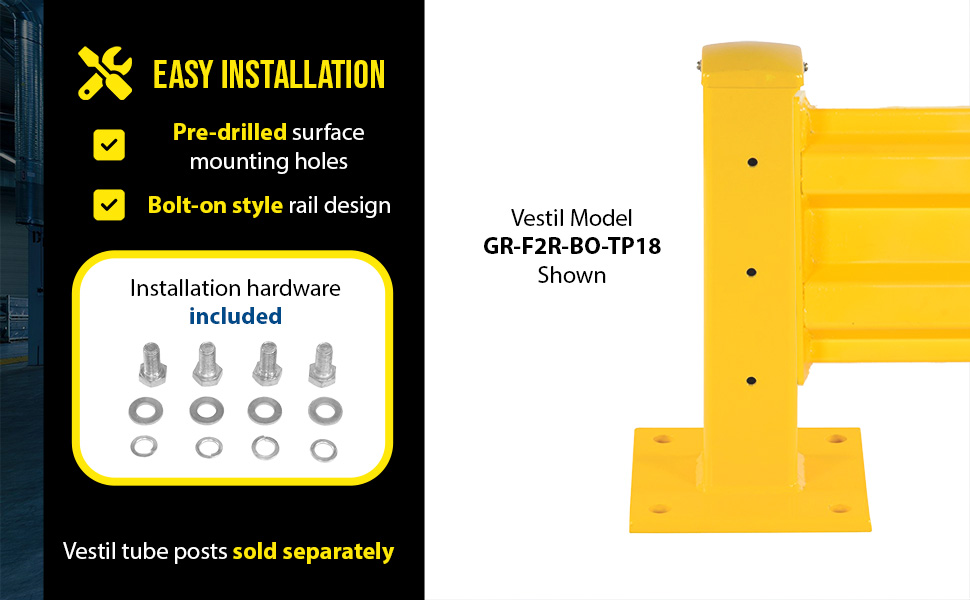

GR-F2R-BO-TP18-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 18 In. For 2 Ribbed Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	38
GR-F2R-BO-TP42-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 42 In. For 2 Ribbed Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	65

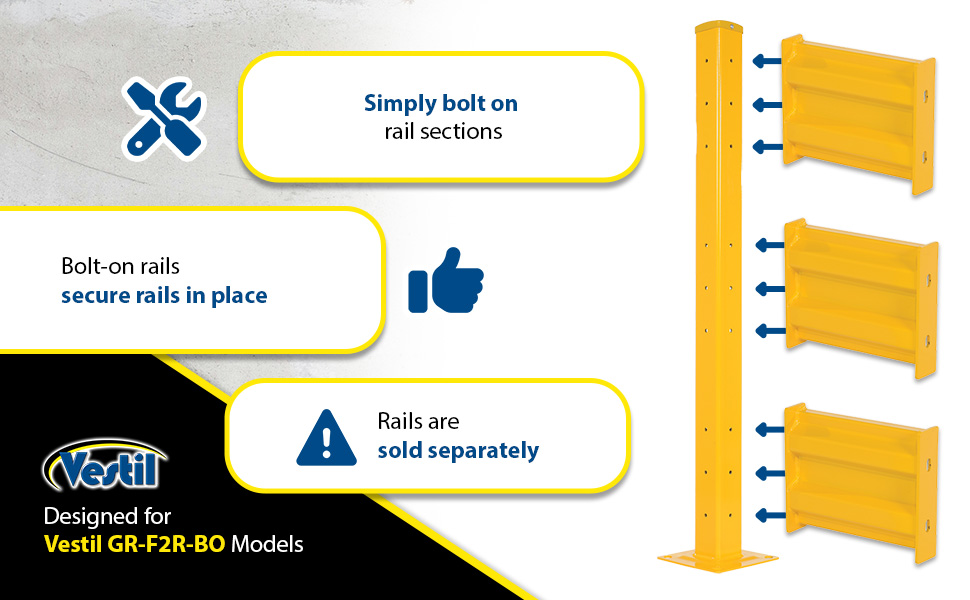

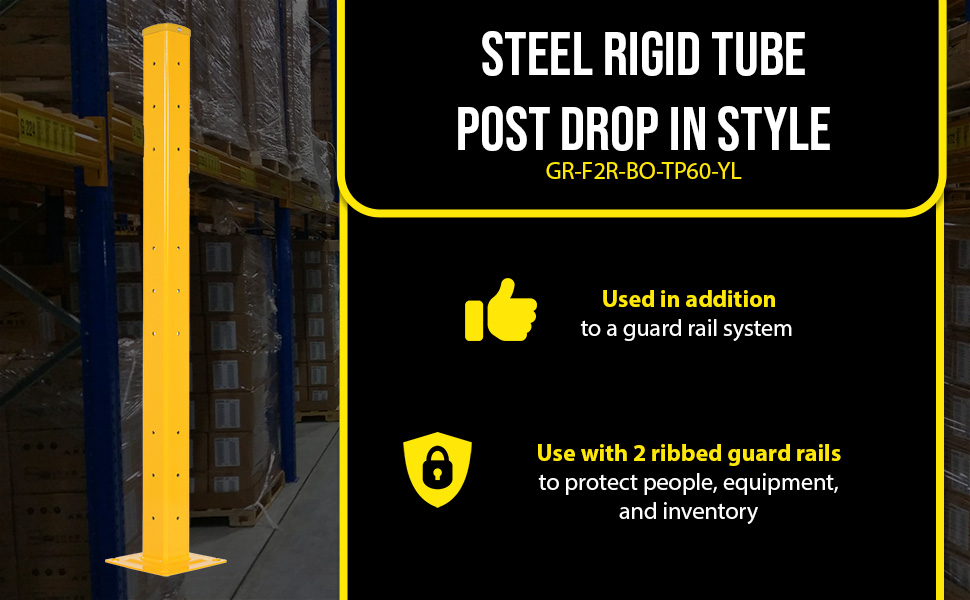

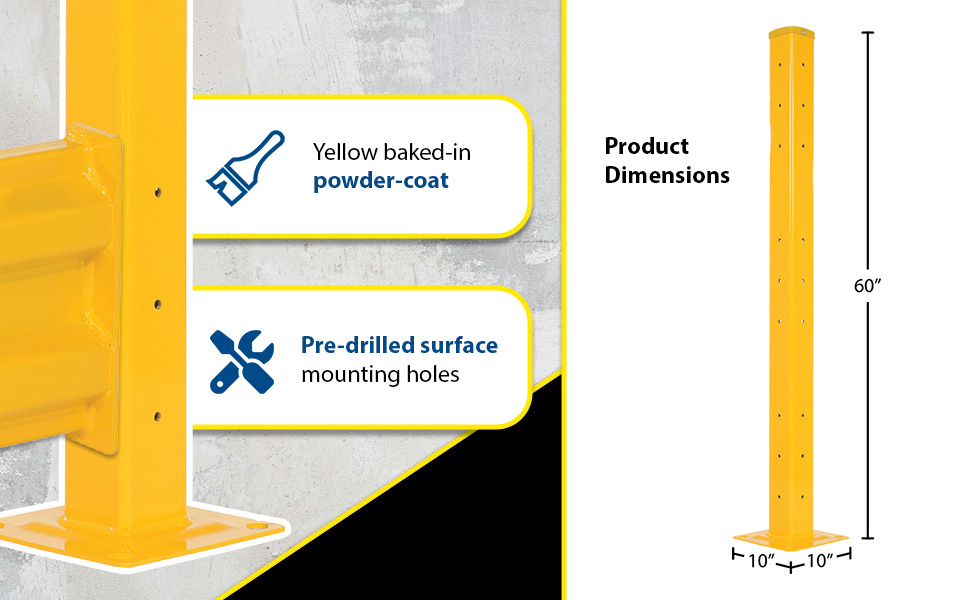

GR-F2R-BO-TP60-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 60 In. For 2 Ribbed Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	95
GR-F2R-BO-TP72-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 72 In. For 2 Ribbed Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	135

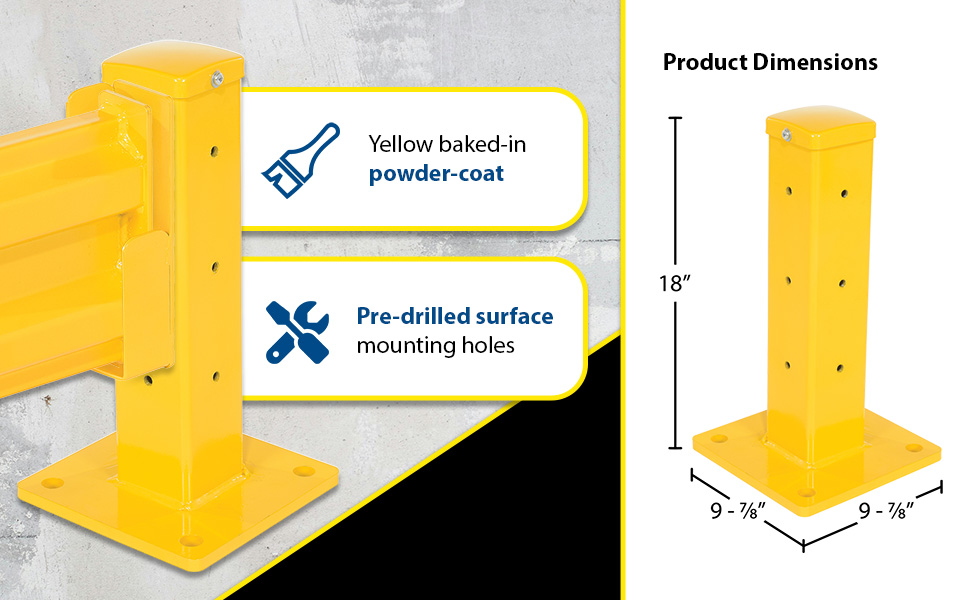

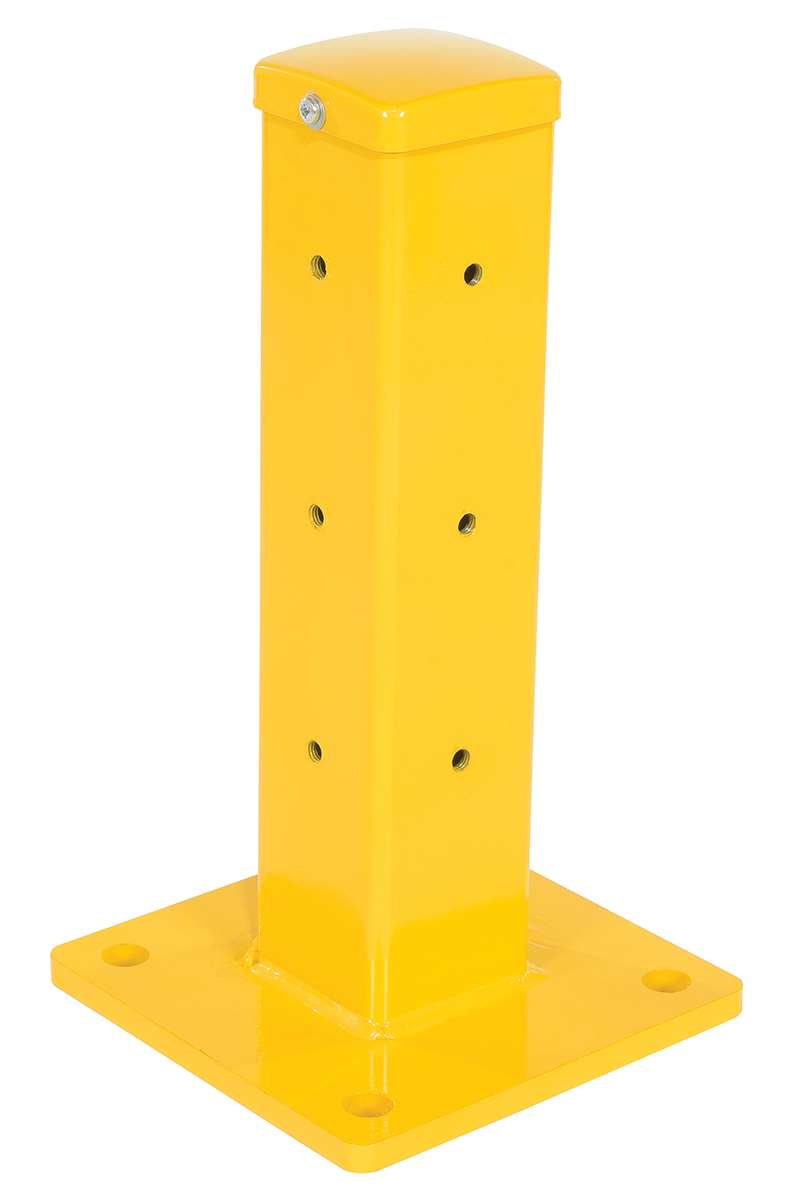

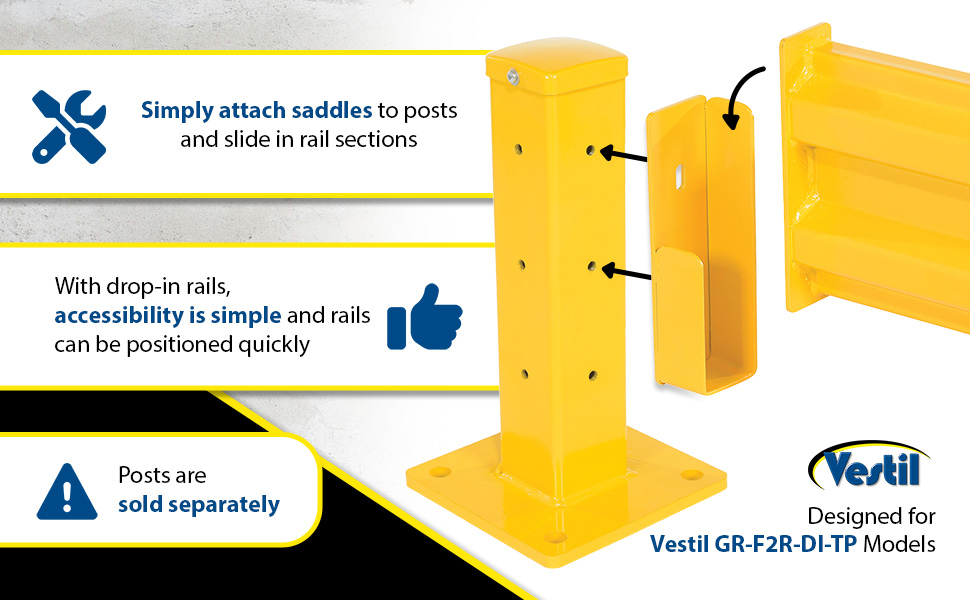

GR-F2R-DI-TP18-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In Style 18 In. For 2 Ribbed Drop In Style Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	38

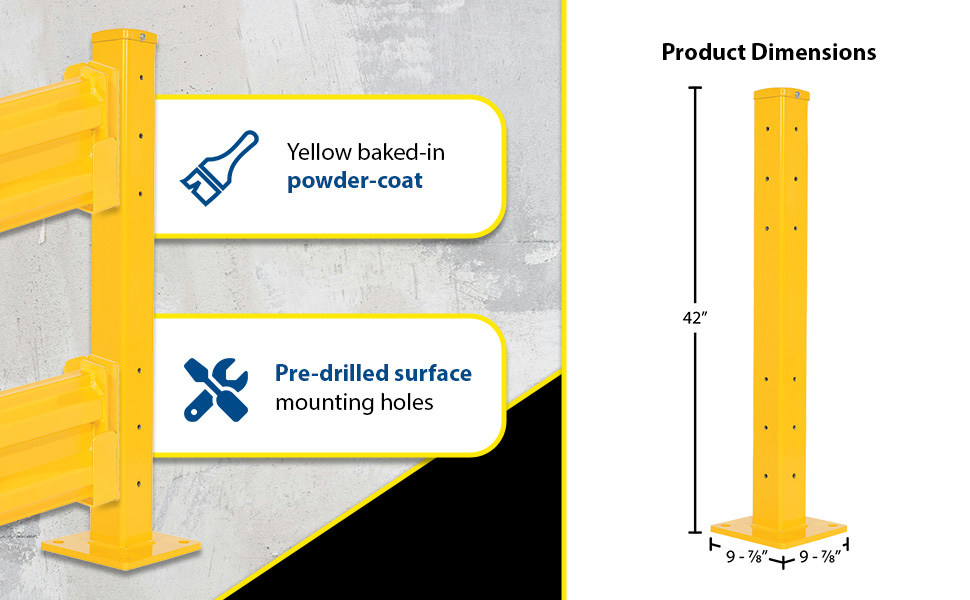

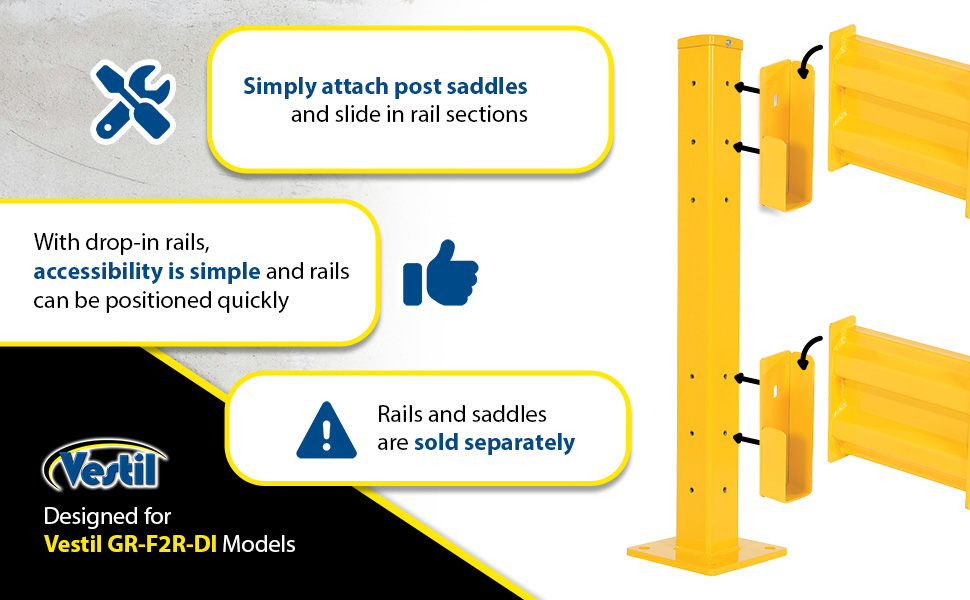

GR-F2R-DI-TP42-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In Style 42 In. For 2 Ribbed Drop In Style Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	65
GR-F2R-DI-TP60-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In Style 60 In. For 2 Ribbed Drop In Style Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	95

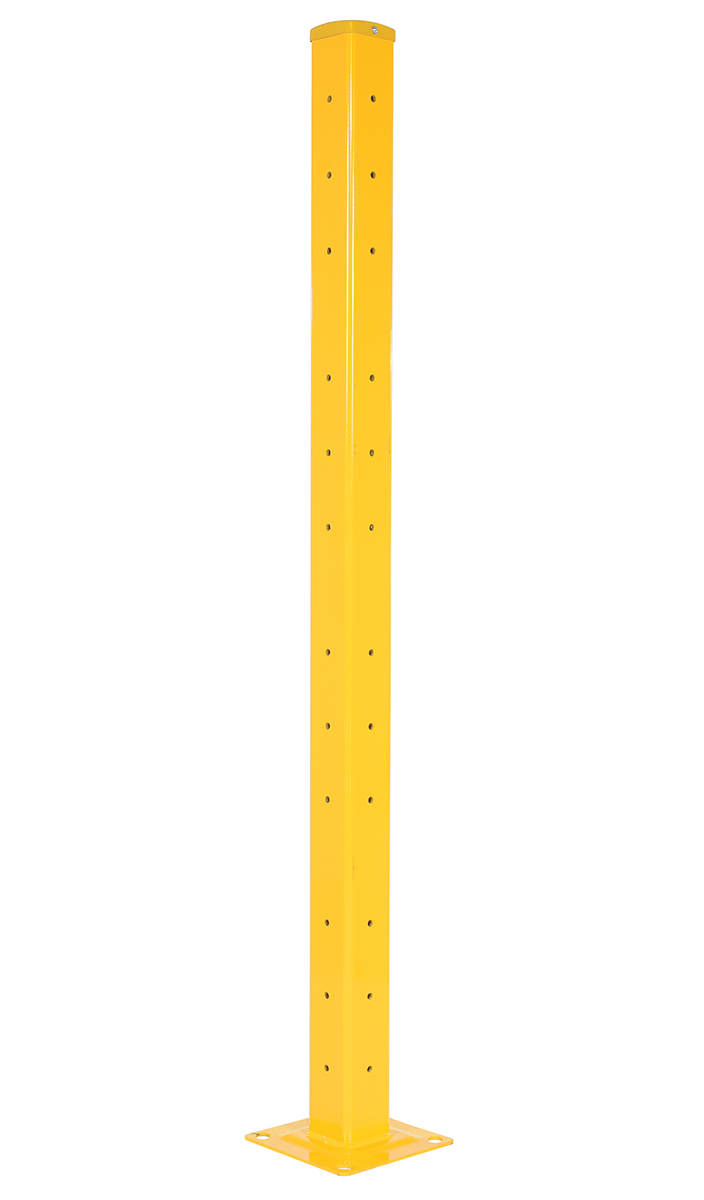

GR-F2R-DI-TP72-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In Style 72 In. For 2 Ribbed Drop In Style Guard Rails Yellow	Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875	135

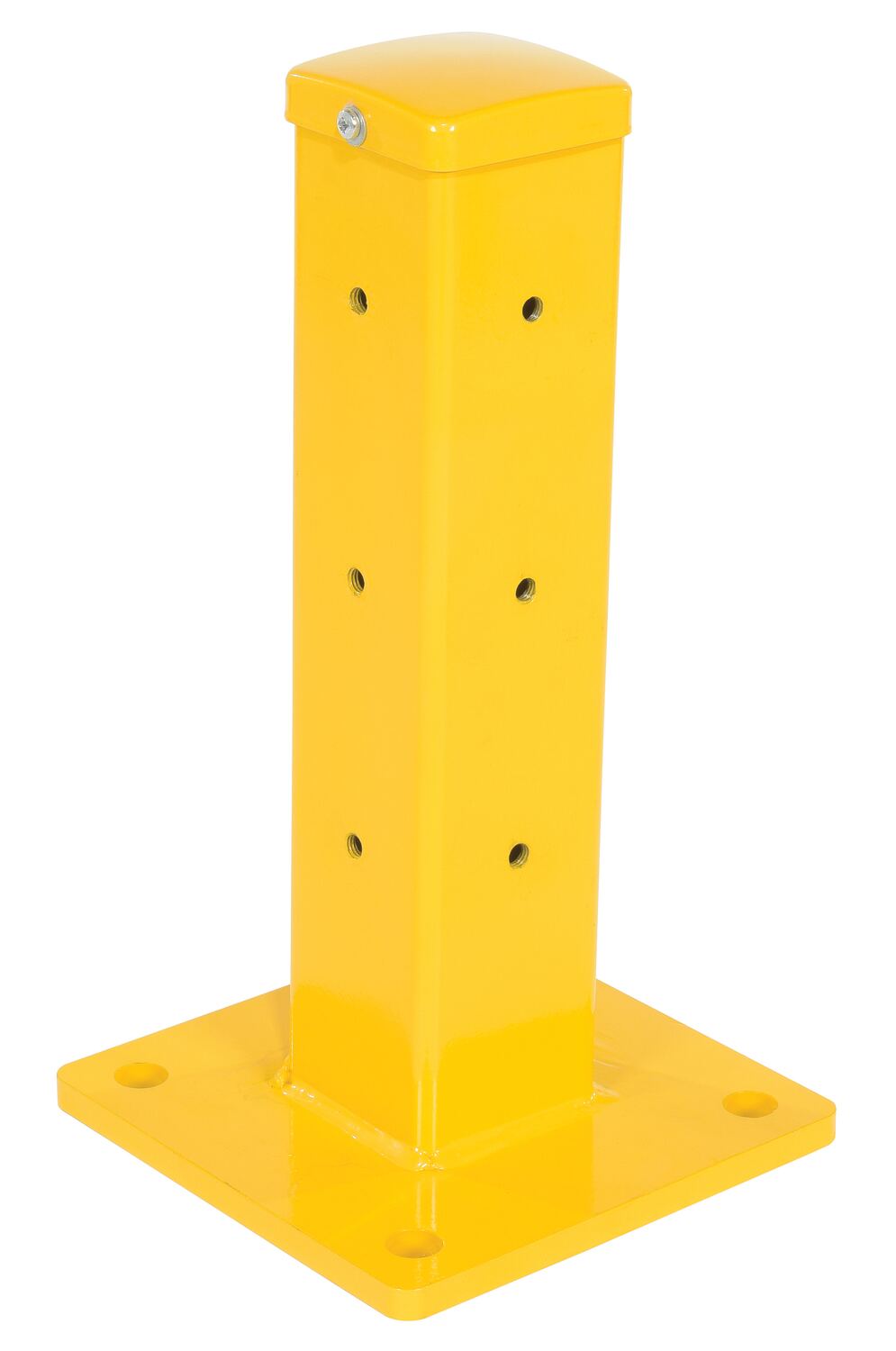

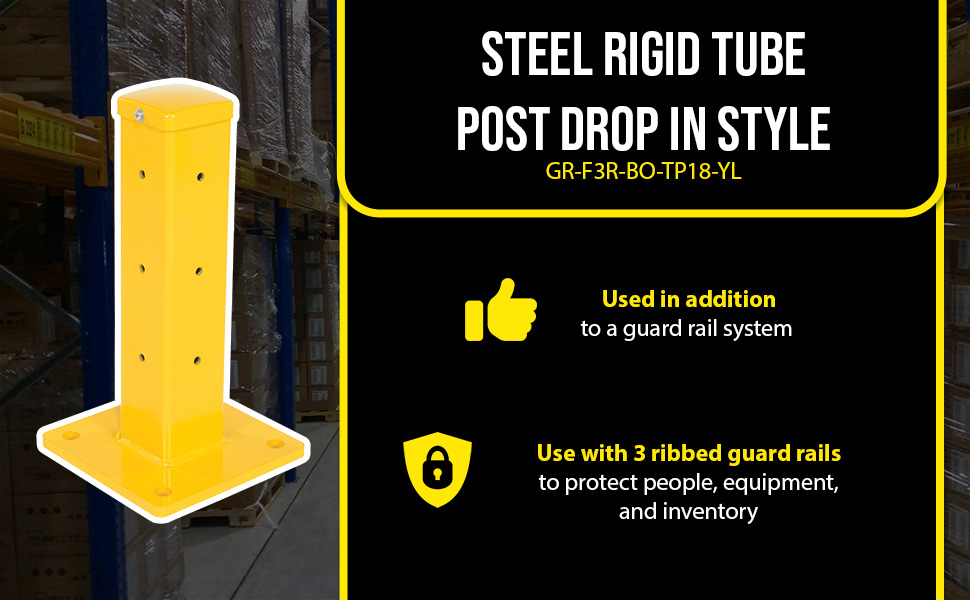

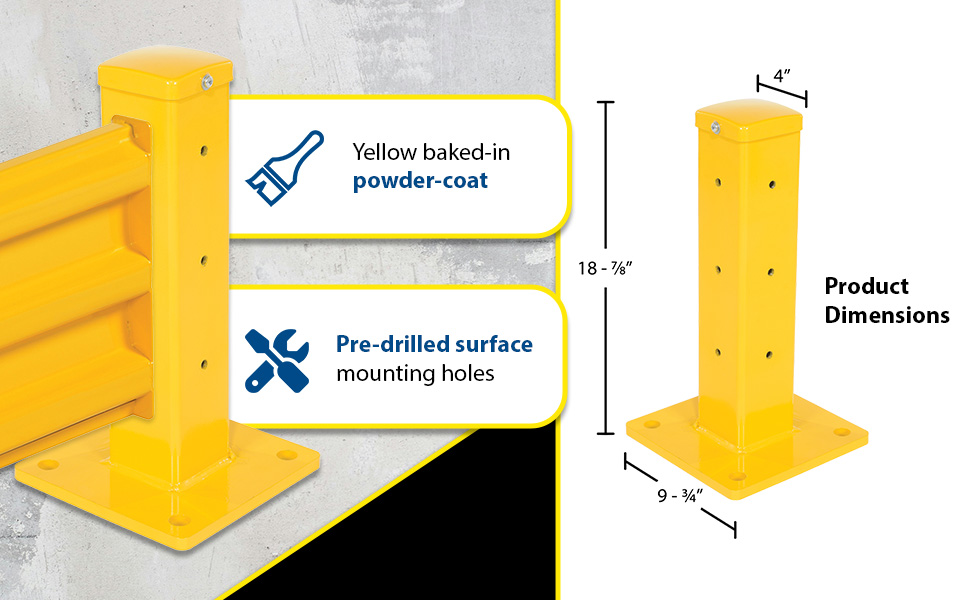

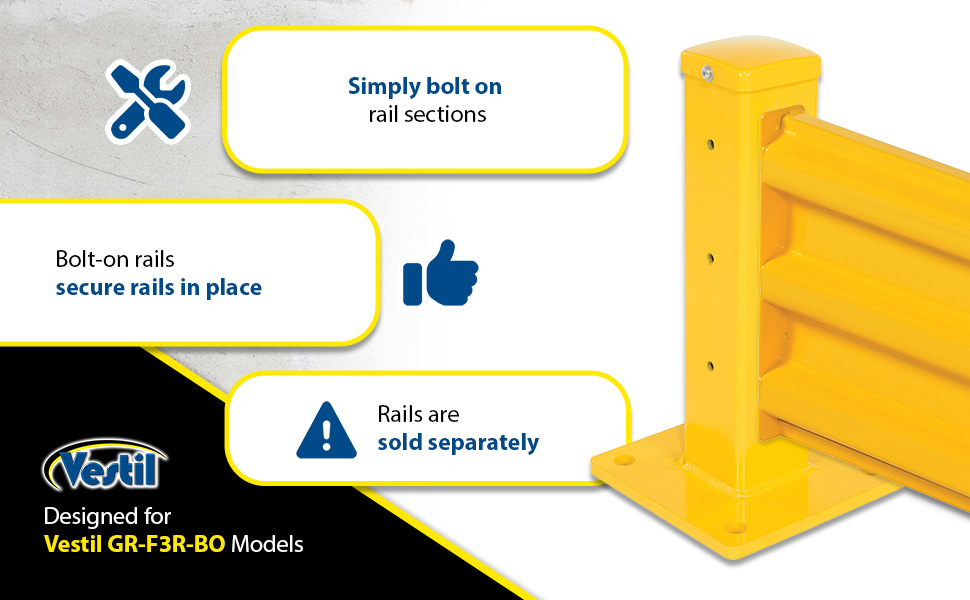

GR-F3R-BO-TP18-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 18 In. For 3 Ribbed Bolt On Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875	38

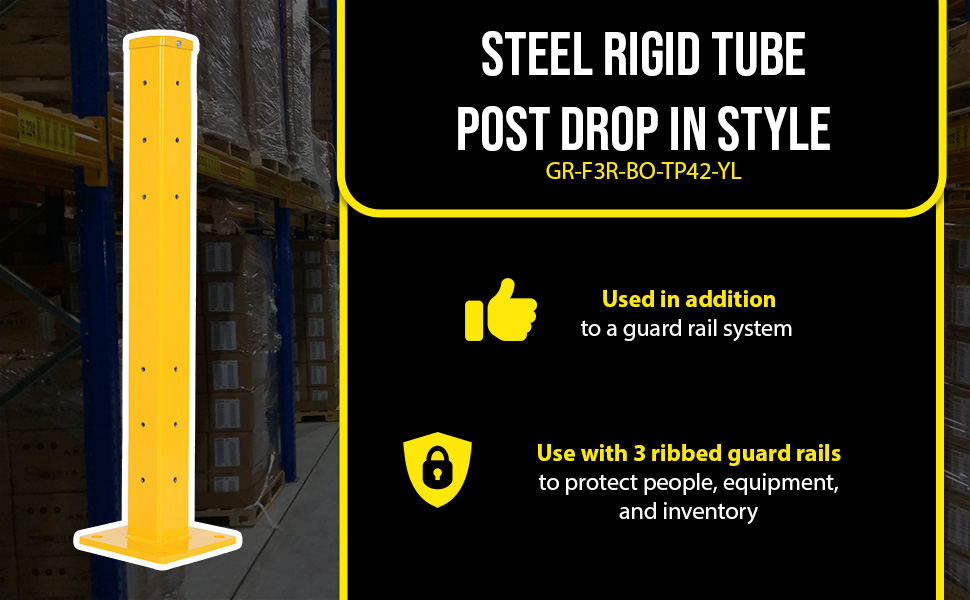

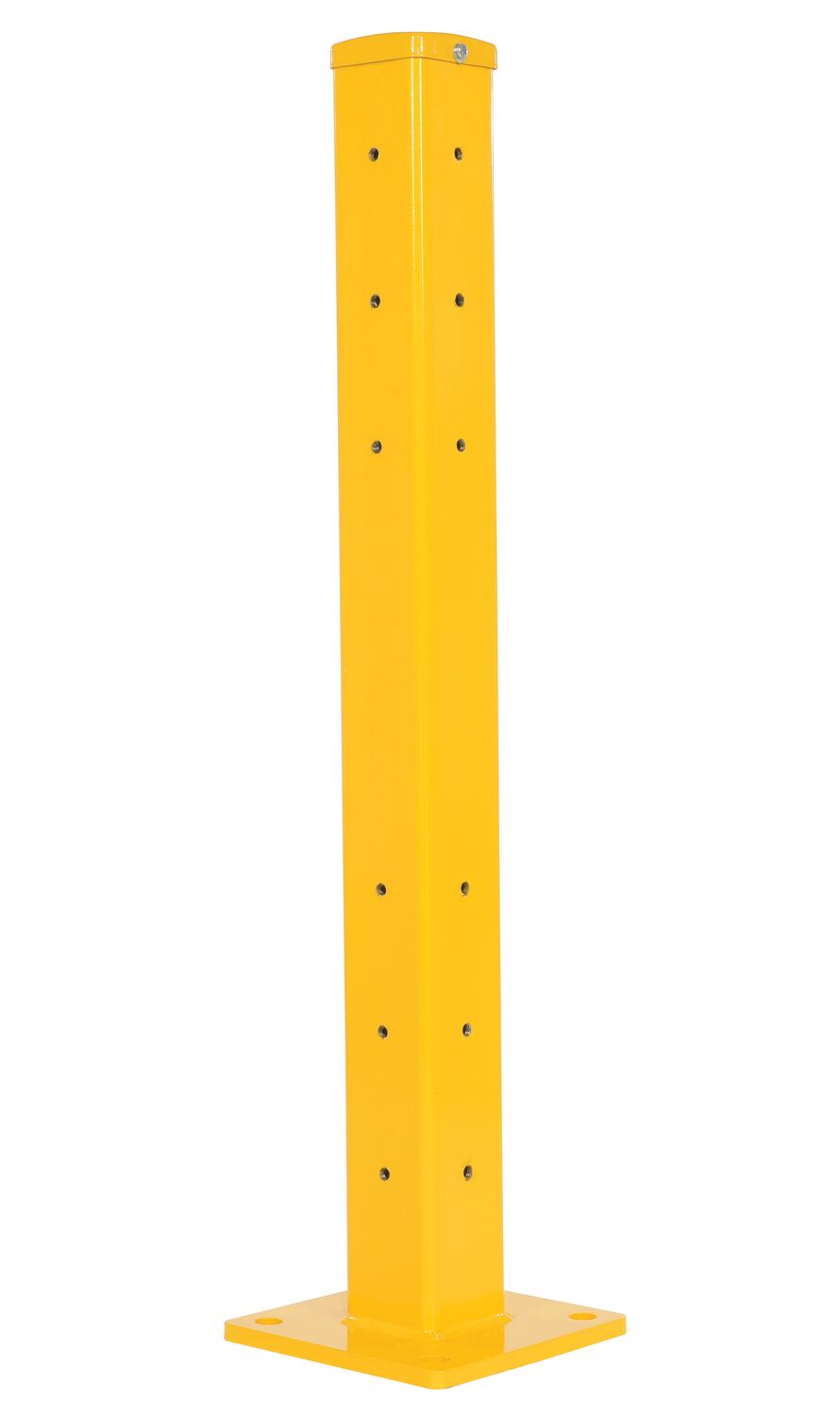

GR-F3R-BO-TP42-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 3-1/24 In. For 3 Ribbed Bolt On Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875	65

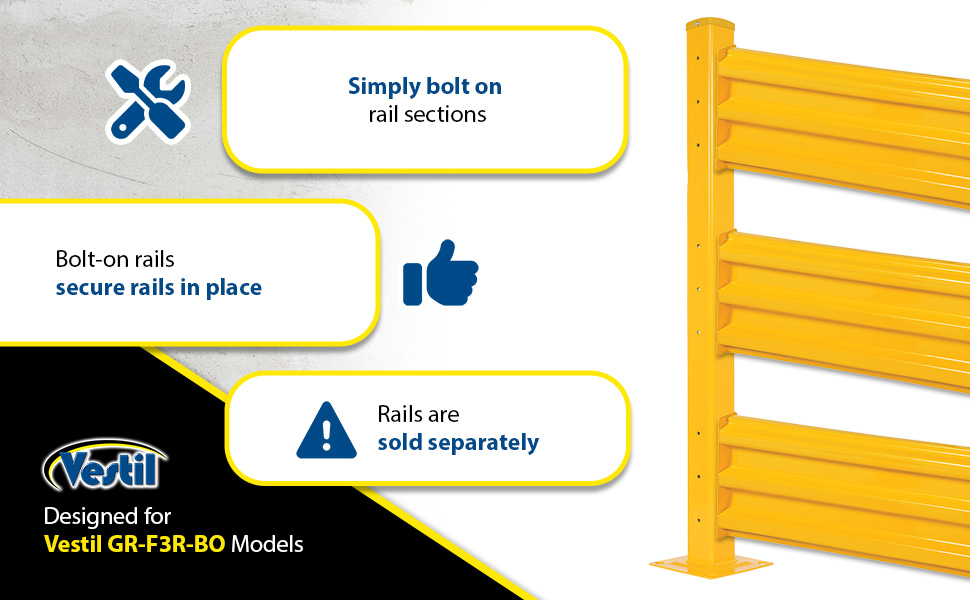

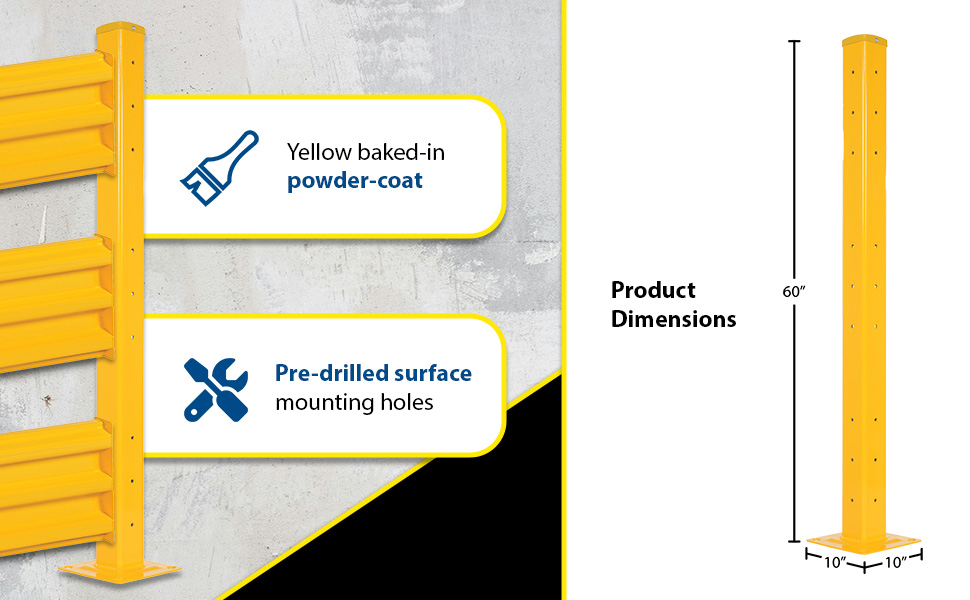

GR-F3R-BO-TP60-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 53.875 In. For 3 Ribbed Bolt On Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 10	95

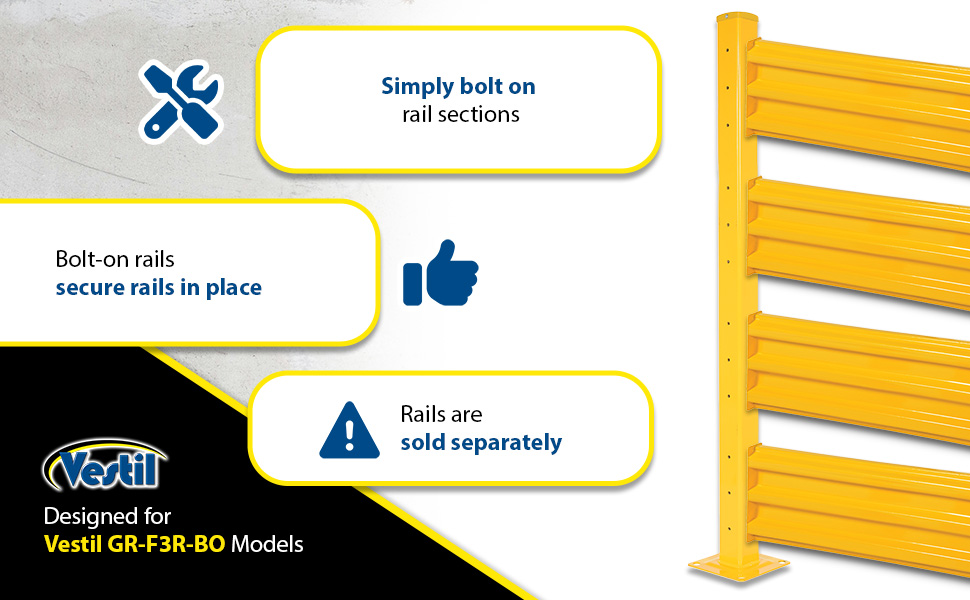

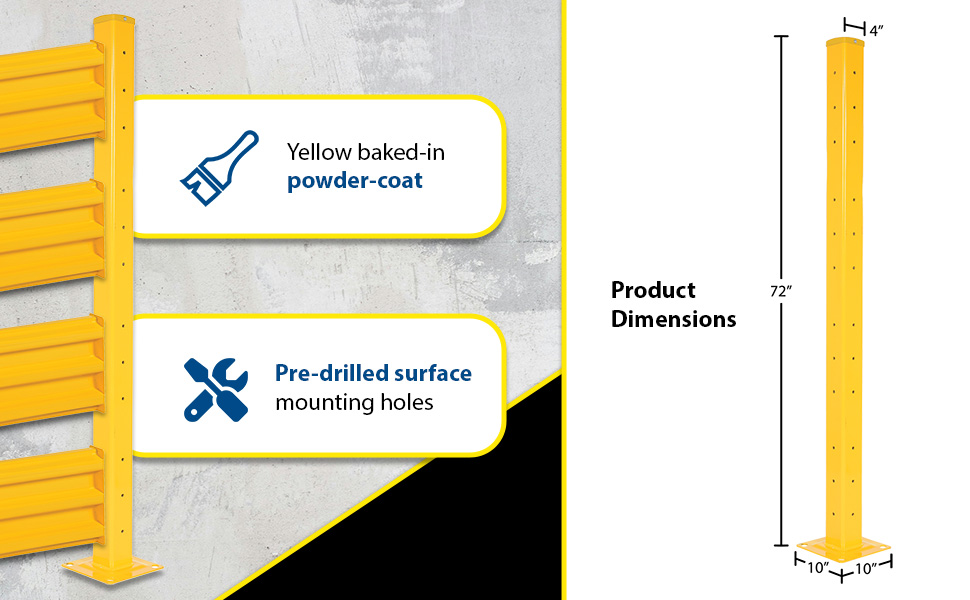

GR-F3R-BO-TP72-YL	90 Days Limited Warranty	Steel Rigid Tube Post Bolt On Style 65.875 In. For 3 Ribbed Bolt On Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 10	135

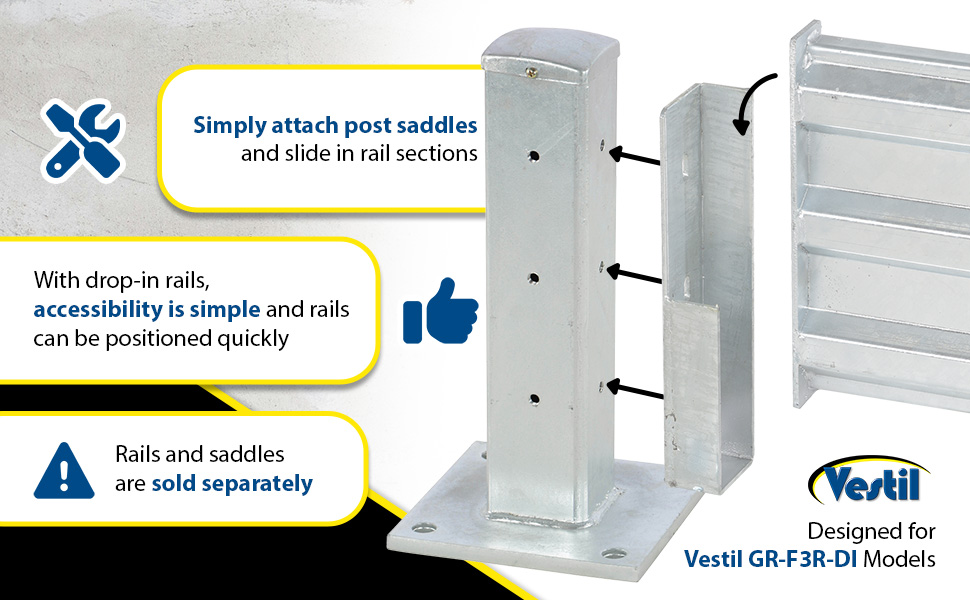

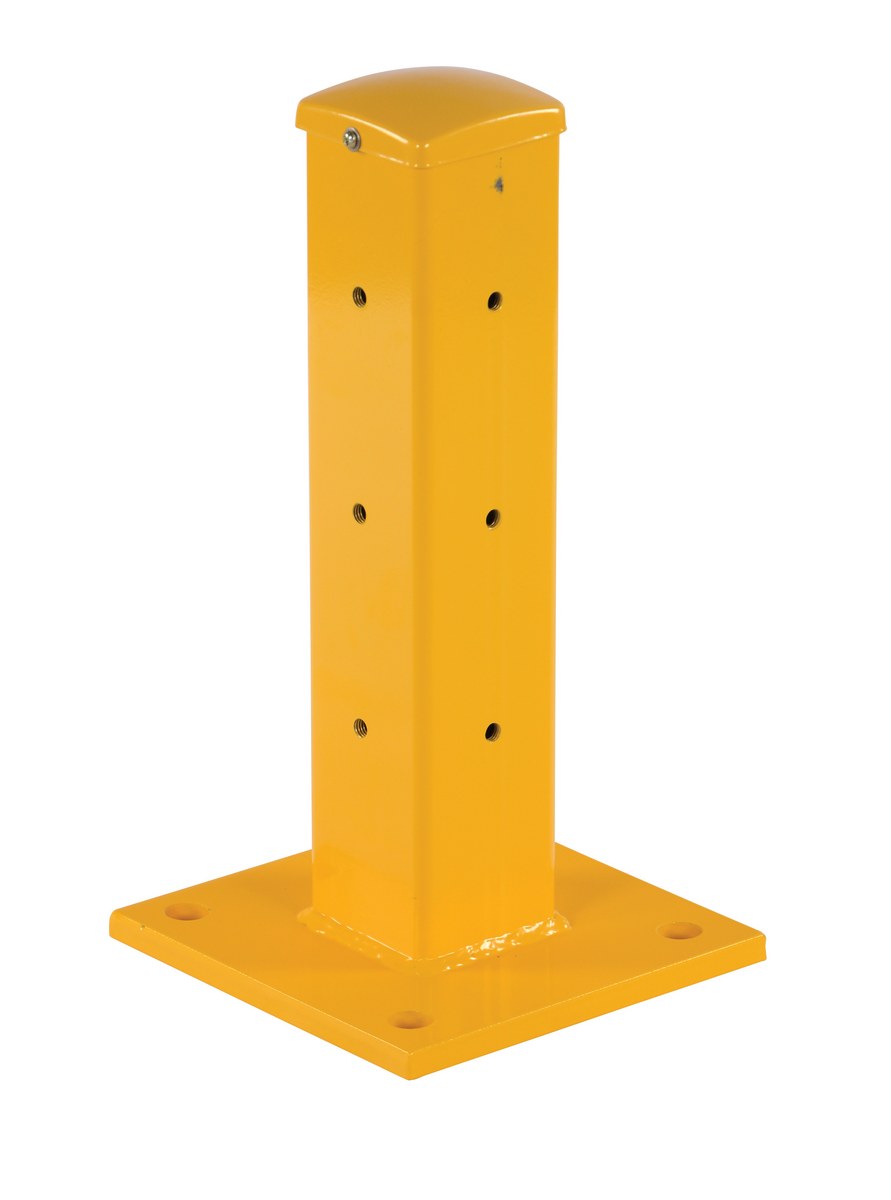

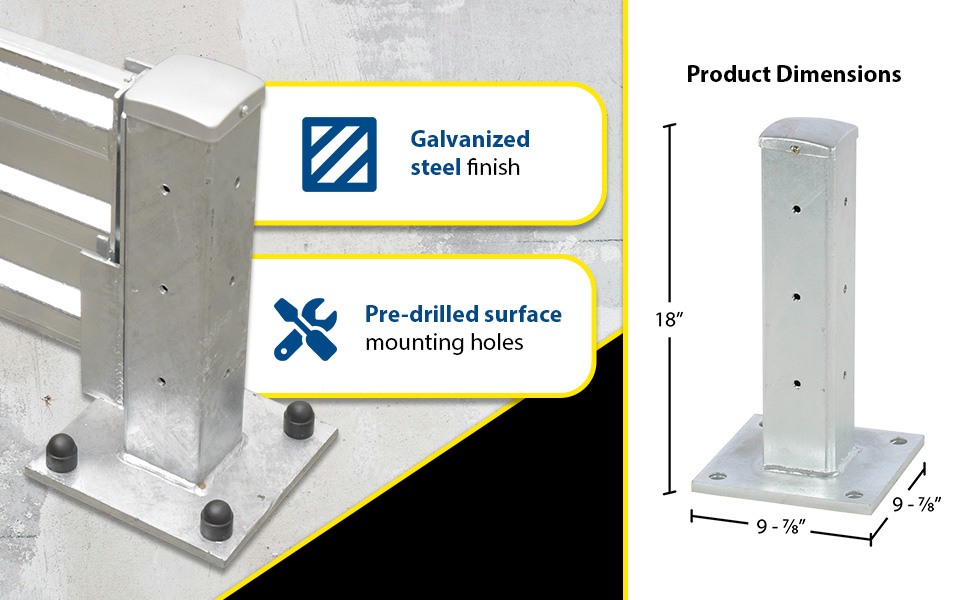

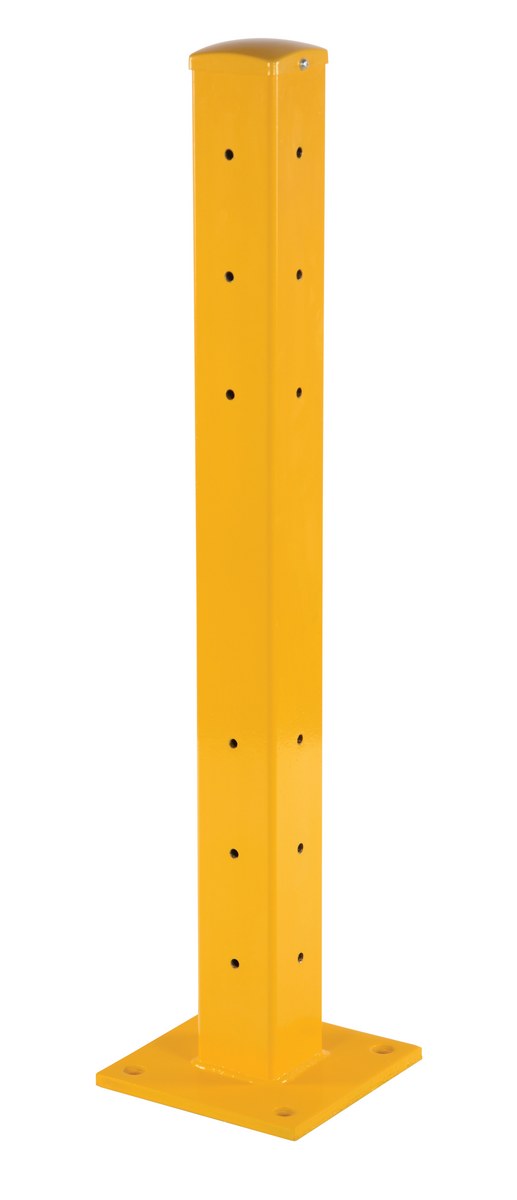

GR-F3R-DI-TP18-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In 18 In. For 3 Ribbed Drop In Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875	38
GR-F3R-DI-TP42-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In 42 In. For 3 Ribbed Drop In Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875	65
GR-F3R-DI-TP60-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In 60 In. For 3 Ribbed Drop In Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875	95
GR-F3R-DI-TP72-YL	90 Days Limited Warranty	Steel Rigid Tube Post Drop In 72 In. For 3 Ribbed Drop In Style Guard Rails Yellow	Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875	135

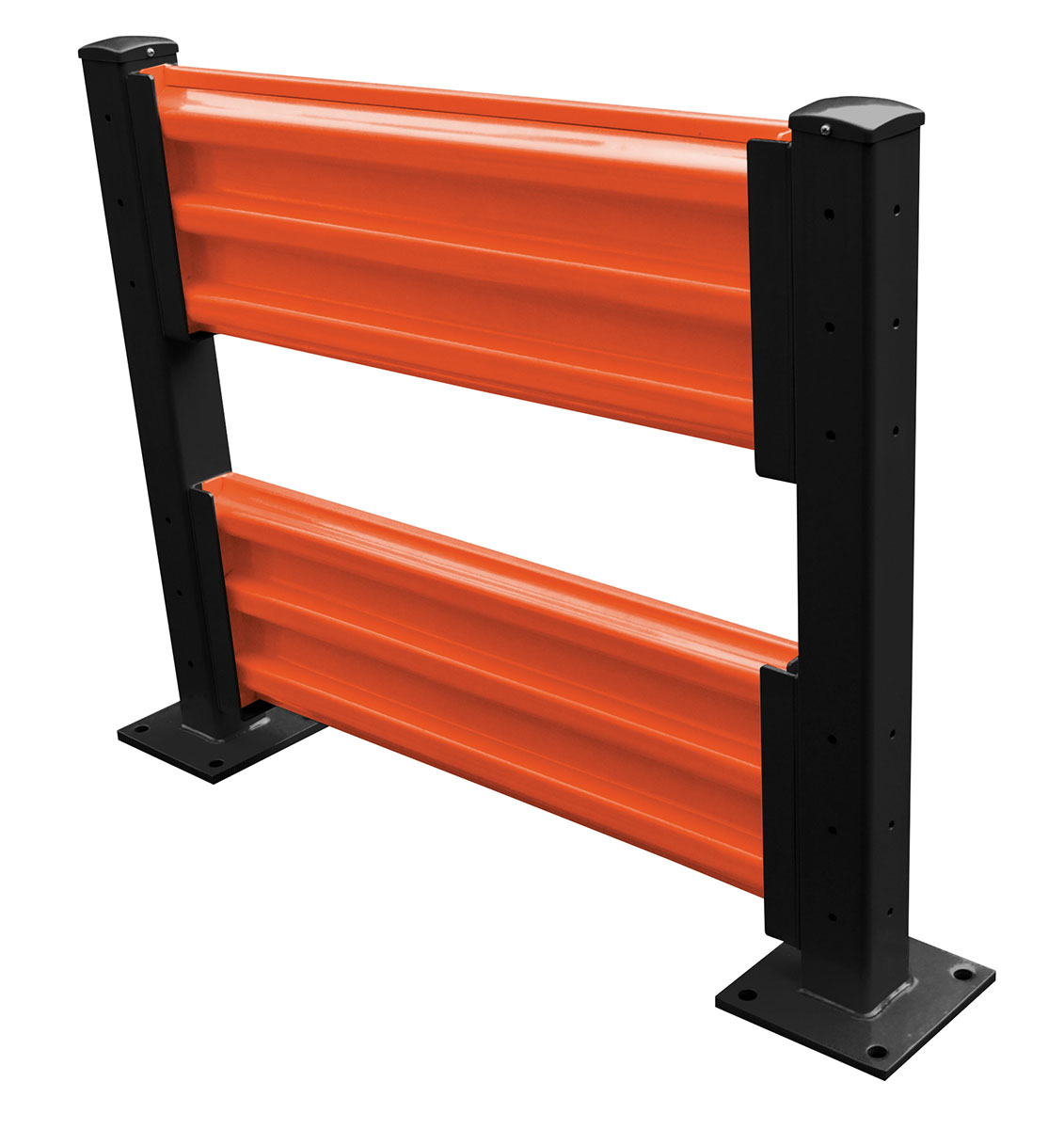

Optional Colors PDF

Model	Image	Description	Net. Wt. (lbs)
AS-344		Anchor Bolts for concrete, (1) 3/4"x4"	1
AS-344-4PK		Anchor Bolts for concrete, (4) 3/4"x4"	4

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Structural Guard Rails (drop-in and bolt-on style) PDF's will open in a new window when clicked.

Manuals

YGR-LO-4
Owners Manual

YGR-LO-6
Owners Manual

YGR-LO-8
Owners Manual

YGR-LO-10
Owners Manual

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

GR-F2R-BO-TP18-YL

GR-F2R-BO-TP42-YL

GR-F2R-BO-TP60-YL

GR-F2R-BO-TP72-YL

GR-F3R-BO-4-YL

GR-F3R-BO-5-YL

GR-F3R-BO-TP18-YL

GR-F3R-BO-TP42-YL

GR-F3R-BO-TP60-YL

GR-F3R-BO-TP72-YL

Testing Certificates

GR-F2R-BO-1-YL

GR-F2R-BO-10-YL

GR-F2R-BO-2-YL

GR-F2R-BO-3-YL

GR-F2R-BO-4-YL

GR-F2R-BO-5-YL

GR-F2R-BO-6-YL

GR-F2R-BO-7-YL

GR-F2R-BO-8-YL

GR-F2R-BO-9-YL

GR-F2R-BO-TP18-YL

GR-F2R-BO-TP42-YL

GR-F2R-BO-TP60-YL

GR-F2R-BO-TP72-YL

GR-F2R-DI-1-YL

GR-F2R-DI-10-YL

GR-F2R-DI-2-YL

GR-F2R-DI-3-YL

GR-F2R-DI-4-YL

GR-F2R-DI-5-YL

GR-F2R-DI-6-YL

GR-F2R-DI-7-YL

GR-F2R-DI-8-YL

GR-F2R-DI-9-YL

GR-F2R-DI-TP18-YL

GR-F2R-DI-TP42-YL

GR-F2R-DI-TP60-YL

GR-F2R-DI-TP72-YL

GR-F3R-BO-1-YL

GR-F3R-BO-10-YL

GR-F3R-BO-2-YL

GR-F3R-BO-3-YL

GR-F3R-BO-4-YL

GR-F3R-BO-5-YL

GR-F3R-BO-6-YL

GR-F3R-BO-7-YL

GR-F3R-BO-8-YL

GR-F3R-BO-9-YL

GR-F3R-BO-HWR-YL

GR-F3R-BO-TP18-YL

GR-F3R-BO-TP42-YL

GR-F3R-BO-TP60-YL

GR-F3R-BO-TP72-YL

GR-F3R-DI-1-YL

GR-F3R-DI-10-YL

GR-F3R-DI-2-YL

GR-F3R-DI-3-YL

GR-F3R-DI-4-YL

GR-F3R-DI-5-YL

GR-F3R-DI-6-YL

GR-F3R-DI-7-YL

GR-F3R-DI-8-YL

GR-F3R-DI-9-YL

GR-F3R-DI-TP18-YL

GR-F3R-DI-TP42-YL

GR-F3R-DI-TP60-YL

GR-F3R-DI-TP72-YL

GR-F3R-GBD-3-YL

GR-F3R-GBD-4-YL

GR-F3R-GBS-3-YL

GR-F3R-GBS-4-YL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

Structural Guard Rails Brochure PDF with All Color Models

Specialty Color Guard Rails Mailing Brochure

GUARD RAIL MODEL NUMBER CONVERSION GUIDE

Directory Links Of Available PDF's For All Products

Q: What is the impact rating of the guard rail?

A: The impact rating of the guard rail is 4,000 lbs. at 4 MPH.

Q: Are there mounting holes for the guard rail on one side?

A: There are mounting holes on all four sides of all the Rigid Post models.

Q: What is the thickness of the steel for the guardrail post?

A: The steel thickness of the guardrail posts is 3/16".

Q: We are installing the drop in rails on the 42" posts. What is the dimension from the bottom rail to the floor?

A: The dimension from the floor to the bottom of the lower rail is 2 5/8".

Q: What is the gauge of steel for the GR-F2R & GR-F3R rails?

A: 11 Gauge

Related or Similar Products:

Product

Structural Channel Guard Rail Systems

Product

Curved Guardrail Reflectors

Product

Highway Guard Rail Systems

Product

Replaceable Bollard Caps

Product

Protective Dome Covers for Bollards

Product

Steel Pipe Safety Bollards

Model #

Description

Attributes

Net Wt.
(lbs)

GR-F2R-BO-1-YL

Steel 2 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow

Mounting Post (qty.): 2

GR-F2R-BO-10-YL

Steel 2 Ribbed Bolt On Style Guard Rail 114 In. Length Yellow

Mounting Post (qty.): 2

150

GR-F2R-BO-2-YL

Steel 2 Ribbed Bolt On Style Guard Rail 24 In. Length Yellow

Mounting Post (qty.): 2

GR-F2R-BO-3-YL

Steel 2 Ribbed Bolt On Style Guard Rail 30 In Length Yellow

Mounting Post (qty.): 2

GR-F2R-BO-4-YL

Steel 2 Ribbed Bolt On Style Guard Rail 42 In. Length Yellow

Mounting Post (qty.): 2

GR-F2R-BO-5-YL

Steel 2 Ribbed Bolt On Style Guard Rail 54 In. Length Yellow

Mounting Post (qty.): 2

GR-F2R-BO-6-YL

Steel 2 Ribbed Bolt On Style Guard Rail 66 In. Length Yellow

Mounting Post (qty.): 2

GR-F2R-BO-7-YL

Steel 2 Ribbed Bolt On Style Guard Rail 78 In. Length Yellow

Mounting Post (qty.): 2

104

GR-F2R-BO-8-YL

Steel 2 Ribbed Bolt On Style Guard Rail 90 In. Length Yellow

Mounting Post (qty.): 2

124

GR-F2R-BO-9-YL

Steel 2 Ribbed Bolt On Style Guard Rail 102 In. Length Yellow

Mounting Post (qty.): 2

138

GR-F2R-DI-1-YL

Steel 2 Ribbed Drop In Style Guard Rail 12 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

GR-F2R-DI-10-YL

Steel 2 Ribbed Drop In Style Guard Rail 114 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

160

GR-F2R-DI-2-YL

Steel 2 Ribbed Drop In Style Guard Rail 24 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

GR-F2R-DI-3-YL

Steel 2 Ribbed Drop In Style Guard Rail 30 In Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

GR-F2R-DI-4-YL

Steel 2 Ribbed Drop In Style Guard Rail 42 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

GR-F2R-DI-5-YL

Steel 2 Ribbed Drop In Style Guard Rail 54 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

GR-F2R-DI-6-YL

Steel 2 Ribbed Drop In Style Guard Rail 66 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

102

GR-F2R-DI-7-YL

Steel 2 Ribbed Drop In Style Guard Rail 78 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

114

GR-F2R-DI-8-YL

Steel 2 Ribbed Drop In Style Guard Rail 90 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

134

GR-F2R-DI-9-YL

Steel 2 Ribbed Drop In Style Guard Rail 102 In. Length Yellow

Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware

148

GR-F3R-BO-1-YL

Steel 3 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-BO-10-YL

Steel 3 Ribbed Bolt On Style Guard Rail 113.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

162

GR-F3R-BO-2-YL

Steel 3 Ribbed Bolt On Style Guard Rail 24 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-BO-3-YL

Steel 3 Ribbed Bolt On Style Guard Rail 29.875 In Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-BO-4-YL

Steel 3 Ribbed Bolt On Style Guard Rail 41.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-BO-5-YL

Steel 3 Ribbed Bolt On Style Guard Rail 53.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-BO-6-YL

Steel 3 Ribbed Bolt On Style Guard Rail 65.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

106

GR-F3R-BO-7-YL

Steel 3 Ribbed Bolt On Style Guard Rail 77.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

118

GR-F3R-BO-8-YL

Steel 3 Ribbed Bolt On Style Guard Rail 89.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

138

GR-F3R-BO-9-YL

Steel 3 Ribbed Bolt On Style Guard Rail 101.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

150

GR-F3R-DI-1-YL

Steel 3 Ribbed Drop In Style Guard Rail 12 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-DI-10-YL

Steel 3 Ribbed Drop In Style Guard Rail 113.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

172

GR-F3R-DI-2-YL

Steel 3 Ribbed Drop In Style Guard Rail 24 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-DI-3-YL

Steel 3 Ribbed Drop In Style Guard Rail 29.875 In Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-DI-4-YL

Steel 3 Ribbed Drop In Style Guard Rail 41.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

GR-F3R-DI-5-YL

Steel 3 Ribbed Drop In Style Guard Rail 53.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

104

GR-F3R-DI-6-YL

Steel 3 Ribbed Drop In Style Guard Rail 65.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

116

GR-F3R-DI-7-YL

Steel 3 Ribbed Drop In Style Guard Rail 77.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

128

GR-F3R-DI-8-YL

Steel 3 Ribbed Drop In Style Guard Rail 89.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2

148

GR-F3R-DI-9-YL

Steel 3 Ribbed Drop In Style Guard Rail 101.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Mounting Post Required (qty.): 2

160

GR-F3R-GBD-3-YL

Steel 3 Ribbed Guard Rail Spring Gate 29.875 In Length Yellow

Impact Capacity (Lbs.): 10,000
Base Plate Width (in.): 10

143

GR-F3R-GBD-4-YL

Steel 3 Ribbed Guard Rail Spring Gate 41.875 In. Length Yellow

Impact Capacity (Lbs.): 10,000
Base Plate Width (in.): 10

143

GR-F3R-GBS-3-YL

Steel Hinged Guard Rail 29.875 In Length 3 Ribbed Gate Yellow

Impact Capacity (Lbs.): 10,000
Hardware Included: Yes

GR-F3R-GBS-4-YL

Steel Hinged Guard Rail 41.875 In. Length 3 Ribbed Gate Yellow

Impact Capacity (Lbs.): 10,000
Hardware Included: Yes

Model


Description

Net. Wt.
(lbs)

AS-344

Anchor Bolts for concrete, (1) 3/4"x4"

AS-344-4PK

Anchor Bolts for concrete, (4) 3/4"x4"

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Structural Guard Rails (drop-in and bolt-on style)

Structural Guard Rails (drop-in and bolt-on style)

Featured Protective Barriers

Product Family Overview

Other Guard Rail Systems

Additional Models In This Family
view entire Image Gallery

Structural Guard Rails Specialty Colors Available!

Steel GR Colors

Model Specific Details

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: What is the impact rating of the guard rail?

Q: Are there mounting holes for the guard rail on one side?

Q: What is the thickness of the steel for the guardrail post?

Q: We are installing the drop in rails on the 42" posts. What is the dimension from the bottom rail to the floor?

Q: What is the gauge of steel for the GR-F2R & GR-F3R rails?

Related or Similar Products:

Structural Channel Guard Rail Systems

Curved Guardrail Reflectors

Highway Guard Rail Systems

Replaceable Bollard Caps

Protective Dome Covers for Bollards

Steel Pipe Safety Bollards

Structural Guard Rails (drop-i...

Options

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Structural Guard Rails (drop-in and bolt-on style)

Structural Guard Rails (drop-in and bolt-on style)

Featured Protective Barriers

Product Family Overview

Other Guard Rail Systems

Additional Models In This Family view entire Image Gallery

Structural Guard Rails Specialty Colors Available!

Steel GR Colors

Model Specific Details

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: What is the impact rating of the guard rail?

Q: Are there mounting holes for the guard rail on one side?

Q: What is the thickness of the steel for the guardrail post?

Q: We are installing the drop in rails on the 42" posts. What is the dimension from the bottom rail to the floor?

Q: What is the gauge of steel for the GR-F2R & GR-F3R rails?

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

Structural Channel Guard Rail Systems

Curved Guardrail Reflectors

Highway Guard Rail Systems

Replaceable Bollard Caps

Protective Dome Covers for Bollards

Steel Pipe Safety Bollards

Structural Guard Rails (drop-i...

Options

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Additional Models In This Family
view entire Image Gallery

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
