Product Family Overview


Highway Guard Rail Systems
SERIES: GR-H2R

Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided, mounting hardware not included Floor mounting kit sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

Posts, End Caps, Brackets & Hardware Can Be Found Below Under Options

Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided, mounting hardware not included Floor mounting kit sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

Posts, End Caps, Brackets & Hardware Can Be Found Below Under Options

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

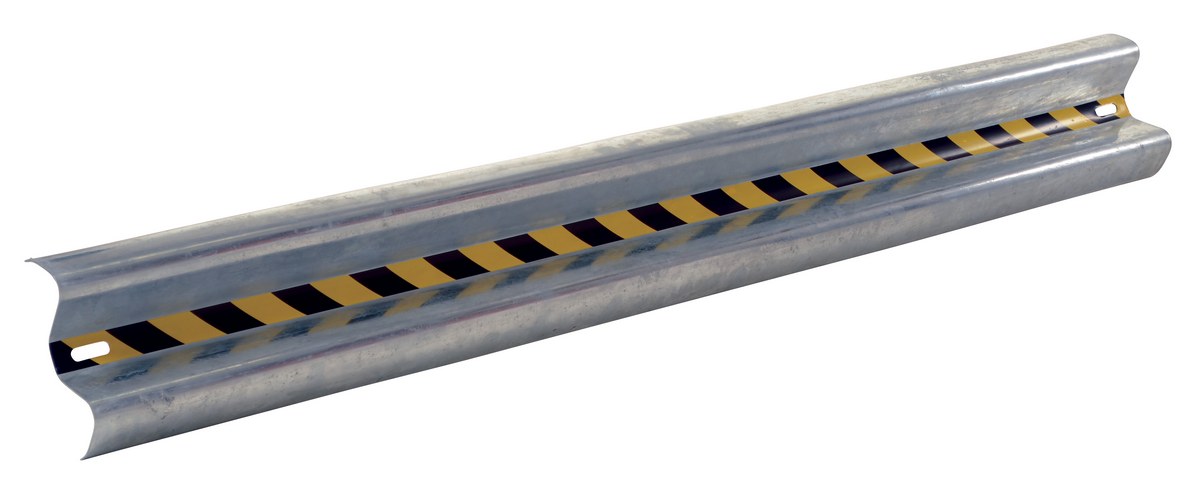

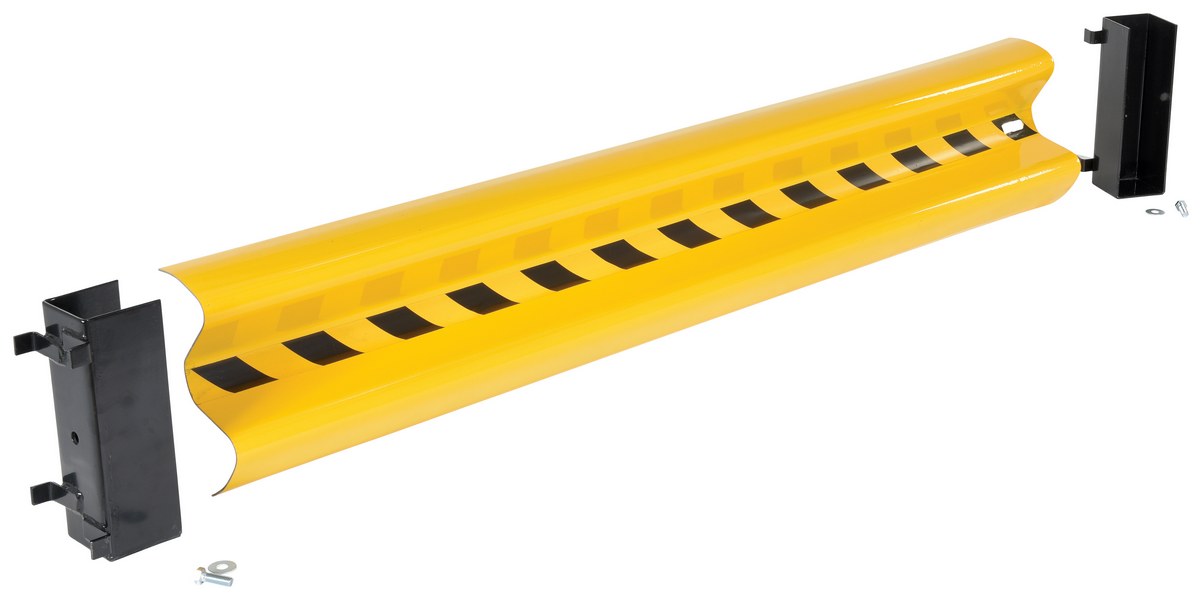

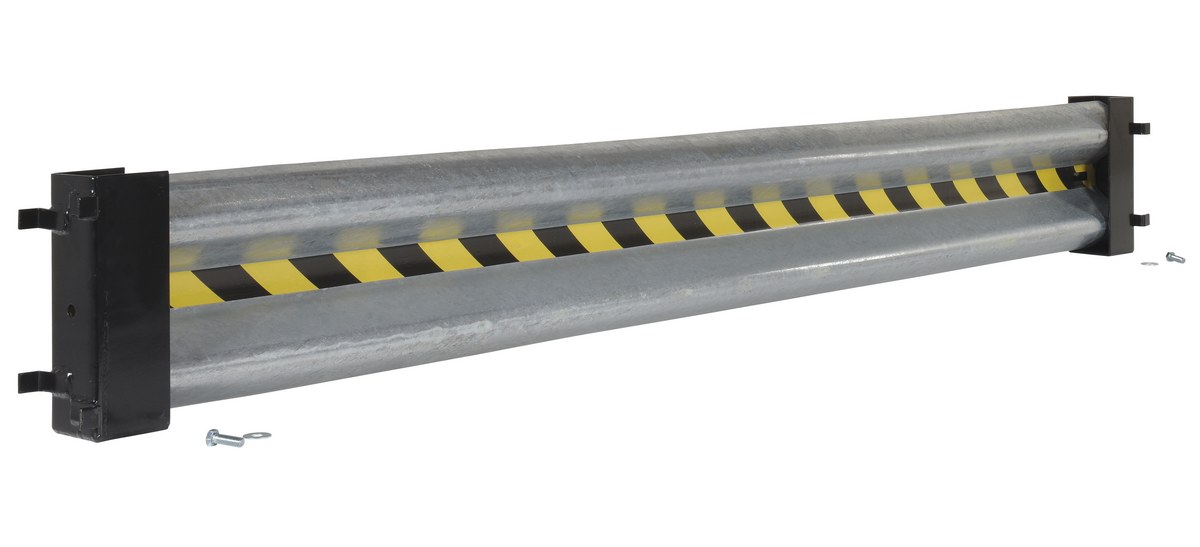

GR-H2R-BO-10-HDG GR-H2R-BO-10-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 113.875 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
104
GR-H2R-BO-10-YL GR-H2R-BO-10-YL90 Days Limited WarrantySteel Straight Guard Rail 113.875 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight
104
GR-H2R-BO-11-HDG GR-H2R-BO-11-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 112 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
112
GR-H2R-BO-11-YL GR-H2R-BO-11-YL90 Days Limited WarrantySteel Straight Guard Rail 112 In. Length YellowMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90
112
GR-H2R-BO-12-HDG GR-H2R-BO-12-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 124 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
120
GR-H2R-BO-12-YL GR-H2R-BO-12-YL90 Days Limited WarrantySteel Straight Guard Rail 124 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight
120
GR-H2R-BO-3-HDG GR-H2R-BO-3-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 29.875 In Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
20
GR-H2R-BO-3-YL GR-H2R-BO-3-YL90 Days Limited WarrantySteel Straight Guard Rail 29.875 In Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
20
GR-H2R-BO-4-HDG GR-H2R-BO-4-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 41.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
30
GR-H2R-BO-4-YL GR-H2R-BO-4-YL90 Days Limited WarrantySteel Straight Guard Rail 41.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
30
GR-H2R-BO-5-HDG GR-H2R-BO-5-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 53.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
41
GR-H2R-BO-5-YL GR-H2R-BO-5-YL90 Days Limited WarrantySteel Straight Guard Rail 53.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
41

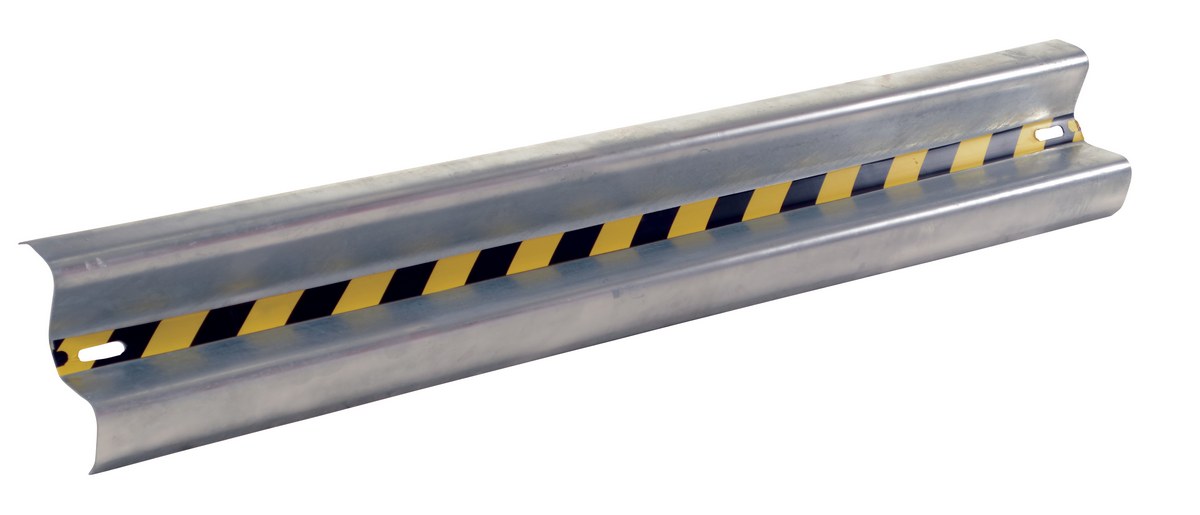

GR-H2R-BO-6-HDG GR-H2R-BO-6-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 65.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
48
GR-H2R-BO-6-YL GR-H2R-BO-6-YL90 Days Limited WarrantySteel Straight Guard Rail 65.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
48
GR-H2R-BO-7-HDG GR-H2R-BO-7-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 77.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
76
GR-H2R-BO-7-YL GR-H2R-BO-7-YL90 Days Limited WarrantySteel Straight Guard Rail 77.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
76
GR-H2R-BO-8-HDG GR-H2R-BO-8-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 89.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight
78

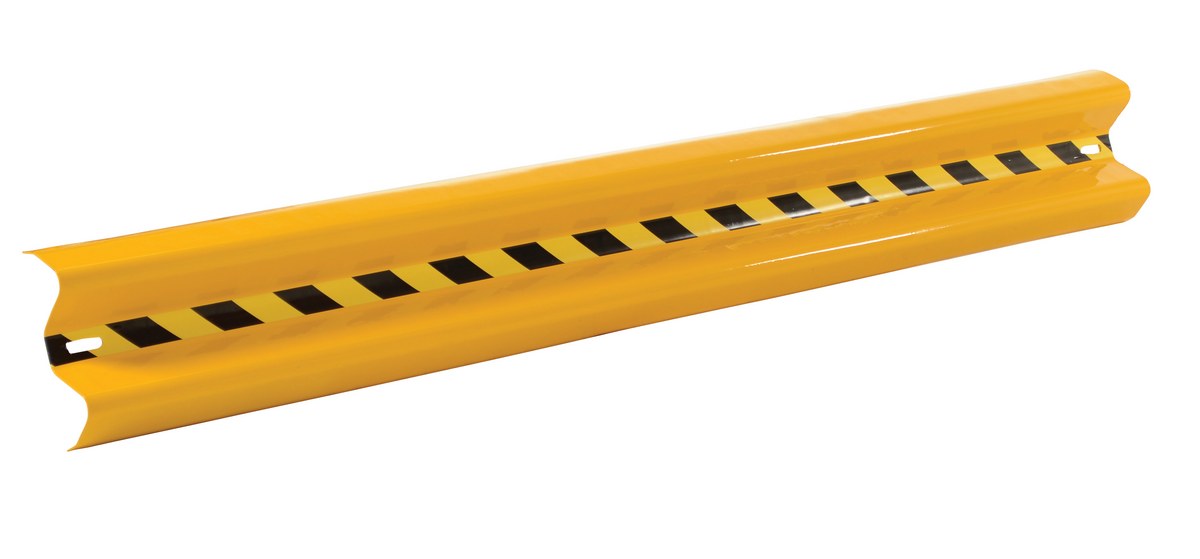

GR-H2R-BO-8-YL GR-H2R-BO-8-YL90 Days Limited WarrantySteel Straight Guard Rail 89.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight
78
GR-H2R-BO-9-HDG GR-H2R-BO-9-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 101.875 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight
86
GR-H2R-BO-9-YL GR-H2R-BO-9-YL90 Days Limited WarrantySteel Straight Guard Rail 101.875 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight
86

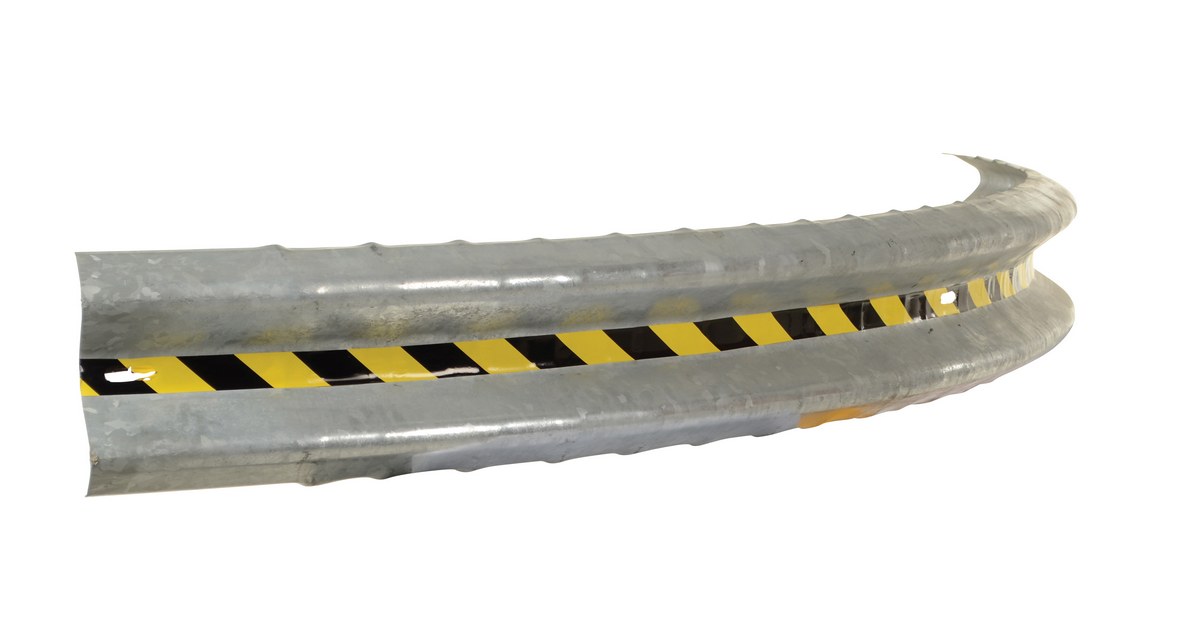

GR-H2R-CRV-BO-10-HDG GR-H2R-CRV-BO-10-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 113.875 In. Length GrayMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90
85
GR-H2R-CRV-BO-12-HDG GR-H2R-CRV-BO-12-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 124 In. Length GrayMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90
122

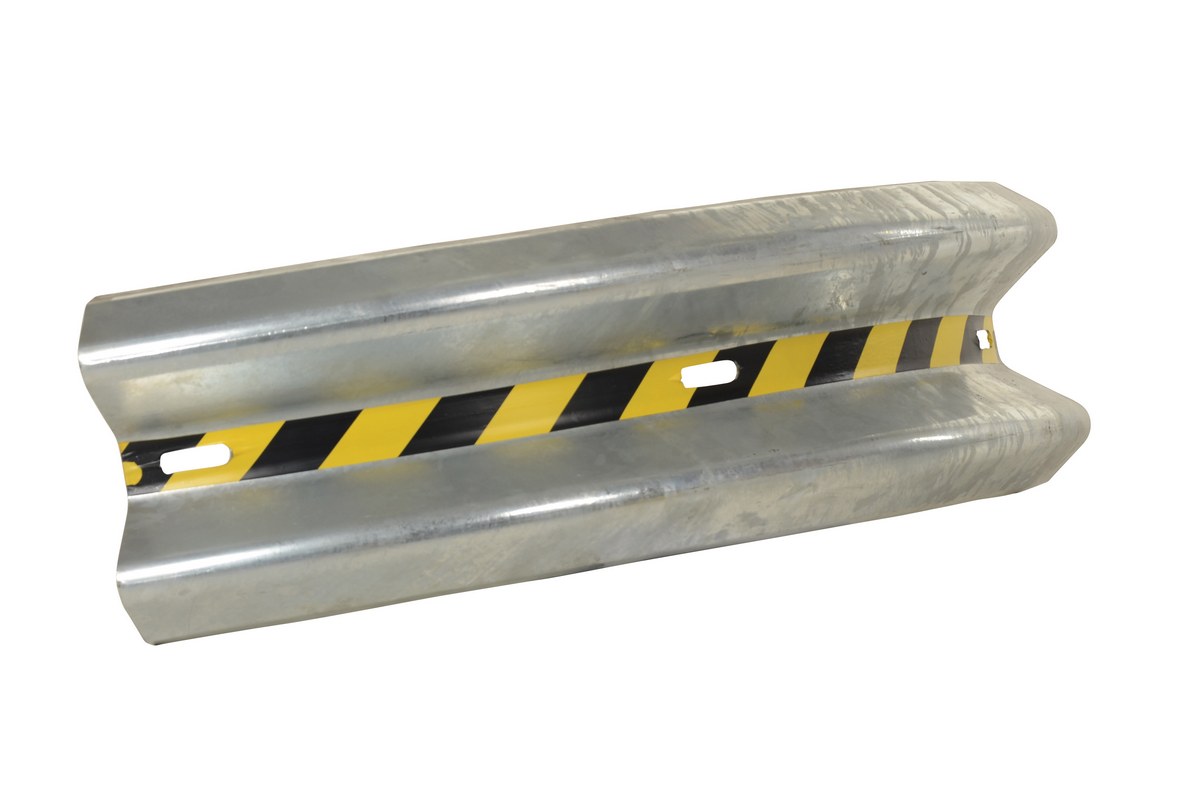

GR-H2R-CRV-BO-4-HDG GR-H2R-CRV-BO-4-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 41.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90
32
GR-H2R-CRV-BO-6-HDG GR-H2R-CRV-BO-6-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 65.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90
55
GR-H2R-CRV-BO-8-HDG GR-H2R-CRV-BO-8-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 89.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90
69
GR-H2R-DI-10-HDG GR-H2R-DI-10-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 113.875 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
123
GR-H2R-DI-10-YL GR-H2R-DI-10-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 113.875 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
123
GR-H2R-DI-11-HDG GR-H2R-DI-11-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 112 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
137
GR-H2R-DI-11-YL GR-H2R-DI-11-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 112 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
137
GR-H2R-DI-12-HDG GR-H2R-DI-12-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 124 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
131
GR-H2R-DI-12-YL GR-H2R-DI-12-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 124 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
131
GR-H2R-DI-3-HDG GR-H2R-DI-3-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 29.875 In Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
49
GR-H2R-DI-3-YL GR-H2R-DI-3-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 29.875 In Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
49
GR-H2R-DI-4-HDG GR-H2R-DI-4-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 41.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
54
GR-H2R-DI-4-YL GR-H2R-DI-4-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 41.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
54
GR-H2R-DI-5-HDG GR-H2R-DI-5-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 53.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
70
GR-H2R-DI-5-YL GR-H2R-DI-5-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 53.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
70

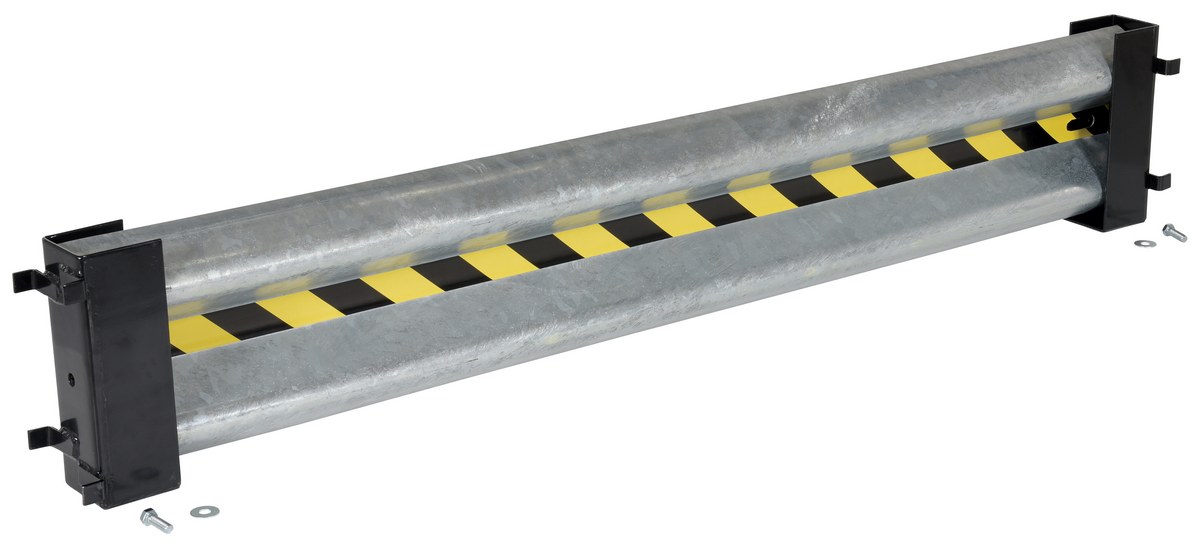

GR-H2R-DI-6-HDG GR-H2R-DI-6-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 65.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
72
GR-H2R-DI-6-YL GR-H2R-DI-6-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 65.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
72
GR-H2R-DI-7-HDG GR-H2R-DI-7-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 77.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
91
GR-H2R-DI-7-YL GR-H2R-DI-7-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 77.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
91
GR-H2R-DI-8-HDG GR-H2R-DI-8-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 89.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
90
GR-H2R-DI-8-YL GR-H2R-DI-8-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 89.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2
90
GR-H2R-DI-9-HDG GR-H2R-DI-9-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 101.875 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
116
GR-H2R-DI-9-YL GR-H2R-DI-9-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 101.875 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3
116

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty
