Product Family Overview

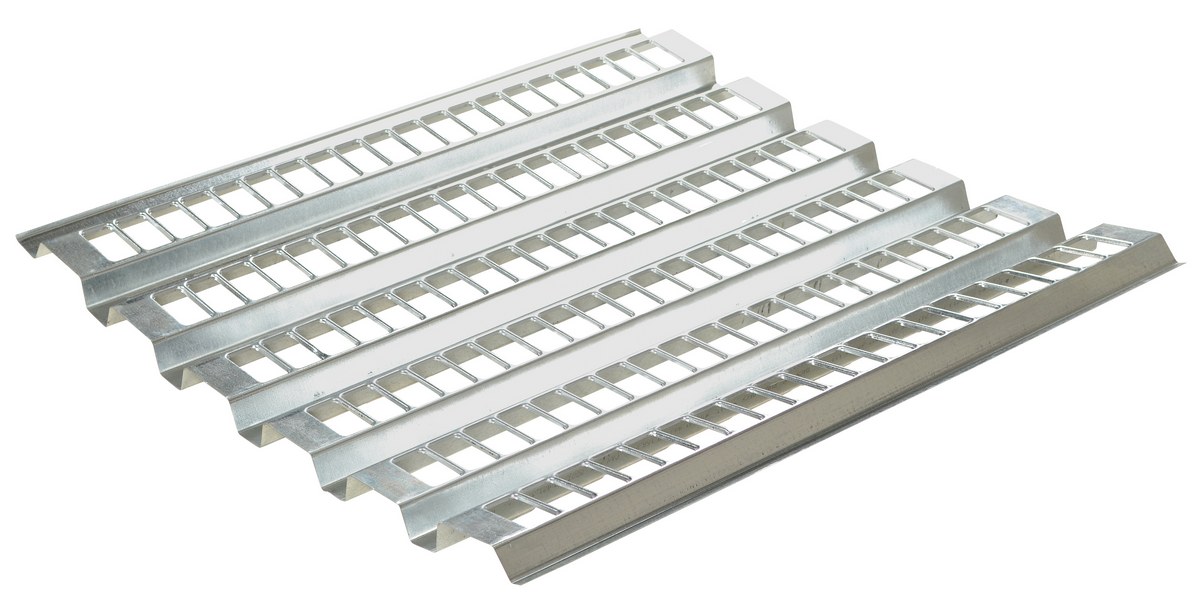

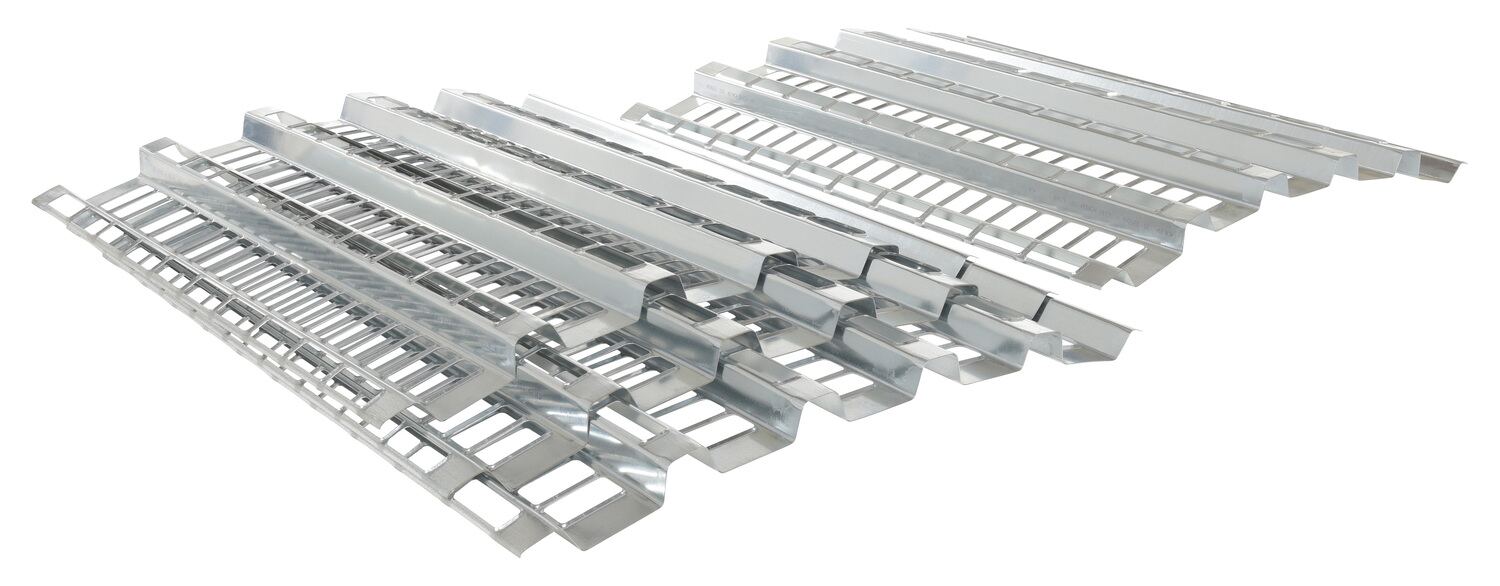

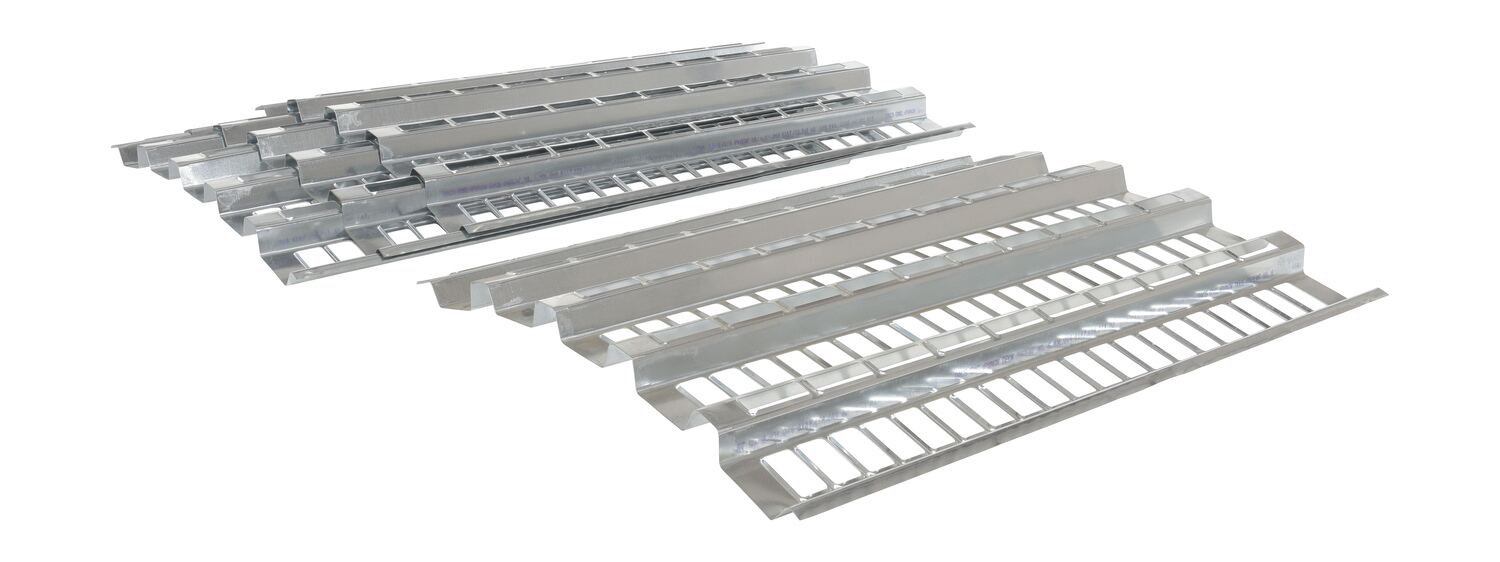

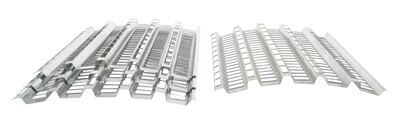

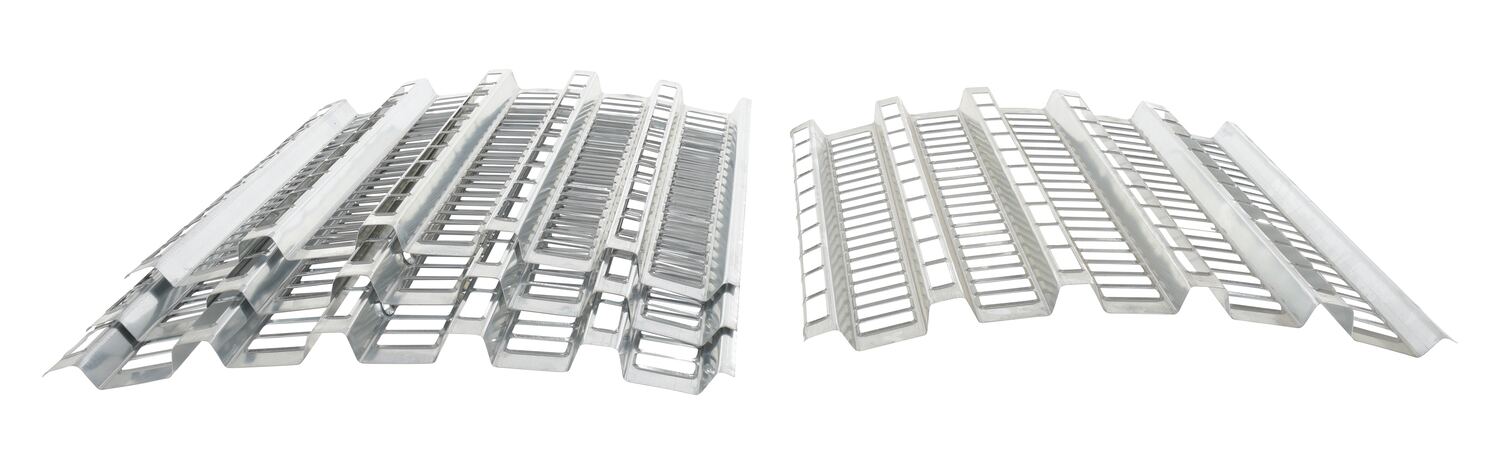

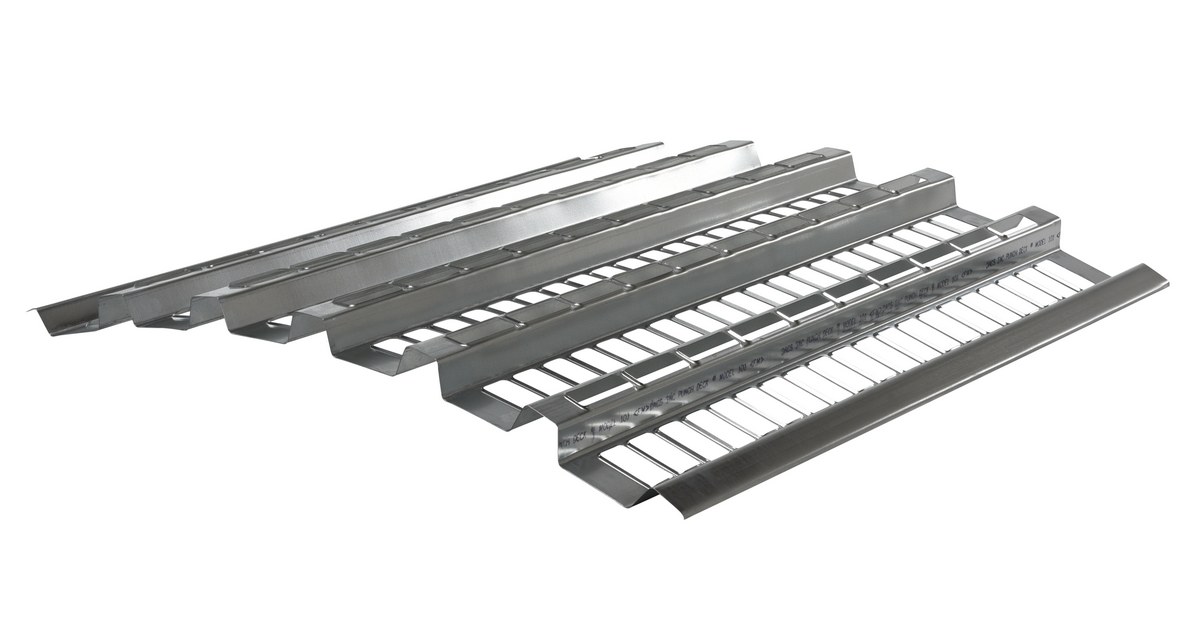

Open Area Rack Decking
SERIES: PCH

Ideal for storing furniture, carpet, record files or products that require a uniform support. Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.

  • Ideal for storing furniture, carpet, record files or products that require a uniform support
  • 50% Open design becomes fire protection friendly
  • Designed for pallet rack beam with deep racking
  • Galvanized finish provides a longer life for pallet racking

Ideal for storing furniture, carpet, record files or products that require a uniform support. Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.

  • Ideal for storing furniture, carpet, record files or products that require a uniform support
  • 50% Open design becomes fire protection friendly
  • Designed for pallet rack beam with deep racking
  • Galvanized finish provides a longer life for pallet racking

Additional Models In This Family

PCH-96

model PCH-96

PCH-108

model PCH-108

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
PCH-108 PCH-10830 Days Limited WarrantyGalvanized Open-Area Pallet Rack Decking 38-1/2 In. x 108 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
72
PCH-120 PCH-12030 Days Limited WarrantyGalvanized Open-Area Pallet Rack Decking 38-1/2 In. x 120 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
82
PCH-96 PCH-9630 Days Limited WarrantyGalvanized Open-Area Pallet Rack Decking 38-1/2 In. x 96 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
62

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

PCH-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42

PCH-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42

PCH-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42

Open Area Rack Decking PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


PCH-96

PCH-108

PCH-120

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Open Area Rack Decking




Ideal for storing furniture, carpet, record files or products that require a uniform support. Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.

  • Ideal for storing furniture, carpet, record files or products that require a uniform support
  • 50% Open design becomes fire protection friendly
  • Designed for pallet rack beam with deep racking
  • Galvanized finish provides a longer life for pallet racking


Model # Description Attributes Net Wt.
(lbs)
PCH-108 PCH-108Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 108 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
72
PCH-120 PCH-120Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 120 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
82
PCH-96 PCH-96Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 96 In. x 1-1/2 In. 3780 Lb. CapacityUniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
62
