Model Details

WTJ-20-4-AC-CSA-GAL

WTJ-20-4-AC-CSA-GAL

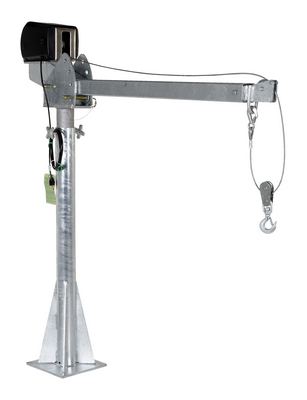

Galvanized Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Gray

The power lift Jib cranes are designed for material handling applications on docks, in warehouses or in truck beds. Choose either 12V DC, 1 HP with 6-foot long removable pendant control or 115V AC 1/3 HP with fingertip switch to raise and lower hook. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Units are not rated for overhead lifting applications. Consult factory for pricing if overhead lifting rating is required. Intermittent use cranes feature rotation hand brakes that offer unlimited 360 degrees positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. The AC units feature 25 feet of 7/32" cable. Folds for storage.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 281 (only 1 package) Size: 18.6875"W x 87.5"L x 73"H Color: Gray Non-Returnable

Uniform Capacity (lb.): 2000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-1/2" Fully Retracted (lbs.): 1,100
Capacity at 59-1/2" Second Position (lbs.): 800 Capacity at 59-1/2" Third Position (lbs.): 600 Capacity at 59-1/2" Fully Extended (lbs.): 250
Capacity at 78-1/4" Fully Retracted (lbs.): 1,500 Capacity at 78-1/4" Second Position (lbs.): 1,200 Capacity at 78-1/4" Third Position (lbs.): 1,000
Capacity at 78-1/4" Fully Extended (lbs.): 600 Capacity at 94-1/2" Fully Retracted (lbs.): 1,850 Capacity at 94-1/2" Second Position (lbs.): 1,450
Capacity at 94-1/2" Third Position (lbs.): 1,250 Capacity at 94-1/2" Fully Extended (lbs.): 780 Capacity at 106-1/2" Fully Retracted (lbs.): 2,000
Capacity at 106-1/2" Second Position (lbs.): 2,000 Capacity at 106-1/2" Third Position (lbs.): 1,900 Capacity at 106-1/2" Fully Extended (lbs.): 1,200
Compliant: CSA

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-20-4-AC-CSA-GAL


WTJ-20-4-AC-CSA-GAL

Galvanized Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Gray

The power lift Jib cranes are designed for material handling applications on docks, in warehouses or in truck beds. Choose either 12V DC, 1 HP with 6-foot long removable pendant control or 115V AC 1/3 HP with fingertip switch to raise and lower hook. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Units are not rated for overhead lifting applications. Consult factory for pricing if overhead lifting rating is required. Intermittent use cranes feature rotation hand brakes that offer unlimited 360 degrees positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. The AC units feature 25 feet of 7/32" cable. Folds for storage.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 18.6875"W x 87.5"L x 73"H Sell UOM: EA-Each Color: Gray
Material: Galvanized Steel UPC: 691215131612 GTIN: 00691215131612
Warranty: -- Shipping Weight: 281 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-1/2" Fully Retracted (lbs.): 1,100
Capacity at 59-1/2" Second Position (lbs.): 800 Capacity at 59-1/2" Third Position (lbs.): 600 Capacity at 59-1/2" Fully Extended (lbs.): 250
Capacity at 78-1/4" Fully Retracted (lbs.): 1,500 Capacity at 78-1/4" Second Position (lbs.): 1,200 Capacity at 78-1/4" Third Position (lbs.): 1,000
Capacity at 78-1/4" Fully Extended (lbs.): 600 Capacity at 94-1/2" Fully Retracted (lbs.): 1,850 Capacity at 94-1/2" Second Position (lbs.): 1,450
Capacity at 94-1/2" Third Position (lbs.): 1,250 Capacity at 94-1/2" Fully Extended (lbs.): 780 Capacity at 106-1/2" Fully Retracted (lbs.): 2,000
Capacity at 106-1/2" Second Position (lbs.): 2,000 Capacity at 106-1/2" Third Position (lbs.): 1,900 Capacity at 106-1/2" Fully Extended (lbs.): 1,200
Compliant: CSA
