Model Details

TT-N-24-LA

Printer Friendly
TT-N-24-LA

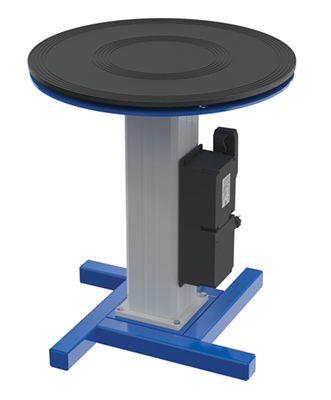

Steel Turntable 24 In. Diameter DC Powered 28-43 In. Height Adjustment 24V 750 Lb. Capacity Blue

The turntable with powered height adjustment allows the operator to raise or lower turntable to an ergonomic height. This unit has a manual turntable and is DC power with hand control for height adjustment. Hand held pendant control connects to power unit with a coil cord. Height is adjusted with an electric linear-actuator.

  • 24V Power
  • On-Board battery charger
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Total Ship Wt.(lbs.): 290 (only 1 package) Size: 23.25"W x 23.25"L x 27.6875"H Color: Blue

Uniform Capacity (lb.): 750 Turntable Diameter (in.): 24 Height Range Minimum (in.): 27-11/16
Height Range Maximum (in.): 42-11/16 Steel Plate Height (in.): 5/16 Turntable Degree: 360
DC Power: 24V Coil Cord (ft.): 6

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TT-N-24-LA
TT-N-24-LA

Steel Turntable 24 In. Diameter DC Powered 28-43 In. Height Adjustment 24V 750 Lb. Capacity Blue

The turntable with powered height adjustment allows the operator to raise or lower turntable to an ergonomic height. This unit has a manual turntable and is DC power with hand control for height adjustment. Hand held pendant control connects to power unit with a coil cord. Height is adjusted with an electric linear-actuator.

  • 24V Power
  • On-Board battery charger
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Dimensions: 23.25"W x 23.25"L x 27.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215130196 GTIN: 00691215130196
Warranty: -- Shipping Weight: 290 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 750 Turntable Diameter (in.): 24 Height Range Minimum (in.): 27-11/16
Height Range Maximum (in.): 42-11/16 Steel Plate Height (in.): 5/16 Turntable Degree: 360
DC Power: 24V Coil Cord (ft.): 6
