Model Details

TT-18-CDPED

TT-18-CDPED

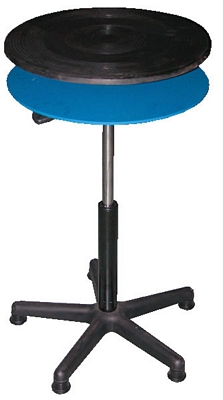

Steel Turntable 18 In. Diameter Gas Cylinder 24-34 In. Height Adjustment 300 Lb. Capacity Black/Blue

The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts. This unit features a gas cylinder up and down mechanism (similar design as office chair) and a stationary shelf for storing parts and tools.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Total Ship Wt.(lbs.): 118 (Multiple Packages: P1: 112 lbs + P2: 6 lbs) Size: 21.3125"W x 21.3125"L x 23.25"H Color: Black/Blue

Uniform Capacity (lb.): 300 Turntable Diameter (in.): 18 Height Range Minimum (in.): 23-1/4
Height Range Maximum (in.): 33-1/4 Steel Plate Height (in.): 5/16 Height Adjustment: Gas Cylinder

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TT-18-CDPED


TT-18-CDPED

Steel Turntable 18 In. Diameter Gas Cylinder 24-34 In. Height Adjustment 300 Lb. Capacity Black/Blue

The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts. This unit features a gas cylinder up and down mechanism (similar design as office chair) and a stationary shelf for storing parts and tools.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Dimensions: 21.3125"W x 21.3125"L x 23.25"H Sell UOM: EA-Each Color: Black/Blue
Material: Steel UPC: 691215044196 GTIN: 00691215044196
Warranty: -- Shipping Weight: 112 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 300 Turntable Diameter (in.): 18 Height Range Minimum (in.): 23-1/4
Height Range Maximum (in.): 33-1/4 Steel Plate Height (in.): 5/16 Height Adjustment: Gas Cylinder
