Model Details

TM-22-M-SS

Printer Friendly
TM-22-M-SS

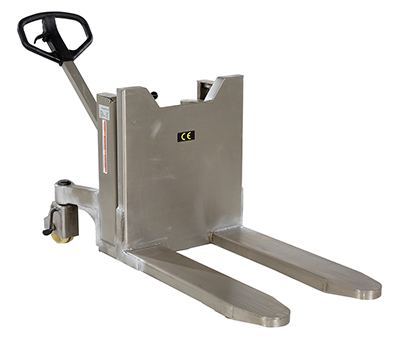

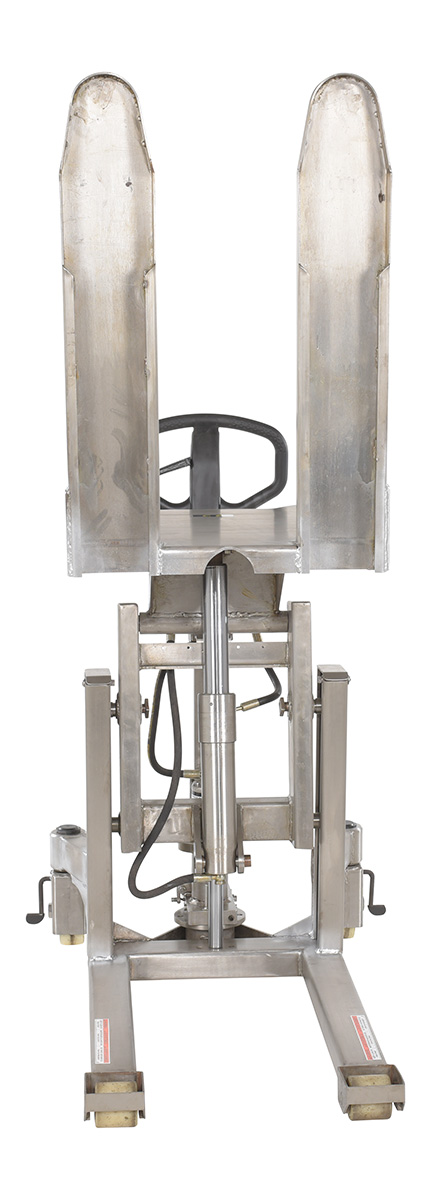

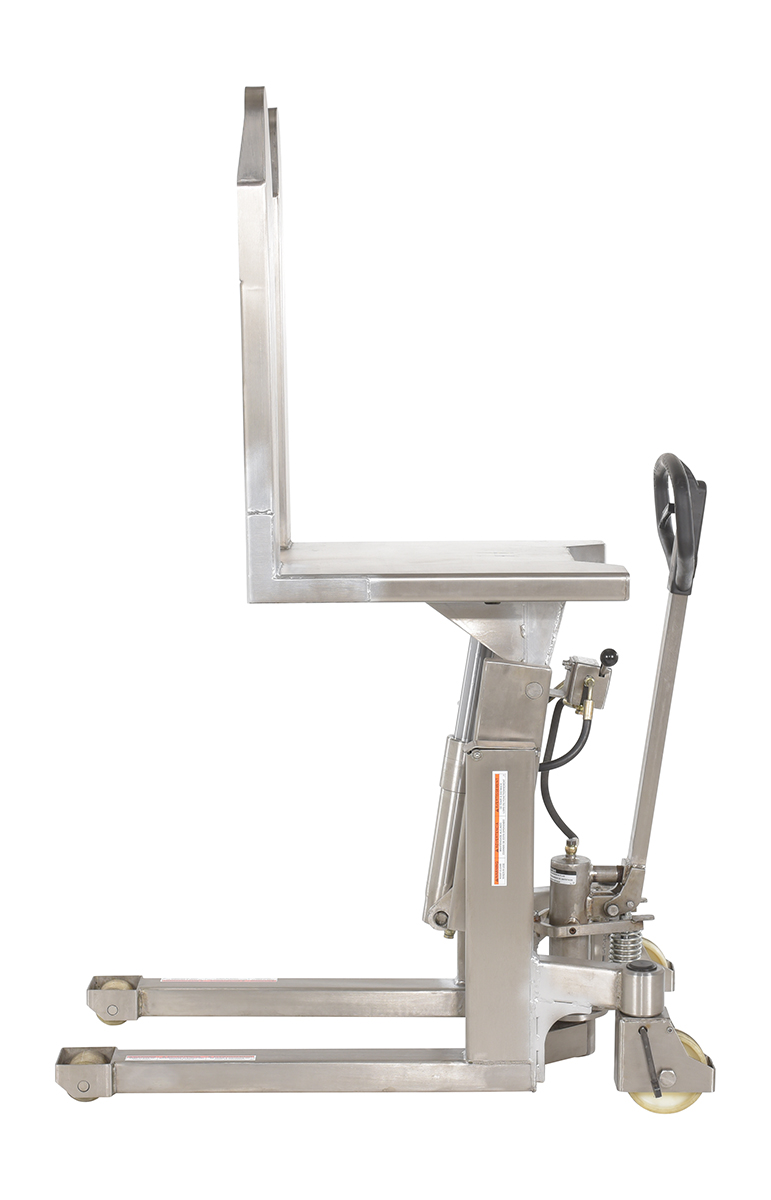

Stainless Steel Tilt Master Manual 2,200 Lb. Capacity Silver

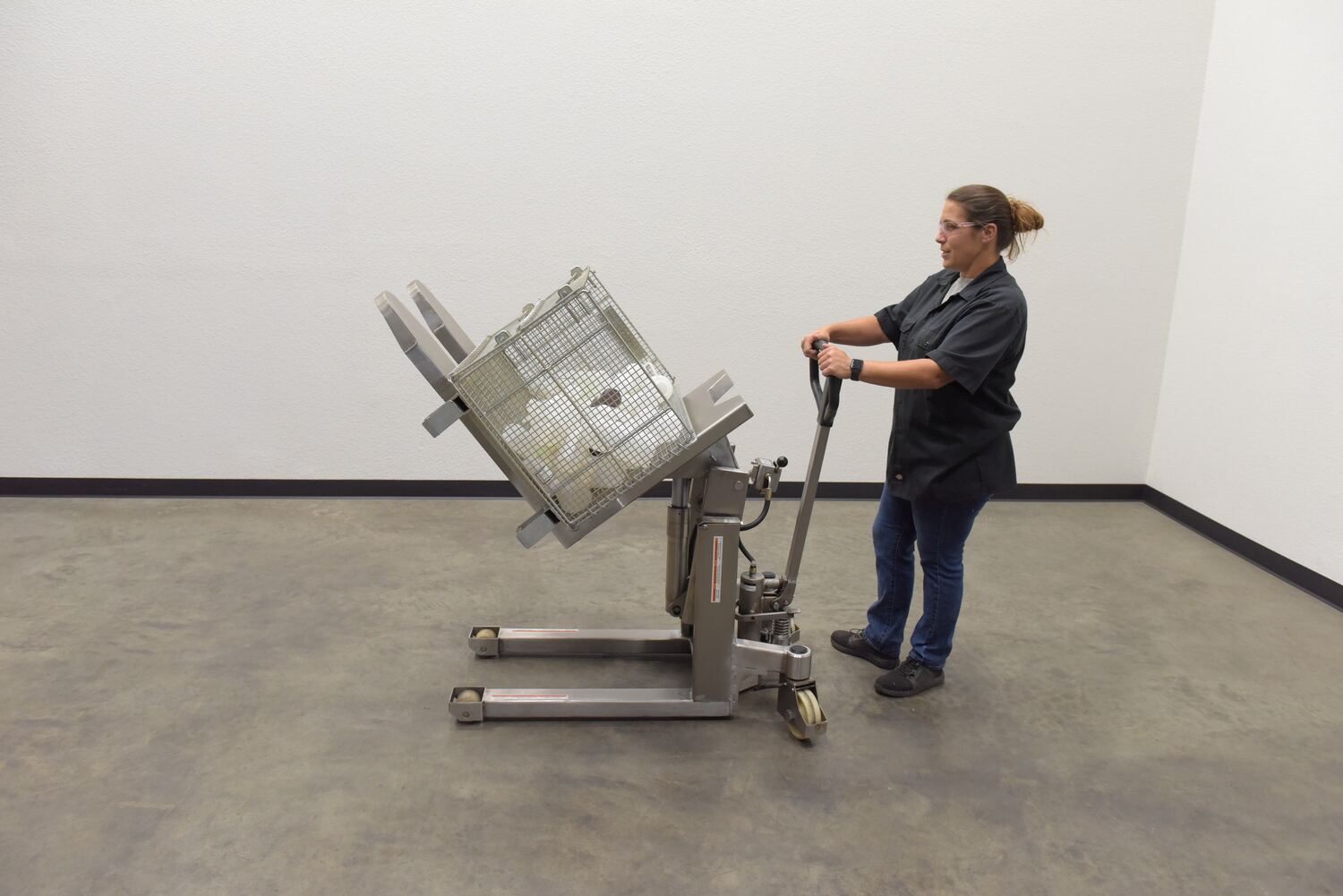

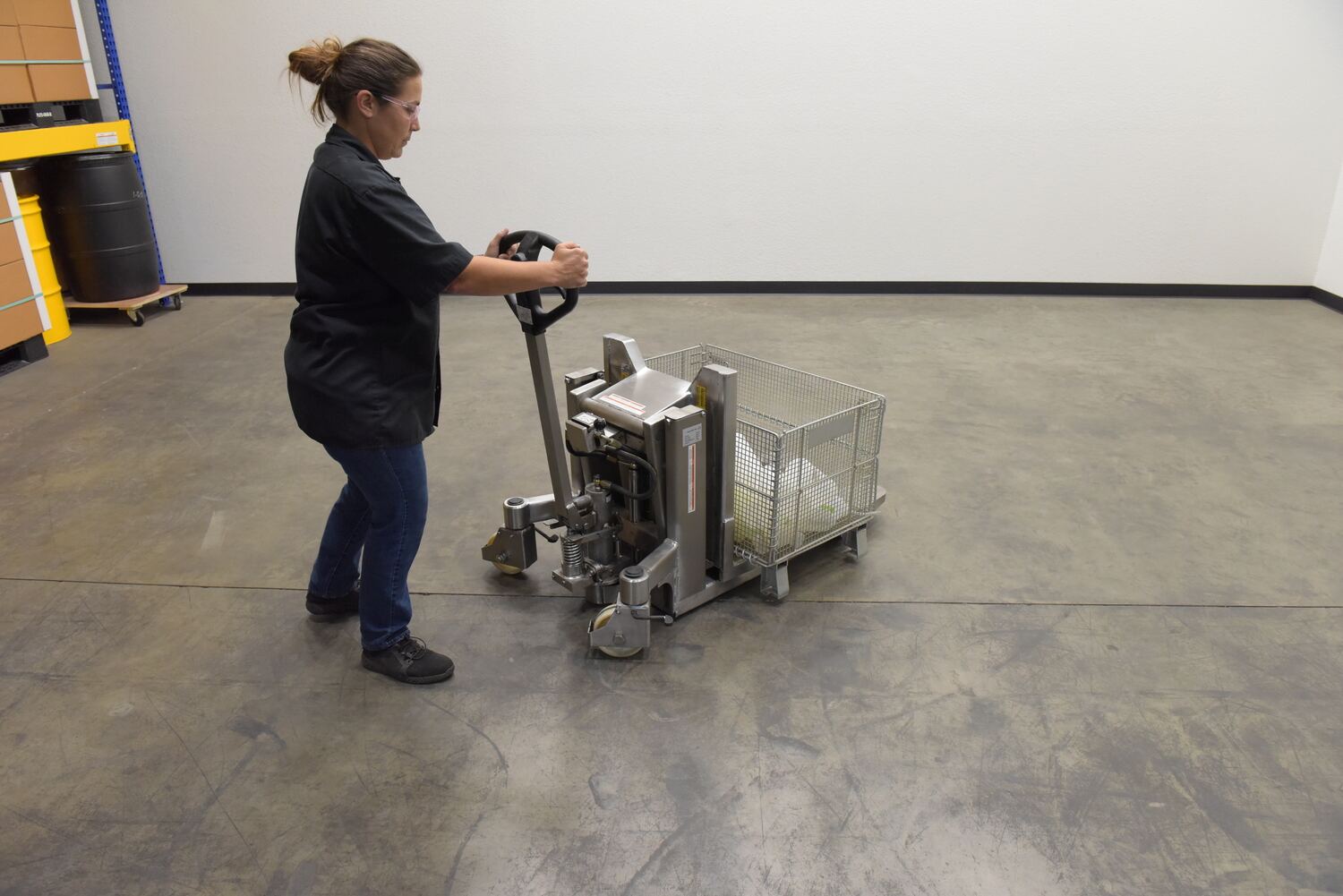

The manual tilt master is great in a variety of settings. Whether it's lifting, tilting, or just transporting; this design is the one for the job. This unit is perfectly manufactured to help maneuver crates, boxes, or pallets with an open bottom. It also provides the user with an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. The lift rolls smoothly on a polyurethane swivel caster with brake and foot protectors. The stainless steel construction provides strength and durability throughout a lifetime of daily use.

  • Stainless steel construction for a smooth finish and cleanliness

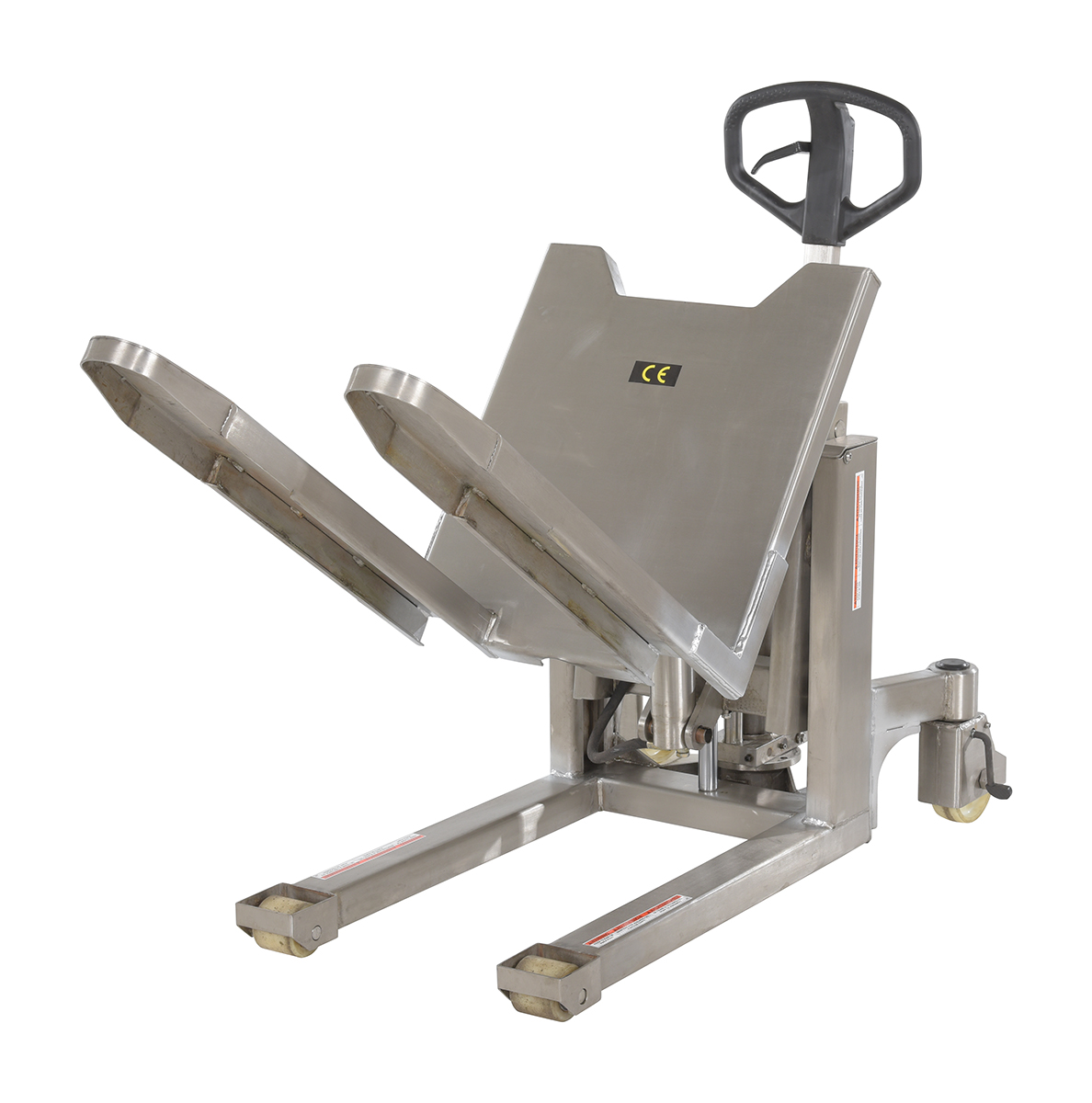

  • Tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
  • Two swivel casters provide smooth and efficient mobility
Total Ship Wt.(lbs.): 433 (only 1 package) Size: 24.25"W x 52"L x 59.5"H Color: Silver Non-Returnable QuickShip

Uniform Capacity (lb.): 2200 Vertical Lift Height (in.): 59-1/2 Lowered Fork Height (in.): 3-1/2

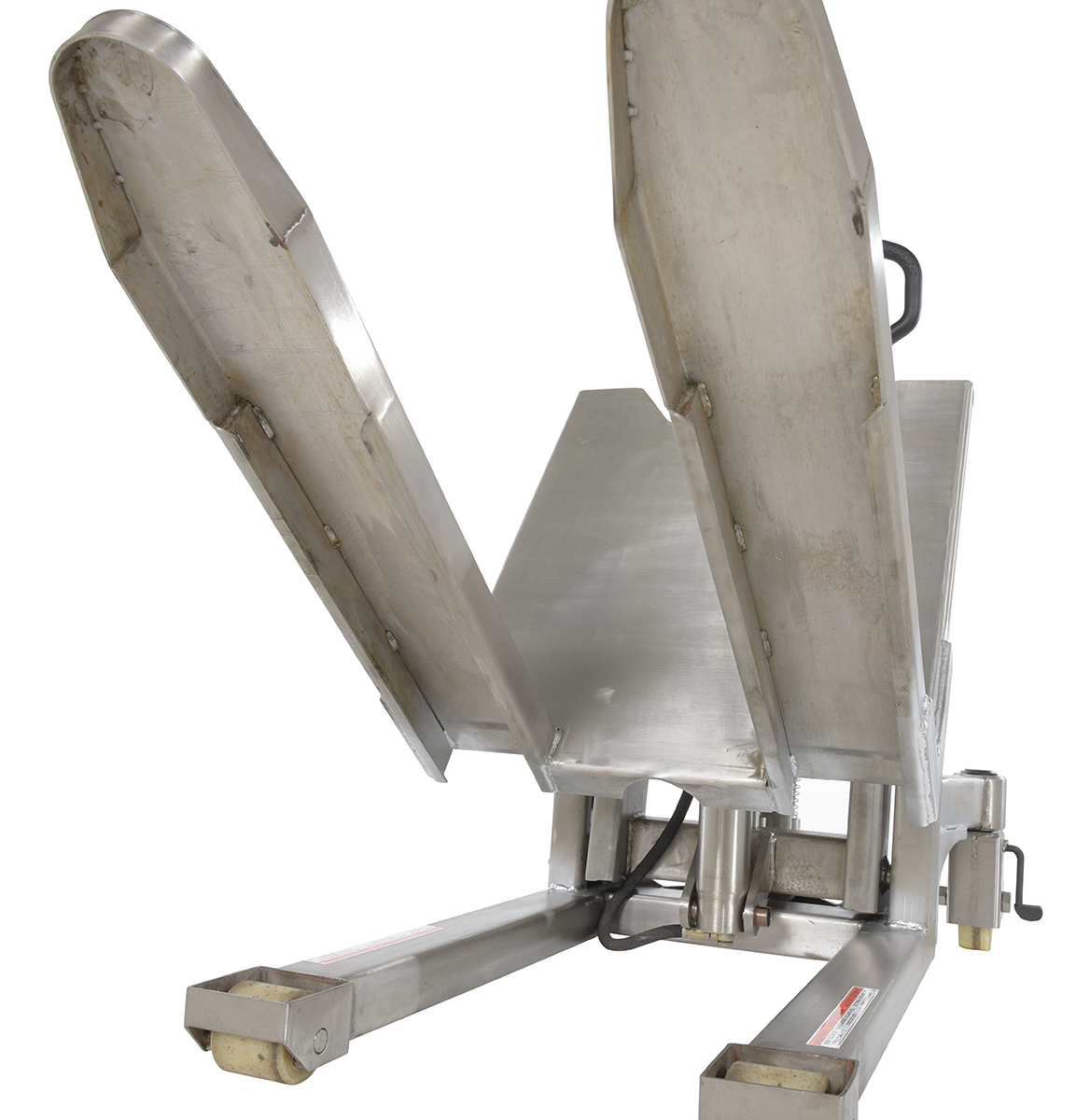

Fork Length (in.): 31-1/2 Fork Width (in.): 6-1/4 Maximum Tilted Fork Degree: 90
Individual Fork Width (in.): 6-1/4 Overall Fork Width (in.): 22 Width Between Forks (in.): 9-1/2

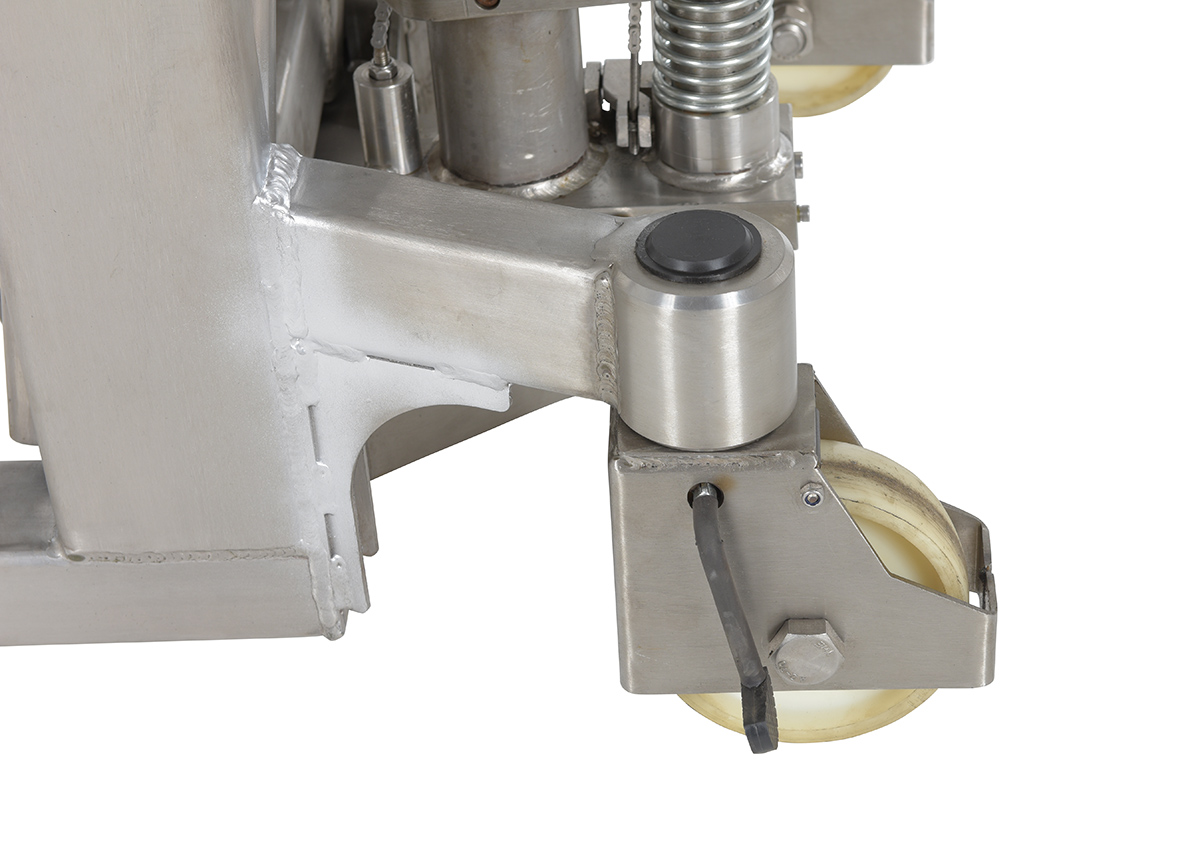

Caster Quantity/Diameter/Width (in.): (2) Swivel 6 x 2 (2) Rigid 2x2.5 Caster Type: Swivel with Brake Wheel Type: Polyurethane
Handle Height (in.): 45 Load Center (in.): 15-3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TM-22-M-SS
TM-22-M-SS

Stainless Steel Tilt Master Manual 2,200 Lb. Capacity Silver

The manual tilt master is great in a variety of settings. Whether it's lifting, tilting, or just transporting; this design is the one for the job. This unit is perfectly manufactured to help maneuver crates, boxes, or pallets with an open bottom. It also provides the user with an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. The lift rolls smoothly on a polyurethane swivel caster with brake and foot protectors. The stainless steel construction provides strength and durability throughout a lifetime of daily use.

  • Stainless steel construction for a smooth finish and cleanliness
  • Tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
  • Two swivel casters provide smooth and efficient mobility
Dimensions: 24.25"W x 52"L x 59.5"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215337113 GTIN: 00691215337113
Warranty: -- Shipping Weight: 433 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2200 Vertical Lift Height (in.): 59-1/2 Lowered Fork Height (in.): 3-1/2
Fork Length (in.): 31-1/2 Fork Width (in.): 6-1/4 Maximum Tilted Fork Degree: 90
Individual Fork Width (in.): 6-1/4 Overall Fork Width (in.): 22 Width Between Forks (in.): 9-1/2
Caster Quantity/Diameter/Width (in.): (2) Swivel 6 x 2 (2) Rigid 2x2.5 Caster Type: Swivel with Brake Wheel Type: Polyurethane
Handle Height (in.): 45 Load Center (in.): 15-3/4
