Model Details

STAIR-144

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
STAIR-144

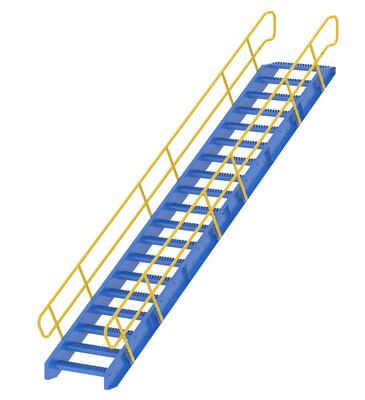

Steel 19 Step Modular Style Stairway Top Step 144 In. 1,000 Lb. Capacity Blue / Yellow

Attractive modular style stairways are economical and easily assembled. Steps are 36" wide with non-skid grip strut steps for extra grip, which bolt in place and are baked-in powder-coated toughness. Standard climb angle is 31 degrees. Customer must provide their landing height at time of purchase. Handrails and side rails bolt together. The handrail tubing has a powder-coat yellow finish. Units meet OSHA requirements and unit ships disassembled. Concrete anchoring hardware available.

  • Strong steel construction
  • Brightly colored, highly visible handrails
  • Serrated steps for extra grip
  • Wide step design for simple transference of awkward sized objects
Total Ship Wt.(lbs.): 1190 (only 1 package) Size: 44.375"W x 246.25"L x 175.5"H Color: Blue / Yellow Non-Returnable

Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 Step (qty.): 19
Step Depth (in.): 11-3/4 Step Width (in.): 36 Top Step Height (in.): 144
Step Spacing (in.): 7-5/8 Run Dimension (in.): 241-5/8 Handrail Dimensions (in.): 246.25 x 34.25 x 1.25.25 x 1.25
Step Thickness (in.): 1.9375

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: STAIR-144
STAIR-144

Steel 19 Step Modular Style Stairway Top Step 144 In. 1,000 Lb. Capacity Blue / Yellow

Attractive modular style stairways are economical and easily assembled. Steps are 36" wide with non-skid grip strut steps for extra grip, which bolt in place and are baked-in powder-coated toughness. Standard climb angle is 31 degrees. Customer must provide their landing height at time of purchase. Handrails and side rails bolt together. The handrail tubing has a powder-coat yellow finish. Units meet OSHA requirements and unit ships disassembled. Concrete anchoring hardware available.

  • Strong steel construction
  • Brightly colored, highly visible handrails
  • Serrated steps for extra grip
  • Wide step design for simple transference of awkward sized objects
Dimensions: 44.375"W x 246.25"L x 175.5"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215127691 GTIN: 00691215127691
Warranty: -- Shipping Weight: 1190 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1000 Incline Angle (degree): 31 Step (qty.): 19
Step Depth (in.): 11-3/4 Step Width (in.): 36 Top Step Height (in.): 144
Step Spacing (in.): 7-5/8 Run Dimension (in.): 241-5/8 Handrail Dimensions (in.): 246.25 x 34.25 x 1.25.25 x 1.25
Step Thickness (in.): 1.9375
