Model Details

SP-TOP-BEAM-100

Printer Friendly
SP-TOP-BEAM-100

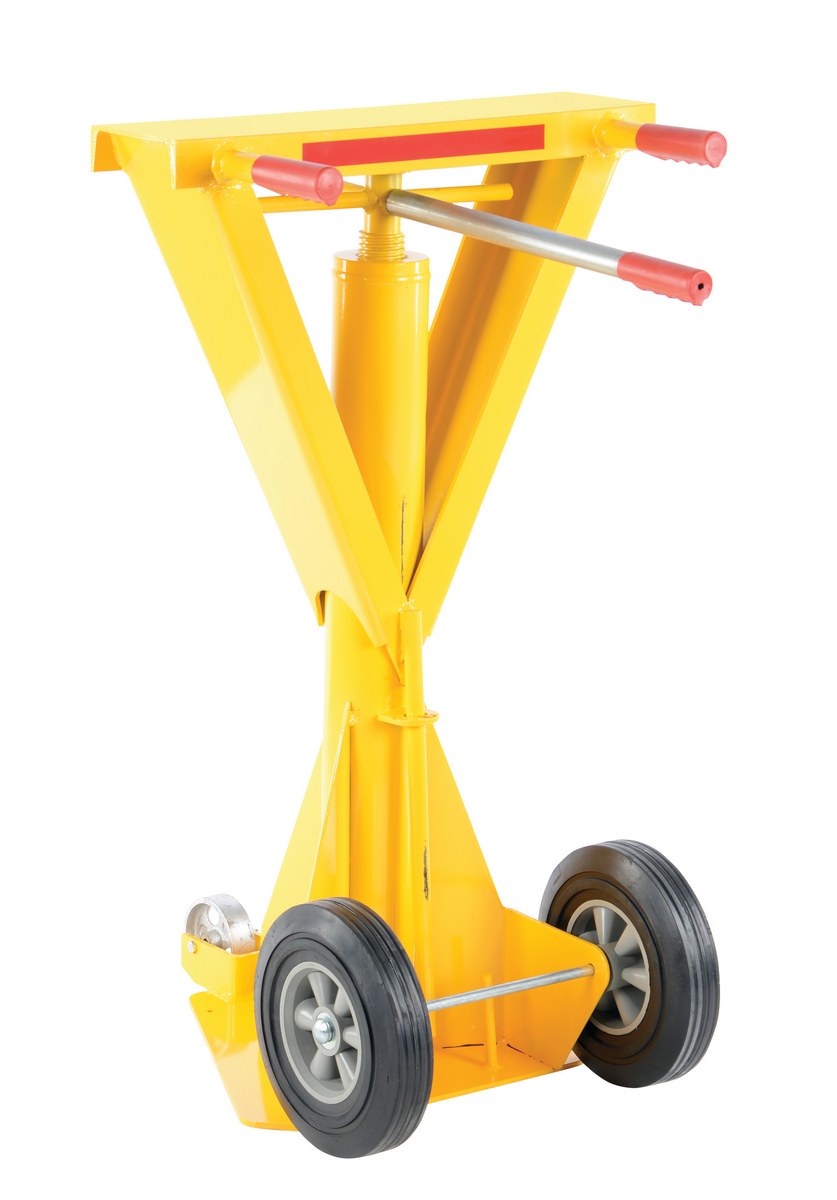

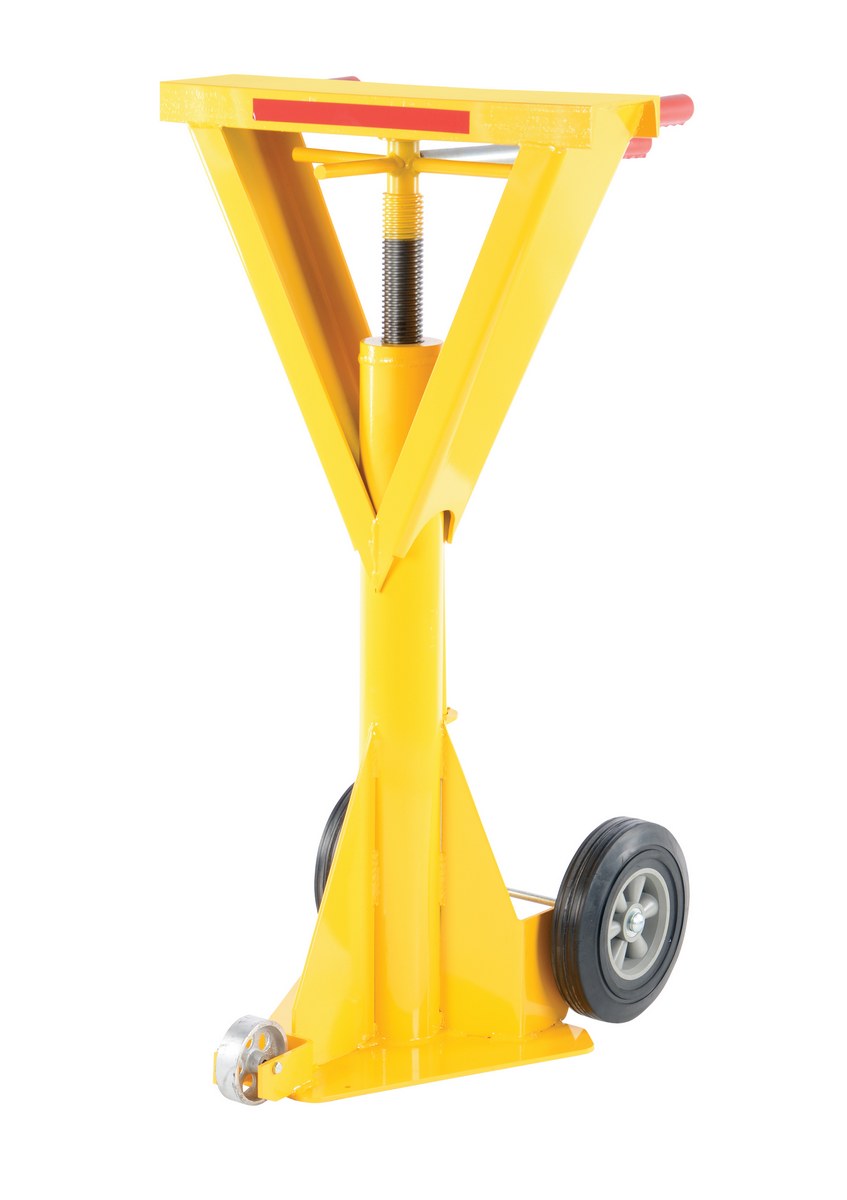

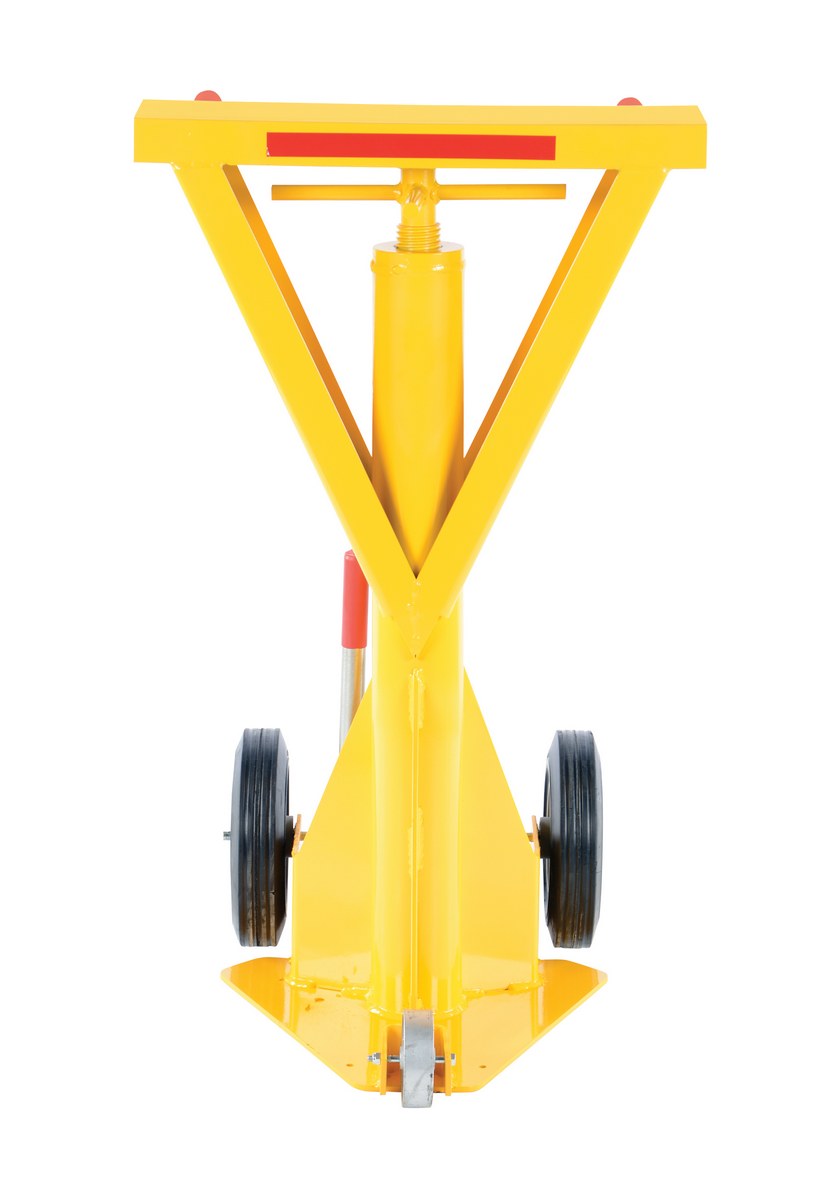

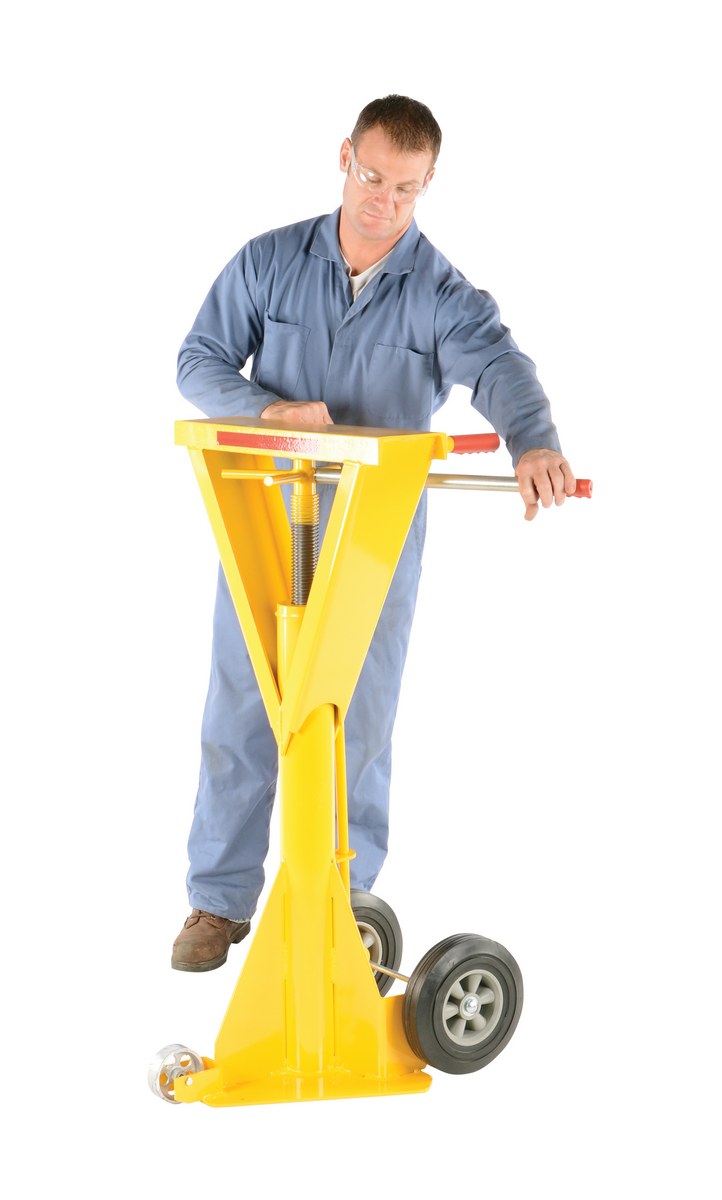

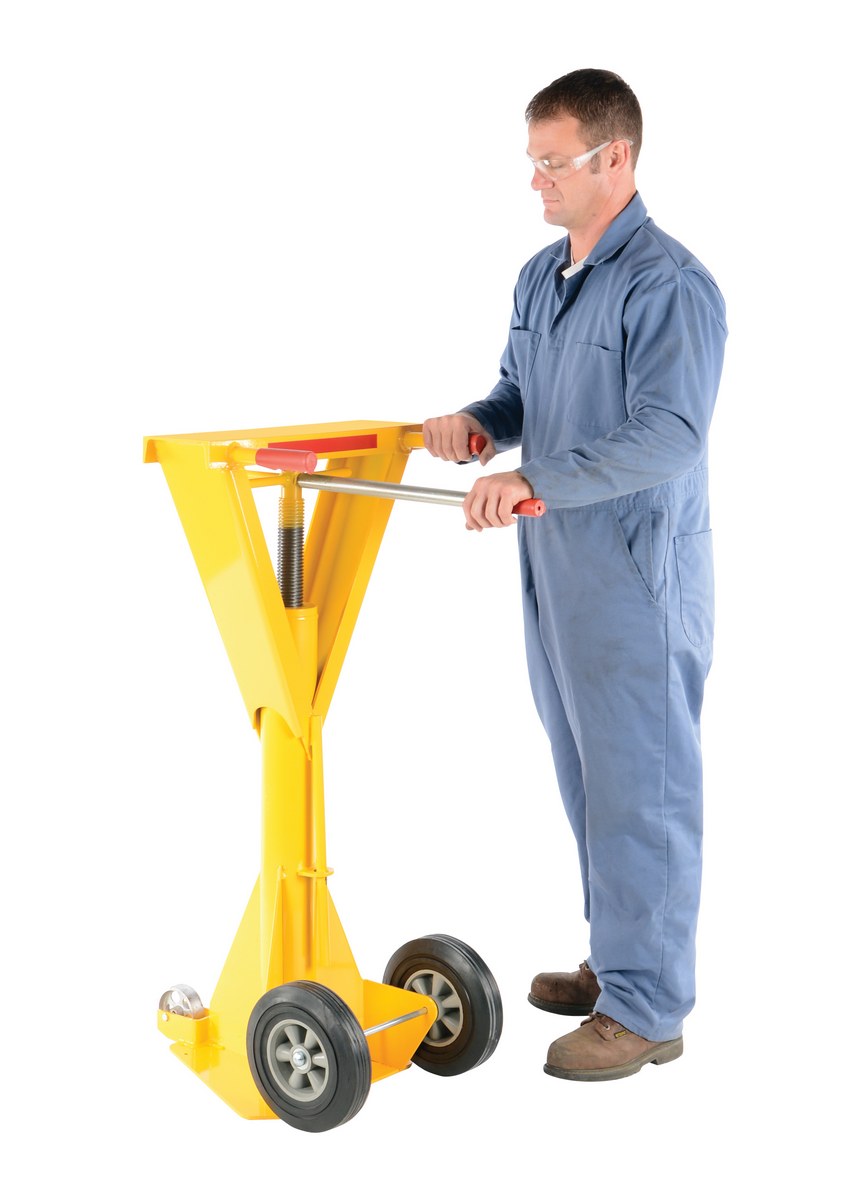

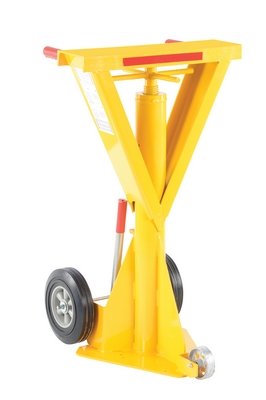

Steel Trailer Stabilizing Spin Top Beam Jack 27-7/16 In. x 23-7/8 In. x 40 In. 50,000 Lb. Lifting Capacity Yellow

The trailer stabilizing jack is used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. It is also used to prevent landing gear from sinking into a soft surface. It's made of high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. Contains a powder coat safety yellow finish.

  • Meets OSHA regulations when used with wheel chocks
  • Unique design levels trailers parked on sloped ground
  • High strength steel construction provides long lasting use
  • Reflective collar for great visibility at night
Total Ship Wt.(lbs.): 207 (only 1 package) Size: 23.875"W x 27.4375"L x 40"H Color: Yellow

Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 50,000 Lowered Height (in.): 40
Raised Height (in.): 51 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/2 Front Wheel Type: Steel

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SP-TOP-BEAM-100
SP-TOP-BEAM-100

Steel Trailer Stabilizing Spin Top Beam Jack 27-7/16 In. x 23-7/8 In. x 40 In. 50,000 Lb. Lifting Capacity Yellow

The trailer stabilizing jack is used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. It is also used to prevent landing gear from sinking into a soft surface. It's made of high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. Contains a powder coat safety yellow finish.

  • Meets OSHA regulations when used with wheel chocks
  • Unique design levels trailers parked on sloped ground
  • High strength steel construction provides long lasting use
  • Reflective collar for great visibility at night
Dimensions: 23.875"W x 27.4375"L x 40"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215093385 GTIN: 00691215093385
Warranty: -- Shipping Weight: 207 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 50,000 Lowered Height (in.): 40
Raised Height (in.): 51 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/2 Front Wheel Type: Steel
