Model Details

SNM3-43-FF-27

SNM3-43-FF-27

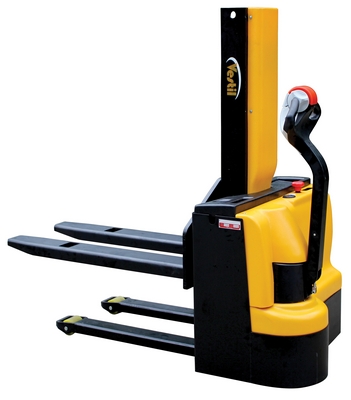

Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 27 In. Fork Width 3,000 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Total Ship Wt.(lbs.): 1014 (only 1 package) Size: 31.5"W x 69"L x 62"H Color: Black / Yellow Non-Returnable

Uniform Capacity (lb.): 3,000 Fork Width (in.): 26-3/4 Fork Length (in.): 42-1/8
Fixed Support Legs Inside Width (in.): 17 Lowered Height (in.): 3-3/8 Raised Height (in.): 43
Power Source: (2)DC/12V Steer/Load Wheels Material: Poly-On-Steel Operation at Full Charge (hrs.): 3-4
Operation at intermittent use (hrs.): 8 Style: Fixed Forks Over Fixed Support Legs (works with skids only)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SNM3-43-FF-27


SNM3-43-FF-27

Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 27 In. Fork Width 3,000 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Dimensions: 31.5"W x 69"L x 62"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215114707 GTIN: 00691215114707
Warranty: -- Shipping Weight: 1014 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 3,000 Fork Width (in.): 26-3/4 Fork Length (in.): 42-1/8
Fixed Support Legs Inside Width (in.): 17 Lowered Height (in.): 3-3/8 Raised Height (in.): 43
Power Source: (2)DC/12V Steer/Load Wheels Material: Poly-On-Steel Operation at Full Charge (hrs.): 3-4
Operation at intermittent use (hrs.): 8 Style: Fixed Forks Over Fixed Support Legs (works with skids only)
