Model: SBM-BFB-100-10

SBM-BFB-100-10

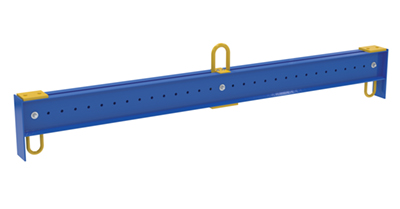

Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue

An adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.

  • Designed to lift and move uneven and awkward loads
  • Welded steel construction for heavy duty performance
  • Adjustable bail to fit a variety of sizes
  • Large capacity for use with items both large and small

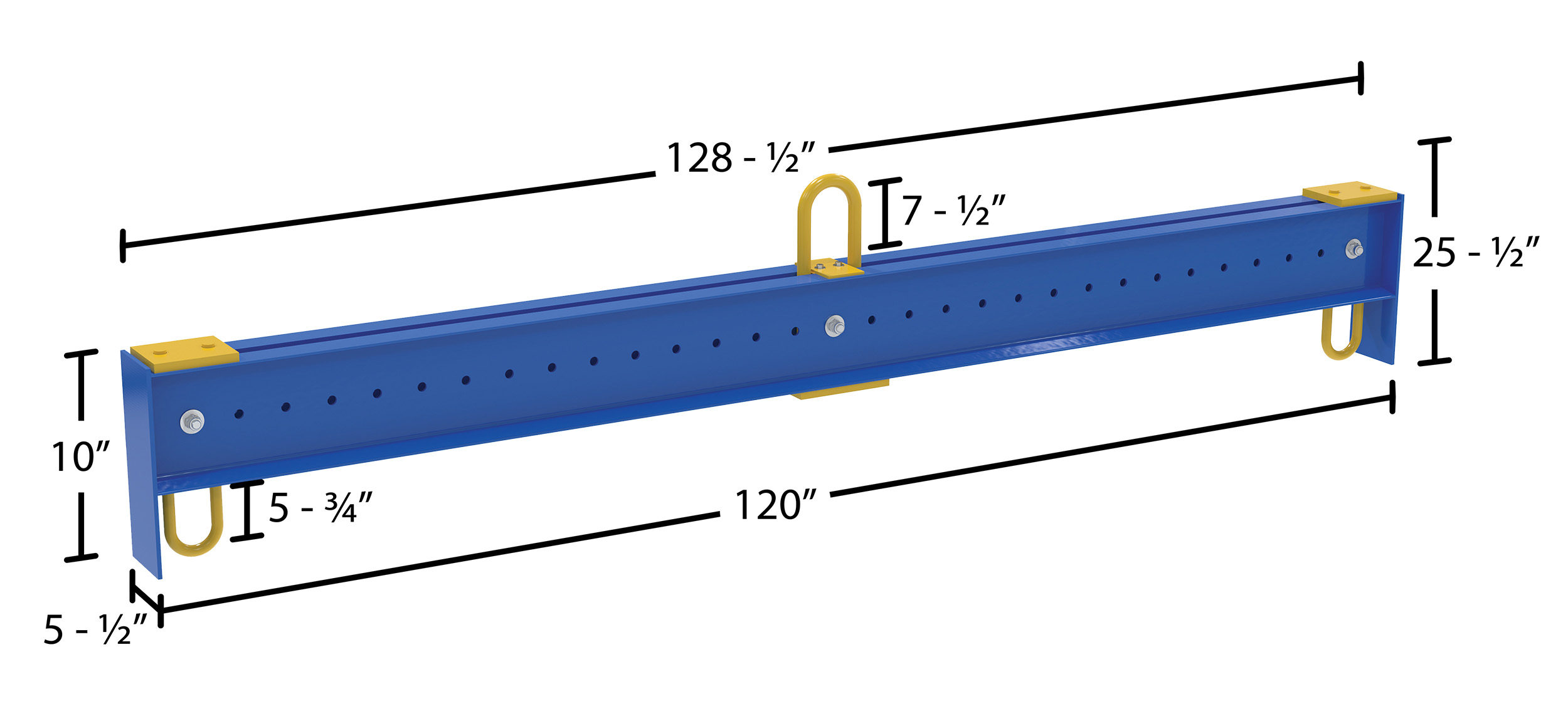

Ship Weight (lbs.): 508 Size: 6.5"W x 128.5"L x 25.5"H Color: Blue 48 Hr. QuickShip

Uniform Capacity (lb.): 10000 Lower Bail Width (in): 3 Lower Bail Height (in): 5-3/4"
Upper Bail Width (in): 4" Upper Bail Height (in): 7-1/2" Headroom (in.): 25-1/2"
Minimum Spread (in.): 24" Maximum Spread (in.): 120

Marketing Specs.

MFG Model # (Series)
SBM-BFB-100-10
Product Name
Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue
UPC
691215328043
GTIN
00691215328043
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Accessories
Taxonomy 5
Spreader Beams
Assembled Depth (in.)
128.5
Assembled Width(in.)
6.5
Assembled Height(in.)
25.5
Assembled Weight(lbs.)
423
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
151
Package Width (in.)
48
Package Height (in.)
13
Package Weight (in.)
508
Freight Class
50
NMFC Code
Iron or steel beams NOI
NMFC Number
104420
LTL Freight
LTL Palletized
UNSPSC
30101700
HTSUS Number
8431491090
USMCA HS
8431.49
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Quickship Item?


48-Hour Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery


PDF Documents


Details For Model: SBM-BFB-100-10


SBM-BFB-100-10

Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue

An adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.

  • Designed to lift and move uneven and awkward loads
  • Welded steel construction for heavy duty performance
  • Adjustable bail to fit a variety of sizes
  • Large capacity for use with items both large and small
Dimensions: 6.5"W x 128.5"L x 25.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215328043 GTIN: 00691215328043
Warranty: -- Shipping Weight: 508 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10000 Lower Bail Width (in): 3 Lower Bail Height (in): 5-3/4"
Upper Bail Width (in): 4" Upper Bail Height (in): 7-1/2" Headroom (in.): 25-1/2"
Minimum Spread (in.): 24" Maximum Spread (in.): 120
