Model: SBM-80

Printer Friendly

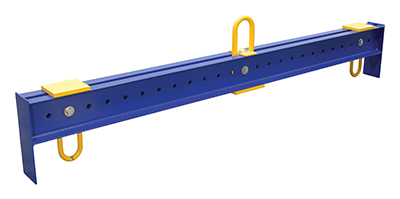

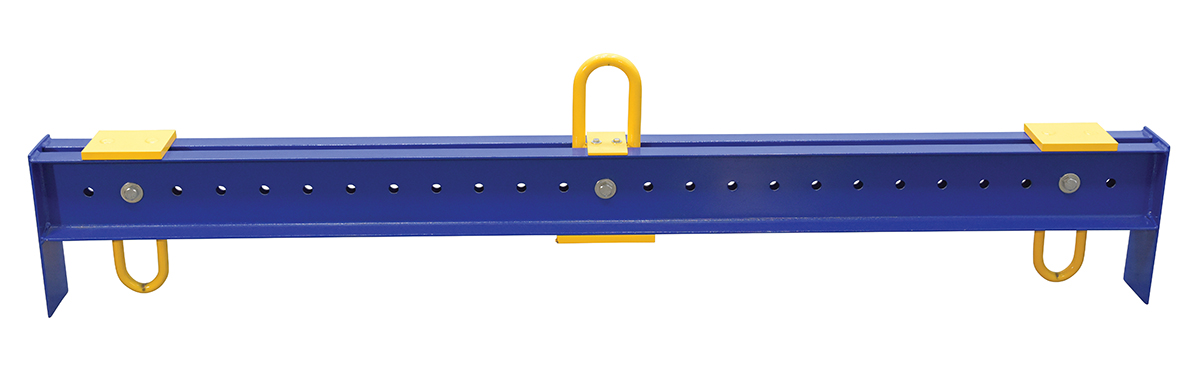

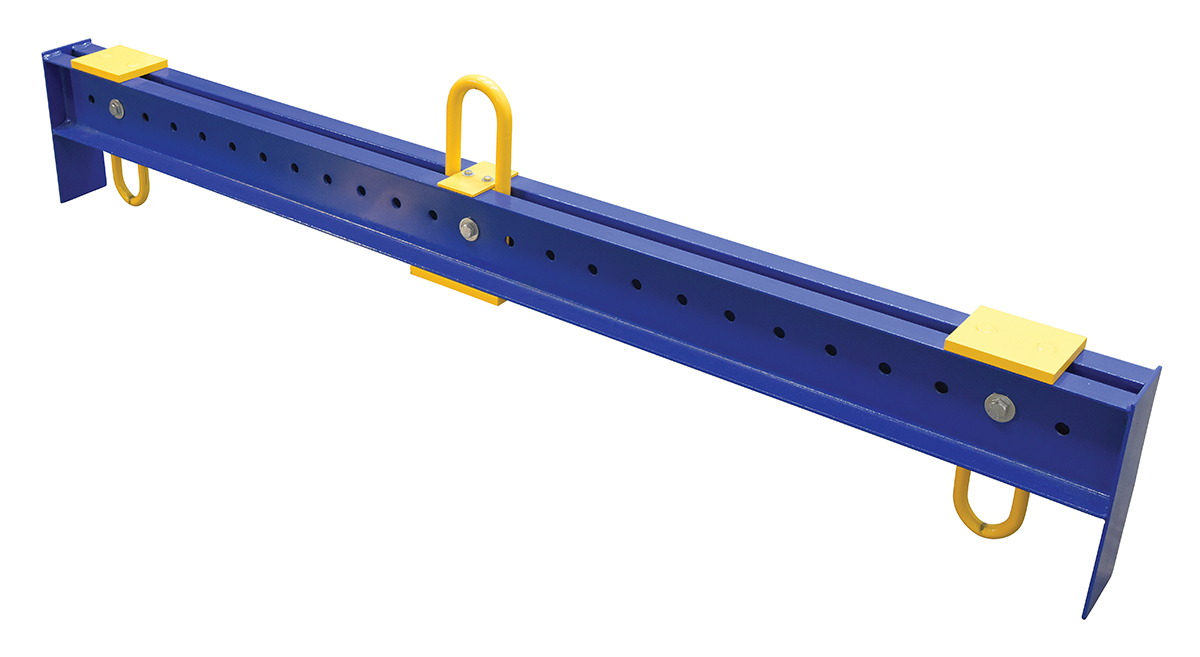

SBM-80

Steel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity Blue

The adjustable spreader beam is ideal for the manufacturing and maintenance facilities. The steel construction keeps the unit durable and strong for a lifetime of use. The beam is shipped with a test certificate.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two lower bails and one upper bail standard for added versatility
  • Welded steel construction for heavy duty performance
Ship Weight (lbs.): 326 Size: 6"W x 104.5"L x 24.5"H Color: Blue 48 Hr. QuickShip

Uniform Capacity (lb.): 8,000 Headroom (in.): 20-3/4 Minimum Spread (in.): 8
Maximum Spread (ft,): 8 Upper Bail Width/Height (in): 4 x 7-1/4 Lower Bail Width/Height (in.): 3 x 5-1/4
Upper/Lower Bail Thickness (in.): 1-1/4; 1 ASME: B30.20-1993 C-Channel Height (in.): 8

Marketing Specs.

MFG Model # (Series)
SBM-80
Product Name
Steel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity Blue
UPC
691215035019
GTIN
00691215035019
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Accessories
Taxonomy 5
Spreader Beams
Assembled Depth (in.)
104.5
Assembled Width(in.)
6
Assembled Height(in.)
24.5
Assembled Weight(lbs.)
265
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
105
Package Width (in.)
34
Package Height (in.)
11
Package Weight (in.)
326
Freight Class
50
NMFC Code
Iron or steel beams NOI
NMFC Number
104420
LTL Freight
LTL Palletized
UNSPSC
30101700
HTSUS Number
8431491090
USMCA HS
8431.49
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Quickship Item?


48-Hour Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery


PDF Documents


Details For Model: SBM-80
SBM-80

Steel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity Blue

The adjustable spreader beam is ideal for the manufacturing and maintenance facilities. The steel construction keeps the unit durable and strong for a lifetime of use. The beam is shipped with a test certificate.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two lower bails and one upper bail standard for added versatility
  • Welded steel construction for heavy duty performance
Dimensions: 6"W x 104.5"L x 24.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215035019 GTIN: 00691215035019
Warranty: -- Shipping Weight: 326 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 8,000 Headroom (in.): 20-3/4 Minimum Spread (in.): 8
Maximum Spread (ft,): 8 Upper Bail Width/Height (in): 4 x 7-1/4 Lower Bail Width/Height (in.): 3 x 5-1/4
Upper/Lower Bail Thickness (in.): 1-1/4; 1 ASME: B30.20-1993 C-Channel Height (in.): 8
