Model Details

SBM-40-8

SBM-40-8

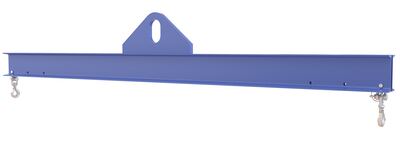

Steel Economy Spreader Beam 96 In Length 4,000 Lb. Capacity Blue

This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. Two (2) safety swivel hooks and durable powder coat finish.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance
Total Ship Wt.(lbs.): 229 (Multiple Packages: P1: 222 lbs + P2: 7 lbs) Size: 4.8125"W x 96"L x 20.5625"H Color: Blue

Uniform Capacity (lb.): 4,000 Headroom (in.): 18-3/8 Usable Bail Width/Height (in.): 3 x 5
Upper Bail Thickness (in.): 1" Minimum/Maximum Spread (in.): 69/93 Swivel Hook Quantity: 2
Swivel Hook Size (ton): 1 ASME: B30.20-1993

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SBM-40-8


SBM-40-8

Steel Economy Spreader Beam 96 In Length 4,000 Lb. Capacity Blue

This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. Two (2) safety swivel hooks and durable powder coat finish.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance
Dimensions: 4.8125"W x 96"L x 20.5625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215055055 GTIN: 00691215055055
Warranty: -- Shipping Weight: 222 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Headroom (in.): 18-3/8 Usable Bail Width/Height (in.): 3 x 5
Upper Bail Thickness (in.): 1" Minimum/Maximum Spread (in.): 69/93 Swivel Hook Quantity: 2
Swivel Hook Size (ton): 1 ASME: B30.20-1993
