SBM-40-4

Printer Friendly
Available
SBM-40-4
SBM-40-4 SBM-40-4 SBM-40-4

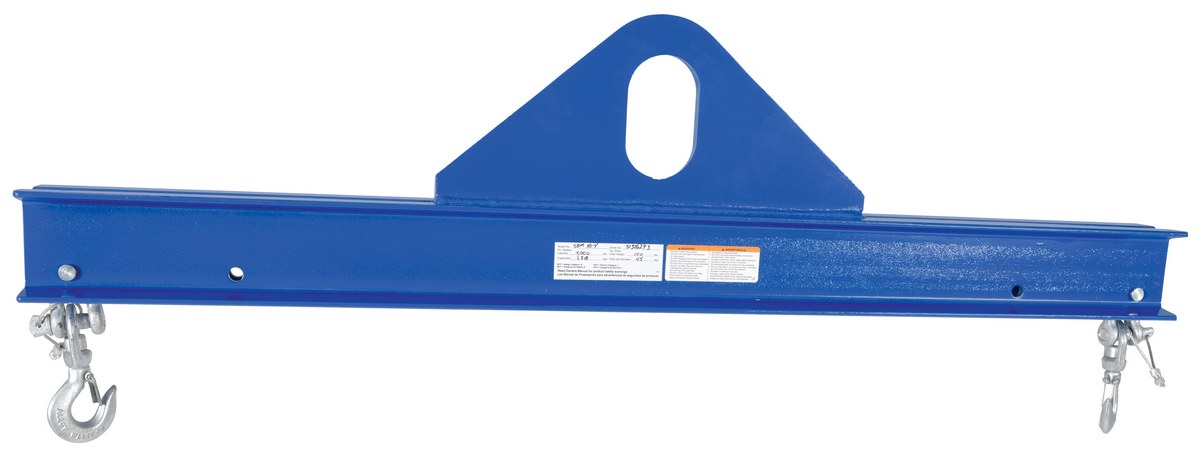

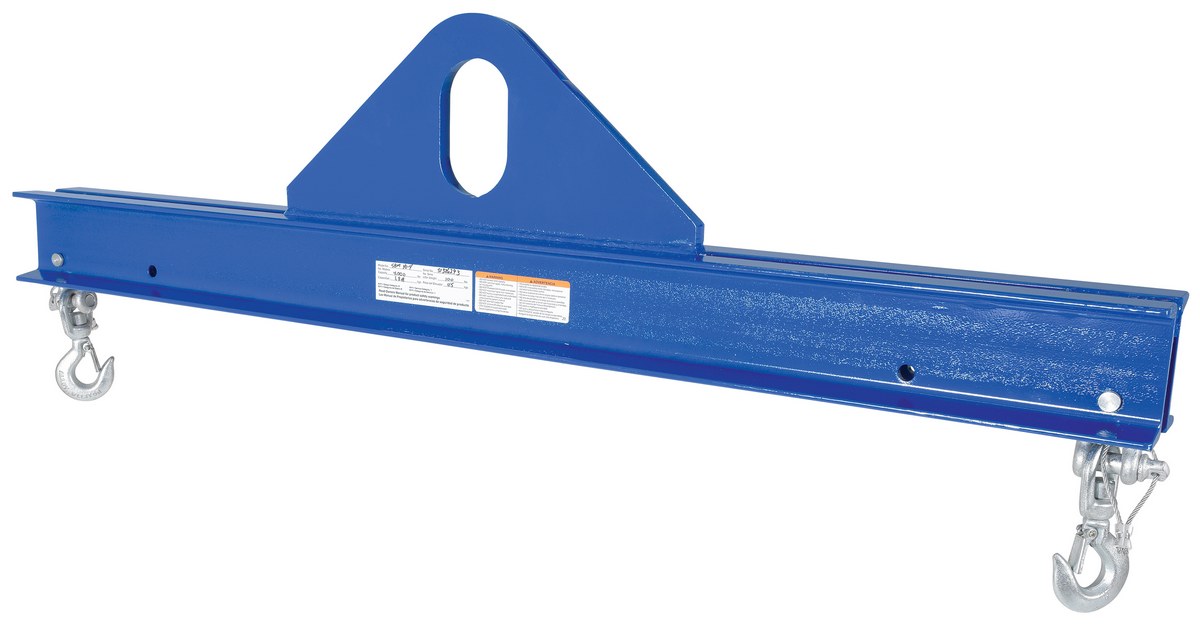

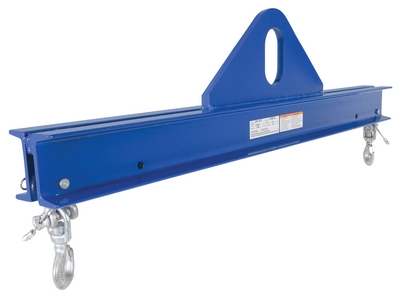

Steel Economy Spreader Beam 48 In Length 4,000 Lb. Capacity Blue

This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. two (2) safety swivel hooks and durable powder coat finish.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance
Assembled Wt.(lbs.): 75 Assembled Size: 3.9375"W x 48"L x 16.5625"H

Total Ship Wt.(lbs.): 130 (only 1 package) Package 1 Size: 40"W x 48"D x 12"H Color: Blue

Uniform Capacity (lb.): 4,000 Headroom (in.): 14-1/2 Usable Bail Width/Height (in.): 3 x 5
Upper Bail Thickness (in.): 3/4 Minimum/Maximum Spread (in.): 33/45 Swivel Hook Quantity: 2
Swivel Hook Size (ton): 1 ASME: B30.20-1993 Hook Latch Opening (in.): 7/8
Overall Width (in.): 3-15/16 Overall Height (in.): 16-5/8 Overall Length (in.): 48

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: SBM-40-4
Available
SBM-40-4

Steel Economy Spreader Beam 48 In Length 4,000 Lb. Capacity Blue

This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. two (2) safety swivel hooks and durable powder coat finish.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance
Dimensions: 3.9375"W x 48"L x 16.5625"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 130 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Headroom (in.): 14-1/2 Usable Bail Width/Height (in.): 3 x 5
Upper Bail Thickness (in.): 3/4 Minimum/Maximum Spread (in.): 33/45 Swivel Hook Quantity: 2
Swivel Hook Size (ton): 1 ASME: B30.20-1993 Hook Latch Opening (in.): 7/8
Overall Width (in.): 3-15/16 Overall Height (in.): 16-5/8 Overall Length (in.): 48
