Model Details

SBM-20-8-ML

SBM-20-8-ML

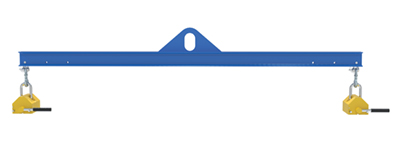

Steel Magnetic Spreader Beam 96 In Length 2,000 Lb. Capacity Blue

This versatile magnetic spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.

  • Designed to lift and move uneven and awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance
Total Ship Wt.(lbs.): 291 (only 1 package) Size: 10.75"W x 104.0625"L x 23.875"H Color: Blue

Uniform Static Capacity (lb.): 2000 Headroom (in.): 22-3/8" Minimum Spread: 69"
Maximum Spread: 93-1/16" Max Uniform Flat Capacity: 2000 Max Uniform Round Capacity: 800

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SBM-20-8-ML


SBM-20-8-ML

Steel Magnetic Spreader Beam 96 In Length 2,000 Lb. Capacity Blue

This versatile magnetic spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.

  • Designed to lift and move uneven and awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance
Dimensions: 10.75"W x 104.0625"L x 23.875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215329415 GTIN: 00691215329415
Warranty: -- Shipping Weight: 291 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 2000 Headroom (in.): 22-3/8" Minimum Spread: 69"
Maximum Spread: 93-1/16" Max Uniform Flat Capacity: 2000 Max Uniform Round Capacity: 800
