PM5-2748-DMHB

Pallet Truck with Dead Man Brake 66 In. x 27 In. x 49 In. 5500 Lb. Capacity Yellow

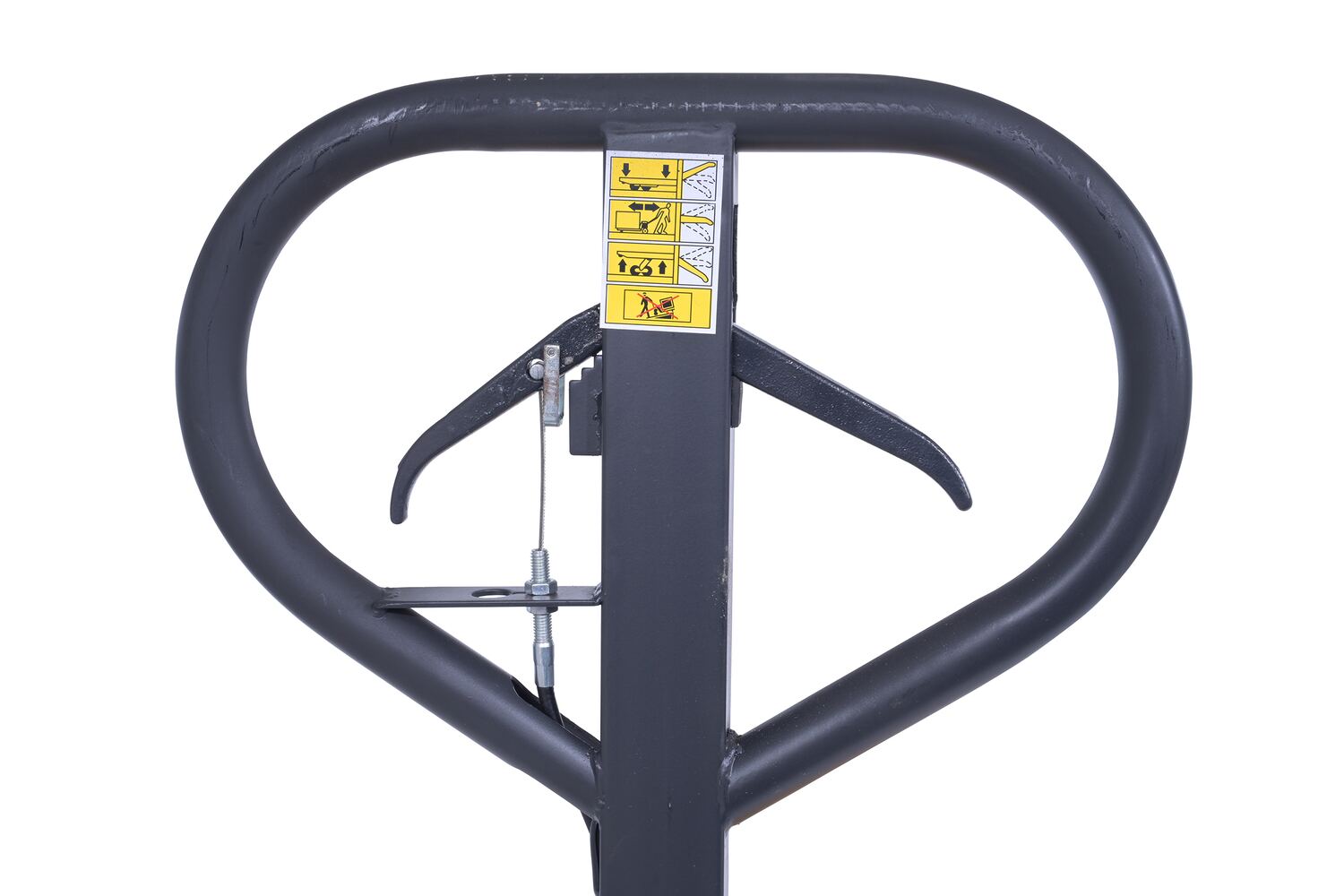

The pallet truck with hand brake option only moves when you depress the hand brake.

Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded

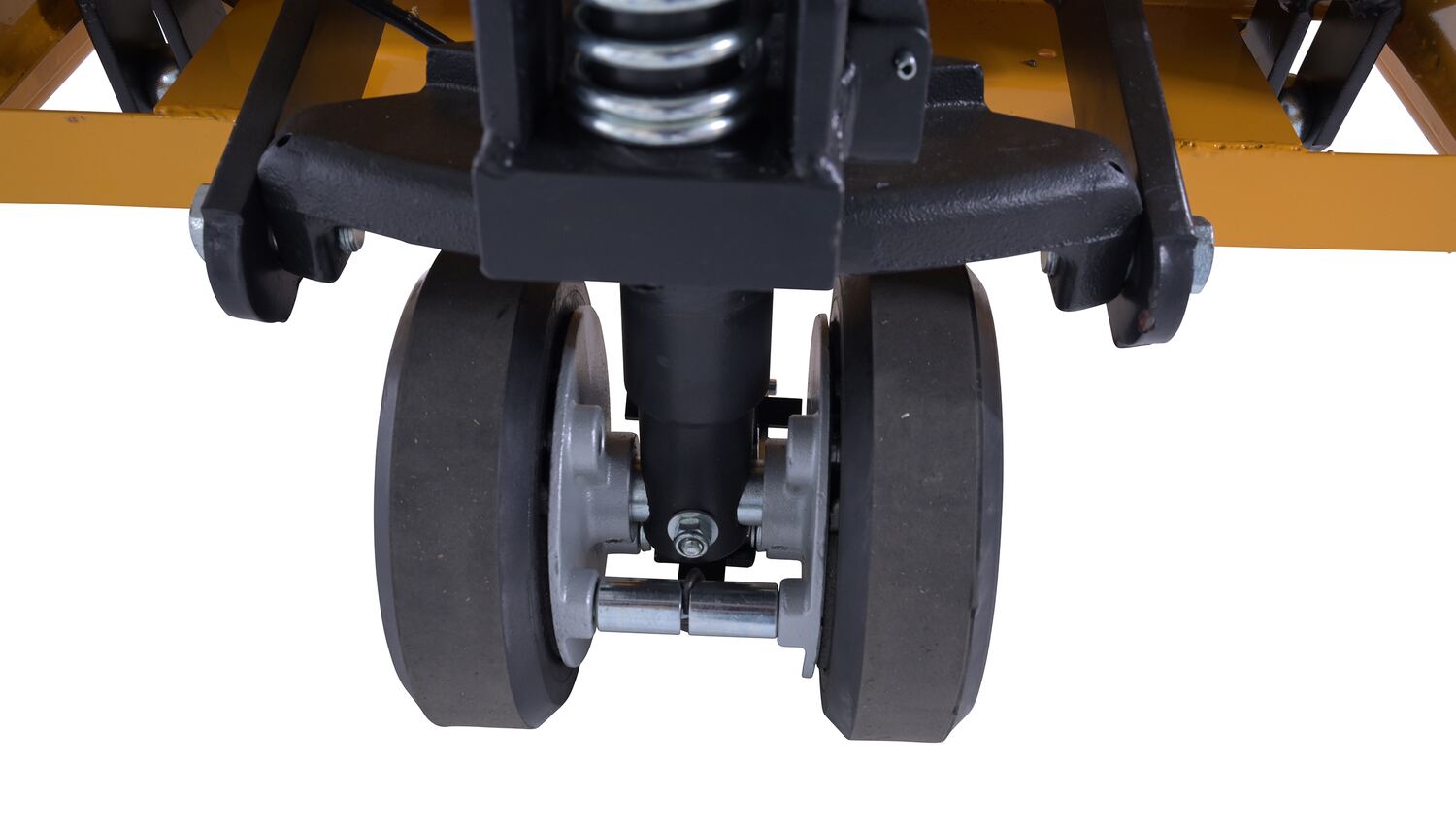

Steering wheels include bearing dust covers for added life
Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
Chrome-plated hydraulic pump piston for long seal life

Total Ship Wt.(lbs.): 221 (only 1 package) Size: 27"W x 66"L x 49"H Color: Yellow QuickShip

Uniform Capacity (lb.): 5500	Overall Fork Width (in.): 27	Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8	Raised Height (in.): 7-3/4	Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel	Steer Caster Diameter (in.): 7	Steer Caster Width (in.): 2
Load Roller Material: Polyurethane	Load Roller Diameter (in.): 3	Load Roller Width (in.): 4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

LTL - Must Go Truck

Image Gallery

PDF Documents

The pallet truck with hand brake option only moves when you depress the hand brake.

Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
Steering wheels include bearing dust covers for added life
Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
Chrome-plated hydraulic pump piston for long seal life

Dimensions: 27"W x 66"L x 49"H	Sell UOM: EA-Each	Color: Yellow
Material: Steel	UPC: 691215077897	GTIN: 00691215077897
Warranty: --	Shipping Weight: 221	Quickship Item? --
Can It Ship UPS? --	Option? N	Origin: China
Assembly: Assembly required	Packaging: BASE_UNIT_OR_EACH	Drawing Required? N
Uniform Capacity (lb.): 5500	Overall Fork Width (in.): 27	Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8	Raised Height (in.): 7-3/4	Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel	Steer Caster Diameter (in.): 7	Steer Caster Width (in.): 2
Load Roller Material: Polyurethane	Load Roller Diameter (in.): 3	Load Roller Width (in.): 4
