PI-P-SL-3000-3254

Printer Friendly
Quote Required - Please Contact Sales
PI-P-SL-3000-3254
PI-P-SL-3000-3254

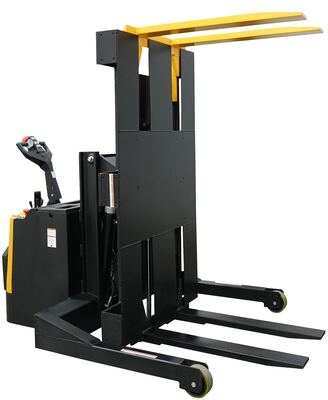

Steel Portable Pallet Inverter 32 In. to 54 In Fork Opening 3000 Lb. Capacity Yellow/Black

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

  • Optional: side rails and camera
  • Large capacity for handling loads both big and small
  • Complimentary to a variety of sizes
  • Powered lift makes operation safe and efficient
Assembled Wt.(lbs.): 2097 Assembled Size: 58"W x 113"L x 52"H

Total Ship Wt.(lbs.): 1879 (only 1 package) Package 1 Size: 60"W x 104"D x 64"H Color: Yellow / Black Non-Returnable

Uniform Capacity (lb.): 3,000 Fork Opening (in.): 32-1/2 to 54 Fork Width (in.): 6
Fork Size (in.): 22 x 42-1/8 Lowered Height (in.): 3-3/8 Use With: Pallets & Skids
Overall Length (in.): 113 Overall Width (in.): 56-1/2 Overall Height (in.): 82-1/2
Travel Speed - Loaded (MPH): 1.8 Travel Speed - Unloaded (MPH): 2.8 Drive Motor: 24V / 1.2 KW
Lift Motor: 24V / 2.0 KW Battery: (4) 6V / 200 Ah Battery Charger: 24V
Fork Clamping w/o Load: 9.5 seconds Fork Clamping w/ Load: 14 seconds Fork Opening w/o Load: 10 seconds
Fork Opening w/ Load: 7.5 seconds Fork Tilting Up w/o Load: 15 seconds Fork Tilting Up w/ Load: 23 seconds
Fork Lowering Down w/o Load: 14 seconds Fork Lowering Down w/ Load: 13.5 seconds

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PI-P-SL-3000-3254
Quote Required - Please Contact Sales
PI-P-SL-3000-3254

Steel Portable Pallet Inverter 32 In. to 54 In Fork Opening 3000 Lb. Capacity Yellow/Black

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

  • Optional: side rails and camera
  • Large capacity for handling loads both big and small
  • Complimentary to a variety of sizes
  • Powered lift makes operation safe and efficient
Dimensions: 58"W x 113"L x 52"H Sell UOM: -- Color: Yellow / Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1879 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 3,000 Fork Opening (in.): 32-1/2 to 54 Fork Width (in.): 6
Fork Size (in.): 22 x 42-1/8 Lowered Height (in.): 3-3/8 Use With: Pallets & Skids
Overall Length (in.): 113 Overall Width (in.): 56-1/2 Overall Height (in.): 82-1/2
Travel Speed - Loaded (MPH): 1.8 Travel Speed - Unloaded (MPH): 2.8 Drive Motor: 24V / 1.2 KW
Lift Motor: 24V / 2.0 KW Battery: (4) 6V / 200 Ah Battery Charger: 24V
Fork Clamping w/o Load: 9.5 seconds Fork Clamping w/ Load: 14 seconds Fork Opening w/o Load: 10 seconds
Fork Opening w/ Load: 7.5 seconds Fork Tilting Up w/o Load: 15 seconds Fork Tilting Up w/ Load: 23 seconds
Fork Lowering Down w/o Load: 14 seconds Fork Lowering Down w/ Load: 13.5 seconds
