OLA-4-42

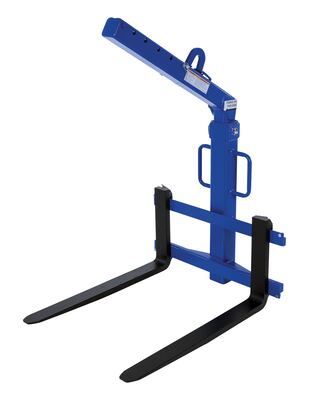

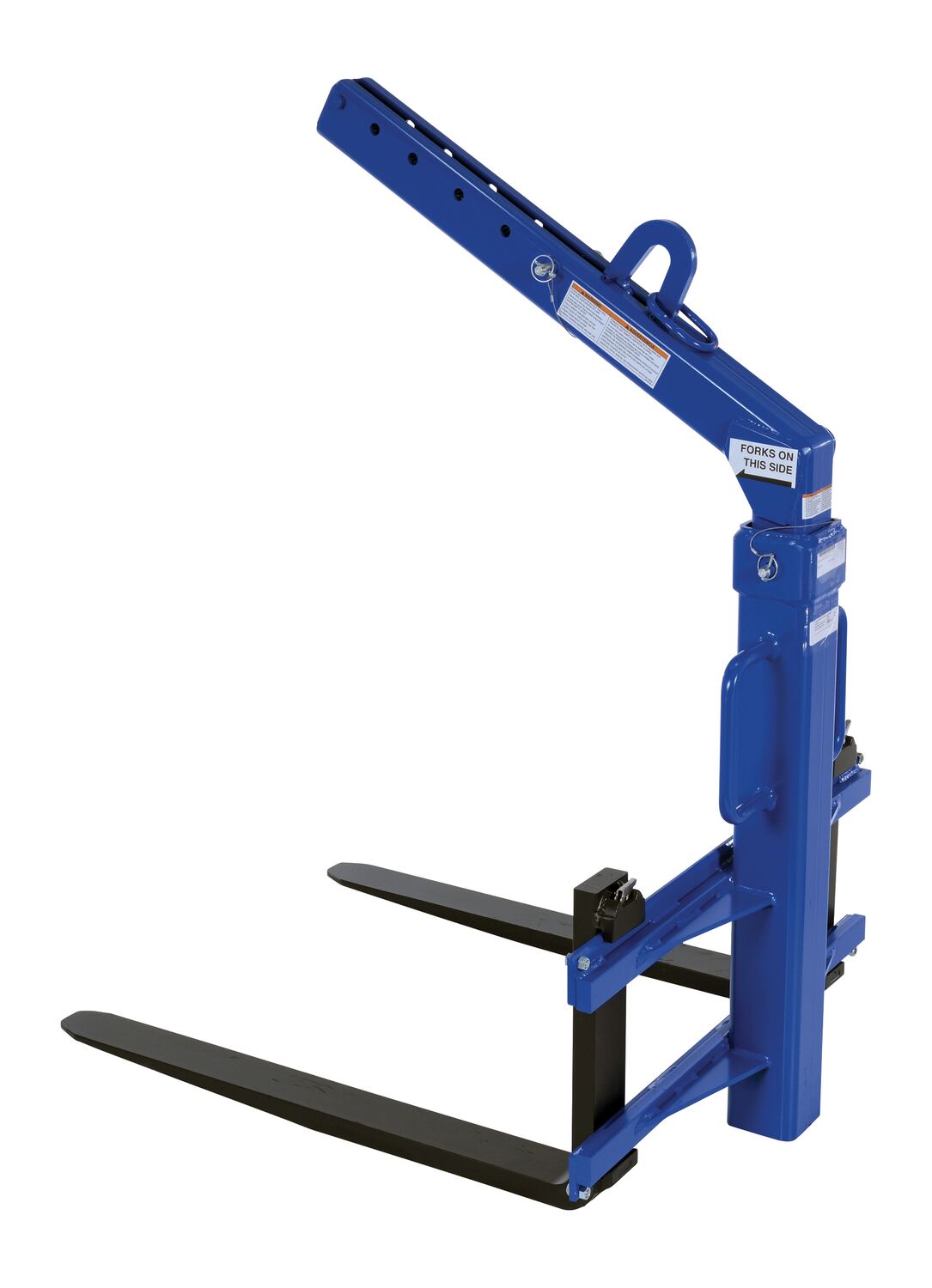

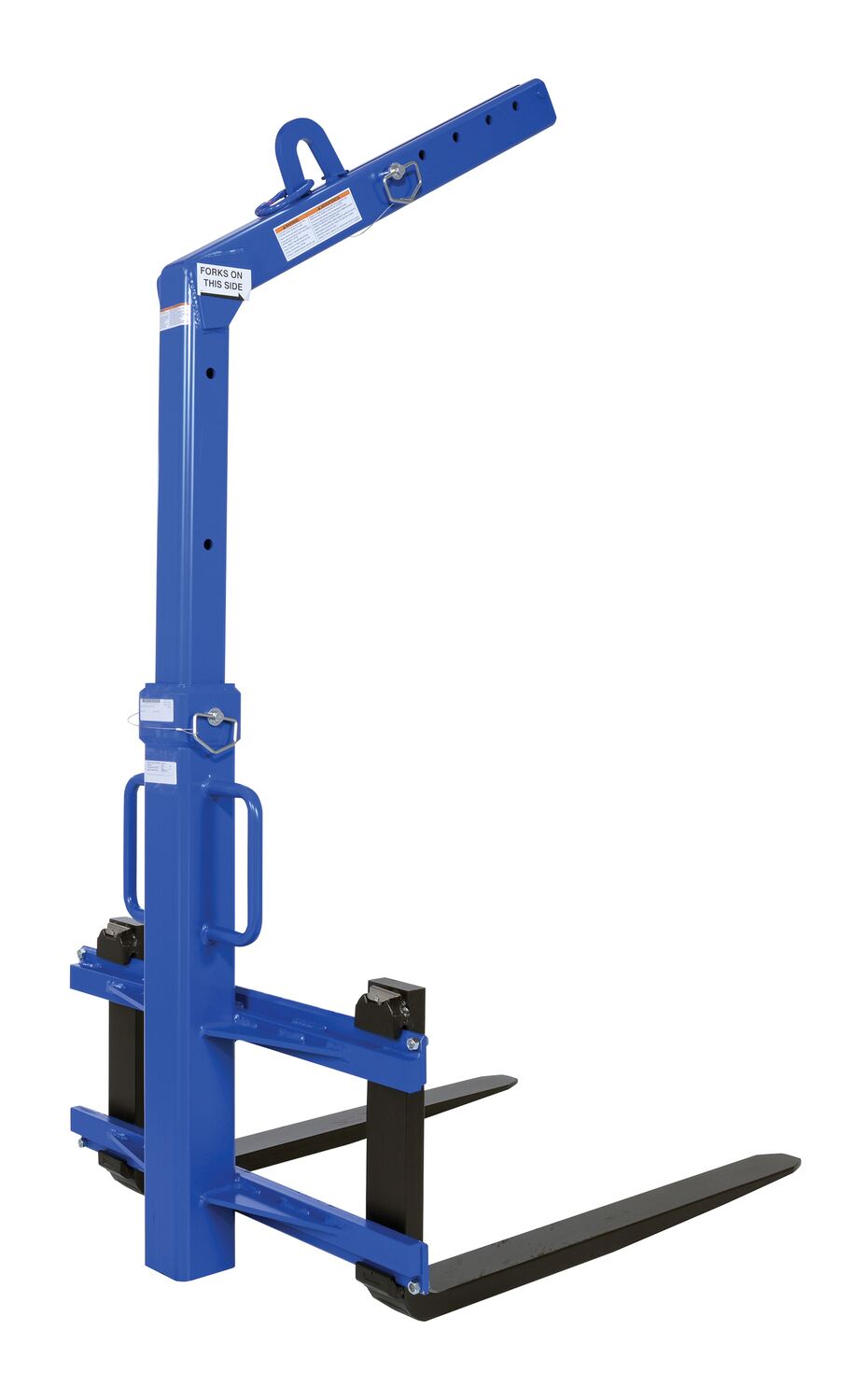

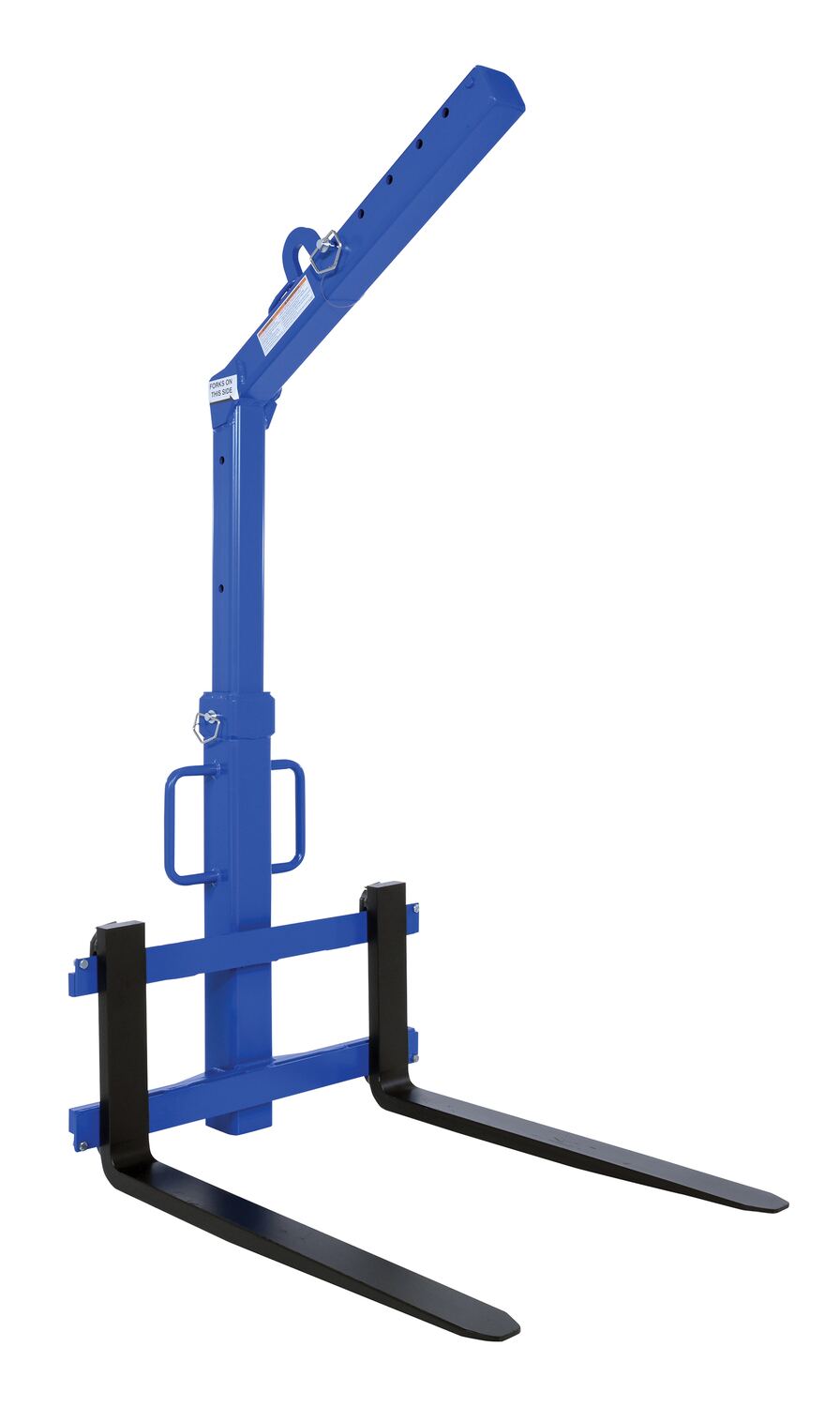

Steel Overhead Load Lifter Adjustable 43-1/8 In. Fork 4000 Lb. Capacity Blue

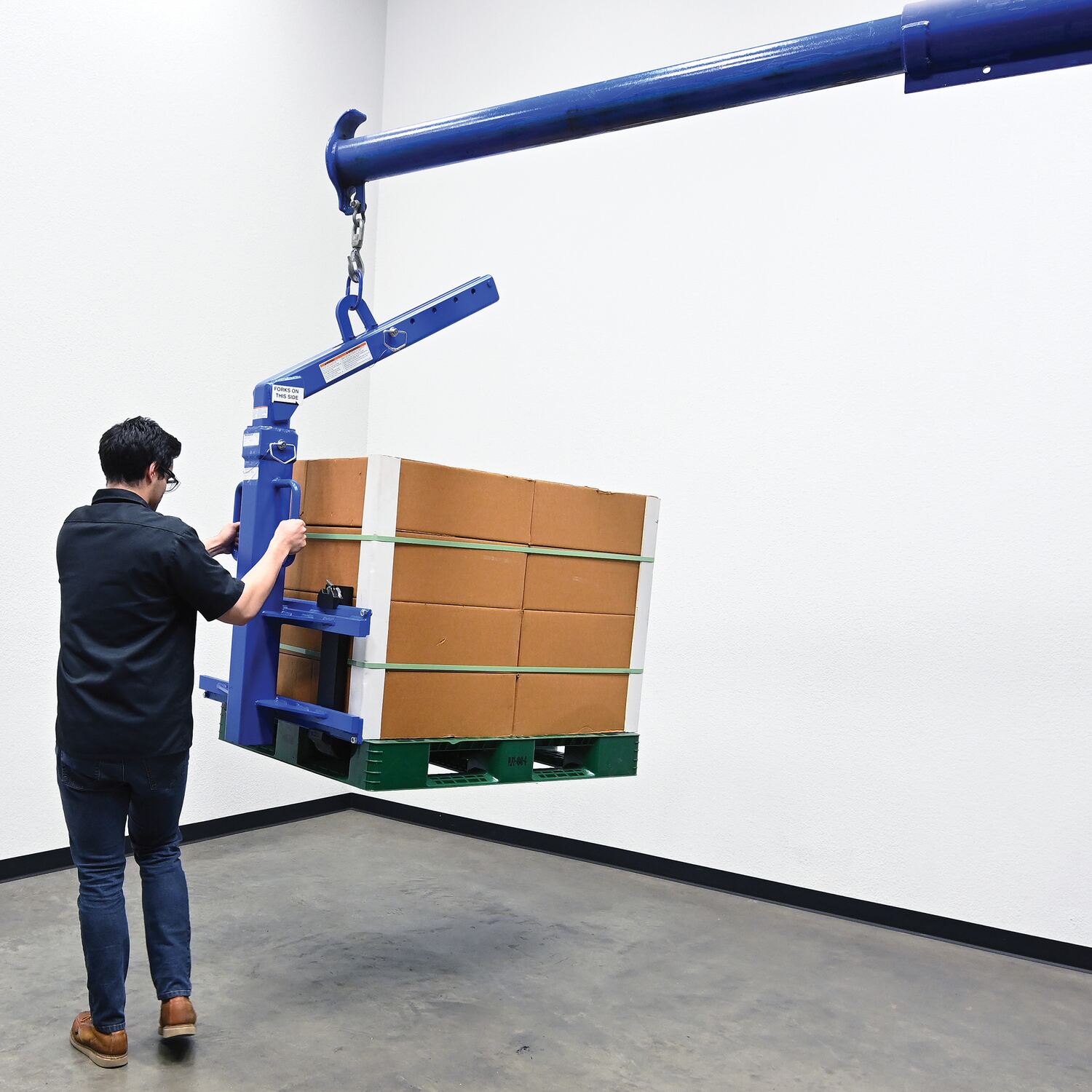

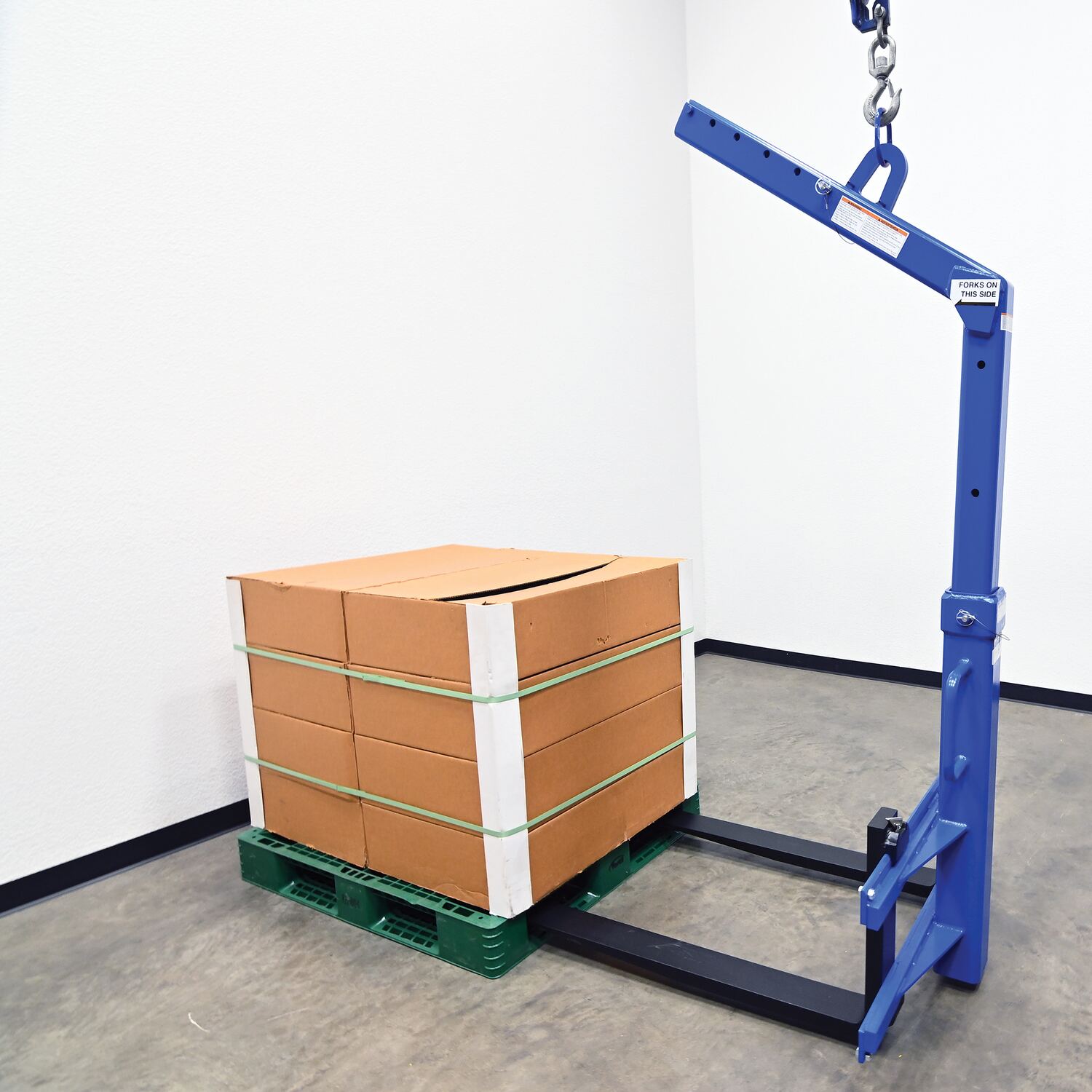

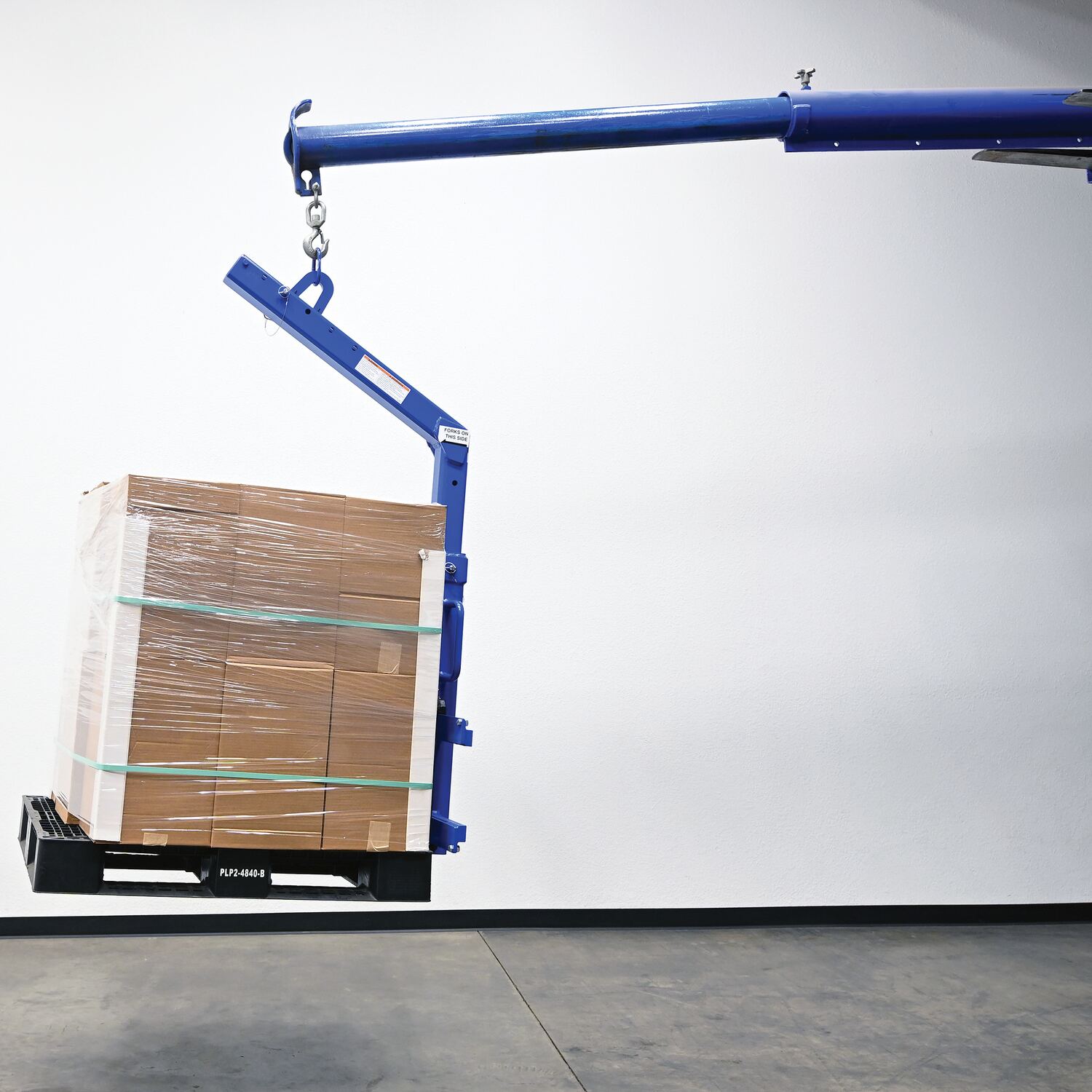

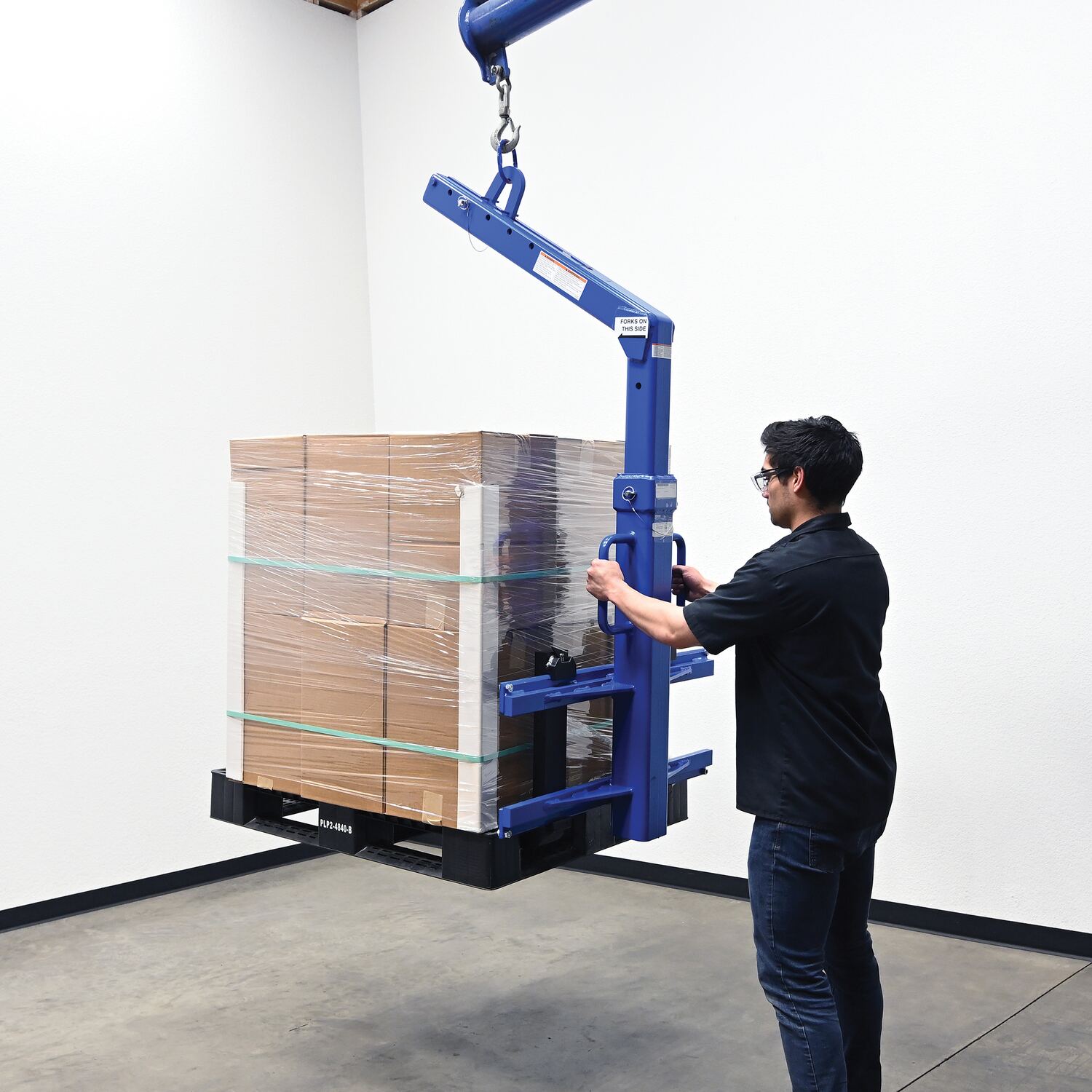

The overhead load lifter is designed for lifting and moving pallets, skids and crates with an overhead lifting crane. Includes an adjustable bail for keeping the load level when moving. Includes three (3) height positions for use with different sized loads.

  • Lifter is designed to move pallets, skids and crates in industrial applications
  • Use with an overhead lifting crane for optimal results

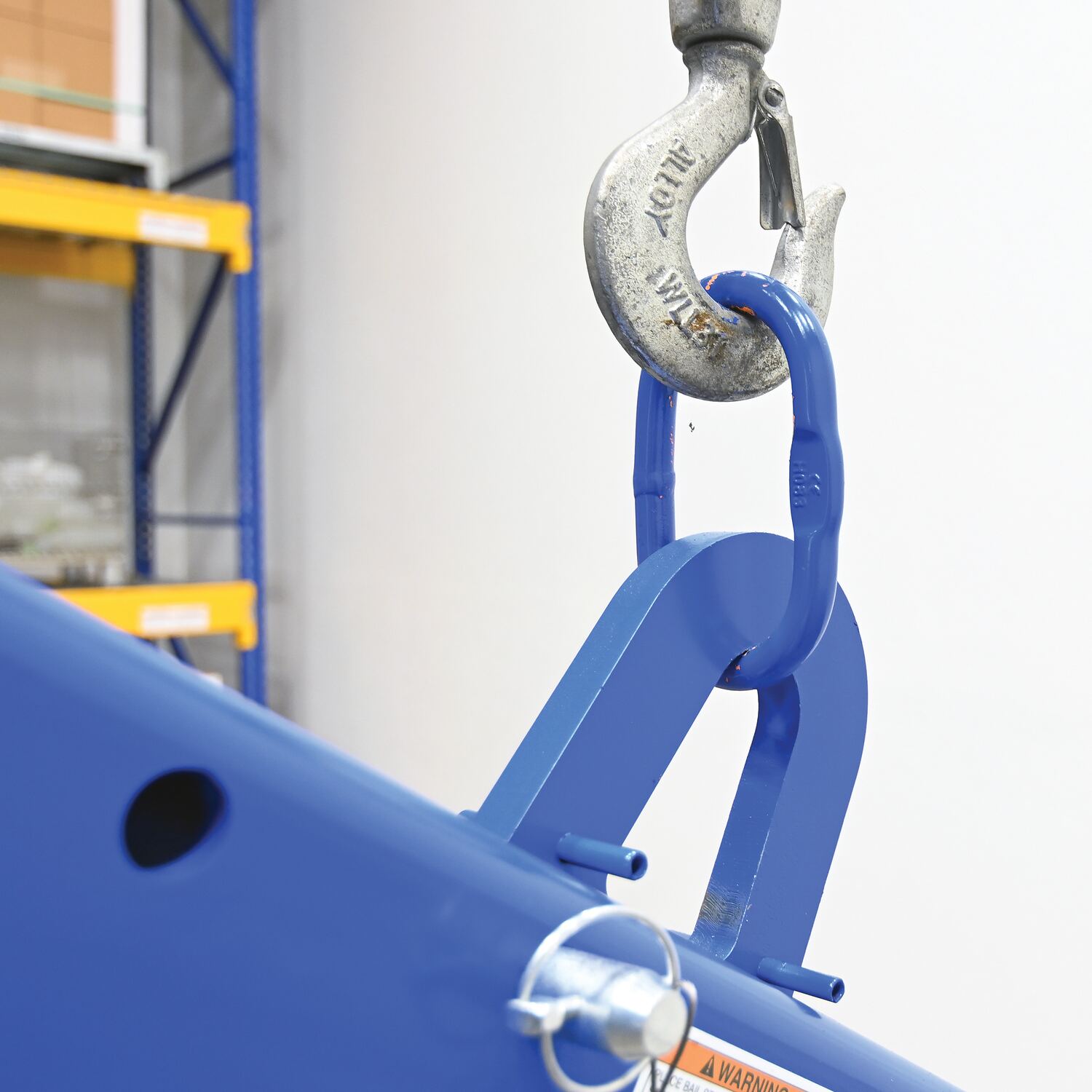

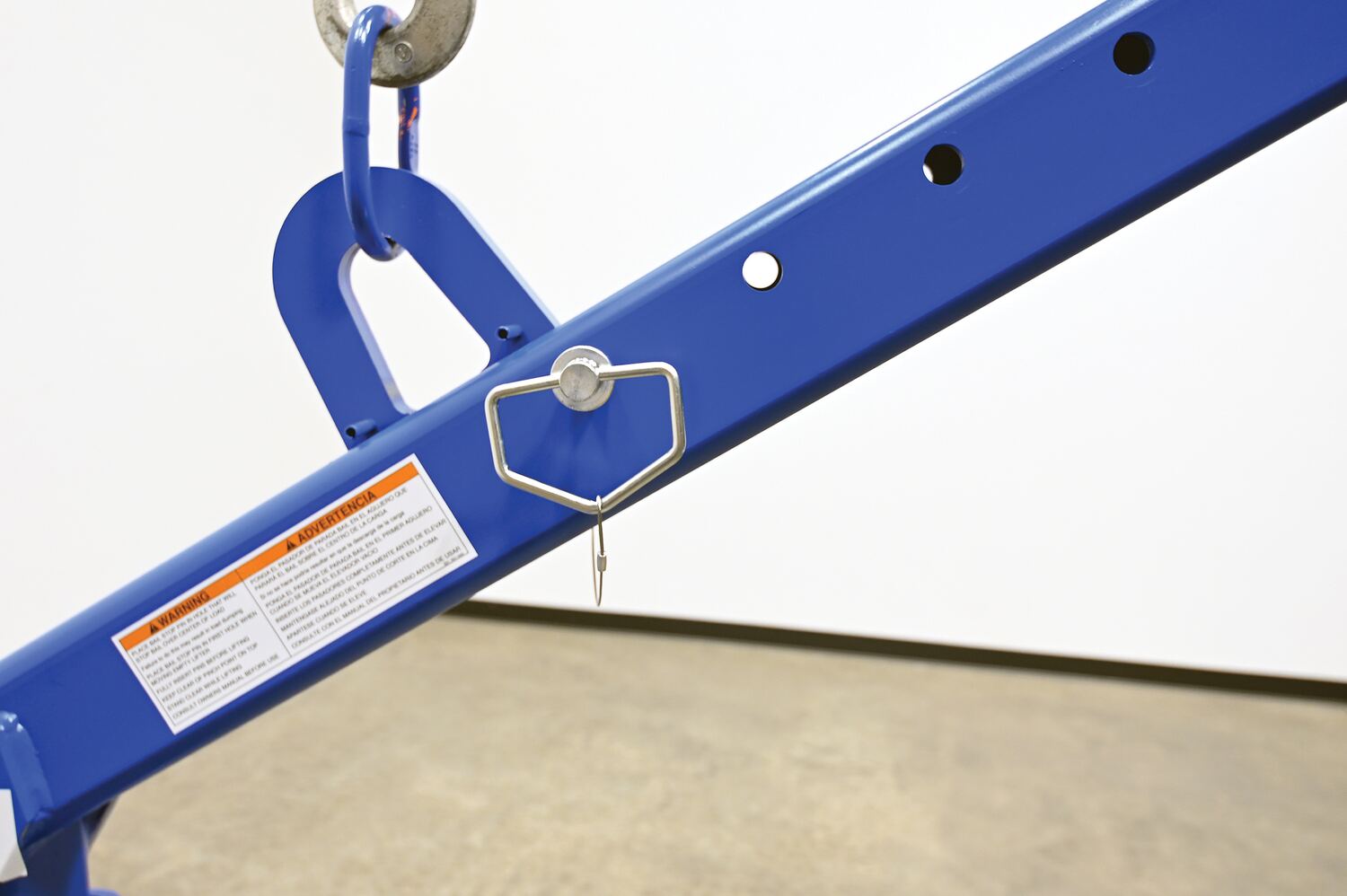

  • Includes an adjustable bail for keeping the load level when moving
  • Includes three height positions for use with different sized loads
Total Ship Wt.(lbs.): 537 (only 1 package) Size: 40.125"W x 48.1875"L x 87.875"H Color: Blue

Uniform Capacity (lb.): 4000 Retracted Height (in.): 64-3/8 Adjustable Clearance Height (in.): 42-1/2, 54-1/4, 66

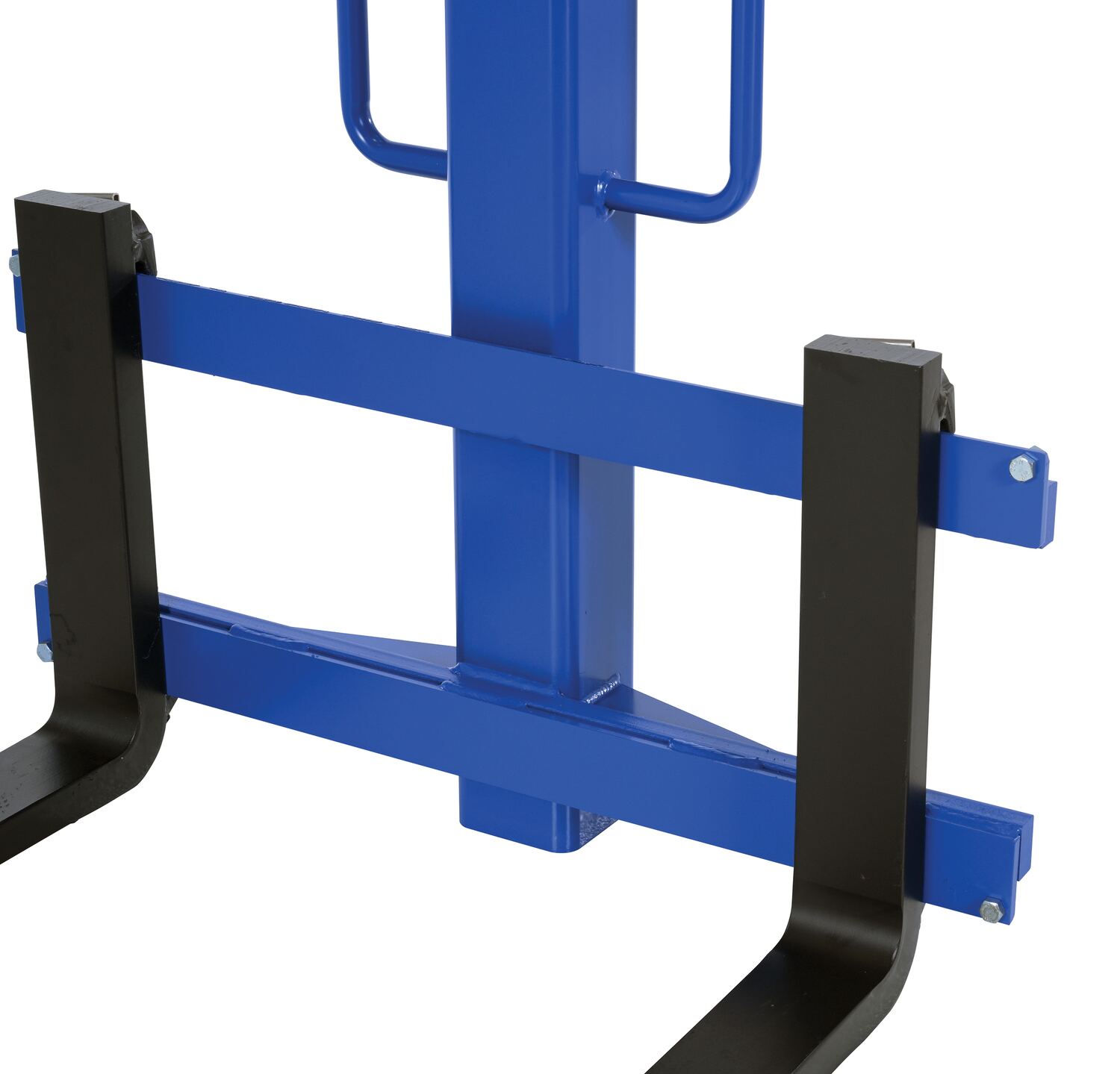

Overall Height (in.): 65-13/16, 77-9/16, 89-5/16 Adjustable Overall Fork Width O.D. (in.): 13 to 38 Fork Size Height/Width (in.): 1-1/2 x 4
Usable Fork Length (in.): 42 Overall Width (in.): 39-3/4 Overall Length (in.): 50

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: OLA-4-42
OLA-4-42

Steel Overhead Load Lifter Adjustable 43-1/8 In. Fork 4000 Lb. Capacity Blue

The overhead load lifter is designed for lifting and moving pallets, skids and crates with an overhead lifting crane. Includes an adjustable bail for keeping the load level when moving. Includes three (3) height positions for use with different sized loads.

  • Lifter is designed to move pallets, skids and crates in industrial applications
  • Use with an overhead lifting crane for optimal results
  • Includes an adjustable bail for keeping the load level when moving
  • Includes three height positions for use with different sized loads
Dimensions: 40.125"W x 48.1875"L x 87.875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215029100 GTIN: 00691215029100
Warranty: -- Shipping Weight: 537 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4000 Retracted Height (in.): 64-3/8 Adjustable Clearance Height (in.): 42-1/2, 54-1/4, 66
Overall Height (in.): 65-13/16, 77-9/16, 89-5/16 Adjustable Overall Fork Width O.D. (in.): 13 to 38 Fork Size Height/Width (in.): 1-1/2 x 4
Usable Fork Length (in.): 42 Overall Width (in.): 39-3/4 Overall Length (in.): 50
