Model Details

MINI-10

Printer Friendly
MINI-10

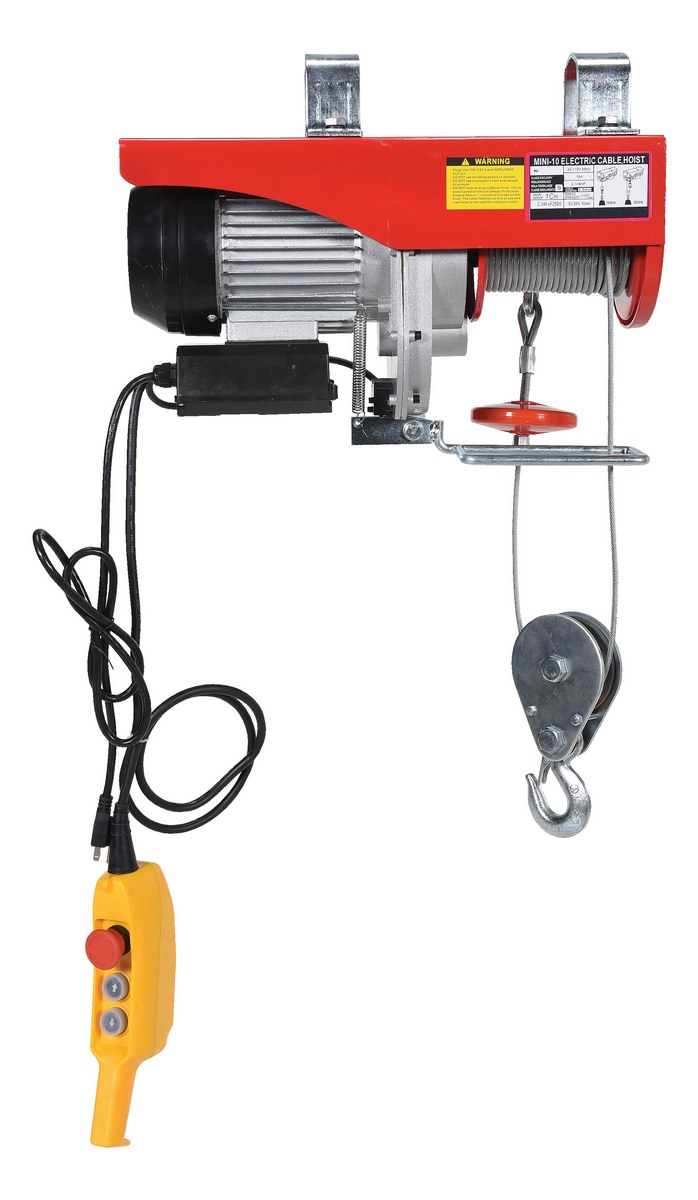

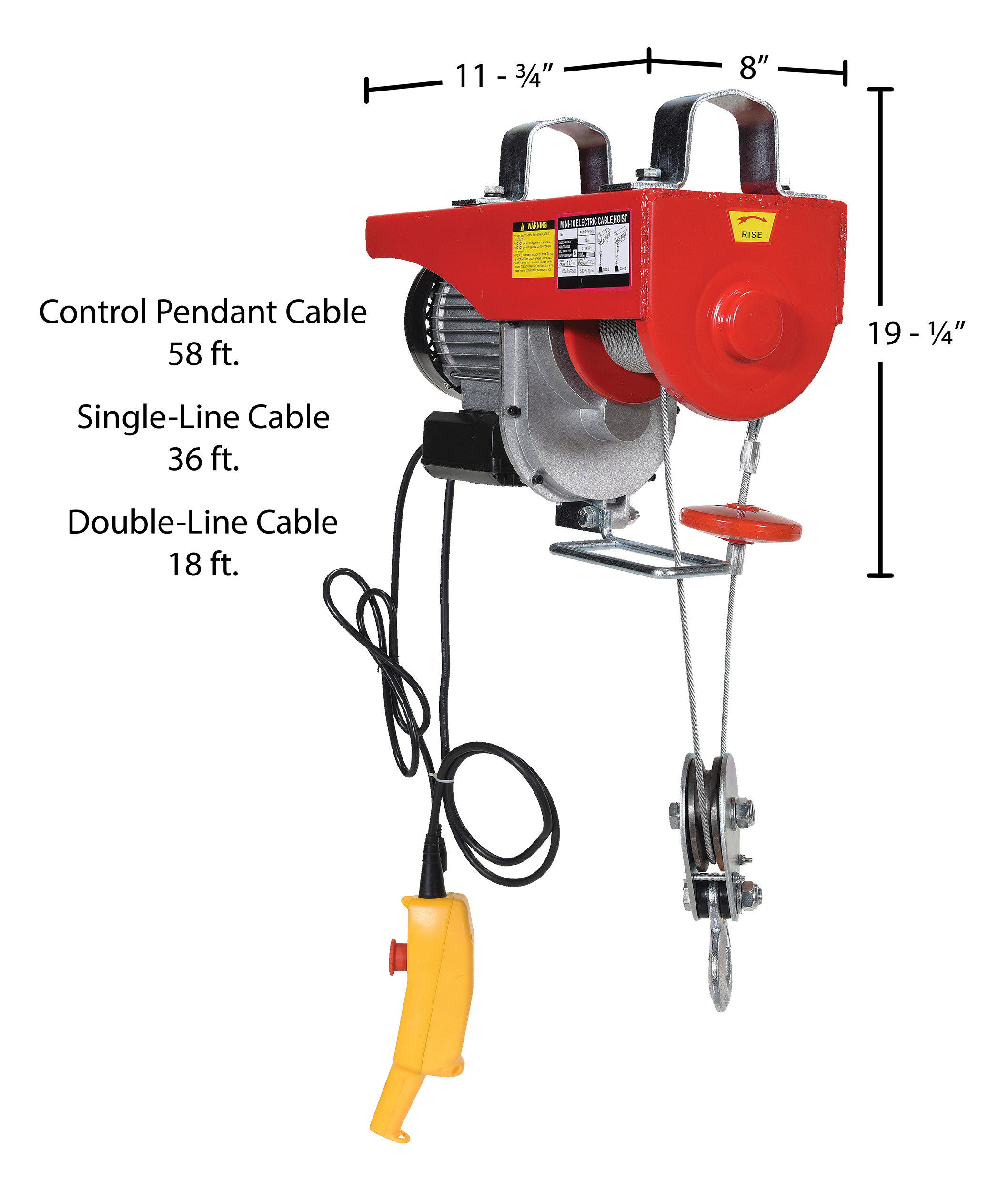

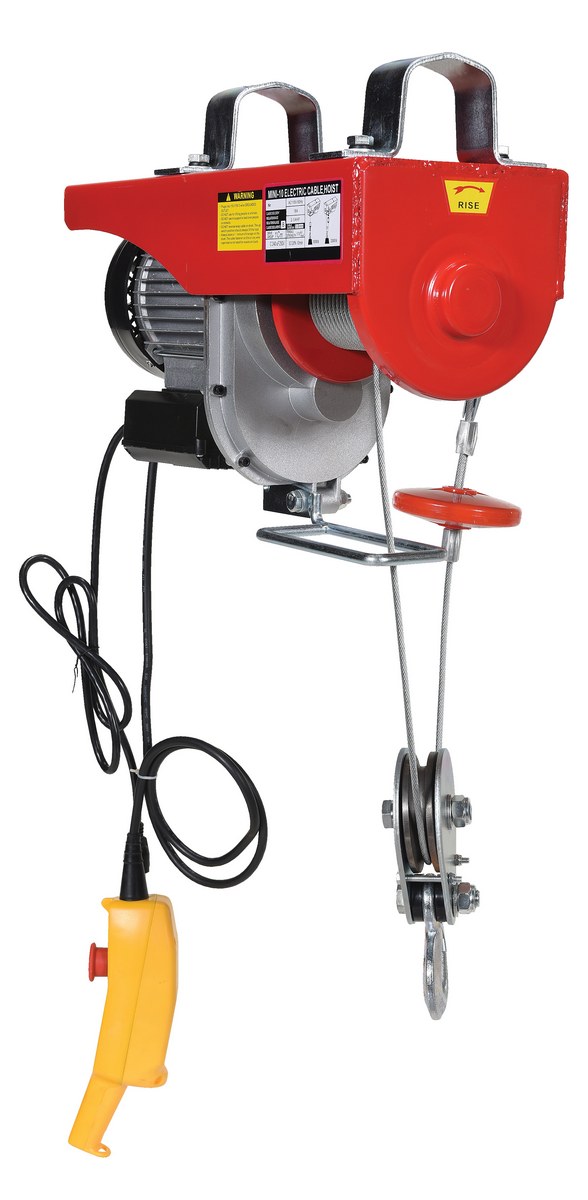

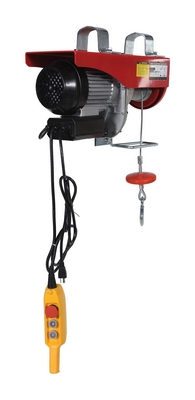

Steel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity Red

This mini cable hoist can be used in both single-line and double-line lifting applications. Includes electric motor and hand-held push button controls. Optional swivel hook plate must be ordered for attaching hoist to trolley, (trolley not included).

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long
  • Requires 115V AC power source for operation
Total Ship Wt.(lbs.): 83 (only 1 package) Size: 8"W x 19.25"L x 11.75"H Color: Red QuickShip

Single-Line Uniform Capacity (lb.): 1000 Double-Line Uniform Capacity (lb.): 2000 Lifting Speed (ft. per minute): 30
Single-Line Cable Length (ft,): 36 Double-Line Cable Length (ft.): 18 Voltage: 115
Phase: 1 Control Pendant Cable Length (in.): 58

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: MINI-10
MINI-10

Steel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity Red

This mini cable hoist can be used in both single-line and double-line lifting applications. Includes electric motor and hand-held push button controls. Optional swivel hook plate must be ordered for attaching hoist to trolley, (trolley not included).

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long
  • Requires 115V AC power source for operation
Dimensions: 8"W x 19.25"L x 11.75"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215120739 GTIN: 00691215120739
Warranty: -- Shipping Weight: 83 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Single-Line Uniform Capacity (lb.): 1000 Double-Line Uniform Capacity (lb.): 2000 Lifting Speed (ft. per minute): 30
Single-Line Cable Length (ft,): 36 Double-Line Cable Length (ft.): 18 Voltage: 115
Phase: 1 Control Pendant Cable Length (in.): 58
