MEZZ-KD-88T-93D

Steel Mezzanine Safety Gate Knockdown 87-3/16 In x 96 In x 87-9/16 In Yellow

This mezzanine safety gate provides an OSHA required 42" high handrail. To accommodate the load height when utilizing a standard 48"W x 48"D pallet load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Construction is welded steel with a baked-in powder-coated finish for increased toughness. Ships knockdown to the customer. Wooden cross rails are not included and must be supplied by the customer.

  • Access to mezzanines with safety first concept
  • Manually operated gate rotates to allow access mezzanine
  • Heavy-duty welded steel construction provides long lasting use
  • Powder coat safety yellow finish offers an attractive appearance
Total Ship Wt.(lbs.): 186 (only 1 package) Size: 96"W x 87.1875"L x 87.5625"H Color: Yellow QuickShip

Base Plate Thickness (in.): 3/16 Base Plate Width/Length (in.): 4/4 Base Mounting Holes (qty.): 4
Base Mounting Hole Diameter (in.): 7/16 Hardware Included: Yes

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: MEZZ-KD-88T-93D
MEZZ-KD-88T-93D

Steel Mezzanine Safety Gate Knockdown 87-3/16 In x 96 In x 87-9/16 In Yellow

This mezzanine safety gate provides an OSHA required 42" high handrail. To accommodate the load height when utilizing a standard 48"W x 48"D pallet load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Construction is welded steel with a baked-in powder-coated finish for increased toughness. Ships knockdown to the customer. Wooden cross rails are not included and must be supplied by the customer.

  • Access to mezzanines with safety first concept
  • Manually operated gate rotates to allow access mezzanine
  • Heavy-duty welded steel construction provides long lasting use
  • Powder coat safety yellow finish offers an attractive appearance

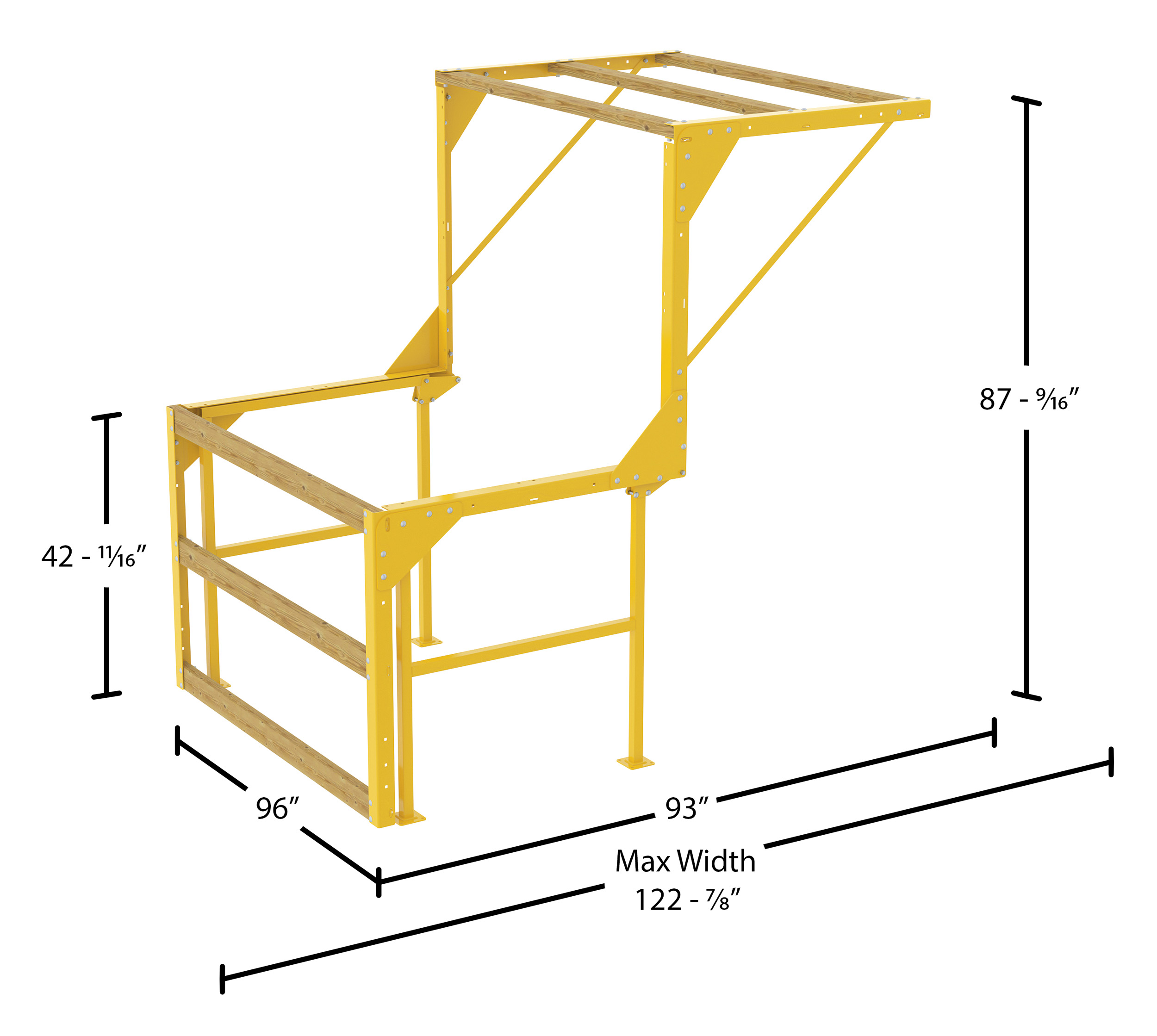

Dimensions: 96"W x 87.1875"L x 87.5625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215326797 GTIN: 00691215326797
Warranty: -- Shipping Weight: 186 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Base Plate Thickness (in.): 3/16 Base Plate Width/Length (in.): 4/4 Base Mounting Holes (qty.): 4
Base Mounting Hole Diameter (in.): 7/16 Hardware Included: Yes
