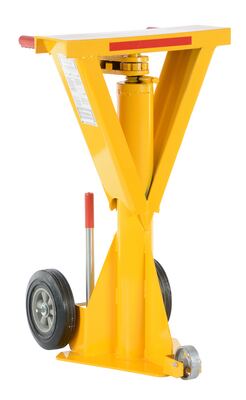

LO-J-BEAM-100

Steel Beam Trailer Stabilizing Ratchet Jack 27-7/16 In. x 23-7/8 In. x 41 In. 50,000 Lb. Capacity Yellow

The trailer stabilizing jack is used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. It is also used to prevent landing gear from sinking into a soft surface. This jack is made of high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. Meets OSHA regulations when used with wheel chocks. Contains a powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Total Ship Wt.(lbs.): 205 (only 1 package) Size: 23.875"W x 27.4375"L x 41"H Color: Yellow QuickShip

Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 50,000 Lowered Height (in.): 41
Raised Height (in.): 51 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Front Wheel Type: Steel Operation: Ratchet
Lifting Beam Width (in.): 7 Lifting Beam Length (in): 23-7/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LO-J-BEAM-100
LO-J-BEAM-100

Steel Beam Trailer Stabilizing Ratchet Jack 27-7/16 In. x 23-7/8 In. x 41 In. 50,000 Lb. Capacity Yellow

The trailer stabilizing jack is used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. It is also used to prevent landing gear from sinking into a soft surface. This jack is made of high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. Meets OSHA regulations when used with wheel chocks. Contains a powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Dimensions: 23.875"W x 27.4375"L x 41"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215000017 GTIN: 00691215000017
Warranty: -- Shipping Weight: 205 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 50,000 Lowered Height (in.): 41
Raised Height (in.): 51 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Front Wheel Type: Steel Operation: Ratchet
Lifting Beam Width (in.): 7 Lifting Beam Length (in): 23-7/8
