Model Details

LLW-PAILD-100

LLW-PAILD-100

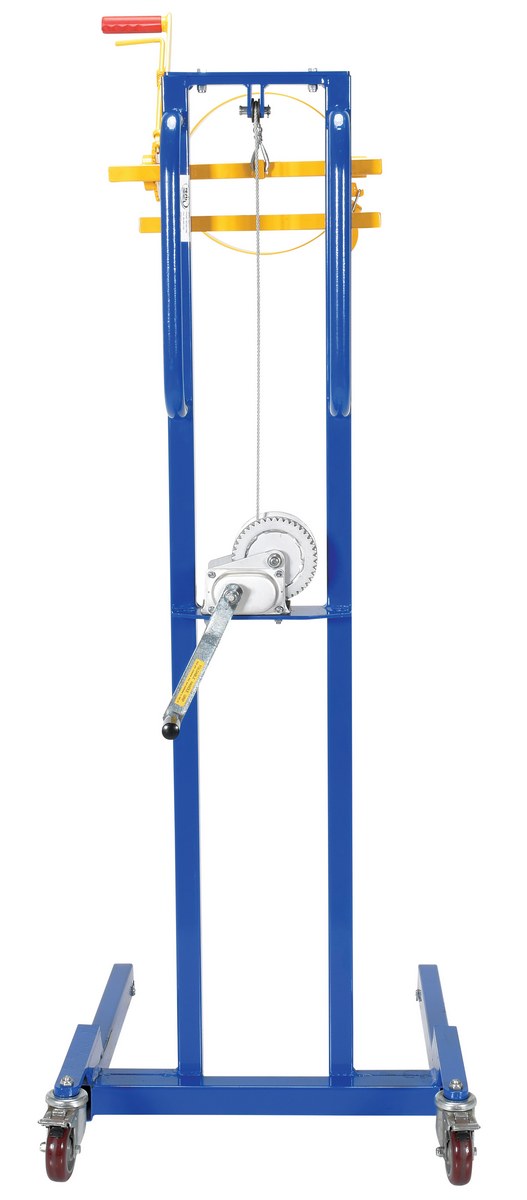

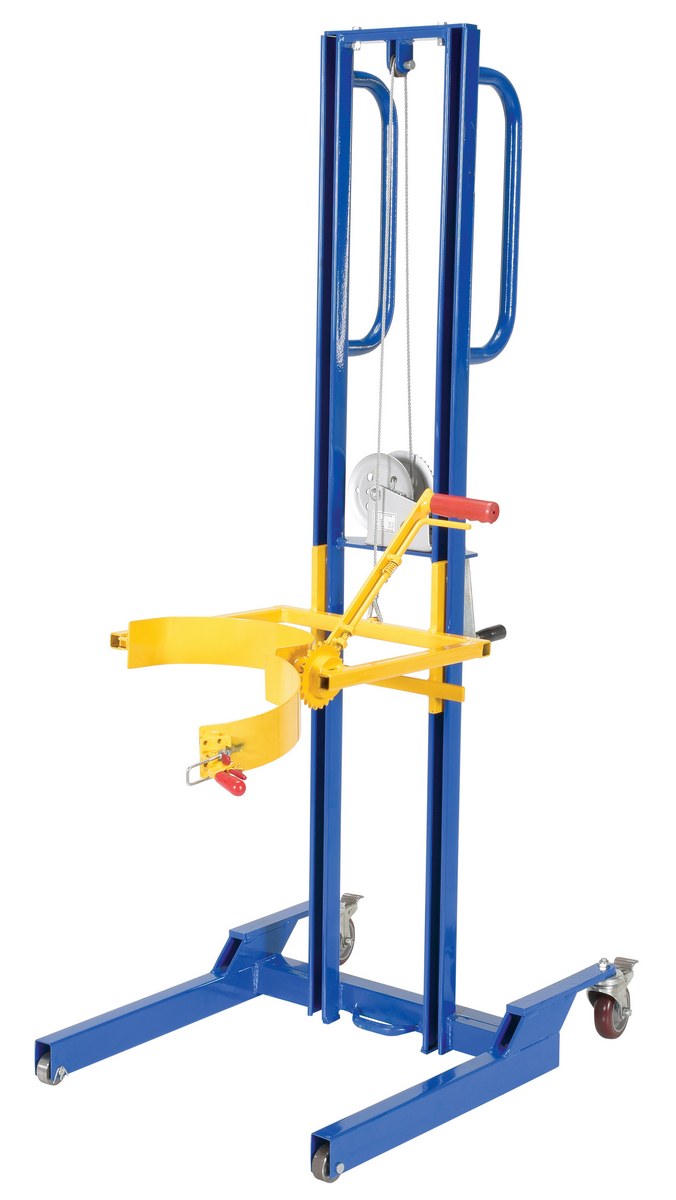

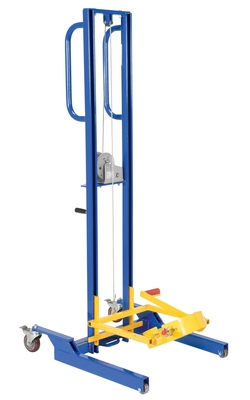

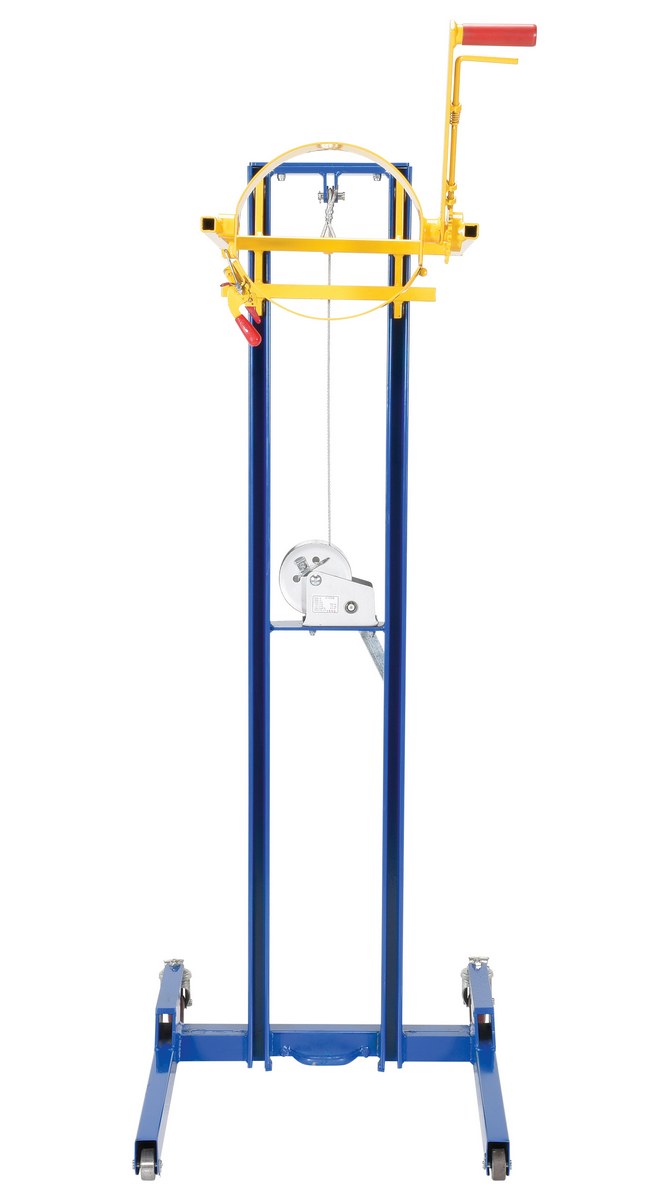

Steel Variable Height Pail Dispenser 125 Lb. Capacity Blue and Yellow

Variable height pail dispenser provides several settings for dispensing five (5) gallon plastic or steel pails. Dispense by turning the hand cable winch. Steel construction with a baked-in powder-coated toughness.

  • Provides settings for dispensing five (5) gallon plastic or steel pails

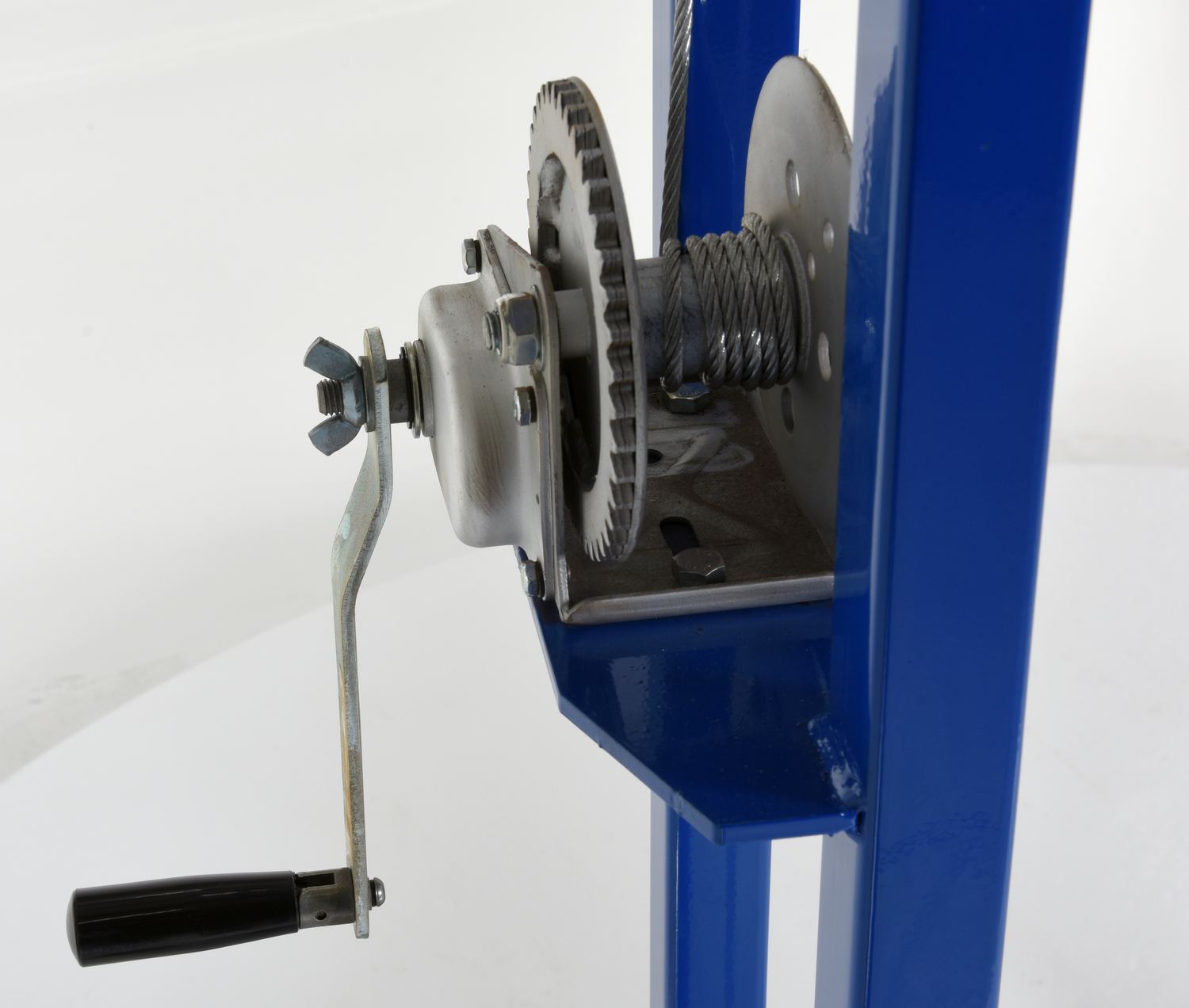

  • Dispense by turning the hand cable winch
  • Variable height pail dispenser provides several settings for dispensing
  • Use in industrial applications for optimal results
Total Ship Wt.(lbs.): 139 (only 1 package) Size: 26"W x 35.875"L x 71.25"H Color: Blue (Frame), Yellow (Cradle)

Uniform Capacity (lb.): 125 Accepts Pail Diameter (in.): 11 Angle Setting (qty.): 24
Pour Height Lowered (in.): 1 Pour Height Raised (in.): 52 Cradle Height Lowered (in.): 6
Cradle Height Raised (in.): 62-3/4 Raised Height (in.): 71-1/4 Rotation Angle (deg.): 24
Rotation (deg.): 135 (2) Rear Swivel Casters with Total Lock Diameter (in.): 4 Rear Caster Material: Poly-on-Poly
(2) Front Steel Roller Diameter (in.): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LLW-PAILD-100


LLW-PAILD-100

Steel Variable Height Pail Dispenser 125 Lb. Capacity Blue and Yellow

Variable height pail dispenser provides several settings for dispensing five (5) gallon plastic or steel pails. Dispense by turning the hand cable winch. Steel construction with a baked-in powder-coated toughness.

  • Provides settings for dispensing five (5) gallon plastic or steel pails
  • Dispense by turning the hand cable winch
  • Variable height pail dispenser provides several settings for dispensing
  • Use in industrial applications for optimal results
Dimensions: 26"W x 35.875"L x 71.25"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Cradle)
Material: Steel UPC: 691215088794 GTIN: 00691215088794
Warranty: -- Shipping Weight: 139 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 125 Accepts Pail Diameter (in.): 11 Angle Setting (qty.): 24
Pour Height Lowered (in.): 1 Pour Height Raised (in.): 52 Cradle Height Lowered (in.): 6
Cradle Height Raised (in.): 62-3/4 Raised Height (in.): 71-1/4 Rotation Angle (deg.): 24
Rotation (deg.): 135 (2) Rear Swivel Casters with Total Lock Diameter (in.): 4 Rear Caster Material: Poly-on-Poly
(2) Front Steel Roller Diameter (in.): 2
