Model Details

JIB-FM-6

JIB-FM-6

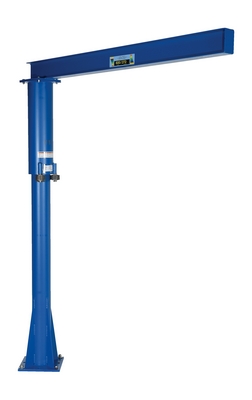

Steel Floor Mounted Jib 80 In. I-Beam 600 Lb. Capacity Blue

This floor mounted jib adapts well to a variety of applications. With the unique design, the jib is functional in any direction for complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. Hoists & Trollies can be ordered separately.

  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency

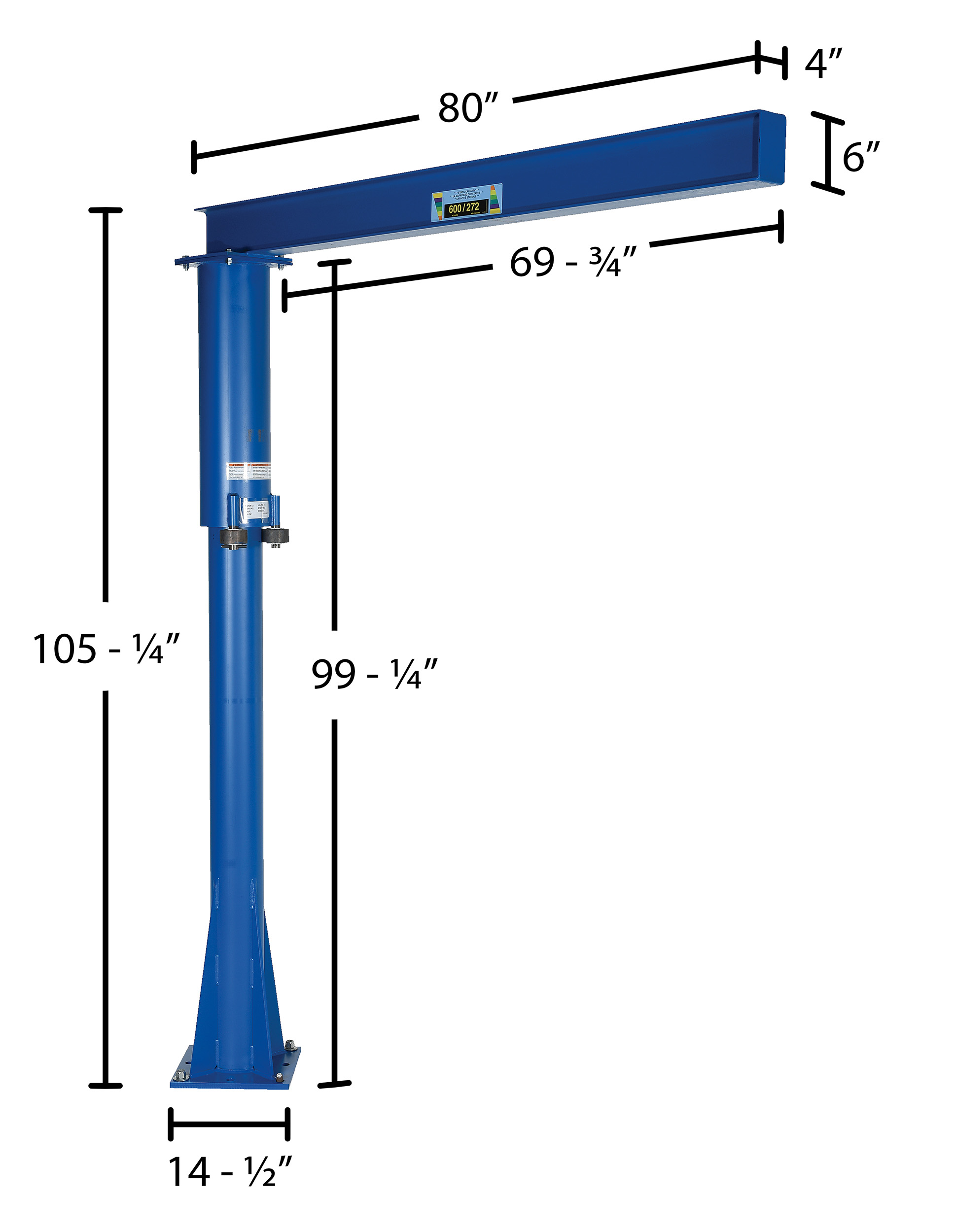

Total Ship Wt.(lbs.): 454 (only 1 package) Size: 14.5"W x 82.25"L x 105.25"H Color: Blue

Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 99-1/4 I-Beam (Flange x Height) (in.): 4 x 6
Overall I-Beam Length (in.): 80 Usable I-Beam Length (in.): 69-3/4 Rotation Degree: 360
Base Plate Length/Width (in.): 14-1/2 x 14-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-FM-6


JIB-FM-6

Steel Floor Mounted Jib 80 In. I-Beam 600 Lb. Capacity Blue

This floor mounted jib adapts well to a variety of applications. With the unique design, the jib is functional in any direction for complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. Hoists & Trollies can be ordered separately.

  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency
Dimensions: 14.5"W x 82.25"L x 105.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215024754 GTIN: 00691215024754
Warranty: -- Shipping Weight: 454 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 99-1/4 I-Beam (Flange x Height) (in.): 4 x 6
Overall I-Beam Length (in.): 80 Usable I-Beam Length (in.): 69-3/4 Rotation Degree: 360
Base Plate Length/Width (in.): 14-1/2 x 14-1/2
