Model Details

JIB-CB-25-10-10-BC

Printer Friendly
JIB-CB-25-10-10-BC

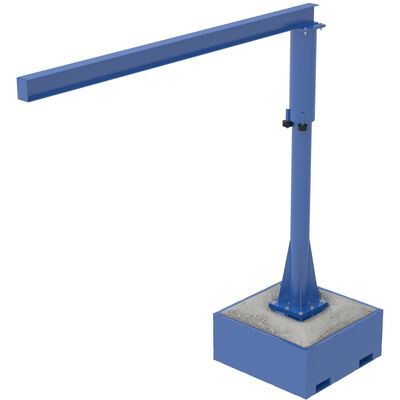

Steel Portable Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity Blue

Unique design allows for easy transportation of jib crane with a fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Unit not for use as a fork truck attachment.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Total Ship Wt.(lbs.): 2588 (Multiple Packages: P1: 515 lbs + P2: 2073 lbs) Size: 42.1875"W x 136.125"L x 125.9375"H Color: Blue

Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 120 Usable I-Bean Length (in): 109-3/4
I-Beam Height (in.): 6 I-Beam Flange Width (in.): 4 Base Height (in.): 18
Rotation (degrees): 360 Base Length (in.): 42-3/16 Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-5/8 Fork Tube Height (in.): 2-5/8 Fork Centers (in.): 24
Under I-Beam Height (in): 119-15/16 Operation Mode: Manual

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-CB-25-10-10-BC
JIB-CB-25-10-10-BC

Steel Portable Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity Blue

Unique design allows for easy transportation of jib crane with a fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Unit not for use as a fork truck attachment.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Dimensions: 42.1875"W x 136.125"L x 125.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215127165 GTIN: 00691215127165
Warranty: -- Shipping Weight: 515 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 120 Usable I-Bean Length (in): 109-3/4
I-Beam Height (in.): 6 I-Beam Flange Width (in.): 4 Base Height (in.): 18
Rotation (degrees): 360 Base Length (in.): 42-3/16 Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-5/8 Fork Tube Height (in.): 2-5/8 Fork Centers (in.): 24
Under I-Beam Height (in): 119-15/16 Operation Mode: Manual
