Model Details

HPC-20

HPC-20

Steel Horizontal Plate Clamp 2,000 Lb. Capacity Blue

Clamp is perfectly designed for lifting plate material in horizontal positions. The heavy-duty steel construction provides years of reliable use. Not designed for use on stainless steel or aluminum plates.

  • Lift only one (1) clean and oil free plate at a time
  • Ribbed surface provides a resilient grip
  • Meets ASME B30.20 specifications
  • For use with materials with a surface hardness to 30 RC (300 HB)
Total Ship Wt.(lbs.): 9 (only 1 package) Size: 2.625"W x 6.0625"L x 7.9375"H Color: Blue QuickShip

Uniform Working Load Limit (lb.): 2,000 Bale Opening (in.): 1-3/16 Minimum Plate Thickness (in.): 0
Maximum Plate Thickness (in.): 0.8125 Min Uniform Plate Weight (lb.): 400

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: HPC-20


HPC-20

Steel Horizontal Plate Clamp 2,000 Lb. Capacity Blue

Clamp is perfectly designed for lifting plate material in horizontal positions. The heavy-duty steel construction provides years of reliable use. Not designed for use on stainless steel or aluminum plates.

  • Lift only one (1) clean and oil free plate at a time
  • Ribbed surface provides a resilient grip
  • Meets ASME B30.20 specifications
  • For use with materials with a surface hardness to 30 RC (300 HB)

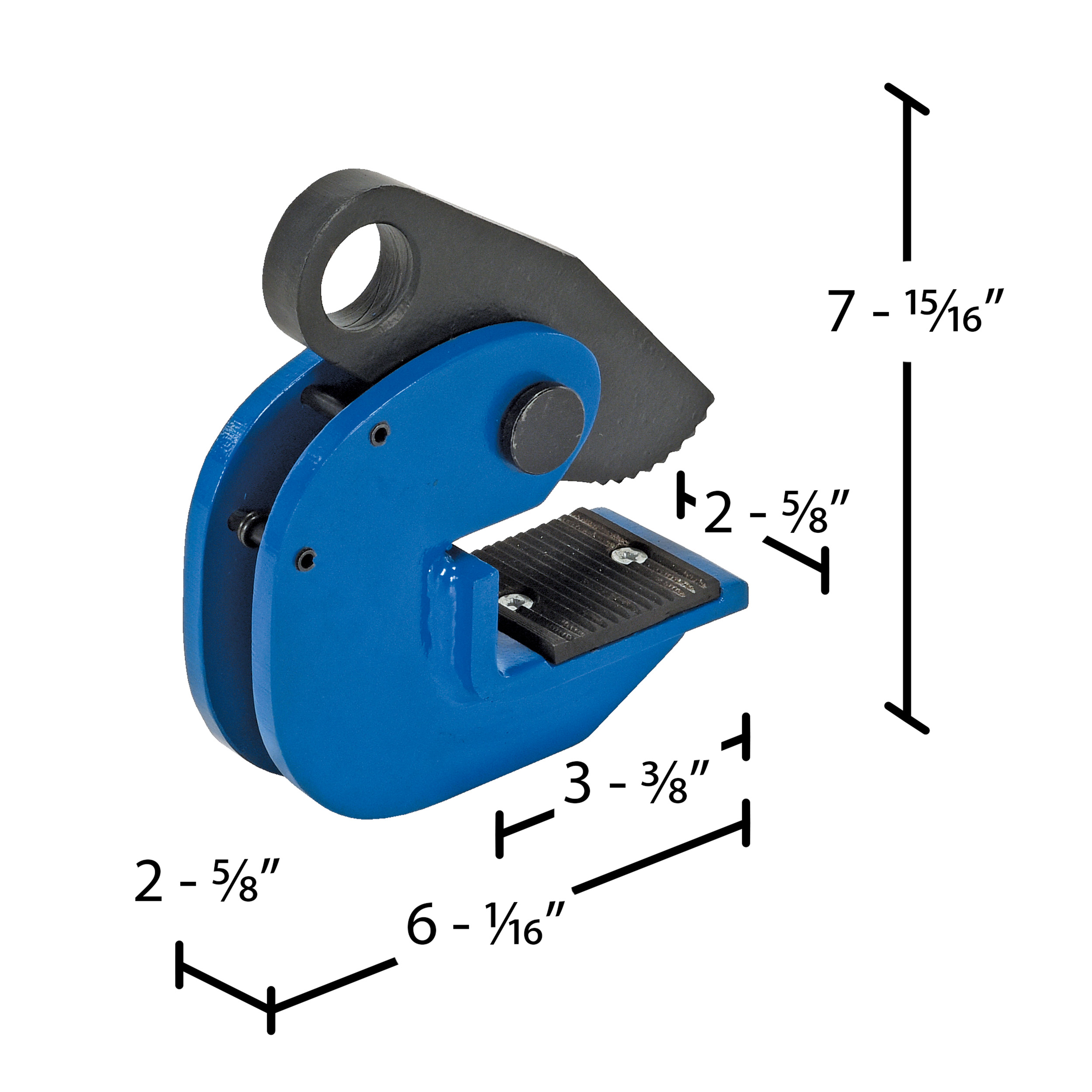

Dimensions: 2.625"W x 6.0625"L x 7.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215054621 GTIN: 00691215054621
Warranty: -- Shipping Weight: 9 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Working Load Limit (lb.): 2,000 Bale Opening (in.): 1-3/16 Minimum Plate Thickness (in.): 0
Maximum Plate Thickness (in.): 0.8125 Min Uniform Plate Weight (lb.): 400
