FWST-48-4PNU

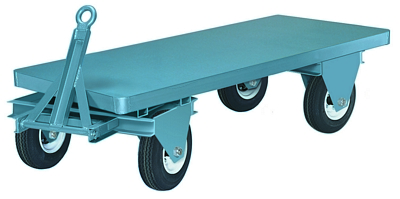

Steel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 4500 Lb. Capacity Gray

The fifth wheel steer trailer is engineered for power towing. The trailer comes standard with drop forged loop handle and square fifth wheel, which features low friction wear pad and precision thrust bearing.

  • Fifth wheel steer trailer is engineered for power towing
  • Trailer comes standard with drop forged loop handle and square fifth wheel
  • Features a low friction wear pad and precision thrust bearing
  • Use in industrial applications for optimal results
Total Ship Wt.(lbs.): 455 (only 1 package) Size: 48"W x 129.875"L x 41"H Color: Platinum Gray Non-Returnable

Uniform Capacity (lb.): 4,500 Deck Gauge: 12 Platform Width (in.): 48
Platform Length (in.): 96 Wheel Diameter (in.): 16 Wheel Width (in.): 3
Wheel Type: Pneumatic Deck Height (in.): 24 Square Steel Plates (in): 14
Precision Thrust Bearing (in): 1/4 Tow Bar Extends to end of loop (in.): 36-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FWST-48-4PNU
FWST-48-4PNU

Steel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 4500 Lb. Capacity Gray

The fifth wheel steer trailer is engineered for power towing. The trailer comes standard with drop forged loop handle and square fifth wheel, which features low friction wear pad and precision thrust bearing.

  • Fifth wheel steer trailer is engineered for power towing
  • Trailer comes standard with drop forged loop handle and square fifth wheel
  • Features a low friction wear pad and precision thrust bearing
  • Use in industrial applications for optimal results
Dimensions: 48"W x 129.875"L x 41"H Sell UOM: EA-Each Color: Platinum Gray
Material: Steel UPC: 691215087629 GTIN: 00691215087629
Warranty: -- Shipping Weight: 455 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,500 Deck Gauge: 12 Platform Width (in.): 48
Platform Length (in.): 96 Wheel Diameter (in.): 16 Wheel Width (in.): 3
Wheel Type: Pneumatic Deck Height (in.): 24 Square Steel Plates (in): 14
Precision Thrust Bearing (in): 1/4 Tow Bar Extends to end of loop (in.): 36-1/2
