Model Details

FL-ADJ-46

FL-ADJ-46

Steel Adjustable Floor Lock 6-1/4 to 8 In. Height Silver

This one of a kind adjustable height Floor Lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.

  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use
  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip
Total Ship Wt.(lbs.): 9 (only 1 package) Size: 5.625"W x 6.5"L x 8"H Color: Silver QuickShip

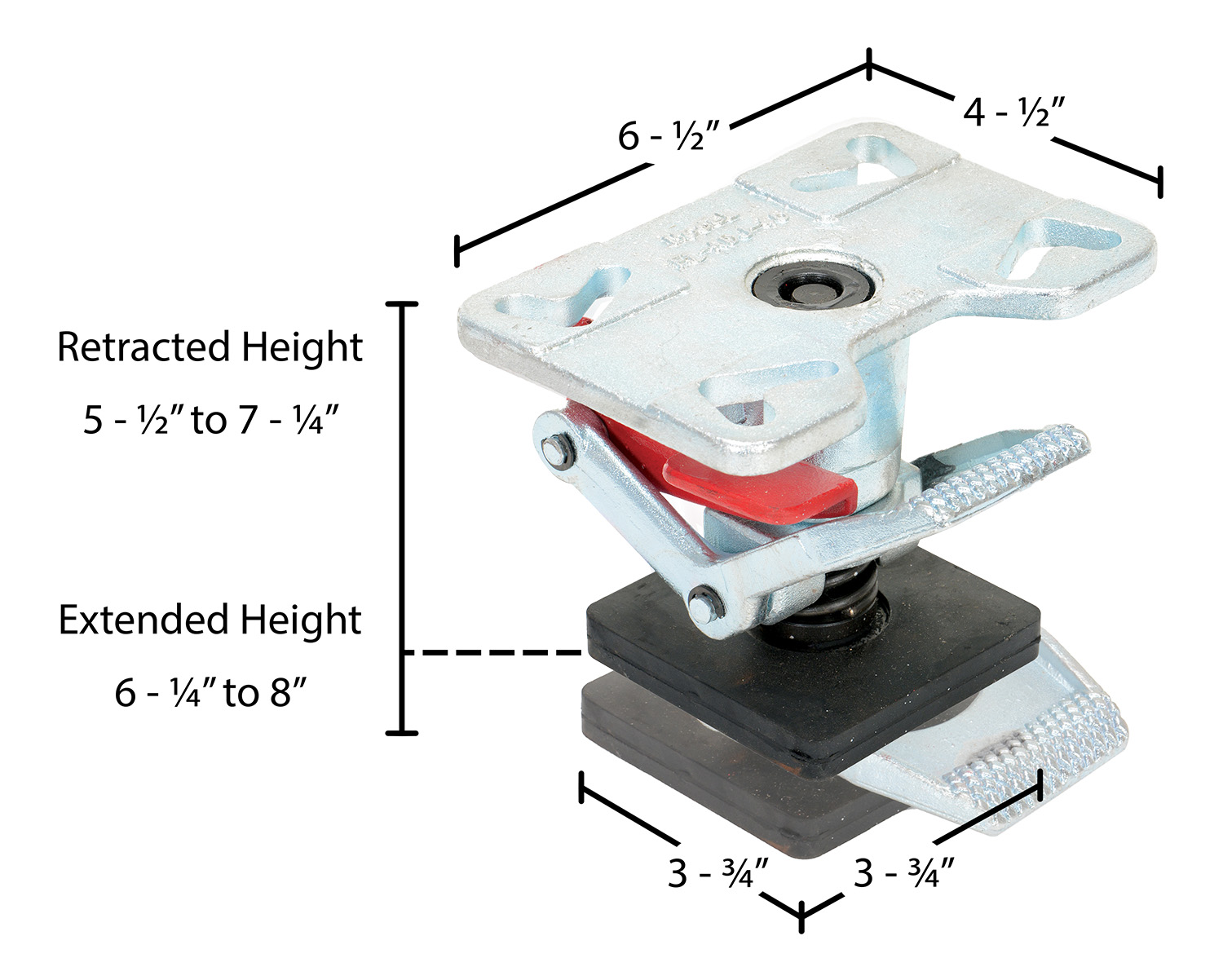

Used with Caster Size (in. - in.): 4 to 6 Extended Height (in. to in.): 6-1/4 to 8 Retracted Height (in. to in.): 5-1/2 to 7-1/4
Top Plate Width (in.): 4-1/2 Top Plate Length (in.): 6-1/2 Mounting Bolt Diameter (in.): 3/8
Mounting Plate Thickness (in.): 3/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-ADJ-46


FL-ADJ-46

Steel Adjustable Floor Lock 6-1/4 to 8 In. Height Silver

This one of a kind adjustable height Floor Lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.

  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use
  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip
Dimensions: 5.625"W x 6.5"L x 8"H Sell UOM: EA-Each Color: Silver
Material: Heavy-duty Cast Steel UPC: 691215020428 GTIN: 00691215020428
Warranty: -- Shipping Weight: 9 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Used with Caster Size (in. - in.): 4 to 6 Extended Height (in. to in.): 6-1/4 to 8 Retracted Height (in. to in.): 5-1/2 to 7-1/4
Top Plate Width (in.): 4-1/2 Top Plate Length (in.): 6-1/2 Mounting Bolt Diameter (in.): 3/8
Mounting Plate Thickness (in.): 3/8
