Model Details

FHA-2-10-10

FHA-2-10-10

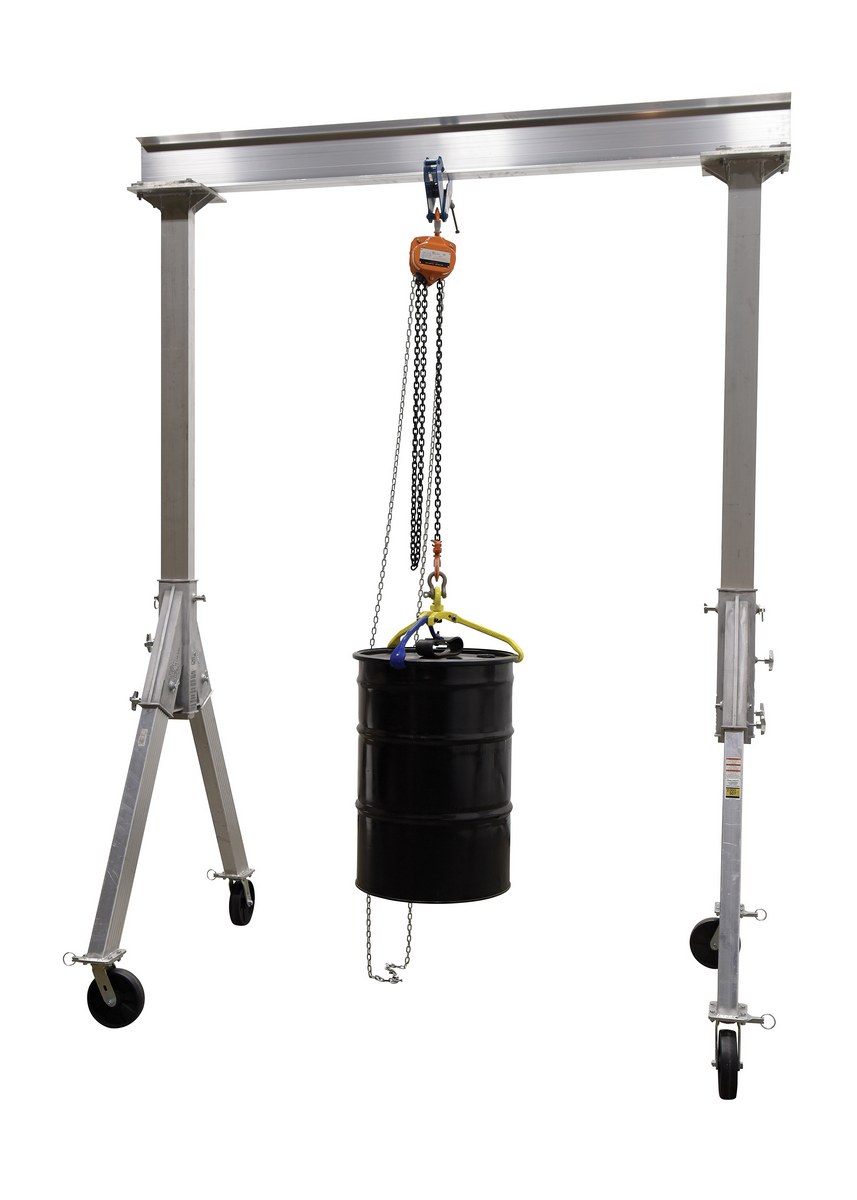

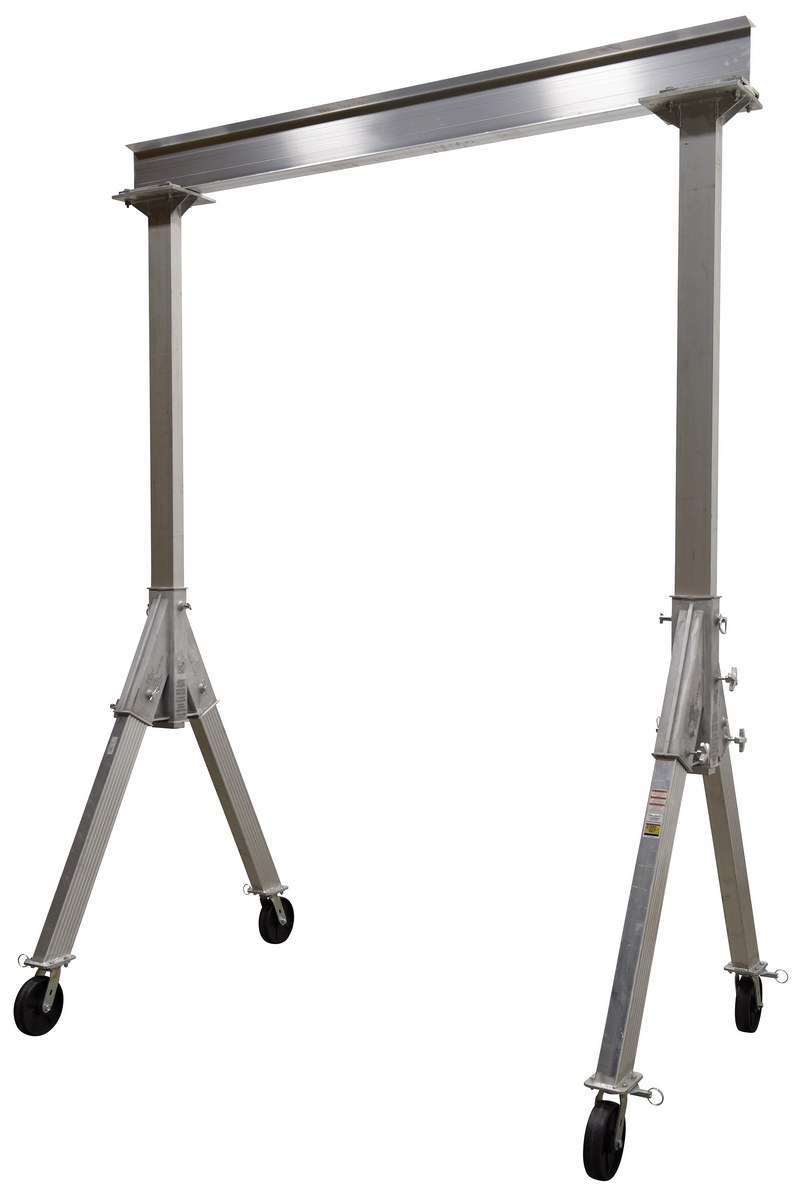

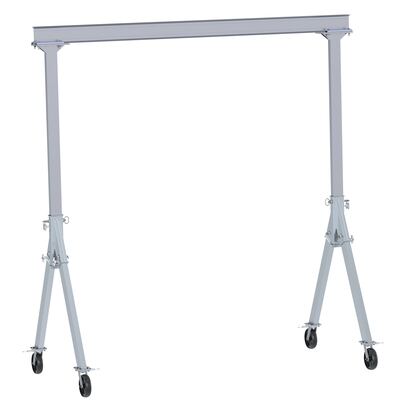

Aluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 10 Ft. x 10 Ft. 2000 Lb. Capacity Silver

The fixed height Aluminum Gantry cranes are ideal for the manufacturing and maintenance facilities. The aluminum construction is easily manageable and can be simply assembled for immediate use. The unit has a fixed height for working in a permanent or semi-permanent environment. The casters allow the user to move the crane from workstation to workstation and smoothly roll over rough surfaces, while not marring. Do not move units while loaded.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects
Total Ship Wt.(lbs.): 333 (only 1 package) Size: 53.75"W x 120"L x 126"H Color: Silver

Uniform Capacity (lb.): 2000 Overall I-Beam Length (in.): 120 Overall I-Beam Height (in.): 6
I-Beam Flange Width (in.): 3-5/16 Under I-Beam to Ground (in.): 120 Base Width (in.): 53-3/4
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters Caster Material: Glass-Filled Nylon

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHA-2-10-10


FHA-2-10-10

Aluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 10 Ft. x 10 Ft. 2000 Lb. Capacity Silver

The fixed height Aluminum Gantry cranes are ideal for the manufacturing and maintenance facilities. The aluminum construction is easily manageable and can be simply assembled for immediate use. The unit has a fixed height for working in a permanent or semi-permanent environment. The casters allow the user to move the crane from workstation to workstation and smoothly roll over rough surfaces, while not marring. Do not move units while loaded.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects
Dimensions: 53.75"W x 120"L x 126"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215221177 GTIN: 00691215221177
Warranty: -- Shipping Weight: 333 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Overall I-Beam Length (in.): 120 Overall I-Beam Height (in.): 6
I-Beam Flange Width (in.): 3-5/16 Under I-Beam to Ground (in.): 120 Base Width (in.): 53-3/4
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters Caster Material: Glass-Filled Nylon
