Model Details

EM1-200-4848-2-YEL

EM1-200-4848-2-YEL

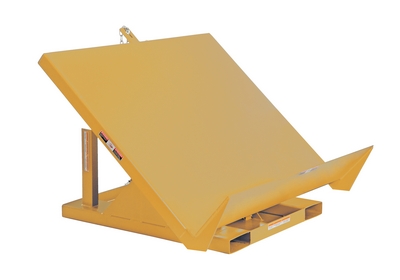

Steel Efficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity Yellow

The efficiency master tilt table tilts pallets, crates, boxes, or baskets to facilitate easy container loading or unloading. The table features all welded steel construction for years of durability. The unique design minimizes pinch points to meet OSHA requirements. This tilt table is equipped with an industrial quality motor that delivers the best torque with minimal amperage draw for maximum life. Standard voltage is 460/3PH, with additional voltage options available. The tilt table has a standard push button hand control. Base includes fork pockets for portability with forklift.

  • Ergonomic design for minimal fatigue
  • Welded steel construction provides long lasting rugged use
  • 45 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Total Ship Wt.(lbs.): 697 (only 1 package) Size: 48"W x 56"L x 40.75"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 2000 Usable Width (in.): 48 Usable Length (in.): 48
Maximum Tilt Degree: 45 Horizontal Height (in.): 24 Lip Height (in.): 12
Voltage/Phase: 460/3 Motor Horsepower: 2 Motor Frame: 56
Push Button Hand Control Voltage: 24 ANSI: MH 29.2 Fork Pocket Width (in.): 7-1/2
Fork Pocket Height (in.): 2-1/2 Fork Pocket Center (in.): 30

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EM1-200-4848-2-YEL


EM1-200-4848-2-YEL

Steel Efficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity Yellow

The efficiency master tilt table tilts pallets, crates, boxes, or baskets to facilitate easy container loading or unloading. The table features all welded steel construction for years of durability. The unique design minimizes pinch points to meet OSHA requirements. This tilt table is equipped with an industrial quality motor that delivers the best torque with minimal amperage draw for maximum life. Standard voltage is 460/3PH, with additional voltage options available. The tilt table has a standard push button hand control. Base includes fork pockets for portability with forklift.

  • Ergonomic design for minimal fatigue
  • Welded steel construction provides long lasting rugged use
  • 45 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Dimensions: 48"W x 56"L x 40.75"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215060585 GTIN: 00691215060585
Warranty: -- Shipping Weight: 697 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Usable Width (in.): 48 Usable Length (in.): 48
Maximum Tilt Degree: 45 Horizontal Height (in.): 24 Lip Height (in.): 12
Voltage/Phase: 460/3 Motor Horsepower: 2 Motor Frame: 56
Push Button Hand Control Voltage: 24 ANSI: MH 29.2 Fork Pocket Width (in.): 7-1/2
Fork Pocket Height (in.): 2-1/2 Fork Pocket Center (in.): 30
