Model Details

EHN-60-T

EHN-60-T

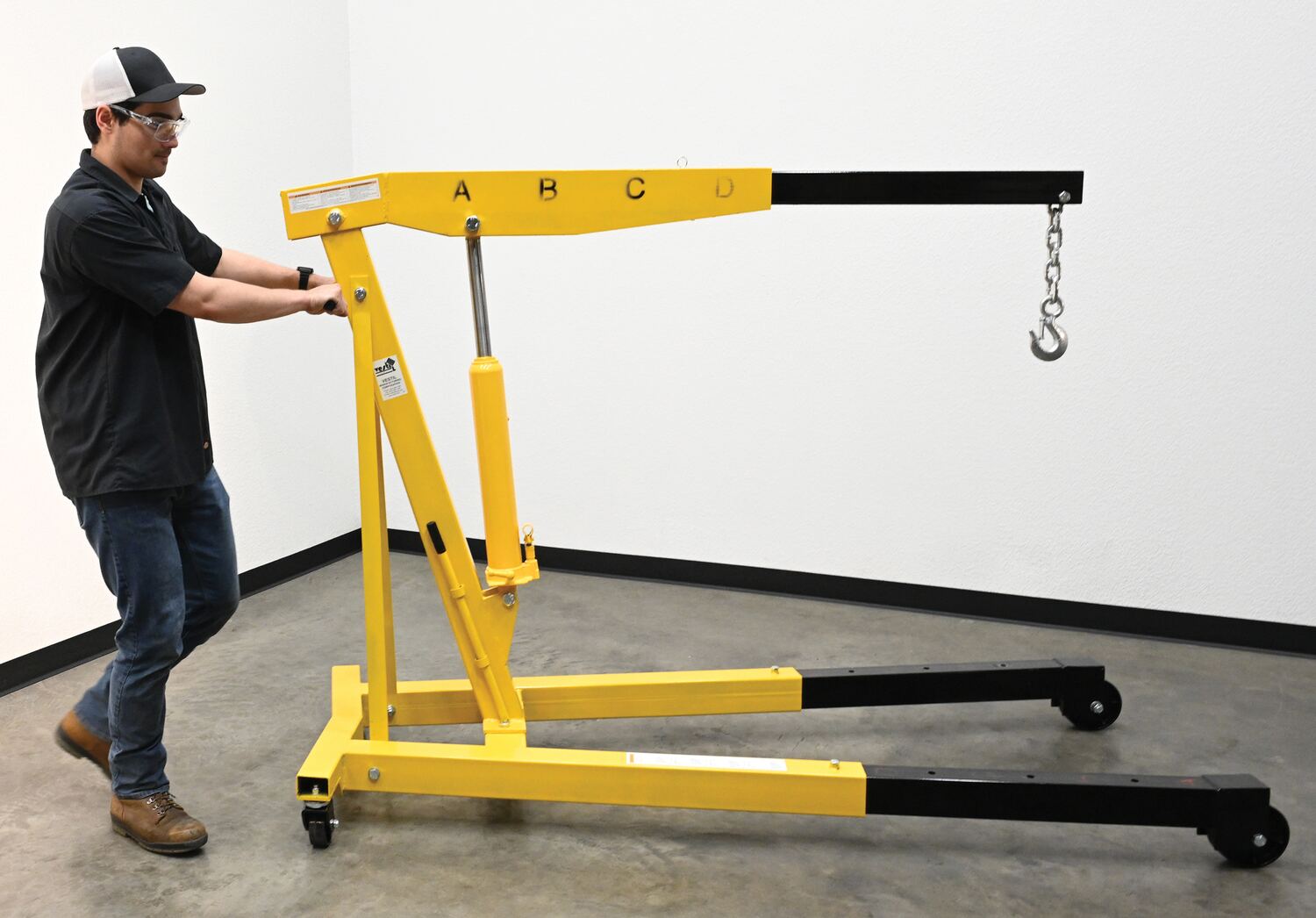

Steel Shop Crane Engine Hoist with Telescopic Legs 6000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Telescoping legs
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder

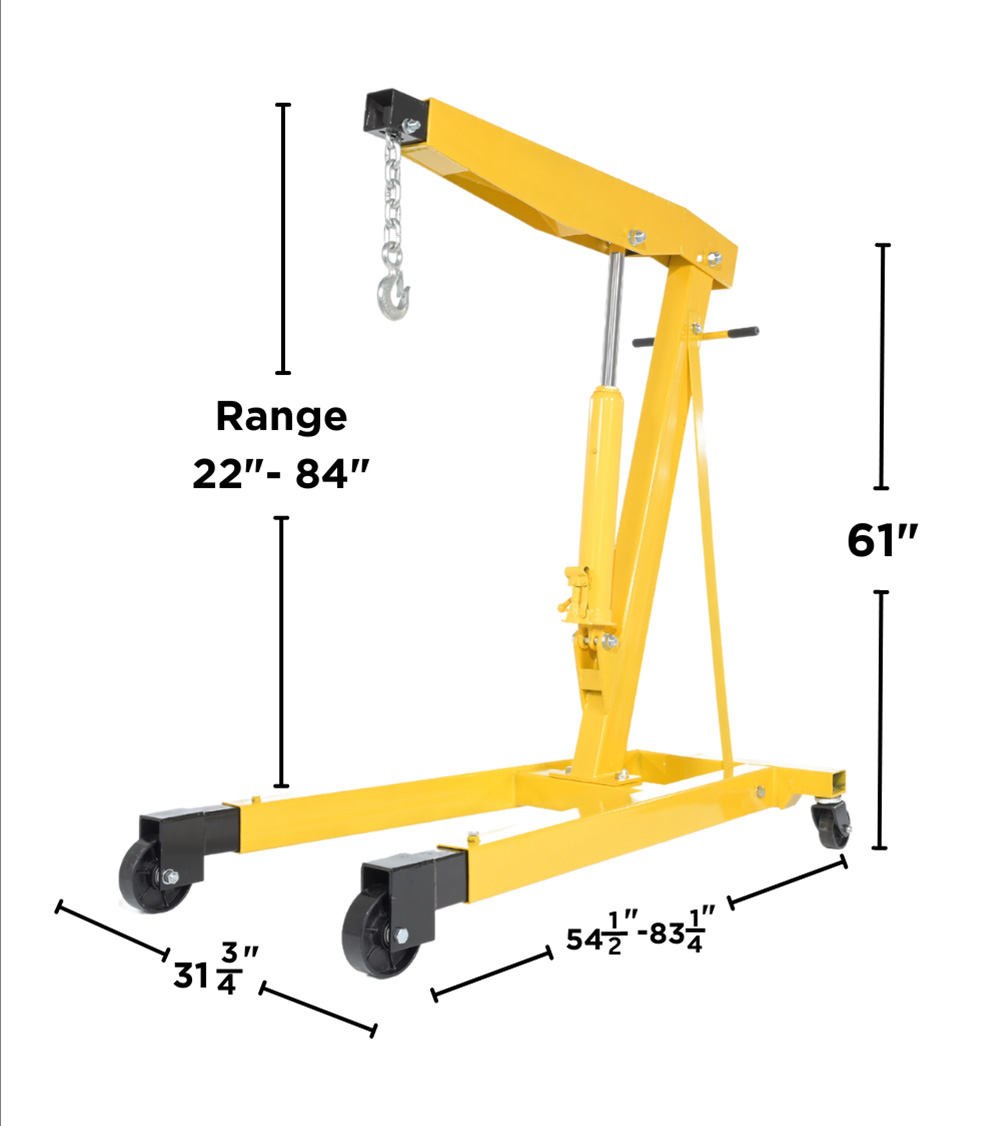

Total Ship Wt.(lbs.): 358 (only 1 package) Size: 31.75"W x 54.5"L x 61"H Color: Yellow QuickShip

Uniform Capacity (lb.): 6,000 Leg Design: Telescopic Leg Minimum/Maximum Length (in.): 54-1/2 to 83-1/4
6,000 Capacity Reach (in.): 51-7/8 6,000 Capacity Boom Height (in.): 22 to 84 4,000 Capacity Reach (in.): 60
4,000 Capacity Boom Height (in.): 16-11/16 to 88-3/16 3,000 Capacity Reach (in.): 68 3,000 Capacity Boom Height (in.): 11-1/2 to 92-3/8
2,000 Capacity Reach (in.): 76-1/4 2,000 Capacity Boom Height (in.): 6-1/4 to 96-9/16 Chain Length w/ Hook (in.): 11
Square Tubing Outside Diameter (in.): 3-1/8 Square Tubing Inside Diameter (in.): 2-7/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHN-60-T


EHN-60-T

Steel Shop Crane Engine Hoist with Telescopic Legs 6000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Telescoping legs
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Dimensions: 31.75"W x 54.5"L x 61"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215049566 GTIN: 00691215049566
Warranty: -- Shipping Weight: 358 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Leg Design: Telescopic Leg Minimum/Maximum Length (in.): 54-1/2 to 83-1/4
6,000 Capacity Reach (in.): 51-7/8 6,000 Capacity Boom Height (in.): 22 to 84 4,000 Capacity Reach (in.): 60
4,000 Capacity Boom Height (in.): 16-11/16 to 88-3/16 3,000 Capacity Reach (in.): 68 3,000 Capacity Boom Height (in.): 11-1/2 to 92-3/8
2,000 Capacity Reach (in.): 76-1/4 2,000 Capacity Boom Height (in.): 6-1/4 to 96-9/16 Chain Length w/ Hook (in.): 11
Square Tubing Outside Diameter (in.): 3-1/8 Square Tubing Inside Diameter (in.): 2-7/8
