Model Details

EHN-40-C

EHN-40-C

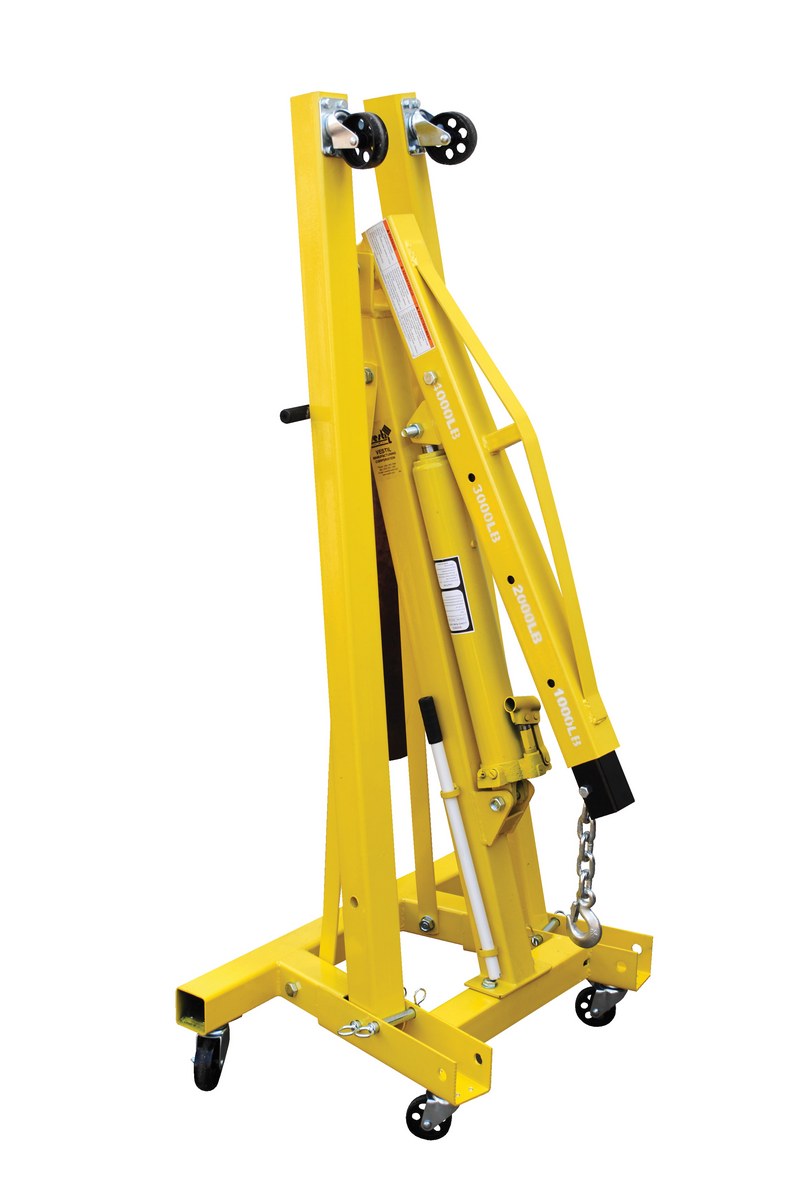

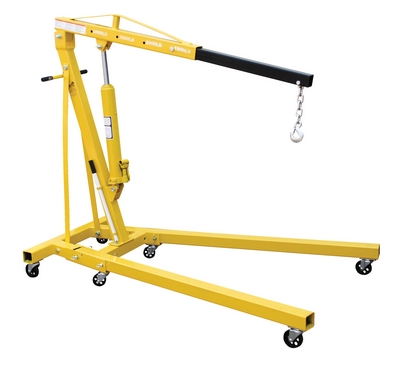

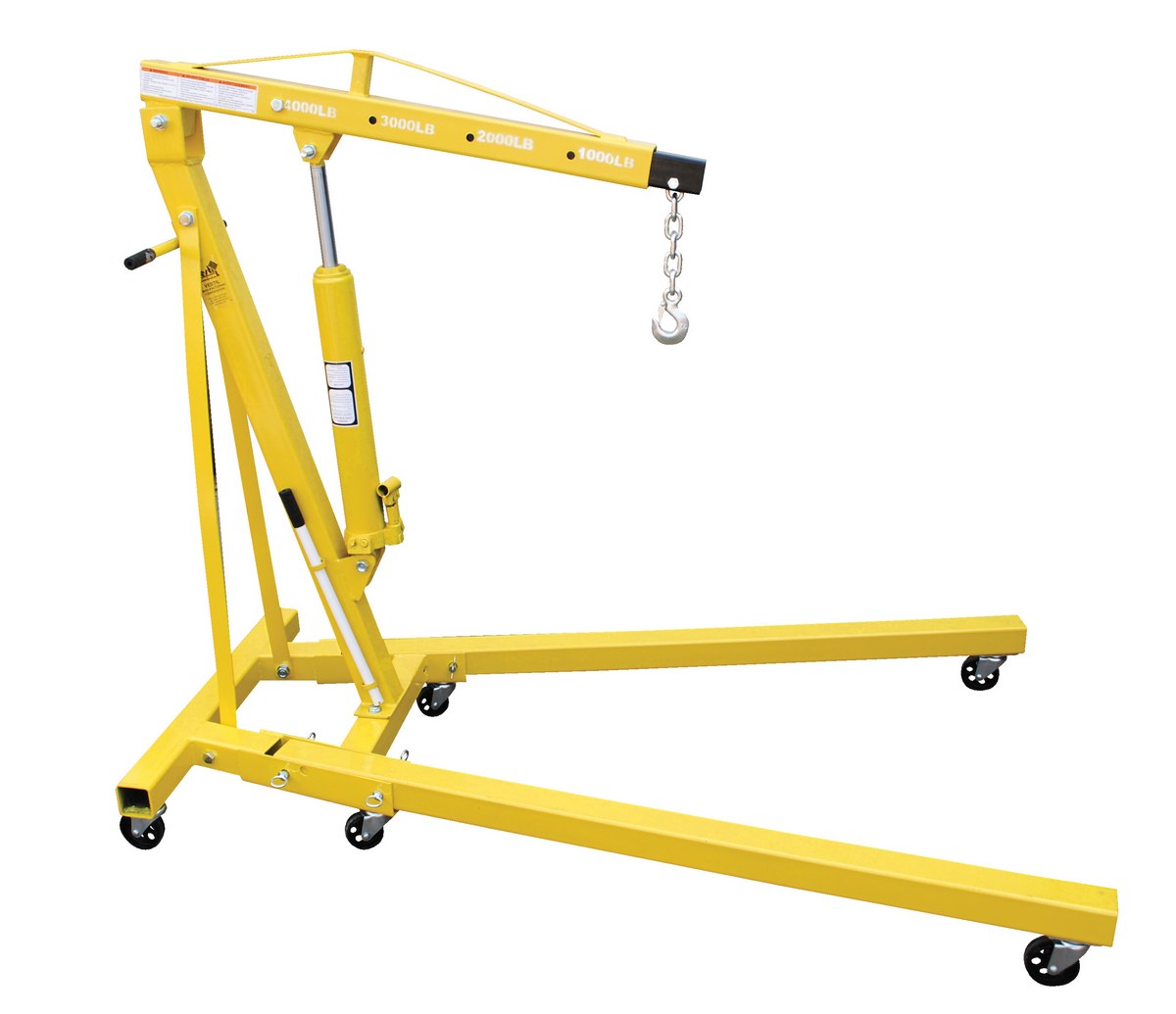

Steel Shop Crane Engine Hoist with Folding Legs 4000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Collapsible design
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Total Ship Wt.(lbs.): 238 (only 1 package) Size: 42.625"W x 72"L x 57.625"H Color: Yellow QuickShip

Uniform Capacity (lb.): 4,000 Leg Design: Foldable 4,000 Capacity Reach (in.): 39-1/4
4,000 Capacity Boom Height (in.): 21 to 85-3/4 3,000 Capacity Reach (in.): 46-1/4 3,000 Capacity Boom Height (in.): 15 to 91-1/4
2,000 Capacity Reach (in.): 53-1/4 2,000 Capacity Boom Height (in.): 9 to 96-9/16 1,000 Capacity Reach (in.): 60-1/2
1,000 Capacity Boom Height (in.): 3 to 102 Rear Rubber Swivel Caster Diameter (in.): 3-1/2 Rear Rubber Swivel Caster Width (in.): 1-1/4
Middle Rubber Swivel Caster Diameter (in.): 3 Middle Rubber Swivel Caster Width (in.): 1-1/4 Front Rubber Rigid Caster Diameter (in.): 3-1/2
Front Rubber Rigid Caster Width (in.): 1-1/4 Chain Length w/ Hook (in.): 11 Collapsed Width (in.): 31
Collapsed Length (in.): 21 Collapsed Height (in.): 65-7/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHN-40-C


EHN-40-C

Steel Shop Crane Engine Hoist with Folding Legs 4000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Collapsible design
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Dimensions: 42.625"W x 72"L x 57.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215049603 GTIN: 00691215049603
Warranty: -- Shipping Weight: 238 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Leg Design: Foldable 4,000 Capacity Reach (in.): 39-1/4
4,000 Capacity Boom Height (in.): 21 to 85-3/4 3,000 Capacity Reach (in.): 46-1/4 3,000 Capacity Boom Height (in.): 15 to 91-1/4
2,000 Capacity Reach (in.): 53-1/4 2,000 Capacity Boom Height (in.): 9 to 96-9/16 1,000 Capacity Reach (in.): 60-1/2
1,000 Capacity Boom Height (in.): 3 to 102 Rear Rubber Swivel Caster Diameter (in.): 3-1/2 Rear Rubber Swivel Caster Width (in.): 1-1/4
Middle Rubber Swivel Caster Diameter (in.): 3 Middle Rubber Swivel Caster Width (in.): 1-1/4 Front Rubber Rigid Caster Diameter (in.): 3-1/2
Front Rubber Rigid Caster Width (in.): 1-1/4 Chain Length w/ Hook (in.): 11 Collapsed Width (in.): 31
Collapsed Length (in.): 21 Collapsed Height (in.): 65-7/8
