Model Details

EHN-20-C

EHN-20-C

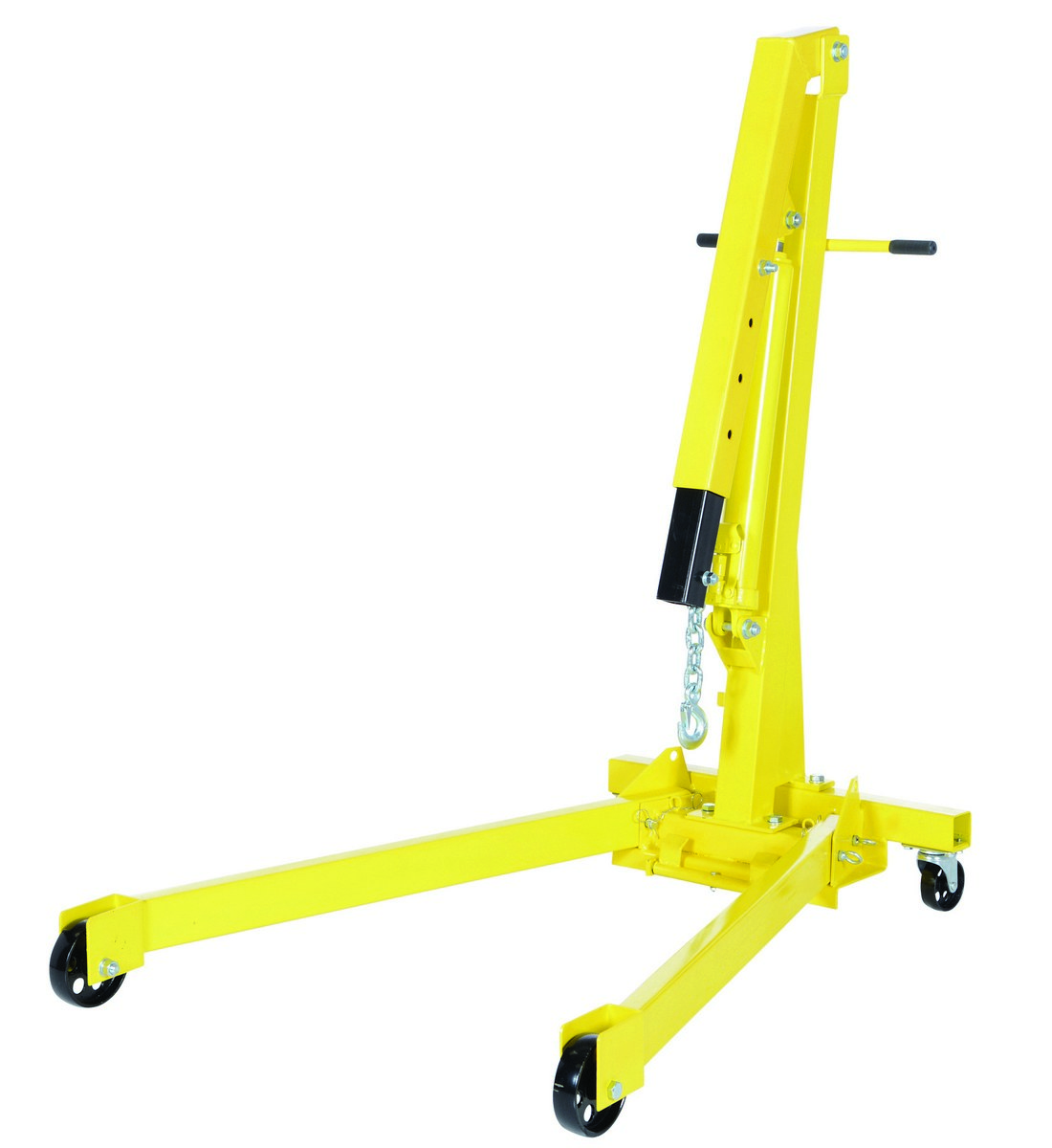

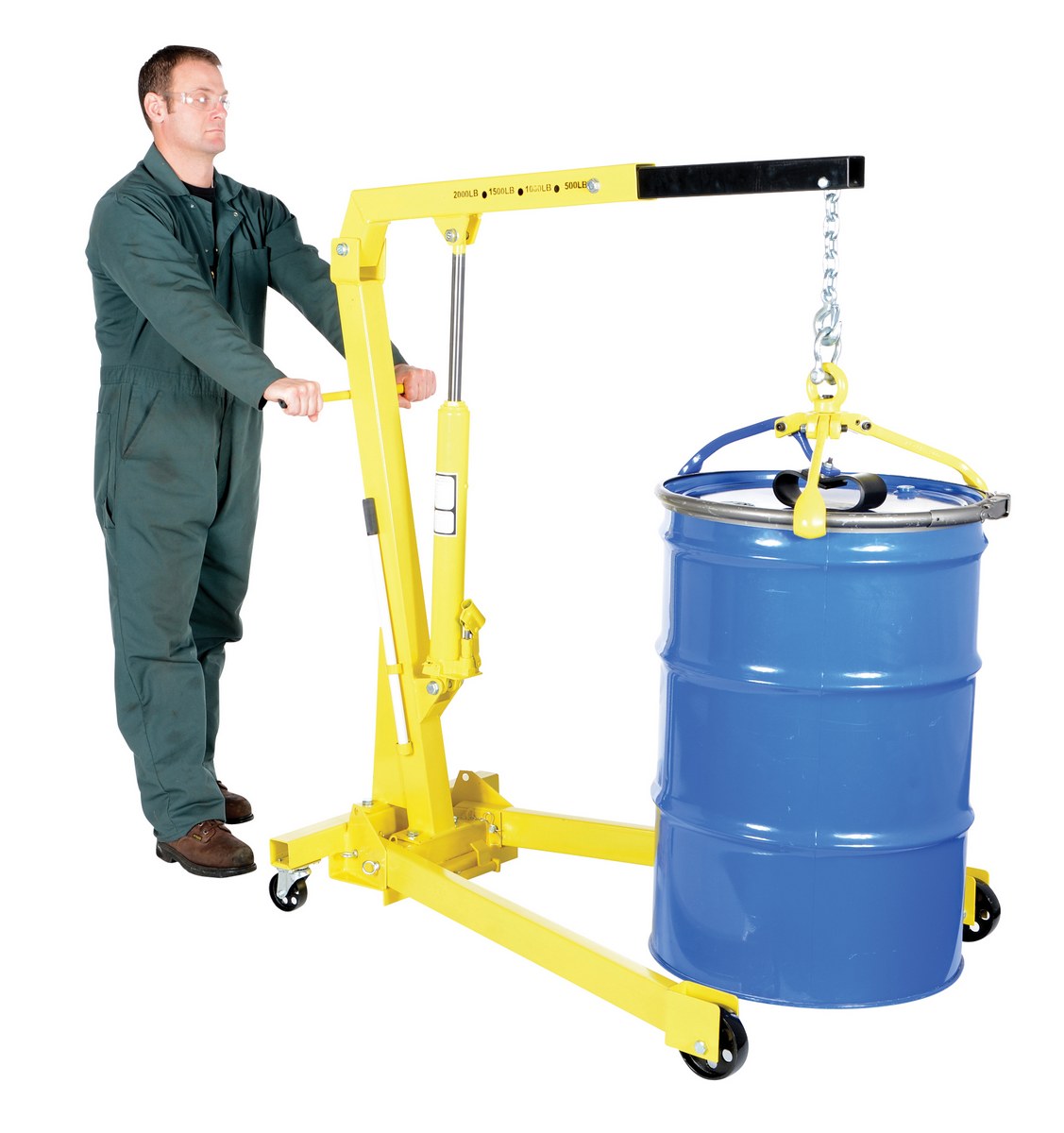

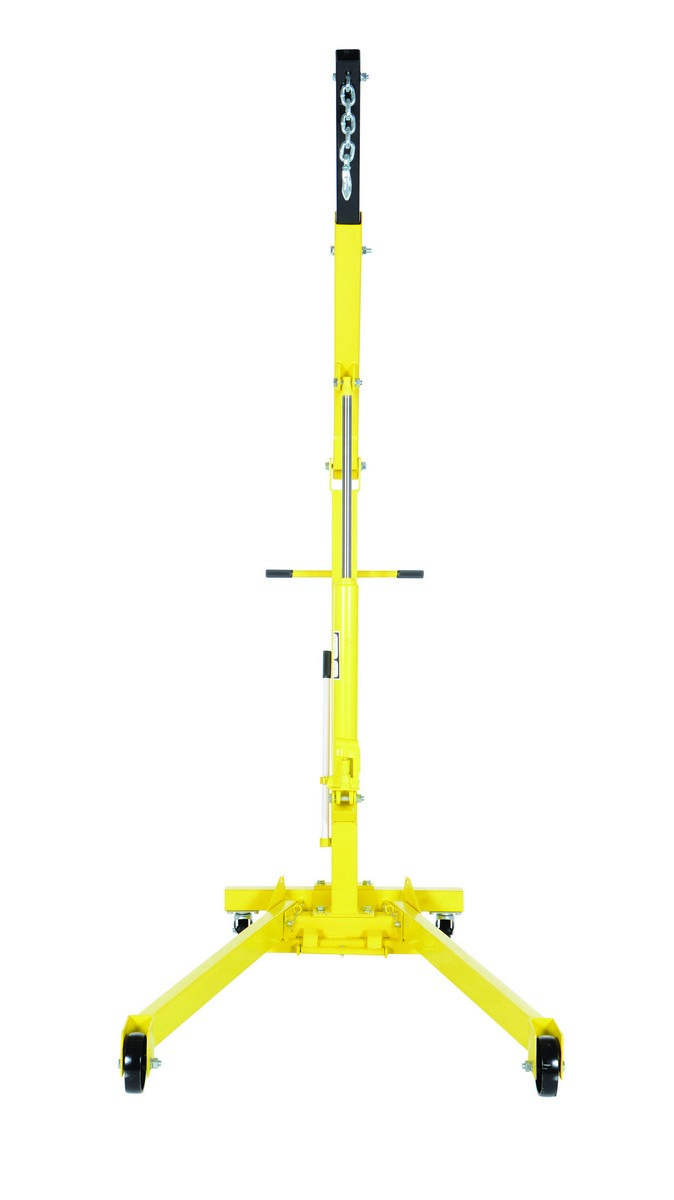

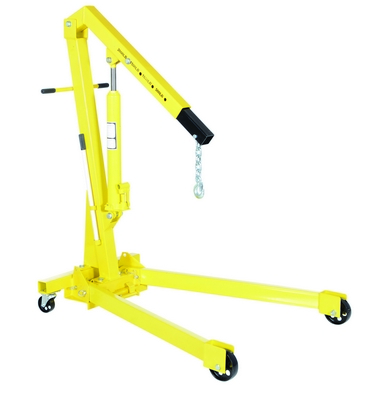

Steel Shop Crane Engine Hoist with Folding Legs 2000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Collapsible design
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Total Ship Wt.(lbs.): 207 (only 1 package) Size: 26.75"W x 48.5"L x 59"H Color: Yellow QuickShip

Uniform Capacity (lb.): 2,000 Leg Design: Foldable 2,000 Capacity Reach (in.): 36-5/8
2,000 Capacity Boom Height (in.): 20-1/2 to 76 1,500 Capacity Reach (in.): 40 1,500 Capacity Boom Height (in.): 17-1/2 to 78
1,000 Capacity Reach (in.): 43-3/4 1,000 Capacity Boom Height (in.): 14-1/2 to 80 500 Capacity Reach (in.): 47
500 Capacity Boom Height (in.): 10-1/2 to 82 Rear Rubber Swivel Caster Diameter (in.): 3-1/2 Rear Rubber Swivel Caster Width (in.): 1-1/4
Front Rubber Rigid Caster Diameter (in.): 4-1/2 Front Rubber Rigid Caster Width (in.): 1-1/4 Chain Length w/ Hook (in.): 11

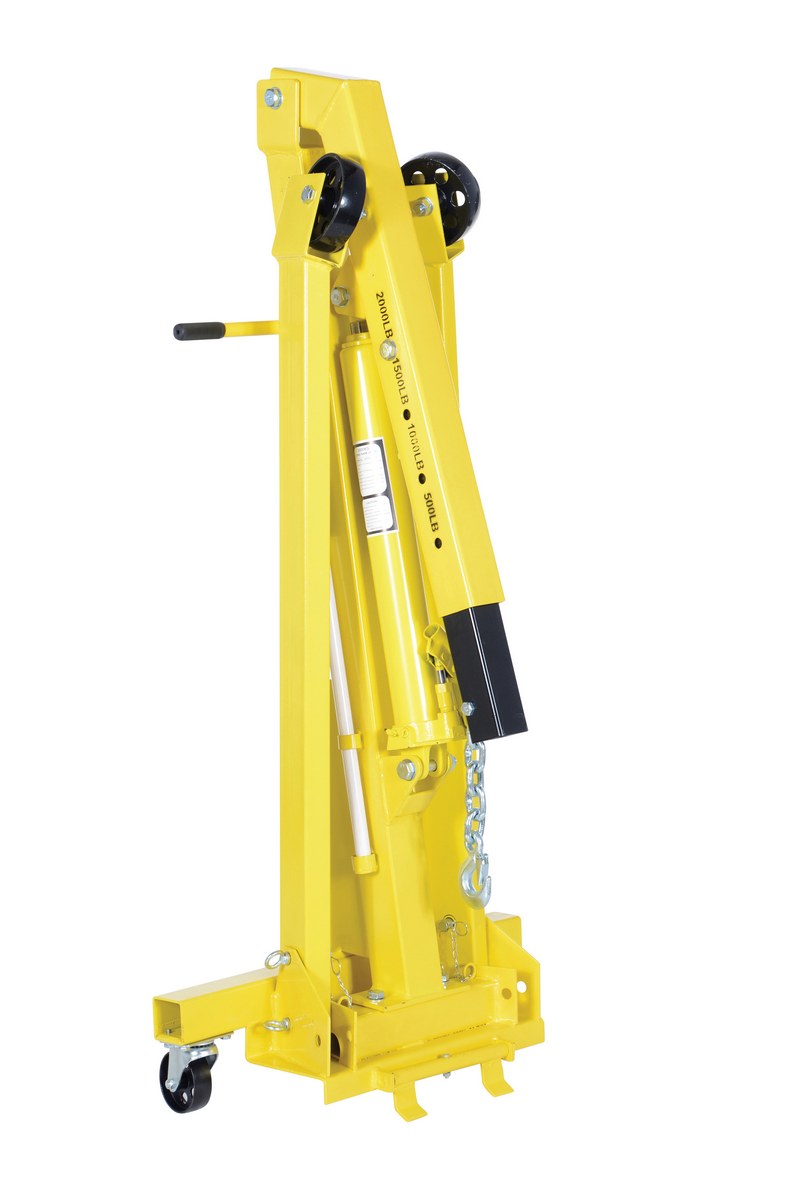

Collapsed Width (in.): 26-3/4 Collapsed Length (in.): 10-1/2 Collapsed Height (in.): 55-1/2
Finish: Powder Coat Hydraulic Fluid Type: HO 150 Caster Material: Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHN-20-C


EHN-20-C

Steel Shop Crane Engine Hoist with Folding Legs 2000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Collapsible design
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Dimensions: 26.75"W x 48.5"L x 59"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215049597 GTIN: 00691215049597
Warranty: -- Shipping Weight: 207 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Leg Design: Foldable 2,000 Capacity Reach (in.): 36-5/8
2,000 Capacity Boom Height (in.): 20-1/2 to 76 1,500 Capacity Reach (in.): 40 1,500 Capacity Boom Height (in.): 17-1/2 to 78
1,000 Capacity Reach (in.): 43-3/4 1,000 Capacity Boom Height (in.): 14-1/2 to 80 500 Capacity Reach (in.): 47
500 Capacity Boom Height (in.): 10-1/2 to 82 Rear Rubber Swivel Caster Diameter (in.): 3-1/2 Rear Rubber Swivel Caster Width (in.): 1-1/4
Front Rubber Rigid Caster Diameter (in.): 4-1/2 Front Rubber Rigid Caster Width (in.): 1-1/4 Chain Length w/ Hook (in.): 11
Collapsed Width (in.): 26-3/4 Collapsed Length (in.): 10-1/2 Collapsed Height (in.): 55-1/2
Finish: Powder Coat Hydraulic Fluid Type: HO 150 Caster Material: Steel
