Model Details

DRUM-LUG

Printer Friendly
DRUM-LUG

Steel Overhead Drum Lifter 19-3/4 In x 28-5/8 In x 49-1/2 In 1000 Lb. Capacity Yellow

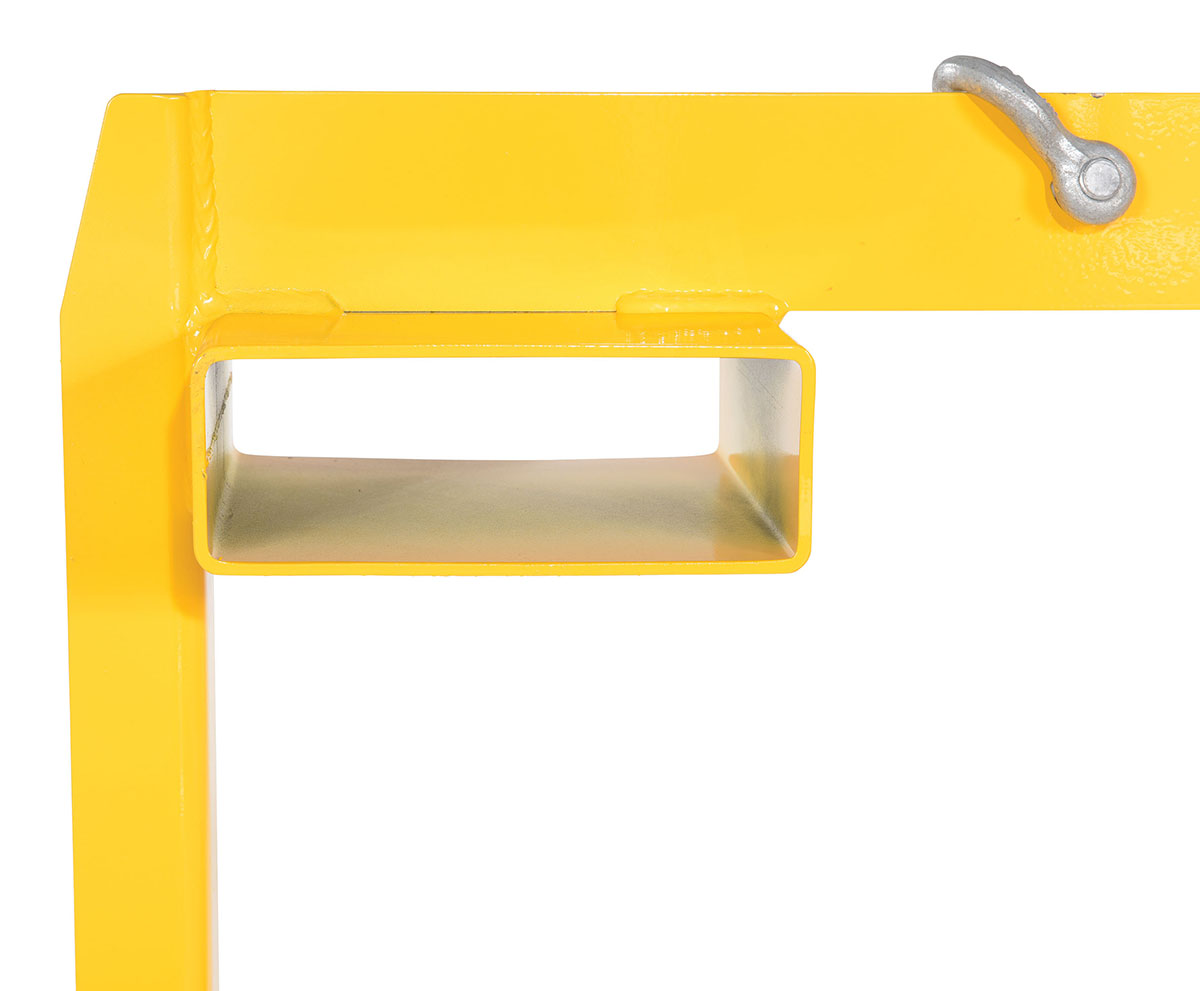

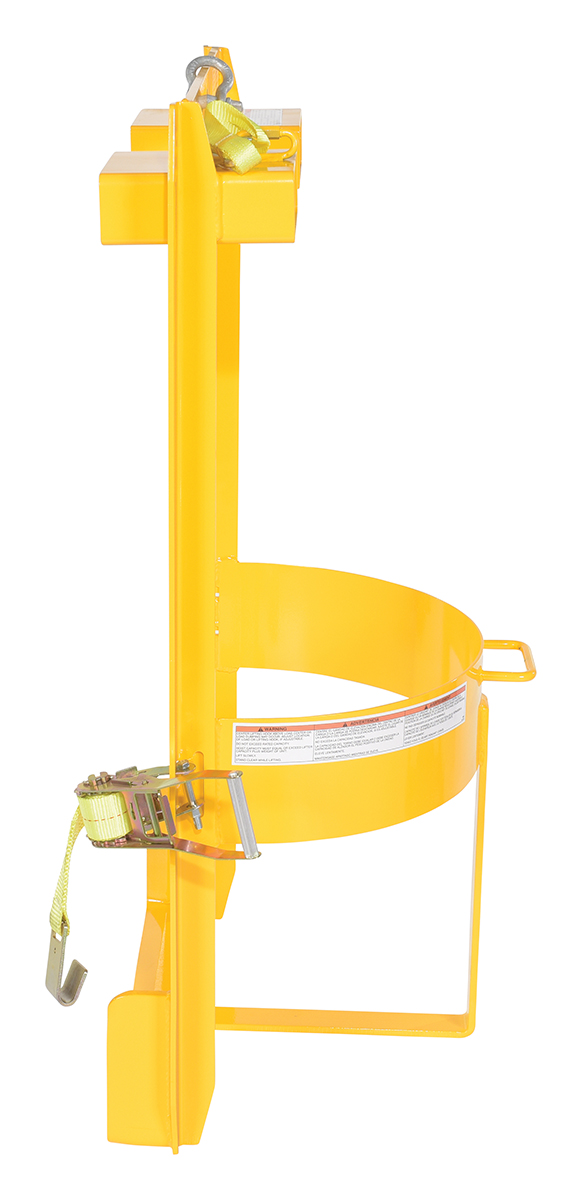

This overhead Drum Lifter is designed for lifting drums with an overhead crane or similar lifting device. Integral fork pockets are also included for transportation with forklift. Safety restraint included. Steel saddle is designed for use with steel, plastic & fiber drums with a ratchet strap for securely holding the drum in place. With a non-tilting style, this lifter is made for straight vertical lifting only. Features a durable yellow baked-in powder-coated toughness. Complies with OSHA Rule 1910.178; ANSI B56.1; ASME B30.20.

  • Designed for lifting drums with an overhead lifting device

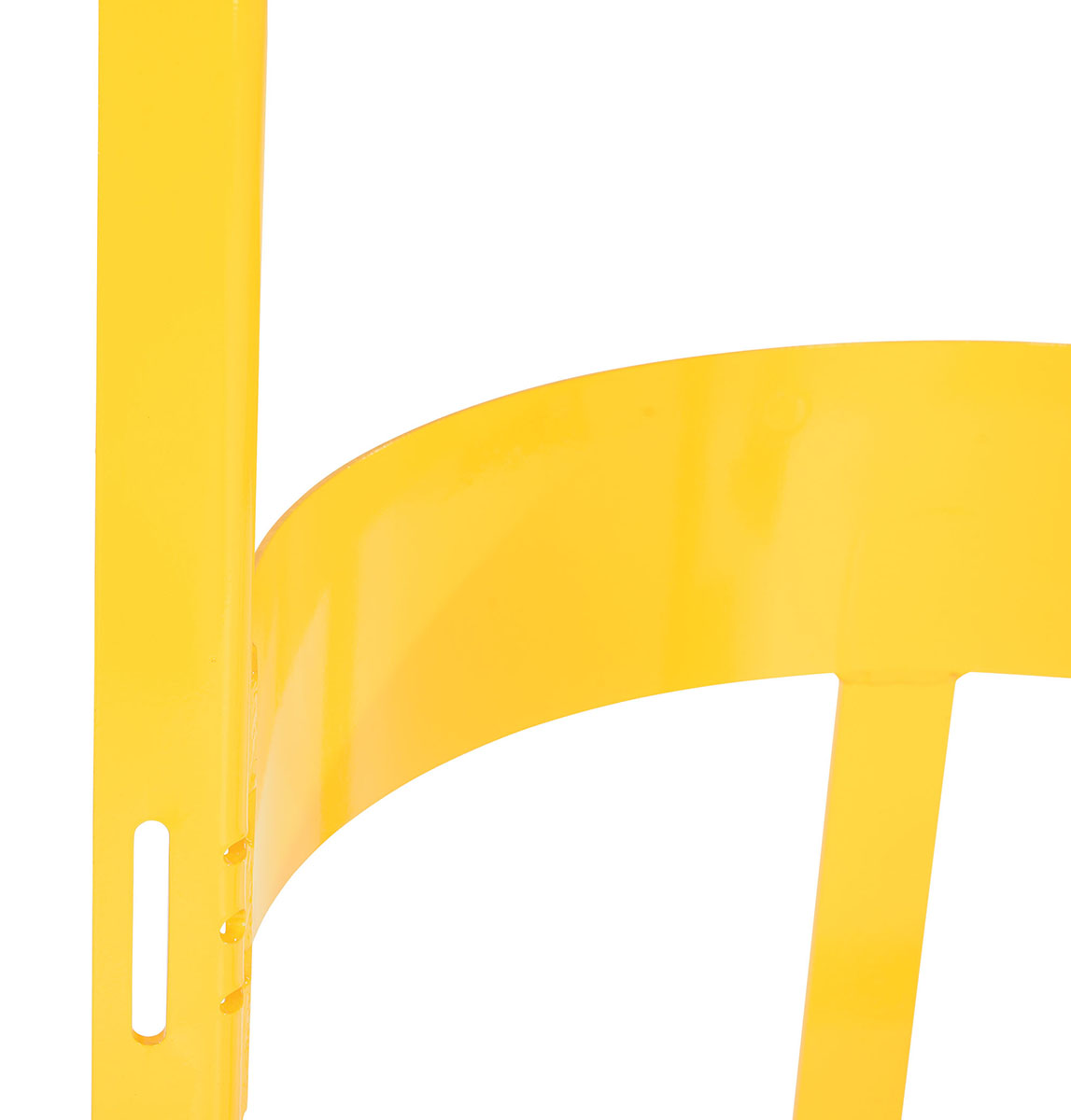

  • Steel saddle is for use with steel, plastic & fiber drums

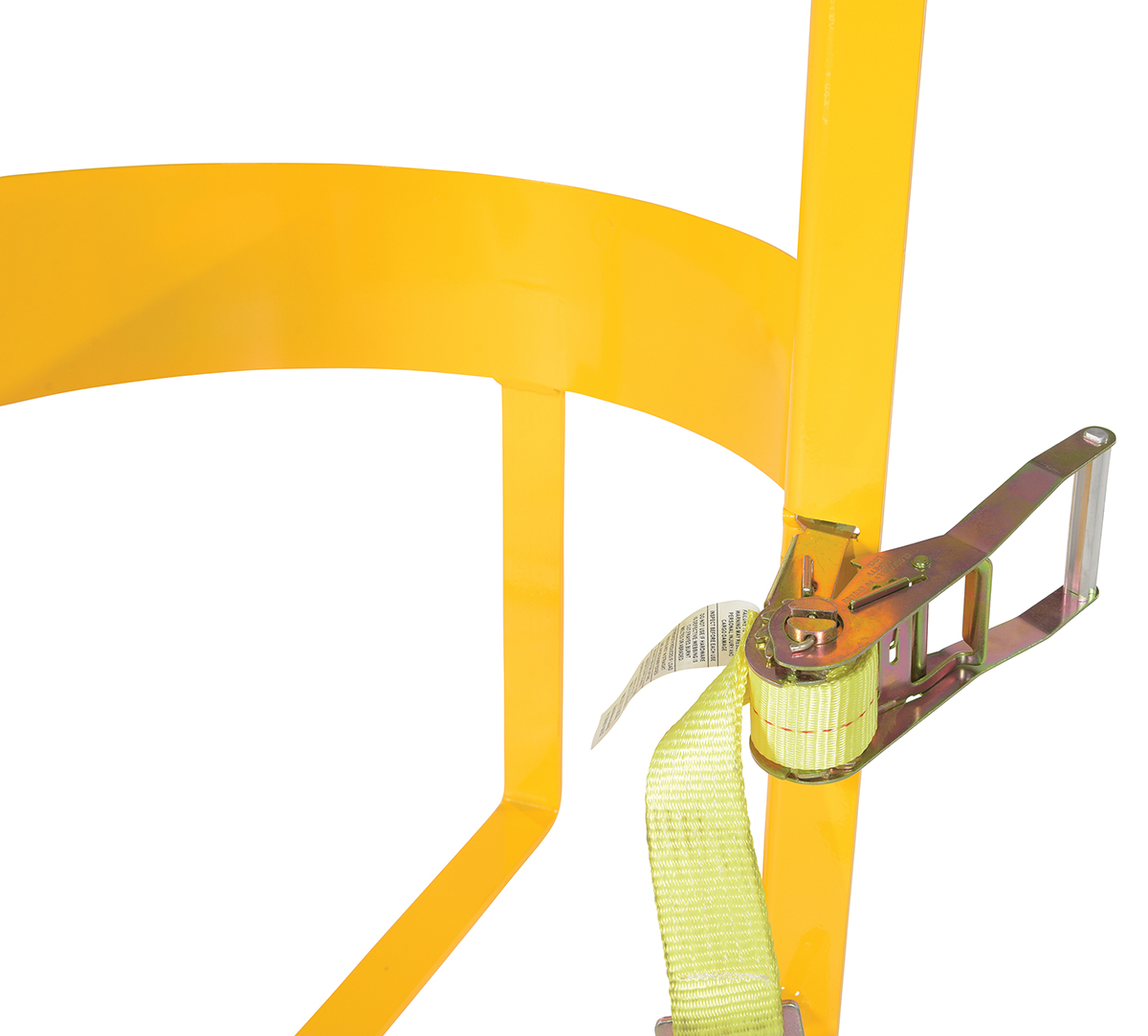

  • Features a ratchet strap for securely holding the drum in place
  • With a non-tilting style, this lifter is made for straight vertical lifting only
Total Ship Wt.(lbs.): 98 (only 1 package) Size: 28.625"W x 19.75"L x 49.5"H Color: Yellow QuickShip

Uniform Capacity (lb.): 1000 Accepts: 30 & 55-gallon drums Strap Width (in.): 2
Minimum Drum Height (in.): 20-11/16 Maximum Drum Height (in.): 42 Max Drum Diameter (in.): 24-5/8
Fork Pocket on Center (in.): 18 Fork Pocket Height (in.): 2 Fork Pocket Width (in.): 6-1/2
OSHA: 1910.179

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DRUM-LUG
DRUM-LUG

Steel Overhead Drum Lifter 19-3/4 In x 28-5/8 In x 49-1/2 In 1000 Lb. Capacity Yellow

This overhead Drum Lifter is designed for lifting drums with an overhead crane or similar lifting device. Integral fork pockets are also included for transportation with forklift. Safety restraint included. Steel saddle is designed for use with steel, plastic & fiber drums with a ratchet strap for securely holding the drum in place. With a non-tilting style, this lifter is made for straight vertical lifting only. Features a durable yellow baked-in powder-coated toughness. Complies with OSHA Rule 1910.178; ANSI B56.1; ASME B30.20.

  • Designed for lifting drums with an overhead lifting device
  • Steel saddle is for use with steel, plastic & fiber drums
  • Features a ratchet strap for securely holding the drum in place
  • With a non-tilting style, this lifter is made for straight vertical lifting only
Dimensions: 28.625"W x 19.75"L x 49.5"H Sell UOM: EA-Each Color: Yellow
Material: Carbon Steel UPC: 691215099677 GTIN: 00691215099677
Warranty: -- Shipping Weight: 98 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1000 Accepts: 30 & 55-gallon drums Strap Width (in.): 2
Minimum Drum Height (in.): 20-11/16 Maximum Drum Height (in.): 42 Max Drum Diameter (in.): 24-5/8
Fork Pocket on Center (in.): 18 Fork Pocket Height (in.): 2 Fork Pocket Width (in.): 6-1/2
OSHA: 1910.179
