Model Details

DRLT-CB-54-MDML

Printer Friendly
DRLT-CB-54-MDML

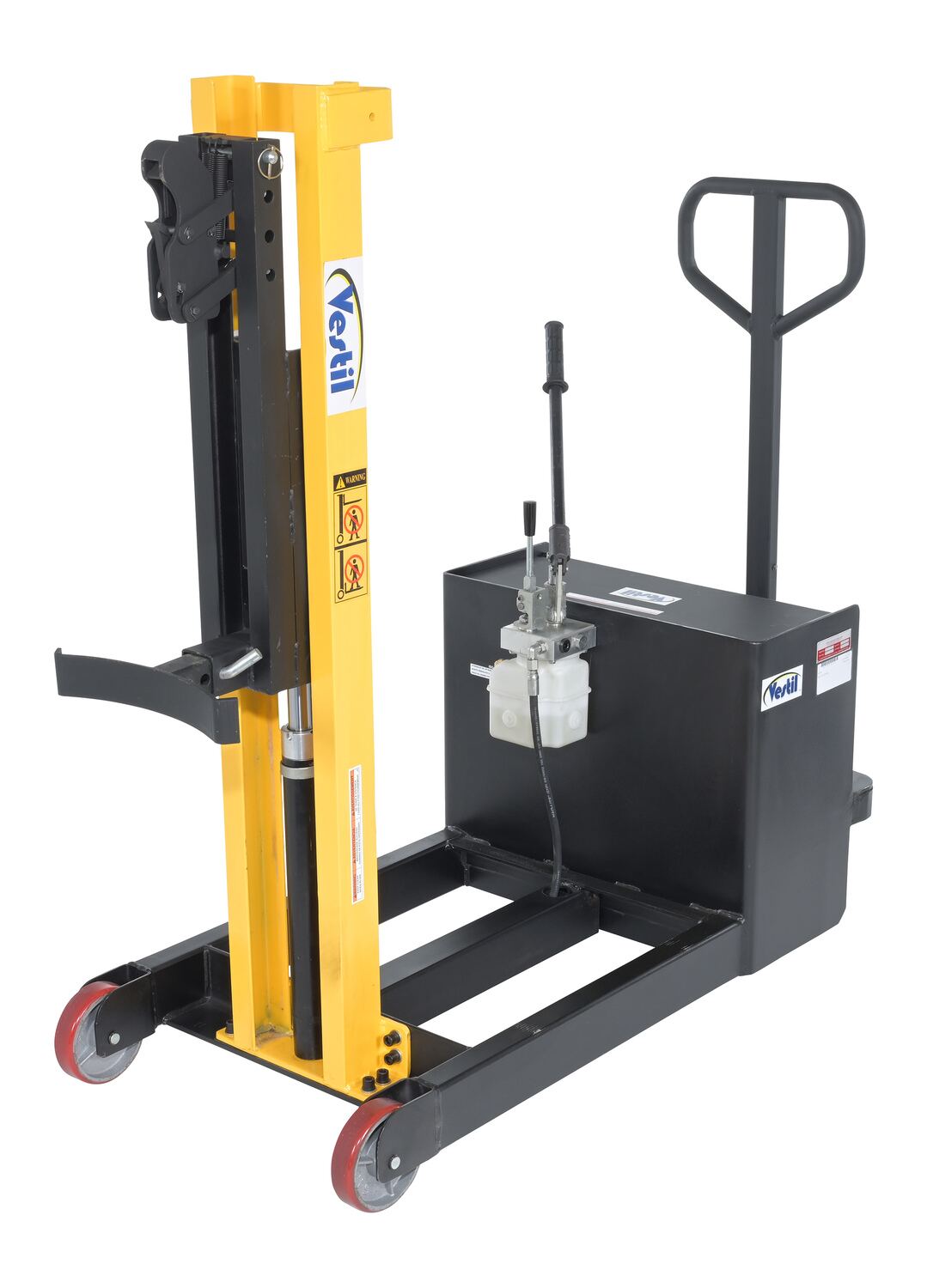

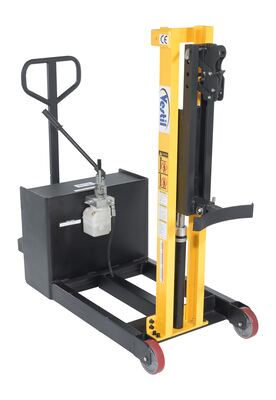

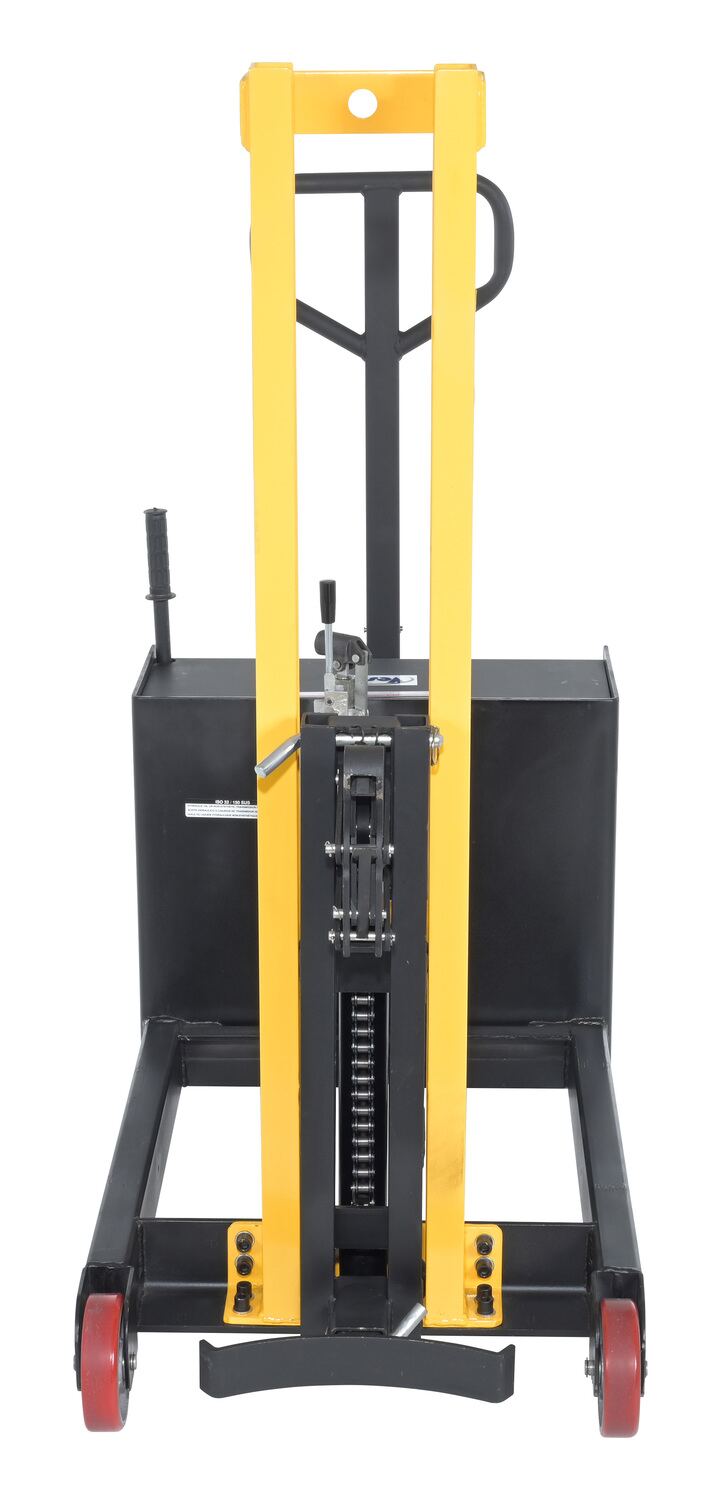

Steel Manual Drive Manual Lift Counter Balanced Drum Stacker 12V 52 In. x 26 In. x 58 In. 700 Lb. Capacity Yellow

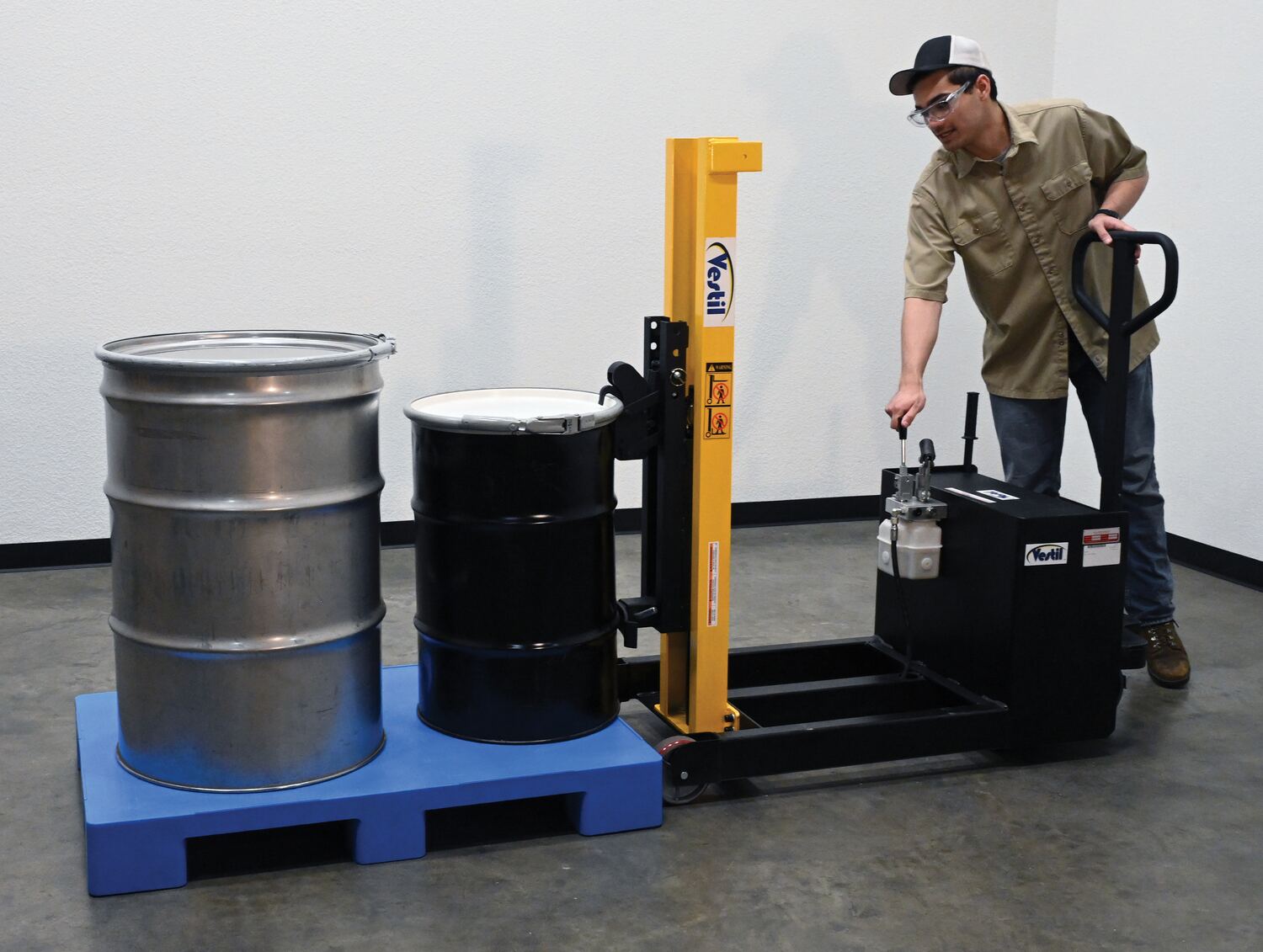

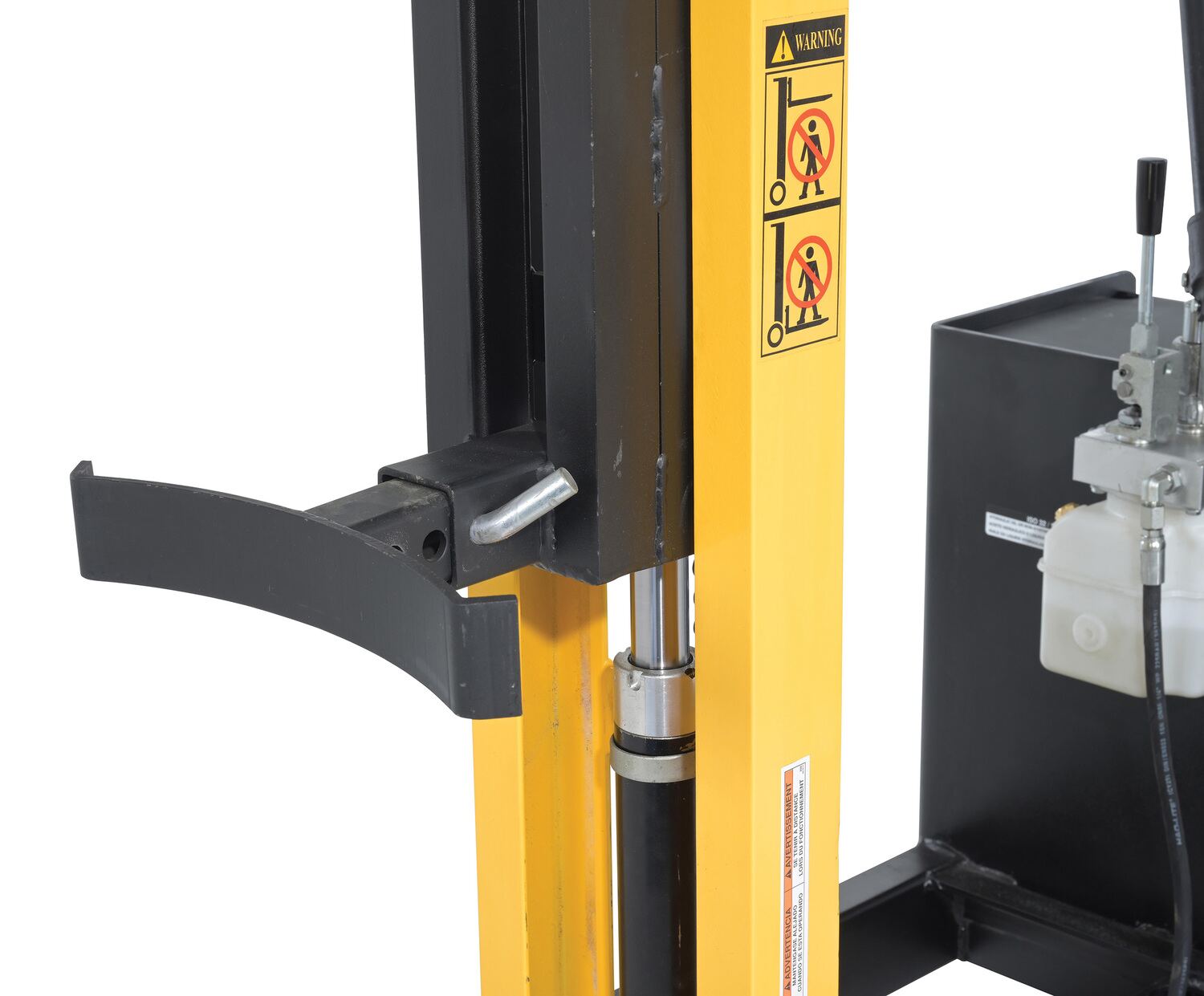

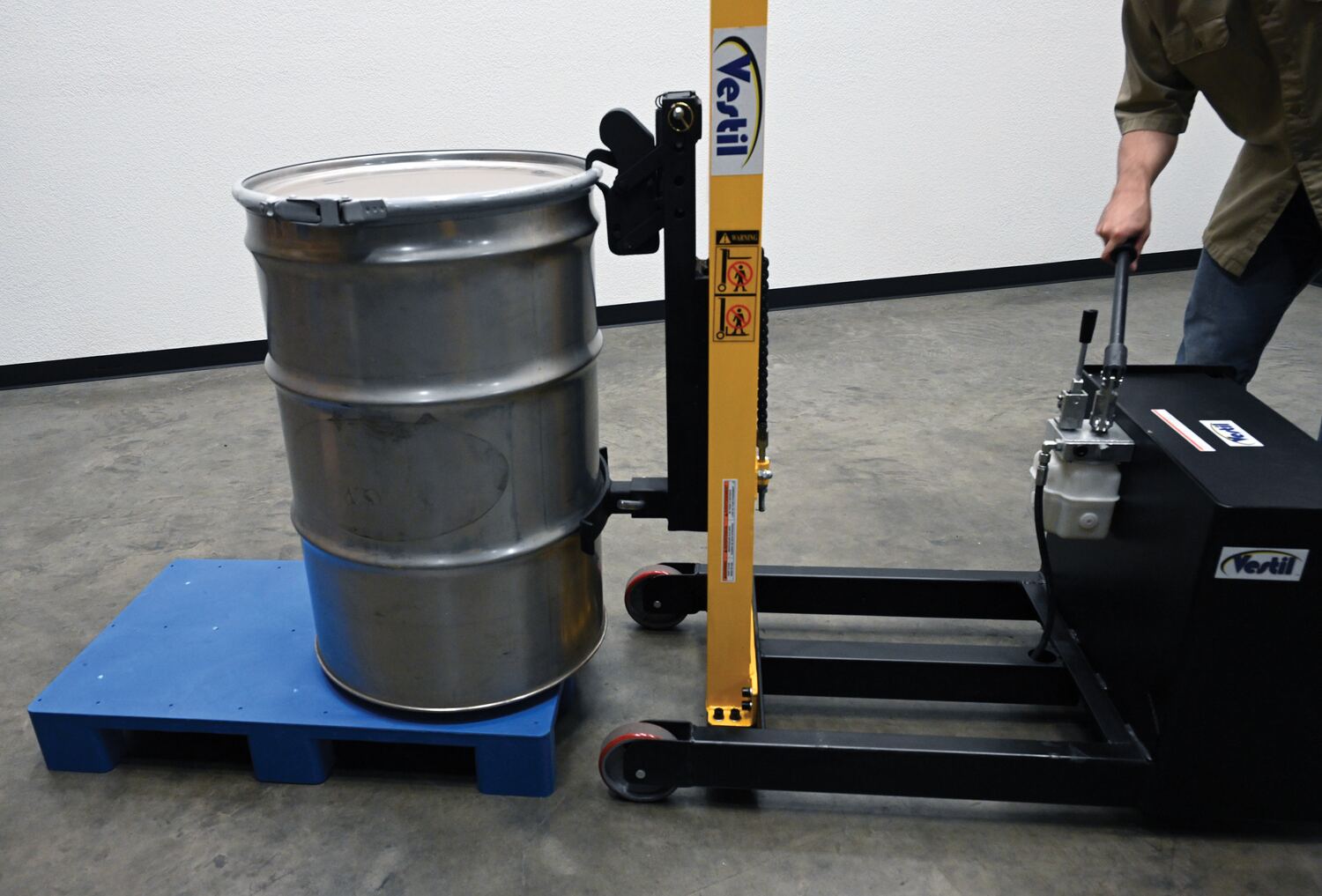

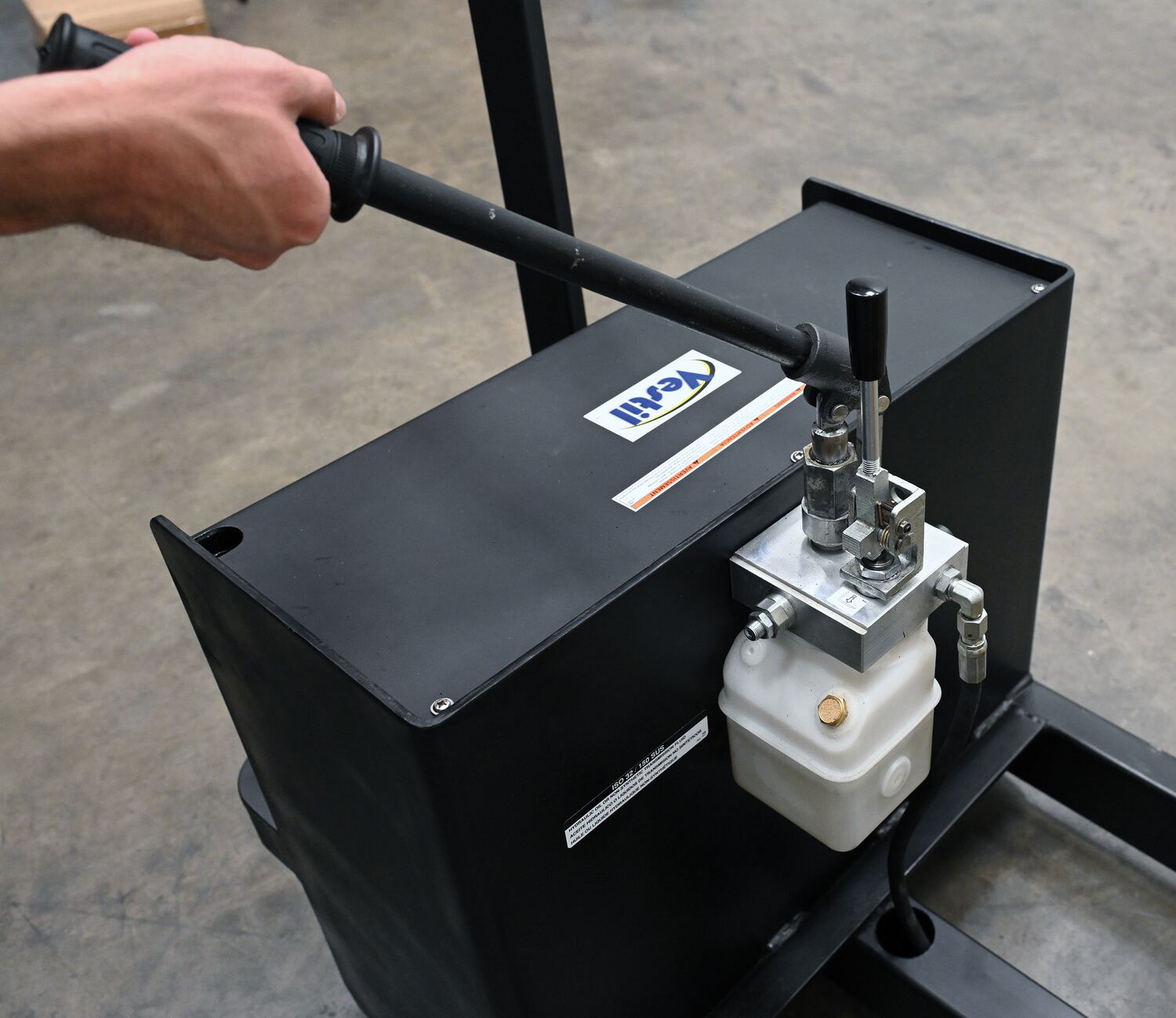

A counter balanced drum lifter/transporter is an efficient way to move heavy and awkward drums. With a unique design, the structure of the lifter works well in compact areas and loading/unloading drums onto pallets or scales. This drum lifter is manually maneuvered between areas. Height adjustments, both raising and lowering, are made manually by utilizing the hydraulic hand pump handle.

  • Narrow wheel base for quick turning and directional changes
  • Works well with 30, 55, and 85 gallons drums

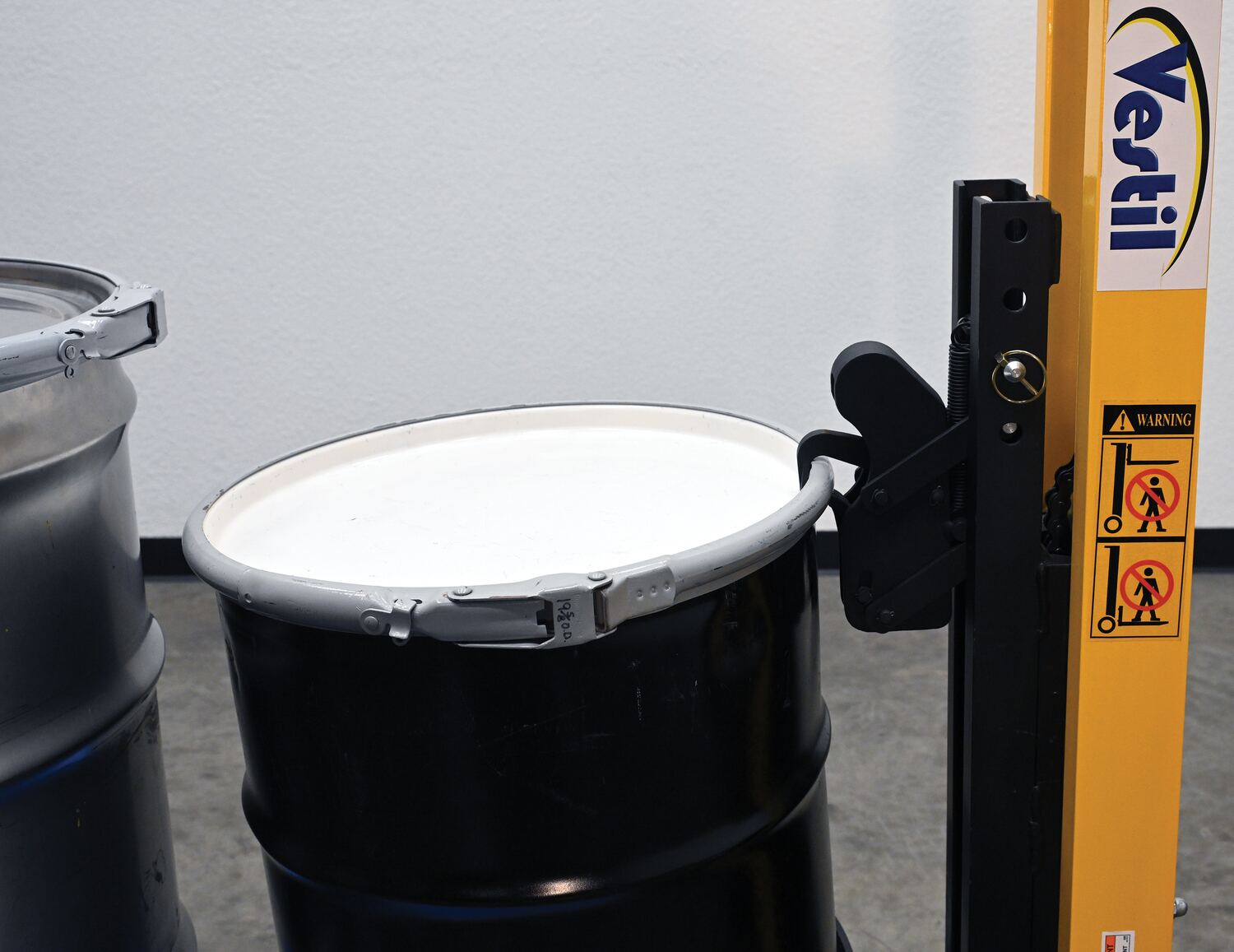

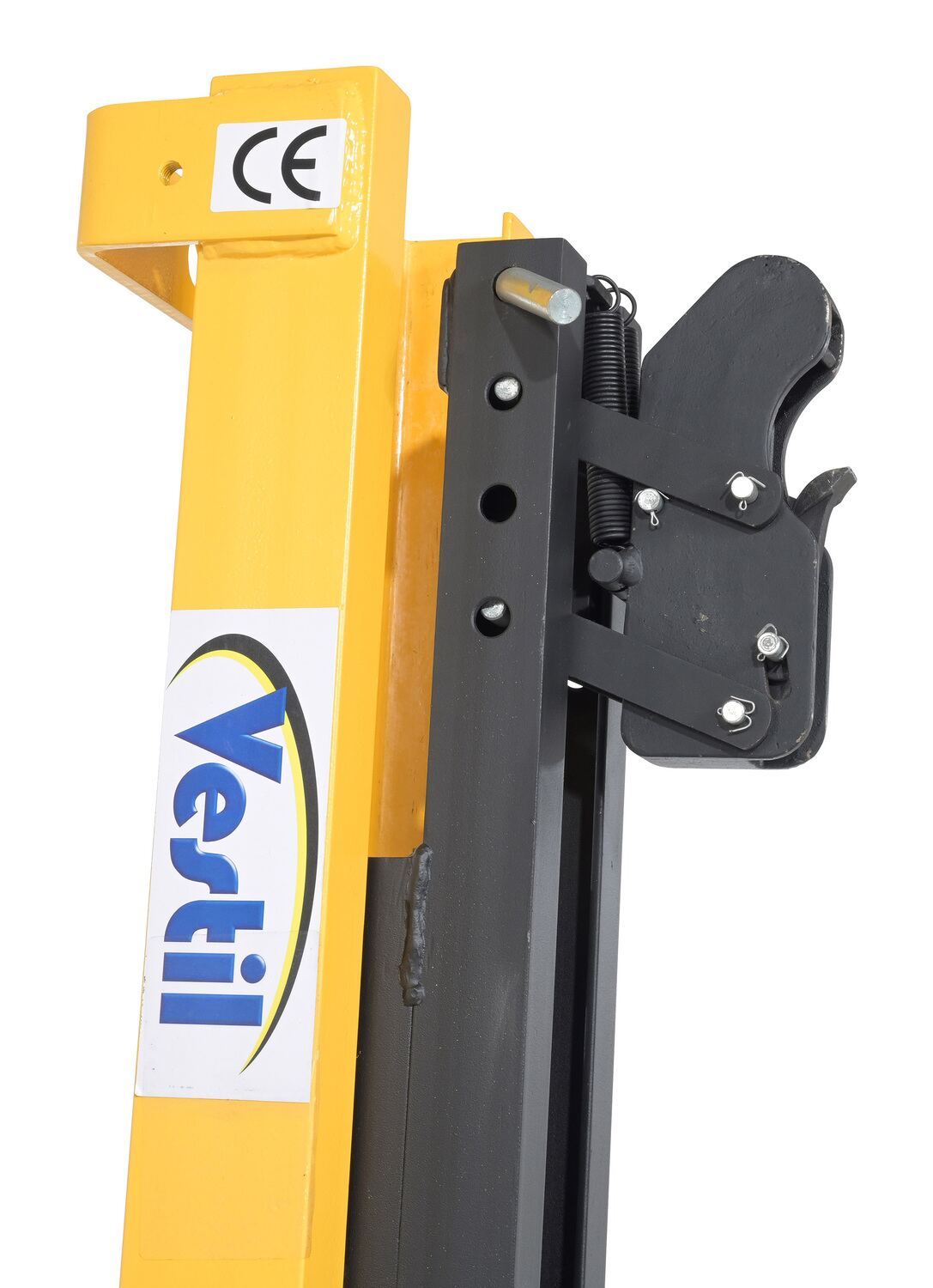

  • Tightly grasps poly and steel drum designs

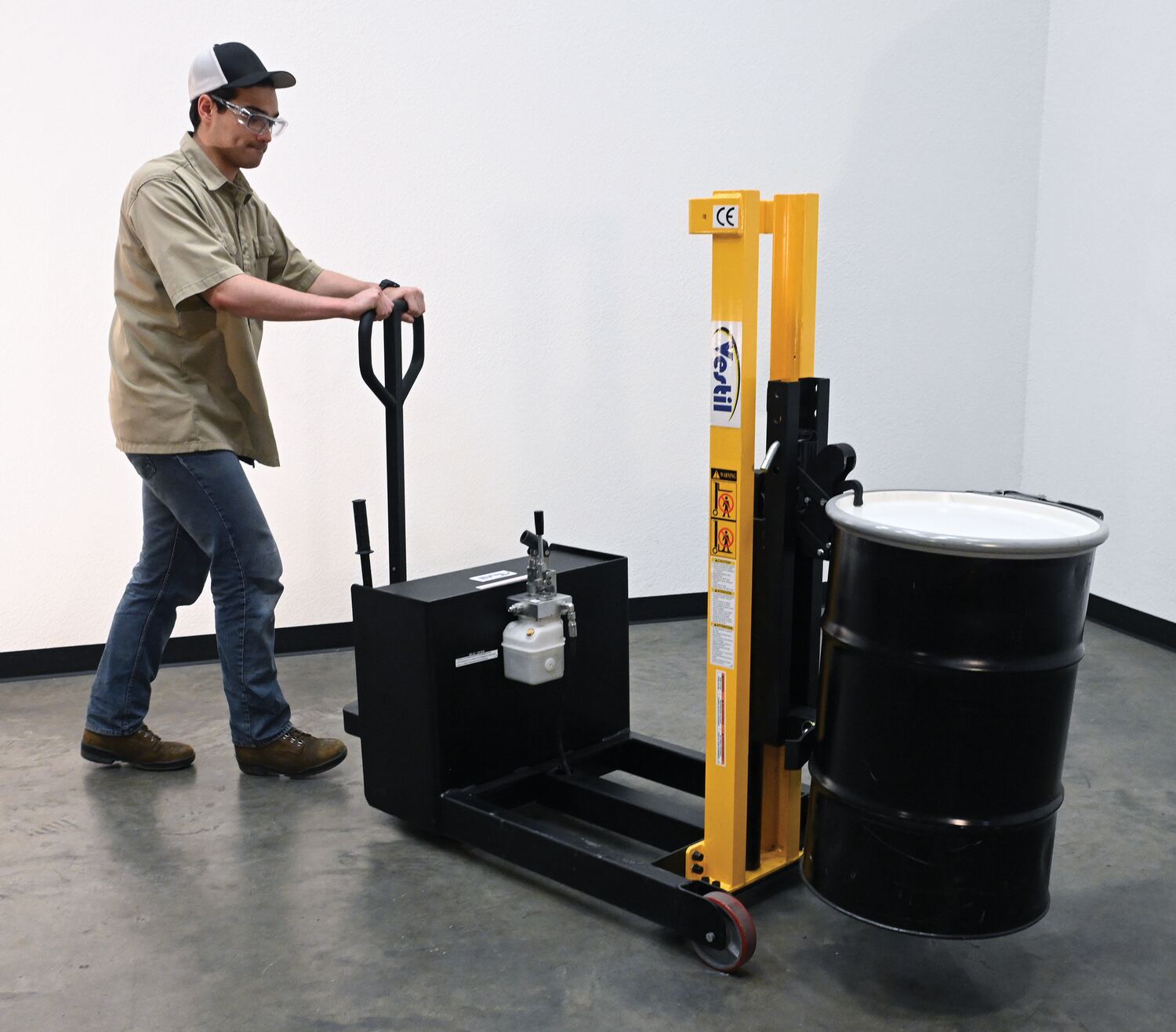

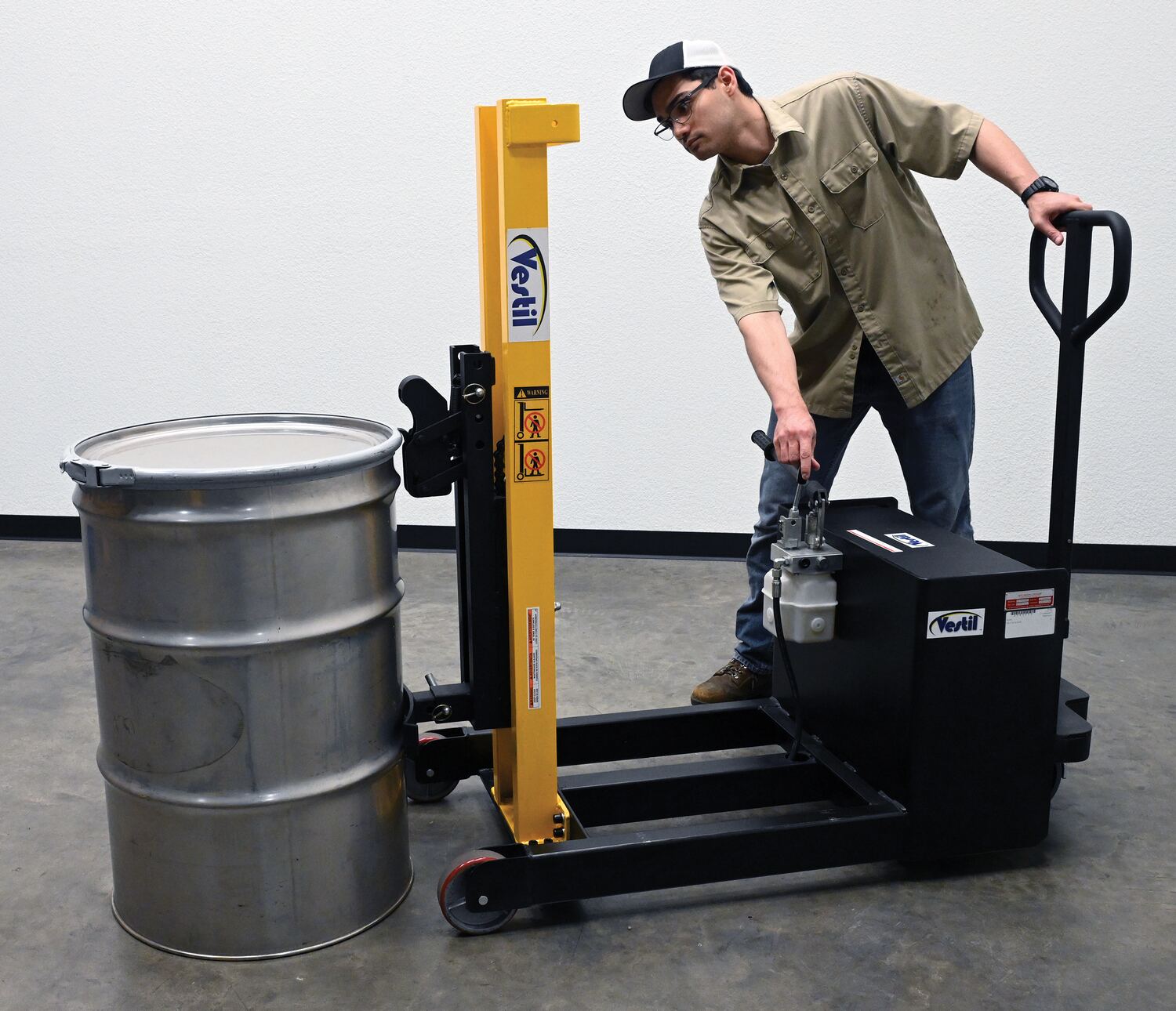

  • Walk behind unit for complete user control
Total Ship Wt.(lbs.): 678 (only 1 package) Size: 26"W x 58"L x 58"H Color: Black / Yellow Non-Returnable QuickShip

Uniform Capacity (lbs.): 700 Raised Height (in.): 49.25 Lowered Height (in.): 29.5

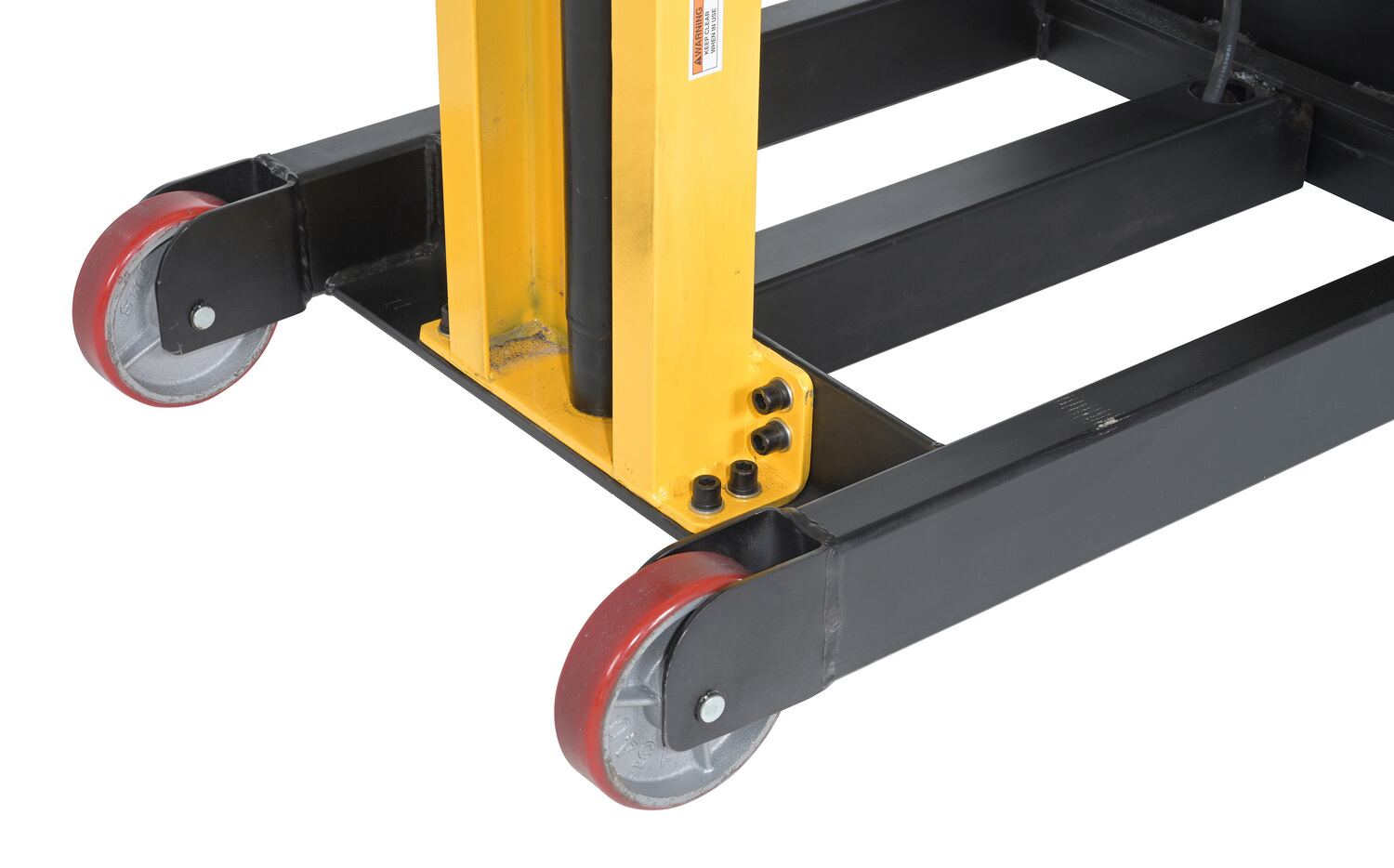

Swivel Caster QTY: 2 Swivel Caster Size (in.): 8x3 Rigid Caster Qty: 2
Rigid Caster Size (in.): 6x3 Caster Material: Poly on Steel Caster Color: Red

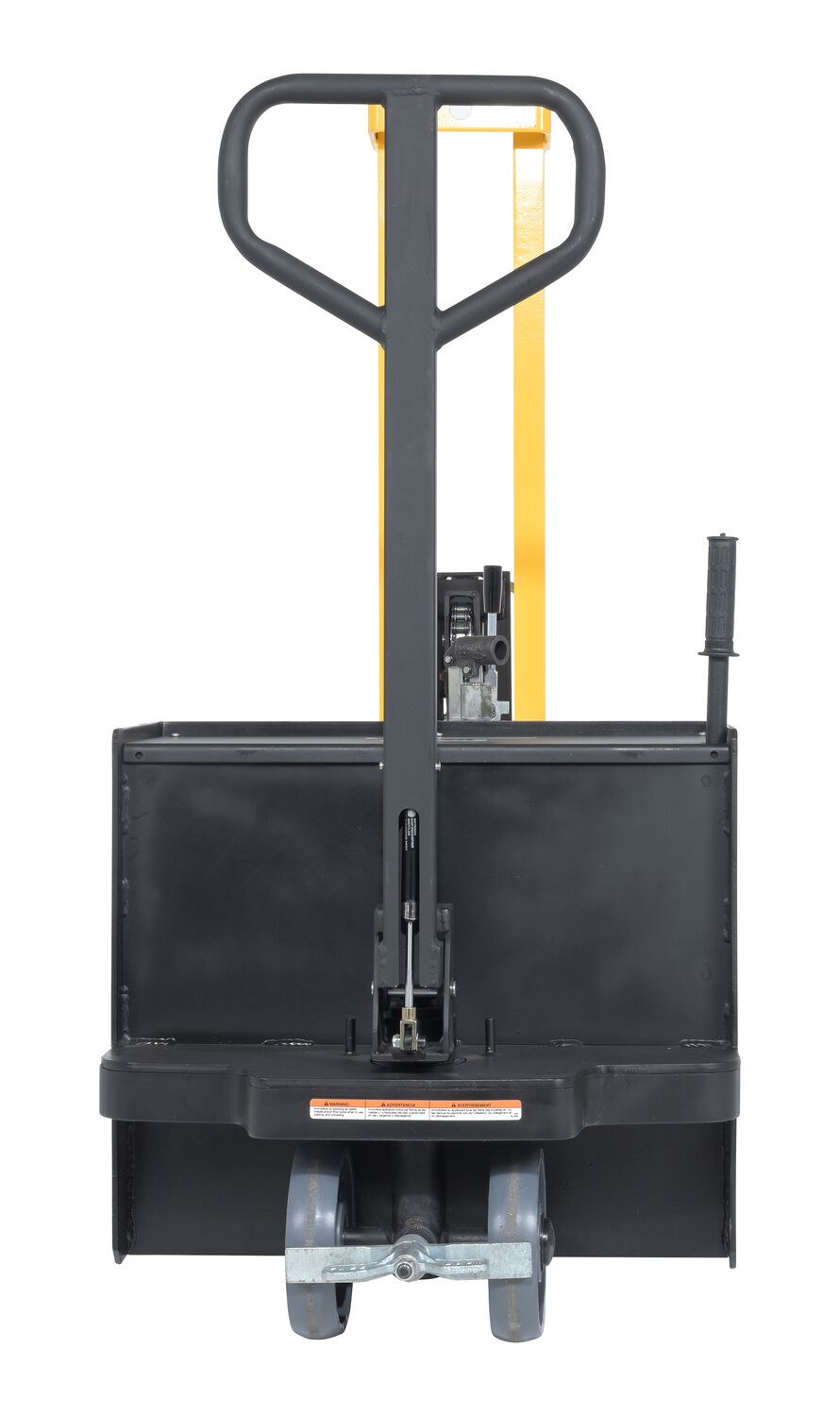

Handle Type: Push Compatible Drum Size (Gallon): 30, 55, 85 Compatible Drum Material: Poly, Steel
Drive Type: Manual Lift Type: Manual

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DRLT-CB-54-MDML
DRLT-CB-54-MDML

Steel Manual Drive Manual Lift Counter Balanced Drum Stacker 12V 52 In. x 26 In. x 58 In. 700 Lb. Capacity Yellow

A counter balanced drum lifter/transporter is an efficient way to move heavy and awkward drums. With a unique design, the structure of the lifter works well in compact areas and loading/unloading drums onto pallets or scales. This drum lifter is manually maneuvered between areas. Height adjustments, both raising and lowering, are made manually by utilizing the hydraulic hand pump handle.

  • Narrow wheel base for quick turning and directional changes
  • Works well with 30, 55, and 85 gallons drums
  • Tightly grasps poly and steel drum designs
  • Walk behind unit for complete user control
Dimensions: 26"W x 58"L x 58"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215373142 GTIN: 00691215373142
Warranty: -- Shipping Weight: 678 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lbs.): 700 Raised Height (in.): 49.25 Lowered Height (in.): 29.5
Swivel Caster QTY: 2 Swivel Caster Size (in.): 8x3 Rigid Caster Qty: 2
Rigid Caster Size (in.): 6x3 Caster Material: Poly on Steel Caster Color: Red
Handle Type: Push Compatible Drum Size (Gallon): 30, 55, 85 Compatible Drum Material: Poly, Steel
Drive Type: Manual Lift Type: Manual
