Model Details

CART-550-SS

CART-550-SS

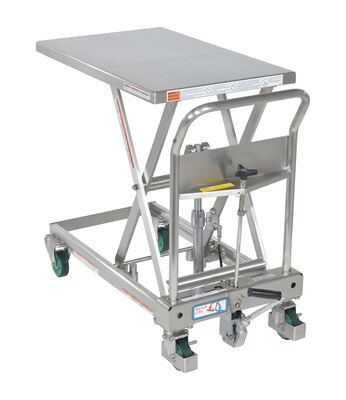

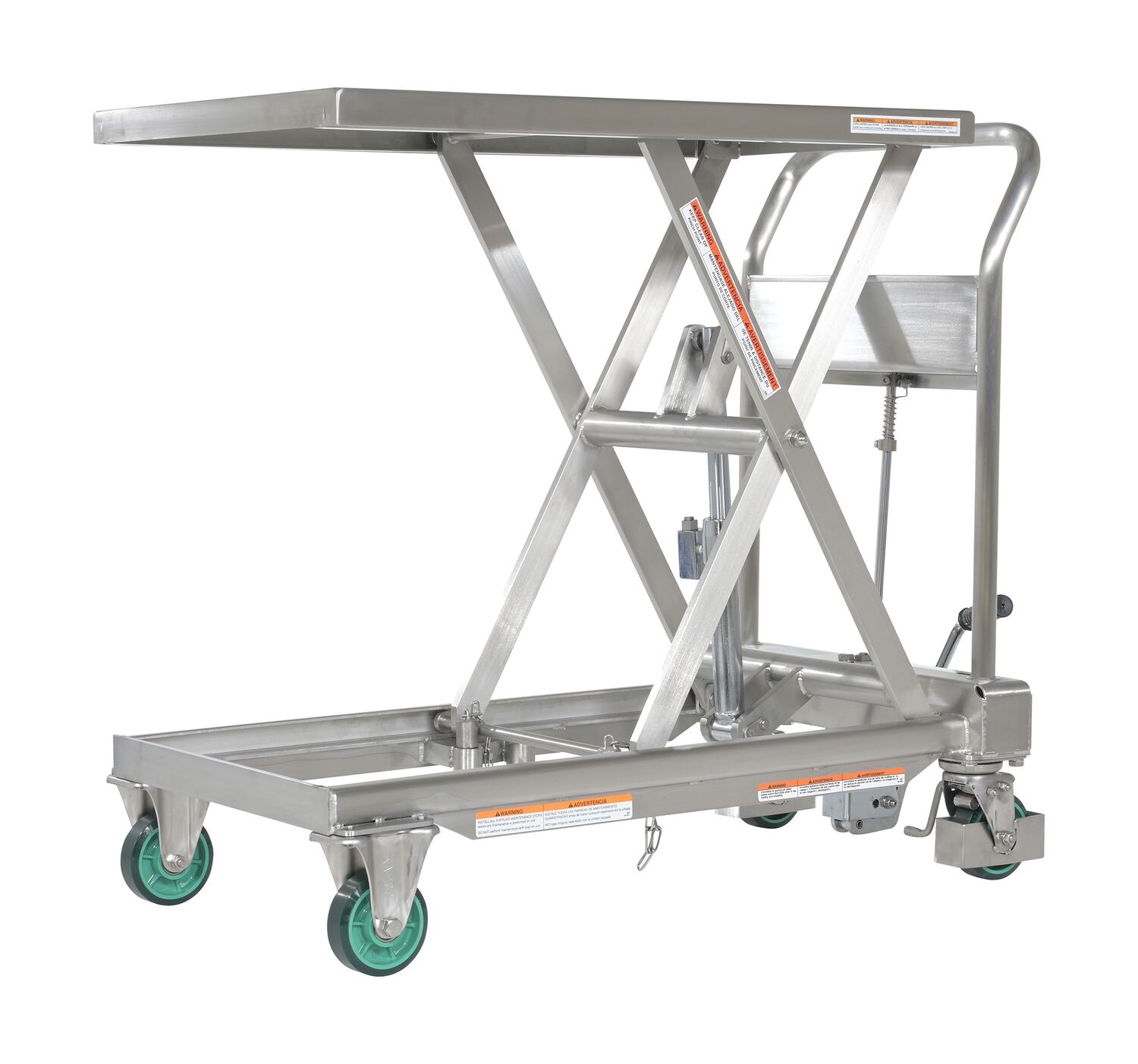

Stainless Steel Hydraulic Cart 19-1/2 In. x 31-1/2 In. 550 Lb. Capacity Silver

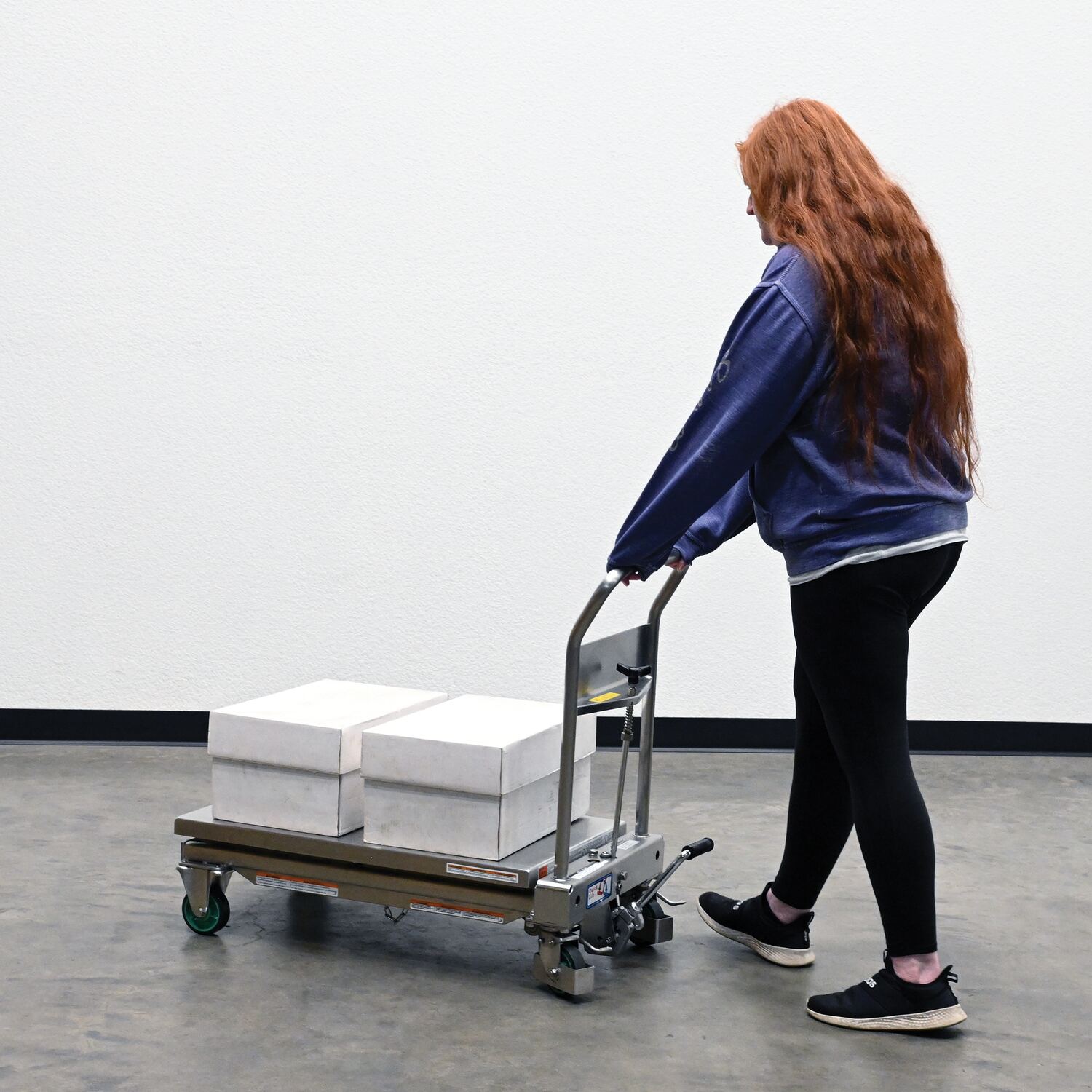

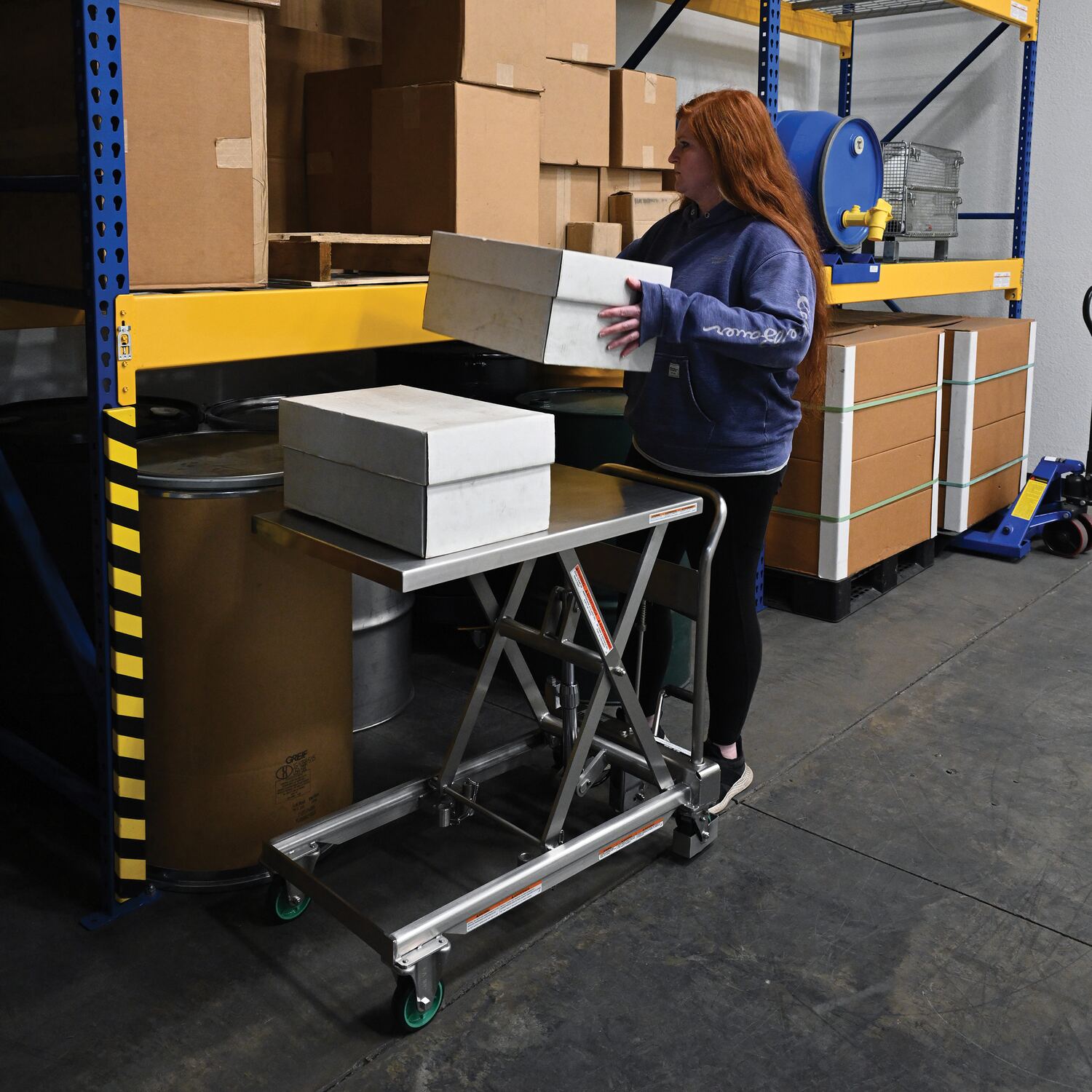

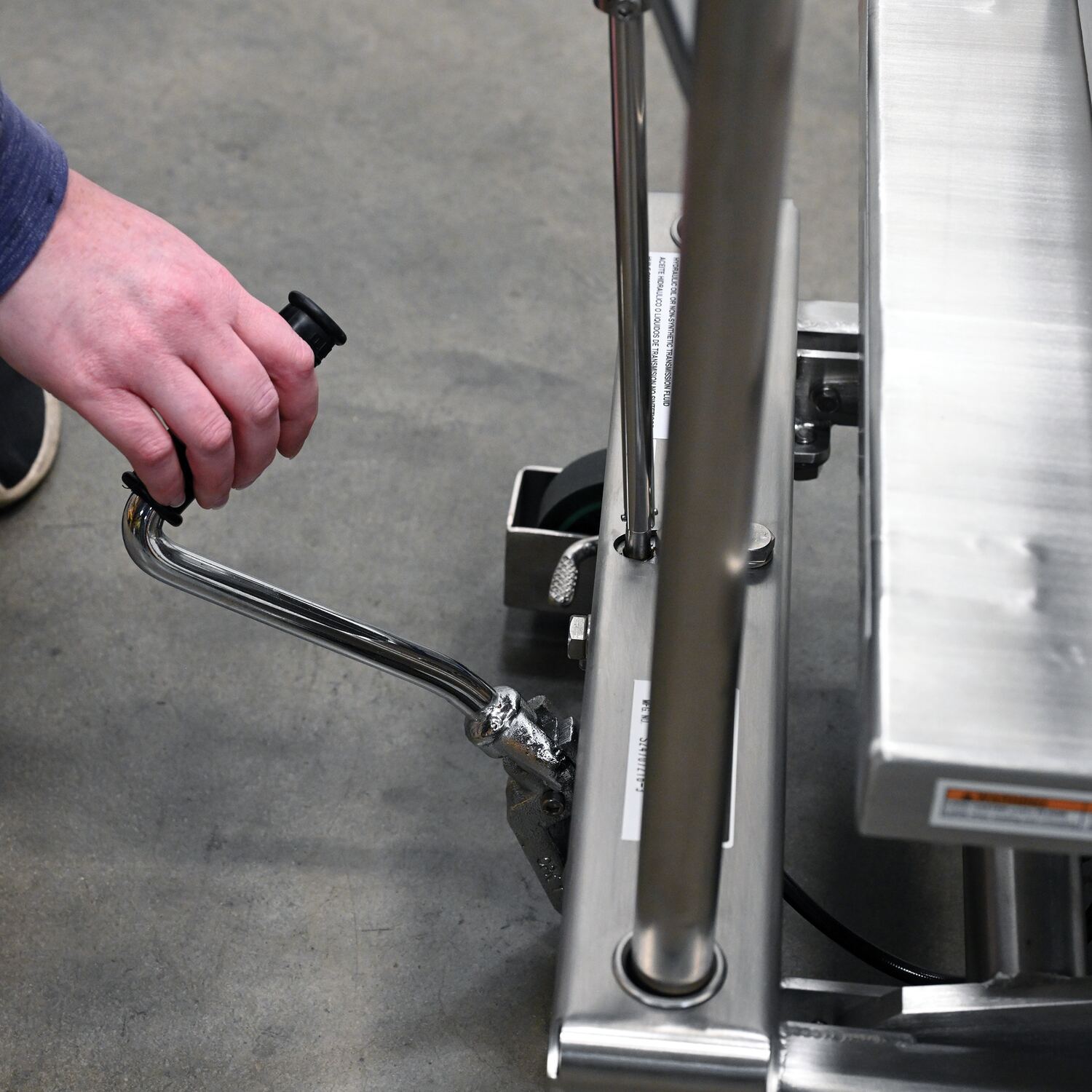

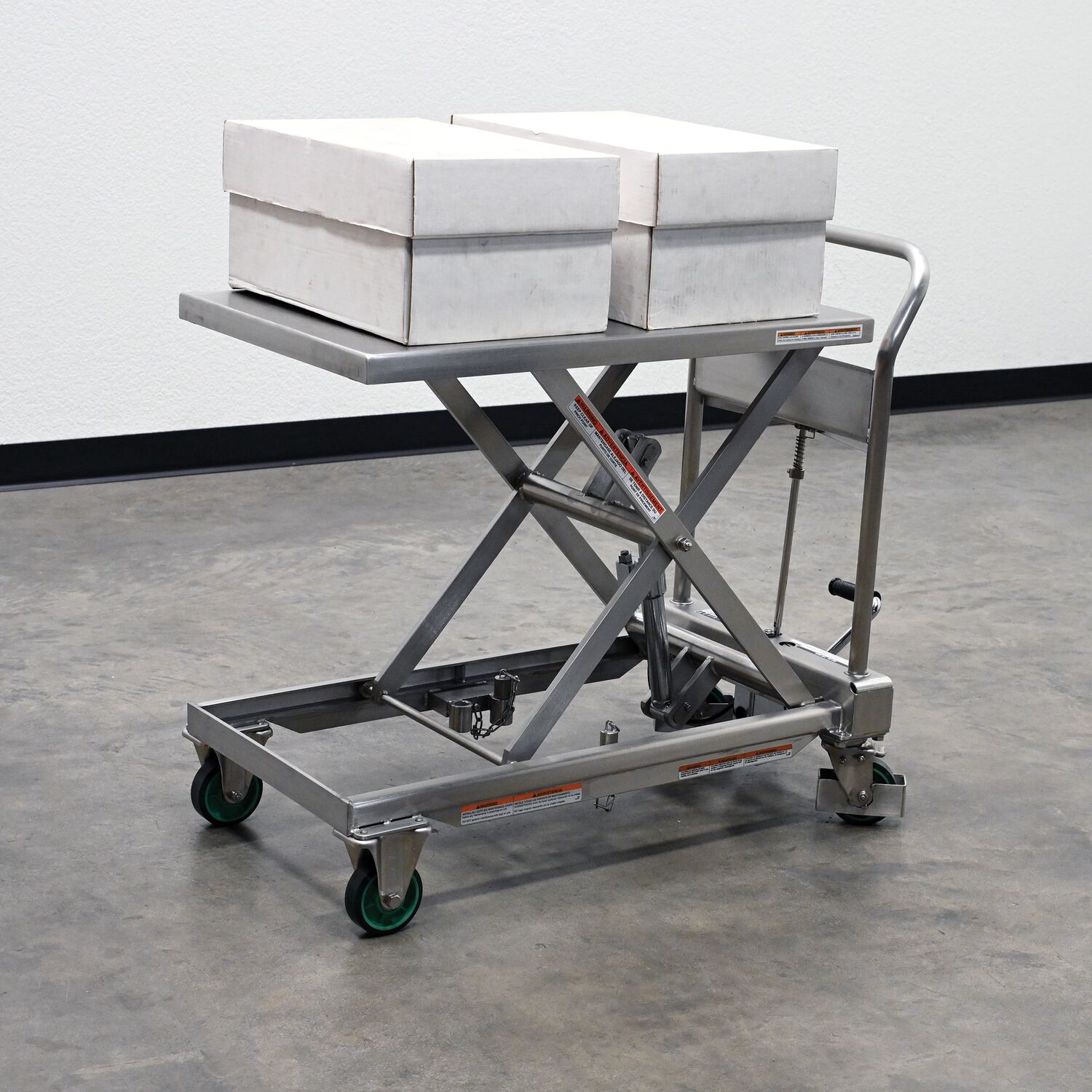

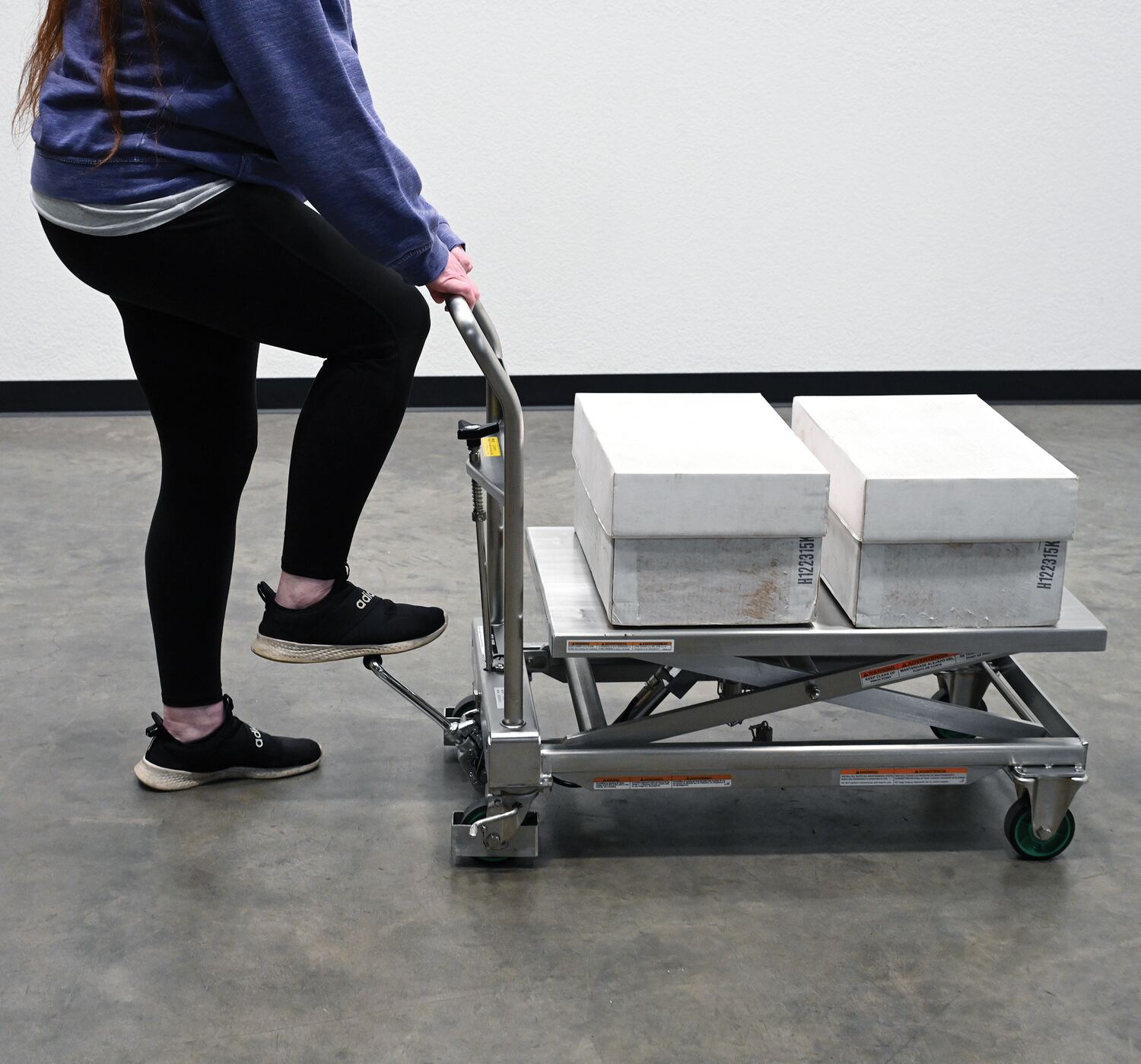

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 179 (only 1 package) Size: 21.2656"W x 41.3125"L x 33.2656"H Color: Silver Non-Returnable QuickShip

Uniform Capacity (lb.): 550 Platform Width (in.): 19-1/2 Platform Length (in.): 31-1/2
Lowered Height (in.): 9-3/4 Raised Height (in.): 33-1/2 Foot Pump Speed: Two

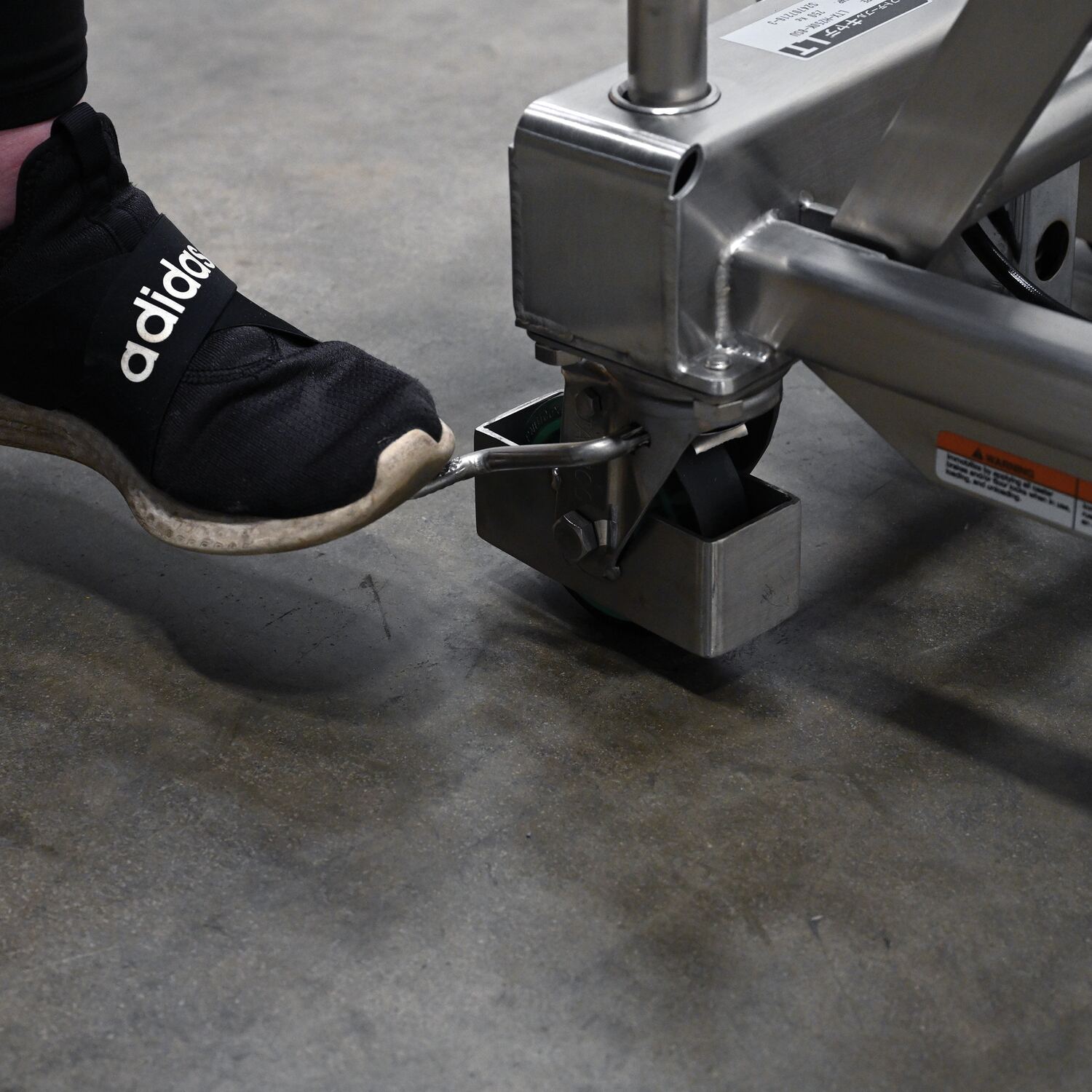

Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4 Caster Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane
Number of Pumps Unloaded at Slow Speed: 24 Number of Pumps Unloaded at Fast Speed: 12 Number of Pumps Loaded at Slow Speed: 27
Elevation per Stroke (in.): 3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-550-SS


CART-550-SS

Stainless Steel Hydraulic Cart 19-1/2 In. x 31-1/2 In. 550 Lb. Capacity Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use
Dimensions: 21.2656"W x 41.3125"L x 33.2656"H Sell UOM: EA-Each Color: Silver
Material: 304 Stainless Steel UPC: 691215010467 GTIN: 00691215010467
Warranty: -- Shipping Weight: 179 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Japan
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 550 Platform Width (in.): 19-1/2 Platform Length (in.): 31-1/2
Lowered Height (in.): 9-3/4 Raised Height (in.): 33-1/2 Foot Pump Speed: Two
Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4 Caster Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane
Number of Pumps Unloaded at Slow Speed: 24 Number of Pumps Unloaded at Fast Speed: 12 Number of Pumps Loaded at Slow Speed: 27
Elevation per Stroke (in.): 3/4
