Model Details

ALLH-2420-4SFL

- Temporarily Unavailable - Please Contact Sales

ALLH-2420-4SFL

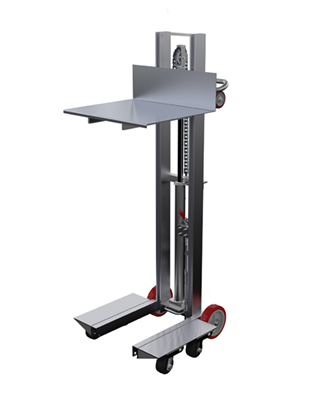

Aluminum Lite Load Lift With Foot Pump Swivel Casters and Manual Floor Lock 24 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a foot pump and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two rollers to ease loading into delivery trucks.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Total Ship Wt.(lbs.): 171 (only 1 package) Size: 27.1875"W x 29.5625"L x 69"H Color: Silver

Uniform Capacity (lb.): 400 Platform Width (in.): 24 Platform Length (in.): 20
Lowered Height (in.): 6-1/8 Raised Height (in.): 54-1/8 Per Foot Pump Lift (in.): 1
Horizontal Load Center (in.): 10 Operation: Foot Pump Rear Wheel Quantity/Diameter/Width (in.): (2) 8 x 2
Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid Front Caster Quantity/Diameter/Width (in.): (4) 4 x 2
Front Caster Material: Mold on Rubber Front Caster Type: Swivel Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Handle Caster Material: Poly on Poly Handle Caster Type: Rigid

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALLH-2420-4SFL


ALLH-2420-4SFL

Aluminum Lite Load Lift With Foot Pump Swivel Casters and Manual Floor Lock 24 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a foot pump and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two rollers to ease loading into delivery trucks.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Dimensions: 27.1875"W x 29.5625"L x 69"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215002271 GTIN: 00691215002271
Warranty: -- Shipping Weight: 171 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 24 Platform Length (in.): 20
Lowered Height (in.): 6-1/8 Raised Height (in.): 54-1/8 Per Foot Pump Lift (in.): 1
Horizontal Load Center (in.): 10 Operation: Foot Pump Rear Wheel Quantity/Diameter/Width (in.): (2) 8 x 2
Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid Front Caster Quantity/Diameter/Width (in.): (4) 4 x 2
Front Caster Material: Mold on Rubber Front Caster Type: Swivel Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Handle Caster Material: Poly on Poly Handle Caster Type: Rigid
