Model Details

AHA-2-8-10

AHA-2-8-10

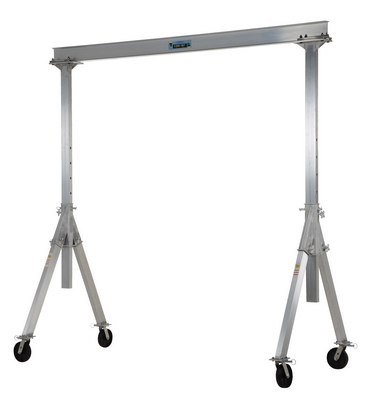

Aluminum Adjustable Height Gantry Crane with Glass Filled Nylon Casters 8 Ft. x 10 Ft. 2000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.

  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 239 (only 1 package) Size: 53.75"W x 96"L x 128"H Color: Silver QuickShip

Uniform Capacity (lb.): 2000 Overall I-Beam Length (ft.): 8 Overall I-Beam Height (ft.): 6
I-Beam Flange Width (in.): 3-5/16 Under I-Beam Range (in.): 92 to 122 Base Width (in.): 53-3/4
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters Caster Material: Glass-Filled Nylon
Caster Top Plate (in.): 4 x 4 1/2 Usable Trolley Travel Distance (in.): 72-1/4 Increment Height Adjustment (in.): 6

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHA-2-8-10


AHA-2-8-10

Aluminum Adjustable Height Gantry Crane with Glass Filled Nylon Casters 8 Ft. x 10 Ft. 2000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.

  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 53.75"W x 96"L x 128"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215001250 GTIN: 00691215001250
Warranty: -- Shipping Weight: 239 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Overall I-Beam Length (ft.): 8 Overall I-Beam Height (ft.): 6
I-Beam Flange Width (in.): 3-5/16 Under I-Beam Range (in.): 92 to 122 Base Width (in.): 53-3/4
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: Swivel (4) Position Locking Casters Caster Material: Glass-Filled Nylon
Caster Top Plate (in.): 4 x 4 1/2 Usable Trolley Travel Distance (in.): 72-1/4 Increment Height Adjustment (in.): 6
